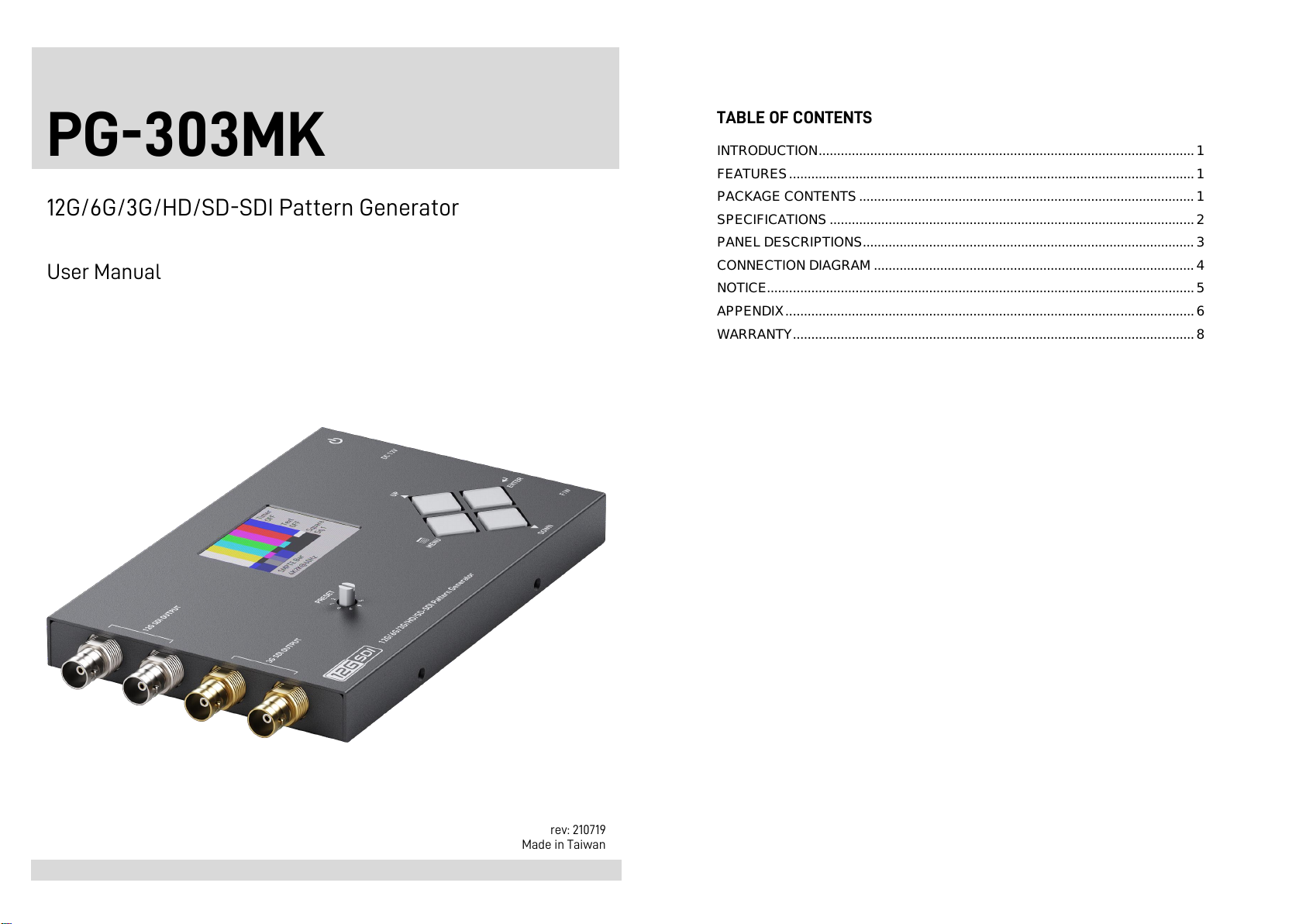

GoMax Electronics PG-303MK User manual

PG-303MK
12G/6G/3G/HD/SD-SDI Pattern Generator
User Manual
rev: 210719
Made in Taiwan
TABLE OF CONTENTS
INTRODUCTION......................................................................................................1
FEATURES..............................................................................................................1
PACKAGE CONTENTS...........................................................................................1
SPECIFICATIONS...................................................................................................2
PANEL DESCRIPTIONS..........................................................................................3
CONNECTION DIAGRAM .......................................................................................4
NOTICE....................................................................................................................5
APPENDIX...............................................................................................................6
WARRANTY............................................................................................................. 8

-1-
INTRODUCTION
The PG-303MK 12G/6G/3G/HD/SD-SDI Pattern Generator is an advanced SDI pattern generator
with multi-format (12G/6G/3G/HD/SD) and multi-pattern support. Besides still and moving video test
patterns, other features such as audio (SMPTE-291M) are also provided. PG-303MK can support up to 8
channel AES compliant audio with 48KHz sample rate. PG-303MK is equipped with four buttons, one
rotary switch and LCD screen to ease the control. This device provides a cost effective way to calibrate
and test SDI enable video devices and displays.
FEATURES
Supported output resolution
NTSC 525@60, PAL 625@50, 720p@23.98, 720p@50,720p@59.94, 720p@60, 1080i@50, 1080i@59.94,
1080i@60, 1080p@23.97, 1080p@24, 1080p@25, 1080p@29.97, 1080p@30, 1080p@50, 1080p@59.94,
1080p@60, 4K2K@23.97, 4K2K @24, 4K2K @25, 4K2K @29.97, 4K2K @30, 4K2K @50, 4K2K @59.94,
4K2K @60
Bit Rate: 2.97 Gbps, 2.967 Gbps, 1.485 Gbps, 1.4835 Gbps, 5.94Gbps, 5.934Gbps, 11.88Gbps,
11.868Gbps,270 Mbps
Resolution: 10bit
Video Patterns
100% Color Bars, Borderline, Random Noise, Check Field, Black, Vertical Lines, Black / White
alternate fields, Full Grey / Full White, Black to White Gradient, Random Generator for all still
patterns, moving squares White noise, Inverse effect with still pattern, Scrolling Title (see
Appendix for illustrations)
Save Settings to Memory Option
Control
By LCM, panel buttons & rotary switch
Video Output
SDI output (SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI)
Supports Preset Modes
PACKAGE CONTENTS
1x PG-303MK
1x 12V power supply unit
1x User Manual
-2-
SPECIFICATIONS
Model Name
PG-303MK
Technical
Role of usage
Pattern generator
SDI standards
12G/6G/3G/HD/SD-SDI
Auto SDI rate detection
Yes
Supported protocols
SMPTE 259M (270Mbps / 360Mpbs)
SMPTE 292M / HDTV (1.485 & 1.485/1.001Gbps)
SMPTE 424/425M (2.97 & 2.97/1.001Gbps)
SMPTE ST-2081 (5.94&5.94/1.001Gbps)
SMPTE ST-2082 (11.88&11.88/1.001Gbps)
Video bandwidth
11.88Gpbs
Data rates
270 / 1483 / 1485 / 2967 / 2970 / 5934 / 5940 / 11868 / 11880 Mbps
Video support
[12G] 4K2K@50/59.94/60
[6G] 4K2K@23.97/24, 25, 30
[3G] 1080p@50/59.94/60 (4:2:2)
[HD] 720p50/59.94/60, 1080p24/30, 1035i50/59.94/60, 1080i50/59.94/60
[SD] NTSC@59.94Hz, PAL@50Hz
SDI signal type
SMPTE-292M / 259M / 424M / ST-2081 / ST-2082
Output impedance
75
Cable (Belden 1694A)
equalization /
transmission
[12G-SDI] up to 50m (165ft) / [6G-SDI] up to 100m (330ft) /
[3G-SDI] up to 200m (660ft)
Audio support
Yes
PCB Stack-up
6-layer board [impedance control —differential 100; single 75]
Output
4x BNC [SDI]
BNC connector
75interlocking socket
[HD] Eye pattern
characteristics
Amplitude: Within 800mV <10%Long time jitter <1.0 UI
Rise overshoot: Less than 2% Timing jitter <1.0 UI
Fall overshoot: Less than 2% Alignment jitter <0.2 UI
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
167 x 112 x 24mm[6.5" x 4.4" x 0.9"]
Package
325 x 196 x 92mm[12.7" x 7.7" x 3.6"]
Carton
490 x 426 x 352mm[1'6" x 1'4" x 1'2"]
Weight
Model
303g [0.6 lbs]
Package
533g [1.1 lbs]
Power supply
12VDC
Power consumption
5 Watts [max]
Operation temperature
0~40C [32~104F]
Storage temperature
-20~60C [-4~140F]
Relative humidity
20~90% RH [no condensation]

-3-
PANEL DESCRIPTIONS
1. SDI OUT1: 12G/6G/3G/HD/SD-SDI output
2. SDI OUT2: 12G/6G/3G/HD/SD-SDI output
3. SDI OUT3: 3G/HD/SD-SDI output
4. SDI OUT4: 3G/HD/SD-SDI output
5. Rotary Switch: for 0-7 preset mode
6. LCD: 2.0” LCD monitor
7. PUSH BUTTON:
8. Micro USB: Micro-USB port for F/W update
9. +12V DC: 12V DC power jack
10. Power Switch: Power ON/OFF
Button
Function
Menu
Trigger the menu operation
Enter
Enter the menu item
Up
Choose the last menu item
Down
Choose the next menu item
-4-
CONNECTION DIAGRAM

-5-
NOTICE
1. Due to the high frequency bandwidth and low jitter requirement of SDI signals, it is strongly
recommended to use just one SDI OUTPUT with one 75 ohm.
2. The features including new timings and patterns may increase without notice after the firmware is
updated! This may affect the menu items, but will keep the same framework for users!
-6-
APPENDIX
Built-in Video Patterns

-7-
-8-
WARRANTY
The SELLER warrants the PG-303MK 12G/6G/3G/HD/SD-SDI Pattern Generator to be free from
defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an
authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The
SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident,
disaster, abuse or any unauthorized modifications including static discharge and power surges.
Unit that fails under conditions other than those covered will be repaired at the current price of
parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of
reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume
the risk of loss or damage in transit. Under no circumstances will a unit be accepted without a return
authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations,
any other implied warranty or fitness or merchantability for any particular purpose, all of which are
expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible
for shipping charges to and from the SELLER. Cables are limited to a 30 day warranty and cable must be
free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However,
The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting
from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the
technical information contained herein regarding the PG-303MK features and specifications is subject
to change without further notice.
