Gomax SP-3004KG User manual

1x4 12G/6G/3G/HD/SD-SDI
Distribution Amplifier with
Reclocking
User Manual
rev: 181220
Made in Taiwan
SP-3004KG
Safety and Notice
The SP-3004KG 1x4 12G/6G/3G/HD/SD-SDI Distribution Amplifier with Reclocking has been
tested for conformance to safety regulations and requirements, and has been certified for
international use. However, like all electronic equipments, the SP-3004KG should be used with care.
Please read and follow the safety instructions to protect yourself from possible injury and to minimize
the risk of damage to the unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
● Use only the power adapter and power cords and connection cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION ................................................................................................................... 1
FEATURES ........................................................................................................................... 1
PACKAGE CONTENTS ........................................................................................................ 1
SPECIFICATIONS ................................................................................................................. 2
PANEL DESCRIPTIONS ....................................................................................................... 3
HARDWARE INSTALLATION ............................................................................................... 4
WARRANTY .......................................................................................................................... 5
SIGNAL MEASUREMENT .................................................................................................... 6

1
INTRODUCTION
The SP-3004KG 1x4 12G/6G/3G/HD/SD-SDI Distribution Amplifier with Reclocking receives one
SDI input, perfectly duplicates it, and re-transmits four SDI outputs for real time multi-viewing. It is a
reliable video device splitting a SDI, HD-SDI, 3G-SDI, 6G-SDI, or 12G-SDI video source to four SDI
compliant displays at the same time.
FEATURES
● 12G/6G/3G/HD/SD-SDI distribution
● Four separately buffered and reclocked outputs*
● Cable equalization and signal retiming
● LED indication of signal lock and video rate
● Passes ancillary data and embedded audio
● Provides automatic input cable equalization (Belden 1694A) up to 180m (594ft)@3G, 100m
(330ft)@6G and 70m(230ft) @12G
● Reclocking SDI signals for cascading and thus longer transmission
● Inter-locked power supply for better fixedness
Table #1
Output Port
Pair A Output 1 & 2
Pair B Output 3 & 4
PACKAGE CONTENTS
● 1x SP-3004KG
● 1x 5V power adapter
● 1x BNC 75 ohm terminator
● 1x User Manual
*Due to the super high frequency and lower jitter requirement for 12G SDI signals, to have
the best performance, it is strongly recommended to use one 75 ohm terminator if the
paired SDI is not in use.
Please see the following table for 12G SDI output pairing.
2
SPECIFICATIONS
Model Name SP-3004KG
Technical
SDI standard SD/HD/3G/6G/12G-SDI
Multi-Rate Support Auto detection of SD, HD, 3G, 6G or 12G Signals
SDI Compliance SMPTE 424M, SMPTE 292M, SMPTE 344M, SMPTE 259M, DVB-ASI,
ST-2081(6G), ST2082(12G)
SDI Data rates 1.485 / 2.97 / 5.94 / 11.88 Gbps
Video bandwidth [11.88Gpbs & 11.88/1.001Gbps]
Output impedance 75Ω
Reclocking Yes
Cable equalization
[12G] up to 70m (230ft)
[6G] up to 100m (330ft)
[3G] up to 180m (594ft))
Audio support Yes
RP-198 pathological
patterns Immune
PCB stack-up 4-layer board [impedance control — differential 100Ω; single 75Ω]
Input 1x BNC [SDI]
Output 4x BNC [SDI]
BNC connector 75Ω inter-locked socket
Eye pattern
characteristics[12G]
Amplitude: Within 800mV (<10%)
Rise/Fall time: Less than 35ps
Timing jitter: <1.0 UI (10Hz to
1188MHz)
Alignment jitter: <0.3 (100KHz to
1188MHz)
Mechanical
Housing Metal enclosure
Dimensions
[L x W x H]
Model 77 x 42 x 28 mm [3" x 1.7" x 1.1"]
Package 198 x 137 x 74mm [7.8" x 5.4" x 2.9"]
Carton 420 x 400 x 300mm [1'4"x 1'3" x 11.8"]
Weight Model 119g [4.2 oz]
Package 346g [0.7 lbs]
Fixedness Inter-locked power supply
Power supply 5V 1A DC
Power consumption 3 Watts [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
The measurement results are from Phabrix QX with SDI through 1m (3.3ft) longBelden
1694A.

3

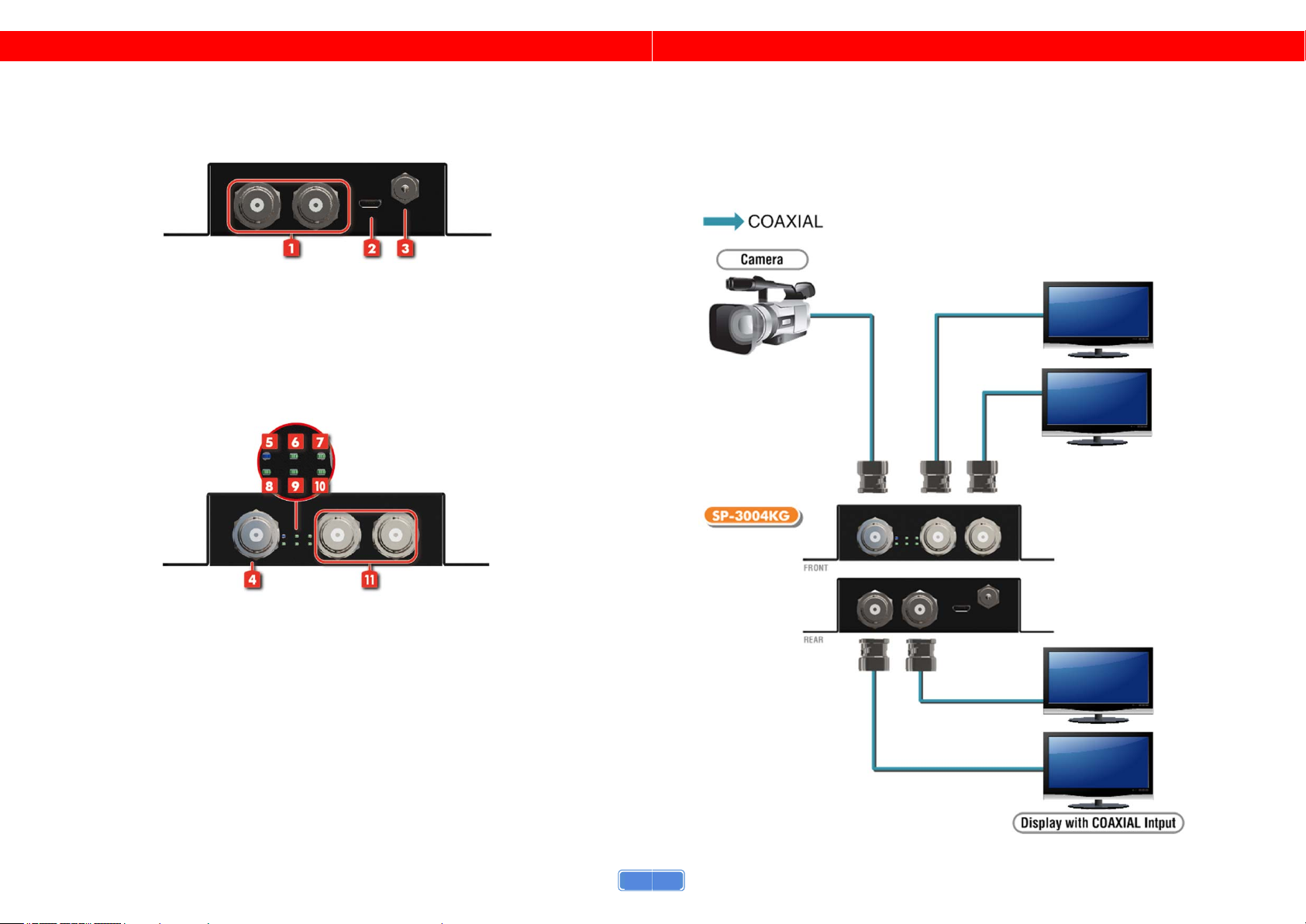

PANEL DESCRIPTIONS
Front Panel
1. 12G/6G/3G/HD/SD-SDI output
2. Micro-USB for F/W update
3. 5V DC power jack
Rear Panel
4. 12G/6G/3G/HD/SD-SDI input
5. Power LED indicator
6. 12G Signal LED indicator
7. 6G Signal LED indicator
8. 3G Signal LED indicator
9. HD Signal LED indicator
10. SD Signal LED indicator
11. 12G/6G/3G/HD/SD-SDI output
4
HARDWARE INSTALLATION
1. Connect a camera or other devices equipped with 12G/6G/3G/HD/SD-SDI outputs to SP-3004KG
12G/6G/3G/HD/SD-SDI input.
2. Connect devices equipped with 12G/6G/3G/HD/SD-SDI inputs (e.g. monitors or video processors) to
SP-3004KG 12G/6G/3G/HD/SD-SDI outputs.
3. Plug power adapter cable into 5V DC power jack.

5
WARRANTY
The SELLER warrants the SP-3004KG 1x4 12G/6G/3G/HD/SD-SDI Distribution Amplifier
with Reclocking to be free from defects in the material and workmanship for 1 year from the
date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good
working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit,
provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized
modifications including static discharge and power surge. This warranty is offered by the
SELLER for its BUYER with direct transaction only. This warranty is void if the warranty seal on
the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price
of parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the
day of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the
unit or assume the risk of loss or damage in transit. Under no circumstances will a unit be
accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without
limitations, any other implied warranty or fitness or merchantability for any particular purpose, all
of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables are limited to a 30 day
warranty and cable must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate.
However, The SELLER assumes no responsibility for any inaccuracies that may be contained in
this manual. The SELLER will NOT be liable for direct, indirect, incidental, special, or
consequential damages resulting from any defect or omission in this manual, even if advised of
the possibility of such damages. Also, the technical information contained herein regarding
the SP-3004KG features and specifications is subject to change without further notice.
6

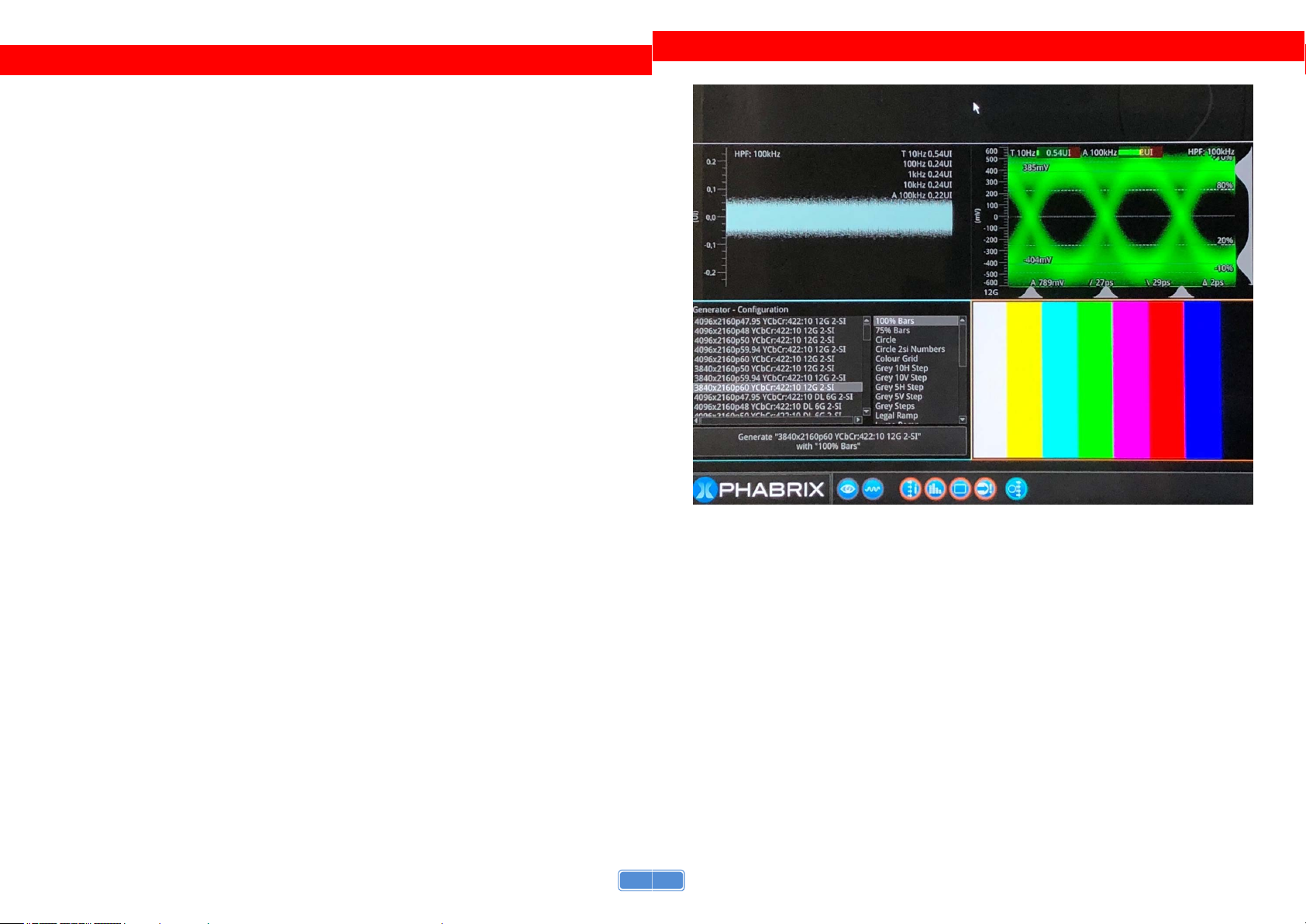

SIGNAL MEASUREMENT
