Goodbaby SM35PTZ User manual

BABY MONITOR SM35PTZ
USER MANUAL
BE WITH YOUR BABY FOR EVERY MOMENT
(Digital Wireless Video Baby Monitor With 3.5 inches Color Screen)

[e-mail]
THANK YOU FOR PURCHASING GOODBABY BABY MONITOR.
PLEASE ACTIVE AND EXTEND YOUR WARRANTY NOW.
(Register within 7 days after receiving your product)
To register your product
Visit https://goodbaby.top/warranty
Finished the form on the website
That is it! Your product is now active and extend warranty!
If you are unsatisfied with your product, please contact us via
[e-mail] or https://goodbaby.top
before leaving a negative review.
We will definitely give you a satisfactory solution.

[e-mail]
Congratulation!
Now you can take care of your babies anywhere and anytime!
Please read the user manual before use!
Please retain your original dated sales receipt for your to records.
For warranty service of your baby monitor, you will need to provide a
copy of your dated sales receipt to confirm warranty status.
Registration is not required for warranty coverage.
Before you use the product, we recommend you fully charge the battery
in the parent unit, so that it continues to work if you disconnect it from
the power supply to carry it to another location.
Please read the safety instructions carefully.
Please make sure you have the following in the packing.
1. Parent unit x 1
2. Baby unit x 1
3. Adapter x 2
4. User manual x 1
5. Screw set x 1
- 01 -

- 02 -
[e-mail]
1. SAFETY INSTRUCTIONS :
Warning-Strangulation Hazard-Children have STRANGLED in cords.
Keep this cord out of children (more than 3 ft/0.9m away). Do not
remove this tag that affixed to the cord of the unit.
Parent unit and baby unit with power cords should never be hung on or
near the crib. This product is not a toy and should be kept out of children's
reach. This product contains small parts. Be care when unpacking and
assembling the product.
Read and keep instrutions: All the safety and operating instructions
should be read before the video baby monitor is operated.
This product cannot replace responsible adult supervision.
Water and moisture: This product is designed for indoor use only. The
unit should not be exposed to rain, moisture, dripping or splashing. No
objects filled with liquid should be placed on top of, or beside the
product, such as a glass or vase. This item should not be used near water.
DO NOT: Use the appliance if the cord or plug is damaged . If your baby
monitor is not operating properly or has suffered any damage, contact
service center to request inspection and repair it in order to avoid any
possible risk.
DO NOT: Attempt to repair or adjust any of the electrical or mechanical
functions of the unit since, if you do, the guarantee will be made void.
Ventilation: This baby monitor should not be used on a bed, sofa, rug or
similar surface that may block the ventilation openings, or be placed in an

- 03 -
[e-mail]
enclosed area, such as a bookcase or drawer that may impede air flow.
Keep away from sources of heat: This unit should not be exposed to direct
heat sources such as a candle, replace, radiator, heat register, stove or other
appliance that emits heat. The unit should not be left in direct sunlight.
Power source: This unit should only be used with the AC power adapters
included in this package.
FCC STATEMENTS:
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interfer-
ence that may cause undesired operation.
NOTE 1: This equipment complies with FCC RF radiation exposure complic-
nce requirements. The antenna(s) used for this equipment must be
installed and operated with a minimum distance of least 20cm between
the radiator and your body. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter. Use of
other accessories may not ensure complicnce with FCC RF.
NOTE 2: Any changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user's authority to
operate the equipment.

- 04 -
[e-mail]
2. PRODUCT OVERVIEW

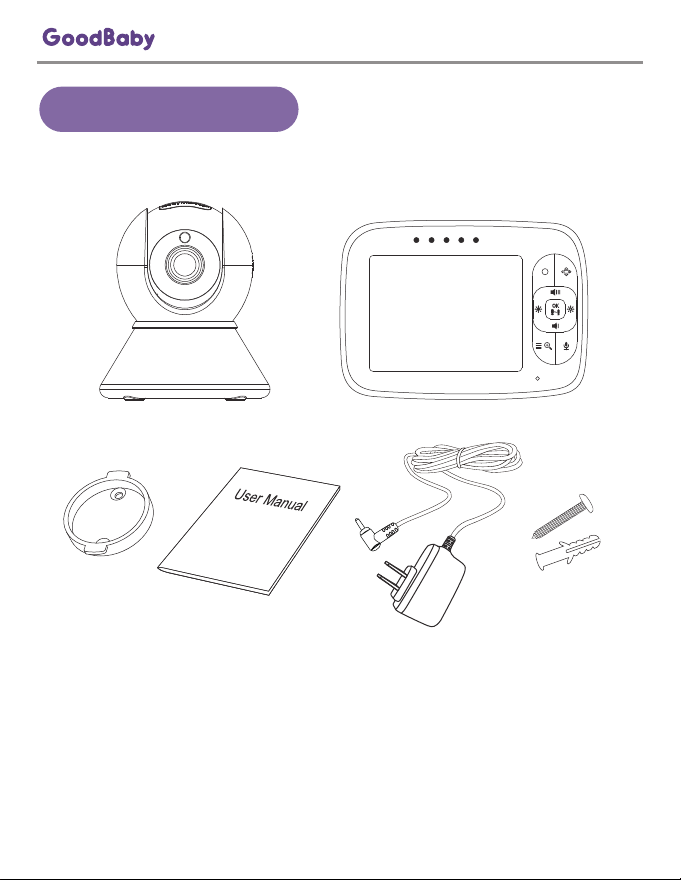

2.1 What’s included:
1. Parent unit x 1
2. Baby unit x 1
3. Adapter x 2
4. User manual x 1
5. Screw Set x 1

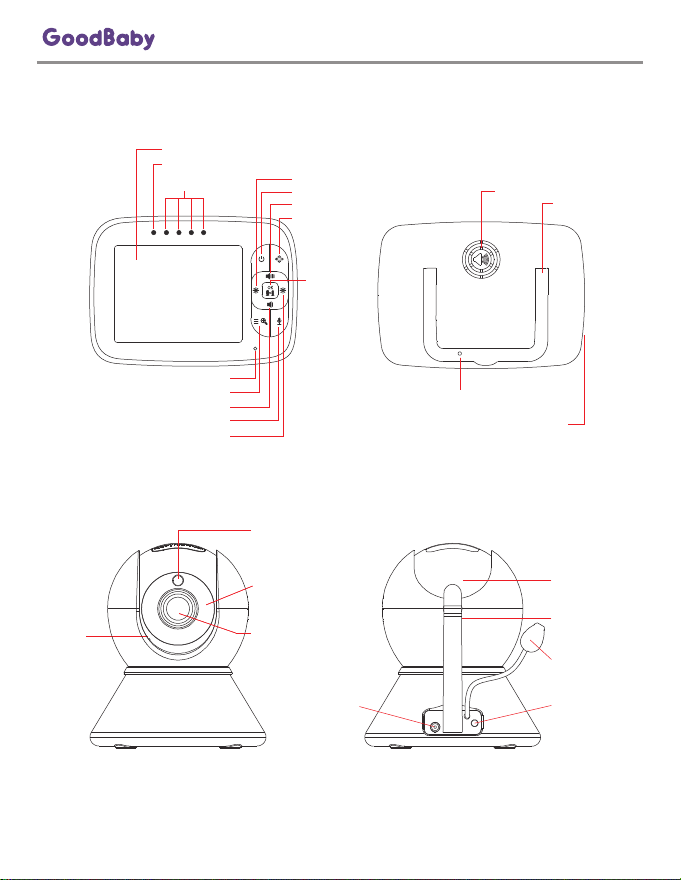

2.2 Parent Unit:
2.3 Baby Unit
- 05 -
[e-mail]
LCD screen
Brightness-/Left
Light sensor
Infrared LEDs
CMOS senor
Speaker
Speaker
Antenna
Pair Key
Temperature
sensor
Reset(behind the kickstand)
DC-Jack
DC-Jack
Support
Mic
Mic
Menu/Zoom
Volume-/Down
Talk to Baby
Brigthess+/Right
Power on/off
Volume+/Up
Pan/Tilt
OK
Volume Indicator
Power/Charging Indicator

Signal
Alarm
Lullaby
Baby Unit
Volume
Brightness
ECO
Battery
Zoom
Night vision
Talk to baby
Temperature
2.2 Icons Overview:
- 06 -
[e-mail]

3. Getting Started

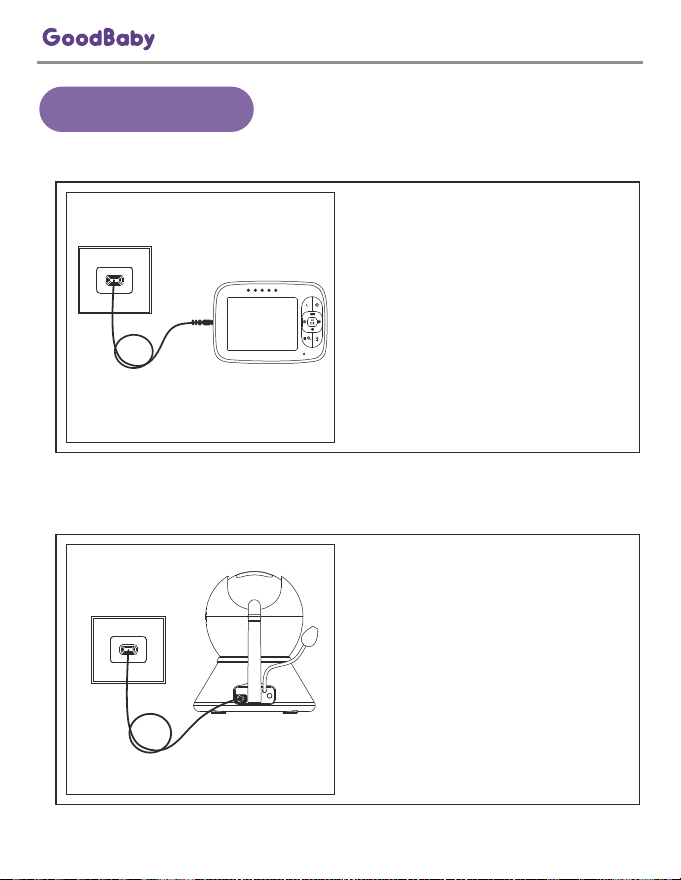

3.1 Charge the Parent Unit:
3.2 Turn On the Baby Unit:
- 07 -
[e-mail]
Full charge the Parent Unit before using it.
When charging, the charging indicator will turn red.
When the unit is turned on, the charging indicator
will turn green.
Step 1:
Use the provide AC adapter to connect the Baby
Unit to an AC outlet.
Note: The baby unit needs to be connected to the
AC Adapter when using.
Step 2:

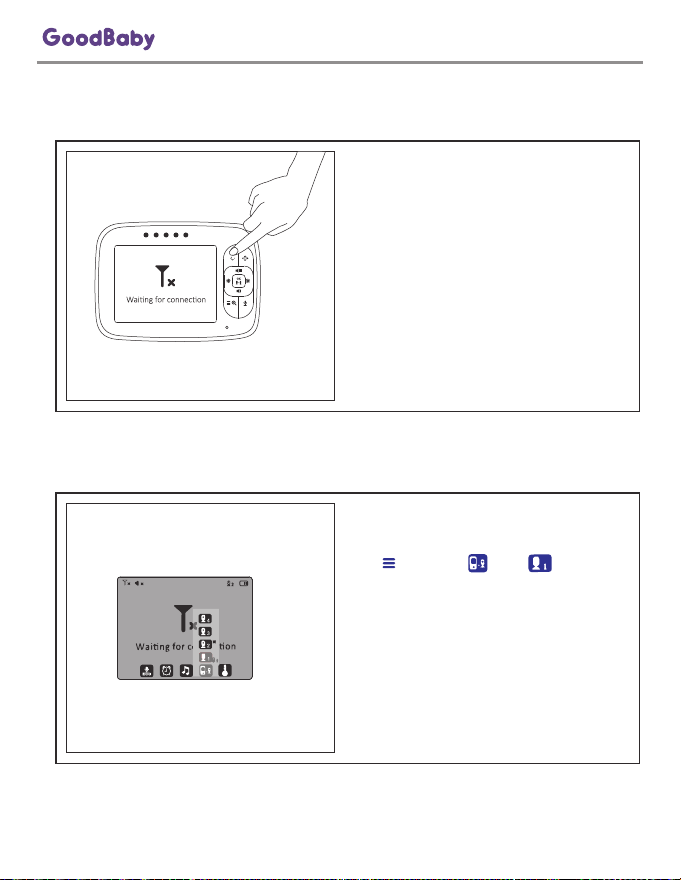

3.3 Turn On the Parent Unit:
3.4 Prepare for Connecting the Baby Unit:
Press and hold the power button.The animation
”Waiting for connection” will be displayed on the
screen.
Step 3:
Press and choose select , the icon will
flash, then wait for connect.
Step 4:
- 08 -
[e-mail]

3.5 Pair the Parent Unit with the Baby Unit:
Long press the “Pair” button at the back of the
baby unit until the parent unit shows images.
If failed, choose another baby unit channel
( ) and try to pair again.
Step 5:
- 09 -
[e-mail]

4. Function Operation
4.1 Pairing More Than One Baby Unit with Parent Unit
1. Press the Menu/Exit key , then the menu will display.
2. Press the Left button or RIGHT button until the Baby Unit icon is
highlighted, then press UP button or DOWN button to select the
Baby Unit to pair.
3. Press button to start pairing.
4. While the LED is flashing, press the PAIR button on the back of the Baby
Unit.
5. Once paired, the screen will display the image from the Baby Unit.
6. If failed, please repeat the steps above.
7. After connecting with all the Baby Unit, press key to view/scan the
Baby Unit.
8. In Scan Mode, the scan icon will be displayed on the top of screen.
4.2 Digital Zoom & Pan/Tilt
1. Press and hold for around 2 seconds to operate Zoom in/ out.
2. In the Zoom Mode, press and hold the Up/Down/Left/Right button to
Pan/Tilt the image. In digital zoom mode, the zoom icon will be
displayed on the top of the screen.
Note: If you want to adjust the volume/brightness, you have to exit the
Zoom mode before operation.
- 10 -
[e-mail]

4.3 Talk to Baby
To talk to your baby, press and hold on the parent unit. Release the
button when you have finished talking, listen to the sound from the baby’s
room again. Bear in mind that you can’t listen to your baby whilst you’re
talking to him/her. To listen to him/her, you have to stop pressing this
button.
4.4 INFRARED NIGHT VISION (Automatic)
The infrared night vision function allows the camera to pick up images of
your baby or the monitored area in dark or low light conditions.
In this mode, only black and white images will be displayed on the monitor.
The optimum image is 6 feet distance between baby unit and object.
4.5 ECO SETTING
This mode allows you to control the sound activation of your baby monitor.
The ECO default setting is OFF. If there is no sound around the camera
within 30 Seconds, it will stops transmitting.
The monitor screen turns off when the camera is not transmitting.
When the camera detects the sound is louder than set sensitivity level, it
will start transmitting the signal to the monitor again.
To change the ECO level, please follow the next instructions:
1. Press the Menu/Exit key and the menu will pop up.
2. Press the LEFT key or RIGHT key until the ECO icon is highlighted.
Then press UP key or DOWN key to select desired level.
3. Press key to confirm.
- 11 -
[e-mail]

Note:
ECO-LOW means Low sensitivity level, requiring higher sound level to
reactivate the transmission.
ECO-MID means Medium sensitivity level, requiring medium sound level to
reactivate the transmission.
ECO-HIGH means High sensitivity level, requiring low sound level to
reactivate the transmission.
OFF means Constant transmission – no standby mode.
When ECO function is on, a ECO indicator will be displayed on top of the
LCD screen. To view a video signal on your parent unit when ECO function
is on, briefly press the power key.
4.6 Alarm Setting
You can use the alarm to remind yourself to feed baby/change
diapers/sleep, etc.
1. Press the Menu/ Exit key and the menu will pop up.
2. Press the LEFT key or RIGHT key until the alarm icon is
highlighted.
3. Press UP key to increment or press DOWN key to decrement.
4. Press OK key to confirm.
Note: If the alarm is ringing and no one to answer, then the ringing will last
1 minute and then stop, after 3 minutes the ringing will start again.
The ringing will sound up three times total if no one answer.
- 12 -
[e-mail]

4.7 LULLABY SETTING
You can soothe the baby to sleep by playing a gentle lullaby from baby
unit
1. Press the Menu/Exit key and the menu will pop up.
2. Press the LEFT key or RIGHT key until the lullaby icon is
highlighted.
3. Press UP key or DOWN key to select.
4. Press OK key to confirm.
4.8 Video Pan/Tilt
1. Press the shot-cut key enter into the Pan/Tilt mode.
2. Press or key to Pan the Video.
3. Press or key to Tilt the video.
4. Press the shot-cut key to exit the Pan/Tilt mode.
Note: During the Pan/Tilt mode can not use the navigation key to adjust
the Volume and the Brightness.
- 13 -
[e-mail]

5. TECHNICAL DATA
5.1 System General
Frequency
Type of Moduiation
Transmittng Power
Operation Environment
Operating Range
Power adapter
LCD
Rechargeable battery for monitor
Operating time with battery fully
charged (parent unit)
Image sensor type
IR LED Type
2.4GHz FHSS
GFSK
18dBm Max
Indoor use only; Temperature: 0-40 °C ;
Humidity: 5% to 90% rh. ( relative humidity)
Up to 900 feet (straight line and open space)
Input: 100-240VAC 50 / 60Hz, 300mA Max
Output: 5V, 700mA
3.5'' TFT LCD
Model: 503450; 3.7V, 1100 mAh
Up to 12 hours (ECO on)
1/6.5'’ Color CMOS image sensor
940 nm
- 14 -
[e-mail]

No reception on
the monitor
Interference or Poor
Reception
1. The power adapters may not be properly connected.
Confirm that the camera and monitor are ON.
See item 2 “Getting started”, connect the baby unit in the right way.
If it is still unconnected, choose another baby unit to connect.
2. The baby unit may be too far from the parent unit.
Keep the distance between the baby unit and the parent unit with
900 feet (open space).
3. The baby unit and parent unit may not be properly paired.
Following the Pairing instructions.
4. If the above strategies do not work, restart the parent unit.
At the back of the parent unit(under the stand) you will see a small
black hole marked “Reset”. Just take a sharp object and press the
reset button for a few seconds.
1. The baby unit may be too far from the parent unit.
Keep the distance between baby unit and parent unit in 900 feet
(open space).
2. The baby unit or the parent may be placed too close to metal objects.
Keep the metal objects at least 5 feet away from the parent unit. In
most cases it is even enough to move them about 8-10 inch away
3. Other electronic devices may be interfering with signal.
Keep the electronic devices at least 5 feet away from the parent unit.
In most cases it is even enough to move them about 8- 10 inches away.
4. The battery power may be to low.
Full charge the parent unit with AC adapter provided
5. If the above strategies do not work, restart the parent unit.
6. TROUBLE SHOOTING
- 15 -
[e-mail]

7. MAINTENANCE
A high-pitched
Noise is Heard
No Sound on the
Parent Unit
Image Freezes
Temperature is
Inaccurate
Can not Connect with
Multiple Baby Unit
1. The baby unit and parent unit may be place too close together.
Keep the distance between parent unit and the baby unit
.
2. The volume on the parent unit may be set too high.
Turn down the volume on the parent unit.
3. If the above strategies do not work, restart the parent unit.
1. Pair the baby unit in wrong ways.
Refer to 3.1 Paring More than one baby unit with parent unit
.
2. If the above strategies do not work, restart the parent unit.
1. The temperature sensor is positioned very close to the baby unit
and when it warms up the during operation.
Stretch out the senor so it would be far enough from the baby unit
Place the baby unit in an area with good air circulation
.
2. If the above strategies do not work, restart the parent unit.
1. Volume may be set too low.
Turn up the volume on the parent unit
.
2. If the above strategies do not work, restart the parent unit.
Restart the baby unit(plug out the adapter then plug it into the socket again)
Press the reset key at the back of the parent unit(hide behind the stand)
Clean the surfaces of the camera and monitor with a soft, fluff-free cloth.
Never use cleaning agents or solvents.
If the units become dirty, use a lightly dampened cloth to wipe surfaces,
taking care to not allow water into any openings.
- 16 -
[e-mail]

[e-mail]
All rights reserved
The features described in user’s manual are subject to
modifications without prior notice.
Keep the small parts away from children
WARNING
Printed in China

Printed in China
Live Chat Support
Learn more about GOODBABY, please visit us at
https://goodbaby.top
Or
Scan QR Code &
Send to us
scan
me
[e-mail]
www.goodbaby.top
