GDS8 & GHS8

33-3/8" 80% Gas Furnace Units

•RefertoServiceManualRS6610004forinstallation,operation,andtroubleshootinginformation.

•Allsafetyinformation must be followedasprovided in the ServiceManual.

•RefertotheappropriatePartsCatalog for part number information.

•Modelnumbers listed on page 3.

RT6622013r2

March 2013

TECHNICAL MANUTECHNICAL MANU

TECHNICAL MANUALAL

ALAL

This manual is to be used by qualified, professionally trained HVAC technicians only.

Goodman does not assume any responsibility for property damage or personal injury

due to improper service procedures or services performed by an unqualified

person.

PRODUCT IDENTIFICATION

Themodelandmanufacturingnumberareusedforpositiveidentification of component parts used in manufacturing. Please

usethesenumberswhen requesting service or parts information.

Installation and repair of this unit

should be performed ONLY by

individuals meeting the requirements (at a minimum) of

an "entry level technician" as specified by the Air-Condi-

tioning, Heating, and Refrigeration Institute (AHRI). At-

tempting to install or repair this unit without such back-

ground may result in product damage, personal injury or

death.

Goodman will not be responsible

for any injury or property damage

arising from improper service or service procedures. If

you install or perform service on this unit, you assume

responsibility for any personal injury or property damage

which may result. Many jurisdictions require a license to

install or service heating and air conditioning equipment.

WARNING

WARNING HIGH VOLTAGE!

Disconnect ALL power before servicing or installing this unit. Multiple power

sources may be present. Failure to do so may cause property damage, personal

injury or death.

WARNING

WARNING WARNING

WARNING

G D S 8 045 3 A X C A

AIRFLOW DIRECTION

D: Dedicated Downflow

H: High Airflow

FURNACE

TYPE

S: Single Stage/

Multi-speed

AFUE:

8:80%

BRAND:

G: Goodman®

Brand

B* Revisions

NOMINAL INPUT:

040: 40,000 Btuh

060: 60,000 Btuh

080: 80,000 Btuh

100: 100,000Btuh

AIRFLOW

CAPABILITY:

3: 1200

4: 1600

5: 2000

ADDITIONAL

FEATURES:

N: Natural Gas

X: Low NO

MAJOR

REVISION:

CABINET WIDTH:

A: 14"

B: 17 1/2"

C: 21"

MINOR

REVISION:

A* Revisions

NOMINAL INPUT:

040: 45,000 Btuh

060: 70,000 Btuh

080: 90,000 Btuh

100: 115,000 Btuh

PRODUCT IDENTIFICATION

The model and manufacturing number are used for positive identification of component parts used in manufacturing.

Pleaseusethese numbers when requesting serviceorparts information.

* These models available in Natural Gas and Low NOx

GDS80403A*A*

GDS80603A*A*

GDS80804B*A*

GDS81005C*A*

GHS80403A*A*

GHS80604A*A*

GHS80805C*A*

The United States Environmental Protection Agency (“EPA”) has issued various regulations re-

garding the introduction and disposal of refrigerants introduced into this unit. Failure to follow

these regulations may harm the environment and can lead to the imposition of substantial fines.

These regulations may vary by jurisdiction. Should questions arise, contact your local EPA office.

WARNING

Do not connect or use any device

thatisnotdesigncertifiedbyGood-

man for use with this unit. Serious

property damage, personal injury, reduced unit perfor-

mance and/or hazardous conditions may result from the

use of such non-approved devices.

WARNING

WARNING To prevent the risk of property

damage, personal injury, or death,

do not store combustible materials or use gasoline or

other flammable liquids or vapors in the vicinity of this

appliance.

WARNING

GDS80403A*B*

GDS80603A*B*

GDS80804B*B*

GDS81005C*B*

GHS80403A*B*

GHS80604A*B*

GHS80805C*B*

PRODUCT DESIGN

NFPA 54/ANSI Z223.1 - latest edition. In Canada, the fur-

nacesmustbeventedin accordance withtheNationalStan-

dardofCanada, CAN/CSA B149.1 and CAN/CSA B149.2-

latesteditions and amendments.

NOTE: Theverticalheightof the Category I ventingsystem

must be at least as great as the horizontal length of the

ventingsystem.

Accessibility Clearances (Minimum)

Unobstructedfrontclearanceof24"for servicing isrecom-

mended.

SW B

1036 11

* 24" clearance for serviceability recommended.

MINIMUM CLEARANCE TO COMBUSTIBLE MATERIALS - INCHES

** Sin

le Wall Vent

(

)

to be used onl

as a connector.

Refer to the venting tablesoutlined in the Installation Manual for

additional venting requirements.

Vent

Sides TopRear Front*

Note: Inall cases accessibility clearanceshall take prece-

denceoverclearancesfrom the enclosurewhereaccessibil-

ityclearancesaregreater. Alldimensionsaregivenininches.

HighAltitudeDerate

IMPORTANT NOTE: The furnace as shipped requires no

change to run between 0 - 4500 feet. Do not attempt to

increase the firing rate by changing orifices or increasing

themanifoldpressurebelow4500feet.Thiscancause poor

combustionandequipment failure.

Highaltitudeinstallationsabove4500feetmayrequireboth

a pressure switch and an orifice change. These changes

are necessary to compensate for the natural reduction in

the density of both the gas fuel and the combustion air at

higheraltitude.

For installations above 4500 feet, please refer to your dis-

tributorforrequiredkit(s). Contactthedistributorforatabular

listing of appropriate manufacturer’s kits for propane gas

and/orhighaltitudeinstallations.The indicated kits must be

used to insure safe and proper furnace operation. All con-

versions must be performed by a qualified installer, or ser-

vice agency.

GeneralOperation

TheG*S8furnaces are equipped with anelectronicignition

deviceusedtolighttheburnersandaninduceddraftblower

to exhaust combustion products.

An interlock switch prevents furnace operation if the inner

blowerdoor is not inplace. Keep the blower access door in

placeexceptfor inspection and maintenance.(Seeillustra-

tion on pages 5 and 6.)

This furnace is also equipped with a self-diagnosing elec-

tronic control module. In the event a furnace component is

notoperatingproperly,thecontrolmoduleLED will flash on

and off in a factory-programmed sequence, depending on

theproblemencountered. This light canbeviewed through

theobservationwindowin the blower access door.Referto

theTroubleshootingChartforfurtherexplanationoftheLED

codesandAbnormalOperation-IntegratedIgnitionControl

section in the Service Instructions for an explanation of the

possibleproblem.

Theratedheatingcapacityof the furnace should be greater

thanor equal to thetotal heat lossof the area tobe heated.

The total heat loss should be calculated by an approved

methodorinaccordance with “ASHRAE Guide” or “Manual

J-LoadCalculations”publishedbytheAir Conditioning Con-

tractors of America.

*Obtain from: American National Standards Institute 1430

BroadwayNewYork,NY10018

LocationConsiderations

• The furnace should be as centralized as is practical

with respect to the air distribution system.

• Donotinstallthefurnacedirectly on carpeting, tile, or

combustiblematerialotherthanwood flooring.

• When installed in a residential garage, the furnace

mustbepositionedsotheburnersand ignition source

are located not less than 18 inches (457 mm) above

the floor and protected from physical damage by ve-

hicles.

Notes:

WARNING

TO PREVENT POSSIBLE PERSONAL INJURY OR DEATH DUE TO ASPHYXIATION,

THIS FURNACE MUST BE CATEGORY IVENTED. DO NOT VENT USING

CATEGORY III VENTING.

CategoryI Venting is ventingat a non-positive pressure. A

furnace vented as Category I is considered a fan-assisted

appliance and the vent system does not have to be “gas

tight.” NOTE: Singlestagegasfurnaceswithinduced draft

blowers draw products of combustion through a heat ex-

changerallowing,in some instances, common venting with

naturaldraftappliances(i.e.waterheaters).All installations

mustbeventedinaccordancewithNationalFuelGasCode

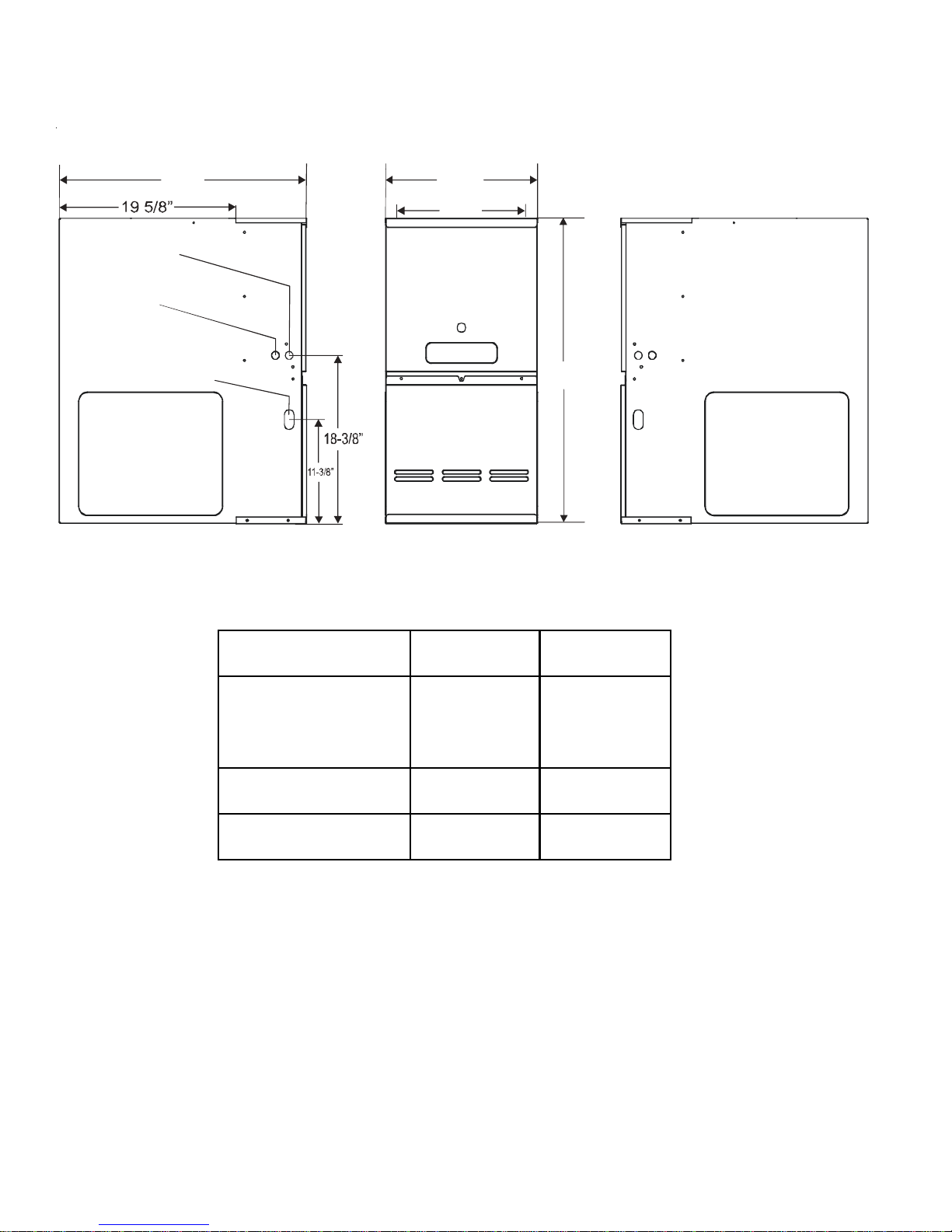

PRODUCT DIMENSIONS GHS8

MODEL A B

GHS80403A*** 14 1/2" 12 1/2"

GHS80604B*** 17 1/2" 16"

GHS80805C*** 21" 19 1/2"

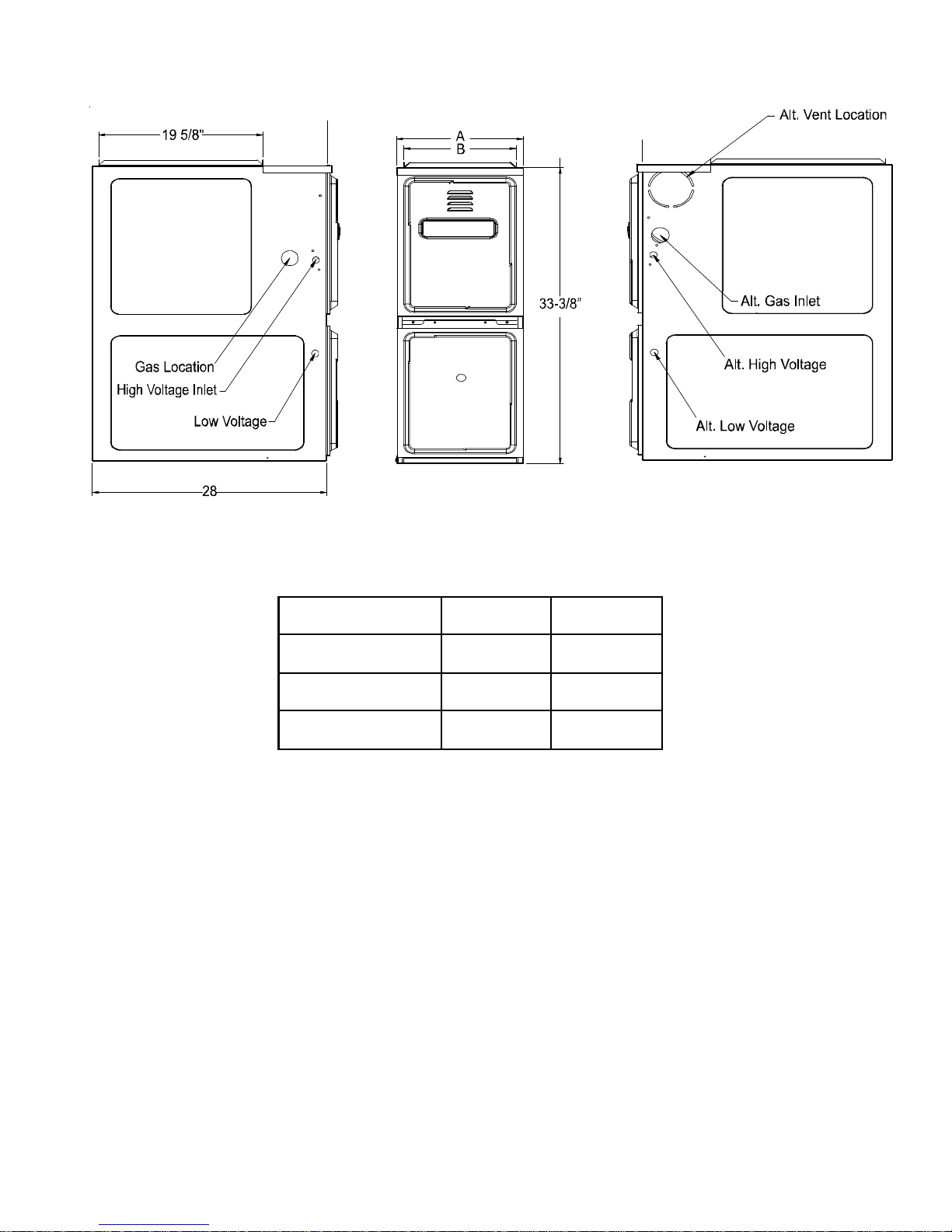

PRODUCT DESIGN

MODEL A B

GDS80403A***

GDS80603A***

GDS80804B*** 17 1/2" 16"

GDS81005C*** 21" 19 1/2"

14 1/2" 12 1/2"

GDS8

28”

High Voltage

Electrical

Lov Voltage

Electrical

Gas Inlet

33-3/8”

PRODUCT DESIGN GHS8***A*

For installations in Canada, the GHS furances are certified only to 4,500 ft.

* Negative pressure readings are in inches of water column (*w.c.)

Part Number 0130F00038

Open Setting (°F) 120

GHS80403A*** 1

GHS80604B*** 1

GHS80805C*** 1

AUXILIARY LIMIT SWITCHES

Part Number 10123529

Open Setting (°F) 300

GHS80403A*** 2

GHS80604B*** 2

GHS80805C*** 2

ROLLOUT LIMIT SWITCHES

Model

Trip Point

ID Blower

Pressure

Switch

ID Blower

Pressure

Switch

Part #

GHS80403A*A* -0.80 0130F00042

GHS80604B*A* -0.70 B1370158

GHS80805C*A* -0.70 B1370158

PRESSURE SWITCH TRIP POINTS

AND USAGE CHART

Part Number 0130M00063 20162903

Open Setting (°F) 140 160

GHS80403A*A* 1---

GHS80604B*A* --- 1

GHS80805C*A* 1---

PRIMARY LIMIT

PRODUCT DESIGN GHS8***B*

Part Number 0130M00063 20162903

Open Setting (°F) 140 160

GHS80403A*B* --- 1

GHS80604B*B* 1---

GHS80805C*B* 1---

PRIMARY LIMIT

Part Number 0130F00038

Open Setting (°F) 120

GHS80403A*** 1

GHS80604B*** 1

GHS80805C*** 1

AUXILIARY LIMIT SWITCHES

Part Number 10123529

Open Setting (°F) 300

GHS80403A*** 2

GHS80604B*** 2

GHS80805C*** 2

ROLLOUT LIMIT SWITCHES

For installations in Canada, the GHS furances are certified only to 4,500 ft.

* Negative pressure readings are in inches of water column (*w.c.)

Model

Trip Point

ID Blower

Pressure

Switch

ID Blower

Pressure

Switch

Part #

GHS80403A*B* -0.70 B1370158

GHS80604B*B* -0.80 0130F00042

GHS80805C*B* -0.75 B1370179

PRESSURE SWITCH TRIP POINTS

AND USAGE CHART

PRODUCT DESIGN GDS8***A*

Part Number 10123529

Open Setting (°F) 300

GDS80403A*** 1

GDS80603A*** 1

GDS80804B*** 1

GDS81005C*** 1

ROLLOUT LIMIT SWITCHES

Part Number 0130F00038

Open Setting (°F) 120

GDS80403A*** 1

GDS80603A*** 1

GDS80804B*** 1

GDS81005C*** 1

AUXILIARY LIMIT SWITCHES

Model Part No. Opens*

GDS80403A*A* B1370142 -0.60

GDS80603A*A* B1370158 -0.70

GDS80804B*A* B1370142 -0.60

GDS81005C*A* B1370158 -0.70

PRESSURE SWITCHES

Part Number 0130F00035 0130F00036

Open Setting (°F) 220 180

GDS80403A*A* 1---

GDS80603A*A* 1---

GDS80804B*A* --- 1

GDS81005C*A* --- 1

PRIMARY LIMIT

PRODUCT DESIGN

Part Number 20162901 0130F00036

Open Setting (°F) 210 180

GDS80403A*B* --- 1

GDS80603A*B* --- 1

GDS80804B*B* --- 1

GDS81005C*B* 1---

PRIMARY LIMIT

Part Number 10123529

Open Setting (°F) 300

GDS80403A*** 1

GDS80603A*** 1

GDS80804B*** 1

GDS81005C*** 1

ROLLOUT LIMIT SWITCHES

Part Number 0130F00038

Open Setting (°F) 120

GDS80403A*** 1

GDS80603A*** 1

GDS80804B*** 1

GDS81005C*** 1

AUXILIARY LIMIT SWITCHES

GDS8***B*

Model Part No. Opens*

GDS80403A*B* B1370142 -0.60

GDS80603A*B* B1370142 -0.60

GDS80804B*B* B1370142 -0.60

GDS81005C*B* 0130F00042 -0.80

PRESSURE SWITCHES

PRODUCT DESIGN

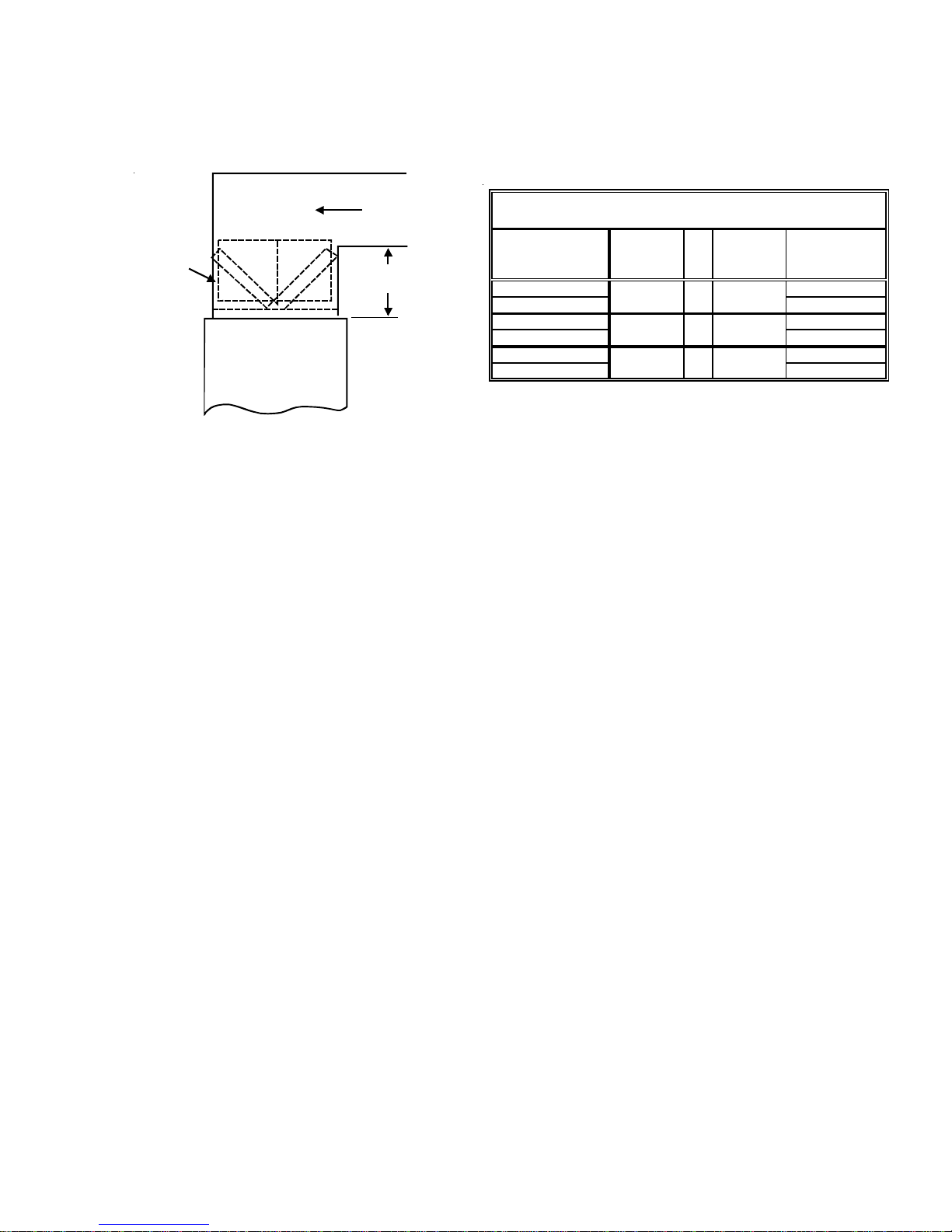

Coil Matches:

A large array of Amana®brand coils are available for use with the GHS8 furnaces, in horizontal applications and for the

GDS8 for downflow applications. These coils are available in both cased and uncased models (with the option of a field

installedTXV expansion device). These80% furnaces match up with the existingAmana®brand coils as shown below.

Coil Matches (for Goodman®units using R22 and R-410A):

• All CAPF coils in B, C, & D widths have insulated blank off plates for use with one size smaller furnaces.

• All CAPF coils have a CAUF equivalent.

• All CHPF coils in B, C & D heights have an insulated Z bracket for use with one size smaller furnace.

• All proper coil combinations are subject to being AHRI rated with a matched outdoor unit.

C A P F 1824 A 6 A

PRODUCT

TYPE:

C: Indoor Coil

CABINET FINISH:

U:Unpainted

P: Painted

N:Unpainted Case

EXPANSION

DEVICE:

F: Flowrate

NOMINAL CAPACITY RANGE

@ 13 SEER

1824: 1 1/2 to 2 Tons

3030: 2 1/2 Tons

3636: 3 Tons

3642: 3 to 3 1/2 Tons

3743: 3 to 3 1/2 Tons

4860: 4 & 5 Tons

4961: 4 & 5 Tons

REVISION

A: Revision

NOMINAL WIDTH FOR GAS FURNACE

A:Fits 14" Furnace Cabinet

B: Fits 17 1/2" Furnace Cabinet

C: Fits 21" Furnace Cabinet

D: Fits 24 1/2" Furnace Cabinet

N: Does Not Apply (Horizontal SlabCoils)

APPLICATION

A: Upflow/Downflow Coil

H: Horizontal A Coil

S: Horizontal Slab Coil

REFRIGERANT

CHARGE:

6: R-410A or R-22

2: R-22

4: R-410a

PRODUCT DESIGN

Thermostats:

NOTE: Complete lineup of thermostats can be found in the Thermostat Specification Sheets.

Filters:

Filters are required with this furnace and must be provided by the installer. The filters used must comply with UL900 or

CAN/ULCS111standards.Installing this furnace without filterswill void the unit warranty

Upflow Filters

This furnace has provisions for the installation of return air filters at the side and/or bottom return. The furnace will

accommodatethe following filter sizes depending on cabinet size:

Cabinet

Width

(in.)

Nominal

Filter Size

(in.)

Approx.

Flow Area

(in2)

Cabinet

Width

(in.)

Nominal

Filter Size

(in.)

Approx.

Flow Area

(in2)

All 16 x 25 x 1 400 17-1/2 14 x 25 x 1 350

21 16 x 25 x 1 400

24-1/2 20 x 25 x 1 500

BOTTOM RETURNSIDE RETURN

RefertoMinimumFilterAreatablestodeterminefilterarearequirement.NOTE:Filterscanalsobeinstalledelsewherein

the duct system such as a central return.

Disposable Minimum Filter Area (in2)

[Based on a 300 ft/min filter face velocity]

*Minimum filter area dictated by heating airflow requirement. *Minimum filter area dictated by heating airflow requirement.

Permanent Minimum Filter Area (in2)

[Based on 600 ft/min filter face velocity]

600 800 1000 1200 1400 1600 2000

0604__XA --- --- 564* 564* 672 768 ---

0805__XA --- --- --- 752* 752* 768 960

1005__XA --- --- --- 940* 940* 940* 960

600 800 1000 1200 1400 1600 2000

0604__XA --- --- 641* 641* 672 768 ---

0805__XA --- --- --- 854* 854* 854* 960

Input__Airflow

UPFLOW

COOLING AIRFLOW REQUIREMENT (CFM)

COUNTERFLOW

COOLING AIRFLOW REQUIREMENT (CFM)

Input

Airflow

600 800 1000 1200 1400 1600 2000

0604__XA --- --- 627* 627* 672 768 ---

0805__XA --- --- --- 836* 836* 836* 960

1005__XA --- --- --- 940* 940* 940* 960

600 800 1000 1200 1400 1600 2000

0604__XA --- --- 320* 320* 336 384 ---

0805__XA --- --- --- 427* 427* 427* 480

UPFLOW

COOLING AIRFLOW REQUIREMENT (CFM)

COUNTERFLOW

COOLING AIRFLOW REQUIREMENT (CFM)

Input

Airflow Input__Airflow

PRODUCT DESIGN

Counterflow Filters

"A"

Min

Return Air

Optional

Access

Door

Thisfurnacehasprovisionsfortheinstallationofreturnairfiltersatthecounterflowtopreturn. Thefurnacewillaccommodate

thefollowing filter sizes depending on cabinet size:

RefertoMinimumFilterAreatablestodeterminefilterarea requirement. NOTE: Filterscanalsobeinstalledelsewhere

in the duct system such as a central return.

Cabinet Width Filter Area

(in2)Qty Filter Size

(in) Dimension "A"

(in)

21 13.0

24 1/2 11.3

21 18.8

24 1/2 17.7

21 24.3

24 1/2 23.4

15 X 20 X 1

20 X 20 X 1

25 X 20 X 1

600

800

1000

Counterflow Top Return

FURNACE SPECIFICATIONS

Unit specifications are subject to change without notice. ALWAYS refer to the unit's serial plate for the most up-to-date general and electrical information.

NOTES:

* These furnaces are manufactured for natural gas operation. Optional Kits are available for conversion to propane gas operation.

* For elevations above 2000 ft. the rating should be reduced by 4% for each 1000 ft. above sea level. The furnace must not be derated, orifice changes should only

be made if necessary for altitude.

* The total heat loss from the structure as expressed in TOTAL BTU/HR must be calculated by the manufactures method in accordance with the "A.S.H.R.A.E.

GUIDE" or "MANUAL J-LOAD CALCULATIONS" published by the AIR CONDITIONING CONTRACTORS OF AMERICA. The total heat loss calculated should be

equal to or less than the heating capacity. Output based on D.O.E. test procedures, steady state efficiency times output.

1 Natural Gas BTU/h. For altitudes above 2,000’, reduce input rating 4% for each 1,000’ above sea level.

2 DOE AFUE based upon Isolated Combustion System (ICS)

5 Maximum Overcurrent Protection Device refers to maximum recommended fuse or circuit breaker size. May use fuses or HACR-type circuit breakers of the same size as noted.

Notes:

• All furnaces are manufactured for use on 115 VAC, 60 Hz, single-phase electrical supply.

• Gas Service Connection ½” FPT

• Important: Size fuses and wires properly and make electrical connections in accordance with the National Electrical Code and/or all existing local codes.

3 Vent and combustion air diameters may vary depending upon vent length.

Refer to the latest editionsof the National Fuel Gas Code NFPA 54/ANSI Z223.1 (in the USA) and the Canada National Standard of Canada, CAN/CSA B149.1

and CAN/CSA B142.2 (in Canada).

4 Minimum Circuit Ampacity = (1.25 x Circulator Blower Amps) + ID Blower amps. Wire size should be determined in accordance with National Electrical Codes.

Extensive wire runs will require larger wire sizes.

GDS8***A*

MODEL GDS80403A*A* GDS80603A*A* GDS80804B*A* GDS81005C*A*

Btuh Input (US) High Fire(1) 45,000 70,000 90,000 115,000

Output (US) High Fire(1) 36,000 56,000 72,000 92,000

A.F.U.E.(2) 80% 80% 80% 80%

Rated External Static (" w.c.) .20 - .50 .20 - .50 .20 - .50 .20 - .50

Temperature Rise (°F) 35-65 30-60 35-65 40- 70

Pressure Switch Trip Point (" w.c.) -0.60 -0.70 -0.60 -0.70

Blower Wheel (D" x W") 10 X 6 10 x 6 10 x 8 10 x 10

Blower Horsepower 1/3 1/3 1/2 3/4

Blower Speeds

Max CFM @ 0.5 E.S.P.

Power Supply 115-60-1 115-60-1 115-60-1 115-60-1

Minimum Circuit Ampacity (MCA)(4) 8.5 8.5 12.9 12.9

Maximum Overcurrent Device(5) 15 15 15 15

Transformer (VA) 40 40 40 40

Heat Anticipator (Amps) 0.7 0.7 0.7 0.7

Primary Limit Setting (°F) 220 220 180 180

Auxiliary Limit Setting (°F) 120 120 120 120

RolloutLimitSetting(°F) 300 300 300 300

Gas Supply Pressure(Natural/Propane) (" w.c.) 7 /11 7 /11 7 /11 7 /11

Manifold Pressure

(Natural/Propane) High Stage (" w.c.) 3.5 / 10 3.5 / 10 3.5 /10 3.5 /10

Orifice Size (Natural/Propane) #43 / #55 #43 / #55 #43 / #55 #43 / #55

Number ofBurners 2 3 4 5

Vent Connector Diameter (inches)(3) 4444

Shipping Weight (lbs.) 88 92 105 113

Refer to airflow charts.

FURNACE SPECIFICATIONS

Unit specifications are subject to change without notice. ALWAYS refer to the unit's serial plate for the most up-to-date general and electrical information.

NOTES:

* These furnaces are manufactured for natural gas operation. Optional Kits are available for conversion to propane gas operation.

* The total heat loss from the structure as expressed in TOTAL BTU/HR must be calculated by the manufactures method in accordance with the "A.S.H.R.A.E. GUIDE" or "MANUAL

J-LOADCALCULATIONS" publishedbythe AIRCONDITIONINGCONTRACTORS OFAMERICA. Thetotal heatloss calculatedshould beequal toor lessthan theheating capacity.

Output based on D.O.E. test procedures, steady state efficiency times output.

1 DOE AFUE based upon Isolated Combustion System (ICS)

4 Maximum Overcurrent Protection Device refers to maximum recommended fuse or circuit breaker size. May use fuses or HACR-type circuit breakers of the samesize as noted.

Notes:

• All furnaces are manufactured for use on 115 VAC, 60 Hz, single-phase electrical supply.

• Gas Service Connection ½” FPT

• Important: Size fuses and wires properly and make electrical connections in accordance with the National Electrical Code and/or all existing local codes.

2 Vent and combustion air diameters may vary depending upon vent length.

Refer to the latest editions of the National Fuel Gas Code NFPA 54/ANSI Z223.1 (in the USA) and the Canada National Standard of Canada, CAN/CSA B149.1

and CAN/CSA B142.2 (in Ca

3 Minimum Circuit Ampacity = (1.25 x Circulator Blower Amps) + ID Blower amps. Wire size should be determined in accordance with National Electrical Codes.

Extensive wire runs will require larger wire sizes.

GDS8***B*

MODEL GDS80403A*B* GDS80603A*B* GDS80804B*B* GDS81005C*B*

BtuhInput (US) High Fire 40,000 60,000 80,000 100,000

Output (US) High Fire 32,000 48,000 64,000 80,000

A.F.U.E.(1) 80% 80% 80% 80%

Rated External Static (" w.c.) .20 - .50 .20 - .50 .20 - .50 .20 - .50

Temperature Rise (°F) 25-55 30-60 35-65 40 - 70

Pressure Switch Trip Point (" w.c.) -0.60 -0.60 -0.60 -0.80

BlowerWheel (D"x W") 10 X 6 10 x6 10x 8 10 x 10

Blower Horsepower 1/3 1/3 1/2 3/4

Blower Speeds

Max CFM @ 0.5 E.S.P.

Power Supply 115-60-1 115-60-1 115-60-1 115-60-1

Minimum CircuitAmpacity (MCA)(3) 8.5 8.5 12.9 12.9

Maximum Overcurrent Device(4) 15 15 15 15

Transformer (VA) 40 40 40 40

Heat Anticipator (Amps) 0.7 0.7 0.7 0.7

Primary Limit Setting (°F) 180 180 180 210

Auxiliary Limit Setting (°F) 120 120 120 120

Rollout Limit Setting (°F) 300 300 300 300

Gas Supply Pressure (Natural/Propane) (" w.c.) 7 /11 7/ 11 7 /11 7 / 11

ManifoldPressure

(Natural/Propane) High Stage (" w.c.) 3.5 / 10 3.5 / 10 3.5 /10 3.5 /10

OrificeSize(Natural/Propane) #45 /#55 #45 /#55 #45/ #55 #45/#55

Number ofBurners 2 3 4 5

Vent Connector Diameter (inches)(2) 4444

Shipping Weight (lbs.) 88 92 105 113

Refer to airflowcharts.

FURNACE SPECIFICATIONS

Unit specifications are subject to change without notice. ALWAYS refer to the unit's serial plate for the most up-to-date general and electrical information.

NOTES:

* These furnaces are manufactured for natural gas operation. Optional Kits are available for conversion to propane gas operation.

* For elevations above 2000 ft. the rating should be reduced by 4% for each 1000 ft. above sea level. The furnace must not be derated, orifice changes should only

be made if necessary for altitude.

* The total heat loss from the structure as expressed in TOTAL BTU/HR must be calculated by the manufactures method in accordance with the "A.S.H.R.A.E.

GUIDE" or "MANUAL J-LOAD CALCULATIONS" published by the AIR CONDITIONING CONTRACTORS OF AMERICA. The total heat loss calculated should be

equal to or less than the heating capacity. Output based on D.O.E. test procedures, steady state efficiency times output.

1 Natural Gas BTU/h. For altitudes above 2,000’, reduce input rating 4% for each 1,000’ above sea level.

2 DOE AFUE based upon Isolated Combustion System (ICS)

5 Maximum Overcurrent Protection Device refers to maximum recommended fuse or circuit breaker size. May use fuses or HACR-type circuit breakers of the same size as noted.

Notes:

• All furnaces are manufactured for use on 115 VAC, 60 Hz, single-phase electrical supply.

• Gas Service Connection ½” FPT

• Important: Size fuses and wires properly and make electrical connections in accordance with the National Electrical Code and/or all existing local codes.

3 Vent and combustion air diameters may vary depending upon vent length.

Refer to the latest editionsof the National Fuel Gas Code NFPA 54/ANSI Z223.1 (in the USA) and the Canada National Standard of Canada, CAN/CSA B149.1

and CAN/CSA B142.2 (in Canada).

4 Minimum Circuit Ampacity = (1.25 x Circulator Blower Amps) + ID Blower amps. Wire size should be determined in accordance with National Electrical Codes.

Extensive wire runs will require larger wire sizes.

GHS8***A*

MODEL GHS80403A*A* GHS80604B*A* GHS80805C*A*

Input, Natural Gas (BTUH)(1) 45,000 70,000 90,000

Output, Natural Gas (BTUH)(1) 36,000 56,000 72,000

Output, LP (BTUH) 32,000 48,000 64,000

A.F.U.E.(2) 80.0% 80.0% 80.0%

Rated External Static (" w.c.) 0.20 - 0.50 0.20 - 0.50 0.20 - 0.50

Temperature Rise (°F) 15 - 45 30 - 60 35 - 65

Pressure Switch Trip Point (" w.c.) -0.80 -0.70 -0.70

Blower Wheel (D" x W") 11” x 6” 11” x 8” 11” x 10”

Blower Horsepower 1/2 3/4 3/4

Blower Speeds

Max CFM @ 0.5 E.S.P.

Power Supply (Volts/Hz/Ph) 115/60/1 115/60/1 115/60/1

Minimum Circuit Ampacity(MCA)(4) 12.5 11.8 11.8

Maximum Overcurrent Device (5) 15 15 15

Transformer (VA) 40 40 40

ID Blower Pressure Switch Trip Point (" w.c.) -0.80 -0.70 -0.70

Primary Limit Setting (°F) 140 120 140

Auxiliary Limit Setting (°F) 120 120 120

Rollout Limit Setting (°F) 300 300 300

Gas Supply Pressure(Natural/Propane) ("w.c.) 7/ 11 7 / 11 7 /11

Manifold Pressure(Natural/Propane) ("w.c.) 3.5/ 10 3.5 /10 3.5 /10

OrificeSize(Natural/Propane) #43/ #55 #43 / #55 #43/ #55

Number ofBurners 2 3 4

Vent Connector Diameter (inches)(3) 444

ShippingWeight(lbs.) 90 102 117

Refer to airflowcharts.

FURNACE SPECIFICATIONS

Unit specifications are subject to change without notice. ALWAYS refer to the unit's serial plate for the most up-to-date general and electrical information.

NOTES:

* These furnaces are manufactured for natural gas operation. Optional Kits are available for conversion to propane gas operation.

* The total heat loss from the structure as expressed in TOTAL BTU/HR must be calculated by the manufactures method in accordance with the "A.S.H.R.A.E. GUIDE" or "MANUAL

J-LOADCALCULATIONS" publishedbythe AIRCONDITIONINGCONTRACTORS OFAMERICA. Thetotal heatloss calculatedshould beequal toor lessthan theheating capacity.

Output based on D.O.E. test procedures, steady state efficiency times output.

1 DOE AFUE based upon Isolated Combustion System (ICS)

4 Maximum Overcurrent Protection Device refers to maximum recommended fuse or circuit breaker size. May use fuses or HACR-type circuit breakers of the samesize as noted.

Notes:

• All furnaces are manufactured for use on 115 VAC, 60 Hz, single-phase electrical supply.

• Gas Service Connection ½” FPT

• Important: Size fuses and wires properly and make electrical connections in accordance with the National Electrical Code and/or all existing local codes.

2 Vent and combustion air diameters may vary depending upon vent length.

Refer to the latest editions of the National Fuel Gas Code NFPA 54/ANSI Z223.1 (in the USA) and the Canada National Standard of Canada, CAN/CSA B149.1

and CAN/CSA B142.2 (in Ca

3 Minimum Circuit Ampacity = (1.25 x Circulator Blower Amps) + ID Blower amps. Wire size should be determined in accordance with National Electrical Codes.

Extensive wire runs will require larger wire sizes.

GHS8***B*

MODEL GHS80403A*B* GHS80604B*B* GHS80805C*B*

Input, Natural Gas(BTUH) 40,000 60,000 80,000

Output, Natural Gas (BTUH) 32,000 48,000 64,000

Output, LP (BTUH) 32,000 48,000 64,000

A.F.U.E.(1) 80.0% 80.0% 80.0%

Rated External Static (" w.c.) 0.20 - 0.50 0.20 - 0.50 0.20 - 0.50

Temperature Rise (°F) 20-50 20-50 35 - 65

Pressure Switch Trip Point (" w.c.) -0.70 -0.80 -0.75

Blower Wheel (D"x W") 11” x6” 11” x 8” 11” x 10”

Blower Horsepower 1/2 3/4 3/4

Blower Speeds

Max CFM @ 0.5 E.S.P.

Power Supply (Volts/Hz/Ph) 115/60/1 115/60/1 115/60/1

Minimum Circuit Ampacity(MCA) (3) 12.5 11.8 11.8

Maximum Overcurrent Device (4) 15 15 15

Transformer (VA) 40 40 40

ID Blower Pressure Switch Trip Point (" w.c.) -0.70 -0.80 -0.75

Primary Limit Setting (°F) 160 140 140

Auxiliary Limit Setting (°F) 120 120 120

Rollout Limit Setting (°F) 300 300 300

Gas Supply Pressure (Natural/Propane) ("w.c.) 7/ 11 7/ 11 7 /11

Manifold Pressure (Natural/Propane) ("w.c.) 3.5/ 10 3.5 /10 3.5 /10

OrificeSize (Natural/Propane) #45/ #55 #45 / #55 #45 / #55

Number ofBurners 2 3 4

Vent Connector Diameter (inches)(2) 444

Shipping Weight (lbs.) 90 102 117

Refer to airflowcharts.

BLOWER PERFORMANCE SPECIFICATIONS

GHS8***A*

NOTES:

• CFM in chart is without filter(s). Filters do not ship with this furnace, but must be provided by the installer.

• All furnaces ship as high-speed cooling. Installer must adjust blower cooling speed as needed.

• For most jobs, about 400 CFM per ton when cooling is desirable

• INSTALLATION IS TO BE ADJUSTED TO OBTAIN TEMPERATURE RISE WITHIN THE RANGE SPECIFIED ON THE RATING PLATE.

• The chart is for information only. For satisfactory operation, external static pressure must not exceed values shown on the rating plate. The shaded area

indicates ranges in excess of maximum static pressure allowed when heating.

• The dashed (---) areas indicate a temperature rise not recommended for this model.

• At higher altitudes, a properly de-rated unit will have approximately the same temperature rise at a particular CFM, while ESP at the CFM will be lower.

Tons AC

at0.5"

ESP CFM RISE CFM RISE CFM RISE CFM RISE CFM RISE CFM RISE CFM RISE CFM RISE

HIGH 3.0 1739 19 1656 20 1601 21 1551 21 1513 22 1460 22.8 1413 23.6 1353 24.6

GHS80403A*A* MED 2.5 1422 23 1399 24 1378 24 1350 25 1305 26 1275 26.1 1220 27.3 1178 28.3

MED-LO 2.0 1207 28 1213 27 1197 28 1169 29 1158 29 1131 29.5 1103 30.2 1068 31.2

LOW 1.5 991 34 980 34 958 35 950 35 937 36 924 36.1 910 36.6 874 38.1

HIGH 4.0 2097 25 2068 25 2012 26 1939 27 1869 28 1795 28.9 1718 30.2 1631 31.8

GHS80604B*A* MED 3.5 1596 32 1566 33 1534 34 1492 35 1445 36 1401 37 1354 38.3 1288 40.3

MED-LO 3.0 1380 38 1356 38 1328 39 1303 40 1274 41 1239 41.8 1192 43.5 1127 46

LOW 3.0 1239 42 1191 44 1165 45 1133 46 1104 47 1082 47.9 1040 49.9 996 52.1

HIGH 5.0 2382 28 2315 29 2234 30 2158 31 2078 32 1971 33.8 1866 35.7 1762 37.8

GHS80805C*A* MED 4.0 1622 41 1603 42 1583 42 1556 43 1516 44 1482 45 1422 46.9 1359 49.1

MED-LO 3.5 1436 46 1391 48 1387 48 1356 49 1325 50 1279 52.1 1239 53.8 1180 56.5

LOW 3.0 1240 54 1214 55 1191 56 1157 58 1120 60 1083 61.6 1052 63.4 1025 65

EXTERNALSTATIC PRESSURE (InchesWater Column)

0.6 0.7 0.8

(CFM & Temperature Rise vs. External Static Pressure)

0.10.20.30.40.5

Model Motor

Speed
