Goodman GMH95 0453BXA User manual
SS-GMH95 www.goodmanmfg.com 5/14
Supersedes 11/12
Contents
Nomenclature....................................... 2
Product Specications .......................... 3
Dimensions ........................................... 5
Airow Data ...........................................7
Wiring Diagrams ................................... 9
Accessories ...........................................11
* Complete warranty details available from your local dealer or at www.goodmanmfg.com. To receive the Lifetime Heat
Exchanger Limited Warranty (good for as long as you own your home), 10-Year Unit Replacement Limited Warranty and 10-
Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not
required in California or Québec.

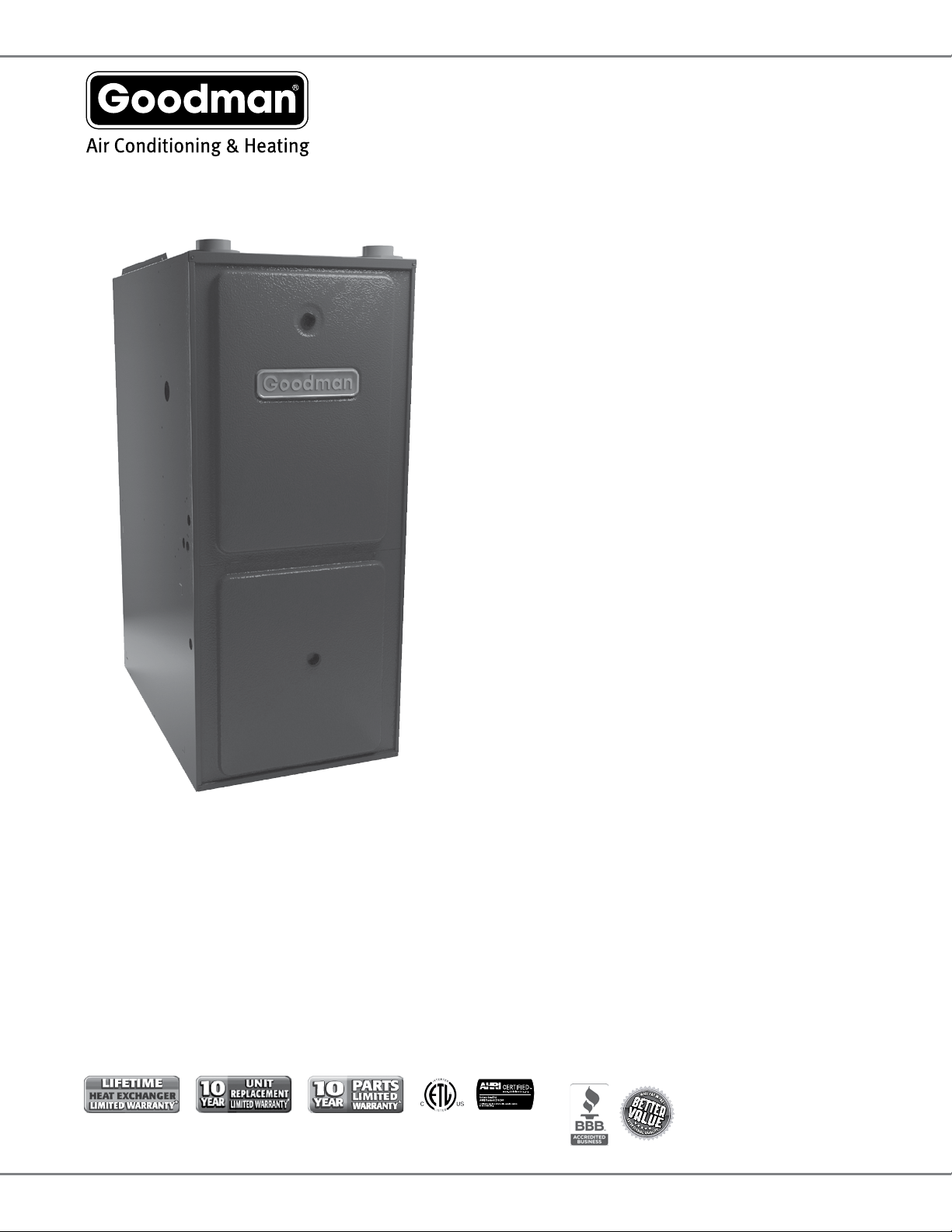

GMH95 / GCH95
Two-STaGe ConverTible,
MulTi-Speed GaS FurnaCeS
upTo 96% aFue
Standard Features
• Heavy-duty
aluminized
-steel dual-
diameter, tubular heat exchanger
• Stainless
-steel secondary heat exchanger
• Two-stage convertible gas valve auto-
matically adjust to high or low stage
• Durable Silicon Nitride igniter
• Quiet single speed draft inducer
• Self-diagnostic control board with
constant memory fault code
• Color-coded low-voltage terminals with provisions
for electronic air cleaner and humidier
• Multi-speed blower motor
• Low continuous fan speed options offer
quiet air circulation
• All models comply with California
Low NOx emissions standards
Cabinet Features
• Designed for multi-position installation:
GMH95: upow, horizontal left or right;
GCH95/GCH9: downow, horizontal left or right
• Certied for direct vent (2-pipe) or
non-direct vent (1-pipe)
• Easy to install top venting with optional side venting
• Convenient left or right connection
for gas and electrical service
• Cabinet air leakage (QLeak) ≤ 2%
• Heavy-gauge steel cabinet with durable
baked-enamel nish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side-return with
easy-cut tabs for effortless removal in
bottom air-inlet applications
2 www.goodmanmfg.com SS-GMH95 SS-GMH95 www.goodmanmfg.com 3
Product SPecificationS Product SPecificationS

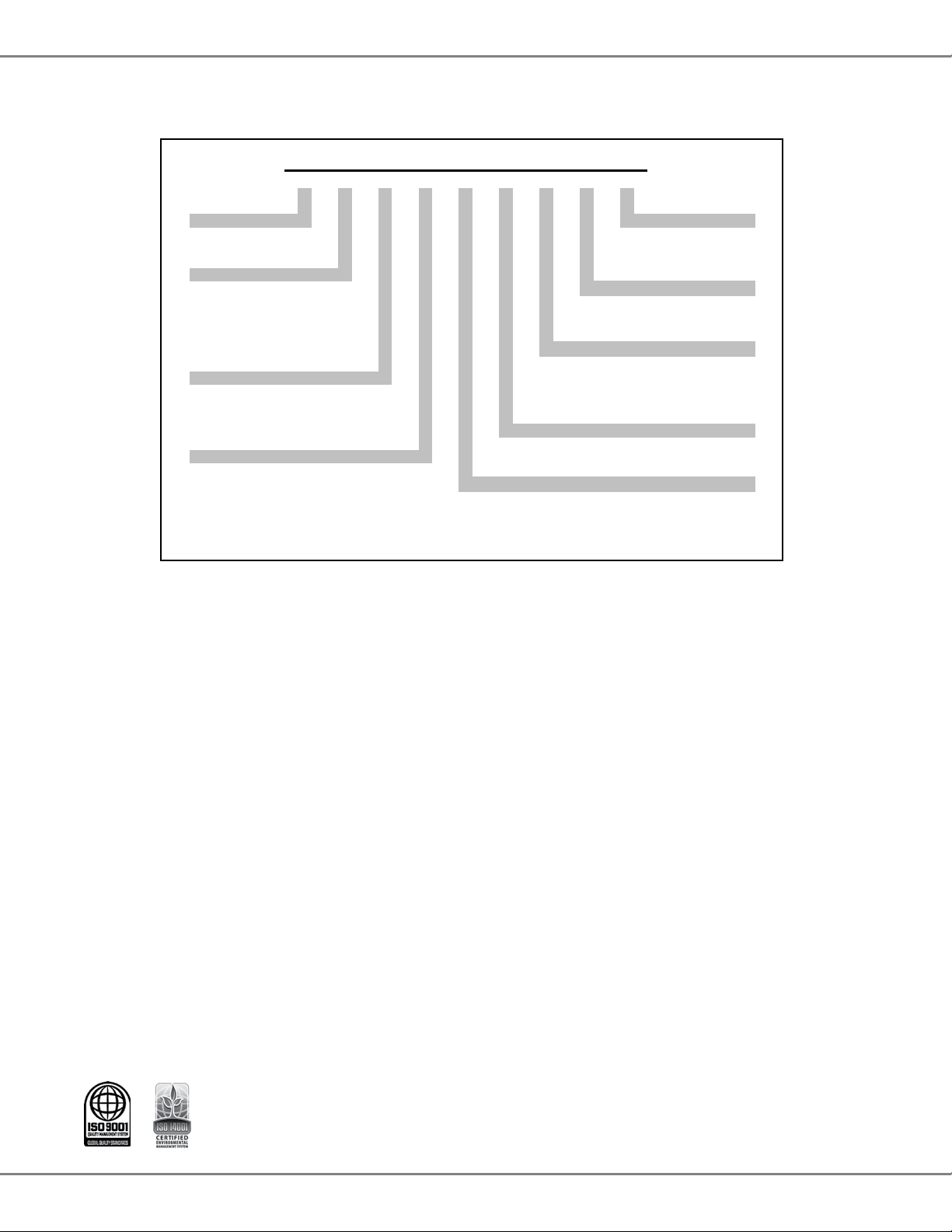

noMenClaTure
Brand Revisions
G
Goodman
®
Brand A Initial Release
or Distinctions™ B 1st Revision
C 2nd Revision
Airflow Direction
C Downflow/Horizontal NOx
D Dedicated Downflow N Natural Gas
HHigh Airflow X Low NOx
K Dedicated Upflow
M Upflow/Horizontal Cabinet Width
A 14”
Description B 17½”
V Two-Stage/Variable-speed C 21”
H Two-Stage/Multi-speed D 24½”
S
Single-Stage/Multi-speed
E Two-Stage/EEM Motor Maximum CFM @ 0.5” ESP
3 1200 5 2000
AFUE 4 1600
95 95%
9 93%+ MBTU/h
8 80% 045: 45,000 115: 115,000
070: 70,000 140: 140,000
090: 90,000
12
A
B
11
X
10
M
2
1
G
H
3
4
6,7,8
4,5
95
045
9
2 www.goodmanmfg.com SS-GMH95 SS-GMH95 www.goodmanmfg.com 3
Product SPecificationS Product SPecificationS
SpeCiFiCaTionS For GMH95
GMH95
0453BXA
GMH95
0703BXA
GMH95
0704CXA
GMH95
0904CXA
GMH95
0905CXA
GMH95
1155DXA
Heating Capacity
Input¹ 46,000 69,000 69,000 92,000 92,000 115,000
Natural Gas Output¹ 44,200 66,300 66,300 88,400 88,400 110,500
LP Gas Output¹ 39,800 59,700 59,700 79,600 79,600 99,500
AFUE² 96.1 96.1 96.1 96.1 96.1 96.1
Available AC @ 0.5” ESP 3 3 4 4 5 5
Temperature Rise Range (°F) 35 - 65 30 - 60 35 - 65 30 - 60 30 - 60 35 - 65
Circulator Blower
Size (D x W) 10” x 8” 10” x 8” 10” x 10” 10” x 10” 11” x 10” 11” x 10”
Horsepower @ 1075 RPM ½ ½ ¾ ¾
Speed 4 4 4 4 4 4
Vent Diameter³ 2” 2” 2” 2” 3” 3”
No. of Burners 2 3 3 4 4 5
Filter Size (in²)
290 288 385 385 480 480
Disposable 580 580 770 770 960 960
Electrical Data
9.4 9.4 13.8 13.8 13.2 13.2
15 15 15 15 15 15
Ship Weight (lbs) 120 123 125 144 146 163
-
-
Notes
• All furnaces are manufactured for use on 115 VAC, 60 Hz, single-phase electrical supply.
•
•
4 www.goodmanmfg.com SS-GMH95 SS-GMH95 www.goodmanmfg.com 5
Product SPecificationS Product SPecificationS
SpeCiFiCaTionS For GCH95
GCH95
0453BXA
GCH95
0703BXA
GCH95
0704CXA
GCH95
0904CXA
GCH95
0905DXA
GCH93
1155DXA
Heating Capacity
Input¹ 46,000 69,000 69,000 92,000 92,000 115,000
Natural Gas Output¹ 44,200 66,300 66,300 88,400 88,400 106,500
LP Gas Output¹ 39,800 59,700 59,700 79,600 79,600 96,255
AFUE² 96.1 96.1 96.1 96.1 96.1 93.0
Available AC @ 0.5” ESP 3 3 4 4 5 5
Temperature Rise Range (°F) 25-55 35-65 25-55 40 - 70 35-65 40 - 70
Circulator Blower
Size (D x W) 10” x 8” 10” x 8” 10” x 10” 10” x 10” 11” x 10” 11” x 10”
Horsepower @ 1075 RPM ½ ½ ¾ ¾
Speed 4 4 4 4 4 4
Vent Diameter³ 2” 2” 2” 2” 2" 2"
No. of Burners 2 3 3 4 4 5
Disposable Filter Size (in²) 576 564 564 752 752 940
Electrical Data
9.8 9.8 12.9 12.9 13.4 13.2
15 15 15 15 15 15
Ship Weight (lbs) 120 123 123 144 146 160
-
-
Notes
• All furnaces are manufactured for use on 115 VAC, 60 Hz, single-phase electrical supply.
•
•
4 www.goodmanmfg.com SS-GMH95 SS-GMH95 www.goodmanmfg.com 5
Product SPecificationS Product SPecificationS

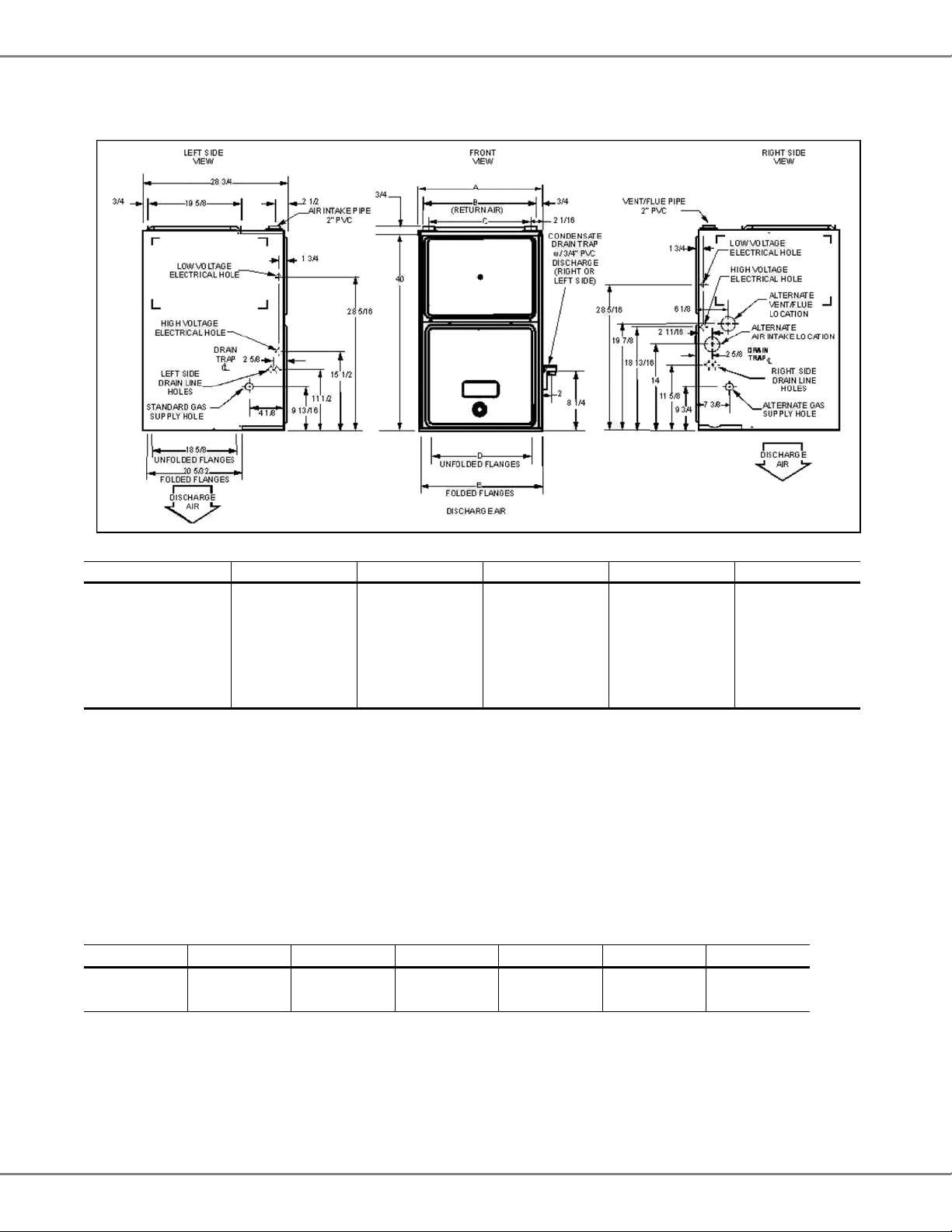

GMH95 diMenSionS
Model A B C D E
GMH950453BXA 17½” 16”
GMH950703BXA 17½” 16”
GMH950704CXA 21” 19½” 16” 17½”
GMH950904CXA 21” 19½” 16” 17½”
GMH950905CXA 21” 19½”
GMH951155DXA 24½” 23”
Notes:
•
•
•
•
Right: Straight pipe to reach gas valve
•
MiniMuM ClearanCeS To CoMbuSTible MaTerialS
Position Sides Rear Front Bottom Flue Top
0” 0” 1” C 0” 1”
Horizontal 6” 0” 1” C 0” 4”
•
• For servicing or cleaning, a 24” front clearance is recommended.
•
• In all cases, accessibility clearance must take precedence over clearances from the enclosure where accessibility clearances are greater.
•
COMPONENT IDENTIFICATION
6
GMH95*****XA*
Cabinet Size A B C D E
13-5/8
17-1/2
20-7/8
All dimensions are in inches.
24-1/2
12-1/8
16
19-3/8
12-15/16
15-15/16
20-7/16
GMH950453BXA*
GMH950703BXA*
GMH950704CXA*
GMH950904CXA*
GMH950905DXA*
GMH951155DXA*
16
19-1/2
23
17-1/2
21
RIGHT SIDE
DRAIN LINE
HOLES
AIR
INTAKE
PIPE
2" PVC
1 5/8
RIGHT SIDE VIEW
2
1 1/2
UNFOLDED FLANGES
1
FOLDED FLANGES
UNFOLDED FLANGES
FOLDED FLANGES
AIR
DISCHARGE
AIR
DISCHARGE
NOTE: Airflow area will be reduced by approximately 18% if duct flanges are not unfolded. This could cause performance issues and
noise issues.
19 7/8”
6 www.goodmanmfg.com SS-GMH95 SS-GMH95 www.goodmanmfg.com 7
Product SPecificationS Product SPecificationS
GCH95 diMenSionS
MiniMuM ClearanCeS To CoMbuSTible MaTerialS
Position Sides Rear Front Bottom Flue Top
0” 0” 1” NC 0” 1”
Horizontal 6” 0” 1” C 0” 4”
Notes:
• For servicing or cleaning, a 24” front clearance is recommended.
•
• In all cases, accessibility clearance must take precedence over clearances from the enclosure where accessibility clearances are greater.
Model A B C D E
GCH950453BXA 17½” 16” 14½” 16”
GCH950703BXA 17½” 16” 14½” 16”
GCH950704CXA 21” 19½” 18” 19½”
GCH950904CXA 21” 19½” 18” 19½”
GCH950905DXA 24½” 23” 21½” 23”
GCH951155DXA 24½” 23” 21½” 23”
Notes:
•
•
•
•
Right: Straight pipe to reach gas valve
• -
6 www.goodmanmfg.com SS-GMH95 SS-GMH95 www.goodmanmfg.com 7
Product SPecificationS Product SPecificationS
GMH95 airFlow daTa
(CFM & Temperature Rise vs. External Static Pressure)
Model Motor
Speed
Tons
AC¹
External Static Pressure, (Inches Water Column)
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
CFM Rise CFM Rise CFM Rise CFM Rise CFM Rise CFM CFM CFM
GMH95
0453BXA
High 3 1,352 29 1,318 30 1,260 31 1,202 33 1,128 35 1,044 955 853
Med 2.5 1,214 32 1,172 34 1,123 35 1,064 37 1,012 39 938 859 741
Med-Lo 2 997 40 994 40 960 41 923 43 884 45 817 741 611
Low 1.5 757 52 753 52 734 54 704 56 674 59 620 524 438
GMH95
0703BXA
High 3 1,449 41 1,409 42 1,326 45 1,273 47 1,201 49 1,194 1,136 1,018
Med 2.5 1,192 50 1,172 51 1,141 52 1,094 54 1,046 57 973 904 793
Med-Lo 2 981 61 962 62 943 63 917 65 888 67 830 764 665
Low 1.5 750 79 730 81 714 83 692 86 657 90 620 570 502
GMH95
0704CXA
High 4 2,069 29 1,965 30 1,871 32 1,756 34 1,661 36 1,549 1,415 1,275
Med 3.5 1,752 34 1,724 34 1,667 36 1,603 37 1,488 40 1,402 1,290 1,082
Med-Lo 3 1,437 41 1,437 41 1,417 42 1,369 43 1,320 45 1,256 1,140 984
Low 2.5 1,184 50 1,177 50 1,161 51 1,132 52 1,095 54 1,047 928 837
GMH95
0904CXA
High 4 1,970 40 1,874 42 1,757 45 1,667 48 1,566 51 1,431 1,334 1,182
Med 3.5 1,713 46 1,650 48 1,572 50 1,510 52 1,418 56 1,313 1,211 1,079
Med-Lo 3 1,439 55 1,412 56 1,370 58 1,327 60 1,260 63 1,166 1,078 956
Low 2.5 1,183 67 1,155 69 1,122 71 1,108 72 1,062 75 1,011 931 816
GMH95
0905CXA
High 5 2,147 37 2,114 37 2,057 39 2,030 39 1,978 40 1,889 1,784 1,713
Med 4 1,675 47 1,686 47 1,640 48 1,623 49 1,557 51 1,501 1,455 1,360
Med-Lo 3.5 1,489 53 1,470 54 1,436 55 1,409 56 1,361 58 1,318 1,243 1,130
Low 3 1,307 61 1,265 63 1,234 64 1,203 66 1,168 68 1,096 1,053 991
GMH95
1155DXA
High 5 2,134 46 2,103 47 2,029 48 1,941 51 1,906 51 1,818 1,733 1,625
Med 4 1,678 58 1,643 60 1,643 60 1,577 62 1,527 64 1,489 1,423 1,339
Med-Lo 3.5 1,453 68 1,440 68 1,426 69 1,363 72 1,349 73 1,314 1,253 1,205
Low 3 1,259 78 1,239 79 1,220 80 1,181 83 1,159 85 1,118 1,082 1,015
¹ @0.5” ESP
Notes:
•
•
•
• INSTALLATION IS TO BE ADJUSTED TO OBTAIN TEMPERATURE RISE WITHIN THE RANGE SPECIFIED ON THE RATING PLATE.
•
• -
8 www.goodmanmfg.com SS-GMH95 SS-GMH95 www.goodmanmfg.com 9
Product SPecificationS Product SPecificationS
GCH95 airFlow daTa
(CFM & Temperature Rise vs. External Static Pressure)
Model Motor
Speed
Tons
AC¹
External Static Pressure, (Inches Water Column)
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
CFM Rise CFM Rise CFM Rise CFM Rise CFM Rise CFM CFM CFM
GCH95
0453BXA
High 3 1,415 28 1,352 30 1,290 31 1,196 34 1,127 36 1,035 936 825
Med 2.5 1,221 33 1,178 34 1,127 36 1,073 38 1,007 40 932 834 733
Med-Lo 2 1,034 39 1,000 40 976 41 935 43 881 46 818 733 662
Low 1.5 860 47 845 48 812 50 783 51 740 54 682 619 534
GCH95
0703BXA
High 3 1,431 42 1,368 44 1,296 47 1,228 49 1,150 53 1,055 962 860
Med 2.5 1,212 50 1,182 51 1,138 53 1,091 55 1,019 59 944 871 769
Med-Lo 2 1,002 60 978 62 956 63 921 66 878 69 825 738 647
Low 1.5 813 74 805 75 790 76 759 80 726 83 689 644 605
GCH95
0704CXA
High 4 1,755 34 1,674 36 1,632 37 1,510 40 1,423 42 1,325 1,241 1,116
Med 3.5 1,656 36 1,585 38 1,536 39 1,429 42 1,355 45 1,268 1,145 1,059
Med-Lo 3 1,551 39 1,488 41 1,427 42 1,353 45 1,290 47 1,195 1,100 1,017
Low 2.5 1,286 47 1,258 48 1,241 49 1,185 51 1,112 54 1,067 983 886
GCH95
0904CXA
High 4 1,734 46 1,652 49 1,578 51 1,508 53 1,413 57 1,336 1,248 1,154
Med 3.5 1,642 49 1,558 52 1,487 54 1,418 57 1,336 60 1,243 1,164 1,039
Med-Lo 3 1,522 53 1,458 55 1,396 58 1,321 61 1,253 64 1,182 1,101 986
Low 2.5 1,287 63 1,244 65 1,184 68 1,148 70 1,098 73 1,034 953 849
GCH95
0905DXA
High 5 2,189 37 2,109 38 2,025 40 1,948 41 1,862 43 1,757 1,644 1,537
Med 4 1,885 43 1,831 44 1,776 45 1,711 47 1,637 49 1,539 1,453 1,346
Med-Lo 3.5 1,665 48 1,627 50 1,584 51 1,524 53 1,462 55 1,400 1,323 1,220
Low 3 1,474 55 1,440 65 1,401 57 1,356 59 1,310 61 1,255 1,193 1,109
GCH95
1155DXA
High 5 2,134 46 2,103 47 2,029 48 1,941 51 1,906 51 1,818 1,733 1,625
Med 4 1,678 58 1,643 60 1,643 60 1,577 62 1,527 64 1,489 1,423 1,339
Med-Lo 3.5 1,453 68 1,440 68 1,426 69 1,363 72 1,349 73 1,314 1,253 1,205
Low 3 1,259 78 1,239 79 1,220 80 1,181 83 1,159 85 1,118 1,082 1,015
¹ @0.5” ESP
Notes:
•
•
•
• INSTALLATION IS TO BE ADJUSTED TO OBTAIN TEMPERATURE RISE WITHIN THE RANGE SPECIFIED ON THE RATING PLATE.
•
• -
8 www.goodmanmfg.com SS-GMH95 SS-GMH95 www.goodmanmfg.com 9
Product SPecificationS Product SPecificationS

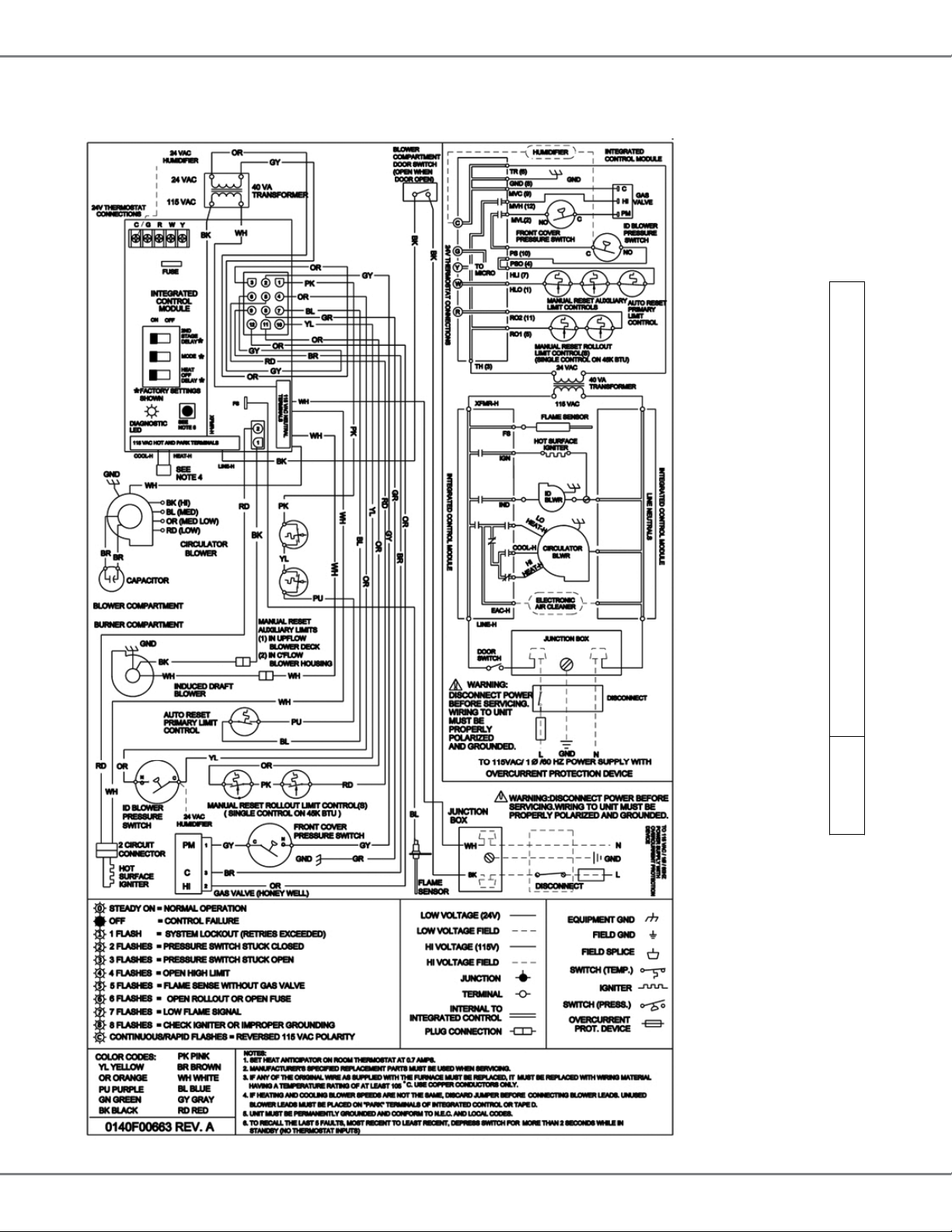

wirinG diaGraM —GMH95
Wiring is subject to change. Always
refer to the wiring diagram or the
unit for the most up-to-date wiring. ⚠Warning
High Voltage: Disconnect all power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal injury, or death. ⚡
10 www.goodmanmfg.com SS-GMH95 SS-GMH95 www.goodmanmfg.com 11
Product SPecificationS Product SPecificationS

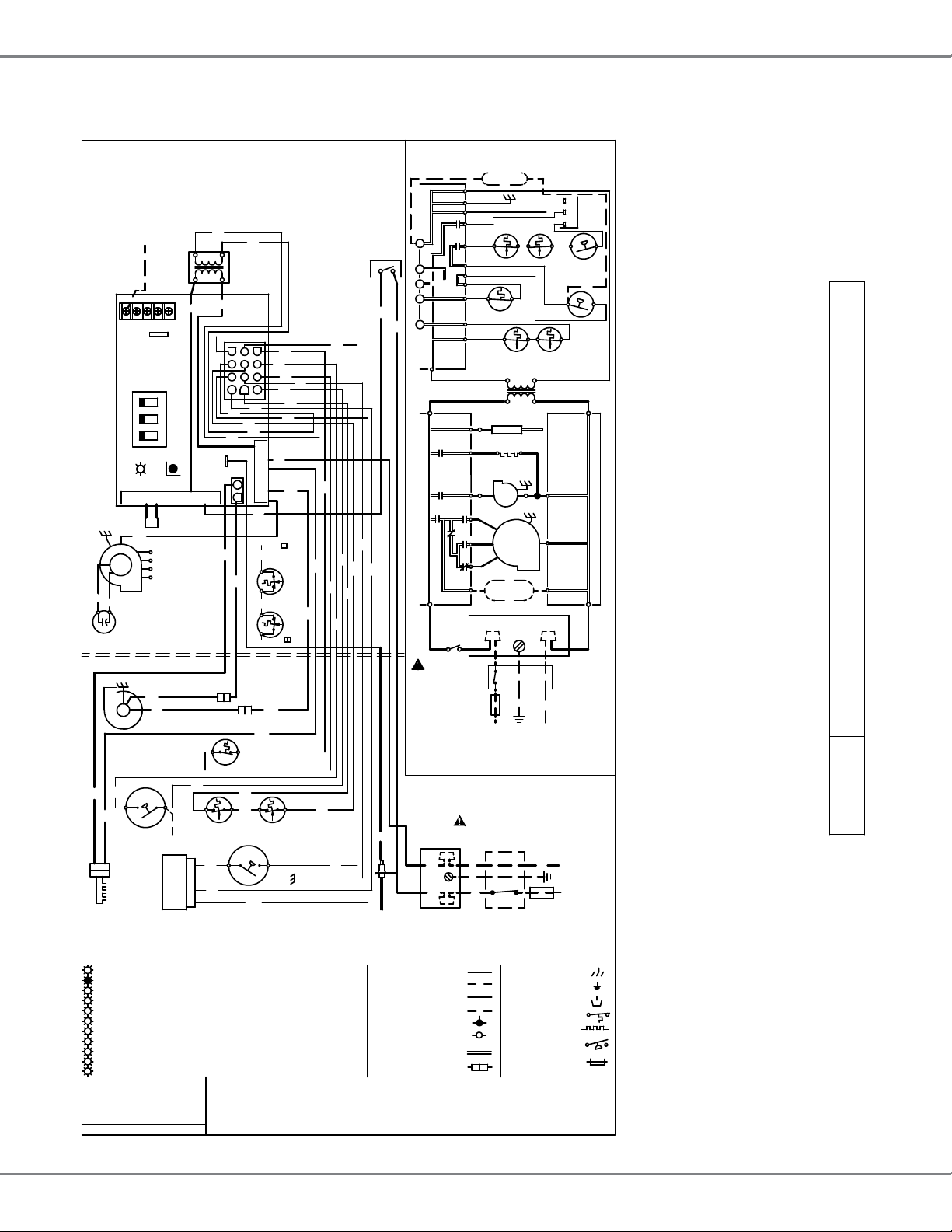

wirinG diaGraM —GCH95 / GMH950905C
R
YLYELLOW
ORORANGE
PUPURPLE
GNGREEN
BKBLACK
BRBROWN
WHWHITE
BLBLUE
GYGRAY
RDRED
COLORCODES:
LOWVOLTAGE(24V)
LOWVOLTAGEFIELD
HIVOLTAGE(115V)
HIVOLTAGEFIELD
NOTES:
1.SETHEATANTICIPATORONROOMTHERMOSTATAT0.7AMPS.
2.MANUFACTURER'S SPECIFIEDREPLACEMENTPARTSMUSTBEUSEDWHENSERVICING.
3.IFANYOFTHEORIGINALWIREASSUPPLIEDWITHTHEFURNACEMUSTBEREPLACED,ITMUSTBEREPLACEDWITHWIRINGMATERIALHAVINGATEMPERATURE
RATINGOFATLEAST105°C. USECOPPERCONDUCTORSONLY.
4.IFHEATINGANDCOOLINGBLOWERSPEEDSARENOTTHESAME,DISCARDJUMPERBEFORECONNECTINGBLOWERLEADS.UNUSEDBLOWERLEADSMUSTBE
PLACEDON"PARK"TERMINALSOFINTEGRATEDCONTROLORTAPED.
5.UNITMUSTBEPERMANENTLYGROUNDEDANDCONFORMTON.E.C.ANDLOCALCODES.
6.TORECALLTHELAST5 FAULTS,MOSTRECENTTOLEASTRECENT,DEPRESSSWITCHFORMORETHAN2 SECONDSWHILEIN STANDBY(NOTHERMOSTATINPUTS)
0140F01027-B
OR(MEDLOW)
BL(MED)
RD(LOW)
GASVALVE
C
PM
CGW
INTERNALTO
INTEGRATEDCONTROL
JUNCTION
EQUIPMENTGND
FIELDGND
DIAGNOSTIC
LED
2CIRCUIT
CONNECTOR
HOT
SURFACE
IGNITER
OVERCURRENT
PROT.DEVICE
IGNITER
TH(3)
INTEGRATED
CONTROLMODULE
JUNCTIONBOX
LINE-H
XFMR-H
INTEGRATED CONTROL MODULE
INTEGRATED CONTROL MODULE
GND
DISCONNECT
LN
DISCONNECTPOWER
BEFORESERVICING.
WIRINGTOUNIT
MUSTBE
PROPERLY
POLARIZED
ANDGROUNDED.
OVERCURRENTPROTECTIONDEVICE
OR
GY
RD
BL
BK
TERMINAL
SWITCH(PRESS.)
PKPINK
115VACHOTANDPARKTERMINALS
LINE-H
FLAME
SENSOR
FRONTCOVER
PRESSURESWITCH
( SINGLECONTROLON45KBTU)
N
O
C
GY
BK
PLUGCONNECTION
FIELDSPLICE
SWITCH(TEMP.)
OR
24VTHERMOSTAT
CONNECTIONS
GR
GND
115VAC
24VAC
BLOWER
COMPARTMENT
DOORSWITCH
(OPENWHEN
DOOROPEN)
DOOR
SWITCH
WARNING:DISCONNECTPOWERBEFORE
SERVICING.WIRINGTOUNIT MUSTBE
PROPERLYPOLARIZEDANDGROUNDED.
BK
GND
DISCONNECT
L
N
POWER SUPPLY WITH
OVERCURRENT PROTECTION
DEVICE
WH
JUNCTION
BOX
1
TO 115 VAC / 1Ø / 60HZ
OR
IDBLOWER
PRESSURE
SWITCH
HEAT-H
GND
WH
RD
WH
GND
BURNERCOMPARTMENT
BLOWERCOMPARTMENT
NOTE4
SEE
N
O
COOL-H
BK(HI)
BRBR
CAPACITOR
YL
WH
YL
CONTROL
PRIMARYLIM IT
AUTORESET
BL
PU
MANUALRESETROLLOUTL IMIT C ONTROL(S)
RD
OR
PK
BK
WHWH
BLOWER
INDUCEDDRAFT
C
CIRCULATOR
BLOWER
FS
HI
HEAT-H
LO
HEAT-H
IGNITER
HOTSURFACE
IND
IGN
EAC-HAIRCLEANER
ELECTRONIC
BLWR
CIRCULATOR
BLWR
ID
FLAMESENSOR
115VAC
TRANSFORMER
40VA
24VAC
GND
LIMIT CONTROL
AUTORESETPRIMARY
(SINGLECONTROLON45KBTU)
LIMIT CONTROL(S)
MANUALRESETROLLOUT
RO1(5)
RO2(11)
HLO(1)
HLI(7)
MVC(9)
GND(8)
TR(6)
OR
WH
WH
BL
YL OR
RD
GR BR
PK
PU
GY
WH
115 VAC NEUTRAL
BK
BK
GY
24V THERMOSTAT CONNECTIONS
MICRO
TO
C
G
Y
W
R
TRANSFORMER
40V A
2
WH
OR
BL
YL
OR
ORGY
PU
RD
OR
GY
WH
XFMR-H
TERMINALS
GY
OR
GR
BR
1
2
3
121110
987
654
WARNING:
24VAC
HUMIDIFIER
24VAC
HUMIDIFIER
HUMIDIFIER
PSO(4)
PS(10)
0
C
7
6
5
4
3
2
1
OFF= CONTROLFAILURE
STEADYON=NORMALOPERATION
1FLASH=
2FLASHES=PRESSURESWITCHSTUCKCLOSED
3FLASHES= PRESSURESWITCHSTUCKOPEN
4 FLASHES= OPENHIGHLIMIT
5 FLASHES= FLAMESENSEWITHOUTGASVALVE
OPENROLLOUTOROPENFUSE
7 FLASHES= LOWFLAMESIGNAL
6 FLASHES=
SYSTEMLOCKOUT(RETRIESEXCEEDED)
CONTINUOUS/RAPID FLASHES= REVERSED115VACPOLARITY
CONTROL
MODULE
INTEGRATED
FUSE
ON OFF
2ND
STAGE
DELAY
MODE
HEAT
OFF
DELAY
FS
1
2
3
HI
BR
OR
MVH(12)
FACTORYSETTINGS
SHOWN
*
*
*
*
SEE
NOTE 6
COOL-H
TO115VAC/1Ø/60HZPOWERSUPPLYWITH
GY
Y
BK
LINE NEUTRALS
8
8FLASHES=CHECKIGNITERORIMPROPERGROUNDING
PU
GY
(HONEYWELL)
NO
C
ID BLOWER
PRESSURE
SWITCH
C
PRESSURE SWITCH
FRONT COVER
NO
AUXILIARYLIMIT CO
NTRO
LS
HI
C
VALVE
GAS
PM
MVL(2)
Wiring is subject to change. Always
refer to the wiring diagram or the
unit for the most up-to-date wiring. ⚠Warning
High Voltage: Disconnect all power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal injury, or death. ⚡
10 www.goodmanmfg.com SS-GMH95 SS-GMH95 www.goodmanmfg.com 11
Product SPecificationS Product SPecificationS
aCCeSSorieS —GMH95
Accessory Description GMH95
0453BXA
GMH95
0703BXA
GMH95
0704CXA
GMH95
0904CXA
GMH95
0905CXA
GMH95
1155DXA
LPM-06
LPLP03 LP Gas Low-Pressure Kit
GSAS Electronic Air Cleaners (-10, -11, -12, -18)
GMU Media Air Cleaners (1620, 2020, 1625, 2025)
HANG11 111111
HANG12 222222
HALP10 333333
HAPS27 333333
FTK04 Twinning Kit
EFR01
DCVK-20 --- --- --- ---
DCVK-30
0170K00000S Flush-mount Vent Kit
•
•
base must be used. Those model numbers are: CFB17, CFB21 and CFB24.
12 www.goodmanmfg.com SS-GMH95 SS-GMH95 www.goodmanmfg.com PB
Product SPecificationS Product SPecificationS
Goodman Manufacturing Company, L.P., reserves the right to discontinue, or change at any time, specications or designs without
notice or without incurring obligations. © 2013 • Goodman Manufacturing Company, L.P. • Houston, Texas • Printed in the USA.
aCCeSSorieS —GCH95
Accessory Description GCH95
0453BXA
GCH95
0703BXA
GCH95
0704CXA
GCH95
0904CXA
GCH95
0905CXA
GCH9
1155DXA
LPM-06
LPLP03 LP Gas Low-Pressure Kit
GSAS Electronic Air Cleaners (-10, -11, -12, -18)
GMU Media Air Cleaners (1620, 2020, 1625, 2025)
HANG11 111111
HANG12 222222
HALP10 333333
HAPS27 333333
EFR01
DCVK-20 --- --- --- ---
DCVK-30
0170K00000S Flush-mount Vent Kit
•
•
base must be used. Those model numbers are: CFB17, CFB21 and CFB24.
This manual suits for next models
13
Table of contents
Other Goodman Furnace manuals
Goodman
Goodman AMV8 User manual
Goodman
Goodman ComfortNet ACVC9 User manual
Goodman
Goodman AMVS96U Guide
Goodman
Goodman GME95 User manual
Goodman
Goodman GMSS96 User manual
Goodman
Goodman GMH95 User manual
Goodman
Goodman ACVC8 CA Series AMVC8 CA Series Guide
Goodman
Goodman GMS8 Installation instructions
Goodman
Goodman GMH95 Installation instructions
Goodman
Goodman GMEC80 User manual
Goodman
Goodman GMS8 User manual
Goodman
Goodman Amana ComfortNet GMVC8 Operating instructions
Goodman
Goodman ComfortNet ACVC90704CXAA Use and care manual
Goodman
Goodman GCVC960403BNAA User manual
Goodman
Goodman MEC80 Series User manual
Goodman
Goodman GMS8 Manual
![Goodman [A/G]PG Operating instructions](/data/manuals/19/o/19o17/sources/goodman-a-g-pg-manual.jpg "Goodman [A/G]PG Operating instructions")
Goodman
Goodman [A/G]PG Operating instructions
Goodman
Goodman MH8 User manual
Goodman
Goodman GDS8 User manual
Goodman
Goodman Amana GMH8 User manual
Popular Furnace manuals by other brands
United States Stove Company
United States Stove Company Hot Blast HB1520 Owner’s Instruction and Operation Manual
Amana
Amana GDH8 installation instructions
Heat Controller
Heat Controller OLF user manual
Tempstar
Tempstar (F/G)9MAC0601714A Service and technical support manual
Royal
Royal R-CAST Owner's manual and installation instructions
Lennox
Lennox Merit Series installation instructions
York
York TM9Y120D20MP11 Technical guide
Heatmor
Heatmor 200X Operation and maintenance manual
International comfort products
International comfort products C9MPX installation instructions
Central Boiler
Central Boiler FORGE 1500 owner's manual
Lennox
Lennox G40UH Series installation instructions
Carrier
Carrier 58RAV Series Operation guide
Carrier
Carrier 912SD Installation, start-up, operating and service and maintenance instructions
York International
York International TG9S series installation manual
ICP
ICP NTC7/GNL Series installation instructions
Bryant
Bryant 330AAV Installation, start-up, and operating instructions
VERDER
VERDER CARBOLITE GERO VST 12/600 Installation, operation and maintenance instructions
Tempstar
Tempstar F9MAE installation instructions
