Gooloo GTX280 User manual

R
User Manual
Detachable Inverter
Portable Power Station
Model : GTX280
SUPERSAFE is a safety protection technology by GOOLOO
Reg No. 5904374
Reg No. 5904374

Thank you for choosing the GOOLOO GTX280 detachable inverter portable power station. This
is an outdoor emergency power supply with multiple output ports that can charge most of your
devices, including laptops, phones, tablets, drones, cameras, CPAP machines, mini-fridges and
many more.
Charge It First !
Warning
Before reading through the manual, you can begin to charge up your GTX280 by connecting
the inverter to GTX280 host with 100W PD charging cable.
[email protected]
This unit is for vehicle (equipment) with 12V batteries. It may be dangerous if it is used with
other types of batteries. Read and understand the safety information before using the power
station. Failure to follow the safety information may cause damage to the power station, and
may also result in electric shock, explosions, fire, property damage, and personal injury.

Product Parts and Functions Description

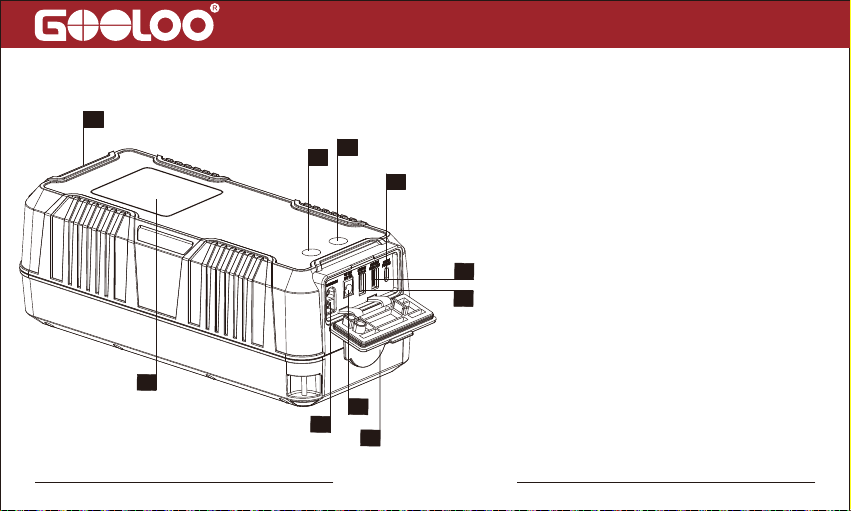

1. Display Screen
2. 12V Battery Clamps Output
3. DC Output Port (15V/10A, Max 150W)
4. 15V/10A Cigarette lighter
output socket
5. USB1 Output Port (5V/2.4A)
6. USB2 Output Port (QC3.0, 5V/9V/12V)
7. USB-C1 In/Output Port (PD100W Max)
8. Power Button
9. BOOST Button
10. LED Light
8
2
4
9
10
7
6
5
3
1
[email protected]

Display Screen Instructions
123
4
5
6
1. Battery Power Percentage: Battery percentage of
charge/standby/discharge
2. Low Current Mode: Support charging for the devices
that need light charging current like headphone, smart
watch,etc. Press POWER and BOOST button
simultaneously for 2-3s to turn on this mode.
3. “+” and “-” Poles of Battery Clips Reversed
4. Battery Low Temperature Reminder
5. Ready to Start the Vehicle
6. Charge Power/Discharge Power
[email protected]

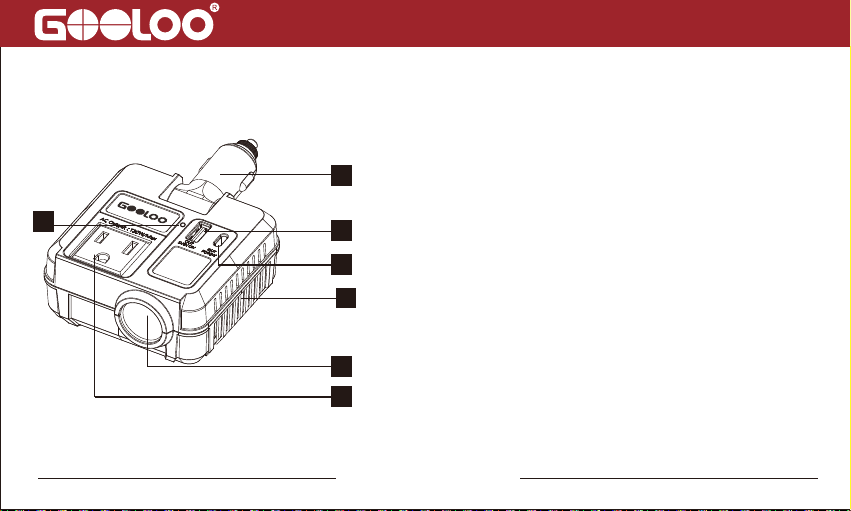

1.Cigarette lighter plug (12-16.8V/10A)
2.USB3 Output Port (QC3.0, 5V/9V/12V)
3.USB-C2 Output Port (PD30W Max)
4.Vents
5.15V/10A Cigarette lighter output socket
6.AC Outlet (Rated Power 120W, Peak 150W)
7.Indicator Light
Product Parts and Functions Description
[email protected]
1
2
3
4
5
6
7

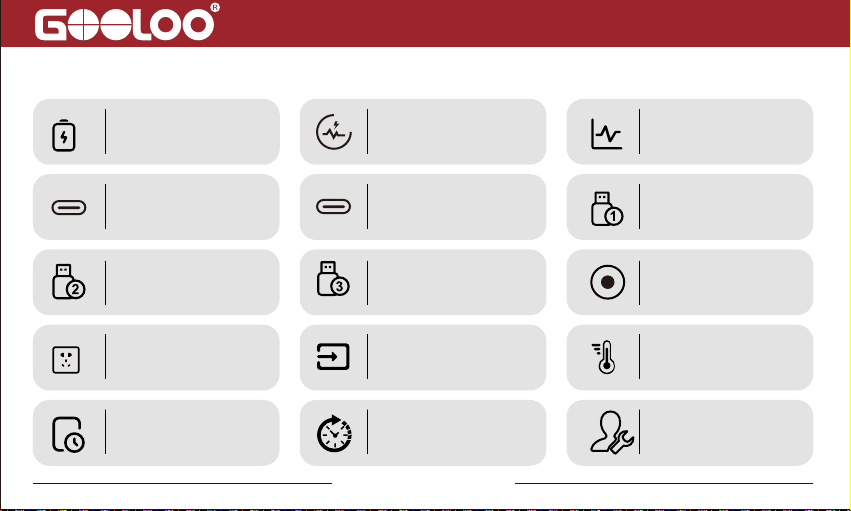

Technical Specification
[email protected]
Capacity
280Wh
Starting Current
600A(3s) 3000A
PD100W Max (5V/3A, 9V/3A,
12V/3A,15V/3A, 20V/5A);
Backwards Compatibility
PD30W Max 5V/2.4A
QC3.0 18W Max (5V/3A,
9V/2A, 12V/1.5A)
QC3.0 18W Max (5V/3A,
9V/2A, 12V/1.5A）
15V/10A (150W Max)
110V~60HZ (Rated Power
120W, Peak 150W)
12-16.8V/10A cigarette
lighter input -20℃～60℃/-4℉~140℉
> 1000 Cycles
About 2.8 hour if use the invertor's
type-c port with the PD100W charging
cable
USB1 Out
USB2 Out USB3 Out DC OUT
USB-C1 In/Out USB-C2 Out
Peak Current
Operating Temp
18 Months Limited Warranty Service
Lifetime Technical Service
Customer Service
Lifetime Full Charge Time
InputAC Out

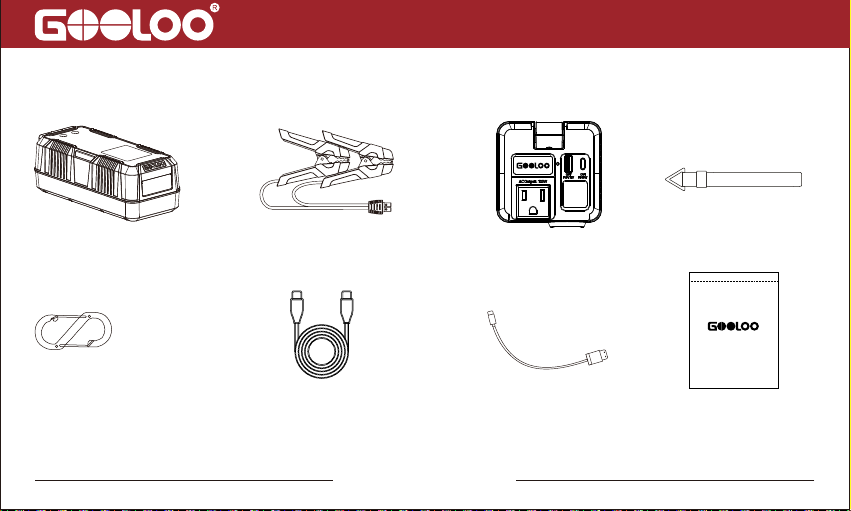

Package Contents
12V Battery Clamp Out x1Host x1 Car Inverter x1
PD100W Data Cable x1 USB-A to USB-C Cable x1 Carring Bag x1
Carrying Strap x1
Hook x1
[email protected]

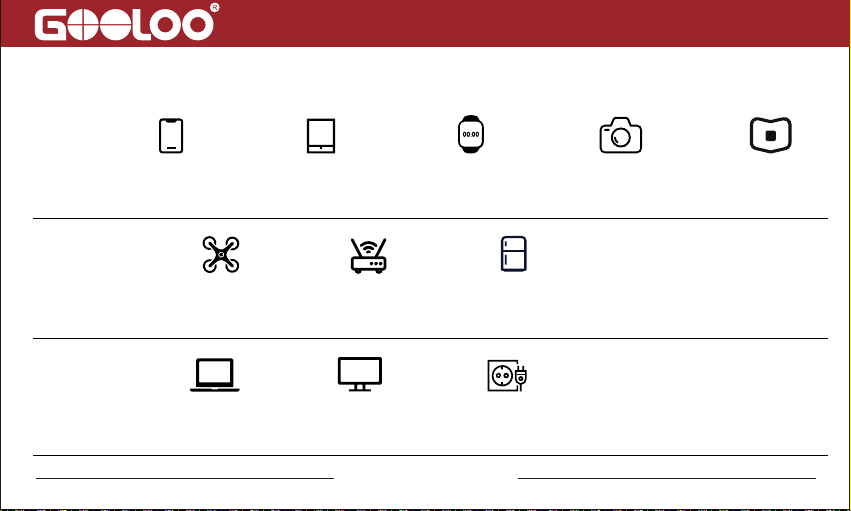

Smartphones
(11Wh)-24 Times
Drones
(40Wh)-6 Times
Laptops
(50Wh)-4 Times
Displays
(60W)-4 Hours
Electrical
appliances
Routers
(10W)-20 Hours
Mini-fridges
(60W)-4 Hours
Tablets
(30Wh)-8 Times
Smartwatches
(5Wh)-50 Times
Digital cameras
(16Wh)-14 Times
E-readers
(8Wh)-29 Times
Support Charging Device
USB Port:
[email protected]
DC Output
(15V/10A):
AC Output
(Rated
Power
120W):

Before using or storage, if the LCD display shows capacity less than 5% , please recharge the
GTX280 as soon as possible.
Recharging Method

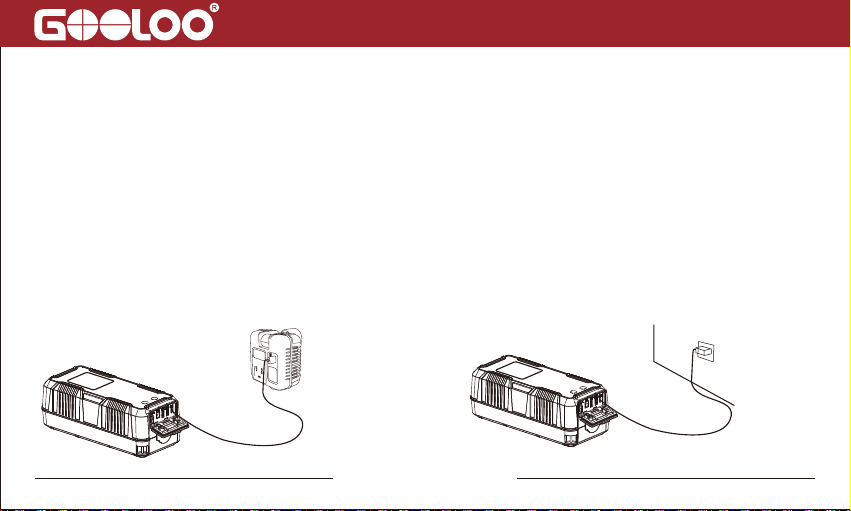

This unit support 100W super fast charging via our private protocol which means you can
achieve this function by connect the inverter to GTX 280 host with 100W PD charging cable.
You can also get 100W max input function through PD 100W USB-C wall charger .( Please be
aware that 100W wall charger need to be purchased separately.)
Support PD100W Max Speed Charging
[email protected]
ACOUTPUT.120W
OUT
PD30W
5V9V12V

Recharge Time
Wall Charger
(Not included)
Around 2.8 Hours
Type-C Charger
Around 2.8 Hours
Support 60W/80W/100W
Max Solar Panels (Not included)
The charging time is determined
by the solar light intensity.
You can connect a standard USB cable to the 5V/2.4A USB output port to charge the smart devices.
USB Output
It supports 5V to 12V output up to 18W and can power Quick charge 3.0 compatible smartdevices.
The actual output voltage and current depend on the smart devices.
Quick Charge 3.0 USB Output
It supports 5V to 20V output up to 100W and can power type-C compatible smart devices.
The actual output voltage and current depend on the smart devices.
Type-C Output
[email protected]

15V/10A DC Output
Plug the DC head into the 15V 10A output port. Press the switch button to the power the 15V
vehicle product or 15V electronics
15V/10A DC Cigarette lighter output socket
Connect the Inverter or need to be powered by cigarette lighter socket.
110V/60Hz AC Output (Rated Power 120W, Peak 150W)
The output voltage of the AC port is 110V and the output frequency is 60Hz. Power the electronic
devices with power consumption less than 150W, such as laptops and displays, home appliances,etc.
[email protected]

The inverter adopts an isolated cell group and circuit design. Its high compatibility & high-
quality AC, make the waveform synchronize with the mains power, which can adapt to more
appliances.
How to Turn On/Off the LED Flashlight
Power on, then press power button for 1-2s to turn on the LED light. There are 3 modes of
LED light (Normal,SOS,Strobe,Off) if you press lightly.
GTX280 is designed for jump starting 12V vehicle batteries.
[email protected]
How To Jump Start Your Vehicle (Make sure battery power>20%)
1. Connect Vehicle Battery 2. READY (Solid) 3. Start Vehicle Engine
START
ENGINE
100
%
READY
+
-

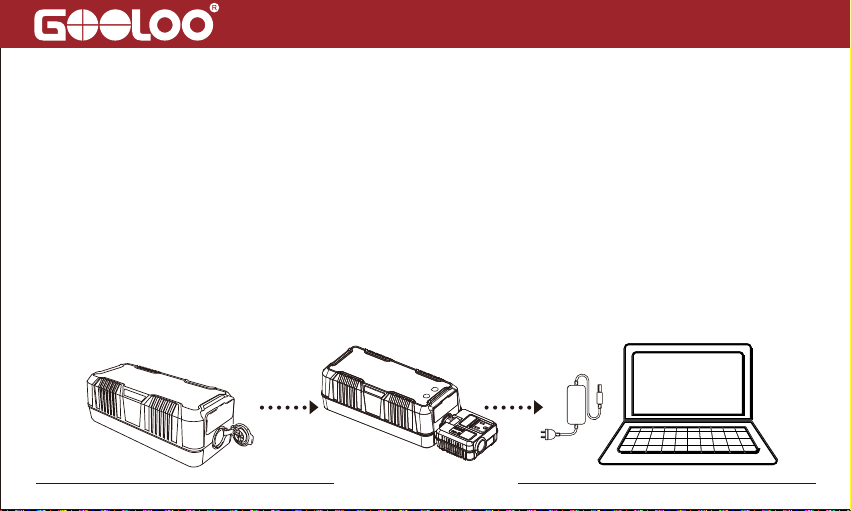

How to use the inverter
1. Insert the on-board inverter into the socket of the automobile cigarette lighter or GOOLOO
GTX280. When inserting, please check the tightness between the plug and the socket. When
it is too loose, open the shrapnel on both sides of the insert head, and then insert it into the
cigarette socket.
2. Confirm whether the power indicator of the inverter is on before use, and make sure the
power of the electrical appliance to be used is below 150W at the same time.
3. Insert the power plug of the electrical appliance into the socket of the onboard inverter.
4.When the car inverter is not in use, please remove it from the cigarette lighter socket to
avoid draining the battery power.
[email protected]

Toxic and Harmful Substances
FAQ
Q1: What is the operating temperature of this unit and how to store it?
A: This unit is lithium polymer battery, operating temp is -20-60 ºC/ -4-140ºF. If the ambient
temperature is higher than 60ºC/140ºF, the internal construction of the battery cells may be
damaged, it may swell and become unsafe. Avoid direct sunlight or hot temperatures,do not
leave it in a parked car under direct sunlight for long periods of time.
Pb
Hg
Cd
Cr(Vi)
PBB
PBDE
000000
Composition and amount of toxic or harmful substance in this product
0: Indicate that the content of harmful substances in all homogeneous materials is all
lower than the prescribed limit of MCV (the standard 2002/95/EC/RoHs)
[email protected]

Q2: How often does this unit need to be recharged?
A: It would be best to recharge it every 3 months.
Q3: What should I do if this unit can’t charge up?
A: Please feel free to contact us at: [email protected] (Attach your order ID), and we will get
back to you within 24 hours.
Q4: What should I do if this unit can’t charge other devices?
A: Try to charge the device with another charging cable, If it works, which means the charging
cable we provided is defective, we will provide you a new one; If it still does not work, please
email us at: [email protected] (Attach your order ID).
[email protected]
Q5: Why can't the equipment be used when its power is within the rated output power
of the product?
A: The use power of some equipment is greater than the maximum peak power of the product
or the standard power of the equipment is greater than the actual power of the product,Higher
power power stations are recommended.

Q6: Will the charger be damaged due to heating during use?
A: Normal use of the charger emits heat,so do not worry if it feels warm.But if the temperature
is too high,we recommend you to stop using it and contact us.
Q7: Why it shuts off in 30s when charging other devices?
A: This unit may shut off automatically when charging for the devices that need light charging
current, such as headphones, smart watch,etc. since there is minimum load current limitation
(200mA) on this unit, so please use Low Current Mode when you are facing such problem.
[email protected]
Q8: Can this unit charge other devices while it is being charged?
A: Yes
Q9: Can this product charge other devices while starting a vehicle?
A: No.
Q10: How to turn off this unit ?
A: This unit will be turned off automatically in 30s when it's not used. Or you can press
POWER button for about 10s to force shutdown.

Q11: Can this unit be used as a jump starter and what are the steps?
A:Yes you can start a 12V car in emergency.Steps as below:
1.Insert the jumper cable into the unit.
2.Connect the clamps to the car battery. Red to positive(+),black to negative(-).
3.When the screen shows "READY" , go to start the engine.
Note: You have to press the BOOST button when the car battery is too low to detect or totally
dead.
[email protected]
Q12: How do you know if this unit is connected to the vehicle correctly?
A: With the battery clamps connected to the vehicle battery, if the READY(Solid) appears
on the screen, it means clamps are connected correctly, while if X appears on the screen,
it means it's reversed.
Q13: What should I do if this unit can’t start a vehicle?
A: Recharge this unit fully, and try to press the “BOOST” button after connecting the vehicle
battery correctly, READY(Solid) will appear on the screen, then start the vehicle within 30s. If
it still does not work, contact us at: [email protected] ( Attach your order ID).

Warning
1. Please read this manual carefully before use.
2. Do not use it with other electronic products that exceed the requirements of product
specifications to avoid electric shock and product damage.
3. Do not use damaged or damaged output cables or plug-in terminals to use the product, so
as to avoid electric shock and crystal damage.
4. Please keep the product dry and do not place it in water or wet place to avoid electric shock
and product damage.
5 Do not insert foreign matters into the input and output interfaces to avoid product damage.
6. Please use the product under good ventilation.
7. Please prevent the product from falling from height.
8. Do not use the product in the environment of too high or too low temperature, which may
lead to product function failure, short service life or damage.
9. Please do not expose the product to fire or temperature higher than 60 degrees, otherwise
it may cause fire, explosion and other safety accidents
[email protected]

10. Do not attempt to disassemble the product or allow non professional technicians to disassemble
it, otherwise it may cause electric shock, fire and even explosion unknown risks such as explosion.
11. Do Not allow people who do not have proper knowledge or ability to operate the device
without supervision.
12. Only charge at ambient temperature of -20~60ºC/-4~140ºF.
13. Do Not use it as a vehicle battery or a battery charger.
14. Do not start the vehicle continuously for more than 4 times within 10 minutes. If the engine
fails to start successfully within 3s after the first start, stop cranking and wait at least 30s to
start the vehicle again.
15. Do Not connect the jump starter's clamps to the battery reversely after pressing the "BOOST"
button to avoid accident.
[email protected]
16. The output power of the inverter must be greater than that of the electrical appliance
17. It shall be placed in a ventilated and dry place, protected from rain, away from inflammables
and explosives, and the ambient temperature shall not be greater than 40 ℃.
18. Clean the dirt at the plug of on-board inverter in time to avoid poor contact or abnormal
overheating of the converter.

21. When not in use for a long time, please charge the product every 3 months to prevent
power shortage.
22. Please stay away from children to reduce possible risks.
23. Under extreme conditions, battery leakage may occur. If you accidentally touch hands or
exposed parts of your body, Please wash immediately with soap and water. If you accidentally
enter your eyes, immediately flush your eyes with cold water for at least 1 minute, and
then see a doctor immediately.
24. lithium battery products should be disposed of according to local regulations at the end of
product life.
19. When the car inverter is not in use, please remove it from the cigarette lighter socket and
store it properly.
20. If you suspect a malfunction of the inverter, please do not continue to operate and use it.
Cut off the input and output in time and check and repair by qualified maintenance personnel.
You can also contact our service team at [email protected] for after-sales service.
[email protected]
