Gorenje SVK65ES User manual

Instructions for use, mounting and connection 3
Ceramic-glass Built-in Cooktop GB IE MT
Dear customer,
Ceramic-glass built-in cooktop is made for
domestic use only.
Our products use environmentally friendly
packaging, which can be either recycled or
disposed of in an environmentally friendly
manner.
To this end, individual packaging materials are
clearly marked.
When your appliance finally wears out, please try
not to burden the environment with it: call your
nearest authorised service agent.
Instructions for Use
These instructions are intended for the user.
They describe the cooker and how to use it. They
also apply to different types of appliances,
therefore you may find some descriptions of
functions that may not apply to your appliance.
Instructions for Installation
This appliance should be connected to the power
supply according to instructions for the
connection of appliances in compliance with
current standards and local regulations. The
connection should be done by a qualified
technician only.
Rating Plate
The rating plate with basic data is fixed on the
rear wall of the appliance.
Fire hazard protection
Appliances are allowed to be mounted on one
side next to a high kitchen cabinet, the height of
which may exceed that of the appliance. On the
opposite side however, only a kitchen cabinet of
equal height as the appliance is allowed.
Contents
Ceramic-glass Built-in Cooktop ........................... 3
Dear customer,
Instructions for Use
Instructions for Installation
Rating Plate
Contents
Attention ................................................................. 4
Technical Data ....................................................... 4
Glass Ceramic Cooktop......................................... 5
Setting of Cooking Zones ...................................... 6
Use of Cooking Zones
The Circuit and Extended Circuit Switch
Signal lamp
Warning lamps "HOT"
Pots and Pans ......................................................... 7
Energy Saving Tips
Cleaning and maintenance of ceramic-glass hob.... 8
Mounting the built-in cooktop .............................. 9
Caution !
Dimensions of the built-in hob opening
Installation procedure
Electrical connections .......................................... 10
Connecting to Power Supply............................... 10
Connecting diagram

Instructions for use, mounting and connection
4
Attention
x The appliance may be installed and connected
to mains by qualified personnel only.
x Particular areas of the appliance get hot during
operation (vicinity of the heating plates). Make
sure children are kept out of reach and warn
them accordingly.
x Overheated oil may suddenly ignite. Constant
monitoring should therefore be assured during
the preparation of such dishes that require the
use of oil (like chips).
x Heating zones may not be left switched on
empty, without dishes.
x Do not use the appliance for room heating.
x Do not use the glass ceramic plate as a
working top. Sharp objects may cause
scratches.
x Preparation of food in aluminum or plastic
dishes upon hot plates is not allowed. Do not
place any plastic objects or aluminum foil upon
hot plates.
x If any other electric appliances are plugged in
close to the hotplates, prevent the cord to come
into contact with the hotplate.
x Do not store any temperature sensitive objects
below the hotplates, like cleaners, sprays, etc.
x Do not use cracked or broken glass ceramic
plates. If a crack is detected, switch off the
electric supply immediately.
x In case of any failures disconnect the appliance
from mains and call service assistance
immediately.
x Do not use high-pressure steam cleaner or hot
steam to clean the appliance.
The symbol on the product or on its
packaging indicates that this product
may not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the recycling of
electrical and electronic equipment. By
ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise be
caused by inappropriate waste handling of
thisproduct. For more detailed information
about recycling of this product, please
contact your local city office, your household
waste disposal service or the shop where you
purchased the product.
Technical Data
Type SVK65ES
ECS610SC
ESC612SC
EC630ASC
Mains voltage 2N AC 400 V
Operating voltage 230 V, 50 Hz
Type of control
knobs
S= gradual increase
E= sliding increase of power with power regulators
Cooking zones
(Imm/kW)
S= standard plate
HL=HI- light plate
HA=halogen plate
Front left 210/120/2,2/HL
Rear left 145/1,2/HL
Rear right 180/1,8/HL
Front right 145/1,2/HL
Total power (kW) 6,4

Instructions for use, mounting and connection 5
Glass Ceramic Cooktop
The glass ceramic cooktop has four heating
zones. Its surface is flat and there are no edges
where food remains usually collect. Pots can be
easily moved across the hob.
x The heating zone reaches the preset
temperature quickly, yet the area around the
hot cooking zone remains cold.
x The hob is resistant to temperature changes.
x The ceramic hob is impact resistant. A dish can
be placed on the hob a little harder and yet the
surface will not be damaged.
x Never use the ceramic hob as a working
surface. Sharp objects may scratch it.
x Preparation of food in aluminum or plastic
dishes on hot cooking plates is not allowed. Do
not place any plastic objects or aluminum foils
upon the cooktop surface.
x Do not prepare coffe in small traditional coffe
pots if the diameter of the pot is smaller than
the cooking area as it may result in damage.
WARNING!
x Never use a cracked or broken ceramic hob.
The hob may break or crack if an object with
sharp edges falls on it. The crack may be
visible immediately or only after some time.
Disconnect the appliance from mains
immediately in case any cracks are detected
upon the glass ceramic surface.
x If you spill sugar or any other sweet substance,
wipe the hob immediately, with cloth or use a
scraper even when the cooking area is still hot.
This will prevent damage to it.
x Never use ordinary cleaning agents for cleaning
the ceramic glass cooktop, as may damage the
ceramic glass surface.

Instructions for use, mounting and connection
6
Setting of Cooking Zones
The cooking zones are controlled by knobs
mountedl on the control panel of the cooker. The
heating degrees are marked on the knobs from 1
to 6 (gradual increase), or 1-9 (continuous
increase), whereby position 1 is the lowest and
position 6 or 9 respectively the highest setting.
The heating is switched off in position 0. The
intermidiate settings can also be selected and set
in two ways: in stages or continuously. The knob
can be turned in both directions. Energy knobs
increase power if turned clockwise and decrease
if turned in opposite direction.
Use of Cooking Zones
SE
00 Cooking zone switched off
1 1-2 Maintaining the temperature and
warming up smaller quantities of food
2 3-4 Warming up
3 5-6 Warming up or slow cooking of large
quantities of food
47 Baking in turns (like pancakes..)
58 Frying
69 Quick heating up
The Circuit and Extended Circuit
Switch
During normal turning of this knob, the basic plate
is switched on first (inner circuit). To switch on the
second and the extended circuit, turn the knob till
the double circuit mark until “click” is heard
and than turn it back to selected position.
To switch off the complete plate, simply turn the
knob back to position 0.
1double circuit
cooking plate
2control lamp ON
3warning lamps
"HOT"
4setting knobs
Signal lamp
Signal lamp ON (red) is on when at least one
cooking plate is switched on.
Warning lamps "HOT"
Glass ceramic cookplates are equipped with
warning lamps "HOT". The lamp, switched on at
any particular time, signals that the relevant
cookplate is hot (danger of burns). When the
cookplate is switched off, the lamp remains on
until the temperature of the cookplate falls below
50qC.

Instructions for use, mounting and connection 7
Pots and Pans
Use only high quality pots with flat and stable
bottom.
x Always be careful to put the pot in the middle of
the cooking zone.
x If you use the pots made of temperature
resistant glass or earthenware, always consider
the manufacturer's instructions.
x If you use a pressure cooker, never leave it
unattended. Select the highest temperature
setting, wait until the correct pressure is
reached in the pressure cooker and turn the
knob to a lower setting, as recommended by
the manufacturer of the pot.
x When using high radiation (bright metal
surface) crockery, or thick bottom dishes for
preparing food on the glass ceramic hob, the
period of reaching the boiling point may be
prolonged for certain time (up to 10 minutes).
Consequently, if you need to boil considerable
amount of liquid, it is recommended to use the
dark, flat bottom pot.
The cooker top can be damaged if:
x switched on and left uncovered or with an
empty pot on it,
x if you use pots with an inadequate bottom like
uneven, rough or too small diameter bottoms
(traditional coffee pan).
x Never use the earthenware pots as they are
very likely to scratch the ceramic glas surface.
x Before putting the pot on the hot plate,
thoroughly wipe the bottom of the pot, to
prevent heat conduction and to protect the hot
plate.
Energy Saving Tips
x The bottom of the pot should be slightly
concave for optimum heat transfer from the
cooking zone.
x The bottom of the pot should always suit the
size of the cooking zone. If the pot is smaller, it
can cause energy loss and if larger, the cooking
zone may become damaged.
x Use a pot lid whenever possible.
x The pot size should suit the quantity of food.
Cooking smaller quantities of food in a large pot
results in energy loss.
x Food which needs longer cooking may also be
prepared in the pressure cooker.
x Various vegetables, potatoes, etc. can be
cooked with a smaller quantity of water. This
way the food is cooked much sooner, but do
not forget to cover the pan properly. When the
water starts boiling, turn the knob to the position
for slow boiling.
x Some 5-10 minutes before the food is cooked,
switch off the hot plate , whichever you are
using.

Instructions for Use
8
Cleaning and maintenance of ceramic-glass hob
Ceramic glass hob should be cleaned only when
completely cooled down, preferably after each
use, otherwise even the slightest stains remaining
after cooking may burn into the hob surface with
each following use.
For regular maintenance of ceramic-glass hob
use special cleansing agents, produced in such
way to create protective film upon the surface.
Before each use, wipe the dust and other
particles from the hob - they may scratch the
surface (Fig. 1).
Caution: use of steel wool, abrasive cleaning
sponges, and abrasive detergents can scratch
the surface of the hob. The surface may also be
damaged by the use of aggressive sprays and
inappropriate liquid chemicals (Fig.1 and 2).
Pattern marks can be erased by the use of
aggressive cleansing agents or rough and
damaged cookware bottoms (Fig. 2).
Minor stains are removed with moist soft cloth;
after that the surface should be wiped dry (Fig. 3).
Water stains are removed with gentle vinegar
solution, but you must not wipe the frame with it
(certain models only), since it may lose its glow.
Never use any aggressive sprays or limestone
removers (Fig. 3).
Major stains are removed with special ceramic-
glass cleansers. Follow strictly the manufacturer's
instructions.
Be careful to remove any remains of
cleansing agent from the hob surface,
otherwise they will be heated during the next
use and can damage the hob (fig. 3).
Stubborn and burnt stains are removed with
special ceramic-glass scraper. Be careful,
however, not to touch the hotplate surface with
the scraper handle (Fig. 4).
Handle the scraper with utmost care to avoid
injuries!
Sugar and sugar containing food may
permanently damage the ceramic-glass hob
surface (Fig.5), so the remains of sugar and
sugar containing food must be scraped off from
the hob surface immediately, when the hotplates
are still hot (Fig. 4).
Discoloring of ceramic-glass hob has no effect
whatsoever on its operation and stability. In most
cases, it appears as the consequence of burnt in
food remains, or as a result of dragging pots and
pans (especially aluminum or copper bottom
cookware) across the surface, and such
discoloring is rather hard to remove.
Note: All described faults are mostly esthetical
and do not affect directly the operation of the
appliance. Remedy of such faults is not covered
by warranty.
fig. 1
fig. 2
fig. 3
fig. 4
fig. 5

Instructions for Use 9
Mounting the built-in cooktop
Caution !
x To avoid any possible hazard, the appliance
may be installed by qualified personnel only.
x Panels and furniture lining of the kitchen
cabinet receiving the hob must be treated with
temperature resistant adhesives (100°C),
otherwise they might be discoloured or
deformed because of inadequate temperature
resistance.
x The cooking hob is intended for building into the
worktop above the kitchen element of 600 mm
width or more.
x After the installation of built-in hob make sure
that there is free access to the two fixing
elements in front.
x Suspended kitchen elements above the
cooktop must be installed at such distance to
provide enough room for comfortable working
process.
x In case there is a drawer in kitchen cabinet
under the built-in hob, it is necessary to install
an additional horizontal barrier of height 6 cm
under the hob and above the drawer.
x The distance between the worktop and the
hood must be at least such as indicated in the
instructions for installation of the kitchen hood,
but in no case it may be less than 650 mm.
x The smallest distance between the edge of the
appliance and the adjacent high kitchen
cabinet is 40 mm.
x The use of hard wood decorative borders
around the worktop behind the appliance is
allowed, in case the minimum distance remains
as indicated on the installation illustrations.
x Minimum distance between the built-in cooktop
and rear wall is indicated at the illustration for
the installation of the built-in cooktop.
x The appliance may be installed in any worktop
with a thickness from 30 mm to 50 mm.
x In case there is a drawer in kitchen cabinet
under the built-in hob, it is necessary to install
an additional horizontal barrier of height 6 cm
under the hob and above the drawer.
Dimensions of the built-in hob opening
Installation procedure
x Worktop must be placed absolutely horizontal.
x Suitably protect the edges of the cut aperture.
x By means of the supplied screws 4 (or 6 by
some models) fasten the supplied tightening
brackets 4 (or 6 by some models) fasten to the
front and the rear side of the cooking hob and
to the prepared aperture.
x Connect the cooking hob to the mains power
supply (see instructions for the connection of
the cooking hob to mains power supply).
x Insert the hob into the cut aperture.
x Press the hob firmly towards the worktop from
above.

Instructions for Use
10
Electrical connections
x The electric built-in cooker has to be mounted
and installed by a qualified technician. The
protection of the electrical wiring shall comply
with current standards and regulations.
x Before connecting the appliance to the power
source, make sure that the voltage stated on
the rating plate complies with the voltage of
your power supply.
The rating plate of the ceramic glass hob is
fixed on the lower side of the hob.
x The cooker shall be connected to 230 V AC.
x Electric connections shall be of such design, to
incorporate a protection device between the
appliance and the supply, like fuses or FI
switches (to assure at least a 3 mm clearance
between the contacts in open position).
x The connection should be made considering
the current capacity of the installation and the
fuses.
x Fire protection is of class Y, which means that
the appliance may be mounted between two
kitchen units; one of them may be higher than
the appliance itself, the other has to be of the
same height.
x After mounting, the live parts and insulated
parts of the appliance should be protected
against accidental contacts.
x The distance between the ceramic glass hob
and the hood should be at least as stated in the
instructions for mounting the hood.
x No kitchen furniture drawers are allowed to be
mounted below the glass ceramic cooktop.
Connecting to Power Supply
Power supply may be connected by the qualified
technician only. Connecting sockets
are available when you open the connecting box
cover.
WARNING!
Before repairing or servicing, disconnect the
power supply. According to the mains voltage the
appliance should be connected in line with the
displayed diagram. Protective conductor (PE)
should be connected to the socket marked
EARTH .
Connecting cable should be inserted through the
clamp device to prevent eventual pullout.
Upon completed power connection switch all
hotplates for about 3 minutes to check they
function properly.

Instructions for Use 11

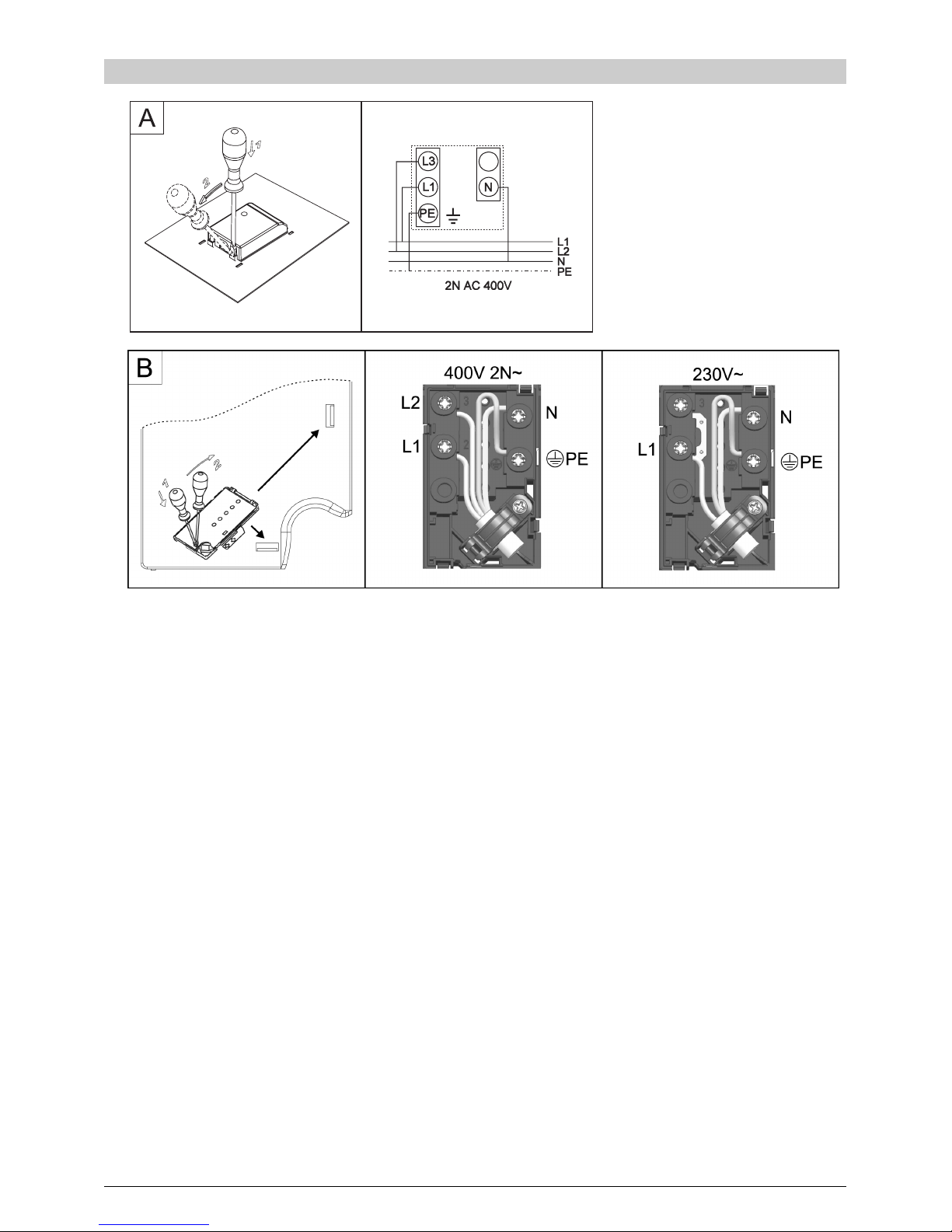

Connecting diagram
NOTE
In some connection boxes the connector bridges are placed between contacts 4 and 5, and in the others
they are stored at a designated place within the box. These boxes have the connection screws already in
open position so they need not be unscrewed.
Following cables may be used for connection:
rubber connecting cables type H05 RR-F 4X1,5 with yellow-green protection conductor;
PVC insulated connection cables type H05 VV-F 4x1,5 with yellow-green protection conductor or
any other suitable cable of equal or better properties.
WE RESERVE THE RIGHT TO ALTER THE SPECIFICATIONS WITH NO INFLUENCE TO
THE OPERATION OF THE APPLIANCE.
This manual suits for next models
3
Table of contents
Other Gorenje Cooktop manuals

Gorenje
Gorenje G640AX1-299166 User manual

Gorenje
Gorenje IS756USC Installation instructions

Gorenje
Gorenje SVK65 User manual

Gorenje
Gorenje IC634CLI User manual

Gorenje
Gorenje ECS63EHL User manual

Gorenje
Gorenje SVK61TS User manual

Gorenje
Gorenje G34AX1-236650 Installation and operating instructions

Gorenje
Gorenje G34AX1 - 249046 User manual

Gorenje
Gorenje TG 2514 B User manual

Gorenje
Gorenje MEKIS510W Operating and maintenance manual
