Gorenje ECS63EHL User manual

Instructions for use, mounting and connection 13
Ceramic-glass Built-in Cooktop
Dear customer,
Ceramic-glass built-in cooktop is made for
domestic use only.
Our products use environmentally friendly
packaging, which can be either recycled or
disposed of in an environmentally friendly
manner.
To this end, individual packaging materials are
clearly marked.
When your appliance finally wears out, please try
not to burden the environment with it: call your
nearest authorised service agent.
Instructions for Use
These instructions are intended for the user.
They describe the cooker and how to use it. They
also apply to different types of appliances,
therefore you may find some descriptions of
functions that may not apply to your appliance.
Instructions for Installation
This appliance should be connected to the power
supply according to instructions for the
connection of appliances in compliance with
current standards and local regulations. The
connection should be done by a qualified
technician only.
Rating Plate
The rating plate with basic data is fixed on the
rear wall of the appliance.
Fire Protection Class Y
Fire protection of the appliance complies with
class Y. Such appliance may be mounted against
high furniture elements, exceeding the height of
the appliance. The element on the other side may
be of the same height as the appliance itself.
Ceramic-glass Built-in Cooktop..........................13
Dear customer,
Instructions for Use
Instructions for Installation
Rating Plate
Fire Protection Class Y
Attention................................................................14
Technical Data......................................................14
Glass Ceramic Cooktop .......................................15
Setting of Cooking Zones.....................................16
Use of Cooking Zones
The Circuit and Extended Circuit Switch
Signal lamp
Warning lamps "HOT"
Pots and Pans........................................................17
Energy Saving Tips
Cleaning and Maintenance..................................18
Mounting the Built-in Hob ..................................19
Mounting dimensions...........................................19
Electrical connections...........................................20
Connecting to Power Supply...............................20
Connecting diagram

Instructions for use, mounting and connection
14
Attention
• The appliance may be installed and connected
to mains by qualified personnel only.
• Particular areas of the appliance get hot during
operation (vicinity of the heating plates). Make
sure children are kept out of reach and warn
them accordingly.
• Overheated oil may suddenly ignite. Constant
monitoring should therefore be assured during
the preparation of such dishes that require the
use of oil (like chips).
• Heating zones may not be left switched on
empty, without dishes.
• Do not use the appliance for room heating.
• Do not use the glass ceramic plate as a
working top. Sharp objects may cause
scratches.
• Preparation of food in aluminum or plastic
dishes upon hot plates is not allowed. Do not
place any plastic objects or aluminum foil upon
hot plates.
• If any other electric appliances are plugged in
close to the hotplates, prevent the cord to come
into contact with the hotplate.
• Do not store any temperature sensitive objects
below the hotplates, like cleaners, sprays, etc.
• Do not use cracked or broken glass ceramic
plates. If a crack is detected, switch off the
electric supply immediately.
• In case of any failures disconnect the appliance
from mains and call service assistance
immediately.
Technical Data
Type SVK65E-4 SVK64E-4 SVK63S-4 SVK62E-4 SVK61E-4
Mains voltage 2N AC 400 V
Operating voltage 230 V, 50 Hz
Type of control knobs S= gradual increase
E= sliding increase of power with power regulators
Cooking zones
(φmm/kW) S= standard plate
HL=HI- light plate
HA=halogen plate
Front left
Rear left
Rear right
Front right
180/1,8/HL
145/1,2/HL
180/1,8/HL
145/1,2/HL
180/120/1,7/HL
145/1,2/HL
180/120/1,7/HL
145/1,2/HL
180/1,7/S
145/1,2/S
180/1,7/S
145/1,2/S
120/180/1,7/HL
145/1,2/HL
180/1,8/HL
145/1,2/HL
120/180/1,7/HL
145/1,2/HL
180/1,8/HA
145/1,2/HL
Total power (kW) 6,0 5,8 5,8 5,9 5,9
Fire protection
compliance class Y

Instructions for use, mounting and connection 15
Glass Ceramic Cooktop
The glass ceramic cooktop has four heating
zones. Its surface is flat and there are no edges
where food remains usually collect. Pots can be
easily moved across the hob.
• The heating zone reaches the preset
temperature quickly, yet the area around the
hot cooking zone remains cold.
• The hob is resistant to temperature changes.
• The ceramic hob is impact resistant. A dish can
be placed on the hob a little harder and yet the
surface will not be damaged.
• Never use the ceramic hob as a working
surface. Sharp objects may scratch it.
• Preparation of food in aluminum or plastic
dishes on hot cooking plates is not allowed. Do
not place any plastic objects or aluminum foils
upon the cooktop surface.
• Do not prepare coffe in small traditional coffe
pots if the diameter of the pot is smaller than
the cooking area as it may result in damage.
WARNING!
• Never use a cracked or broken ceramic hob.
The hob may break or crack if an object with
sharp edges falls on it. The crack may be
visible immediately or only after some time.
Disconnect the appliance from mains
immediately in case any cracks are detected
upon the glass ceramic surface.
• If you spill sugar or any other sweet substance,
wipe the hob immediately, with cloth or use a
scraper even when the cooking area is still hot.
This will prevent damage to it.
• Never use ordinary cleaning agents for cleaning
the ceramic glass cooktop, as may damage the
ceramic glass surface.

Instructions for use, mounting and connection
16
Setting of Cooking Zones
The cooking zones are controlled by knobs
mountedl on the control panel of the cooker. The
heating degrees are marked on the knobs from 1
to 6 (gradual increase), or 1-9 (continuous
increase), whereby position 1 is the lowest and
position 6 or 9 respectively the highest setting.
The heating is switched off in position 0. The
intermidiate settings can also be selected and set
in two ways: in stages or continuously. The knob
can be turned in both directions. Energy knobs
increase power if turned clockwise and decrease
if turned in opposite direction.
Use of Cooking Zones
SE
00 Cooking zone switched off
1 1-2 Maintaining the temperature and
warming up smaller quantities of food
2 3-4 Warming up
3 5-6 Warming up or slow cooking of large
quantities of food
47 Baking in turns (like pancakes..)
58 Frying
69 Quick heating up
The Circuit and Extended Circuit
Switch
During normal turning of this knob, the basic plate
is switched on first (inner circuit). To switch on the
second and the extended circuit, turn the knob till
the double circuit mark until “click” is heard
and than turn it back to selected position.
To switch off the complete plate, simply turn the
knob back to position 0.
1double circuit
cooking plate
2 control lamp ON
3 warning lamps
"HOT"
4 setting knobs
Signal lamp
Signal lamp ON (red) is on when at least one
cooking plate is switched on.
Warning lamps "HOT"
Glass ceramic cookplates are equipped with
warning lamps "HOT". The lamp, switched on at
any particular time, signals that the relevant
cookplate is hot (danger of burns). When the
cookplate is switched off, the lamp remains on
until the temperature of the cookplate falls below
50°C.

Instructions for use, mounting and connection 17
Pots and Pans
Use only high quality pots with flat and stable
bottom.
• Always be careful to put the pot in the middle of
the cooking zone.
• If you use the pots made of temperature
resistant glass or earthenware, always consider
the manufacturer's instructions.
• If you use a pressure cooker, never leave it
unattended. Select the highest temperature
setting, wait until the correct pressure is
reached in the pressure cooker and turn the
knob to a lower setting, as recommended by
the manufacturer of the pot.
• When using high radiation (bright metal
surface) crockery, or thick bottom dishes for
preparing food on the glass ceramic hob, the
period of reaching the boiling point may be
prolonged for certain time (up to 10 minutes).
Consequently, if you need to boil considerable
amount of liquid, it is recommended to use the
dark, flat bottom pot.
The cooker top can be damaged if:
• switched on and left uncovered or with an
empty pot on it,
• if you use pots with an inadequate bottom like
uneven, rough or too small diameter bottoms
(traditional coffee pan).
• Never use the earthenware pots as they are
very likely to scratch the ceramic glas surface.
• Before putting the pot on the hot plate,
thoroughly wipe the bottom of the pot, to
prevent heat conduction and to protect the hot
plate.
Energy Saving Tips
• The bottom of the pot should be slightly
concave for optimum heat transfer from the
cooking zone.
• The bottom of the pot should always suit the
size of the cooking zone. If the pot is smaller, it
can cause energy loss and if larger, the cooking
zone may become damaged.
• Use a pot lid whenever possible.
• The pot size should suit the quantity of food.
Cooking smaller quantities of food in a large pot
results in energy loss.
• Food which needs longer cooking may also be
prepared in the pressure cooker.
• Various vegetables, potatoes, etc. can be
cooked with a smaller quantity of water. This
way the food is cooked much sooner, but do
not forget to cover the pan properly. When the
water starts boiling, turn the knob to the position
for slow boiling.
• Some 5-10 minutes before the food is cooked,
switch off the hot plate , whichever you are
using.

Instructions for use, mounting and connection
18
Cleaning and Maintenance
The ceramic hob must be regularly cleaned. Use
only reliable cleaning agents, those especially
designed for cleaning ceramic glass surfaces.
Any other cleaning agent may damage the
surface.
Clean the ceramic glass surface when it is cold or
at least partially cooled, except in case youu spill
sugar or sweet dish. Should this happen,
immediately wipe off the cooktop using cloth or
scraper, while the surface is still hot, otherwise
the surface may be seriously damage.
• Regular cleaning is very simple. It is usually
enough if you wipe up the hob before and after
use with a wet cloth and then wipe it dry with a
clean cloth or tissue. Wiping it before use will
remove dust and small particles that may
damage the ceramic surface when moving the
pot. Wiping it after use will protect it and
prevent damage. A neglected ceramic hob will
soon loose its shine and become rough.
• Dried stains or colour changes (caused by
using inadequate cleaning agents or
inadequate pots) can be cleaned with standard
cleaning agents used for cleaning the ceramic
glass surfaces. Apply the concentrated cleaning
agent on the stain, leave it work and then wipe
it with wet cloth (if not otherwise
reccommended in the instructons for the use of
cleaning agent).
CAUTION! When applied on a hot surface,
the cleaning agent may damage the ceramic
glass cooktop!
• Remove the dried and burnt stains with
scraper!
• Dried or burnt stains can be removed with a
scraper!
• Protect the surface against damage with
special protective agents. This is especially
recommended before preparing sweat dishes.
• Never use cloths or sponges with which you
usually wash the dishes, as they always contain
ordinary washing agents that may damage the
ceramic surface.

Instructions for use, mounting and connection 19
Mounting the Built-in Hob
• The plywood coating of the kitchen elements
should be processed with temperature resistant
adhesives (100°C), otherwise they may distort
or change shape.
• The use of decorative trimmings made of solid
wood on the worktop behind the cooking zone
is allowed only in case the minimum distance is
as marked on the drawings for mounting.
• Cut out the top panel of the kitchen unit into
which the ceramic glass cooktop is to be built
into.
• Minimum distance between the built-in cooktop
and the rear wall is marked on the installation
drawing.
• Protect the edges of the openings, if necessary.
• Built-in cooktop may be mounted into 30 - 40
mm thick working tops.
Mounting dimensions
• Worktop should be perfectly levelled.
• Respect the instructions shown in Fig. 1
regarding installation.
• Protect the cut edges and openings and insert
adequate packing.
• Insert the appliance into the opening.
• Push firmly the cooktop plate from above and
fix it with four (4) screws from below. Watch the
position of mounting braces: they may differ for
30 mm and 40 mm worktops (Fig. 2 and 2a).
1worktop
2built-in cooktop
3kitchen unit
4screw
5metal brace
1
2
2a

Instructions for use, mounting and connection
20
Electrical connections
• The electric built-in cooker has to be mounted
and installed by a qualified technician. The
protection of the electrical wiring shall comply
with current standards and regulations.
• Before connecting the appliance to the power
source, make sure that the voltage stated on
the rating plate complies with the voltage of
your power supply.
The rating plate of the ceramic glass hob is
fixed on the lower side of the hob.
• The cooker shall be connected to 230 V AC.
• Electric connections shall be of such design, to
incorporate a protection device between the
appliance and the supply, like fuses or FI
switches (to assure at least a 3 mm clearance
between the contacts in open position).
• The connection should be made considering
the current capacity of the installation and the
fuses.
• Fire protection is of class Y, which means that
the appliance may be mounted between two
kitchen units; one of them may be higher than
the appliance itself, the other has to be of the
same height.
• After mounting, the live parts and insulated
parts of the appliance should be protected
against accidental contacts.
• The distance between the ceramic glass hob
and the hood should be at least as stated in the
instructions for mounting the hood.
• No kitchen furniture drawers are allowed to be
mounted below the glass ceramic cooktop.
Connecting to Power Supply
Power supply may be connected by the qualified
technician only. Connecting sockets
are available when you open the connecting box
cover.
WARNING!
Before repairing or servicing, disconnect the
power supply. According to the mains voltage the
appliance should be connected in line with the
displayed diagram. Protective conductor (PE)
should be connected to the socket marked
EARTH .
Connecting cable should be inserted through the
clamp device to prevent eventual pullout.
Upon completed power connection switch all
hotplates for about 3 minutes to check they
function properly.

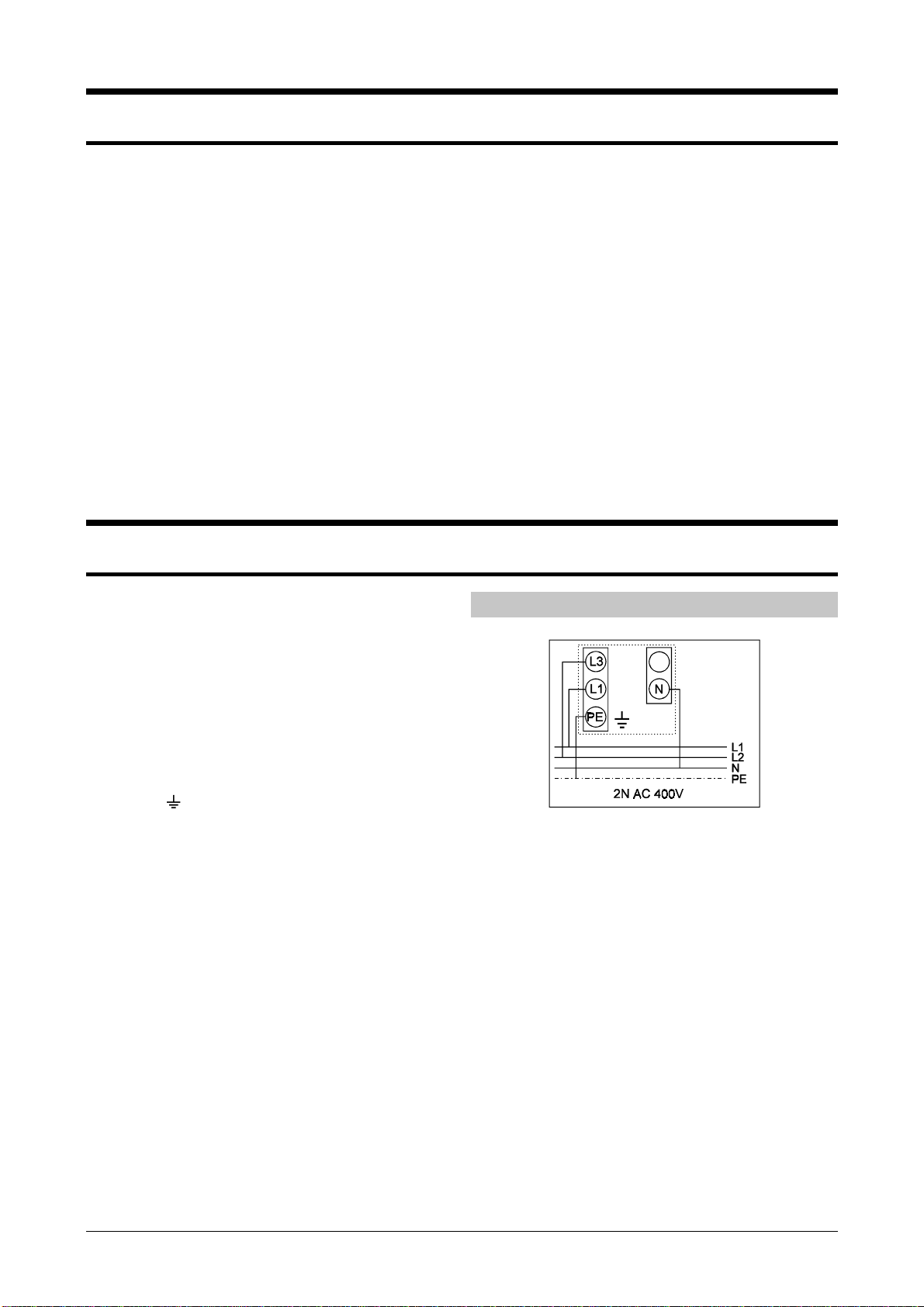

Connecting diagram
Following cables may be used for connection:
− rubber connecting cables type H05 RR-F 4X1,5
with yellow-green protection conductor;
− PVC insulated connection cables type
H05 VV-F 4x1,5 with yellow-green protection
conductor or
− any other suitable cable of equal or better
properties.
WE RESERVE THE RIGHT TO ALTER THE SPECIFICATIONS WITH NO INFLUENCE TO
THE OPERATION OF THE APPLIANCE.
