Gorenje R6192SX User manual

EN
INSTRUCTION MANUAL
FOR REFRIGERATOR
www.gorenje.comwww.gorenje.com

2
459922
We thank you for the confidence you have shown by purchasing our appliance.
We wish you find a lot of pleasure in its use.
The appliance is intended solely for household use.
The refrigerator is intended for storing fresh food at temperatures above 0°C.
Link to the EU EPREL database
The QR code on the energy label supplied with the appliance provides a web link to
the registration of this appliance in the EU EPREL database. Keep the energy label for
reference together with the user manual and all other documents provided with this
appliance.
It is possible to find information related to the performance of the product in the EU
EPREL database using the link https://eprel.ec.europa.eu and the model name and
product number that you can find on the rating plate of the appliance.
For more detailed information about the energy label, visit www.theenergylabel.eu.

3
TABLE OF CONTENTS
459922
INTRODUCTION
APPLIANCE
DESCRIPTION
DEFROSTING
AND CLEANING
THE APPLIANCE
4 IMPORTANT NOTES AND PRECAUTIONS
10 ADVICE FOR SAVING POWER WITH REFRIGERATION APPLIANCES
11 APPLIANCE DESCRIPTION
12 INSTALLATION AND CONNECTION
15 CHANGING THE DIRECTION OF DOOR OPENING
19 OPERATING THE APPLIANCE WITH MECHANIC CONTROLS
21 APPLIANCE INTERIOR EQUIPMENT
26 RECOMMENDED DISTRIBUTION OF FOOD IN THE APPLIANCE
27 STORING FOOD IN THE REFRIGERATOR
29 STORING FOOD IN THE FRESHZONE DRAWER
30 DEFROSTING THE APPLIANCE
31 CLEANING THE APPLIANCE
32 TROUBLESHOOTING
34 INFORMATION ABOUT APPLIANCE NOISE
OTHER
STORING AND
FREEZING FOOD

4
459922
Spacers are fitted on
the corners of the doors.
Remove them and insert the
supplied plugs into their slots
(only in some models).
IMPORTANT NOTES AND
PRECAUTIONS
Before connecting the appliance to the power mains, please
read carefully the instructions for use which describe the
appliance and its correct and safe use. The instructions
apply to several appliance types/models; thus, settings or
equipment may be described herein which is not available
in your appliance. We recommend saving this instruction
manual for future reference and attach it to the appliance if
it is sold in the future.
Check for any damage or irregularities on your appliance. If
you find your appliance is damaged, notify the retailer from
which you have purchased the appliance.
Before connecting the appliance to the power mains, let
the appliance rest in a vertical position for a minimum of 2
hours. This will reduce the possibility of operation faults due
to the effect of transport on the cooling system.
BEFORE USING THE APPLIANCE FOR
THE FIRST TIME
i

5
459922
The appliance must be connected to the power mains and
grounded in compliance with the effective standards and
regulations.
WARNING! Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
Before cleaning the appliance, unplug it from the power
mains (unplug the power cord from the wall outlet).
WARNING! If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING! When positioning the appliance, ensure the
supply cord is not trapped or damaged.
If LED lighting does not work, call a service technician. Do
not attempt a repair of the LED lighting yourself, as there is
danger of contact with high voltage!
IMPORTANT SAFETY INSTRUCTIONS
!
WARNING! Do not use any electric devices inside the
appliance, except for those allowed by the manufacturer
of this refrigeration appliance.
WARNING! Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING! To avoid any hazard resulting from poor
stability of the appliance, make sure it is installed as
instructed.
!
!
!
WARNING! Risk of fire/flammable materials.

6
459922
Danger of frostbite
Never put frozen food in your mouth and avoid touching
frozen food as this may cause frostnip or frostbite.
Safety of children and vulnerable persons
The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Cleaning and user maintenance shall not be made by
children without supervision.
Remove the packaging intended to protect the appliance
or particular parts during transport and keep it outside the
reach of children.
It presents danger of injury or suffocation.
For European markets only
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.

7
459922
Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.
Warning regarding the refrigerant
The appliance contains a small amount of an
environmentally friendly yet flammable gas R600a. Make
sure that no parts of the cooling system are damaged. A
gas leak is not hazardous to the environment, but it could
cause eye injury or fire.
In case of a gas leak, ventilate the room thoroughly,
disconnect the appliance from the power mains, and call a
service technician.

8
459922
The appliance may not be used outdoors and it may not be
exposed to rain.
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
If the appliance will be out of use for an extended period of
time, switch it off using the relevant button, and unplug it
from the power mains. Empty the appliance, defrost it, clean
it, and leave the door ajar.
In case of an error or power supply failure, do not open the
freezer compartment unless the freezer has not operated
for over 16 hours. After this period, use the frozen food or
provide sufficient cooling (e.g. a replacement appliance).
IMPORTANT INFORMATION ON THE USE
OF APPLIANCE
WARNING! Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING! This appliance is intended to be used in
household and similar applications such as:
– staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
i

9
459922
The symbol on the product or its packaging indicates that the product should not
be treated as normal household waste. The product should be taken to an
authorized collection centre for waste electric and electronic equipment
processing. Correct disposal of the product will help prevent any negative effects
on the environment and health of people which could occur in case of incorrect product
removal. For detailed information on removal and processing of the product, please
contact the relevant municipal body in charge of waste management, your waste
disposal service, or the store where you bought the product.
Packaging is made of environmentally friendly materials
that can be recycled, disposed of, or destroyed without any
hazard to the environment.
!Removing an obsolete appliance
To protect the environment, take the obsolete appliance to
an authorized home appliance collection centre.
Before doing so, do the following:
• disconnect the appliance from the power mains;
• do not allow children to play with the appliance.
ENVIRONMENT PROTECTION
WARNING! Do not damage the refrigerant circuit.
This will also prevent pollution.
Technical information on the appliance
Rating plate can be found in the appliance interior. It
indicates data on voltage, gross and net volume, type
and amount of refrigerant, and information on the climate
classes.
If the language on the rating plate is not the language of
your choice or the language of your country, replace it with
the one supplied.
i

10
ADVICE FOR SAVING POWER
WITH REFRIGERATION
APPLIANCES
459922
• Install the appliance as specified in the instruction manual.
• Do not open the door more often than necessary.
• Occasionally make sure air circulation underneath the appliance is unobstructed.
• Condenser unit on the rear wall should be kept clean (see chapter Cleaning the
appliance).
• If the gasket is damaged or does not provide a perfect seal for other reasons, have it
replaced as soon as possible.
• Store the food in tightly sealed containers or appropriate packaging.
• Before placing the food in the appliance, cool it to room temperature.
• Defrost frozen food in the refrigerator compartment.
• Remove the drawers from the freezer compartment as described in the instruction
manual, in order to make use of the entire interior.
• Defrost your conventional freezer when an approximately 3-5 milimeter layer of of frost
or ice has built up on the refrigerated surfaces.
• Make sure the layout of shelves in the compartment is uniform and that the food
is placed so that the air can freely circulate in the appliance interior (observe the
recommended placement of food as described in the instructions).
• In appliances with a fan, do not block the fan slots.
• If you do not need the fan or the ionizer, switch them o to reduce power consumption.

11
APPLIANCE DESCRIPTION
459922

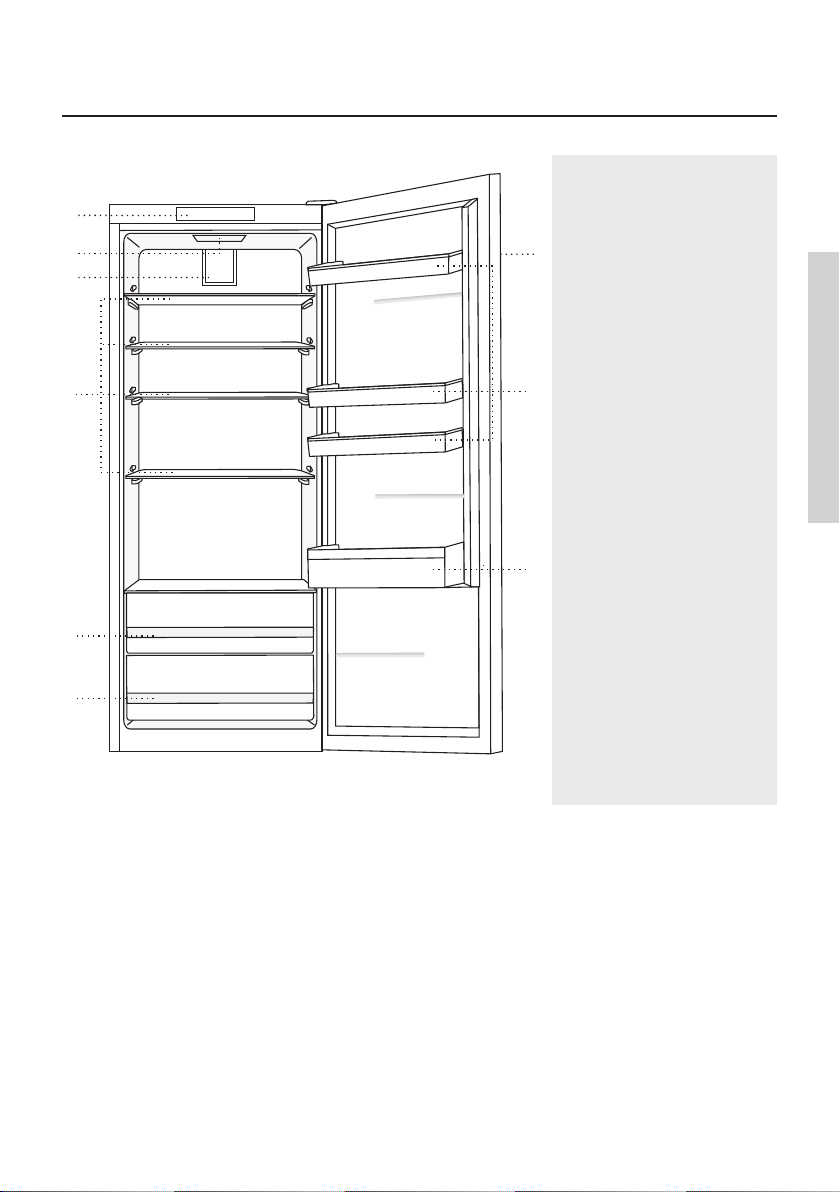

• Appliance interior equipment may change according to the appliance model.
• The drawers are protected against pulling out. To remove a drawer from the appliance,
open it, then lift the front part and pull it out.
1
5
4
2
3
6
6
7
8
1
1Control unit
2LED lighting of refrigerator
interior
3Fan with air ionizer
(+ on/off switch)
4Pull-out glass shelf
(heightadjustable)
5Fruit and vegetable bin
(CrispZone) with humidity
control
6Fruit and vegetables drawer
7Height-adjustable door bin
8Bottle shelf

12
INSTALLATION AND CONNECTION
459922
SELECTING THE ROOM
• Install the appliance in a dry and well ventilated room. The appliance will operate correctly
if the environment temperature is in the interval specified in the table. The appliance class is
indicated on the rating plate / label with the basic information on the appliance.
Description Class Ambient temperature range
°C
Relative humidity
Extended temperate SN +10 to +32
75%
Temperate N +16 to +32
Subtropical ST +16 to +38
Tropical T +16 to +43
Warning: Make sure the room where the appliance is installed is large enough. There
should be at least 1 m3 of space per 8 grams of refrigerant. Amount of refrigerant is
stated on the rating plate in the appliance interior.
INSTALLING THE APPLIANCE
Appliance installation should be carried
out by at least two persons to avoid any
physical injury or damage to the appliance.
• This appliance is not intended to be used
as a build-in appliance.
• The appliance must stand level or tilted
slightly to the back, stable on a solid
base. At the front, the appliance is fitted
with two adjustable legs that can be used
to level the appliance. At the rear side,
casters allow for easier installation of the
appliance (only with some models).
• There should be a clearance of at least 5 cm
between the appliance and any cupboard
installed above it, in order to allow adequate
cooling of the condenser unit.
• The appliance is supplied with two
spacers which should be installed on
the lower part of the housing to prevent
from pushing the appliance too close to
the wall. Appliance may also be installed
without the spacers; however, this may
increase power consumption.
• Do not expose the appliance to direct
sunlight and do not place it near any
source of heat. If this cannot be avoided,
install an insulation panel.
max
30 mm
> 90°

13
459922
• The appliance may stand alone or it may be placed ext to a cupboard or a wall. Consider
the clearance required to fully open the door in order to allow pulling out the drawers
and shelves (see installation diagram).
1249 mm
688 mm
640 mm
600 mm
644 mm
max 90°
1201 mm

14
459922
CONNECTING THE APPLIANCE
• Connect the appliance to the power mains using a connection cable. The wall outlet
should be fitted with a ground contact (safety socket). Nominal voltage and frequency
are indicated on the rating plate/label with basic information on the appliance.
• The appliance must be connected to the power mains and grounded in compliance
with the eective standards and regulations. The appliance will withstand short-term
deviations from the nominal voltage, but not more than +/- 6%.
Note: When placing the appliances side by side, the anti-dew (anti-condensation) set has
to be purchased and installed!
dry room (relative humidity
below 60%)
Code for ordering the set
METAL PLATE (INOX) 576604
PLASTIC PLATE
WHITE 672114
GREY 672115
BLACK 672116
humid room (relative
humidity over 60%)*
Code for ordering the set
METAL PLATE (INOX) 558776*
* For safety reasons, the appliance should only be installed by an authorized service
technician!

15
CHANGING THE DIRECTION OF
DOOR OPENING
459922
VERSION I – CONTROLS IN THE APPLIANCE INTERIOR
Tools required: socket wrench No. 8, Phillips screwdriver, torx 25, flat screwdriver
The procedure to change the direction of door opening should be carried out by at least
two persons.
1. Remove the upper hinge cover (A) and the covering cap (G).
2. Undo the upper hinge (B) and remove the door (C) from the lower hinge (D).
3. Tilt the appliance backwards (make sure you do not press against the condenser unit
on the rear wall of the appliance as this may damage the cooling system), unscrew the
lower hinge (D) and the foot (E), and move them to the opposite side. Make sure the
washer is installed like it was before disassembly.
4. Move the door hinges (F) to the opposite side and replace the door (C) back on the
lower hinge (D).
5. Use the screws to attach the upper hinge (B) on the opposite side.
6. Replace the upper hinge cover (A) and the covering cap (G) on the opposite side.
7. Replacing the handle (H): remove the handle covering caps, undo the screws, and
remove the handle. Remove the hole plugs on the opposite side of the door and attach
the handle.
Replace the covering caps on the handle. Insert the new hole plugs supplied in the bag
with the instruction manual into the holes where the handle was initially attached.

16
459922
12
3
D
E
E
67
A
G
B
C
F
F
G
A
6
D
4
C
6
D
H
C
G
B
5

17
459922
VERSION II – CONTROLS ON THE DOOR
Tools required: socket wrench No. 8, Phillips screwdriver, torx 25, flat screwdriver
The procedure to change the direction of door opening should be carried out by at least
two persons.
1. Remove the upper hinge cover (A), the connector cover (B1) and the covering cap (M).
2. Disconnect the connector (C), undo the upper hinge (D) and remove the door (E) from
the lower hinge (I).
3. Remove the side panels (F) and (G), then unscrew and remove the middle panel (H).
4. Move the upper hinge (D) along with the connector and cable to the opposite
side – make sure to install the cable into the grooves in the panels like it was before
disassembly. Then, replace all three panels (F), (G), and (H).
5. Tilt the appliance backwards (make sure you do not press against the condenser unit
on the rear wall of the appliance as this may damage the cooling system), unscrew the
lower hinge (I) and the foot (J), and move them to the opposite side. Make sure the
washer is installed like it was before disassembly.
6. Move the cap (B2), door hinge (K) and retainer (L) to the opposite side and replace the
door (E) on the lower hinge (I).
7. Use the screws to attach the upper hinge (D) on the opposite side and reconnect the
connector (C).
8. Replace the upper hinge cover (A), the connector cover (B1) and the covering cap (M).
9. Replacing the handle (N): remove the handle covering caps, undo the screws, and
remove the handle. Remove the hole plugs on the opposite side of the door and attach
the handle.
Replace the covering caps on the handle. Insert the new hole plugs supplied in the bag
with the instruction manual into the holes where the handle was initially attached.

18
459922
12
3
D
4
5
I
J
J
9
B2 B1
A
M
D
C
D
GH
F
M
A
B1
E
6
I
K
L
B2
B1
6
8
7
C
D
N
E
6
I

19
OPERATING THE APPLIANCE
WITH MECHANIC CONTROLS
459922
SWITCHING THE APPLIANCE ON/OFF
A B
A Temperature setting and on/o knob
B Lighting on/o key
To switch on: rotate the Adial clockwise.
Switching off: Rotate the Aknob back to
the position in which the arrow is aligned
with the symbol (caution: appliance
will remain powered, i.e. there will still be
electric current in the appliance).

20
459922
ADJUSTING THE TEMPERATURE
• To set the desired temperature, rotate the
Adial in clockwise direction, i.e. to the
right.
• A change in the environment temperature
will aect the temperature in the
appliance. Adjust the setting with the A
dial accordingly. Positions towards the
thicker part of the sign mean a lower
temperature in the appliance (cooler).
Settings towards the thinner part of
the sign mean a higher temperature
(warmer).
