gorilla sports OCEAN ROWER Installation instructions

ENG
Rowing Machine
INSTALLATION & OPERATING MANUAL
OCEAN ROWER

2
Index
Index 2
Safety Instructions 3
Overall View of the Device 4
Scope of Delivery 4
Fixing Materials 5
Assembly 5 – 8
Filling the Water Tank 9 – 11

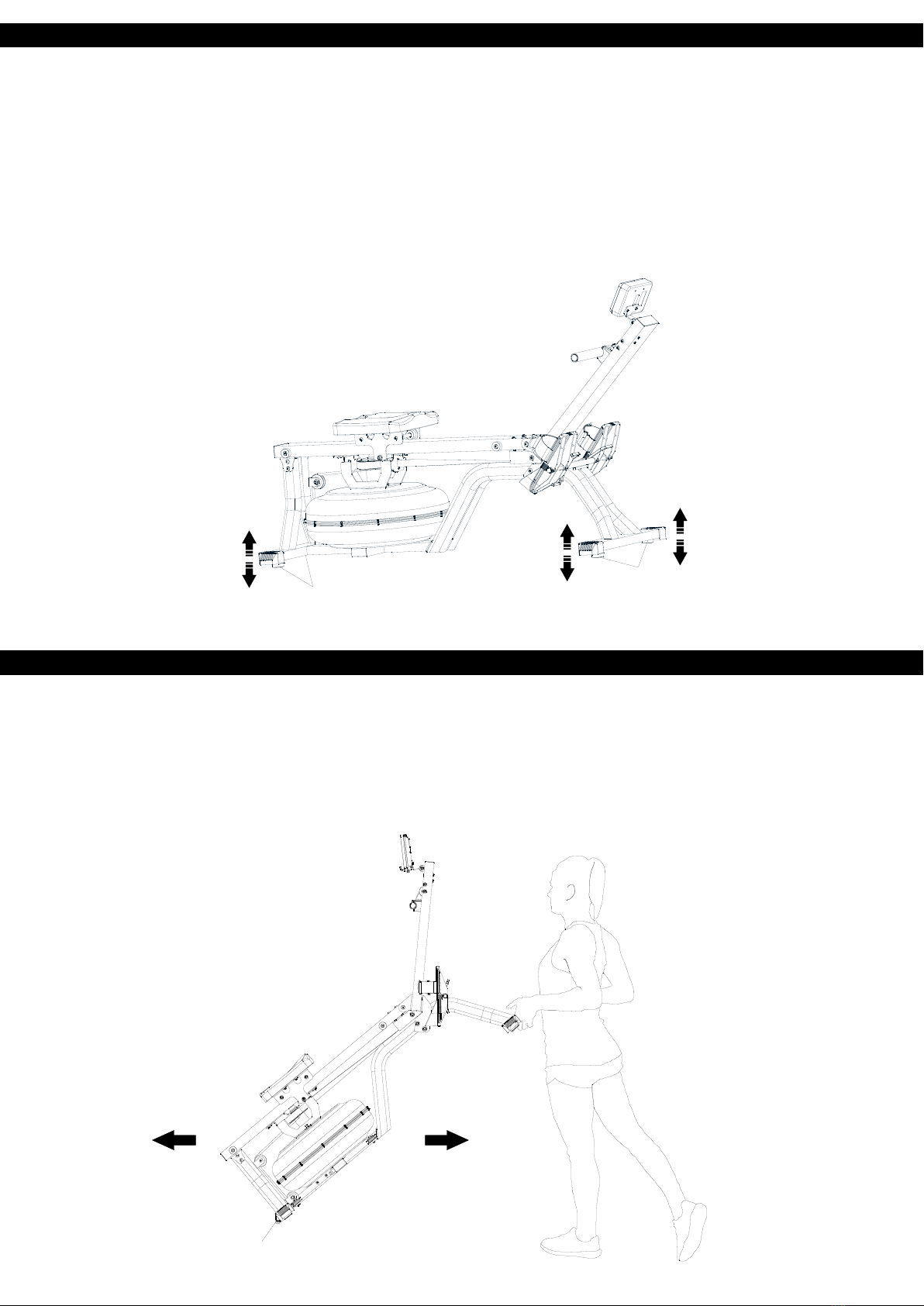

Levelling the Device 12
Transport 12
Location & Storage 13
Adjusting the Pedals 14
Power Supply 14
Care, Cleaning & Maintenance 14

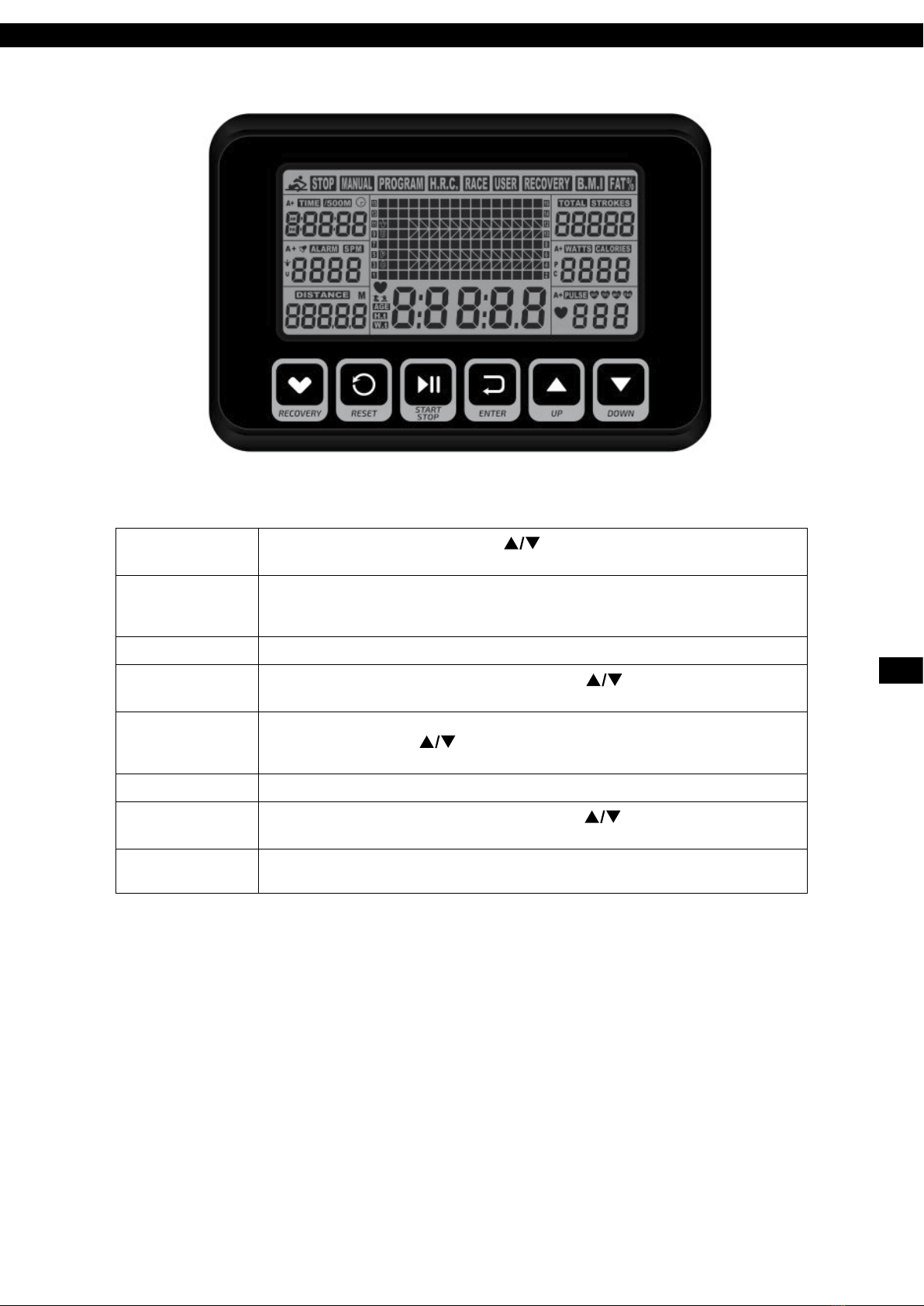

Cockpit 15 – 18
Heart & Pulse Rate 19 – 20
Safety Instructions - Rowing Machines 21
Training Information 22 – 25
FAQ 26
Technical Details 26
Recomended Accessories 27
Disposal 27
Exploded Drawing 28
Spare Parts List 29
Warranty 30
Service Contract 31
© 2019 by Gorilla Sports GmbH
This publication may not be reproduced, stored in retrieval system, or transmitted on whole or in part, in any form
or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permis-
sion of Gorilla Sports GmbH.
Errors, colour and technical modication subject to change, reproduction as well as electronic duplication only with
written permission of Gorilla Sports GmbH.

3
ENG
Safety Instructions
Please read and observe all sections of this Operating Manual before you start with training. Thorough attention should be paid
to the safety, cleaning and maintenance instructions and the training information. Please also make sure that anyone using this
device is familiar with all this information.
It is very important to adhere strictly to the safety and maintenance instructions contained in this Manual. This training device is
only to be used for its intended purpose. If this equipment is used for any other purposes than intended, there is a possible risk
of accident, damage to health or damage to the training device for which the Distributor cannot be held responsible.
Electrical Connection (only applies to devices with an external electrical connection)
−A mains voltage of 220-230V is required to operate this training device.
−The training device is only to be connected to the mains with the mains cable supplied using a 16A individually fused and
earthed socket installed by a qualied electrician.
− The training device is only to be switched on and o󰀨 using the ON/OFF switch.
−Always remove the electric plug from the socket before moving the training device.
−Remove the electric plug from the socket before commencing any cleaning, maintenance or other works.
−Do not connect the mains plug to a socket on a socket strip or on a cable drum.
− If using a cable extension please ensure that this complies with DIN standards, VDE regulations and guidelines, technical
rules issued by other European Union states.
−Always place the mains cable so it cannot be damaged or cause a tripping hazard.
−In operating or standby mode, electrical devices such as mobile phones, PCs, Televisions (LCD, plasma, tube, etc.), game
consoles etc. will emit electro-magnetic radiation. For this reason, all these types of devices should be kept away from
your training device as they could lead to malfunction, disturbances or false outputs being shown in heart rate measure-
ments.
−For safety reasons, always remove the electrical plug from the socket when the device is not in use.
Training Environment
−Select a suitable space for your training device to provide an optimum amount of free space and highest level of safety.
You should leave a free space of at least 100 cm in front of and behind the device and a minimum of 100 cm to each side
of the training device.
−Make sure that the area is well ventilated and that an optimum amount of oxygen is available during training. Avoid
draughts.
−Your training device is not suitable for outside use and so storage and training can only take place in a temperate, clean
dry room.
−The temperature range for operation and storage for this device should be between at least
−10° and a maximum of 30°Celsius.
−Do not operate or store your training device in wet areas such as in swimming pools, saunas etc.
− Make sure that your training device is kept on at, hard, clean ground both in operation and at rest. Any uneven surfaces
must be removed or made good.
− It is recommended that a oor covering (carpet, mat, etc.) should be placed under the device to protect damageable oors
such as wood, laminates, oor tiles etc. Please ensure that this underlay cannot slip or slide.
−Do not put this training device on pale or white coloured carpets or rugs as the feet of the device may leave marks.
−Make sure that your training device and mains cable are kept out of contact with hot surfaces and are kept at a safe dis-
tance from any sources of heat e.g. central heating, hot stoves, furnaces, ovens or open res.
Personal Safety Instructions for Training
−Remove the batteries or mains cable (if present) when the training device is not in use to avoid inappropriate or uncon-
trolled use by any other third party, e.g. children.
−You should have a health check carried out by your doctor before you start any training
− Stop training immediately if you feel physically unwell or are experiencing any breathing di󰀩culties.
−Always start your training session at a low workload increasing it slowly but steadily throughout. Reduce the workload
again towards the end of your training session.
−Suitable sports shoes and clothes should always be worn during training sessions. Make sure that loose clothes do not
get caught up in the slide rail or in the rollers.
−Your training device is only to be used by one person at a time.
− Check each time before a training session to see if your device is in perfect condition. Never use your training device if it is
faulty or defective.
−You are only permitted to carry out repairs to the device yourself after having contacted our Service Department and on
receipt of explicit permission to do so. Only original spare parts may be used at any time.
−Your training device must be cleaned after each use. Remove all dirt including body sweat or any other liquids.
−Always make sure that liquids (drinks, body sweat, etc.) do not get onto the vibrating plate or into the cockpit as this can
cause damage to the mechanical and electronic components.
−Your training device is not suitable for use by children.
−Third parties, especially children and animals, must be kept at an appropriate safety distance during training.
−Check if there are any items underneath the training device before each training session and remove them without fail.
Never use the training device when items are underneath it.
−Do not allow children to use your training device as a toy or climbing frame at any time.
−Ensure that no body parts of your own or of third parties ever come in contact with any of the moving mechanisms.
The construction of this training device is based on state-of-the-art technology and highest modern technical safety standards.
This training device is to be used by adults only! Extreme misuse and/or unplanned training can cause damage to your health!

4
Overall View of the Device
Part 54 – Cockpit Part 6 – Cockpit Holder Part 101 – Funnel Part 100 – Pump
Scope of Delivery
Cockpit
Rowing Grip
Water Tank
Pedal
Seat
Transport Rollers
Part 1 – Base Frame
Part 43 – L/R Pedals
Part 39 – Seat
Part 12 – Pedal Axle
Part 45 – Holder for Rowing Grip
Slide Track

5
ENG
Diagram Part No. Description Size Qty
51 Bolt M8x70 1
63 Bolt M10x115 1
87 Safety nut M10 1
88 Safety nut M8 1
65 Bolt M10x55 2
75 Bolt M6x16 6
82 Washer M10 3
83 Washer M8 1
81 Spring washer M10 2
86 Cap nut M10 2
102 Allen key S4 1
103 Allen key S6 1
104 Wrench/Phillips screwdriver 13mm 17mm 1
105 Allen key S5 1
Damage that has arisen due to assembly errors is not covered by the warranty. Please read the instructions careful-
ly before starting, follow the sequence of assembly steps exactly and follow the instructions of each assembly step.
Installation of the exercise equipment must be performed by competent adults. Since some components may have
sharp edges, wear suitable work gloves during assembly.
Carry out the assembly of your training equipment in a place that is level, clean and free from obstructions. Carry
out assembly with 2 people. Only after assembly is fully completed can training begin on your device.
Fixing Material
Assembly

2
1
6
83
88
51
2
4
3
65
2
4
63
82
87
1
6
Step 1:
− Place the base frame on a at even oor.
−Pull the front stand (2) out to the front.
−Pull up the front tube (4).
− From the front x the front tube (4) to the front stand (2) using two bolts M10x55 (65)
− From the side x the front tube (4) to the base frame (1) with a bolt M10x110 (63), a washer M10 (82) and
a safety nut M10 (87)
Step 2:
−Fix the cockpit holder (6) to the front end of the front tube (2).
−To do this use a bolt M8x70 (51), a washer M8 (83) and a safety nut M8 (88).
Note: Only tighten bolt (51) and safety nut (88) far enough so that the cockpit holder (6) can still be moved but
cannot slip and change position by itself.
Assembly

12
82 8186
82
81
86
2
1
R
L
43L
43R
R ack
75
39
75
10
7
ENG
Step 3
−Identify the left and right pedals (43). Left is marked with a „L“ and right with an „R“.
−Insert the pedal axle (12) into the guide on the front stand (2)
−On the right side, push the right pedal (43R) onto the pedal axle (12) and then place it onto the right pedal
rack.
−On the left side, push the left pedal (43L) onto the pedal axle (12) and then place it onto the left pedal rack.
−Fix the right pedal (43R) onto the pedal axle (12) using a washer M10 (82), a spring washer M10 (81) and
a cap nut M10 (86).
−Fix the left pedal (43L) onto the pedal axle (12) using a washer M10 (82), a spring washer M10 (81) and a
cap nut M10 (86).

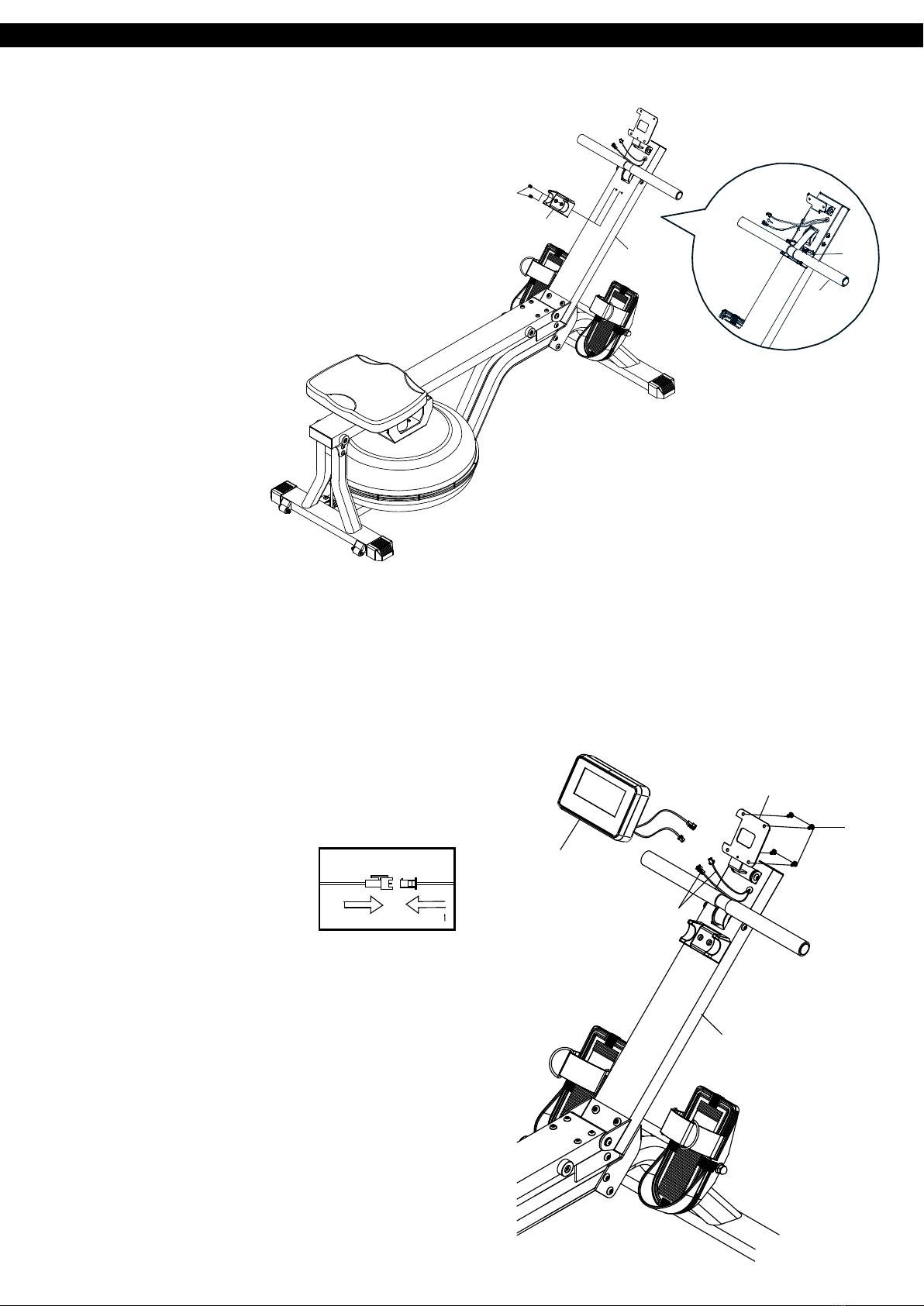

Step 4
−Fix the seat (39) onto the slide track (10)
−To do this use four bolts M6x15 (75)
Assembly

5
45
45
75
4
54
55
4
6
76
8
Step 5
−Mount the rowing grip holder (45) onto the front tube (4) using two bolts M6x15 (75).
−Then put the rowing grip (5) into the rowing grip holder (45).
Step 6
−Insert the two AA batteries included in delivery into the battery compartment on the back of the cockpit (54).
− Fix the cockpit (54) onto the cockpit holder (6) using the four cockpit bolts M5x10 (76) which you will nd
delivered together with the cockpit.
−Connect the cockpit (54) cables with the cables (55) protruding out of the front tube (4). Push the excess
cable back into the front tube (4).
Assembly

MAX FILL
W
W
A
A
T
T
E
E
R
R
L
L
E
E
V
V
E
E
L
L
MIN. FILL
1
2
3
4
5
6
LEVEL
RESIS.
RESISTANCE
9
ENG
There is of course a direct link between rowing and the element of water. The OCEAN ROWER is therefore the
ideal training device on which to implement your rowing training realistically as it provides a realistic simulation
of rowing on water.
The user work load is regulated by the user themselves. Rowing speed is determined by number of rowing
strokes per minute and the pulling power. To increase or decrease the speed of the rowing boat, the rower must
increase or decrease the pulling power and or the number of strokes per minute. This way the user can adjust
their rowing training according to their own current tness level. Even your form on any particular day can deter-
mine the work load.
The advantage of rowing above other types of endurance sports is that it uses almost 80% of all body muscles
and the calorie consumption with rowing is signicantly higher.
Water Tank
The resistance when rowing with the OCEAN ROWER is created by water. The water tank needs to be lled for
this. We recommend using plain tap water for doing this. Tap water contains all the necessary additives to avoid
any build-up of algae. These additives have been removed from distilled or any otherwise puried or ltered
water which could cause a build-up of algae in the water in the short or mid-term. After lling immediately add
a water treatment tablet to the tank. Do not at any time use any chlorine bleach or chlorine used for swimming
pools. This can damage the device tank.
Replace the water in the tank every 6 months and add a water treatment tablet to the tank each time you do
this.
Water Tank Display and Filling Amount
On the water tank there is a water level scale showing 6 di󰀨erent levels of lling. The amount of water lled sim-
ulates or changes the relative weight or size of the boat. The lling amount has no e󰀨ect on the resistance but
on the mass which the rower has to move. A smaller lling amount represents then a smaller, lighter boat and
the maximum lling amount at level 6 represents a large and heavy boat.
CAUTION:
Please ensure that the current lling level of water never goes below Level 1 or above Level 6. This can cause
signicant and serious damage to the training device.
Summary of the Filling Levels:
−Level 1 = 8.5 litres
−Level 2 = 9.5 litres
−Level 3 = 10.5 litres
−Level 4 = 11.1 litres
−Level 5 = 11.9 litres
−Level 6 = 12.8 litres
Filling the Water Tank

W
B
A
A
S
-
T
S
S
E
G
R
N
-RE
U
INI
G
2
2
1
1
MAX FILL
W
W
A
A
T
T
E
E
R
R
L
L
E
E
V
V
E
E
L
L
MIN. FILL
1
2
3
4
5
6
LEVEL
RESIS.
RESISTANCE
10
Filling the Water Tank
Step 1:
Remove the tank cap (21)
Step 2:
Insert the funnel into the opening of the tank.
Step 3:
Fill the desired amount of water into the tank.
CAUTION:
Do not overll above the maximum lling level of Level 6 and do not underll the minimum lling level of Level 1.
This can lead to damages to your training device.
Step 4:
Add a water treatment tablet to the water in the tank.
Step 5:
Close the tank opening by replacing the cap (21).
Step 6:
Check that the cap (21) is tted correctly and that the water level is being shown. Remove any traces of water
which may have been spilled on the device or on the oor whilst lling the tank.
Water
Water treatment
tablet
Filling the Water Tank

21
11
ENG
Emptying the Water Tank
Step 1:
Remove the tank cap (21).
Step 2:
Place a suitable container such as a bucket next to the tank of the rowing device.
Step 3:
Insert the tube on the pump into the tank and place the hose into the container made available.
Step 4:
Pump out the water completely or to the water level you require.
Step 5:
Close the tank opening by replacing the cap (21).
Step 6:
Remove any traces of water which may have been spilled on the device or on the oor whilst emptying the tank.
Filling the Water Tank

4
36
59
59
12
For the rowing machine to stand safely and securely, the front and rear stands are equipped with two adjustable
feet (59). With these it is possible to level out the device and compensate for any slight unevenness in the oor.
Screw all adjustable feet (59) as far as they will go into the two stands. Now all adjustable feet (59) are at the
same level to start from. Put the rowing machine in the desired location and check to see if it is stable and
standing securely on the oor. If it is slightly wobbly, unscrew the appropriate adjustable foot until the device
is stable. If the oor in the chosen location is so uneven that the wobbling cannot not be regulated using the
adjustable feet, then you must select another location which is much more even for your rowing machine.
This rowing machine is tted with transport rollers (36) on the rear stand to make it easy for you to transport
it. To push the rowing machine into another location, lift the front stand far enough up until the transport rollers
are touching the oor. Now you can push or pull the device into the desired new location. Lower the rear stand
gently onto the oor.
Make sure when lifting, transporting and putting down the device that you have a secure footing and that you
hold onto it rmly.
Levelling the Device
Transport

13
ENG
Selecting a good location and storage space
Please choose a dry, level and temperate place to locate and store your training device. In your own interests
make sure that the selected training area is well ventilated to provide you with optimal oxygenation.
The use or storage in damp or wet areas, such as saunas, swimming pools, etc. and in outdoor areas such as
balconies, terraces, gardens, garages, etc. is excluded.
High humidity and low temperatures prevailing in such locations lead to defects in the electronics, corrosion and
rust. Damage of this kind is not covered under the warranty.
Before using the device after a longer period of non-use, make sure that all the xing materials are tted correct-
ly and securely tightened.
Location & Storage

14
Your rowing machine is equipped with a special support system for your feet.
You should wear suitable sports shoes for rowing training. We recommend running shoes because they are
ideal for foot movement during rowing due to their slightly curved shape.
Make sure that you do not over-tighten the shoes before training as this is can restrict circulation during exercise
and cause numbness in the feet.
Adjusting the Foot Straps
The feet are secured to the foot pedals using the straps on the foot support system.
Step 1:
Undo the Velcro fastenings on the straps.
Step 2:
Place your feet on the pedals and x them by tightening the straps. Make sure that they hold your feet rmly but
do not pull them too tight. Close the Velcro fasteners.
Fastening the feet rmly is very important for the correct execution of the rowing movement. In order to move
your body forwards you need a rm hold on your feet.
The cockpit is powered by two batteries type AA. If the display on the cockpit should become weak or go out
completely, replace these batteries with new ones. Please observe the disposal instructions included in this
manual when you dispose of the old batteries.
The battery compartment is on the back of the cockpit. Make sure that you put the batteries the right way around
in the battery compartment.
Before rst use or after a long break from training
Check if the rowing machine is standing safely. There must be no objects on or under the device.
Make sure that all screws are tight and the sliding area of the seat is completely clear. Also check if the slide rail
is free of contaminants and foreign bodies.
Maintenance & Cleaning Intervals:
Clean the rowing machine after each workout with a damp cloth to remove possible perspiration and other liquid
residues. Under no circumstances should you use solvents. Dry any damp areas thoroughly.
To ensure optimal smooth running of the seat, clean the seat, roller guides and aluminium slide rails regularly.
Damage due to failure or lack of cleaning, maintenance and / or care is excluded from the warranty and
guarantee.
Adjusting the Pedals
Power Supply
Care, Cleaning & Maintenance

15
ENG
Cockpit
Training Values
TIME Display of the training time. Using the keys, the time can be set using up to
99:00 minutes in 1-minute increments
TIME/500M
Display of the average time the user takes to cover a distance of 500 metres based
on their current rowing speed. This value is permanently updated by the cockpit as
soon as the rower changes their rowing speed.
SPM Display of the average number of rowing strokes per minute.
DISTANCE Display of the rowing distance in meters. Using the keys the distance can be
set up to 99,900 metres in 100-meter increments.
STROKES
Display of the number of strokes taken previously taken in the current training
session. Using the keys the number of rowing strokes can be set up to 9,990
strokes in 10-stroke increments.
TOTAL STROKES Display of the total number of rowing strokes taken
CALORIES* Display of the calorie consumption. Using the keys the calorie consumption
can be set to up to 9,990 calories in 10-calorie increments
PULSE** Display of the current heart rate from 30 to 220 beats/minute. The current heart rate
still be shown here if you are using an optionally available chest belt.
*Note on Calorie Measurement
Calorie consumption is calculated by means of a general formula. Unfortunately, the exact calorie consumption of the individual cannot be deter-
mined here as this requires a signicant amount of personal data.
** Note on Heart Rate Measurement
This function can only be used together with a transmitter chest belt which is available as an optional extra. Gorilla Sports recommend the use
of a POLAR® T34 chest belt.

16
Cockpit
Keypad
RECOVERY Key to activate the recovery pulse rate measurement
RESET Key to reset all values. To set all values back to zero and/or to restart the cockpit,
press and hold this key constantly for approximately 3-5 seconds.
START/STOP Starts or ends the current training program
ENTER
−Conrmation Function (in the start menu)
Key to conrm selections and inputs
−Change the Display Function (during training)
Press this key during training to change which values are shown in the display.
- Key Key to increase input values
- Key Key to reduce input values
Inserting the Batteries
There is a battery compartment on the back of the cockpit. Insert the two 1.5V AA batteries included in delivery.
Please replace the batteries as soon as the cockpit display becomes dim or does not display any information.
Please observe the disposal instructions for batteries included in this manual. When inserting the batteries make
sure put them in the correct way around.
Switching on the Cockpit
The cockpit switches on automatically as soon as any key is pressed.
Switching o󰀨 the Cockpit
The cockpit switches into stand-by mode automatically 4 minutes after training has stopped. Here all training
values will automatically be deleted apart from the value for the number of TOTAL STROKES.
Input of Date and Time
As soon as the cockpit has switched on for the rst time you can enter the following values:
−Time (CLOCK)
− Date (YEAR / MONTH / DAY)
Enter the appropriate values using the keys and conrm your entries by pressing the ENTER key.
Now you can also activate or deactivate the ALARM function. If you do not require the ALARM function, select
alarm “OFF” using the keys. If you do wish to use the ALARM function, select alarm “ON” using the
keys. Conrm your entry by pressing the ENTER key.
The values for Time, Date and Room Temperature will be shown in the display when the cockpit is in STAND-BY
mode.
QUICK START Function
To start with training immediately without entering any values, switch the cockpit on and then press the START
key. The training time will start and you can begin your training.
During training you can change the values shown in the display during training by pressing the ENTER key.
Please note that you must end this type of training yourself as the cockpit does not have any target values.

17
ENG
Cockpit
Manual Training with Set Targets
To start a training session with set targets, switch the cockpit on. Select „MANUAL” by pressing the keys
and conrm your selection by pressing the ENTER key.
Step 1: Setting a Training Target
It is now possible to select a training target and to set the desired target value.
The selection options are:
−Training Time (TIME)
− Distance (DISTANCE)
−Strokes (STROKES)
−Calorie Consumption (CALORIES)
−Top pulse limit (PULSE)
The values will each be ashing in the display. If you would like to enter a value for the desired training target
press the keys until the correct value is shown.
−TIME – Input of the training time 99:00 minutes in 1-minute increments
− DISTANCE – Input of the training distance 99.900 meter in 100-meter increments
−STROKES – Input of the number of rowing strokes up to 9,990 strokes in 10-stroke increments
−CALORIES – Input of the calorie consumption 9.990 calories
− PULSE – Input of the top pulse rate limit 30 to 240 pulse beats/minute
Conrm your entry by pressing the ENTER key.
Note on Top Pulse Rate Limit
If the set top pulse rate is exceeded during training, a warning signal will sound. In this case you should reduce
your rowing speed and/or the drag force.
Step 2: Training Start
After entering the desired training target, press the START key. Training will start automatically. The training
target set in Step 1 will be counted down backwards. Training will stop when the target value reaches zero.
Manual Training with a Pre-Set Training Target
To do a training session with a xed set training target, switch on the cockpit.
Select „STANDARD” and conrm your selection by pressing the ENTER key.
Step 1: Selecting a Training Target
It is now possible to select a training target.
These are the options:
−2000m (here the training distance is pre-set to 2,000 meters)
−5000m (here the training distance is pre-set to 5,000 meters)
−10000m (here the training distance is pre-set to 10.000 meters)
−30:00 (here the training time is pre-set to 30 minutes)
− 500m/1:00 (here it is necessary to cover the training distance of 500 meters in one minute)
Select the desired training target by pressing the keys.
Step 2: Training Start
After you have selected your training target press the START key. Training will start automatically. The target
value entered in Step 1 will be counted in reverse order down to zero. Training ends when the target value
reaches zero.

18
Cockpit
RACE Simulation
This is a motivating training program in which you are up against a computer simulated opponent.
Before the race you set the time in which your opponent requires to cover 500 meters.
The rowing speed of your opponent remains the same throughout the race. Switch on the cockpit and select
“RACE“ using the keys.
Step 1: Specication of Time/500 meters for the Computer Opponent
For example, „L1” is ashing in the display and the corresponding value will be shown in the TIME/500M window
(see table). Now select the desired performance level or Time/500 meters for your opponent using the keys.
Conrm your entry by pressing the ENTER key.
Performance Level L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 L12 L13 L14 L15
Time/500 metres 8:00 7:30 7:00 6:30 6:00 5:30 5:00 4:30 4:00 3:30 3:00 2:30 2:00 1:30 1:00
Step 2: Specied Target for the Training Distance
The value will ash in the DISTANCE window. Enter the desired training distance using the keys. Conrm
your entry by pressing the ENTER key.
Step 3: Training Start
The program will start automatically as soon as you press the START key.
The value entered for the training distance will count down in reverse. The user’s boat will be shown as “U” in the
top line of the display and the computer opponent on the bottom line as “PC”.
The program ends when the value has reached zero and the result will be shown in the display. “USER WIN” will
appear in the display if the user has won and “PC WIN” if the computer opponent has won.
RECOVERY Pulse Rate Measurement
To use the recovery pulse rate measurement, you will require an optionally available chest belt to measure your
heart rate.
If the user is wearing a chest belt, the current heart rate will be shown in the PULSE window of the display. After
training ends press the RECOVERY key to start measurement. 60 seconds will be counted down in the TIME win-
dow. Following measurement, the cockpit will compare the pulse rate at the beginning of the measurement with the
pulse rate after the 60 seconds and give an evaluation.
F1 Very good
F2 Good
F3 Satisfactory
F4 Su󰀩cient
F5 Decient
F6 Unsatisfactory
CAUTION:
Please make sure that you do not press any keys on the cockpit during the recovery measurement process. This
can lead to system failure and may cause the display on the cockpit to “freeze” If this is the case, normally the
stand-by display (Date, Time, and Temperature) will appear. The cockpit will then no longer react to any key inputs.
To re-start the cockpit, remove the batteries for approximately 10 to 20 seconds and then insert them again. It may
be necessary to enter the values for time and date again.

200
150 195
130 146 190
110 127 143 185
107 124 139 180
105 120 135 175
102 117 131 170
99 114 128 165
96 111 124 160
94 107 120 155
91 104 116 150
88 101 113 145
85 98 109 140
83 94 105 135
80 91 101 100
77 88 98
74 85
72
20 25 30 35 40 45 50 55 60 65 70 75 80 85 90
19
ENG
Heart & Pulse Rate
Calculating your personal heart rate when training
Calculate your personal heart rate when training as follows:
220 - Age = maximum heart rate
This value represents your maximum heart rate and serves as a basis from which to calculate
your personal training heart rate. Set the calculated heart rate at 100%
Wellness and Health - target zones = 50 to 60% of the maximum heart rate.
This training zone is ideally suitable for people who are over-weight and/or older beginners, or people starting again after a longer
break from training. Training in this zone the body will burn approx. 4-6 calories per minute to produce energy.
The percentage ratio per calorie is approx. 70% fat, 25% carbohydrate, and 5% protein.
Fat burning - target zone = 60 to 70% of the maximum heart rate
This training zone is suitable for athletes and sports people who aim to lose weight.
Training in this zone the body will burn approx. 6-10 calories per minute to produce energy.
The percentage rate per calorie is approx. 85% fat,10% carbohydrate, and 5% protein.
Condition & Fitness - target zone = 70 to 80% of maximum heart rate
This training zone is ideally suitable for athletes and sports people who aim to improve their stamina and/or condition.
Training in this zone the body will burn approx. 10-12 calories per minute to produce energy.
The percentage rate per calorie is approx. 35% fat,60% carbohydrate, and 5% protein.
For optimum e󰀨ects in training results you should calculate the average value of the selected target zone (also see above table):
Wellness & Health - target zone average value = 55% of maximum heart rate
Fat burning - target zone average value = 65% of maximum heart rate
Kondition & Fitness - target zone average value = 75% of maximum heart rate
Heart Rate per Minute
Age
of maximum heart rate
of maximum heart rate
of maximum heart rate
of maximum heart rate
100%
75%
65%
55%

20
Heart & Pulse Rate
Warning about Pulse and Heart Rate Monitoring
WARNING
Pulse and heart rate monitoring systems may be inaccurate. Excessive training can cause serious injury or
death. If you feel unwell and / or faint, stop training immediately. Make sure that all users of your exercise device
are familiar with this information, understand it and apply it at all times.
Heart Rate Measurement using a Chest Belt
This training device is tted with a POLAR® compatible receiver for wireless heart rate measurement.
The use of a chest belt (we recommend the exclusive use of an uncoded POLAR® chest belt) allows you to
wirelessly measure heart rate. The chest belt is available as an accessory.
This optimal, ECG-accurate type of measurement takes the heart rate by means of a transmitter chest belt
directly from the skin.
The chest belt then sends the pulses via an electromagnetic eld to the built-in cockpit receiver.
We recommend always using a chest belt for heart rate measurement when using heart-rate controlled pro-
grams.
WARNING
The determination of the current heart rate by means of the chest belt serves only to display the current heart
rate during exercise. This value says nothing about the safe or e󰀨ective training heart rate. Also, this type of
measurement is in no way designed or suitable for medical diagnostic purposes. Therefore, discuss with your
family doctor what would be the most suitable training program for you to create and implement before you start
exercising.
This is especially true for persons:
−who have not been physically active for a long period of time
−are overweight
−are older than 35 years
−have high or low blood pressure
−have heart problems
If you are wearing a pacemaker or similar device, consult your medical specialist before using a heart rate chest
belt.
