gorilla sports 100907 User manual

SIT UP BENCH
100907

HARDWARE PACK
Hex Bolt M6*40 - 4PCS
Allen Bolt M8*35 - 1PC
PIN 10*85
×
1PC
PIN 10*70
×
2PCS
Hex Bolt M6*16 - 4PCS
Hex Bolt M10*20 - 2PCS
Hex Bolt M10*65 - 2PCS
Arc Washer 8 - 1PC
Lock Nut M10 - 2PCS
Washer 10 - 10PCS
Washer 6 - 8PCS
Nut M10 - 2PCS
Hex Bolt M10*75 - 1PC
Hex Bolt M10*140 - 1PC

Maximum load 100KG

EXPLODED DRAWING

PART LIST
NUMBER DESCRIPTION QUANTITY
1 BASE 2
2 FRONT SUPPORT 1
3 REAR SUPPORT 1
4 ARMREST CUSHION SUPPORT TUBE 1
5 RIGHT BACKREST SUPPORT 1
6 LEFT BACKREST SUPPORT 1
7 ARMREST CUSHION PLATE 1
8 HANDLE BAR 1
9 FOAM TUBE 1
10 BACKREST CUSHION 1
11 ARMREST CUSHION 1
12 FOAM ROLLER 2
13 ADJUSTABLE END CAP 2
14 ROUND END CAP 2
15 FAST PIN 1
16 BALL HEAD PIN φ10*85 1
17 PIN φ10*70 2
18 HAND GRIP 2
19 ROUND PLUG 2
20 SQUARE PLUG-25 4
21 SQUARE PLUG-38 1
22 SQUARE PLUG-50 1
23 BOLT M6*16 4
24 BOLT M6*40 4
25 ALLEN BOLT M8*35 1
26 BOLT M10*20 2
27 BOLT M10*65 2
28 BOLT M10*75 1
29 BOLT M10*140 1
30 WASHER 6 8
31 ARC WASHER 8 1
32 WASHER 10 10
33 NUT M10 2
34 LOCK NUT M10 2

ASSEMBLY INSTRUCTION
1
1
2
3
17
26
26
27
27
28
32
32
32 32
32
32
33
34
33
#27-M10*65 - 2PCS
#32-Washer 10 - 8PCS
#26-M10*20 - 2PCS
#34-Lock Nut M10 - 1PC#33-Nut M10 - 2PCS
#17-Pin 10*70 - 1PC
#28-M10*75 - 1PC
1

30
30
29
32
10
32
34
3
16 24
30
5
6
24
#24-M6*40 - 4PCS #32-Washer 10 - 2PCS
#34-Lock Nut M10 - 1PC
#30-Washer 6 - 4PCS
#29-M10*140 - 1PC
#16-PIN 10*85 - 1PC
2

78
11
12
18
23
25
30
31
2
15
4
17
18
12
9
#17-Pin 10*70 - 1PC
#23-M6*16 - 4PCS #30-Washer 6 - 4PCS
#25-Allen Bolt M8*35 - 1PC
#31-Arc Washer 8 - 1PC
3

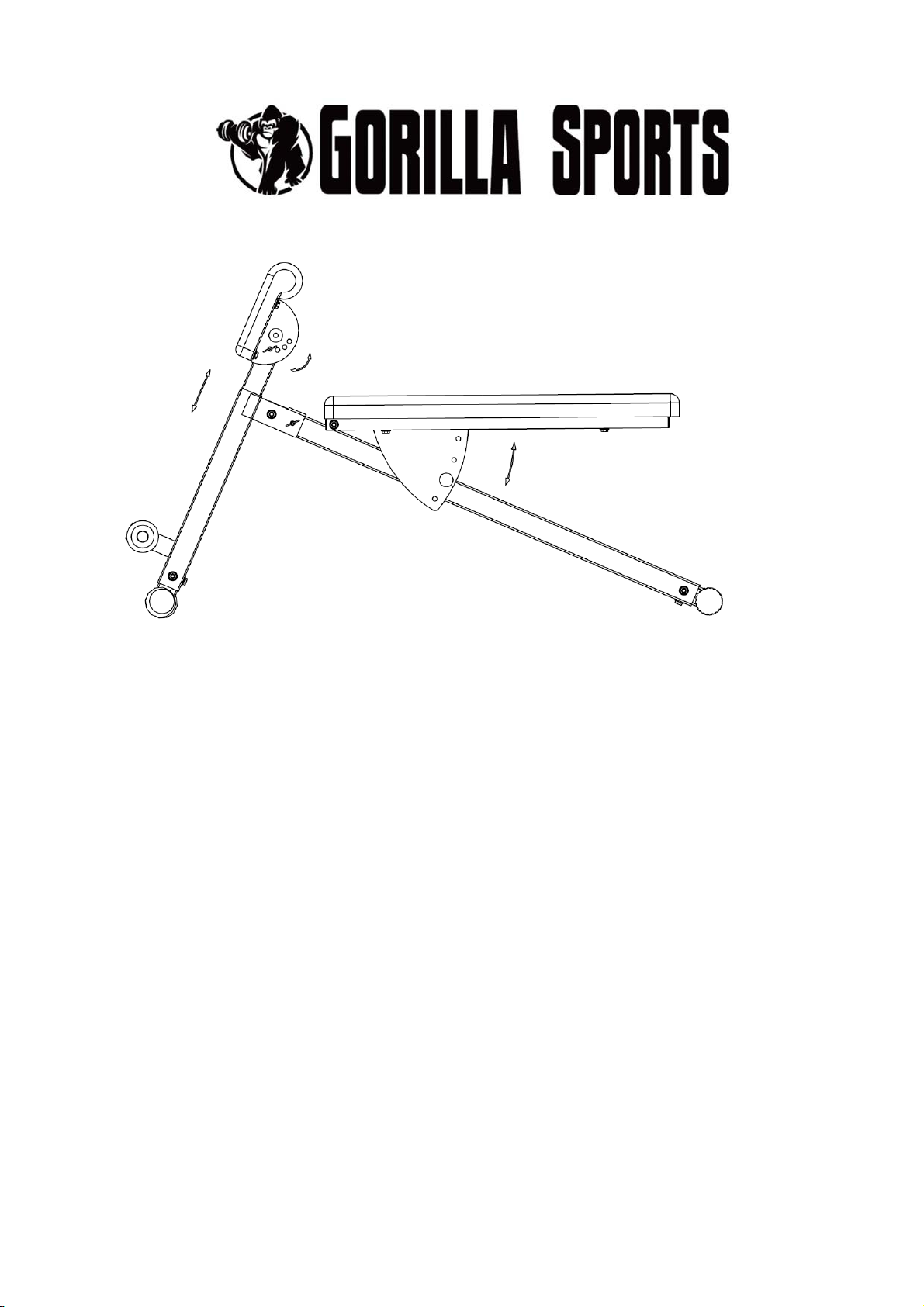

ADJUSTMENTS
Adjust the armrest cushion
There are 4 settings for the armrest cushion.
1. Pull out the pin (17) on the armrest cushion plate.
2. Rotating the armrest cushion plate.
3. Choose proper position and insert pin into hole.
Adjust the height of the armrest cushion
There are 4 settings for the height.
1. Loosen and pull the fast pin (15) on the front support.
2. Pull the cushion support tube.
3. An audible click will confirm the tube is locked into place.
Adjust the backrest cushion
There are 4 settings for the armrest cushion.
4. Pull out the ball head pin (16) on the backrest support.
5. Lift the backrest cushion.
6. Choose proper position and insert pin into hole.
