GORMAN-RUPP PUMPS EchoStorm VA2 User manual

OM-07448-01
May 18, 2021
Rev A 6/24/21
GORMAN‐RUPP PUMPS
www.grpumps.com
2021 Gorman‐Rupp Pumps Printed in U.S.A.
INSTALLATION, OPERATION,
AND MAINTENANCE MANUAL
WITH PARTS LIST
EchoStorm
MODELS
VA2, VA3, VA4, VA6

Register your new
Gorman‐Rupp product online at
www.grpumps.com
Valid serial number and e‐mail address required.
RECORD YOUR MODEL AND SERIAL NUMBER
Please record your model and serial number in the spaces
provided below. Your Gorman‐Rupp distributor needs this in
formation when you require parts or service.
EchoStorm Model:
Serial Number:

TABLE OF CONTENTS
i
INTRODUCTION PAGE I - 1.................................................
SAFETY - SECTION A PAGE A - 1...........................................
INSTALLATION - SECTION B PAGE B - 1....................................
Unit Dimensions PAGE B - 1.......................................................
PREINSTALLATION INSPECTION PAGE B - 2............................................
POSITIONING Unit PAGE B - 2.........................................................
Lifting PAGE B - 2.................................................................
Mounting PAGE B - 2.............................................................
Materials PAGE B - 3..............................................................
Line Configuration PAGE B - 2......................................................
Connections to Discharge Line PAGE B - 2..........................................
Gauges PAGE B - 2...............................................................
DISCHARGE LINES PAGE B - 2........................................................
Siphoning PAGE B - 2.............................................................
OPERATION - SECTION C PAGE C - 1......................................
STARTING PAGE C - 1................................................................
OPERATION PAGE C - 1..............................................................
OPERATIONAL CHECKS PAGE C - 1...................................................
Leakage PAGE C - 1..............................................................
Overheating PAGE C - 1...........................................................
Cold Weather Preservation PAGE C - 1..................................................
TROUBLESHOOTING - SECTION D PAGE D - 1..............................
PUMP MAINTENANCE AND REPAIR - SECTION E PAGE E - 1................

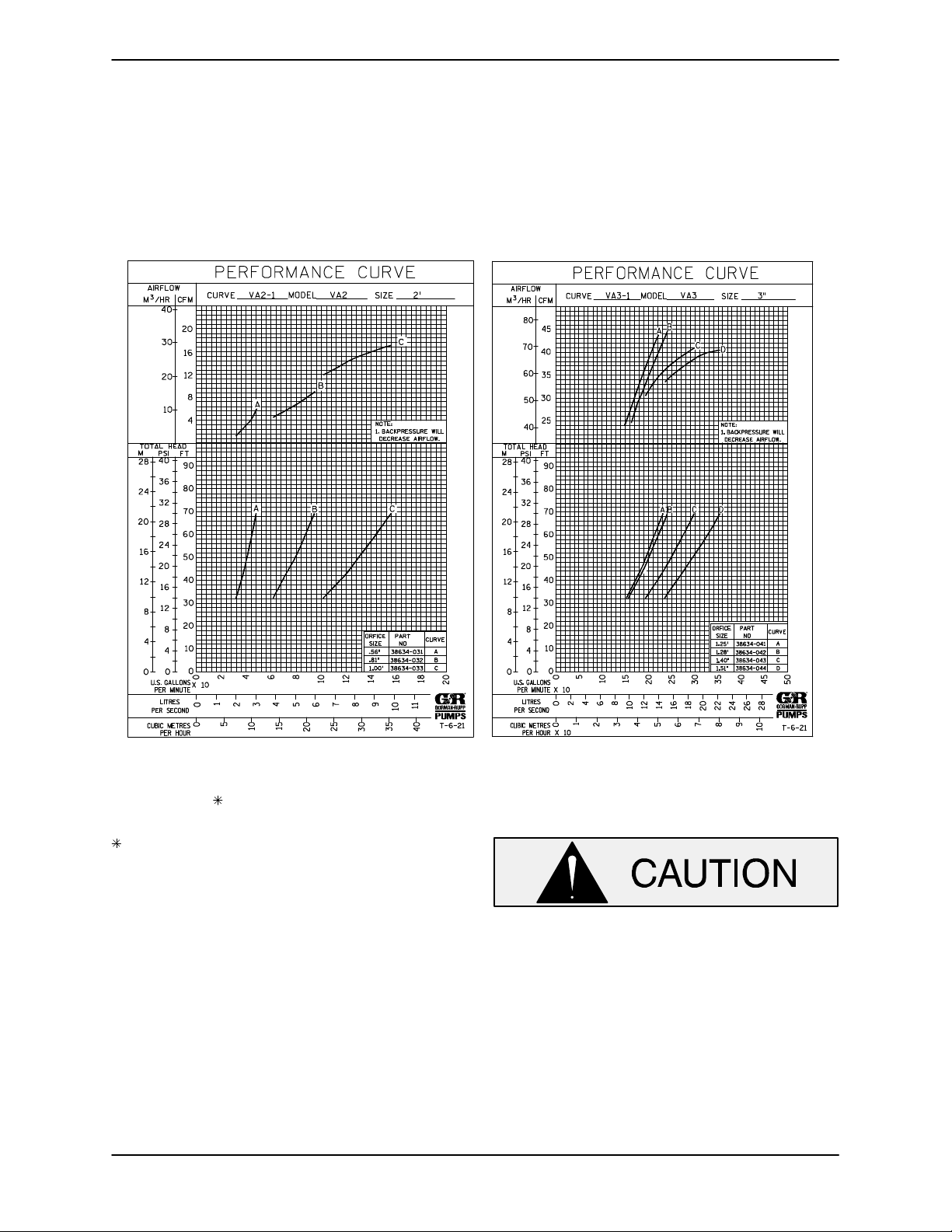

PERFORMANCE CURVE VA2 & VA3 PAGE E - 1.........................................
PERFORMANCE CURVE VA4 & VA6 PAGE E - 2.........................................
PARTS LISTS:
Parts Illustration VA2, VA3, VA4, VA6 PAGE E - 3.....................................
Parts List VA2 PAGE E - 4..........................................................
Parts List VA3 PAGE E - 5..........................................................
Parts List VA4 PAGE E - 6..........................................................
Parts List VA6 PAGE E - 7..........................................................

EchoStorm OM-07448
PAGE I - 1INTRODUCTION
INTRODUCTION
Thank You for purchasing a Gorman‐Rupp EchoS
torm. Read this manual carefully to learn how to
safely install and operate your Unit. Failure to do so
could result in personal injury or damage to the
Unit.
Because EchoStorm installations are seldom iden
tical, this manual cannot possibly provide detailed
instructions and precautions for every aspect of
each specific application. Therefore, it is the re
sponsibility of the owner/installer of the pump to
ensure that applications not addressed in this
manual are performed only after establishing that
neither operator safety nor pump integrity are com
promised by the installation. Equipment must be
installed and operated according to all national, lo
cal and industry standards.
If there are any questions regarding the EchoS
torm or its application which are not covered in
this manual or in other literature accompanying
this unit, please contact your Gorman‐Rupp dis
tributor, or The Gorman‐Rupp Company:
The Gorman‐Rupp Company
P.O. Box 1217
Mansfield, Ohio 44901-1217
Phone: [phone]
or:
Gorman‐Rupp of Canada Limited
70 Burwell Road
St. Thomas, Ontario N5P 3R7
Phone: [phone]
HAZARD AND INSTRUCTION
DEFINITIONS
The following are used to alert maintenance per
sonnel to procedures which require special atten
tion, to those which could damage equipment, and
to those which could be dangerous to personnel:
Immediate hazards which WILL result in
severe personal injury or death. These
instructions describe the procedure re
quired and the injury which will result
from failure to follow the procedure.
Hazards or unsafe practices which
COULD result in severe personal injury
or death. These instructions describe
the procedure required and the injury
which could result from failure to follow
the procedure.
Hazards or unsafe practices which COULD
result in minor personal injury or product
or property damage. These instructions
describe the requirements and the possi
ble damage which could result from failure
to follow the procedure.
NOTE
Instructions to aid in installation, operation, and
maintenance or which clarify a procedure.

EchoStorm OM-07448
PAGE A - 1SAFETY
SAFETY - SECTION A
This information applies to EchoStorm
Products. Refer to the manual accom
panying the pump and power source
before attempting to begin operation.
This manual will alert personnel to
known procedures which require spe
cial attention, to those which could
damage equipment, and to those which
could be dangerous to personnel. How
ever, this manual cannot possibly pro
vide detailed instructions and precau
tions for each specific application or for
every situation that might occur during
maintenance of the unit. Therefore, it is
the responsibility of the owner, installer
and/or maintenance personnel to en
sure that applications and/or mainte
nance procedures not addressed in this
manual are performed only after estab
lishing that neither personal safety nor
pump integrity are compromised by
such applications or procedures.
Before attempting to service the EchoS
torm:
1. Familiarize yourself with this man
ual.
2. Shut off pump.
3. Allow the discharge line to com
pletely cool if overheated.
4. Drain the Line.
Do not stand near unit during start up as
some fluid may discharge from air in
take ports if not using check valves.
Death or serious personal injury and
damage to the Echostorm or compo
nents can occur if proper lifting proce
dures are not observed. Make certain
that hoists, chains, slings or cables are
in good working condition and of suffi
cient capacity and that they are posi
tioned so that loads will be balanced
and the pump or components will not be
damaged when lifting. Lift the EchoS
torm or component only as high as nec
essary and keep personnel away from
suspended objects.
After the piping has been positioned,
make certain that the EchoStorm and all
piping connections are tight, properly
supported and secure before operation.
Equipment must be installed and oper
ated according to all national, local and
industry standards.

SUPER T SERIESOM-07330
PAGE A - 2 SAFETY
operating conditions must be within the
performance range shown on page E‐1. Never introduce air or steam pressure into the pip
ing to remove a blockage. This could result in per
sonal injury or damage to the equipment.

OM-07448EchoStorm
PAGE B - 1INSTALLATION
INSTALLATION - SECTION B
Review all SAFETY information in Section A.
Since installations are seldom identical, this sec
tion offers only general recommendations and
practices required to inspect, position, and ar
range the EchoStorm and piping.
Refer to the literature accompanying this unit or
contact the factory for specific installation instruc
tions.
For further assistance, contact your Gorman‐Rupp
distributor or the Gorman‐Rupp Company.
Dimensions
See Figure 1 for the approximate physical dimen
sions of Unit(s).
OUTLINE DRAWING
INLET
OUTLET
VA2 WITH OPTIONAL INLET ELBOW
OUTLET
INLET
VA2 , VA3,VA4, VA6
"B"
"B"
"B"
"B"
"A"
"A"
Figure 1. EchoStorm Outline Dimensions

OM-07448 EchoStorm
PAGE B - 2 INSTALLATION
PREINSTALLATION INSPECTION
The assembly was inspected before shipment
from the factory. Before installation, inspect the
Unit for damage which may have occurred during
shipment. Check as follows:
a. Inspect for cracks, dents, damaged threads,
and other obvious damage.
b. Check for and tighten loose attaching hard
ware. Since gaskets tend to shrink after dry
ing, check for loose hardware at mating sur
faces.
c. Carefully read all warnings and cautions con
tained in this manual or affixed to the equip
ment, and perform all duties indicated.
POSITIONING EchoStorm UNIT
Death or serious personal injury and
damage to the unit can occur if proper
lifting procedures are not observed.
Make certain that hoists, chains, slings
or cables are in good working condition
and of sufficient capacity and that they
are positioned so that loads will be bal
anced and the unit will not be damaged
when lifting. Lift the unit only as high as
necessary and keep personnel away
from suspended objects.
Lifting
Check the shipping tag on the unit packaging for
the actual weight, and use lifting equipment with
appropriate capacity.
Mounting
Locate the unit in an accessible place. It is recom
mended the unit be mounted horizontally at the
highest point in the system. Consult factory for ver
tical mounted application.
Materials
Pipe may be used for discharge lines; however, the
materials must be compatible with the liquid being
pumped.
Line Configuration
Keep suction and discharge lines as straight as
possible to minimize friction losses. Make mini
mum use of elbows and fittings, which substantial
ly increase friction loss. If elbows are necessary,
use the long‐radius type to minimize friction loss.
Connections to Discharge Line
Before tightening a connecting flange, align it ex
actly with the discharge flange. Never pull a pipe
line into place by tightening the flange bolts and/or
couplings.
Lines must be independently supported to avoid
strain on the EchoStorm and discharge line.
Gauges
The EcoStorm is already drilled and tapped for in
stalling gauges. Drilling and tapping of unit is not
necessary.
DISCHARGE LINES
Siphoning
The Echostorm air inlets are open to atmosphere
and can cause a siphon break in piping if no check
valves are used.

EchoStorm OM-07448
OPERATION PAGE C - 1
OPERATION - SECTION C
Review all SAFETY information in Section A.
Follow the instructions on all tags, labels and de
cals attached to the Unit.
This EchoStorm is designed to handle
non-volatile liquids. Do not attempt to
pump volatile, corrosive, or flammable
liquids which may damage the Unit and
endanger personnel as a result of fail
ure.
operating conditions must be within the
performance range shown on page E‐1.
STARTING
Do not stand near unit during start up as
some fluid may discharge from air in
take ports if not using check valves.
OPERATION
Operating condition points must be within
the continuous performance range shown
on the curve(s) shown on page E-1.
OPERATIONAL CHECKS
Leakage
No leakage should be visible at connections or fit
tings. Keep all line connections and fittings tight to
maintain maximum efficiency.
If overheating does occur, stop the pumping im
mediately and allow line to cool before servicing it.
Approach any overheated line cautiously.
Never introduce air or steam pressure into the pip
ing to remove a blockage. This could result in per
sonal injury or damage to the equipment.
Cold Weather Preservation
In below freezing conditions, drain the Line to pre
vent damage from freezing.

TROUBLE POSSIBLE CAUSE PROBABLE REMEDY
LOW AIR INTAKE
Low liquid pressure in. Speed up pump.
Lower restrictions between
EchoStorm and discharge.
Too much back pressure.
EchoStorm installed backwards. Check installation, if backwards,
reverse unit.
LIQUID SPITS OUT
AIR INTAKE AT
START-UP
This is normal operation for unit with no
check valve at start up only.
HIGH PRESSURE
DROP
install check valves if not acceptable.
Possible incorrect nozzle size for
application.
Nozzle plugged.
Check operation with gauges
against curve. Call factory for
nozzle size verification.
Disassemble, remove foreign
object.
EchoStorm OM-07448
TROUBLESHOOTING PAGE D - 1
TROUBLESHOOTING - SECTION D
Review all SAFETY information in Section A.
Before attempting to open or service the
EchoStorm:
1. Familiarize yourself with this manual.
2. Shut off pump.
3. Allow the discharge line to complete
ly cool if overheated.
4. Drain the Line.

OM-07448
EchoStorm
MAINTENANCE & REPAIR PAGE E - 1
MAINTENANCE AND REPAIR - SECTION E
MAINTENANCE AND REPAIR OF THE WEARING PARTS OF THE UNIT WILL MAINTAIN PEAK
OPERATING PERFORMANCE.
STANDARD PERFORMANCE FOR ECHOSTORM MODEL VA2 & VA3
Based on 70F (21C) clear water at sea level.
Since installations are seldom identical, your per
formance may be different due to such factors as
viscosity, specific gravity, elevation, and tempera
ture. Operating condition points must be within
the continuous performance range shown
on the curve.

OM-07448 EchoStorm
MAINTENANCE & REPAIRPAGE E - 2
STANDARD PERFORMANCE FOR ECHOSTORM MODEL VA4 & VA6
Based on 70F (21C) clear water at sea level.
Since installations are seldom identical, your per
formance may be different due to such factors as
viscosity, specific gravity, elevation, and tempera
ture. Operating condition points must be within
the continuous performance range shown
on the curve.

OM-07448
EchoStorm
MAINTENANCE & REPAIR PAGE E - 3
ILLUSTRATION
PARTS PAGE
6
6
6
7
4
5
12
10
10
8
9
9
3
2
2
1
2
11
8
1
2
OPTIONAL ELBOW
VA2 ONLY
From S/N 1742618 up
Figure 1. Model(s) VA2, VA3, VA4, VA6

OM-07448 EchoStorm
MAINTENANCE & REPAIRPAGE E - 4
PARTS LIST
Pump Model VA2
ITEM
NO. PART NAME PART NUMBER QTY
1 SPOOL 38642-101 13000 1
1 ELBOW 38647-326 13000 1
2 PIPE PLUG P04 17000 3
3 GASKET 38683-482 19000 1
+ 4 NOZZLE, CURVE CODE A 38634-031 19240 1
4 NOZZLE, CURVE CODE B 38634-032 19240
4 NOZZLE, CURVE CODE C 38634-033 19240
5 BODY 38633-605 13000 1
6 SET SCREW GA0402 17000 3
7 LINER 38867-306 23000 1
8 HEX HD CAP SCREW B1009 17000 8
9 LOCK WASHER J10 17000 8
10 HEX NUT D10 17000 8
11 SPOOL 38642-101 13000 1
12 GASKET 25113-031 1
NOT SHOWN:
INLET DECAL 38816-348 1
OUTLET DECAL 38816-349 1
S/N PLATE CONSULT FACTORY 1
GR DECAL, 3” GR-03 1
OPTIONAL EQUIPMENT
CHECK VALVE KIT 48274-033 1
GAUGE KIT 48312-035 1
INDICATES PARTS RECOMMENDED FOR STOCK
+ VERIFY YOUR NOZZLE BEFORE ORDERING.

OM-07448
EchoStorm
MAINTENANCE & REPAIR PAGE E - 5
PARTSLIST
Pump Model VA3
ITEM
NO. PART NAME PART NUMBER QTY
1 SPOOL 38642-102 13000 1
2 PIPE PLUG P04 17000 3
3 GASKET 25113-033 1
+ 4 NOZZLE CURVE CODE A 38634-041 19240 1
4 NOZZLE CURVE CODE B 38634-042 19240
4 NOZZLE CURVE CODE C 38634-043 19240
4 NOZZLE CURVE CODE D 38634-044 19240
5 BODY 38633-606 13000 1
6 SET SCREW GA0402 17000 3
7 LINER 38867-307 23000 1
8 HEX HD CAP SCREW B1011 17000 8
9 LOCK WASHER J10 17000 8
10 HEX NUT D10 17000 8
11 SPOOL 38642-102 13000 1
12 GASKET 25113-033 1
NOT SHOWN:
INLET DECAL 38816-348 1
OUTLET DECAL 38816-349 1
S/N PLATE CONSULT FACTORY 1
GR DECAL, 3” GR-03 1
OPTIONAL EQUIPMENT:
CHECK VALVE KIT 48274-034 1
GAUGE KIT 48312-036 1
INDICATES PARTS RECOMMENDED FOR STOCK
+ VERIFY YOUR NOZZLE BEFORE ORDERING.

OM-07448 EchoStorm
MAINTENANCE & REPAIRPAGE E - 6
PARTSLIST
Pump Model VA4
ITEM
NO. PART NAME PART NUMBER QTY
1 SPOOL 38642-103 13000 1
2 PIPE PLUG P04 17000 3
3 GASKET 25113-034 1
+ 4 NOZZLE CURVE CODE B 38634-052 19240 1
4 NOZZLE CURVE CODE C 38634-053 19240
4 NOZZLE CURVE CODE D 38634-054 19240
5 BODY 38633-607 13000 1
6 SET SCREW GA0402 17000 3
7 LINER 38867-504 23000 1
8 HEX HD CAP SCREW B1012 17000 16
9 LOCK WASHER J10 17000 16
10 HEX NUT D10 17000 16
11 SPOOL 38642-103 13000 1
12 GASKET 25113-034 1
NOT SHOWN:
INLET DECAL 38816-348 1
OUTLET DECAL 38816-349 1
S/N PLATE CONSULT FACTORY 1
GR DECAL, 3” GR-03 1
OPTIONAL EQUIPMENT
CHECK VALVE KIT 48274-035 1
GAUGE KIT 48312-036 1
INDICATES PARTS RECOMMENDED FOR STOCK
+ VERIFY YOUR NOZZLE BEFORE ORDERING.

OM-07448
EchoStorm
MAINTENANCE & REPAIR PAGE E - 7
PARTSLIST
Pump Model VA6
ITEM
NO. PART NAME PART NUMBER QTY
1 SPOOL 38642-104 13000 1
2 PIPE PLUG P04 17000 3
3 GASKET 25113-036 1
+ 4 NOZZLE FOR CURVE CODE A 38634-061 19240 1
4 NOZZLE FOR CURVE CODE B 38634-062 19240
4 NOZZLE FOR CURVE CODE C 38634-063 19240
4 NOZZLE FOR CURVE CODE D 38634-064 19240
5 BODY 38633-608 13000 1
6 SET SCREW GA0402 17000 3
7 LINER 38867-504 23000 1
8 HEX HD CAP SCREW B1214 17090 16
9 LOCK WASHER J12 17000 16
10 HEX NUT D12 17000 16
11 SPOOL 38642-104 13000 1
12 GASKET 25113-036 1
NOT SHOWN:
INLET DECAL 38816-348 1
OUTLET DECAL 38816-349 1
S/N PLATE CONSULT FACTORY 1
GR DECAL, 3” GR-03 1
OPTIONAL EQUIPMENT
CHECK VALVE KIT 48274-036 1
GAUGE KIT 48312-035 1
INDICATES PARTS RECOMMENDED FOR STOCK
+ VERIFY YOUR NOZZLE BEFORE ORDERING.

For Warranty Information, Please Visit
www.grpumps.com/warranty
or call:
U.S.: 419-755-1280
Canada: 519-631-2870
International: [phone]
GORMAN‐RUPP PUMPS
