GORMAN-RUPP PUMPS JSV4F60-E8.7 230/3 Application guide

OM−03592−OM01CER
NOVEMBER 30, 1990
Rev. B
THE GORMAN-RUPP COMPANY MANSFIELD, OHIO
GORMAN-RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA Printed in U.S.A.
Copyright by the Gorman-Rupp Company
INSTALLATION, OPERATION,
AND MAINTENANCE MANUAL
WITH PARTS LIST
SUBMERSIBLE PUMPS
MODELS
JSV4F60−E8.7 230/3
DUAL VOLTAGE
JSV4F60−E8.7 460/3
JSV4G60−E11 230/3 JSV4G60−E11 460/3

OM−03592−OM01 JSV4F−G60 DV
TOC PAGE−1
TABLE OF CONTENTS
INTRODUCTION PAGE I−1. . . . . . . . . . . . . . . . . . . . . . . . . . .
SAFETY − SECTION A PAGE A−1. . . . . . . . . . . . . . . . . . . . .
INSTALLATION − SECTION B PAGE B−1. . . . . . . . . . . . . .
PREINSTALLATION INSPECTION PAGE B−1. . . . . . . . . . . . . . . . . . . .
LUBRICATION PAGE B−1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pump Dimensions PAGE B−1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pump Motor Specifications PAGE B−3. . . . . . . . . . . . . . . . . . . . . . .
PUMP INSTALLATION PAGE B−3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lifting PAGE B−3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Positioning the Pump PAGE B−3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Piping PAGE B−3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ELECTRICAL CONNECTIONS PAGE B−4. . . . . . . . . . . . . . . . . . . . . . .
Field Wiring Connections (Incoming Power) PAGE B−4. . . . . . . .
Dual Voltage PAGE B−4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Conductor Identification PAGE B−4. . . . . . . . . . . . . . . . . . . . . . . . . .
Motor Cable Grounding Test PAGE B−5. . . . . . . . . . . . . . . . . . . . . .

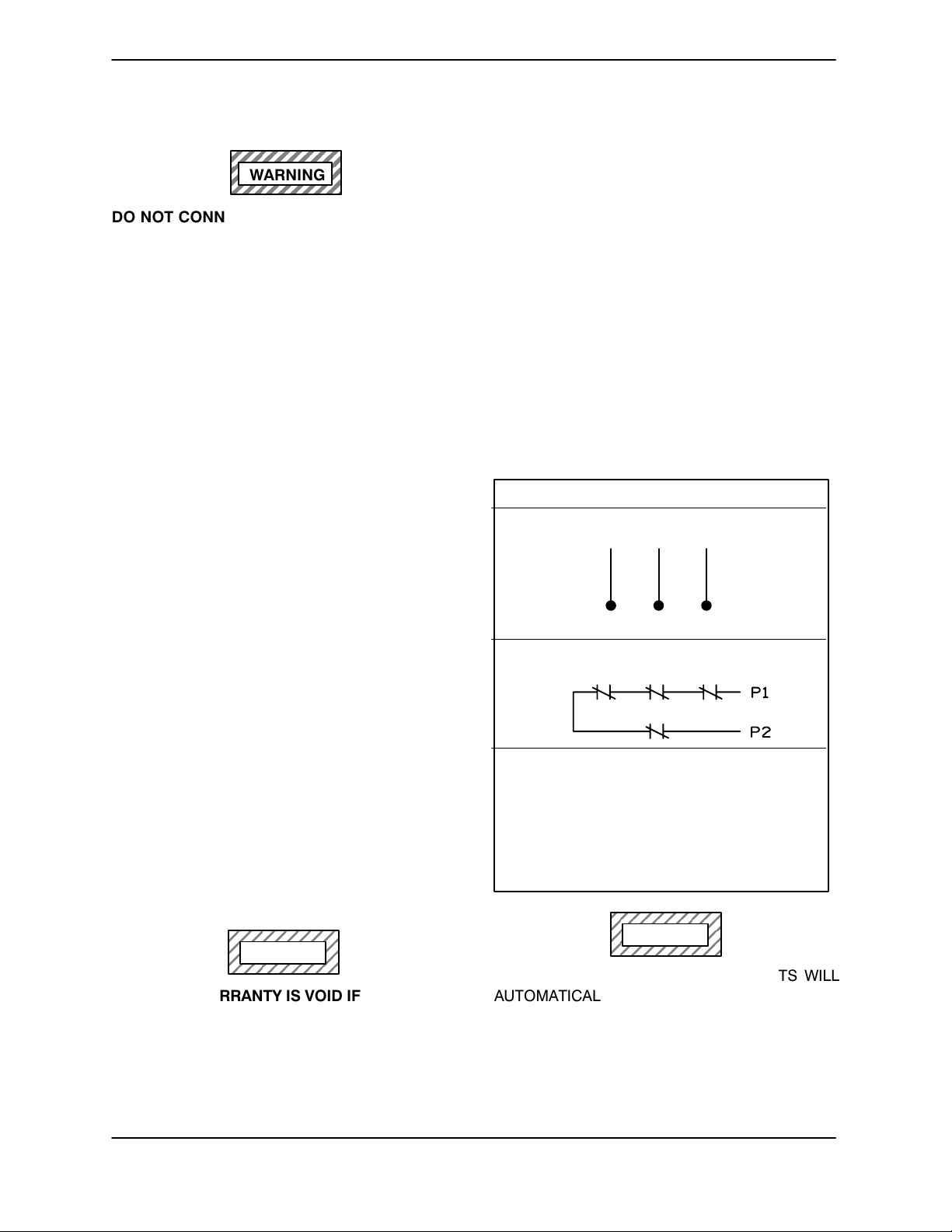

Control Box Connections PAGE B−5. . . . . . . . . . . . . . . . . . . . . . . . .

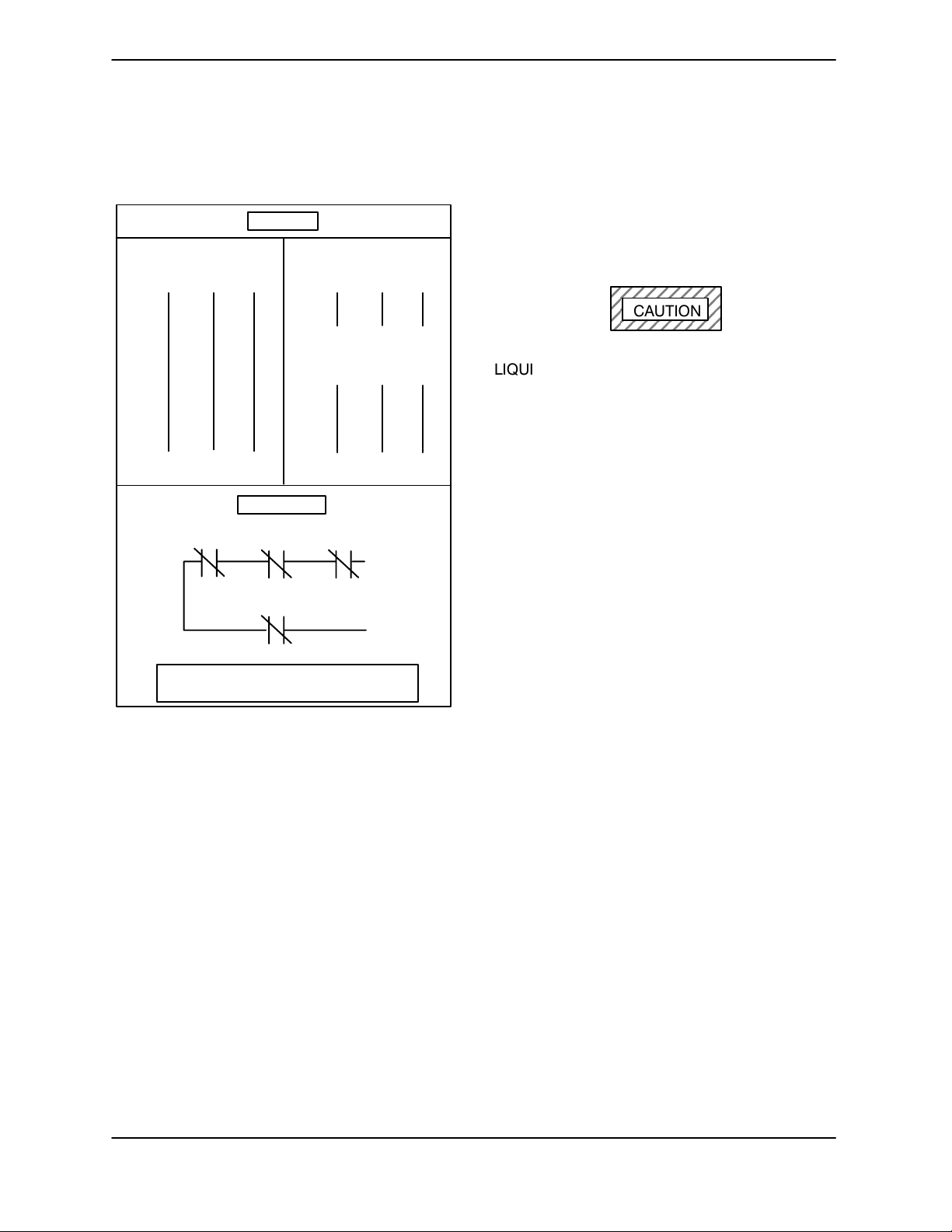

Wiring Diagrams PAGE B−6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LIQUID LEVEL DEVICES PAGE B−6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPERATION − SECTION C PAGE C−1. . . . . . . . . . . . . . . .

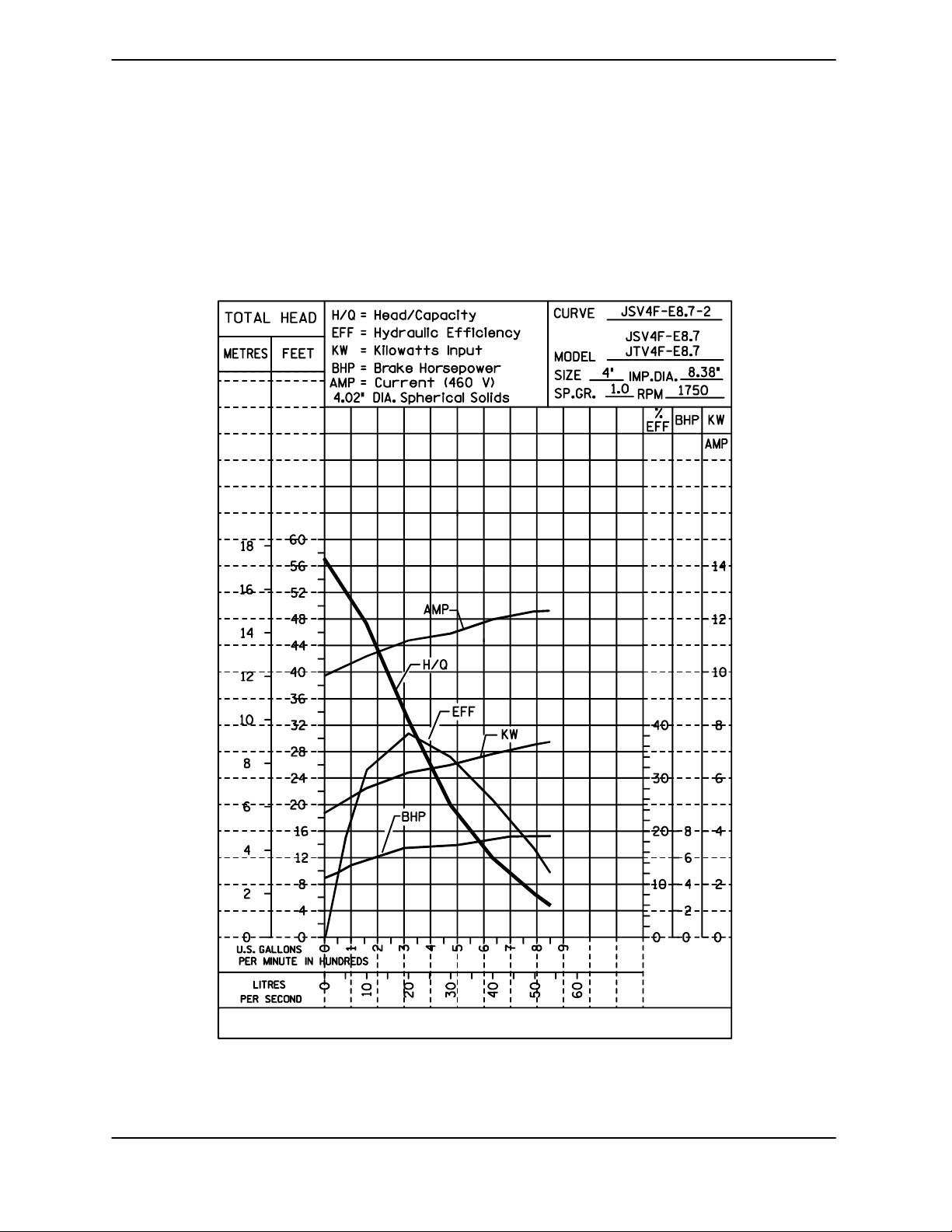

PERFORMANCE CURVES PAGE C−1. . . . . . . . . . . . . . . . . . . . . . . . . . .
CONTROL BOX AND OPTIONAL CONTROLS PAGE C−3. . . . . . . . . .
PUMP OPERATION PAGE C−3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Liquid Temperature and Overheating. PAGE C−3. . . . . . . . . . . . . .
Impeller Rotation PAGE C−3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
STARTING, STOPPING, AND OPERATIONAL CHECKS PAGE C−4.
Starting PAGE C−4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stopping PAGE C−4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cold Weather Preservation PAGE C−4. . . . . . . . . . . . . . . . . . . . . . .
Operations Checks PAGE C−4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING − SECTION D PAGE D−1. . . . . . . .
TROUBLESHOOTING CHART PAGE D−1. . . . . . . . . . . . . . . . . . . . . . .
ELECTRICAL TESTING PAGE D−3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Test Equipment PAGE D−3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voltage Imbalance PAGE D−3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Motor and Power Cable Continuity PAGE D−3. . . . . . . . . . . . . . . . .
Insulation Resistance PAGE D−4. . . . . . . . . . . . . . . . . . . . . . . . . . . .

JSV4F−G60 DV OM−03592−OM01
TOCPAGE−2
MAINTENANCE & REPAIR − SECTION E PAGE E−1. . . .
PARTS LIST − FIGURE E−1 PAGE E−3. . . . . . . . . . . . . . . . . . . . . . . . .
OPTIONS PAGE E−3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PARTS LIST − FIGURE E−2 PAGE E−5. . . . . . . . . . . . . . . . . . . . . . . . .
PUMP AND MOTOR DISASSEMBLY AND REASSEMBLY PAGE E−6
PUMP END DISASSEMBLY PAGE E−6. . . . . . . . . . . . . . . . . . . . . . . . . .
Removing the Volute Casing PAGE E−6. . . . . . . . . . . . . . . . . . . . .
Removing the Impeller PAGE E−6. . . . . . . . . . . . . . . . . . . . . . . . . . .
MOTOR DISASSEMBLY PAGE E−7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Junction Box Cover Disassembly PAGE E−7. . . . . . . . . . . . . . . . . .
Removing the Stator/Motor Housing PAGE E−7. . . . . . . . . . . . . . .
Seal Disassembly PAGE E−7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing Bearings PAGE E−8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSPECTION AND CLEANING PAGE E−9. . . . . . . . . . . . . . . . . . . . . . .
Bearings PAGE E−9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Other Reusable Parts (Except Seal Assembly) PAGE E−9. . . . . .
Cleaning Seal Assembly PAGE E−9. . . . . . . . . . . . . . . . . . . . . . . . . .
PUMP AND MOTOR REASSEMBLY PAGE E−9. . . . . . . . . . . . . . . . . . .
MOTOR REASSEMBLY PAGE E−9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Junction Box Cover Reassembly PAGE E−9. . . . . . . . . . . . . . . . . .
Installing Bearings PAGE E−11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rotating Assembly PAGE E−11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seal Reassembly PAGE E−11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seal Testing PAGE E−12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PUMP END REASSEMBLY PAGE E−13. . . . . . . . . . . . . . . . . . . . . . . . . .
Installing The Impeller PAGE E−13. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing The Volute Casing PAGE E−13. . . . . . . . . . . . . . . . . . . . . .
Impeller Clearance PAGE E−13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LUBRICATION PAGE E−14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Draining Oil PAGE E−14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Condition Of Oil PAGE E−14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding Oil PAGE E−14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

JSV4F−G60 DV
OM−03592−OM01
INTRODUCTION PAGE I−1
INTRODUCTION
This Installation, Operation, and Maintenance
Manual is designed to help you achieve the best
performance and longest life from your Gorman−
Rupp J Series submersible pump.
The manual applies only to the submersible pump
models listed on the cover and in MAINTENANCE
AND REPAIR − SECTION E. Refer to the name-
plate on your pump to determine the specific
model, voltage, and horsepower.
These J Series pumps are driven by a waterproof
submersible electric motor. The motor is dual volt-
age, but is shipped from the factory wired only for
the voltage shown on the nameplate. Contact the
factory before attempting to change to the alter-
native voltage.
The pump motor must be operated through an ap-
propriate control box matching the voltage and
other characteristics of the motor. The control box
must also provide for proper operation of the motor
protection devices such as the integral moisture
and thermal switches. Control boxes and other
control devices other than those integral to the
pump motor are not covered in this manual. Refer
to other literature accompanying the pump.
Pump construction is cast iron, with stainless steel
shaft and hardware. These J Series pumps are
equipped with an integral guide shoe which en-
gages an optional base elbow with a 4−inch dis-
charge; they will handle solids up to 3−inches in
diameter. The pumps are designed to operate fully
or partially submerged mounted on guide rails in-
stalled in a wet well, and to handle raw, unscreened
sewage and effluents. Installation of the guide rail
system and other wet well hardware is not covered
in this manual. Refer to other literature accompa-
nying the pump.
If there are any questions regarding the pump or
motor which are not covered in this manual or in
other literature accompanying this unit, please
contact your Gorman−Rupp distributor or the Gor-
man−Rupp Company:
The Gorman−Rupp Company or Gorman−Rupp of Canada Limited
P.O. Box 1217 70 Burwell Road
Mansfield, Ohio 44901−1217 St. Thomas, Ontario N5P 3R7
The following are used to alert personnel to procedures which require special attention, to those which
could damage equipment, and to those which could be dangerous to personnel:
NOTE
Instructions to aid in installation, operation, and maintenance, or which clarify a procedure.
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
CAUTION
INSTRUCTIONS WHICH MUST BE FOLLOWED TO AVOID CAUSING DAMAGE TO THE PRODUCT OR
OTHER EQUIPMENT INCIDENTAL TO THE INSTALLATION. THESE INSTRUCTIONS DESCRIBE THE
REQUIREMENTS AND THE POSSIBLE DAMAGE WHICH COULD RESULT FROM FAILURE TO FOL-
LOW THE PROCEDURE.
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
WARNING
INSTRUCTIONS WHICH MUST BE FOLLOWED TO AVOID CAUSING INJURY OR DEATH TO PER-
SONNEL. THESE INSTRUCTIONS DESCRIBE THE PROCEDURE REQUIRED AND THE INJURY
WHICH COULD RESULT FROM FAILURE TO FOLLOW THE PROCEDURE.

JSV4F−G60 DV OM−03592−OM01
INTRODUCTIONPAGE I−2
This page intentionally blank.

OM−03592−OM01 JSV4F−G60 DV
SAFETY PAGE A−1
SAFETY − SECTION A
These warnings are specific to the Gorman−Rupp
J Series Submersible pumps listed on the cover
and in MAINTENANCE AND REPAIR − SECTION
E. They apply throughout this manual to the in-
structions contained in the pages which follow.
In addition to this manual, see the separate litera-
ture covering the control box, control accessories,
guide rails and other installation hardware
shipped with this pump. This literature contains
essential information on installing and operating
the pump, and on making electrical connections.
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
WARNING
BEFORE ATTEMPTING TO INSTALL, OPERATE,
OR SERVICE THIS PUMP, FAMILIARIZE YOUR-
SELF WITH THIS MANUAL, AND WITH ALL
OTHER LITERATURE SHIPPED WITH THE
PUMP. UNFAMILIARITY WITH ALL ASPECTS OF
PUMP OPERATION COVERED IN THIS MAN-
UAL COULD LEAD TO DESTRUCTION OF
EQUIPMENT, INJURY, OR DEATH.
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
WARNING
THIS PUMP IS DESIGNED TO HANDLE RAW
SEWAGE AND INDUSTRIAL WASTES AT TEM-
PERATURES OF 104_F; DO NOT APPLY AT
HIGHER TEMPERATURES. DO NOT ATTEMPT
TO PUMP VOLATILE, FLAMMABLE, OR COR-
ROSIVE LIQUIDS WHICH MAY DAMAGE THE
PUMP OR ENDANGER PERSONNEL AS A RE-
SULT OF PUMP FAILURE.
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
WARNING
THE ELECTRICAL POWER USED TO OPERATE
THIS PUMP IS HIGH ENOUGH TO CAUSE IN-
JURY OR DEATH. OBTAIN THE SERVICES OF A
QUALIFIED ELECTRICIAN TO MAKE ALL ELEC-
TRICAL CONNECTIONS.
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
WARNING
THIS IS A DUAL−VOLTAGE PUMP. ANY
CHANGE IN VOLTAGE SHOULD BE PER-
FORMED BY YOUR GORMAN−RUPP DISTRIB-
UTOR, AUTHORIZED SERVICE CENTER, OR
THE FACTORY. DO NOT CHAGE VOLTAGE IN
THE FIELD WITHOUT CONTACTING THESE
SOURCES. OTHERWISE, THE PUMP MAY BE
DAMAGED, AND PERSOONEL MAY SUFFER
INJURY OR DEATH.
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
WARNING
DO NOT CONNECT THE PUMP MOTOR DI-
RECTLY TO THE INCOMING POWER LINES.
THE PUMP MOTOR IS DESIGNED TO OPERATE
THROUGH A GORMAN−RUPP APPROVED
CONTROL BOX WHICH PROVIDES OVERLOAD
PROTECTION AND POWER CONTROL; OTH-
ERWISE, THE PUMP WARRANTY WILL BE
VOIDED. MAKE CERTAIN THAT THE PUMP AND
CONTROL BOX ARE PROPERLY GROUNDED
AND THAT THE INCOMING POWER MATCHES
THE REQUIREMENTS OF THE PUMP AND
CONTROLS. INSTALL AND OPERATE THE
CONTROL BOX IN ACCORDANCE WITH THE
NATIONAL ELECTRIC CODE AND ALL LOCAL
CODES. FAILURE TO FOLLOW THE INSTRUC-
TIONS IN THIS WARNING COULD RESULT IN
INJURY OR DEATH TO PERSONNEL.
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
WARNING
DO NOT ATTEMPT TO LIFT THIS PUMP BY THE
MOTOR POWER CABLE OR THE PIPING. AT-
TACH PROPER LIFTING EQUIPMENT TO THE
LIFTING HANDLE, AND MAKE CERTAIN THAT
THE HOOK OF THE LIFTING DEVICE IS SE-
CURELY POSITIONED IN THE APEX OF THE
HANDLE. IF CHAINS OR CABLES ARE
WRAPPED AROUND THE PUMP TO LIFT IT,
MAKE CERTAIN THAT THEY ARE POSITIONED
SO AS NOT TO DAMAGE THE PUMP, AND SO
THAT THE LOAD WILL BE BALANCED.

OM−03592−OM01JSV4F−G60 DV
SAFETYPAGE A−2
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
WARNING
THE FOLLOWING PRECAUTIONS SHOULD BE
TAKEN BEFORE ATTEMPTING TO OPEN OR
SERVICE THE PUMP; OTHERWISE, INJURY OR
DEATH COULD RESULT.
1. LOCK OUT THE POWER TO THE
CONTROL PANEL TO ENSURE THAT
THE PUMP WILL REMAIN INOPERA−
TIVE.
2. ALLOW THE PUMP TO COOL IF OVER-
HEATED.
3. CLOSE THE DISCHARGE VALVE (IF
USED).
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
WARNING
IF THIS PUMP IS USED TO HANDLE SEWAGE,
TAKE NECESSARY PRECAUTIONS DURING
MAINTENANCE AND REPAIR TO PREVENT
PERSONAL CONTAMINATION WHICH COULD
RESULT IN ILLNESS.

OM−03592−OM01 JSV4F−G60 DV
PAGE B−1INSTALLATION
INSTALLATION − SECTION B
Review all SAFETY information in Section A.
This section is intended only to summarize recom-
mended installation practices for these pumps. If
there are any questions concerning your specific
installation, contact your Gorman−Rupp distribu-
tor or the Gorman−Rupp Company.
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
CAUTION
THE MOTOR IN THESE PUMPS IS NOT DE-
SIGNED TO BE OPERATED IN AIR FOR MORE
THAN 10 MINUTES WITHOUT OVERHEATING.
THE PUMPS MUST BE OPERATED THROUGH
LIQUID LEVEL CONTROLS TO MAINTAIN THE
LEVEL OF LIQUID IN THE WET WELL SO THAT
POWER TO THE MOTOR IS CUT OFF WHEN LIQ-
UID FALLS BELOW THE MIDPOINT OF THE MO-
TOR HOUSING IN SINGLE PUMP OPERATION,
AND BELOW THE LEVEL OF THE DISCHARGE
FLANGE IN DUPLEX PUMP OPERATION.
Automatic liquid level controls are available from
Gorman−Rupp as options. For information on in-
stalling and operating these controls, see the tech-
nical data accompanying them.
PREINSTALLATION INSPECTION
The pump assembly was inspected and tested be-
fore shipment from the factory. Before installation,
check for damage which may have occurred dur-
ing shipment. Check as follows:
a. Check the pump assembly for cracks,
dents, damaged threads, and other obvi−
ous damage.
b. Check for loose attaching hardware. Since
gaskets tend to shrink after drying, check
for loose hardware at mating surfaces.
c. The standard pump is provided with 26 ft.
of power cable. Inspect the cable for cuts
or damage.
d. Check that amperes, phase, voltage, and
Hertz indicated on the motor name plate
match the ratings on the control box.
e. Carefully read all tags, decals, and mark−
ings on the pump assembly, and perform all
duties indicated.
f. Check for any oil leaks. If there is any indi−
cation of an oil leak, see LUBRICATION in
MAINTENANCE AND REPAIR − SECTION
E.
LUBRICATION
The shaft seal I is lubricated by oil in the seal hous-
ing (see LUBRICATION in MAINTENANCE AND
REPAIR − SECTION E).
The shaft bearings are grease lubricated.
There is no other lubrication in the pump.
Pump Dimensions
See Figure B-1 for the approximate physical di-
mensions of this pump.

OM−03592−OM01JSV4F−G60 DV
PAGE B−2 INSTALLATION
FIGURE B−1. PUMP DIMENSIONS

OM−03592−OM01 JSV4F−G60 DV
PAGE B−3INSTALLATION
Pump Motor Specifications
The motor furnished with this pump is a 60 Hz.,
Squirrel Cage, Induction Start, G−R Frame Size
No. 3 model; Class F Insulation Rated 155_C
(311_F), 40_C (104_F) ambient, plus 115_C
(239_F) temperature rise.
See Table B−1 for motor specifications for each
pump model.
TABLE B-1. PUMP MOTOR SPECIFICATIONS
MODEL VOLTAGE SIZE
RPM
MOTOR MAX NO LOCKEDH.P.
NUMBER LOAD LOAD ROTOR
JSV4E60−E8.7
JSV4E60−E8.7
230/3
460/3
4"
4"
8.7
8.7
1750
1750
27.6A 15.9A 160.1A
/PHASE
13.2A 7.6A 76.6A
JSV4F60−E11
JSV4F60−E11
230/3
460/3
4"
4"
11
11
1750
1750
31.8A 15.9A 159.0A
15.2A 7.6A 76.0A
PUMP INSTALLATION
Lifting
Use lifting equipment with a capacity of at least
1,850 lbs. Each version of these pumps weighs
approximately 369 lbs., not including the weight of
customer−installed accessories such as the el-
bow/baseplate and piping. Discharge hose or pip-
ing must be removed before attempting to lift the
pump.
Positioning the Pump
NOTE
Before installing and operating the pump, check
the direction of impeller rotation to ensure that the
pump is properly wired at the control box. See IM-
PELLER ROTATION, SECTION C.
This pump is designed to be operated mounted on
guide rails and a discharge elbow/baseplate of-
fered as an option. See Figure B−1 for a typical el-
bow/baseplate installation.
The pump is equipped with a rail guide shoe which
connects to the optional discharge elbow/base−
plate. When lowered into place, the pump is auto-
matically and securely connected to the elbow/
baseplate and the piping system; the pump can be
removed or installed without personnel entering
the wet well.
For information on installing the guide rails, see the
literature accompanying them.
NOTE
When engaging the guide shoe and elbow/base-
plate, make sure that the connection is not imped-
ed by mounting hardware, and that the guide shoe
is fully seated in the baseplate.
Engage the guide shoe at the top of the guide rails,
and lower the pump into the sump. When the
pump guide shoe engages the discharge elbow/
baseplate, it will form an automatic seal.
Reel in any slack control cable so that it is not
dragged into the pump suction.
Piping
NOTE
Refer to PERFORMANCE CURVES in OPERATION
− SECTION C when determining the most efficient
piping installation. The recommended maximum
submergence depth is 65 feet.
No suction piping is required in a standard sub-
merged operation.

OM−03592−OM01JSV4F−G60 DV
PAGE B−4 INSTALLATION
The optional discharge elbow/baseplate is drilled
for a 3−inch or 4−inch discharge flange connec-
tion. Either hose or rigid pipe may be used to make
discharge connections.
The discharge line must be independently sup-
ported to avoid vibration and strain on the pump.
For maximum pumping capacity, keep the line as
short and straight as possible. Elbows and fittings
used in a discharge line increase friction losses;
minimize their use.
It is recommended that a check valve or throttling
valve be installed in the discharge line to control si-
phoning or back flow when the pump is shut off.
ELECTRICAL CONNECTIONS
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
WARNINGS
INSTALL AND OPERATE THIS PUMP IN AC-
CORDANCE WITH THE NATIONAL ELECTRI-
CAL CODE AND ALL LOCAL CODES. HAVE A
QUALIFIED ELECTRICIAN PERFORM ALL
CHECKS AND CONNECTIONS IN THIS SEC-
TION.
NEVER ATTEMPT TO ALTER THE LENGTH OF
THE PUMP MOTOR CABLE OR TO REPAIR IT
WITH A SPLICE. THE POWER CABLE AND
PUMP MOTOR MUST BE KEPT COMPLETELY
WATERPROOF. SERIOUS DAMAGE TO THE
PUMP AND INJURY OR DEATH TO PERSON-
NEL CAN RESULT FROM ANY ALTERATION TO
THE CABLE.
Field Wiring Connections (Incoming Power)
Field wiring is not provided with this pump, and
must be supplied by the user. The field wiring must
be of the proper size and type to ensure an ade-
quate voltage supply to the pump. Voltage avail-
able at the motor must be within the range indi-
cated in Table B-2.
TABLE B-2. MOTOR VOLTAGE LIMITS
NOMINAL MINIMUM MAXIMUM
3
3
230/3
460/3
210
420
250
500
VOLTAGE PHASE VOLTAGE VOLTAGE
Use conduit cable clamps to secure the incoming
field wiring to the control box. Make certain all con-
nections are tight. If necessary, support the cable
weight to prevent excessive strain on cable clamps
and cable.
Dual Voltage
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
WARNING
THIS IS A DUAL−VOLTAGE PUMP. ANY
CHANGE IN VOLTAGE SHOULD BE PER-
FORMED BY YOUR GORMAN−RUPP DISTRIB-
UTOR, AUTHORIZED SERVICE CENTER, OR
THE FACTORY. DO NOT CHAGE VOLTAGE IN
THE FIELD WITHOUT CONTACTING THESE
SOURCES. OTHERWISE, THE PUMP MAY BE
DAMAGED, AND PERSOONEL MAY SUFFER
INJURY OR DEATH.
Conductor Identification
The conductors in the pump cable are labeled
when shipped from the factory. If the conductors
are shortened in the field, resulting in loss of identi-
fication markers, they can still be identified by their
location relative to the ground wire.
Refer to FIGURE B−2 and B−3; as seen from the
free end of the cable, the conductor immediately
adjacent to and clockwise from ground (green/yel-
low) is assigned number T1 (T4), the next clock-
wise conductor T2 (T5), etc.

OM−03592−OM01 JSV4F−G60 DV
PAGE B−5INSTALLATION
Motor Cable Grounding Test
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
WARNING
DO NOT CONNECT THE PUMP CONTROL CA-
BLE TO THE CONTROL BOX OR INCOMING
VOLTAGE BEFORE VERIFYING THE PUMP
GROUND. OTHERWISE, PERSONNEL WILL BE
EXPOSED TO SERIOUS INJURY OR DEATH.
Connect one lead of lamp, bell or similar testing de-
vice to motor cable green/yellow ground lead.
Connect second test lead to an uninsulated point
on the pump body. The test circuit should close.
If the test circuit does not close there is a defect in
the cable or motor which must be corrected.
Conductor Identification
The conductors in the pump cable are labeled
when shipped from the factory. If the conductors
are shortened in the field, resulting in loss of identi-
fication markers, they can still be identified by their
location relative to the ground wire.
Refer to FIGURE B−3 at the end of this section; as
seen from the free end of the cable, the conductor
immediately adjacent to and clockwise from
ground (green/yellow) is assigned number T1 (T4),
the next clockwise conductor T2 (T5), etc.
If the conductors are re−labled, they should be
identified with wire markers from the factory.
Control Box Connections
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
CAUTION
THE PUMP WARRANTY IS VOID IF THE MOTOR
IS NOT OPERATED THROUGH A CONTROL
BOX. SINCE PROPER OPERATION OF THIS
PUMP DEPENDS ON THE QUALITY AND PER-
FORMANCE OF THE ELECTRICAL CONTROLS,
THE PUMP WARRANTY IS VALID ONLY WHEN
THE CONTROLS INSTALLED HAVE BEEN AP-
PROVED BY GORMAN−RUPP.
This pump is shipped completely wired for the volt-
age shown on the nameplate, and is ready for op-
eration through an approved control box.
Ground the control box in accordance with the in-
structions accompanying it.
Refer to FIGURE B−2, and connect the pump mo-
tor cable to the control box.
Control leads 1 and 2 provide the motor with mois-
ture and thermal protection. Note that thermal pro-
tection is supplementary only; separate Class 10
overload relays are required for motor running pro-
tection.
NOTE: THE PUMP WARRANTY IS VOID IF THE
CONTROL IS NOT CONNECTED. MAXIMUM
VOLTAGE FROM THE CONTROL BOX TO THE
CONTROL IS NOT TO EXCEED 240V. (SEE LIT-
ERATURE ACCOMPANYING THE CONTROL
BOX).
CONTROL*
THERMAL
MOISTURE
*
L1 L2 L3
T2T1 T3
FIGURE B−2. FIELD CONNECTIONS
FIELD CONNECTION DIAGRAM
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
CAUTION
THE THERMAL PROTECTION CONTACTS WILL
AUTOMATICALLY RECLOSE WHEN THE MOTOR
COOLS TO THE ESTABLISHED SAFE OPERAT-
ING TEMPERATURE. WHENEVER AUTOMATIC
RESTARTING IS NOT DESIRABLE, CONNECT
ONLY TO CONTROLS WHICH ARE WIRED FOR
MANUAL RESTART.

OM−03592−OM01JSV4F−G60 DV
PAGE B−6 INSTALLATION
Wiring Diagrams
The motor wiring diagram is shown in FIGURE
B−3.
CONNECTION DIAGRAM
FIGURE B−3. MOTOR
DDD
T6
L2
T5
MOTOR
CONTROL
D
D
1
2
THERMAL
MOISTURE
DDDDDD T7 T8 T9
LOW VOLTAGE HIGH VOLTAGE
L3L1 L2 L3L1
T4
DDD
T1 T3T2
T7 T9T8
DDD
T4 T6T5
DDD
T1 T3T2
Complete schematic wiring diagrams for the motor
are shown In FIGURE B−4.
Liquid Level Devices
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
CAUTION
LIQUID LEVEL DEVICES MUST BE POSITIONED
FAR ENOUGH APART TO ALLOW THREE MIN-
UTES BETWEEN PUMP MOTOR STARTS. IF THE
MOTOR CYCLES MORE THAN 20 TIMES WITHIN
AN HOUR, IT WILL OVERHEAT AND MAY DAM-
AGE MOTOR WINDINGS AND/OR CONTROL BOX
COMPONENTS.
NOTE
This pump requires wet well liquid level devices to
guard against overheating by ensuring that the
pump motor is partially covered with liquid at all
times.Install the liquid level devices and connect
them to the control box in accordance with the in-
structions accompanying the devices.

OM−03592−OM01 JSV4F−G60 DV
PAGE B−7INSTALLATION
FIGURE B−4. INTERNAL MOTOR WIRING

OM−03592−OM01 JSV4F−G60 DV
OPERATION PAGE C−1
OPERATION − SECTION C
PERFORMANCE CURVES
In the performance curves which follow, perform-
ance is based on 70_F clear water at sea level. The
performance of your pump may be different due to
such factors as viscosity, specific gravity, elevation,
temperature, and impeller trim.
NOTE
These curves appy to standard production models.
If your pump serial number is followed by an "N",
your pump is not a standard production model.
Contact the Gorman−Rupp Company to verify per-
formance.
PERFORMANCE CURVE − JSV4F60−E8.7
NOTE
The curve shows 460 volt performance only. For 230 volt performance, multiply amperage shown by 2.

OM−03592−OM01JSV4F−G60 DV
OPERATIONPAGE C−2
PERFORMANCE CURVE − JSV4G60−E11
NOTE
The curve shows 460 volt performance only. For 230 volt performance, multiply amperage shown by 2.

OM−03592−OM01 JSV4F−G60 DV
OPERATION PAGE C−3
Review all SAFETY information in Section A.
Follow the instructions on all tags, labels and
decals attached to the pump.
CONTROL BOX AND OPTIONAL CONTROLS
See the operating instructions furnished with the
control box, and with other optional accessories
and controls, before attempting to start the pump.
PUMP OPERATION
Liquid Temperature and Overheating.
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
CAUTION
STANDARD VERSIONS OF THIS PUMP WILL
HANDLE LIQUIDS WITH TEMPERATURES UP TO
104_F MAXIMUM. DO NOT INSTALL IN SERVICE
WITH HIGHER LIQUID TEMPERATURES; OTHER-
WISE, PUMP COMPONENTS AND OPERATION
MAY BE AFFECTED.
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
WARNING
OVERHEATED PUMPS CAN CAUSE SEVERE
BURNS AND INJURY. IF THE PUMP BECOMES
OVERHEATED:
1. STOP THE PUMP IMMEDIATELY.
2. ALLOW THE PUMP TO COOL.
3. REFER TO INSTRUCTIONS IN THIS
MANUAL BEFORE RESTARTING THE
PUMP.
Overheating can occur if the pump is misapplied; if
it is started more than 20 times within one hour; if
the control box fails to provide overload or thermal
protection, or if the pump is operated against a
closed discharge valve for an extended period of
time.
Impeller Rotation
FIGURE C−1. PUMP ROTATION
Refer to Figure C−1, and check impeller rotation
as follows before installing the pump on rails or in a
wet well.
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
CAUTION
WHILE CHECKING IMPELLER ROTATION, SE-
CURE THE PUMP TO PREVENT THE MOTOR
POWER CABLE FROM COILING.
Suspend the pump by the lifting handle. Apply
power briefly and note the direction of pump twist.
As viewed from the top, the pump should twist in a
counterclockwise direction; this will indicate that
impeller rotation is correct.
If the pump twists in a clockwise direction, impeller
rotation is incorrect. Have qualified personnel inter-
change the control box connections of any two
pump motor power leads. Recheck pump twist; it
should now be in a counterclockwise direction.

OM−03592−OM01JSV4F−G60 DV
OPERATIONPAGE C−4
STARTING, STOPPING, AND OPERATIONAL
CHECKS
Starting
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
CAUTION
DO NOT ATTEMPT TO OPERATE THE PUMP UN-
TIL IMPELLER ROTATION HAS BEEN CHECKED;
OTHERWISE, THE PUMP WILL BE DAMAGED.
NEVER START THE PUMP MORE THAN 20 TIMES
WITHIN ONE HOUR. THE MOTOR MUST COOL
BETWEEN STARTS; OTHERWISE, IT WILL OVER-
HEAT AND DAMAGE MOTOR WINDINGS AND/OR
CONTROL BOX COMPONENTS.
Follow the control box manufacturer’s instructions,
start the pump, and run any recommended
checks.
Stopping
Follow the control box manufacturer’s instructions
for stopping the pump.
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
WARNING
THE INTEGRAL THERMAL OVERLOAD DEVICE
WILL SHUT OFF THE MOTOR IF THE TEMPERA-
TURE RISES ABOVE DESIGN LIMITS. WHEN
THE PUMP COOLS AND THE TEMPERATURE
FALLS BELOW THESE LIMITS, THE MOTOR
WILL RESTART AUTOMATICALLY. TO AVOID
THE HAZARDS OF AN UNEXPECTED MOTOR
START−UP, DO NOT ATTEMPT TO HANDLE OR
SERVICE THE PUMP UNLESS ALL POWER TO
THE MOTOR HAS BEEN SHUT OFF AT THE
CONTROL BOX; OTHERWISE, SERIOUS PER-
SONAL INJURY COULD RESULT.
DURING MOTOR SHUTOFF BY THE THERMAL
OVERLOAD DEVICE, CONTROL BOX CIRCUITS
REMAIN LIVE. DO NOT ATTEMPT TO SERVICE
ANY CONTROL BOX COMPONENTS UNLESS
INCOMING POWER HAS BEEN SHUT OFF.
After stopping the pump, be sure to perform all re-
quired maintenance and preservation procedures.
Cold Weather Preservation
The pump will not freeze as long as the casing is
submerged in liquid. If the casing is not sub-
merged, or if the liquid begins to freeze, remove the
pump from the wet well and dry it thoroughly. Run
the pump for two or three minutes to dry the inner
walls.
If the pump does freeze while it is out of the liquid,
submerge it until thawed; if the liquid is near freez-
ing, the pump must be submerged for an extended
period of time. Check thawing by starting the pump
and checking that the shaft rotates freely. If the
pump remains frozen allow additional thawing time
before attempting to restart.
If submerging does not thaw the pump, move it
into a warm area until completely thawed.
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
WARNING
DO NOT ATTEMPT TO THAW THE PUMP BY US-
ING A TORCH OR OTHER SOURCE OF FLAME.
THIS COULD DAMAGE O−RINGS OR HEAT
THE OIL IN THE SEAL HOUSING ABOVE CRITI-
CAL TEMPERATURES, CAUSING THE PUMP
TO RUPTURE OR EXPLODE.
Operations Checks
To detect minor problems, check the pump for
proper operation when it is first started and at peri-
odic intervals.
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
CAUTION
TO AVOID SERIOUS DAMAGE TO THE PUMP,
CHECK FOR UNUSUAL NOISES OR EXCESSIVE
VIBRATION WHILE THE PUMP IS RUNNING. IF
NOISE OR VIBRATION IS EXCESSIVE, STOP OP-
ERATION AND REFER TO THE TROUBLESHOOT-
ING CHART IN SECTION D.
The suction inlet or impeller may become clogged
with debris. In some cases, stopping the pump

OM−03592−OM01 JSV4F−G60 DV
OPERATION PAGE C−5
momentarily may backflush this blockage. If back-
flushing does not clear the debris, remove the
pump from the wet well and clear manually.
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
ÍÍÍÍÍÍ
WARNING
NEVER INTRODUCE AIR OR STEAM PRES-
SURE INTO THE PUMP CASING TO REMOVE A
BLOCKAGE. THIS COULD RESULT IN PER-
SONAL INJURY OR DAMAGE TO THE EQUIP-
MENT. IF BACKFLUSHING IS ABSOLUTELY
NECESSARY, LIMIT LIQUID PRESSURE INPUT
TO 50% OF THE MAXIMUM PERMISSIBLE OP-
ERATING PRESSURE SHOWN IN THE PUMP
PERFORMANCE CURVE.

OM−03592−OM01JSV4F−G60 DV
OPERATIONPAGE C−6
This page intentionally blank.
