GORMAN-RUPP PUMPS PRIME-AIRE Series Operating instructions

PUBLICATION NUMBER MR−05740
December 8, 2004
Use With: OM−04402
THE GORMAN-RUPP COMPANY DMANSFIELD, OHIO
www.gormanrupp.com
GORMAN-RUPP OF CANADA LIMITED DST. THOMAS, ONTARIO, CANADA Printed in U.S.A.
ECopyright by the Gorman-Rupp Company
PRIME-AIRERSERIES
PA6C Pumps

The engine exhaust from this
product contains chemicals
known to the State of California to
cause cancer, birth defects or
other reproductive harm.

MR−05740PA SERIES PUMPS
PAGE I − 1INTRODUCTION
INTRODUCTION
Thank You for purchasing a Gorman-Rupp Prime-
AireRSeries priming-assisted pump. Read this
manual carefully to learn how to safely maintain
and service your pump. Failure to do so could re-
sult in personal injury or damage to the pump.
A set of three manuals accompanies your pump.
The Installation/Operation Manual contains essen-
tial information on installing and operating the
pump, and on making electrical connections. The
Parts List Manual provides performance curve(s),
a pump model cross-section drawing, and parts
list for your pump.
This Maintenance and Repair Manual provides
troubleshooting instructions required to properly
diagnose operational problems. Maintenance in-
structions within this manual are limited to the
pump hydraulic and drive components only. For
maintenance and repair of the engine or air com-
pressor, consult the separate literature provided by
the manufacturers.
This pump is a PA SeriesR, priming-assisted cen-
trifugal model. The unit is designed for handling
non-volatile, non-flammable liquids containing
specified entrained solids. For specific service,
contact your Gorman-Rupp distributor or the Gor-
man-Rupp Company.
As described on the following page, this manual
will alert personnel to known procedures which re-
quire special attention, to those which could dam-
age equipment, and to those which could be dan-
gerous to personnel. However, this manual cannot
possibly anticipate and provide detailed precau-
tions for every situation that might occur during
maintenance of the unit. Therefore, it is the respon-
sibility of the owner/maintenance personnel to en-
sure that only safe, established maintenance pro-
cedures are used, and that any procedures not ad-
dressed in this manual are performed only after es-
tablishing that neither personal safety nor pump in-
tegrity are compromised by such practices.
If there are any questions regarding the pump
which are not covered in this manual or in other lit-
erature accompanying the unit, please contact
your Gorman-Rupp distributor or the Gorman-
Rupp Company:
The Gorman-Rupp Company
P.O. Box 1217
Mansfield, Ohio 44901−1217
Phone: (419) 755−1011
or:
Gorman-Rupp of Canada Limited
70 Burwell Road
St. Thomas, Ontario N5P 3R7
Phone: (519) 631−2870
CONTENTS
SAFETY − SECTION A
TROUBLESHOOTING − SECTION B
PUMP MAINTENANCE AND REPAIR − SECTION C
DRAWINGS AND IDENTIFICATION LISTS PAGES C − 2 THRU C−11. . . . . . . . . . . . . . . . . . . . . . . . . .
PUMP AND SEAL DISASSEMBLY AND REASSEMBLY PAGE C − 12. . . . . . . . . . . . . . . . . . . . . . . . . . .
Priming Chamber Removal And Disassembly PAGE C − 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Discharge Check Valve Removal and Disassembly PAGE C − 13. . . . . . . . . . . . . . . . . . . . . . . . . . .
Back Cover Plate and Wear Ring Removal PAGE C − 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Separating Pump End From Power Source PAGE C − 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Draining Oil From Seal Cavity PAGE C − 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loosening Impeller PAGE C − 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pump Casing Removal PAGE C − 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Impeller Removal PAGE C − 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seal Removal PAGE C − 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shaft and Bearing Removal and Disassembly PAGE C − 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shaft and Bearing Reassembly and Installation PAGE C − 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MR−05740 PA SERIES PUMPS
PAGE I − 2 INTRODUCTION
CONTENTS (Cont’d)
Seal Reassembly and Installation PAGE C − 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Impeller Installation And Adjustment PAGE C − 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pump Casing Installation PAGE C − 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drive Assembly Installation (Engine Driven Units Only) PAGE C − 19. . . . . . . . . . . . . . . . . . . . . . . .
Securing Pump End To Power Source PAGE C − 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back Cover Plate And Wear Ring Installation PAGE C − 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Priming Chamber Assembly And Installation PAGE C − 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Discharge Check Valve Assembly And Installation PAGE C − 22. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wear Ring Adjustment PAGE C − 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LUBRICATION PAGE C − 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seal Assembly PAGE C − 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bearings PAGE C − 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Unit PAGE C − 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RECORDING MODEL AND
SERIAL NUMBERS
Please record the pump model and serial number
in the spaces provided below. Your Gorman-Rupp
distributor needs this information when you require
parts or service.
Pump Model:
Serial Number:
WARRANTY INFORMATION
The warranty provided with your pump is part of
Gorman-Rupp’s support program for customers
who operate and maintain their equipment as de-
scribed in this and the other accompanying litera-
ture. Please note that should the equipment be
abused or modified to change its performance be-
yond the original factory specifications, the war-
ranty will become void and any claim will be de-
nied.
The following are used to alert personnel to procedures which require special attention, to those which
could damage equipment, and to those which could be dangerous to personnel:
Immediate hazards which WILL result in
severe personal injury or death. These
instructions describe the procedure re-
quired and the injury which will result
from failure to follow the procedure.
Hazards or unsafe practices which
COULD result in severe personal injury
or death. These instructions describe
the procedure required and the injury
which could result from failure to follow
the procedure.
Hazards or unsafe practices which COULD
result in minor personal injury or product or
property damage. These instructions de-
scribe the requirements and the possible
damage which could result from failure to
follow the procedure.
NOTE
Instructions to aid in installation, operation, and
maintenance or which clarify a procedure.

PA SERIES PUMPS MR−05740
SAFETY PAGE A − 1
SAFETY − SECTION A
The following information applies
throughout this manual to Gorman-
Rupp Prime AireRSeries pumps.
This manual will alert personnel to
known procedures which require spe-
cial attention, to those which could
damage equipment, and to those which
could be dangerous to personnel. How-
ever, this manual cannot possibly antici-
pate and provide detailed instructions
and precautions for every situation that
might occur during maintenance of the
unit. Therefore, it is the responsibility of
the owner/maintenance personnel to
ensure that only safe, established main-
tenance procedures are used, and that
any procedures not addressed in this
manual are performed only after estab-
lishing that neither personal safety nor
pump integrity are compromised by
such practices.
Before attempting to install, operate, or
service this pump, familiarize yourself
with this manual, and with all other liter-
ature shipped with the pump. Unfamil-
iarity with all aspects of pump operation
covered in this manual could lead to de-
struction of equipment, injury, or death
to personnel.
Before attempting to open or service the
pump:
1. Familiarize yourself with this man-
ual.
2. Shut down the engine and discon-
nect the positive battery cable (en-
gine driven units) or lock out and
tag out incoming power to the con-
trol box (electric motor driven
units) and take precautions to en-
sure that the pump will remain in-
operative.
3. Allow the pump to completely cool
if overheated.
4. Check the temperature before
opening any covers, plates, or
plugs.
5. Close the suction and discharge
valves.
6. Vent the pump slowly and cau-
tiously.
7. Drain the pump.
This pump is may be used to handle ma-
terials which could cause illness
through direct exposure or emitted
fumes. Wear adequate protective cloth-
ing when working on the pump or pip-
ing.
Use lifting and moving equipment in
good repair and with adequate capacity
to prevent injuries to personnel or dam-
age to equipment. Attach lifting equip-
ment to the lifting device fitted to the
pump. If chains or cable are wrapped
around the pump to lift it, make certain
that they are positioned so as not to
damage the pump, and so that the load
will be balanced. The bail is intended for
use in lifting the pump assembly only.
Suction and discharge hoses and pip-
ing must be removed from the pump be-
fore lifting.

MR−05740 PA SERIES PUMPS
PAGE A − 2 SAFETY
After the pump has been installed, make
certain that the pump and all piping or
hose connections are tight, properly
supported and secure before operation.
Do not remove plates, covers, gauges,
pipe plugs, or fittings from an over-
heated pump. Vapor pressure within the
pump can cause parts being disen-
gaged to be ejected with great force. Al-
low the pump to completely cool before
servicing.
Overheated pumps can cause severe
burns and injuries, and produce explo-
sive fumes. If overheating of the pump
occurs:
1. Stop the pump immediately.
2. Ventilate the area.
3. Allow the pump to completely cool.
4. Check the temperature and make
sure it is cool before opening any
covers, plates, gauges, or plugs.
5. Vent the pump slowly and cau-
tiously.
6. Refer to instructions in the manu-
als accompanying the pump be-
fore restarting the pump.
Do not operate the pump without the
guards in place over the rotating parts.
Exposed rotating parts can catch cloth-
ing, fingers, or tools, causing severe in-
jury to personnel.
Use only replacement parts provided or
approved by Gorman-Rupp. Use of non-
authorized parts may result in damage to
the equipment and/or injury to personnel
and will invalidate the warranty.
Make sure the pump is level. Lower jack
stands and chock the wheels, if so
equipped. Use caution when positioning
the skid-mounted unit to prevent damage
to the fuel tank.
Do not operate an internal combustion
engine in an explosive atmosphere.
When operating an internal combustion
engine in an enclosed area, make sure
exhaust fumes are piped to the outside.
These fumes contain carbon monoxide,
a deadly gas that is colorless, tasteless
and odorless.
Fuel used by internal combustion en-
gines presents an extreme explosion
and fire hazard. Make certain that all fuel
lines are securely connected and free of
leaks. Never refuel a hot or running en-
gine. Avoid overfilling the fuel tank. Al-
ways use the correct type of fuel.

PA SERIES PUMPS MR−05740
SAFETY PAGE A − 3
Never tamper with the governor on en-
gine driven units to gain more power.
The governor establishes safe operat-
ing limits that should not be exceeded.
Refer to the pump Performance Curve
for the maximum continuous operating
speed.

TROUBLE POSSIBLE CAUSE PROBABLE REMEDY
PUMP FAILS TO
PRIME
Strainer clogged. Check strainer and clean if neces-
sary.
Suction lift or discharge head too high. Check piping installation and install
bypass line if needed. See INSTAL-
LATION.
Leaking or worn seal or pump gasket. Check pump vacuum. Replace
leaking or worn seal or gasket.
Lining of suction hose collapsed. Replace suction hose.
Air leak in suction line. Correct leak.
Discharge check valve contami-
nated, damaged, or unable to seat.
Clean or replace check valve.
Air compressor damaged or belts bro-
ken.
Check and repair/replace.
Eductor safety valve leaking. Check and replace safety valve.
Pump speed too slow (engine driven
units).
Check driver output; consult driver
operation manual.
Eductor clogged. Check and clean eductor.
PA SERIES PUMPS MR−05740
TROUBLESHOOTING PAGE B − 1
TROUBLESHOOTING − SECTION B
Review all SAFETY information in Section A.
Before attempting to open or service the
pump:
1. Familiarize yourself with this manual.
2. Shut down the engine and discon-
nect the positive battery cable (en-
gine driven units) or lock out and tag
out incoming power to the control
box (electric motor driven units) and
take precautions to ensure that the
pump will remain inoperative.
3. Allow the pump to completely cool if
overheated.
4. Check the temperature and make
sure pump is cool before opening
any covers, plates, or plugs.
5. Close the suction and discharge
valves.
6. Vent the pump slowly and cautiously.
7. Drain the pump.

TROUBLE POSSIBLE CAUSE PROBABLE REMEDY
PUMP REQUIRES
TOO MUCH
POWER
PUMP CLOGS
FREQUENTLY
Impeller or other wearing parts worn
or damaged.
Free impeller of debris.Impeller clogged.
Replace worn or damaged parts.
Check that impeller is properly
centered and rotates freely.
Discharge head too high.
Measure lift w/vacuum gauge. Re-
duce lift and/or friction losses in
suction line.
Suction lift too high.
Install bypass line.
Pump speed too slow (engine driven
units).
Check driver output; consult driver
operation manual.
Pump speed too high (engine driven
units).
Check driver output.
Discharge head too low.
Dilute if possible.Liquid solution too thick.
Adjust discharge valve.
Pump or jack shaft bearing(s) frozen. Disassemble, check and replace
bearing(s) as required..
Liquid solution too thick.
Open discharge valve fully to in-
crease flow rate, for engine driven
units, run engine at maximum gov-
erned speed.
Discharge flow too slow.
Dilute if possible.
Suction check valve or foot valve
clogged or binding.
Clean valve.
Suction intake not submerged at
proper level or sump too small.
Check installation and correct
submergence as needed.
Discharge check valve clogged. Check and clean check vavle.
Strainer clogged. Check strainer and clean if neces-
sary.
Belt or flexible coupling broken. Check and replace as necessary.
Extreme ambient temperature. Reduce pump output.
Fuel filter clogged (engine driven
units.
Check & replace often in extreme
operating conditions.
Check and replace as required.
Fuel contaminated (engine driven
units.
PUMP STOPS OR
FAILS TO DELIVER
RATED FLOW OR
PRESSURE
Air leak in suction line. Correct leak.
Lining of suction hose collapsed. Replace suction hose.
Leaking or worn seal or pump gasket. Check pump vacuum. Replace
leaking or worn seal or gasket.
Eductor clogged. Check and clean eductor.
MR−05740 PA SERIES PUMPS
TROUBLESHOOTINGPAGE B − 2

PA SERIES PUMPS MR−05740
TROUBLESHOOTING PAGE B − 3
TROUBLE POSSIBLE CAUSE PROBABLE REMEDY
BEARINGS RUN
TOO HOT
Bearing temperature is high, but
within limits.
Align drive properly.Drive misaligned.
Check piping installation for proper
support.
Suction and discharge lines not prop-
erly supported.
Check for proper type and level of
lubricant.
Low or incorrect lubricant.
Check bearing temperature regu-
larly to monitor any increase.
Check belt tension. Adjust as
required.
Excessive tension on drive belt.
EXCESSIVE NOISE Cavitation in pump. Reduce suction lift and/or friction
losses in suction line. Record vac-
uum and pressure gauge readings
and consult local representative or
factory.
Clean out debris; replace damaged
parts.
Impeller clogged or damaged.
Secure mounting hardware.Pump or drive not securely mounted.
Locate and eliminate source of air
bubble.
Pumping entrained air.
PREVENTIVE MAINTENANCE
Since pump applications are seldom identical, and
pump wear is directly affected by such things as
the abrasive qualities, pressure and temperature
of the liquid being pumped, this section is intended
only to provide general recommendations and
practices for preventive maintenance. Regardless
of the application however, following a routine pre-
ventive maintenance schedule will help assure
trouble-free performance and long life from your
Gorman-Rupp pump. For specific questions con-
cerning your application, contact your Gorman-
Rupp distributor or the Gorman-Rupp Company.
Record keeping is an essential component of a
good preventive maintenance program. Changes
in suction and discharge gauge readings (if so
equipped) between regularly scheduled inspec-
tions can indicate problems that can be corrected
before system damage or catastrophic failure oc-
curs. The appearance of wearing parts should also
be documented at each inspection for comparison
as well. Also, if records indicate that a certain part
(such as the seal) fails at approximately the same
duty cycle, the part can be checked and replaced
before failure occurs, reducing unscheduled down
time.
For new applications, a first inspection of wearing
parts at 250 hours will give insight into the wear rate
for your particular application. Subsequent inspec-
tions should be performed at the intervals shown
on the chart below. Critical applications should be
inspected more frequently.

MR−05740 PA SERIES PUMPS
TROUBLESHOOTINGPAGE B − 4
General Condition (Temperature, Unusual
Noises or Vibrations, Cracks, Leaks,
Loose Hardware, Etc.) I
Pump Performance (Gauges, Speed, Flow) I
Bearing Lubrication I R
Seal Lubrication (And Packing Adjustment,
If So Equipped) I R
V-Belts (If So Equipped) I
Air Release Valve Plunger Rod (If So Equipped) I C
Front Impeller Clearance (Wear Plate) I
Rear Impeller Clearance (Seal Plate) I
Check Valve I
Pressure Relief Valve (If So Equipped) C
Pump and Driver Alignment I
Shaft Deflection I
Bearings I
Bearing Housing I
Piping I
Driver Lubrication − See Mfgr’s Literature
Legend:
I = Inspect, Clean, Adjust, Repair or Replace as Necessary
C = Clean
R = Replace
* Service interval based on an intermittent duty cycle equal to approximately 4000 hours annually.
Adjust schedule as required for lower or higher duty cycles or extreme operating conditions.
Preventive Maintenance Schedule
Item Daily Weekly Monthly Semi-
Annually
Annually
Service Interval*

MR−05740
PA SERIES PUMPS
MAINTENANCE & REPAIR PAGE C − 1
PUMP MAINTENANCE AND REPAIR − SECTION C
Review all SAFETY information in Section A.
Follow the instructions on all tags, label and de-
cals attached to the pump.
Before attempting to install, operate, or
service this pump, familiarize yourself
with this manual, and with all other liter-
ature shipped with the pump. Unfamil-
iarity with all aspects of operation or
maintenance could lead to destruction
of equipment, injury or death to person-
nel.
Use lifting and moving equipment in
good repair and with adequate capacity
to prevent injuries to personnel or dam-
age to equipment. If slings or chains are
used to move the pump or components,
make sure that the load is balanced;
otherwise serious personal injury or
death could result. The bail is intended
for use in lifting the pump assembly
only. Suction and discharge hoses and
piping must be removed from the pump
before lifting.
The maintenance and repair instructions in this
manual are keyed to the sectional views and the
corresponding parts identification lists on the fol-
lowing pages. Refer to the separate Parts List Man-
ual for replacement parts.
This Maintenance and Repair Manual provides
troubleshooting instructions required to properly
diagnose operational problems. Maintenance in-
structions within this manual are limited to the
pump hydraulic, priming and drive components
only. The pump assembly may be close-coupled to
either a factory-supplied or customer-supplied en-
gine. Maintenance of engines and factory-supplied
air compressors are detailed in separate literature
provided by the manufacturer(s).
Check TROUBLESHOOTING, Section B to deter-
mine causes and remedies of pump problems.
Disassemble the pump only as far as required.
As described in the SAFETY Section, this manual
will alert personnel to known procedures which re-
quire special attention, to those which could dam-
age equipment, and to those which could be dan-
gerous to personnel. However, this manual cannot
possibly anticipate and provide detailed precau-
tions for every situation that might occur during
maintenance of the unit. Therefore, it is the respon-
sibility of the owner/maintenance personnel to en-
sure that only safe, established shop procedures
are used, and that any procedures not addressed
in this manual are performed only after establish-
ing that neither personal safety nor pump integrity
are compromised by such practices.
Select a suitable location, preferably indoors, to
perform required maintenance. All work must be
performed by qualified personnel.
Lifting
Pump unit weights will vary depending on the
mounting and drive provided. Check the shipping
tag on the unit packaging for the actual weight, and
use lifting equipment with appropriate capacity.
Drain the pump and remove all customer-installed
equipment such as suction and discharge hoses
or piping before attempting to lift existing, installed
units.
The pump assembly can be seriously
damaged if the chains or cables used to lift
and move the unit are improperly wrapped
around the pump.

PA SERIES PUMPSMR−05740
MAINTENANCE & REPAIRPAGE C − 2
SECTION DRAWING
Figure C−1. PA6C60 Pump Model Assembly
Part Identification List
Refer to the separate Parts List Manual for serviceable parts, part numbers and quantities.
ITEM
NO.
PART NAME
1 PUMP END ASSEMBLY
2 CHECK VALVE KIT
3 PRIMING CHAMBER KIT
NOTE: Maintenance instructions in this manual are limited to the pump
hydraulic, priming and drive components only. Maintenance of
engines and factory-supplied air compressors are detailed in sep-
arate literature provided by the manufacturer(s).

MR−05740
PA SERIES PUMPS
MAINTENANCE & REPAIR PAGE C − 3
SECTION DRAWING

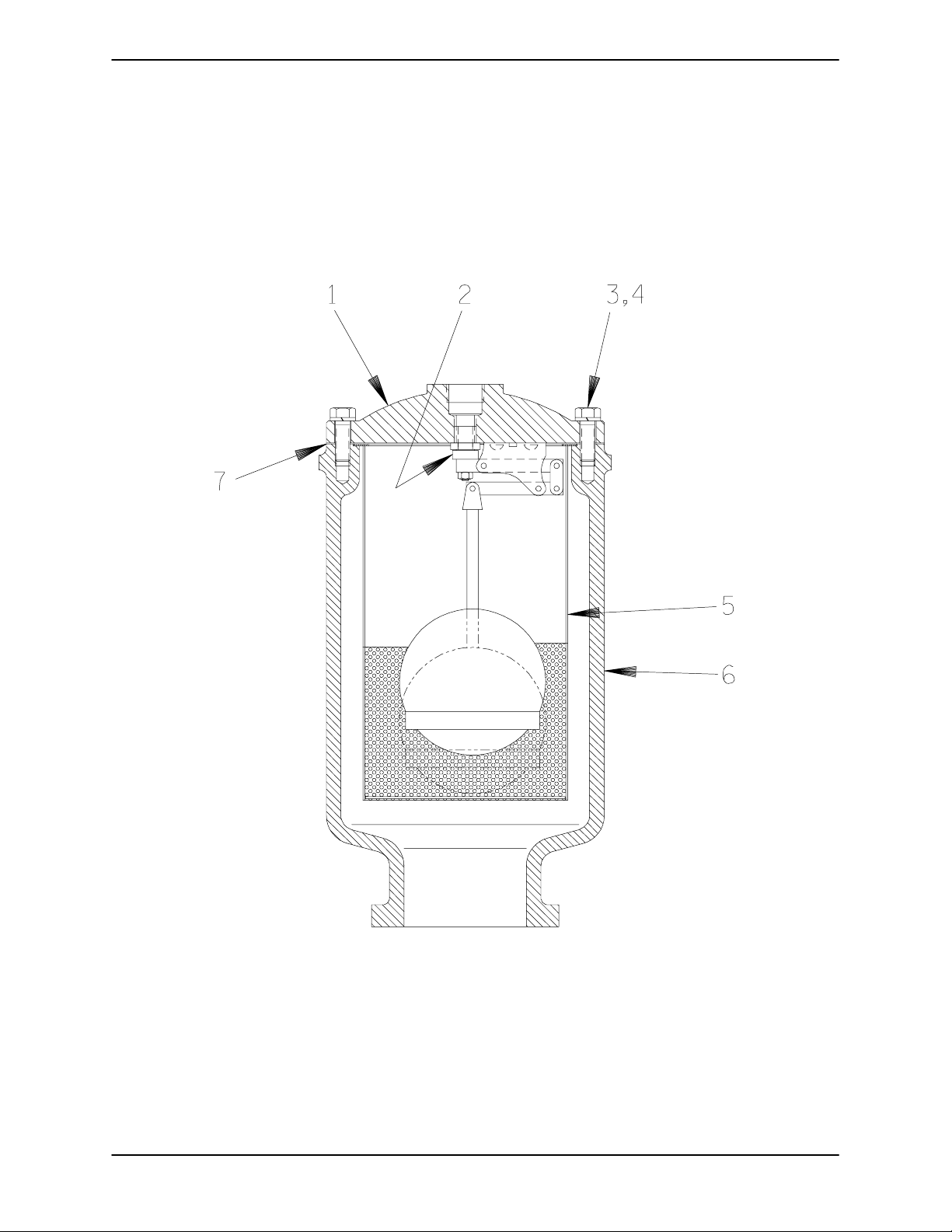

Figure C−2. Priming Chamber Kit
Part Identification List
Refer to the separate Parts List Manual for serviceable parts, part numbers and quantities.
ITEM
NO.
PART NAME
1 PRIMING CHAMBER ASSEMBLY
2 PIPE BUSHING
3 STREET ELBOW
4 BALL VALVE
5 STUD
6 HEX NUT
7 LOCK WASHER
8 GASKET
9 BAFFLE

PA SERIES PUMPSMR−05740
MAINTENANCE & REPAIRPAGE C − 4
SECTION DRAWING
Figure C−3. Priming Chamber

MR−05740
PA SERIES PUMPS
MAINTENANCE & REPAIR PAGE C − 5
Priming Chamber Assembly
Part Identification List
Refer to the separate Parts List Manual for serviceable parts, part numbers and quantities.
ITEM
NO.
PART NAME
1 PRIMING VALVE
2 −ORIFICE BUTTON
3 HEX HD CAPSCREW
4 LOCK WASHER
5 STRAINER ASSEMBLY
6 PRIMING CHAMBER
7 PRIMING VALVE GASKET

PA SERIES PUMPSMR−05740
MAINTENANCE & REPAIRPAGE C − 6
SECTION DRAWING
Figure C−4. 66F60 Pump End Assembly

ITEM PART NAME
NO.
MR−05740
PA SERIES PUMPS
MAINTENANCE & REPAIR PAGE C − 7
66F60 Pump End Assembly
Part Identification List
Refer to the separate Parts List Manual for serviceable parts, part numbers and quantities.
1 PUMP CASING
2 REPAIR ROTATING ASSEMBLY
3 HEX HEAD CAPSCREW
4 LOCKWASHER
5 WEAR PLATE
6 WEAR PLATE O-RING
7 PIPE PLUG
8 VENTED PLUG
9 HEX HEAD CAPSCREW
10 LOCKWASHER
11 ADJUSTING SHIM SET
12 PIPE PLUG
13 CASING DRAIN PLUG
14 BACK COVER PLATE O-RING
15 BACK COVER PLATE
16 LOCKING COLLAR
17 ADJUSTING SCREW
18 STUD
19 HAND KNOB
20 PIPE PLUG
21 PIPE PLUG
22 HEX HEAD CAPSCREW
23 LOCKWASHER
24 HEX NUT
25 BLIND FLANGE ASSEMBLY
26 FLANGE GASKET
27 SIGHT GAUGE
28 COVER PLATE
29 COVER PLATE GASKET
30 HEX HEAD CAPSCREW
31 LOCKWASHER
32 SHIPPING PLUG
33 SEAL PLATE O-RING
34 BEARING HOUSING O-RING
35 HEX HEAD CAPSCREW
36 LOCKWASHER

PA SERIES PUMPSMR−05740
MAINTENANCE & REPAIRPAGE C − 8

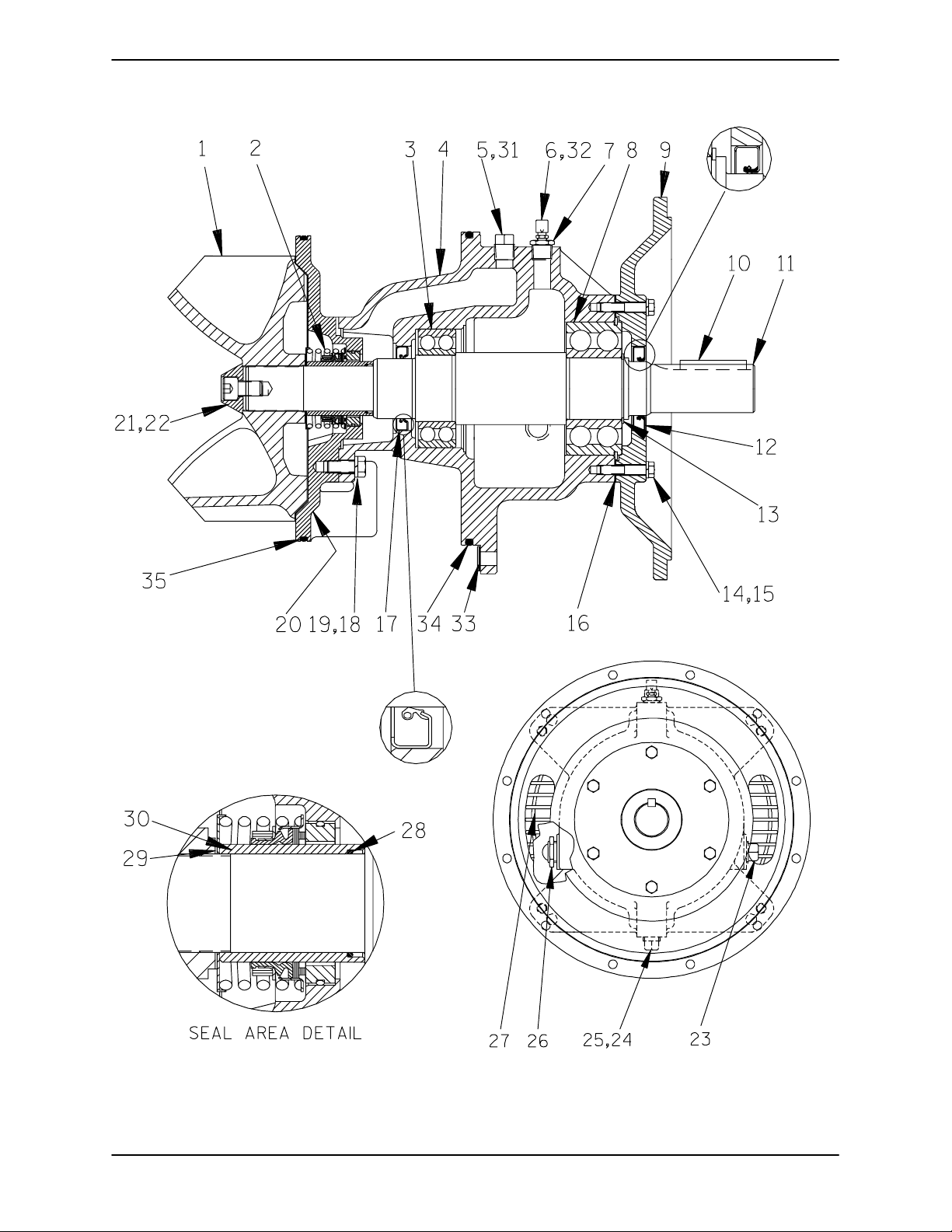

SECTION DRAWING
DRIVE END VIEW
Figure C−5. Repair Rotating Assembly

ITEM PART NAME
NO.
MR−05740
PA SERIES PUMPS
MAINTENANCE & REPAIR PAGE C − 9
Repair Rotating Assembly
Part Identification List
Refer to the separate Parts List Manual for serviceable parts, part numbers and quantities.
1 IMPELLER
2 SEAL ASSEMBLY
3 INBOARD BALL BEARING
4 BEARING HOUSING
5 VENTED PLUG
6 AIR VENT
7 RED PIPE BUSHING
8 OUTBOARD BALL BEARING
9 DRIVE FLANGE
10 IMPELLER SHAFT KEY
11 IMPELLER SHAFT
12 OIL SEAL
13 SNAP RING
14 HEX HEAD CAPSCREW
15 LOCKWASHER
16 BEARING HOUSING GASKET
17 OIL SEAL
18 HEX HEAD CAPSCREW
19 LOCKWASHER
20 SEAL PLATE
21 SOCKET HEAD CAPSCREW
22 IMPELLER WASHER
23 PIPE PLUG
24 PIPE PLUG
25 BEARING CAVITY DRAIN PLUG
26 SIGHT GAUGE
27 INTERMEDIATE GUARDS
28 SHAFT SLEEVE O-RING
29 IMPELLER ADJ SHIM SET
30 SHAFT SLEEVE
31 SHIP PLUG
32 SHIP PLUG
33 ADJ SHIM SET
34 BRG HOUSING O-RING
35 SEAL PLATE O-RING
