Gossen MetraWatt KONSTANTER SPL Series Operating instructions

KONSTANTER SPL Series
Programmable Electronic Load 3-349-703-15
2/11.14
Supplement to Operating Instructions 3-349-702-03
GMC-I Messtechnik GmbH 1
Attention!
!
This supplement and the operating instructions include
all safety precautions necessary for operator protection,
for the protection of the electronic load and the con-
nected devices.
Please make sure to read the detailed operating instructions in
pdf format (spl-series-ba_gb.pdf) on the attached CD-ROM or
at www.gossenmetrawatt.com.
This supplement to operating instructions is no substitute for
the detailed instructions!
The following general safety precautions must always be adhered
to during operation, maintenance and repair of the device. Non-
compliance with these safety precautions, or with other explicit
warnings included in this supplement and in these operating
instructions, is deemed a violation of design-specific safety stan-
dards and use for intended purpose. The manufacturer assumes
no liability in the event of noncompliance with these safety pre-
cautions.
Safety Precautions
1The device may only be operated in accordance with the pro-
cedures included in this supplement and in the operating
instructions.
2High-voltage conducting components are located inside the
device, which must not be contacted directly.
3Read the operating instructions carefully before placing the
instrument into service, in order to assure your own safety.
4The device must be grounded.
The device is equipped with a protective earth terminal. The
device chassis and the housing must be grounded in order to
eliminate the danger of electrical shock. The device may only
be connected to mains power by means of a 3 conductor
cable, and the protective conductor must be securely con-
nected with the protective conductor terminal of the mains
outlet.
5Keep away from voltage conducting electrical circuits!
Operating personnel may not remove any of the device’s cov-
ers. Only trained personnel are permitted to replace compo-
nents and change internal settings. Components may not be
touched as long as the power cable is connected.
Dangerous voltage may be present even after the power cable
has been disconnected from the mains.
The device must be disconnected from the mains, electrical
circuits must be discharged and external voltage sources
must be disconnected before touching any components, in
order to prevent personal injury.
Due to the fact that additional danger may otherwise occur,
only original replacement parts may be used and the device
may not be modified in an unauthorized fashion. In order to
assure uninterrupted functionability of the device’s safety fea-
tures, it may only be maintained and/or repaired by qualified
service providers.
Rear panel (mains terminal and fuse holder)
Connecting the Power Cable
1Examine the voltage selector switch on the back of the device
in order to assure that the selected voltage coincides with
available mains power. If this is not the case, observe the note
printed on the device’s mains inlet plug, and make sure that
the correct fuse is utilized.
2The on/off switch in the device’s front panel must be switched
off before the power supply is connected to the mains.
3Connect the 3 conductor cable with plug to the mains outlet.
The device must be connected to the protective earth con-
ductor.
4Press the switch on the front panel in order to turn the device
on. The device is now ready for operation.
1 Mains terminal (AC input socket)
2 Line voltage selection switch (voltage selector)
3 Fuse holder
4 RS232 Interface
5 GPIB Interface
Gedruckt in Deutschland • Änderungen vorbehalten
Printed in Germany • Subject to change without notice
GMC-I Messtechnik GmbH
Südwestpark 15
90449 Nürnberg • Germany
Telefon+49 911 8602-111
Telefax +49 911 8602-777
E-Mail [email protected]
www.gossenmetrawatt.com
Fuse
The fuse is located in proximity to the mains power inlet plug on
the back of the device.
Observe the following points if the setting of the input voltage at
the switch provided for that purpose is changed and/or the fuse is
replaced:
1The on/off switch must be turned off and the power supply
must be disconnected from all other devices before changing
the setting of the input voltage at the switch provided for that
purpose and/or replacing the fuse.
2Press the fuse holder with an insulated screwdriver and the
fuse pops out.
3Pull the fuse out of the fuse holder and replace it with a new
one which complies with the specifications on the label next
to the mains plug.
Attention!
!
Use approved fuse types only in order to prevent dam-
age to the device.
4If input voltage needs to be changed, replace the fuse as
described above and then set the voltage selector switch to
the desired position (230 V AC or 115 V AC). The selected
input voltage appears at the selector switch.
Front Panel (Device connection)
Connecting devices to the electronic load
1For reasons of safety, make sure that there are no short-cir-
cuits between the positive and negative terminals. The device
is equipped with short-circuit protection, but a short-circuit
may result in injury to the user (e.g. risk of fire).
2The output cable must be insulated all the way up to the con-
nected power consumer.
Attention!
!
It is imperative that the hazard warning should be ob-
served!
3 The electronic load is equipped with high-current screw terminals of
protection type IP00 for the connection with power sources.
4 The electronic load may be connected with DC power sources up to a
voltage of:
SPL 250-30 as well as SPL 400-40: max. 84 V DC
SPL 200-20 as well as SPL 350-30: max. 210 V DC
If the load is connected to a voltage greater than the standardized
exposed extra-low voltage, the user must take care to provide a suffi-
ciently safe cover as a protection against accidental contact.
1LCD-Display
2 Function keys
3 Power switch
4 External trigger input terminal
5Sensorterminal
6 Input binding posts
7Knob
8 Entry keys/secondary function keys
9 Annunciators
10 Switch key for secondary function
11 Left & Right key
12 Up & Down key/Display-switching key
➁➀ ➇ ➈ ➆
➅➁➄➃➂
12
11
➉
➄ ➅

Other manuals for KONSTANTER SPL Series

2

Other Gossen MetraWatt Power Supply manuals

Gossen MetraWatt KONSTANTER SPL Series Operating instructions

Gossen MetraWatt

Gossen MetraWatt KONSTANTER SPL Series Operating instructions

Gossen MetraWatt P500 User manual

Gossen MetraWatt

Gossen MetraWatt P500 User manual

Gossen MetraWatt SSP 240 Series User manual

Gossen MetraWatt

Gossen MetraWatt SSP 240 Series User manual

Popular Power Supply manuals by other brands

Powerware 9150 user guide

Powerware

Powerware 9150 user guide

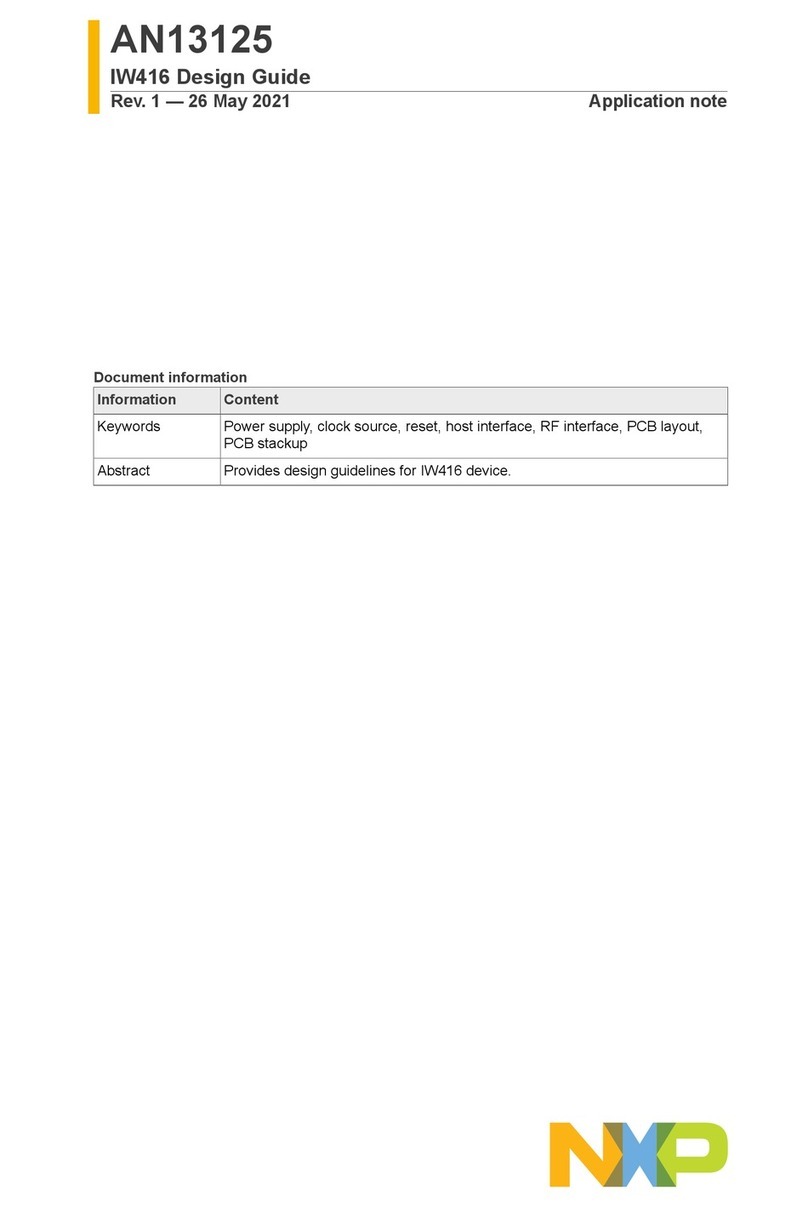

NXP Semiconductors AN13125 Application note

NXP Semiconductors

NXP Semiconductors AN13125 Application note

Vivotek AA-352 installation guide

Vivotek

Vivotek AA-352 installation guide

Trane Technologies PM014 24 Installation, operation and maintenance

Trane Technologies

Trane Technologies PM014 24 Installation, operation and maintenance

Bluetti B300 user manual

Bluetti

Bluetti B300 user manual

Circuit-test PSC-4 Series user manual

Circuit-test

Circuit-test PSC-4 Series user manual

Yamaha PW3000MA owner's manual

Yamaha

Yamaha PW3000MA owner's manual

Vertiv NetSure R48-3000e3 user manual

Vertiv

Vertiv NetSure R48-3000e3 user manual

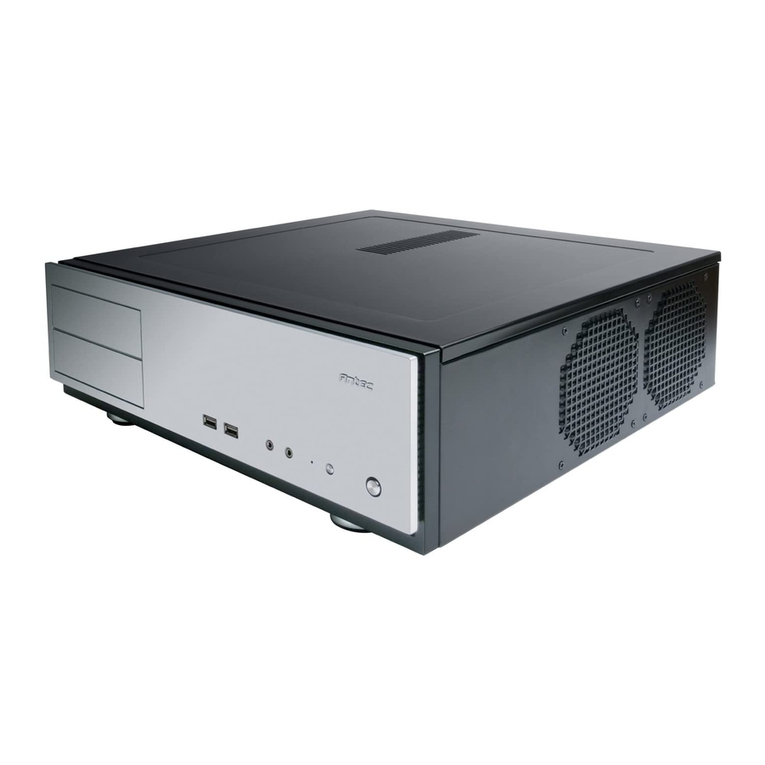

Antec New Solution Series user manual
