2GPO WEB CONFIGURATION

Bydefault,AEIphoneisaDHCPclientthatitacquiresanIPaddressfromaDCHPnetwork.To
knowtheIPaddressofthephone,pleasepress*112*113#.TheIPaddresswillbereadout.
Andthenloginthephoneathttp://<<IP.address>>:8000viaawebbrowserbyusinguser-
name/passwordasadmin/1234.
AnotherwaytologinthephoneisbyusingmDNS.Itispossibletondoutthephonebytyp-
inghttp://MAC-aei.local:8000.Andusingusername/passwordasadmin/1234tocompletethe
loginprocedure.
Afterlogin,thesysteminformationshowsasbelow.
Web Login
3GPO WEB CONFIGURATION

Speed Dial
Conguringthespeeddialkeys
Mkey:
Thenumberofthespeeddial
Number:
Dialingstringafterpressingthekey;1,2,3,4…9,10,*and#
Display:
Thenameofthespeedial
Domain:
ThedomainoftheSIPaccount;defaulttotherstSIPaccount
Account:
TheSIPaccountfordialingthrough;defaulttotherstSIPaccount
Delete:
Checkthespeeddial(s)andthenclick“Submit”todelete.
Phone Settings
4GPO WEB CONFIGURATION

Dial Plan
Thephonesendsthedialedstringonceitmatchesoneofthepre-congureddialplans.
Dialing Plan page:
Dialplanpage,eachpageissetto5records
Dialing Timeout: (Default, 6)
Thephonesendsthedialedstringafterdialingtimeoutifnofurtherinput.Rangingfrom
1~10.
Sharp Dial: (Default, Enable)
Press#attheendofadialedstringwillsendthecallifthisisenable.(the#willnotbein-
cludedinthedialedstring)Ifthisisdisable,adialedstringwillonlybesentifitmatchesadial
plan.
Passable Match Timeout:
Thephonesendsthedialedstringafterthesettledtimeoutiftheinputmatchespartialof
predenedAbbr.code.Rangingfrom1~10.
To create a new Dial plan
Press“New”button
Switch: Toenableordisablethedialplan.(Default,Enable)
Abbr.Code:Tollinthedialingsyntax.(PleaserefertoDialPlanSyntaxbelow)
5GPO WEB CONFIGURATION
Syntax Description
X Denesadigitlength.
 Ex.,(+02)5xxx,add02asaprexifthediallingstringstartswith5andisfollowedby3digits.
? Matchesanynumberofdigits.
 Ex.,(+02)5?,add02asprexifdialedstringstartswith5andisfollowedbyanynumberofdigits.
(-) Removesaprexorpostx.
 Ex.,1234(-34),removestwodigitsofthepostxifthediallingstringis1234.
(+) Addsaprexorpostx.Ex.,(+02)1234,adds02asaprexifthediallingstringis1234.
Y Denethedialleddigitmatches0or1
 Ex.,1Yxx,iftheseconddigitis1or0andtotal4digits.Anexamplematchis1034or1145
N Denethedialleddigitmatchesbetweenof2and9.
 Ex.,9Nxxxxxx,iftherstdigitstartsbetween2and9thenfollowedby6digits.
 Anexamplematchis92123456,93123456,94123456….or99123456.
, Thephoneplayseconddialtoneif“,”isusedafteradigit.For,example,“9,“
 PS:Abbr.Codecan’tbeonlysyntax;itmustbewithatleast1digit.
 Forexample,Yxx,NYYxorNxxxisapplicable.

Voice Setting
Play Dial Tone Frequency
Setthedialtonefrequencyhere.
Play RingBack Tone Frequency
SettheRingBacktonefrequencyhere.
Play Busy Tone Frequency
Setthebusytonefrequencyhere.
Play RingBack Tone cadence
SettheRingBacktonecadencehere.
Play Busy Tone cadence
SettheBusytonecadencehere.
Handset In Gain Oset
Setthehandsetmicrophonegainvalue
Handset Out Gain Oset
Setthehandsetreceivergainvalue
6GPO WEB CONFIGURATION

Auto Conguration
Auto Conguration: (Default,Enable)Enableordisableautoprovisioning.
Room Conguration:
Itshowstheprovisionlenameifthe.cfgleisnamedbytheRoomID.Tochangetheway
ofledownloadingfromtheMACbasedprovisionletoRoomIDbasedprovisionle,type
*159*RoomID# onthekeypad.
DHCP OPTION 66: (Default, Enable)
Afterenablethisfeature,thephoneacquiresthetftpserverIPaddressfromDHCPOPTION
66.Ifitisdisableand“AutoConguration”isenable,thephonewilltrytodownloaditscon-
guarionlefromtheserverinthe“Server”eld.
Server:
TheIPaddressinformationoftheserver,forexample,tftp://192.168.1.54.Thephoneonly
looksforitscfgleif“DHCPOPTION66”isdisable.Theservercanbetftp,ftporhttpserver.
Forexample,tftp://IP.address.of.tftp,ftp://IP.address.of.ftporhttp://IP.address.of.http
Path:
Identifytheprovisionlelocationifitisinthesubfolderratherthanrootfolder.
UserName:
Usernameforloginingintotheftporthehttpserver
Password:
Passwordforloginingintotheftporthehttpserver
Interval:
Autoprovisioningperiod(seconds);“0”isdisableautoprovisioningperiodically.
**Bydefault,aphonelooksforMAC.cfgfromtheserver,forexample,000e43d01234.cfg.It
onlydownloadsext#.cfgonceitwasmanuallyprogrammedbypressing*357*room-number#
featurecode.
System Settings
7GPO WEB CONFIGURATION

Firmware Upgrade
Force Upgrade: (Default, Disable)
EnabletoforcethephonetoupgradeviatheServerIPaddressmanually.
Auto Upgrade: (Default, Enable)
Enabletoautoupgradeafterbootinguponceif“Interval”is0.If“Interval”isn’t0,thenit
checksperiodicallyandautoupgradeifanewrmwareisfound.
Server IP:
TheIPaddressinformationoftheserverfordownloadingthermware.Itcanbetftp://IP.ad-
dress.of.tftp,ftp://IP.address.of.ftporhttp://IP.address.of.http
Server File Path:
Thelenameofthermwareintherootfolderoftheserver
Server Username:
Usernameforloginingintotheftporthehttpserver
Server Password:
Passwordforloginingintotheftporthehttpserver
Interval:
Autoupgradeperiod(seconds);Itmeanshowlongthephonegoescheckthermwareon
theserver.Ifthermwareisdierentfromthecurrentone,thephonewillthenrebootfor
updating.
8GPO WEB CONFIGURATION

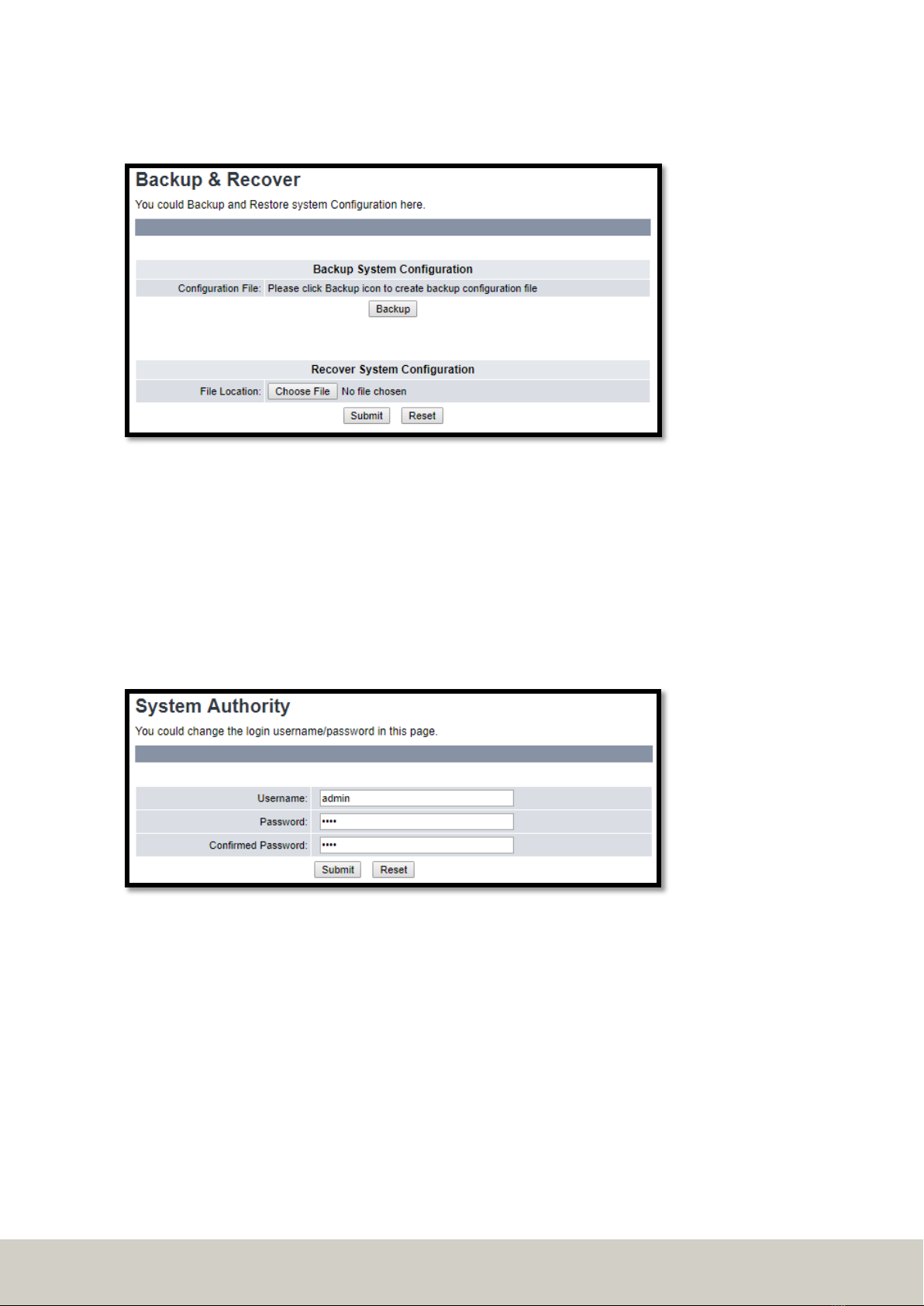

Backup & Recover
Backup System Conguration:
Clickthe“Backup”buttontobackupthesettingsofthephone,theleiscreatedwithprex
“Back”followedbythecreatingdate.Theextensionissbak,forexample,Back_2018_1_11.
sbak.Itcanbeeditedbyatexteditor,suchasWordPad.
Recover System Conguration:
Clickthe“ChooseFile”toselectapreconguredbackupleandthensubmittoloadthecon-
gurationle.
System Auth.
Username:
ChangetheUsernameofthewebcongurationlogin.
Password:
ChangethePasswordofthewebcongurationlogin.
Conrmed Password:
ConrmthePasswordofthewebcongurationlogin.
Onceitisdone,pressSubmittochangeorResettostartover.
9GPO WEB CONFIGURATION

Factory Defaults
Click“Submit”toresetallsettingsbacktofactorydefault.
Reboot
Click“Reboot”torestartthephone.
Other Setting
Toenablethehardwarewatchdogofthisphone.
System Log
Itshowsthelogrecordsonthephone.
10 GPO WEB CONFIGURATION

Port Settings
SIP Listen Port: (Default, 5060)
SIPLocalport,rangingfrom10~65533
RTP Port Base: (Default, 10000)
TheportofRTPstarts,rangingfrom10~65533
RTP Port Range: (Default, 100)
RTPportrange,rangingfrom12~1000
Codec Settings
Codec Priority:
Thereare4codecsinthedropbox,pleaseselectoneforeachpriority.
Global SIP Settings
11 GPO WEB CONFIGURATION

RTP Packet Length:
Framesizeforeachcode.
G711rangesfrom20ms,30ms,40msand50ms
G723rangesfrom30ms,60ms,90ms,120ms,150msand180ms
G729rangesfrom20ms,30ms,40ms,50ms,60ms,70msand80ms

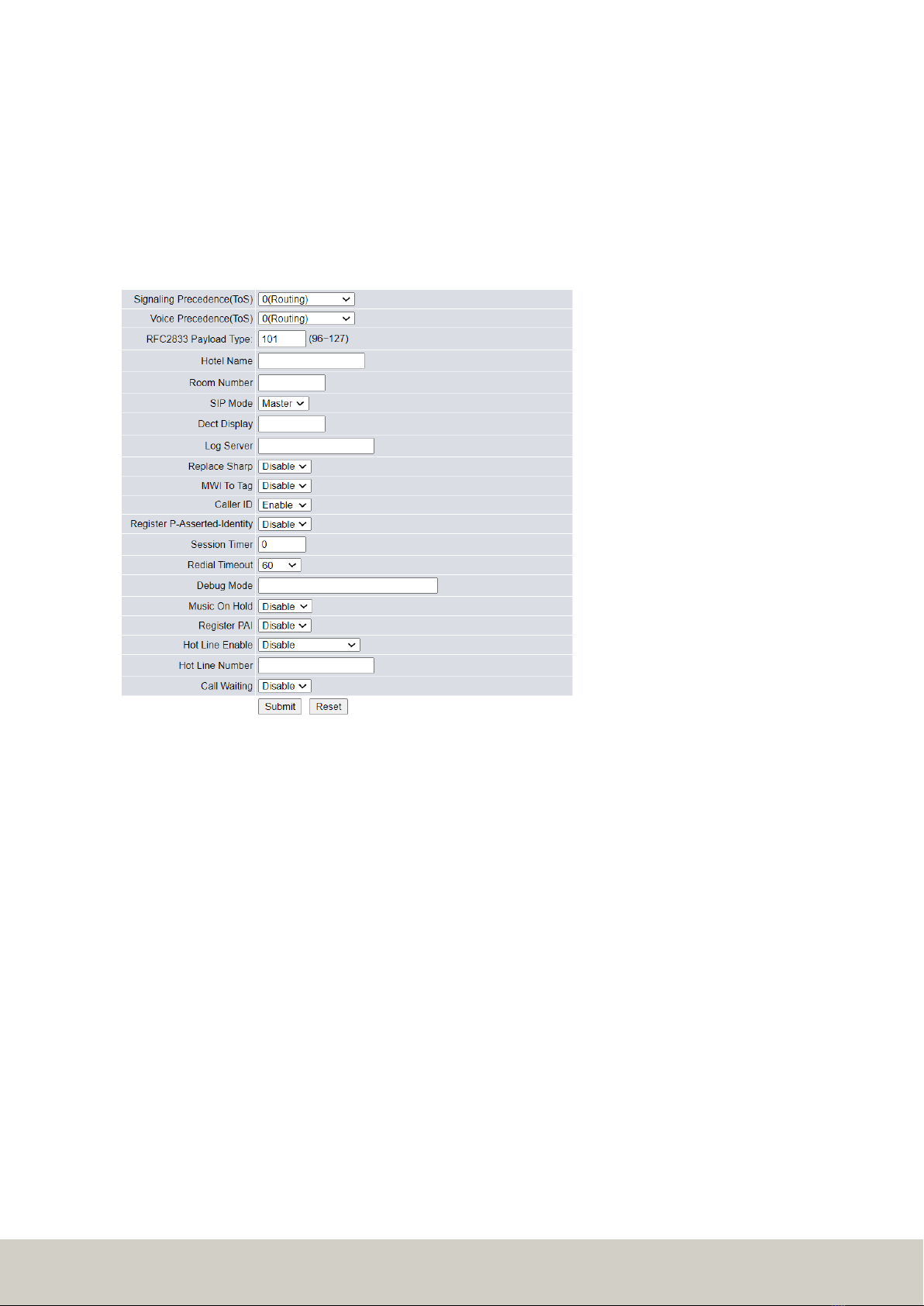

Other Settings
Signaling Precedence (Tos): (Default, 0 Routing)
Selectionfrom0(Routing),1(Priority),2(Immediate),3(Flash),4(FlashOverride)and5(CRIT-
IC/ECP)
Voice Precedence (Tos): Default, 0 Routing)
Selectionfrom0(Routing),1(Priority),2(Immediate),3(Flash),4(FlashOverride)and5(CRIT-
IC/ECP)
RFC2833 Payload Type: (Default, 101)
DTMFRFC2833PayloadType,rangingfrom96~127
Hotel Name:
Thenameshowsontherstlineofthedisplayifinput,ifnotitshowsDateandTime.
DECT Number:
ThisnumberwillbeshowedontheDECThandset.
Room Number:
ThekeyofRoomKeeperfeaturethatthephoneswilllookforeachotherbyusingthesame
roomnumber.
SIP Mode: (Default, Master)
ThisisforRoomKeeperfeaturewiththreeselections.Masteristheroomkeeper;Slaveand
SuitearetheIPendpointsthatwillregistertotheroomkeeper.ForstandardaloneIPSIP
phone,select“Master”;forRoomkeeper/Suitekeeperclient,select“Suite”;forRoomkeeper,
select“Master”.
12 GPO WEB CONFIGURATION

Log Server: (Default, blank is diable)
PleasellintheIPaddressoftheAEiIMMServer.ThephonethenreportsstatusbacktoIMM,
suchasrmwareversion,IPaddressofthephone,cordlesshandsetstatusandetc.Alsoit
acceptscommandsfromit,suchasrmwareupdating,restart,resettofactorydefaultand
etc.
Replace Sharp: (Default, Enable)
The“#”inthesendingstringwillbesentas%23%ifthisisEnable.The“#”inthesending
stringwillbesendas#ifthisisDisable
MWI To Tag: (Default, Disable)
ThisisforBroadworkscompatibility.SettoEnablewhileinteroperatingwithBroadworks.
Caller ID: (Default, Disable)
TodisplaycallerIDonthedisplay,selectEnable;otherwiseselectDisable.
Register P-Asserted-Identity: (Default, Disable)
EnabletosupportP-Asserted-IdentityinSIPRegistration.
Session Timer: (Default, 0 is disable)
Toenablesessiontimer,inputthevalueinsecondsrangingfrom1~9999.Theminimum
sessionis120seconds;anynumberlessthan120willbesetto120.
Hot Line: (Default, blank is disable)
Inputanextensionnumbertoenablehotlinefeature.ThisfeatureisalsoknownasRing
Down.
Debug Mode: (Default, blank is disable)
InputtheIPaddressofalogserver(UDP;port:514)tosendthelogofthephonesystem.
13 GPO WEB CONFIGURATION

ThemaximumSIPaccountsofthephoneareupto2.
ToaddanewSIPaccount,click“Add”.
TodeleteaSIPaccount,checkthe“Select”boxandthenclick“Delete”
SIP Accounts
14 GPO WEB CONFIGURATION

ChecktheserverIPoraccountcredentialifthe“Status”shows“registering”or“registerfail”
15 GPO WEB CONFIGURATION

16 GPO WEB CONFIGURATION
Active:
Check“Enable”toenalbesendingSIPregistrationor“Disable”todisabletheSIPaccounttemporarily.
Registration ID:
RegistrationIDisalsoknownasuserIDorextensionnumber.
Display Name:
DisplayNameisforshowingthenameofthephoneorthelocationofthephoneontheremoteparty.
Authentication Name:
AuthenticationNameisforSIPauthentication.
Password:
PasswordoftheSIPaccount
Registrtaion Server:
FQDN,SIPdomainnameorIPaddressoftheSIPserver
IfthelisteningportoftheSIPServerisdierentfrom5060,pleaseaddtheporttoatend,forexample,aeicommunications.
com:5070or172.8.12.11:5061
Proxy Server:
DomainnameorIPaddressoftheSIPProxyServer
IfthelisteningportoftheSIPServerisdierentfrom5060,pleaseaddtheporttoatend,forexample,aeicommunications.
com:5070or172.8.12.11:5061
Proxy Address:
Outboundproxyaddress
Voice Mail: Not applied for MP series
Voicemailnumberofthehardkey
Expire Time: (Default, 60)
SIPregistrationexpiretime(seconds);selectfrom60,120,300,600,1200,1800,3600and7200
DTMF Type: (Default, RFC 2833)
DTMFfortransmittingdigits,*and#;selectfromRFC2833,SIPInfoandInBand
Send KeepAlive: (Default, Disable)
SendkeepalivepackagetokeeptheSIPregistrationfrombeingblocked
Send KeepAlive Type: (Default, Dummy)
Dummy;tosendadummyUDPpackagethroughport5060Options;tosendSIPoptions
Send KeepAlive Interval: (Default, 60)
Howlongthephonesendsthekeepalivemessage(seconds);selectfrom10,20,30,40,50,60,90,120,240and480.
MWI: (Default, Disable)
Enabletosubscribemessagewaitinginformation.
Mode: (Default, Multi)
Multi;allowsend/receivemultiplecallsthroughtheSIPaccountSingle;allowonlyonesend/receivecallthroughtheSIP
account
DNSSRV: (Default, Disable)
EnableDNSSRVquery

17 GPO WEB CONFIGURATION
Status:
ThestatusoftheSIPregistration;registered,registeringorregisterfail
**AEiSIPresiliencefeature,alsoknownasSIPregistrationfailedoverfeature.Withthesettingshowninthefollowpic-
ture,itsupportsuptothreeSIPservers.Add“;”inbetwenntwoserversandalsoattheend.

Status

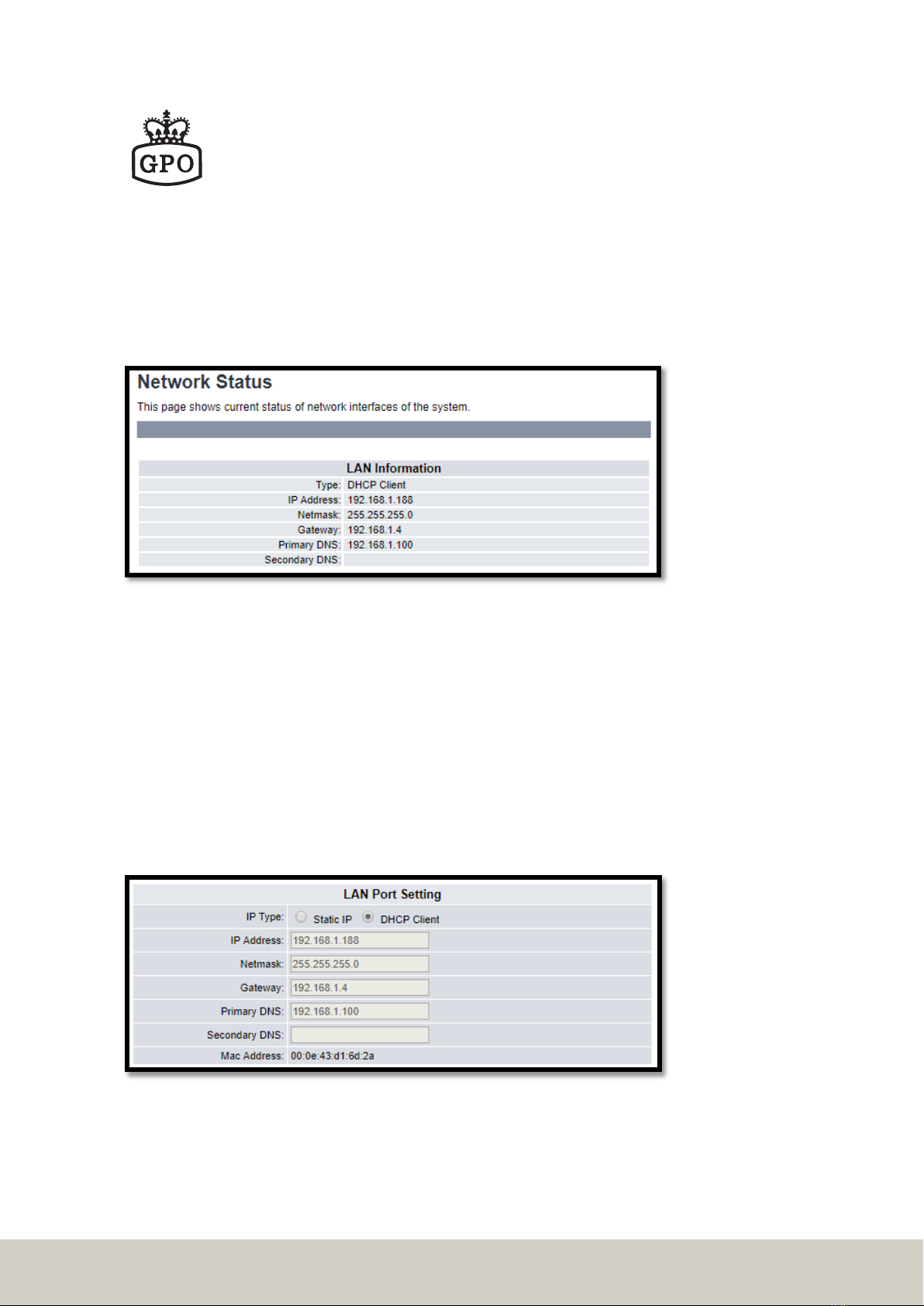

Showthenetworkstatusofthephone
Type:CurrentIPtype;DHCPClientorStaticIPIPAddress:CurrentIPaddressofthephone
Netmask:CurrentNetmaskofthephoneGateway:CurrentGatewayofthephonePrimary
DNS:CurrentPrimaryDNSIPaddress
Secondary DNS:CurrentSecondaryDNSIPaddress
LAN Port Settings
IP Type:(Default,DHCPClient)Select“StaticIP”andcongurethefollowingeldsfromIP
addresstoSecondaryDNS.
IP address:TheIPaddressofthephoneNetmask:TheNetmaskofthephone
Gateway:Thegatewayofthephone
Primary DNS:TheprimaryDNSIPaddress
Secondary DNS:ThesecondaryDNSIPaddress
Mac Address:TheMACaddressofthephone
Network
18 GPO WEB CONFIGURATION

802.1X Setting
EAP Method:(Default,Disable)TheEAPmethod;PEAPorTLS
Username: Theusernameofthemethod
Password: Thepasswordofthemethod
Conrm Password:Conrmthepasswordofthemethod
VLAN Setting
Switch:(Default,Disable)EnableswitchtoapplyaVLANtothephone.
Identier:(Default,1)Rangingfrom1~4094
Priority:(Default,0)Rangingfrom0~7
Capture
19 GPO WEB CONFIGURATION

www.gporetro.com
