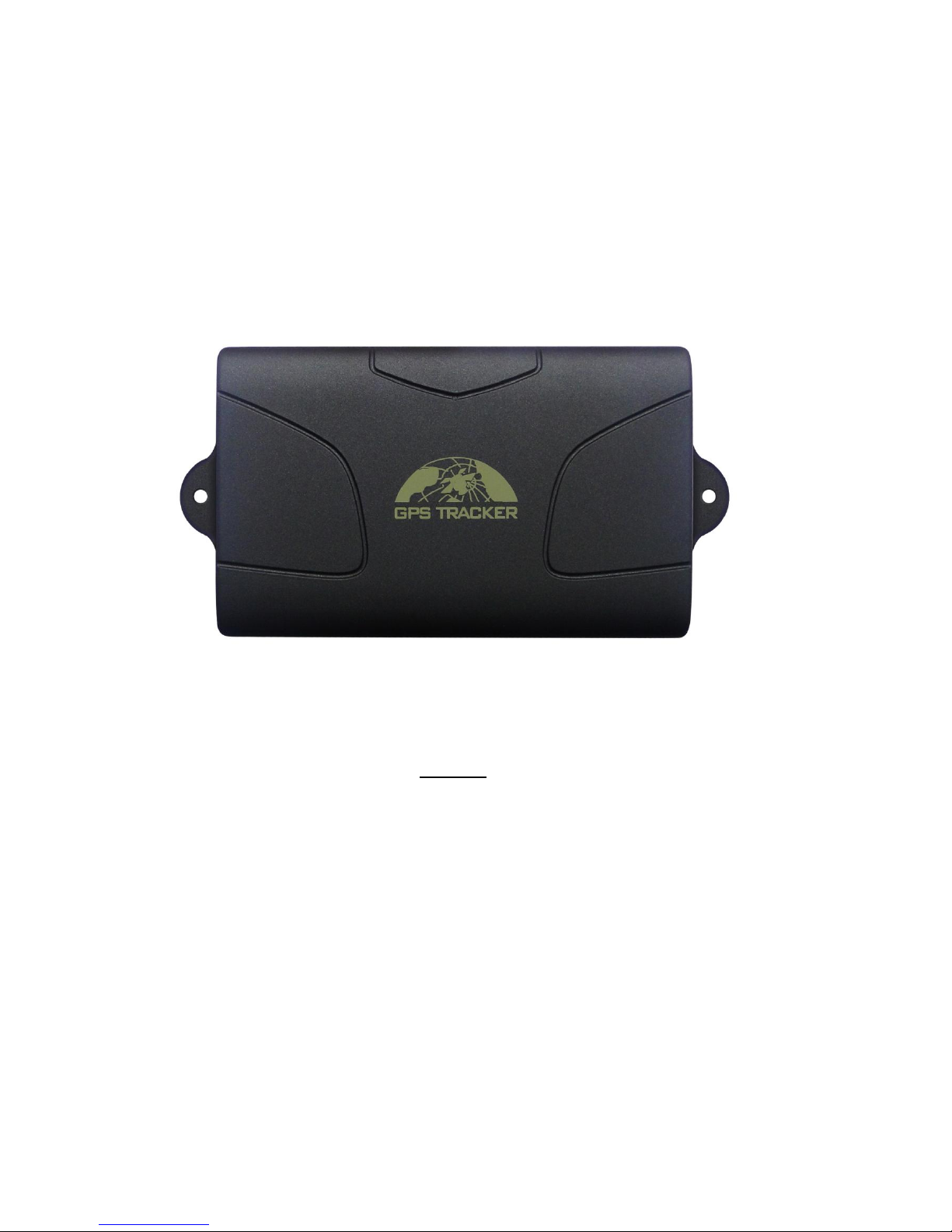

GPS Tracker TK 104-B User manual

GSM/GP RS/GPS P OR T ABLE
VEHICLE TRACKERUSER
MANUALTK 104-B
Preface
T hankyo uf orp urchasingthetracker.T hism anualshows howtooperatethe
dev ice smo othlyand correctly .Makesuretoreadthism anualc aref ullybef ore
usingthisproduct . Pleasenotethatspecif icationandi nf orm ationaresubjectto
changes without prior notice in this m anual.
Anychangewill b eintegratedi nthelatestrelease.T hem anuf acturerassum es
no respo nsibility f o r any errors o r om issions inthis docum ent.

1
Contents
I. Introduction ....................................................................................................................................................3
1. Main Features.............................................................................................................................................3
2.Applications................................................................................................................................................3
3. Hardware Description.................................................................................................................................3
4. Accessories ............................................................................................................................................5
5. Specifications.........................................................................................................................................5
II. Installation and operating ...............................................................................................................................6
1. Production installation................................................................................................................................6
2. INT& EXT switch .....................................................................................................................................7
3. SIM card installation ..................................................................................................................................7
4. Battery Charging.........................................................................................................................................8
III. Basic functions...............................................................................................................................................8
1. ON/OFF Function.......................................................................................................................................8
2. Initialization................................................................................................................................................8
3. Change the Password..................................................................................................................................9
4.Authorization..............................................................................................................................................9
5. Single Locating.........................................................................................................................................10
6Auto track continuously.............................................................................................................................10
6.1 Track with limited times upon time interval:..................................................................................11
6.2 Track with unlimited times upon time interval:..............................................................................11
6.3 Smart track upon time and distance interval:..................................................................................11
7.Automatic update positions of vehicle turns.............................................................................................11
8. GPS drift suppression...............................................................................................................................11
9. Exact street address ..................................................................................................................................12
10. Location based service (LBS) / Cell-ID Locating. .................................................................................12
11 Check the Vehicle State. ..........................................................................................................................12
12. Check IMEI............................................................................................................................................12
13. Terminal (local) Time Setting.................................................................................................................13
14. Monitor (Voice Surveillance) .................................................................................................................13
15 Data logging ............................................................................................................................................13
16 Data Load ................................................................................................................................................14
17 Forward the third parties’ message ..........................................................................................................14
18 SIM card Balance Inquiry........................................................................................................................14
19. Cut off the Oil and Power System..........................................................................................................14
19.1 Execute immediately Mode ..........................................................................................................14
19.2. Execute depends on speed(Default mode)...................................................................................15
20. Resume the Oil and Power System.........................................................................................................15
21. Tracker’s Hardware Resetting ................................................................................................................15
22. Sleep Mode.............................................................................................................................................15
22.1. Sleep by time ...............................................................................................................................15

2
22.2. Sleep by shock sensor..................................................................................................................15
22.3 Deep Sleep by Shock Sensor........................................................................................................16
22.4 Start Work on specific time...........................................................................................................16
22.5 No sleep mode ..............................................................................................................................16
IV. Alarm Function and settings.........................................................................................................................16
1. Geo-fence .................................................................................................................................................16
2 Multi-area management.............................................................................................................................17
3 Movement alarm........................................................................................................................................17
4. Over Speed Alarm ....................................................................................................................................18
5.Accident alarm (Option)...........................................................................................................................18
6. Shock SensorAlarm.................................................................................................................................18
7. SOS...........................................................................................................................................................18
8. Low battery alarm.....................................................................................................................................18
9. Power off alarm........................................................................................................................................19
10. GPS blind Spot alert .......................................................................................................................................19
V. TCP/UDP switch ..............................................................................................................................................19
VI. Configure parameters by USB........................................................................................................................19
VII. GPRS Setting................................................................................................................................................19
7.1 Setting up APN.......................................................................................................................................19
7.2 GPRS User Name and password Setup ..................................................................................................20
7.3 IP and Port Setup....................................................................................................................................20
7.4 Switch to GPRS mode............................................................................................................................20
7.5 Less GPRS traffic...................................................................................................................................20
7.6 Web platform and mobile APP instructions............................................................................................20
VIII.Cautions........................................................................................................................................................21
IX. Simple Faults & the Solutions......................................................................................................................21
XI. LED indicator status.....................................................................................................................................22

3
I. Introduction
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning
system, which set multiple functions of security, positioning, monitoring surveillance, emergency
alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
1. Main Features
1.1 Waterproof shell
1.2 Built-in large capacity 6000MA battery, standby about 4 months in sleep mode and 12 months in
deep sleep mode.
1.3 Powerful magnets to absorb to vehicle firmly.
1.4 Real-time tracking, retrieve of lost vehicles, cargo.
1.5 Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
1.6 Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time
tracking on web based server.
1.7 Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation,
convenient and quick.
1.8 Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be
installed on the device which can provide power for long-term using.
2. Applications
Application: Locating and tracking service for cars, trucks, container trucks, special
vehicles, cargo and criminal investigation officer.
3. Hardware Description

4
3.1 Front face
3.2 Rear face
3.3 Side face
3.4 Side face
3.5 Side face
Built-in
GSM
ANT
Built-in GPS ANT
Built-in
powerful
magnet &
large Battery
LED Indicator
灯
EXT. GPS ANT
EXT. GSM ANT
SIM Slot
EXT. Power, Relay
USB
ON/OFF
Built-in Mic
MicroSD Slot
Built-in shock sensor
INT & EXT
antenna switch

5
4. Accessories
No.
Pictures
Name
Specs
1
AC Adapter
Input: AC 110-220V，
Output DC: 1.5A，12V
2
Lighter car adapter
Car 12V OR 24V power
3
GPS Antenna
2 meters
4
GSM Antenna
2 meters
5
Harness
4PIN
6
Relay
12V/40A OR 24V/40A
depends on the vehicle type
5. Specifications
Content
specifications
DIM.
94mm*60mm*38mm
Weight
300g
Network
GSM/GPRS
Band
850/900/1800/1900Mhz

6
GPS sensitivity
-159dBm
GPS Accuracy
5m
GPS Start time
Cold status
45s
Hot status
1s
EXT. power
DC 12 V -24V
Operating Current
Sleep Current
1.8mA
Deep sleep
0.6mA
GSM operating Current
68mA±3mA
GPRS Current(data transfer)
82mA±10mA
Battery
3.7V 6000mA/h Polymer Li-Battery
Charge current
1A±0.2A
Charge time
7h
Standby time
Sleep
4 months
Deep sleep
12 months
Storage Temp.
-40°C to +85°C
Operation Temp.
-20°C to +65°C
Humidity
5%--95% non-condensing
II. Installation and operating
1. Production installation
1.1 The product is easy to install. The built-in powerful magnet can make it to be directly adsorbed on the
iron objects.
1.2 Built-in GPS and GSM antenna, external antenna can be optional.
1.3 The tracker is waterproof, but please still avoids the long-term placement in the places of water
infiltration.
1.4 If you need an external power supply, cut oil & power system and SOS feature, please find 4PIN main
wire, wiring diagram as follows:

7
Note: Please install SOS button on the hidden place driver can touch.
2. INT & EXT switch
Switch to INT to change to use internal antenna; switch to EXT to change to use external
antenna
3. SIM card installation
3.1 Open the waterproof sealant and insert SIM card as following picture shows, push it to
the end to install SIM card correctly. The SIM card will pop up if press it after installed.

8
3.2 Please make sure that the SIM card is GSM network and able to execute the function of
incoming calls display, no calls can be diverted and the PIN code is locked. The SMS
format must be TXT format, and can’t recognize the PDU format.
4. Battery Charging
Please fully charge the product for the first use and charge as following:
4.1 Home charge：Find the AC adapter from the accessories and connect 4-PIN plug into
4-PIN socket, and then connect the other end to mains supply.
4.2 Car charge: Find the car lighter charger from the accessories and connect to car
cigarette lighter.
Note: Red LED ON means being charged, and LED OFF means fully charged, and then
charging can be stopped. If the battery can’t be fully charged once, then unplug the
charger for about 10 minutes and then charge it one more time.
III.Basic functions
When reading this user manual, you will notice that we have used "+" and "space"
between some words;"+" between two words means they should be written together as
one word and "space" between two words means you should leave one character space
between two words.
1. ON/OFF Function
1.1 In the OFF state, switch ON/OFF to ON position, then the three LED will flash 1 time, which means
the tracker has been switched on.
2. Initialization

9
Send SMS "begin+password" to tracker, it will reply "begin ok" and return to the default
factory settings. (Default password is: 123456). For example: Send SMS "begin123456" to
tracker, it will reply "begin ok".
3. Change the Password
3.1 Set Password: Send sms: “password+old password+space+new password”
to the unit to change the password.
For Example, pls send sms: “password123456 888888”to terminal device, it
will reply sms: “password OK”. New password 888888 changed in success.
3.2 Be sure keep the new password in mind, you have to upload the software to
restore the original setting in case of losing the new password.
3.3 Make sure the new password is in 6 digits Arabic numbers, or the tracker
can not recognize the password.
3.4 When reading this user manual, you will notice that we have used "+" and
"space" between some words;"+" between two words means they should be
written together as one word and "space" between two words means you should
leave one character space between two words.

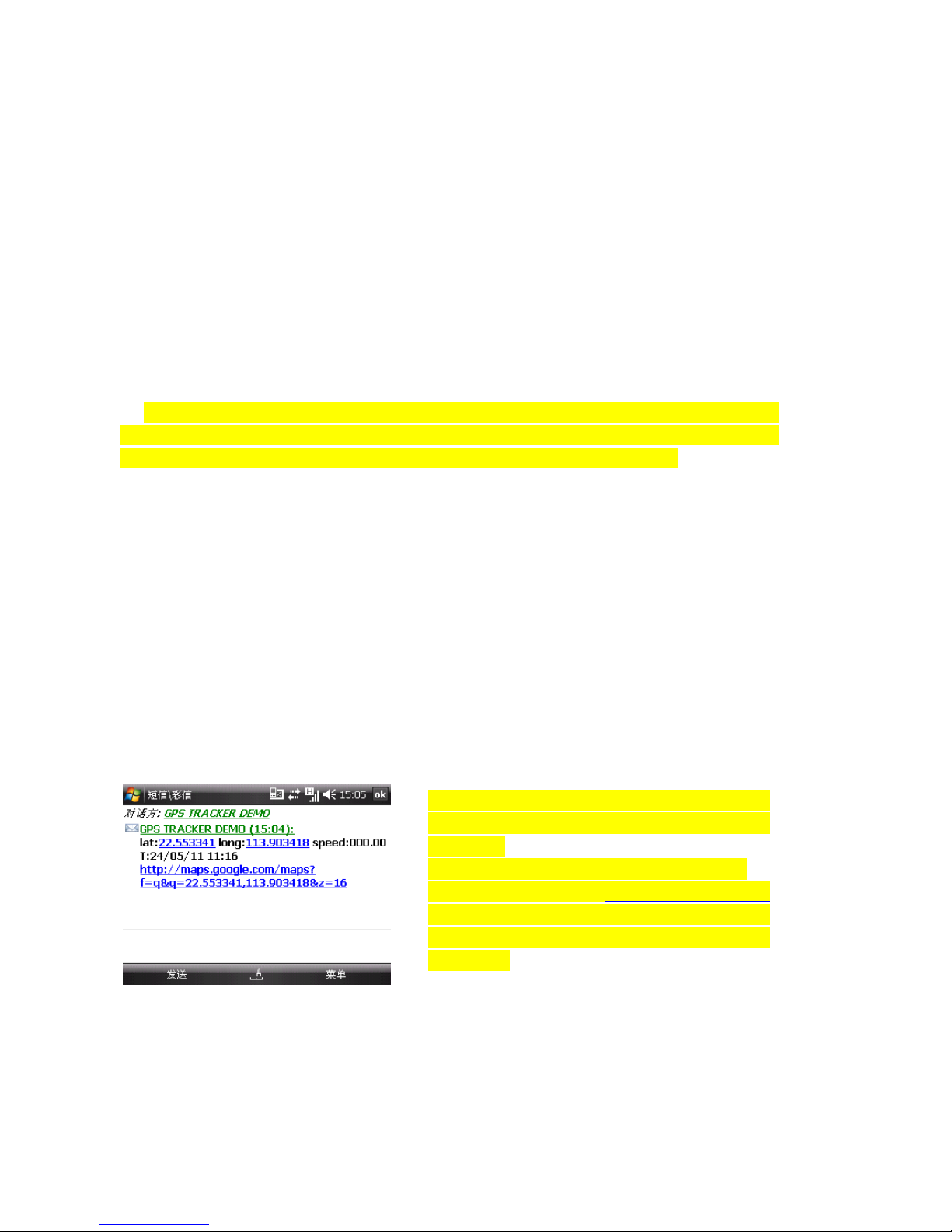

4. Authorization
You must setup the authorized phone number before using SOS, geo-fence
alarm, etc. Up to 5 numbers can be authorized.
4.1 Call the tracker for 10 times continuously and get its position, then it will
save the cell phone number as the authorized number automatically.
