Grace Industries T3 Operation manual

© Grace Industries, Inc. Printed in U.S.A. P/N: T3 Repeater-H UI 0621
T3 Repeater
User’s Information
Only To Be Removed By End User

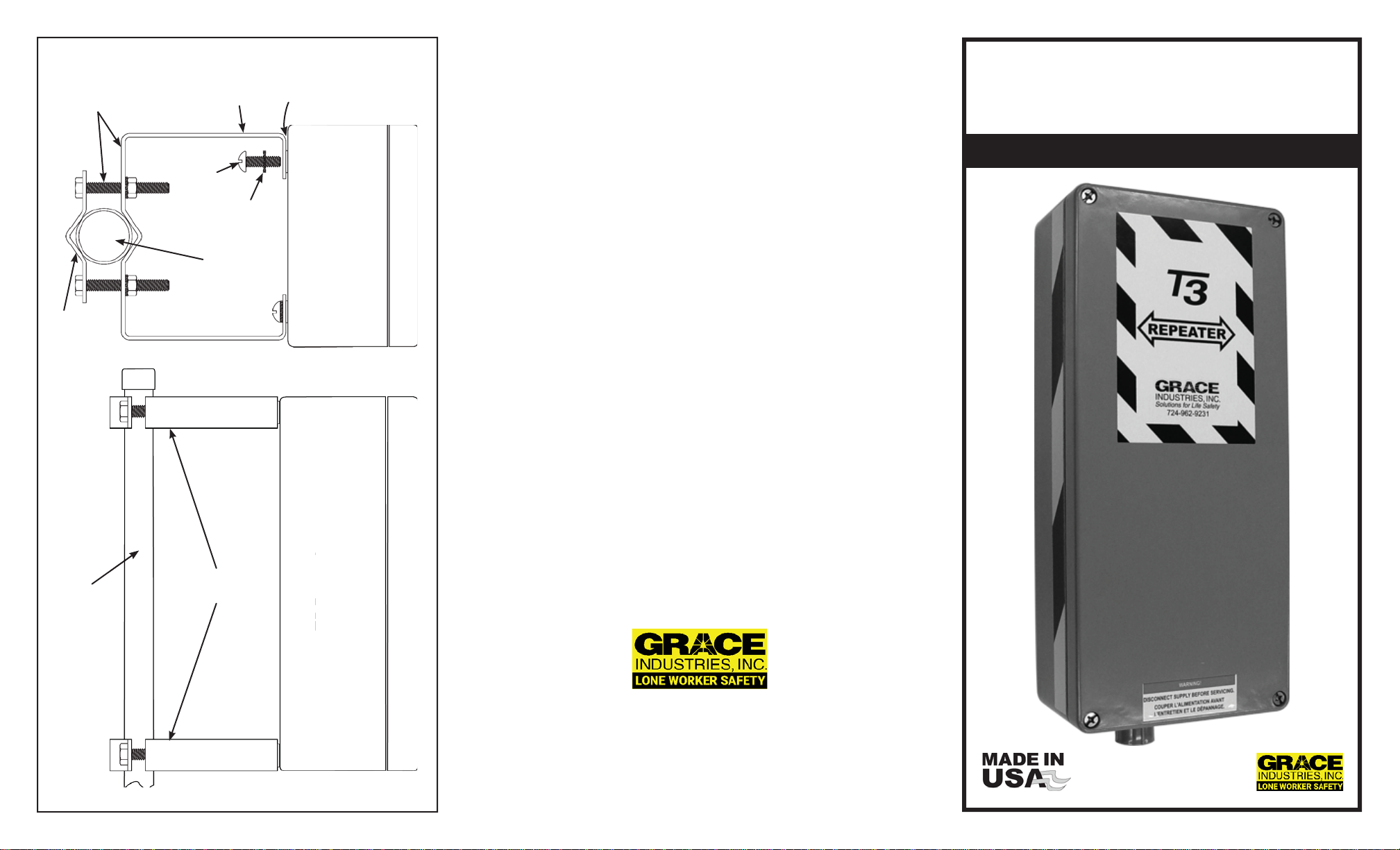

T3 Repeater Mounting Assembly
Pole
Non-Metallic
T3 Repeater
Side View
c
T3
R
ep
eater
Si
de
V
ie
w
Bolts and
Bracket Assembly
T3 Repeater
Top View
Flat WasherBracket
Toothed
Washer
Pole
Non-Metallic
Bolt
Bracket
Clamp
Bolts and
Bracket Assembly
Improper Installation May Degrade Performance
FCC Statements
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital de-
vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec-
tion against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Industry Canada Statements
This Class Adigital apparatus complies with Canadian ICES-003.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.(select the
class for your device)
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio ex-
empts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit
pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
GRACE One (1) Year WARRANTY
Grace Industries Incorporated, of Fredonia PA 16124 USA, warrants products that it manufactures to be free
from defects in workmanship and materials for a period of one (1) year from the original date purchase.
This warranty does not apply to third party products sold by Grace Industries. Grace Industries will repair
or replace, at their sole discretion, defective products free of charge. This warranty applies to products that
Grace Industries deems defective in its sole discretion due to defects in material or workmanship under nor-
mal use and maintenance and where a defect was not caused by accident, misuse or abuse of the product
and that no disassembly, repairs or parts replacement were made or attempted by other than Grace Indus-
tries’ personnel. GRACE INDUSTRIES, INCORPORATED SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL
OR CONSEQUENTIAL LOSS OR DAMAGE ARISING OUT OF THE USE OF THE PRODUCT OR FAILURE OF THE
PRODUCT TO OPERATE.
The sole and exclusive remedy under all guarantees or warranties, expressed or implied, is strictly limited
to repair or replacement as herein provided. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF FITNESS AND MERCHANTABILITY, ARE HEREBY LIMITED IN DURATION TO A PERIOD OF
ONE (1) YEAR FROM THE DATE OF ORIGINAL PURCHASE. The warranty and liability set forth here are in lieu
of all other warranties, expressed or implied, in law or in fact, including warranties of merchantability and
tness for a particular purpose.
Warranty claims process: 1) Obtain a Return Authorization Code or Number from Grace Industries corpo-
rate headquarters by calling phone number 724-962-9231, or by email correspondence to sales@gracein-
dustries.com. 2) The product name, serial number, date and proof of purchase must be provided and 3)
Return products including Return Authorization number, prepaid and accompanied by original proof of
purchase that states the date and location of purchase to: Grace Industries, Inc., Repair Department, 305
Bend Hill Road, Fredonia, PA 16124, USA. Customer is responsible for all shipping costs, return shipping
costs, handling, or any other fees associated with a warranty claim.
Grace Industries, Inc.
724-962-9231
305 Bend Hill Rd
Fredonia, PA 16124
[e-mail]

T3 Repeater T3 Repeater System
T3 Repeater is a system option designed
to enhance signal effectiveness in harsh
environments by retransmitting signals to
and from tough and hard to reach areas.
T3 Repeater retransmits signals from
the Base to the PASS (man-down
alarm) and from the PASS to the Base.
The T3 Repeater is omni-directional,
enclosed in an industrial grade case and
is permanently mounted. T3 Repeater
is powered by 85-264 VAC 50/60 Hz
Single Phase 1Amp, with a lead acid
battery backup system.
T3 Repeater Operation
Once the repeater has been prepared
for AC power, the unit may be plugged
in.AC power connector is a screw less
Terminal rated for solid or stranded
wire from 14-22AWG. Wire should be
stripped at a 1/2”. Wires should be
inserted by using a small screwdriver
to depress the lever and then inserting
the wire.
When the T3 Repeater is plugged
in to AC Power, the Red/Green AC
Power Indicator glows (or flashes)
Green - indicating the system has
AC Power and is ready for operation.
With loss of power, the Red/Green AC
Power Indicator glows (or flashes)
Red - indicating the Backup-Battery
System has been automatically
activated, keeping the Repeater ON
and ready for operation.
Power Indicator LED
• Green Steady Glow: AC Power and
battery is fully charged.
• Red Steady Glow: Running on battery
backup
• Red Flashing: Running on Low Battery.
• Red/Green Alternate Flashing: Battery
fault detected. Battery is either ex-
tremely discharged, open or shorted.
If fault occurs at power-up, the indi-
cators should clear in 4 - 6hrs. If fault
continues after 12Hrs Battery is failed
(Open or Shorted).
Transmit / Receive LED
• Red Flashing: when Repeater is
repeating a signal.
T3 Repeater Specifications
• Case: Rugged, industrial grade,
waterproof enclosure
• Case Dimensions: 6.25” Wide x 15”
High x 3.5” Deep
• Color: Medium gray
• Weight: 8.5 lbs (without cable and
mounting brackets)
• Power Requirements:
85-264 VAC 50/60 Hz
Single Phase 1Amp
• Complies with: UL 60950-1,
CSA C22.2 No. 60950-1
• Receiver Type: Frequency hopping
spread spectrum
• Operating Frequency: 902-928 MHz
• FCC ID: J5MXHEM -- Meets FCC
Part 15
• IC: 5916A-MXHEM -- Complies with
Canadian ICES-003
• Environmental Range: -40°C to +55°C
• Heated system option recommended
for environments below 32°F / 0°C
• Antenna: 1.7” Internal
• Compatible Equipment:
Grace telemetry products
• Dual Mounting Brackets for
recommended pole-mounting
• Cleaning / Decontamination: Units
contaminated by chemical or radioac-
tive materials must be disposed of or
decontaminated in accordance with
all applicable regulatory standards.
DO NOT mark or apply paint to T3
Repeater.
IMPORTANT:
Always test System for proper
operation before field use.
NOTE: T3 Repeater must be mounted
in an area where there is a clear,
unobstructed path to the environ-
ment where the PASS may be used
T3 Repeater
System Installation
Hardware for recommended pole mounting is
included with each T3 Repeater.
See next page for mounting instructions.
DO NOT Mount T3 Repeater against walls or metal
surfaces!
SMS, MX900, MS900,
MS2000 or other
Grace Telemetry
Bases
Non-Metallic Pole T PASS
120
VAC
Front View Inside View
Shown with Heater Option
Bottom View
This view shows Transmit Indicator
and Power Indicator
Transmit / Recieve LED
GREEN: Transmitting
RED: Receiving
MS2000 AC B LS
Power LED
GREEN: Running on AC Power
RED: Running on Battery
Complies with
UL 60950-1
CSA C22.2 No. 60950-1
E112722
Source Power
Information Label
