Graco 24K461 User manual

Instructions
CAN Adapter Kit
24K461 3A1974A
EN
For connecting a Discrete Gateway Module (DGM) or Communications Gateway Module (CGM) to
an HFR™ that does not have Graco tank stands or Graco heaters.
For professional use only.
Important Safety Instructions
Read all warnings and instructions in the HFR
Operation manual. Save these instructions.
PROVEN QUALITY. LEADING TECHNOLOGY.

Contents
Related Manuals ................................................ 2
Kit Overview....................................................... 2
Installation.......................................................... 3
Parts.................................................................. 5
Graco Standard Warranty.................................... 6
Related Manuals
The following manuals are available at
www.graco.com. Manuals listed are in English.
Manual No.Description
313997 HFR Operation
313998 HFR Repair
Kit Overview
This kit is used to connect a DGM or CGM to an
HFR that does not have Graco tank stands or Graco
heaters. This kit is not for HFR’s with ADM part
number 289701. This kit enables connection of the
CGM or DGM CAN cable to the DeviceNet CAN bus
inside the Power Distribution Box through use of a
CAN splitter and a protective bushing.
23A1974A

Installation
Installation
To prevent death or serious injury from electric shock
hazard, shutdown the system and disconnect main
power before installing kit.
1. Perform Shutdown procedure as described in the
system manual.
2. Disconnect main power so that no power is
coming into the power distribution box.
3. Remove one of the black caps from the electrical
box and a black cap from the DeviceNet bus bar.
4. Install the CAN splitter (Part No. 121807) into
the DeviceNet bus bar.
5. Bring the CAN cable from the CGM or DGM into
the power distribution box through the access
hole from step 3. Connect the CAN cable to the
splitter.
3A1974A 3

Installation
6. Install the supplied vinyl cap (Part No. 125738)
onto the free port of the splitter.
7. Install the supplied strain relief bushing in the
access hole.
8. Clamp the cable into the strain relief bushing.
NOTICE
To prevent damagetotheCANbus,whenlocking
theCANcablei
n place be sure to leave enough
slack to avoid torquing the splitter or CAN bus.
With the kit fully installed, the system will look
like this:
43A1974A

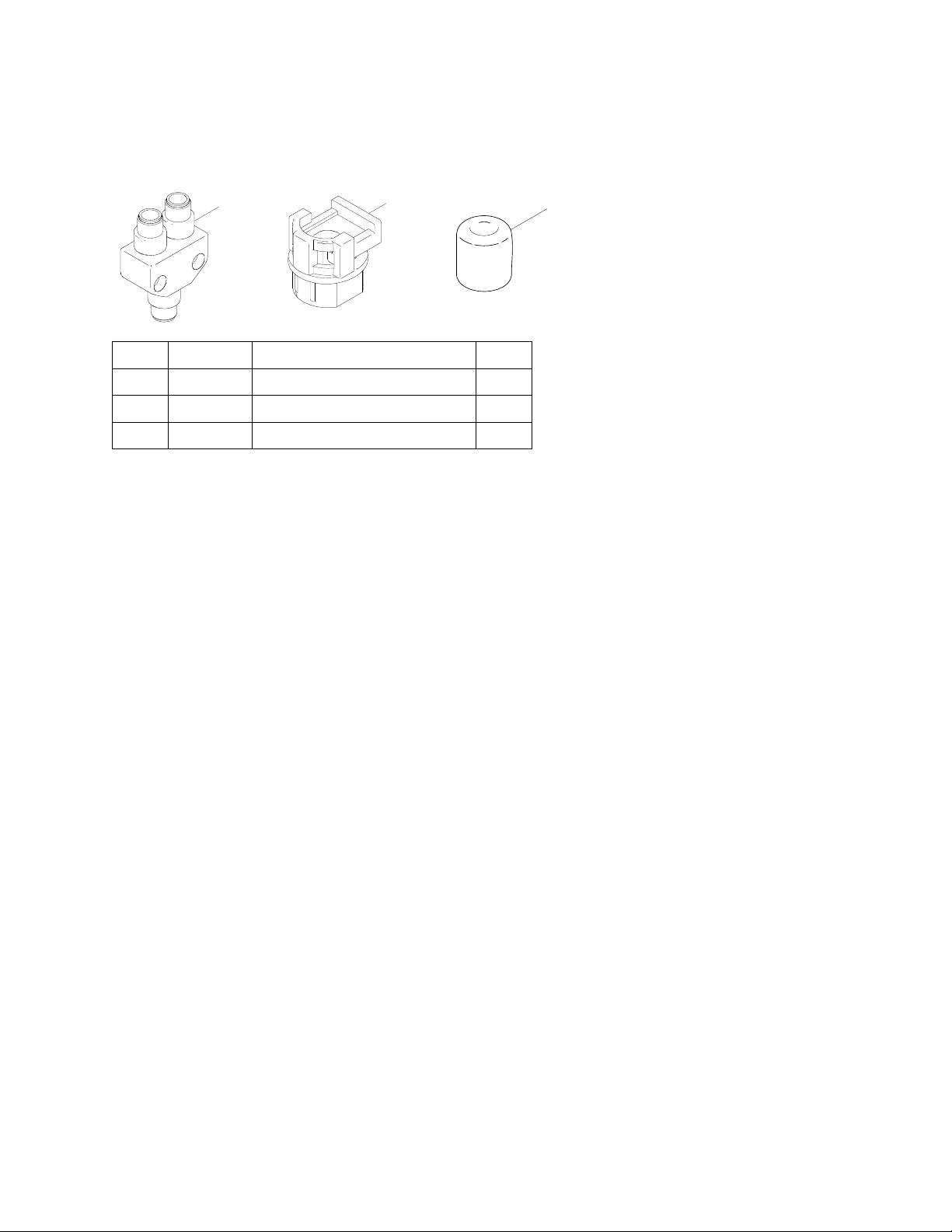

Parts
Parts
123
Ref Part Description Qty
1 121807 CONNECTOR, splitter 1
2 124005 BUSHING, strain relief 1
3 125738 CAP, rubber 1
3A1974A 5
