Graco T2 User manual

311882C
Instructions
T2
2:1 Ratio Transfer Pump
For use with polyurethane foam, polyurea, and similar non-flammable materials. Not for
use in explosive atmospheres.
Model 295616 (55-gallon drum)
180 psi (1.2 MPa, 12 bar) Maximum Air Working Pressure
405 psi (2.7 MPa, 27 bar) Maximum Fluid Working Pressure
Model 261058 (15-gallon drum)
180 psi (1.2 MPa, 12 bar) Maximum Air Working Pressure
405 psi (2.7 MPa, 27 bar) Maximum Fluid Working Pressure
This manual is available in the following languages.
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
311882 English
312524 French
312525 German
312526 Italian
312527 Russian
312528 Spanish
312529 Swedish
312530 Chinese
312531 Korean
312532 Japanese
ti9889a

Warnings
2311882C
Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Typical Installation . . . . . . . . . . . . . . . . . . . . . . . . . 4
Moisture Sensitivity of Isocyanates . . . . . . . . . . . . 7
Isocyanate Hazard . . . . . . . . . . . . . . . . . . . . . . . 7
Foam Self-Ignition . . . . . . . . . . . . . . . . . . . . . . . . 7
Keep Components A and B Separate . . . . . . . . . 7
Changing Materials . . . . . . . . . . . . . . . . . . . . . . . 7
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Grounding the System . . . . . . . . . . . . . . . . . . . . 9
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Pressure Relief Procedure . . . . . . . . . . . . . . . . 10
Flushing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Daily Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Daily Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . 10

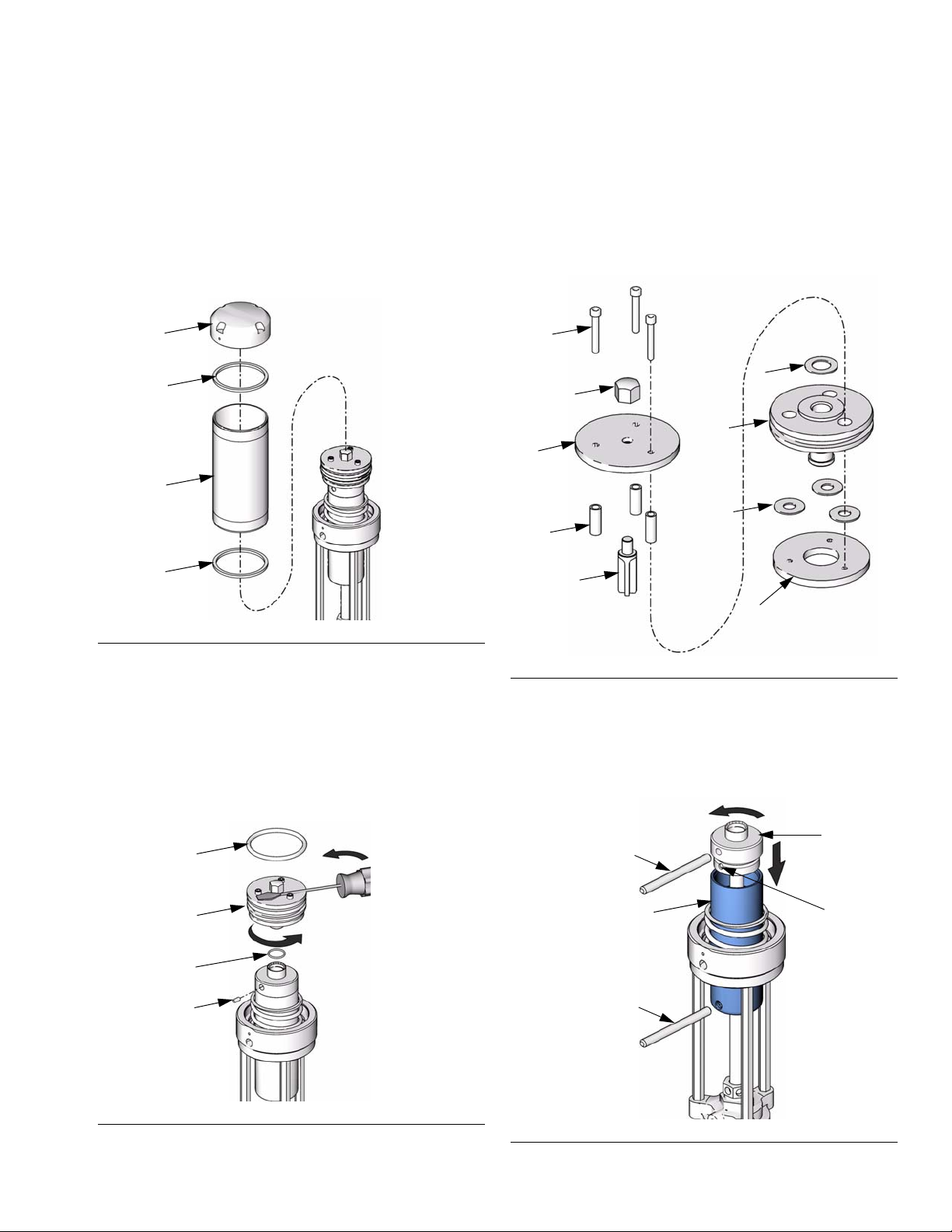

Air Motor Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Pump Lower Repair . . . . . . . . . . . . . . . . . . . . . . . . 12
Reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Parts - Model 295616 . . . . . . . . . . . . . . . . . . . . . . . 16
Parts - Model 261058 . . . . . . . . . . . . . . . . . . . . . . . 18
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Performance Chart . . . . . . . . . . . . . . . . . . . . . . 21
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 22
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 22
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama-
tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back
to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where
applicable.
WARNING
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read MSDS’s to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
• Always wear impervious gloves when spraying or cleaning equipment.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic
fumes, burns, and hearing loss. This equipment includes but is not limited to:
• Protective eyewear
• Clothing and respirator as recommended by the fluid and solvent manufacturer
•Gloves
• Hearing protection

Warnings
311882C 3
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request MSDS forms from distributor or retailer.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manu-
facturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
PRESSURIZED EQUIPMENT HAZARD
Fluid from the gun/dispense valve, leaks, or ruptured components can splash in the eyes or on skin and
cause serious injury.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.
MOVING PARTS HAZARD
Moving parts can pinch or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment,
follow the Pressure Relief Procedure in this manual. Disconnect power or air supply.
WARNING

Typical Installation
4311882C

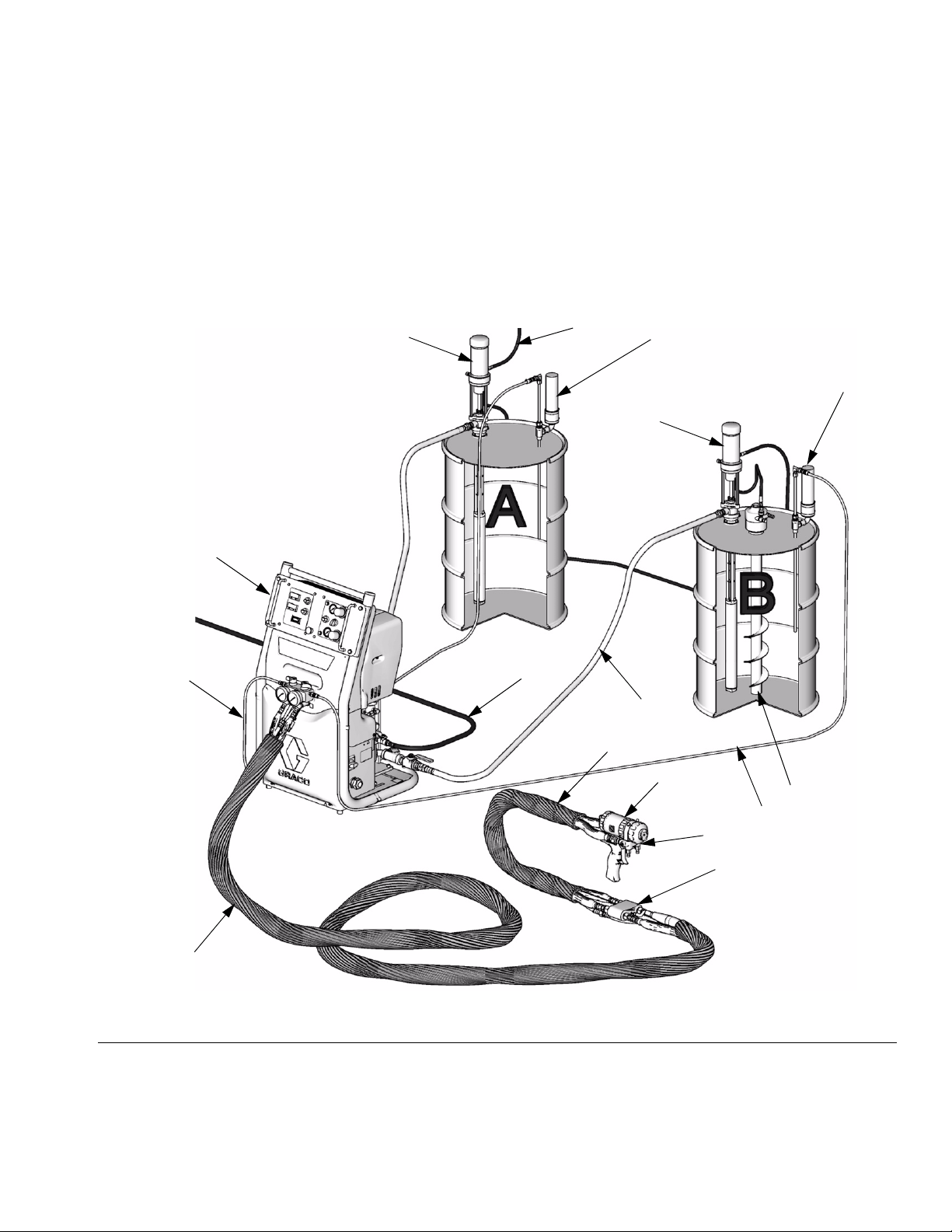

Typical Installation
Typical Installation, without Circulation
Key for FIG. 1
A Reactor Proportioner
BHeatedHose
C Fluid Temperature Sensor (FTS)
D Heated Whip Hose
E Fusion Spray Gun
F Proportioner and Gun Air Supply Hose
G Feed Pump Air Supply Lines (3/8 in. (76 mm) ID min.
H Waste Containers
J Fluid Supply Lines (217382)
K Feed Pumps
L Agitator
M Desiccant Dryer
N Bleed Lines/Over Pressure Relief
P Gun Fluid Manifold
FIG. 1: Typical Installation, without Circulation
A
B
C*
DE
K
L
M
F
P
N
* Shown exposed for clarity. Wrap with tape during operation.
K
H
J
G
ti8489a

Typical Installation
311882C 5
Typical Installation, with Circulation
Key for FIG. 2
A Reactor Proportioner
B Heated Hose
C Fluid Temperature Sensor (FTS)
D Heated Whip Hose
E Fusion Spray Gun
F Proportioner and Gun Air Supply Hose
G Feed Pump Air Supply Lines (3/8 in. (76 mm) ID min)
J Fluid Supply Lines
K Feed Pumps
L Agitator
M Desiccant Dryer
N Recirculation/Over Pressure Relief Return Hoses
P Gun Fluid Manifold
FIG. 2: Typical Installation, with Circulation
A
B
C*
D
E
K
L
M
F
N
P
* Shown exposed for clarity. Wrap with tape during operation.
J
N
K
M
G
ti8488a

Typical Installation
6311882C

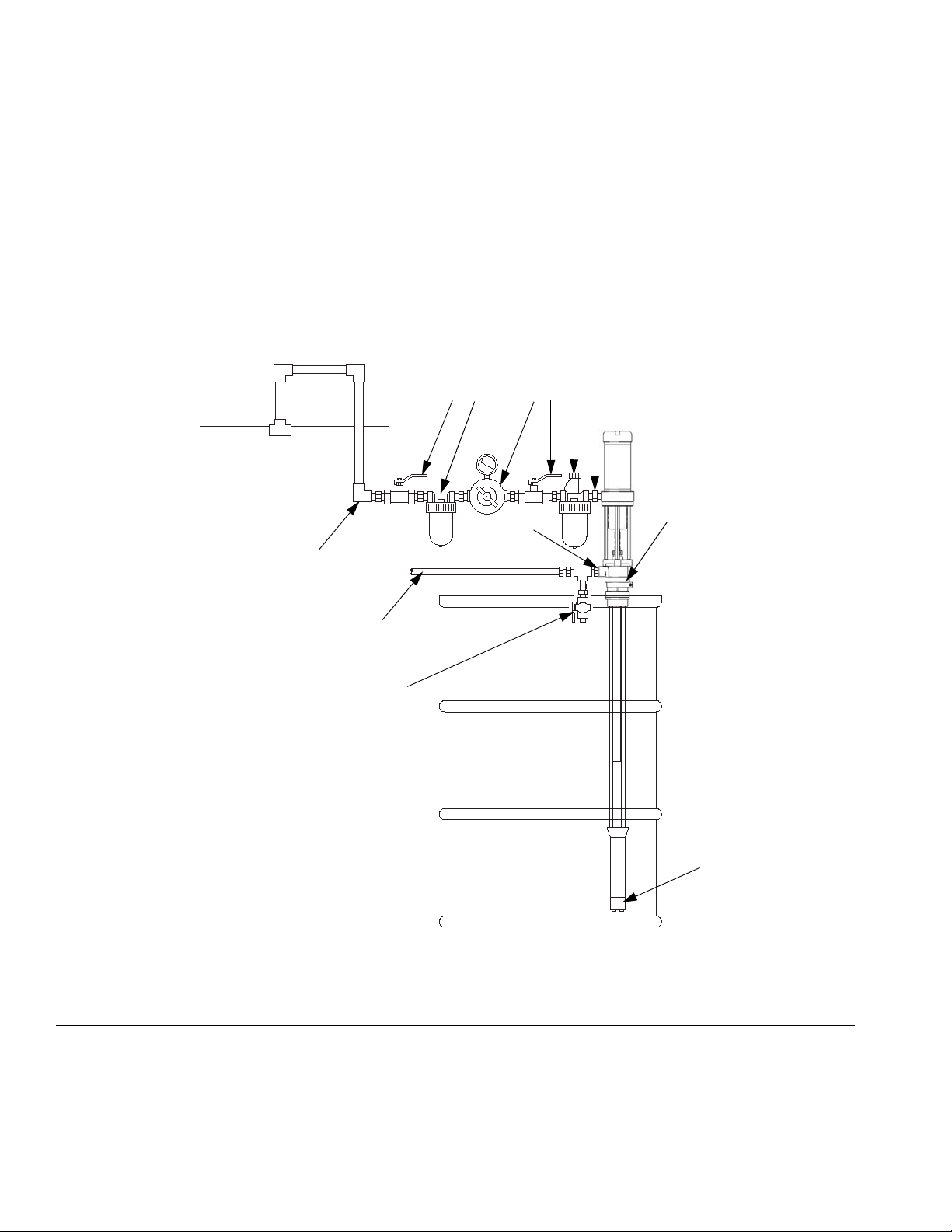

Typical Installation for Lubrication Applications
Key for FIG. 3
A Pump Air Regulator
B Air Line Lubricator
C Air Line Filter
D Bleed-Type Master Air Valve (required, for pump)
E Fluid Drain Valve (required)
F Bung Adapter
G Grounded Air Hose
H Grounded Fluid Hose
J Pump Fluid Inlet
K 1/4 npt(f) Pump Air Inlet
L 1/2 npt(f) Pump Fluid Outlet
FIG. 3: Typical Installation for Lubrication Applications
AB C D
E
F
H
J
J
K
L
G
01349
D

Moisture Sensitivity of Isocyanates
311882C 7
Moisture Sensitivity of
Isocyanates
Isocyanates (ISO) are catalysts used in two component
foam and polyurea coatings. ISO will react with moisture
(such as humidity) to form small, hard, abrasive crystals,
which become suspended in the fluid. Eventually a film
will form on the surface and the ISO will begin to gel,
increasing in viscosity. If used, this partially cured ISO
will reduce performance and the life of all wetted parts.
To prevent exposing ISO to moisture:
• Always use a sealed container with a desiccant
dryer in the vent, or a nitrogen atmosphere. Never
store ISO in an open container.
• Use moisture-proof hoses specifically designed for
ISO, such as those supplied with your system.
• Never use reclaimed solvents, which may contain
moisture. Always keep solvent containers closed
when not in use.
• Never use solvent on one side if it has been
contaminated from the other side.
• Always lubricate threaded parts with Part 217374
ISO pump oil or grease when reassembling.
Isocyanate Hazard
Foam Self-Ignition
Keep Components A and B
Separate
Changing Materials
• When changing materials, flush the equipment
multiple times to ensure it is thoroughly clean.
• Check with your material manufacturer for chemical
compatibility.
• Some materials use catalyst on the A side, but
some applications may use catalyst on the B side.
• Epoxies often have amines on the B (catalyst) side.
Polyurethanes often have amines on the B (resin)
side.
The amount of film formation and rate of
crystallization varies depending on the blend of
ISO, the humidity, and the temperature.
Read material manufacturer’s warnings and material
MSDS to know the specific hazards of isocyanates.
Use equipment in a well-ventilated area. Wear
respirator, gloves, and protective clothing when using
isocyanates.
Some materials may become self-igniting if applied
too thick. Read material manufacturer’s warnings and
material MSDS.
CAUTION
To prevent cross-contamination of the equipment’s
wetted parts, never interchange component A and
component B.

Setup
8311882C
Setup
1. Apply thread sealant to the male threads of the air
needle valve (48) and the quick disconnect fitting
(49) and install. See FIG. 4
2. Apply thread sealant to the male outlet fitting (not
supplied) and insert into the outlet port. See FIG. 5.
3. Use labels (70) provided to identify the appropriate
pump for your material. See FIG. 5 and FIG. 6. When
applying component labels (70) to pump cap (1)
make sure you do not cover the hole in the cap.
4. Lubricate the bung adapter inside diameter and
mounting threads. Ensure the gasket is in place and
screw the bung adapter (51) securely into the bung-
hole of the drum. Insert the pump through the
adapter and lock it in place. See FIG. 7.
FIG. 4
FIG. 5
48 49
1
Apply thread sealant
1
1
ti9968a
Apply thread sealant
1
1
1
Hole (do not obstruct
with Component label
ti9969a
FIG. 6
FIG. 7
Hole (do not obstruct
with Component label)
51
Lubricate threads
2
2
ti9967a

Setup
311882C 9
5. Install air line (3/8 in. (76 mm) ID minimum) with
quick disconnect air coupler (52) provided. See FIG.
8.
Grounding the System
To reduce the risk of static sparking, ground the pump
and all other equipment used or located in the pumping
area. Check your local electrical code for detailed
grounding instructions for your area and type of
equipment. Ground all of this equipment.
1. Pump: Connect Ground Wire (Y) to grounding screw
(72) and tighten the screw securely. See FIG. 9.
Connect the other end of the wire to a true earth
ground. Make certain to comply with all National,
State, and Local Electrical Codes.
2. Air compressor: according to manufacturer’s recom-
mendations.
3. Fluid hoses: use only grounded hoses with a maxi-
mum of 300 ft (91 m) combined hose length to
ensure grounding continuity. Refer to Hose Ground-
ing Continuity.
4. Dispensing valve: grounding is obtained through
connection to a properly grounded fluid hose and
pump.
5. Object being sprayed: according to local code.
6. Fluid supply container: according to local code.
7. All solvent pails used when flushing, according to
local code. Use only metal pails, which are conduc-
tive. Do not place the pail on a non–conductive sur-
face, such as paper or cardboard, which interrupts
the grounding continuity.
8. To maintain grounding continuity when flushing or
relieving pressure, always hold a metal part of the
spray gun/dispensing valve firmly to the side of a
grounded metal pail, then trigger the gun/valve.
FIG. 8
FIG. 9
52
ti9970
Y
72
ti9970

Operation
10 311882C
Operation
Pressure Relief Procedure
1. Engage trigger lock.
2. Close the bleed-type master air valve.
3. Disengage the trigger lock.
4. Hold a metal part of the dispense valve firmly to a
grounded metal pail. Trigger the valve to relieve
pressure.
5. Engage the trigger lock.
6. Open all fluid drain valves in the system, having a
waste container ready to catch drainage. Leave
drain valve(s) open until you are ready to dispense
again.
7. If you suspect the nozzle or hose is clogged or that
pressure has not been fully relieved after following
the steps above, VERY SLOWLY loosen the hose
end coupling to relieve pressure gradually, then
loosen completely. Clear hose or nozzle obstruction.
Flushing
1. Follow Pressure Relief Procedure, page 10.
2. Place suction tube in grounded metal drum contain-
ing cleaning fluid.
3. Set pump to lowest possible fluid pressure, and start
pump.
4. Hold a metal part of the dispense valve firmly to a
grounded metal pail. Trigger the dispense valve until
clean solvent dispenses.
5. Remove valve from hose.
6. Follow Pressure Relief Procedure, and remove
fluid filter and soak in solvent. Replace filter cap.
Daily Startup
1. Verify that the air needle valve is closed.
2. Connect the air line quick disconnect coupler to the
transfer pump
3. Turn on the main air supply.
4. Slowly open the air needle valve until the transfer
pump runs slowly.
5. Use the air needle valve to control the pump speed.
Daily Shutdown
1. Disconnect air line coupler.
2. When air pressure is bled off, close the air line nee-
dle valve.
Trapped air can cause the pump to cycle unexpectedly,
which could result in serious injury from splashing or
moving parts.
Trapped air can cause the pump to cycle unexpectedly,
which could result in serious injury from splashing or
moving parts.
• Flush at the lowest pressure possible. Check
connectors for leaks and tighten as necessary.
• Flush with a fluid that is compatible with the
fluid being dispensed and the equipment wetted
parts.
Caution
Never allow the pump to run dry of the fluid being
pumped. A dry pump will quickly accelerate to a high
speed and could cause personal injury and/or dam-
age to the pump. If the pump accelerates quickly or
starts running too fast, stop it immediately and check
the fluid supply. If the supply container is empty or air
has been pumped into the lines, refill the container
and prime the pump and the lines with fluid, or flush
and leave it filled with a compatible solvent. Be sure to
eliminate all air from the fluid system.
Do not attempt to operate pump unless it is securely
mounted in a drum.

Air Motor Repair
311882C 11
Air Motor Repair
1. Remove cap (1), cylinder (4), and square gaskets
(3*). Inspect all parts, including spring under cap
(not shown in FIG. 10) for damage and replace if
necessary. See FIG. 10. Unscrew by hand or use a
chain wrench to prevent distortion of the cylinder’s
shape.
2. Loosen set screw (18) and unscrew air piston head
(5). If necessary to assist turning, wedge a screw-
driver blade between the screw heads (16) and the
hex cap (9). Inspect o-rings (13* and 15*) for dam-
age and replace if necessary. During reassembly,
do not add thread lock paste to the piston head.
Ensure o-ring (13*) is correctly positioned and not
pinched. See FIG. 11.
3. Remove 3 screws (16) from top of air piston.
Remove valve disk (8) and spacers (11). Remove
washer (6*) from valve disk. Inspect all parts for
damage. During reassembly, ensure spacers (11)
do not pinch gaskets (10). See FIG. 12.
4. Place pin tool (69) in piston hole to prevent piston
from turning. Use second pin tool (69) to unscrew
piston cap (17) and separate from piston (21) to
expose dowel pin (19). See FIG. 13.
FIG. 10
FIG. 11
ti9896
1
*3
*3
4
5
18
*13
*15
ti9897
FIG. 12
FIG. 13
16
8
11
7
9
*6
*10
14
5
ti9898
ti9899
21
69
69
19
17

Pump Lower Repair
12 311882C
5. Remove dowel pin (19) and take piston cap (17) off
transfer shaft (20). Remove o-ring (50*) from piston
cap. Inspect all parts for damage. See FIG. 14.
6. Slide air piston (21) out the top of the air motor base
(23). Remove o-ring (24*) from air motor base.
Inspect all parts, including the spring (22) in the air
motor base, for damage. See FIG. 15.
Pump Lower Repair
1. Use a chain wrench near the top of the suction tube
at the point indicated in FIG. 16, and a wrench on
the flats of the foot valve (45) to loosen the foot
valve from the suction tube (44). To prevent damage
to the suction tube, do not remove the foot valve
until instructed to do so in step 3.
FIG. 14
FIG. 15
ti9900
19 *50
17
20
21
22
23
*24
ti9901
FIG. 16
When removing the suction tube, be very careful
not to bend, dent, or damage it. To avoid damage,
use the chain wrench only at the top and bottom of
the suction tube as indicated in FIG. 16 and FIG. 17.
Do not apply the wrench to the middle of the suc-
tion tube.
FIG. 17
44
Apply chain wrench
approximately here
ti9903
46
47
71
*38
45
Apply chain wrench
approximately here
44
ti9976a

Pump Lower Repair
311882C 13
2. With the foot valve still in place to support the suc-
tion tube, use a chain wrench near the bottom of the
suction tube at the point indicated in FIG. 17, to
loosen the suction tube (44) from the pump body
(34).
3. Remove the foot valve assembly from the suction
tube (44).
4. Remove retaining ring (46), snap ring (47), ball (71),
and o-ring (38*) from foot valve (45). Inspect all
parts for damage. See FIG. 17.
5. Remove suction tube (44) from pump body (34).
See FIG. 18.
6. Inspect o-ring (38) on pump body and suction tube
for damage. See FIG. 18.
7. Pull transfer shaft (20) out the bottom of pump body
(34). See FIG. 19.
8. Remove spring pin (56). Remove piston valve
assembly. Unscrew piston valve (43) from piston
housing (53). Remove wear ring (41*), u-cup (40*)
and ball (42). Inspect all parts for damage. See FIG.
20.
FIG. 18
44
ti9976
38
34
Apply chain wrench
approximately here
FIG. 19
FIG. 20
ti9905
20
34
ti9904
56
*40
*41
42
43
53
Lip up

Pump Lower Repair
14 311882C
9. Remove spring pin (55) and slide upper fluid piston
assembly down and off the transfer shaft (20). See
FIG. 21.
10. Loosen set screw (37) from collar (36). Remove col-
lar from piston housing (54). Remove u-cup (35*).
Remove o-ring (57) from ID of piston housing.
Inspect all parts for damage. See FIG. 22.
11. Unscrew mounting flange (26) from pump body (34).
Remove o-ring (32*) and PTFE gasket (33*) from
pump body (34). Inspect all parts for damage. See
FIG. 23.
12. Remove hex nut (27) from mounting flange (26).
Remove female gland (30*), 2 PTFE packings (29*),
male gland (28*) and wiper (31*). Inspect all parts
for damage. See FIG. 24.
FIG. 21
FIG. 22
55
54
20
ti9906
36
35
37
36
*35
54
57
ti9907
Lip down
FIG. 23
FIG. 24
ti9966
26
*33
*32
34
ti9902
27
*30
*29
*28
*31
26
ti10400
Seal stack enlarged
to show detail.

Reassembly
311882C 15
Reassembly
To reassemble the pump lower and air motor, reverse
the steps on the preceding pages. Follow the torque
requirements listed in the Parts - Model 295616 draw-
ing on page 16.
Troubleshooting
See Air Motor Repair, step 2 and step 3 (FIG. 11
and FIG. 12) for special notes on reassembly.
Problem Cause Solution
The pump fails to operate Dirty or worn air motor. Clean, service
Inadequate air supply or restricted
lines.
Clean lines or increase the air supply
(see Technical Data).
Closed or clogged air valves. Open or clear the valves.
Clogged fluid hose or valve. Clear the hose or valves
Worn or damaged valves or seals. Service the valves or seals.
The pump operates, but the output is
low on both strokes.
Clogged fluid hose or valve. Clear the hose or valves.
Exhausted fluid supply. Refill the fluid supply and reprime the
pump.
Worn or damaged valves or seals. Service the valves or seals.
The pump operates, but the output is
low on the downstroke.
Held open or worn intake valve. Clear or service the valve.
Worn or damaged valves or seals. Service the valves or seals.
The pump operates, but the output is
low on the upstroke.
Held open or worn piston valve. Clear or service the valve.
Worn or damaged valves or seals. Service the valves or seals.
Erratic or accelerated operation. Exhausted fluid supply. Refill the fluid supply and reprime the
pump.
Broken air motor compression spring. Replace the spring.
Pump slowly moves after fluid shutoff
in downstroke.
Clogged or dirty intake valve check
ball.
Clean ball and seat.
Worn or damaged valves or seats. Install repair kit.
Pump slowly moves after fluid shutoff
in upstroke.
Clogged or dirty lower piston ball or
seat.
Clean ball and seat.
Worn or damaged valves or seats. Install repair kit.

Parts - Model 295616
16 311882C
Parts - Model 295616
‡7
‡8
‡9
◆16
*3
4
2
*3
1
18
*13
◆14
*◆10
◆5
◆
*15
19
◆11
*◆6
17
20
*50
*32
*28
*29
*30
27
25
*24
23
22
21
*33
60
53
✓56
37
✓57
✓55
✓35
36
39
34
42
43
44
46
47
71
✓38
45
✓41
✓40
54
✓38
31*
26
ti9890A
ti9973
72
51b
51c
51d
51e
51f
51g
✓51a
51
Bung Adapter
Lubricate all o-rings and seals before and after assembly
Torque to 45-55 ft-lbs (61-74.5 N•m)
Torque to 30-40 ft-lbs (40.6-54.2 N•m)
Torque to 15-20 ft-lbs (20.3-27.1 N•m)
Torque to 10-12 ft-lbs (13.5-16.3 N•m)
Torque to 110-120 ft-lbs (149.1-162.7 N•m)
Torque to 20-30 ft-lbs (27.1-40.7 N•m)
Torque to 50-60 ft-lbs (67.8-813 N•m)
Tighten 1/8 to 1/4 turn past finger-tight
1
2
3
4
5
6
7
8
9
2
3
4
5
6
7
8
9
5
6
4
4
8
7
6
44
7

Parts - Model 295616
311882C 17
Ref Part Description Qty
1 15J536 CAP, air cylinder 1
2 157630 SPRING, tapered 1
3* PACKING, square 2
4 15J537 CYLINDER, air motor 1
5◆15J538 HEAD, air piston 1
6*◆GASKET, upper 1
7‡15J540 GUIDE, valve 1
8‡15J541 DISK, valve 1
9‡15J542 CAP, valve guide 1
10*◆GASKET, lower 3
11◆15J544 SPACER, disk 3
13* O-RING 1
14◆15J546 DISK, air piston 1
15*◆O-RING 1
16◆188005 SCREW, cap, socket head,
10-32 x 1 3/8 in. (35mm)
3
17 15J547 CAP, air piston 1
18 102387 SCREW, set, socket head,
10-32 x 3/8 in. (10 mm)
1
19 15J548 PIN, dowel 1
20 15J549 SHAFT, transfer 1
21 288338 PISTON, air 1
22 15J551 SPRING, compression 1
23 15J552 BASE, air motor 1
24* O-RING 1
25 15J553 ROD, tie 3
26 15J554 FLANGE, mounting 1
27 15J555 NUT, hex 1
28* GLAND, packing, (male) 1
29* V-PACKING, PTFE 2
30* GLAND, packing, (female) 1
31* WIPER, ROD 1
32* O-RING, PTFE, encapsulated 1
33* GASKET, PTFE 1
34 288339 BODY, pump, 2:1 1
35✓PACKING, piston cup 1
36 15J563 COLLAR, retaining 1
37 101194 SCREW, set, socket head,
10-32 x .25 in. (6 mm)
1
38✓O-RING 2
39 15J564 CYLINDER, pressure pump 1
40✓PACKING, u-cup, PTFE 1
41✓RING, wear 1
42 103462 BALL, outlet, sst, 3/4 in. (19 mm) 1
43 15J567 VALVE, piston 1
44 15J568 TUBE, suction 1
45 15J569 VALVE 1
46 120734 RING, retaining, internal 1
47 120735 RING, snap, e series 1
48† 206264 VALVE, needle 1
49† 169969 FITTING, air line 1
50* O-RING 1
51 253146 ADAPTER, bung
(includes 51a-51g)
1
51a✓120998 O-RING, fluoroelastomer 1
51b 15H196 ADAPTER 1
51c 110420 SCREW, cap socket head 1
51d 116876 WASHER, flat 1
51e 15B924 CLAMP, hopper 1
51f 15B925 HANDLE, hopper clamp 1
51g 15B926 PIN, pivot, hopper clamp 1
51h✓†120207 O-RING 1
52† 114558 COUPLER, air line 1
53 15J570 HOUSING, piston 1
54 15J571 PISTON, upper 1
55✓PIN, spring, 3/16 x 3/4 1
56✓PIN, spring, 3/16 x 1 1/4 1
57✓O-RING 1
60 120348 SCREW, cap, socket head
1/4-20 x 1 in. (25 mm)
3
69† 15H197 TOOL, spanner wrench 2
70† 15K008 LABEL, material identification. 1
71 107167 BALL, intake, sst, 1 in. (25 mm) 1
72 116343 SCREW, ground 1
* Parts included in Upper Seal Repair Kit 247882 (not
sold separately).
✓Parts included in Lower Seal Repair Kit 247883.
NOTE: Seal Repair Kit 258003 includes all parts in kit
247882 and kit 247883.
‡ Parts included in repair kit 261053
◆Parts included in repair kit 261056
† Indicates parts not shown, 48, 49, 51h, 52, 69, 70
(shipped loose)
Ref Part Description Qty

Parts - Model 261058
18 311882C
Parts - Model 261058
‡7
‡8
‡9
◆16
*3
4
2
*3
1
18
*13
◆14
*◆10
◆5
19
◆11
17
★20
*50
*32
*28
*29
*30
27
25
*24
23
22
21
*33
60
★53
✓★56
37
✓★57
✓★55
✓35
36
39
34
42
43
44
46
47
71
✓38
45
✓41
54★
✓38
31*
26
ti9890B
ti9973
72
51b
51c
51d
51e
51f
51g
✓51a
51
Bung Adapter
Lubricate all o-rings and seals before and after assembly
Torque to 45-55 ft-lbs (61-74.5 N•m)
Torque to 30-40 ft-lbs (40.6-54.2 N•m)
Torque to 15-20 ft-lbs (20.3-27.1 N•m)
Torque to 10-12 ft-lbs (13.5-16.3 N•m)
Torque to 110-120 ft-lbs (149.1-162.7 N•m)
Torque to 20-30 ft-lbs (27.1-40.7 N•m)
Torque to 50-60 ft-lbs (67.8-813 N•m)
Tighten 1/8 to 1/4 turn past finger-tight
1
2
3
4
5
6
7
8
9
2
3
4
5
6
7
8
9
5
6
4
4
8
7
6
44
7
*◆15
*◆6
✓40

Parts - Model 261058
311882C 19
Ref Part Description Qty
1 15J536 CAP, air cylinder 1
2 157630 SPRING, tapered 1
3* PACKING, square 2
4 15J537 CYLINDER, air motor 1
5◆15J538 HEAD, air piston 1
6*◆GASKET, upper 1
7‡15J540 GUIDE, valve 1
8‡15J541 DISK, valve 1
9‡15J542 CAP, valve guide 1
10*◆GASKET, lower 3
11◆15J544 SPACER, disk 3
13* O-RING 1
14◆15J546 DISK, air piston 1
15*◆O-RING 1
16◆188005 SCREW, cap, socket head,
10-32 x 1 3/8 in. (35mm)
3
17 15J547 CAP, air piston 1
18 102387 SCREW, set, socket head,
10-32 x 3/8 in. (10 mm)
1
19 15J548 PIN, dowel 1
20★260917 SHAFT, transfer 1
21 288338 PISTON, air 1
22 15J551 SPRING, compression 1
23 15J552 BASE, air motor 1
24* O-RING 1
25 15J553 ROD, tie 3
26 15J554 FLANGE, mounting 1
27 15J555 NUT, hex 1
28* GLAND, packing, (male) 1
29* V-PACKING, PTFE 2
30* GLAND, packing, (female) 1
31* WIPER, ROD 1
32* O-RING, PTFE, encapsulated 1
33* GASKET, PTFE 1
34 260865 BODY, pump, 2:1 1
35✓PACKING, piston cup 1
36 15J563 COLLAR, retaining 1
37 101194 SCREW, set, socket head,
10-32 x .25 in. (6 mm)
1
38✓O-RING 2
39 15J564 CYLINDER, pressure pump 1
40✓PACKING, u-cup, PTFE 1
41✓RING, wear 1
42 103462 BALL, outlet, sst, 3/4 in. (19 mm) 1
43 15J567 VALVE, piston 1
44 15J568 TUBE, suction 1
45 15J569 VALVE 1
46 120734 RING, retaining, internal 1
47 120735 RING, snap, e series 1
48† 206264 VALVE, needle 1
49† 169969 FITTING, air line 1
50* O-RING 1
51 253146 ADAPTER, bung
(includes 51a-51g)
1
51a✓120998 O-RING, fluoroelastomer 1
51b 15H196 ADAPTER 1
51c 110420 SCREW, cap socket head 1
51d 116876 WASHER, flat 1
51e 15B924 CLAMP, hopper 1
51f 15B925 HANDLE, hopper clamp 1
51g 15B926 PIN, pivot, hopper clamp 1
51h†✓120207 O-RING
52† 114558 COUPLER, air line 1
53★15J570 HOUSING, piston 1
54★15J571 PISTON, upper 1
55✓★ PIN, spring, 3/16 x 3/4 1
56✓★ PIN, spring, 3/16 x 1 1/4 1
57✓★ O-RING 1
60 120348 SCREW, cap, socket head
1/4-20 x 1 in. (25 mm)
3
69† 15H197 TOOL, spanner wrench 2
70† 15K008 LABEL, material identification. 1
71 107167 BALL, intake, sst, 1 in. (25 mm) 1
72 116343 SCREW, ground 1
* Parts included in Upper Seal Repair Kit 247882
(not sold separately).
✓Parts included in Lower Seal Repair Kit 247883.
Note: Seal Repair Kit 258003 includes all parts in kit
247882 and kit 247883.
‡ Parts included in repair kit 261053
◆Parts included in repair kit 261056
★Parts included in repair kit 260754
† Indicates parts not shown, 48, 49, 51h, 52, 69, 70
(shipped loose)
Ref Part Description Qty

Technical Data
20 311882C
Technical Data
Dimensions
Pressure Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.25:1
Max fluid working pressure . . . . . . . . . . . . . . . . . . . . . . . 405 psi (2.8 MPa, 28 bar)
Maximum Air inlet pressure . . . . . . . . . . . . . . . . . . . . . . . 180 psi (1.2 MPa, 12 bar)
Max Output Flow (continuous) . . . . . . . . . . . . . . . . . . . . . 5.0 GPM (20 lpm)
Max Output Flow (intermittent . . . . . . . . . . . . . . . . . . . . . 7.5 GPM (28 lpm)
Pump cycles per 1 gallon (3.8 liters) . . . . . . . . . . . . . . . . 15.9
Maximum recommended pump speed for continuous
operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
100 cycles per min (150 cycles per min intermittent)
Gallons (liters) per pump cycle. . . . . . . . . . . . . . . . . . . . . 0.063 (.24)
Air consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See performance chart
Maximum Ambient temperature . . . . . . . . . . . . . . . . . . . . 120° F (50° C)
Maximum Fluid Temperature . . . . . . . . . . . . . . . . . . . . . . 190° F (88° C)
Maximum operating temperature of fluid pump . . . . . . . . 480° F (248° C) for non-hazardous location applications
only (runaway)
Maximum operating temperature of air motor . . . . . . . . . 280° F (138° C) for non-hazardous location applications
only (runaway)
Wetted parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Stainless Steel, PTFE
Air Inlet Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4 npt(f)
Fluid Outlet Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/4 npt(f)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21.0 lb (9.5 kg)
Sound Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88.7 dB(A) at 80 psi (.55 MPa, 5.5 bar)
Sound Power, per ISO 9614-2 . . . . . . . . . . . . . . . . . . . . . 96.8 dB(A) at 80 psi (.55 MPa, 5.5 bar)
3/4 npt outlet
54 in. (137.2 cm)
(Model 295616)
33.7 in. (85.6 cm)
(Model 295616)
1/4 npt inlet
46 in. (116.8 cm)
(Model 261058)
25.7 in. (65.3 cm)
(Model 261058)
ti9889a
