Graham Field JB0112-090 User manual

Neb-u-Lite® EV2
Nebulizer Compressor
Item JB0112-090
User Manual
Read this manual before operating the nebulizer.
Save this manual for future reference.
Federal Law (USA) restricts this device to sale by or
on the order of a physician. This device should not
be used unless the operator has been instructed by a
qualied healthcare professional.
JB0112-090-INS-LAB-RevA18

JB0112-090-INS-LAB-RevA18 2
CONTENTS
INTRODUCTION ............................................................................................. 3
INTENDED USE ........................................................................................ 3
IMPORTANT SAFETY PRECAUTIONS ...........................................................4
PRODUCT DESCRIPTION...............................................................................7
FEATURES AND COMPONENTS ............................................................. 7
SETUP..............................................................................................................8
OPERATION...................................................................................................10
NEBULIZER OPERATION.......................................................................10
SAFETY OVERLOAD ..............................................................................11
MAINTENANCE.............................................................................................12
CLEANING THE COMPRESSOR’S OUTER CASE...................................12
CLEANING THE NEBULIZER CUP..........................................................12
REPLACING THE FILTER ........................................................................13
STORAGE................................................................................................13
TROUBLESHOOTING....................................................................................14
SPECIFICATIONS ..........................................................................................15
LIMITED WARRANTY....................................................................................16
COMPRESOR DE NEBULIZADOR MANUAL DE USUARIO EN ESPAÑOL .....19

JB0112-090-INS-LAB-RevA18 3
INTRODUCTION
is user manual contains important information and safety
precautions for the John Bunn Neb-u-Lite EV2 Nebulizer
Compressor.
Before using your Nebulizer Compressor, please read and understand
this entire user manual. Take special note of all safety precautions
marked DANGER and WARNING. Save this user manual for future
reference.
Intended Use
e Neb-u-Lite EV2 Nebulizer Compressor System is designed to
provide a source of compressed air for aerosol therapy. It is used in
conjunction with a jet (pneumatic) nebulizer to produce medicated
aerosols for inhalation by patients with respiratory symptoms.
Indications for therapy include asthma, chronic bronchitis, infection
of the upper respiratory tract, chronic obstructive pulmonary disease,
and other respiratory disorders in accordance with a physician’s
prescription. Do not use this product for any other purpose than the
preceding. is device can be used with pediatric or adult patients
under physician’s prescription.
WARNING: This product contains small parts that may
present a choking hazard to small children, and the
tubing may present a strangulation hazard. Always use
close supervision when this device is used by or near
children or those who require close supervision.
WARNING: Children under the age of 3, or any patient
who is unable to use a mouthpiece properly under
supervision, should use a mask.

JB0112-090-INS-LAB-RevA18 4
IMPORTANT SAFETY PRECAUTIONS
When using electrical products, especially when children are
present, always follow basic safety precautions, including the
following:
DANGER: Indicates a potential hazard situation or unsafe
practice that, if not avoided, will result in death or serious
personal injury.
WARNING: Indicates a potential hazard situation or
unsafe practice that, if not avoided, could result in death
or serious personal injury.
CAUTION: Indicates a potential hazard or unsafe practice
that, if not avoided, could result in minor or moderate
personal injury.
sNOTICE: Indicates a potential hazard or unsafe practice
that, if not avoided, could result in product or property
damage.
Info: Provides application recommendations or other useful
information to ensure that you get the most from your product.
READ ALL INSTRUCTIONS BEFORE USING
DANGER: To reduce the risk of electrocution:
1. Always unplug this product immediately after use.
2. Do not use this product while bathing, showering,
washing dishes, or close to water sources of any kind.
3. Do not place or store device where it can fall or be pulled
into a tub or sink.
4. Do not place device in or drop into water or other liquid.
5. Do not reach for a device that has fallen into water.
Unplug it immediately.

JB0112-090-INS-LAB-RevA18 5
WARNING: To reduce the risk of burns, electrocution, re
or personal injury:
1. Never leave this device unattended when plugged in.
2. is product contains small parts that may present a choking
hazard to small children, and the tubing may present a
strangulation hazard. Always use close supervision when this
device is used by or near children or those who require close
supervision.
3. Children under the age of 3, or any patient who is unable
to use a mouthpiece properly under supervision, should
use a mask.
4. Use this device only as intended and described in this
manual. Do not use attachments or accessories not
recommended by GF Health Products, Inc.
5. Never operate this product if:
a. it has a damaged cord or plug,
b. it is not working properly,
c. it has been dropped or damaged, or
d. it has been dropped into water.
Return the product to your Graham-Field authorized
distributor for examination and repair.
6. Keep the cord away from heated surfaces.
7. Never block the air openings of this product or place it
on a soft surface, such as a bed or couch, where the air
openings may be blocked. Keep the air openings free of
lint, hair and the like.
8. Never drop or insert any object into any openings or
hose.
9. Never use this device while drowsy or sleeping.
10.Do not use this device outdoors or operate where aerosol
(spray) products are being used.

JB0112-090-INS-LAB-RevA18 6
11.Do not use this device in the presence of ammable
anesthesia or where oxygen or nitrous oxide is being
administered. This device has no AP or APG protection.
12.Connect this device to a properly grounded outlet only.
13.This device has a polarized plug (one blade is wider than
the other). As a safety feature, this plug will t into a
polarized outlet only one way. If the plug does not t
fully into the outlet, reverse the plug. If it still does not t,
contact a qualied electrician. Do not modify the plug in
any way. Do not attempt to defeat this safety feature.
14.Unplug the device before lling or cleaning the nebulizer.
15.This device is oil-free. Do not lubricate.
16.Do not remove the jet nebulizer while the device is
operating.
17.Do not leave medication inside the jet nebulizer when it
is not in use.
18.Use the nebulizer intermittently; the maximum operating
period is 30 minutes. The nebulizer must stand unused
for 30 minutes before use.
19.The mouthpiece and masks are for use by one person
only; in order to avoid infection, do not share them.
20.WARNING: Cancer and Reproductive Harm -
www.p65warnings.ca.gov

JB0112-090-INS-LAB-RevA18 7
PRODUCT DESCRIPTION
Features and Components
Please note nebulizer features and components, labeled in the
illustration below.
air outlet connector
for tubing
pediatric mask
adult mask
filter cap
JB0112-090 Neb-u-Lite EV2
Nebulizer Compressor
nebulizer
cup
tubing
mouthpiece
nebulizer / compressor
ON / OFF switch
Info: Neb-u-Lite EV2 replacement parts are available at
www.grahamfield.com or from your Graham-Field authorized
distributor.

JB0112-090-INS-LAB-RevA18 8

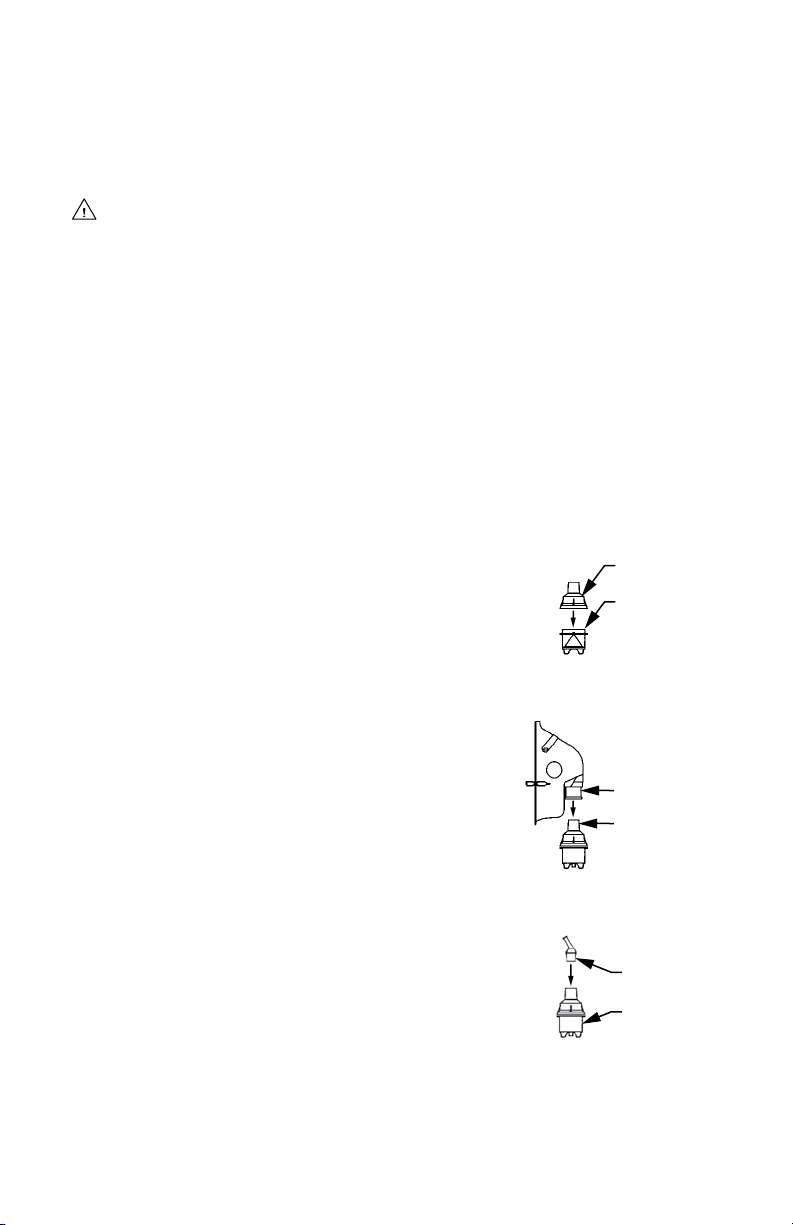

SETUP
Info: Before initial operation, clean the nebulizer cup assembly
following the instructions given in MAINTENANCE/Cleaning
the Nebulizer Cup.
WARNING: Ensure that the nebulizer compressor is
unplugged during setup.
1. Before each use, inspect the compressor and nebulizer cup
assembly for damage or wear; replace as needed.
2. Place the compressor on a table or other at stable surface (not on
the oor), in an area that is clean and dust-free. Be sure you can
easily reach the controls when seated.
3. Open the nebulizer medication cup: Twist the cap counter-
clockwise until it stops, then lift cap o.
4. Pour the prescribed medication into the nebulizer medication
cup. Do not ll with more than 8 ml per treatment.
5. Install cap on cup. Turn clockwise to
tighten.
6. If using the mouthpiece for treatment,
proceed to step 7. If using a mask, install
the bottom part of the mask directly onto
the top of the nebulizer medication cup
cap as shown at right. Proceed to step 8.
7. Install mouthpiece onto top of nebulizer
medication cup cap.
install mask
on cap
mask
cap
install cap
on cup
cap
cup
install
mouthpiece
oncap
mouthpiece
cup

JB0112-090-INS-LAB-RevA18 9
8. Connect the tubing to the adapter on the bottom of the nebulizer
medication cup.
9. Connect the tubing’s other end to the compressor air outlet
connector.
WARNING: Before use, check that all parts are securely
connected. Use of an improperly assembled nebulizer
could diminish or prevent adequate delivery of
medication and the eectiveness of the treatment.

JB0112-090-INS-LAB-RevA18 10
OPERATION
Nebulizer Operation
sNOTICE: The Neb-u-Lite EV2 Nebulizer Compressor is
designed for intermittent use only. Do not operate it
continuously for more than 30 minutes for a single use
without turning it o and allowing a cooling period of at
least 30 minutes.
1. Ensure that the ON/OFF switch is in the OFF position.
2. Plug the power cord into a properly grounded electrical wall
outlet.
3. Move the ON/OFF switch to the ON position to start the
compressor.
4. Place the nebulizer mouthpiece between teeth and close mouth
(or install the mask on face).
5. As aerosol starts owing, inhale deeply and slowly through
mouthpiece (or mask).
WARNING: Never use a nebulizer with a clogged nozzle.
If the nozzle is clogged, the aerosol mist will be reduced,
altered or stopped, which will diminish or eliminate the
eectiveness of the treatment. If clogging occurs, replace
the nebulizer.
Info: If you need to interrupt treatment, move the ON/OFF
switch to the OFF position.
6. When the treatment is complete, move the ON/OFF switch to
the OFF position to turn o the compressor.
7. Unplug the compressor from power outlet.
8. Disconnect nebulizer from tubing.
9. Clean nebulizer as instructed in MAINTENANCE/Cleaning the
Nebulizer Cup.

JB0112-090-INS-LAB-RevA18 11
Safety Overload
sNOTICE: Do not exceed 30 minutes of continuous
operation.
1. e motor of this device has a built-in thermal overload protector.
Should the motor overheat, the protector will automatically shut
o the motor. Should this occur, move the ON/OFF switch
to the OFF position and allow the motor to cool down for
approximately 30 minutes before turning it on again.
2. If the overload protector shuts o the motor frequently, you may
have an unstable voltage situation.
3. If the device shuts down and cannot restart, it may need to
be replaced. Call your Graham-Field authorized distributor
immediately.

JB0112-090-INS-LAB-RevA18 12
MAINTENANCE
Cleaning the Compressor’s Outer Case
WARNING: Electrical shock hazard. Do not remove
the outer case of the device. All disassembly and
maintenance of the device must be performed by a
qualied service technician. Refer service to qualied
service personnel.
WARNING: This device does not require oil. Do not
attempt to lubricate any internal parts.
WARNING: Unplug device before cleaning. Do not
submerge in water for cleaning.
Wipe the compressor’s outer case with a clean, damp cloth weekly to
keep it dust-free. Do not use any powdered cleaners or soap.
Cleaning the Nebulizer Cup
All parts of the disposable nebulizer, except tubing, should be
thoroughly cleaned after each use. If your physician species a specic
cleaning procedure, follow that procedure.
WARNING: To prevent possible risk of infection from
contaminated medication, clean the nebulizer after each
treatment.
1. After each use, disassemble the nebulizer cup and mask or
mouthpiece completely, wash all parts in warm soapy water, and
rinse thoroughly. Allow to air dry. Store in a clean, dry location.
2. Once daily, after washing as above, soak nebulizer components in
a fresh solution consisting of one part warm water and one part
white vinegar for 30 minutes followed by a warm water rinse.
Allow to air dry. Store in a clean, dry location.

JB0112-090-INS-LAB-RevA18 13
Replacing the Filter
sNOTICE: Change the lter once every 30 days or when the
lter changes color.
Info: Additional filters can be purchased at
www.grahamfield.com or from your Graham-Field authorized
distributor.
1. Ensure that ON/OFF switch is in the OFF position. Open the
lter cap located next to the air outlet connector.
2. Remove the dirty lter with a small, pointed object. Discard the
lter.
3. Replace with a clean lter.
4. Replace the lter cap.
sNOTICE: Do not use cotton or other materials as a lter.
sNOTICE: Do not wash or clean the lter.
sNOTICE: Do not reuse the lter. Do not operate
compressor without a lter. Compressor damage can
result.
WARNING: The disposable nebulizer kit is for single
patient use only.
Storage
Keep the device and accessories dry. Avoid exposure to direct sunlight.

JB0112-090-INS-LAB-RevA18 14
TROUBLESHOOTING
If your Nebulizer Compressor fails to function, consult the following
Troubleshooting guide. If the problem persists, consult your Graham-
Field authorized distributor.
Problem Cause and Solution
Device doesn’t
operate
Check if plug is properly t into a grounded electrical
outlet.
When device has been run continuously for more than 30
minutes, auto-shut-down may have been activated by the
built-in thermal protector; ensure device is OFF for at least
30 minutes before next usage.
Nebulization is
weak
Check for proper electrical voltage.
Check tubing for blockage or air leakage at connection to
compressor or nebulizer cup; replace as needed.
Check that the nebulizer cup is properly assembled and
not damaged. If there is any damage, replace as needed.
Check if lter is dirty; replace lter as needed.

JB0112-090-INS-LAB-RevA18 15
SPECIFICATIONS
Specication Description
Nebulization method Piston driven
Maximum outlet
pressure
30 psi
Flow rate 0-8 LPM
Particle dimension <5 microns
Capacity (nebulizer) 8 ml
Dimensions (W x D x H) 5.8” × 5.5”× 3.3” (146 mm x 38 mm x 83 mm)
Weight 2.7 lb (1.2 kg)
Electrical requirement 120VAC/60Hz
Current 1.1A (rate)
Fuse 250V, 2.5A
Power cord White, 4 ft (122 cm) , 2 prong type polarized
Operation mode Intermittent use (30 min. ON / 30 min. OFF)
Sound level <63 dBA
Environment Temperature Operation: 50°F to 104°F
(10°C to 40°C)
Storage: -13°F to 158°F
(-25°C to 70°C)
Humidity Operation: 10% to 95% RH
non-condensing
Storage: 10% to 95% RH

JB0112-090-INS-LAB-RevA18 16
LIMITED WARRANTY
SCOPE OF WARRANTY
GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will
replace or repair components, at GF’s sole discretion, that are defective in material or
workmanship under normal use and service. All warranties are conditioned upon the proper
use of the products strictly in accordance with good commercial practice and applicable
GF instructions and manuals, including proper use and maintenance. To the extent that a
component is warranted by a third party, GF conveys all of its rights under that warranty
to the original purchaser, to the extent permitted. is limited warranty shall only apply to
defects that are reported to GF’s customer service team within the applicable warranty period
and which, upon examination by GF or its authorized representative, prove to be a warranty
item. is limited warranty is not transferable.
e warranted components and time period are set forth below:
Compressor ............................... ve years
Accessories ................................ six months
e applicable warranty period shall commence from date of shipment to the original
customer, unless there is an expiration date on the component in which case the warranty
shall expire on the earlier of warranty period or the expiration date.
OBTAINING WARRANTY SERVICE
is limited warranty shall only apply to defects that are reported to the Distributor from
whom the Customer purchased the product within the applicable warranty period. If there
is not a Distributor, you must contact GF directly by calling 1.770.368.4700, sending a
fax request to 1.770.368.2386, or by e-mailing a request to cs@grahameld.com. Specic
directions will be provided by the Customer Service Representative. Failure to abide by the
specic directions will result in denial of the warranty claim.
EXCLUSIONS
e warranty does not cover and GF shall not be liable for the following:
1) Defects, damage, or other conditions caused, in whole or in part, by misuse, abuse,
negligence, alteration, accident, freight damage, tampering or failure to seek and obtain
repair or replacement in a timely manner;
2) Products which are not installed, used, or properly cleaned and maintained as required in
the ocial manual for the applicable product;
3) Products considered to be of a non-durable nature including, but not limited to: casters,
lters, fuses, gaskets, lubricants, and charts;
4) Accessories or parts not provided by GF;
5) Charges by anyone for adjustments, repairs, replacement parts, installation or other work
performed upon or in connection with such products which are not expressly authorized
in writing, in advance, by GF;
6) Any labor or shipping charges incurred in the replacement part installation or repair;
7) Costs and expenses of regular maintenance and cleaning; and
8) Representations and warranties made by any person or entity other than GF.

JB0112-090-INS-LAB-RevA18 17
ENTIRE WARRANTY, EXCLUSIVE REMEDY AND CONSEQUENTIAL DAMAGES
DISCLAIMER
THIS WARRANTY IS GF’S ONLY WARRANTY AND IS IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED. GF MAKES NO IMPLIED
WARRANTIES OF ANY KIND INCLUDING ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IF ANY
MODEL OR SAMPLE WAS SHOWN TO THE CUSTOMER, SUCH MODEL OR
SAMPLE WAS USED MERELY TO ILLUSTRATE THE GENERAL TYPE AND
QUALITY OF THE PRODUCT AND NOT TO REPRESENT THAT THE PRODUCT
WOULD NECESSARILY CONFORM TO THE MODEL OR SAMPLE IN ALL
RESPECTS. THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT
OF THE DEFECTIVE PARTS. GF SHALL NOT BE LIABLE FOR AND HEREBY
DISCLAIMS ANY DIRECT, SPECIAL, INDIRECT, INCIDENTAL, EXEMPLARY OR
CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO: DAMAGES
FOR LOSS OF PROFITS OR INCOME, LOSS OF USE, DOWNTIME, COVER,
OR EMPLOYEE OR INDEPENDENT CONTRACTOR WAGES, PAYMENTS AND
BENEFITS.
e warranties contained herein contain all the representations and warranties with respect
to the subject matter of this document, and supersede all prior negotiations, agreements and
understandings with respect thereto. e recipient of this document hereby acknowledges
and represents that it has not relied on any representation, assertion, guarantee, warranty,
collateral contract or other assurance, except those set out in this document.
For additional information on this product or this warranty, please contact a GF Customer
Service Representative.
NOTES:
1) Additional terms and conditions may apply.
2) Freight claims must be notated on the appropriate shipping documents and must be made
with immediacy. International, federal and state regulations govern specic requirements
for freight claims. Failure to abide by those regulations may result in a denial of the freight
claim. GF will assist you in ling the freight claim.
3) Claims for any short shipment must be made within three (3) days of the invoice date.

1.770.368.4700
Information contained herein is subject to change.
The most current and complete product information can be found on our website.
www.grahameld.com
© 2018, GF Health Products, Inc. All Rights Reserved.
John Bunn and Neb-u-Lite are trademarks of
GF Health Products, Inc., One Graham-Field Way, Atlanta GA 30340-3140
GF Health Products, Inc. is an ISO 13485 Certied Company.
Manufactured for GF Health Products, Inc.
Made in China

Neb-u-Lite® EV2
Compresor de Nebulizador
Modelo JB0112-090
Manual de Usuario
Lea antes de operar el nebulizador.
Guarde este manual para referencia en el futuro.
La Ley Federal (USA) restringe este aparato para
ventas por la orden de su médico. Este aparato no
debe ser utilizado si el operador no ha sido adiestrado
por profesional de cuido de salud calicado.
JB0112-090-INS-LAB-RevA18

JB0112-090-INS-LAB-RevA18 20
CONTENIDOS
INTRODUCCIÓN ...........................................................................................21
USO PREVISTO DEL COMPRESOR DE NEBULIZADOR.......................21
DIRECTIVAS IMPORTANTES DE SEGURIDAD............................................22
DESCRIPCIÓN DEL PRODUCTO ..................................................................25
CARACTERÍSTICAS Y COMPONENTES ................................................25
ENSAMBLAJE................................................................................................26
OPERACIÓN ..................................................................................................28
OPERACIÓN DEL COMPRESOR DE NEBULIZADOR............................28
SEGURIDAD EN CASO DE SOBRECARGA............................................29
MANTENIMIENTO ........................................................................................30
LIMPIEZA DE LA CARCASA DEL COMPRESOR....................................30
LIMPIEZA DE LA TAZA DEL NEBULIZADOR........................................30
INSTRUCCIONES PARA EL CAMBIO DEL FILTRO DE AIRE .................31
ALMACENAJE ........................................................................................31
DETECTANDO PROBLEMAS ........................................................................32
ESPECIFICACIONES......................................................................................33
GARANTÍA LIMITADA ..................................................................................34
