Gram 16KP 663 User manual

(EN) INSTRUCTION MANUAL
Type
16KP 663

2
DEAR CUSTOMER,
The cooker is exceptionally easy to use and extremely ecient. After reading the instruction
manual, operating the cooker will be easy.
Before being packaged and leaving the manufacturer, the cooker was thoroughly checked
with regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the cooker until you have read this instruction manual.
The cooker is intended for household use only.
The manufacturer reserves the right to introduce changes which do not aect the
operation of the appliance.

3
TABLE OF CONTENTS
Safety instructions ............................................................................................................. 4
Description of the appliance ............................................................................................. 9
Installation..........................................................................................................................11
Operation........................................................................................................................... 13
Baking in the oven – practical hints ............................................................................... 26
Test dishes............................................................................................................................29
Cleaning and maintenance.............................................................................................. 36
Technical data................................................................................................................... 37

4
SAFETY INSTRUCTIONS
Warning: The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching heating
elements. Children less than 8 years of age shall be kept
away unless continuously supervised.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the ha-
zards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by chil-
dren without supervision.
Warning: Unattended cooking on a hob with fat or oil can
be dangerous and may result in re.
NEVER try to extinguish a re with water, but switch o󰀨
the appliance and then cover ame e.g. with a lid or a re
blanket.
Warning: Danger of re: do not store items on the cooking
surfaces.
Warning: If the surface is cracked, switch o󰀨 the appliance
to avoid the possibillity of electric shock.
During use the appliance becomes hot. Care should be taken
to avoid touching heating elements inside the oven.
Accessible parts may become hot during use. Young children
should be kept away.

5
SAFETY INSTRUCTIONS
Warning: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch
the surface, which may result in shattering of the glass.
Warning: Ensure that the appliance is switched o󰀨 before re-
placing the lamp to avoid the possibillity of electric shock.
You should not use steam cleaning devices to clean the
appliance.
Danger of burns! Hot steam may escape when you open the
oven door. Be careful when you open the oven door during
or after cooking. Do NOT lean over the door when you open
it. Please note that depending on the temperature the steam
can be invisible.
Caution: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
Warning: Use only hob guards designed by manufacturer of
the cooking appliance or indicated by the manufacturer of
the appliance in the instructions for use as suitable or hob
guards incorporated in the appliance. The use of inappro-
priate guards can cause accidents.

6
SAFETY INSTRUCTIONS
Always keep children away from the cooker.
While in operation direct contact with the cooker may cause burns!
Ensure that small items of household equipment, including connection leads, do not touch
the hot oven or the hob as the insulation material of this equipment is usually not resistant
to high temperatures.
 Do not leave the cooker unattended when frying. Oils and fats may catch re due to
overheating or boiling over.
Do not allow the hob to get soiled and prevent liquids from boiling over onto the surface
of the hob. This refers in particular to sugar which can react with the ceramic hob and
cause irreversible damage. Any spillages should be cleaned up as they happen.
Do not place pans with a wet bottom on the warmed up heating zones as this can cause
irreversible changes to the hob (irremovable stains).
 Use pans that are specied by the manufacturer as designed for use with a ceramic
hob.
If any defects, deep scratches, cracks or chips appear on the ceramic hob, stop using the
cooker immediately and contact the service centre.
Do not switch on the hob until a pan has been placed on it.
Do not use pans with sharp edges that may cause damage to the ceramic hob.
Do not look directly at the halogen heating zones (not covered by a pan) when they are
warming up.
Do not put pans weighing over 15 kg on the opened door of the oven and pans over 25
kg on the hob.
Do not use harsh cleaning agents or sharp metal objects to clean the door as they can
scratch the surface, which could then result in the glass cracking.
 Do not use the cooker in the event of a technical fault. Any faults must be xed by an
appropriately qualied and authorised person.
In the event of any incident caused by a technical fault, disconnect the power and report
the fault to the service centre to be repaired.
The rules and provisions contained in this instruction manual should be strictly observed.
Do not allow anybody who is not familiar with the contents of this instruction manual to
operate the cooker.
The appliance has been designed only for cooking. Any other use (for example for heat-
ing) does not comply with its operating prole and may cause danger.

7
Using energy in a respon-
sible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:
Use proper pans for cooking.
Pans with thick, at bases can save up to 1/3
on electric energy. Remember to cover pans
if possible otherwise you will use four times
as much energy!
Match the size of the saucepan to the
surface of the heating zone.
A saucepan should never be smaller than a
heating zone.
Ensure heating zones and pan bases
are clean.
Soils can prevent heat transfer – and repeat-
edly burnt–on spillages can often only be
removed by products which cause damage
to the environment.
Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
Switch o󰀨 the oven in good time and make
use of residual heat.
For long cooking times, switch o󰀨 heating
zones 5 to 10 minutes before nishing cook-
ing. This saves up to 20% on energy.
Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
HOW TO SAVE ENERGY
Make use of residual heat from the
oven.
If the cooking time is greater than 40 minutes
switch o󰀨 the oven 10 minutes before the
end time.
Important! When using the timer,
set appropriately shorter cooking
times according to the dish being
prepared.
Only grill with the ultrafan after closing
the oven door.
Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals. Clean up any spillages immediately.
Do not install the cooker in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.

8
During transportation, protec-
tive packaging was used to
protect the appliance against
any damage. After unpack-
ing, please dispose of all
elements of packaging in a
way that will not cause dam-
age to the environment.
All materials used for packaging the appli-
ance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packag-
ing materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
UNPACKING DISPOSAL OF THE APPLIANCE
Old appliances should not sim-
ply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronic equipment. A symbol
shown on the product, the in-
struction manual or the packag-
ing shows that it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
a signicant contribution to the protection of
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.

9

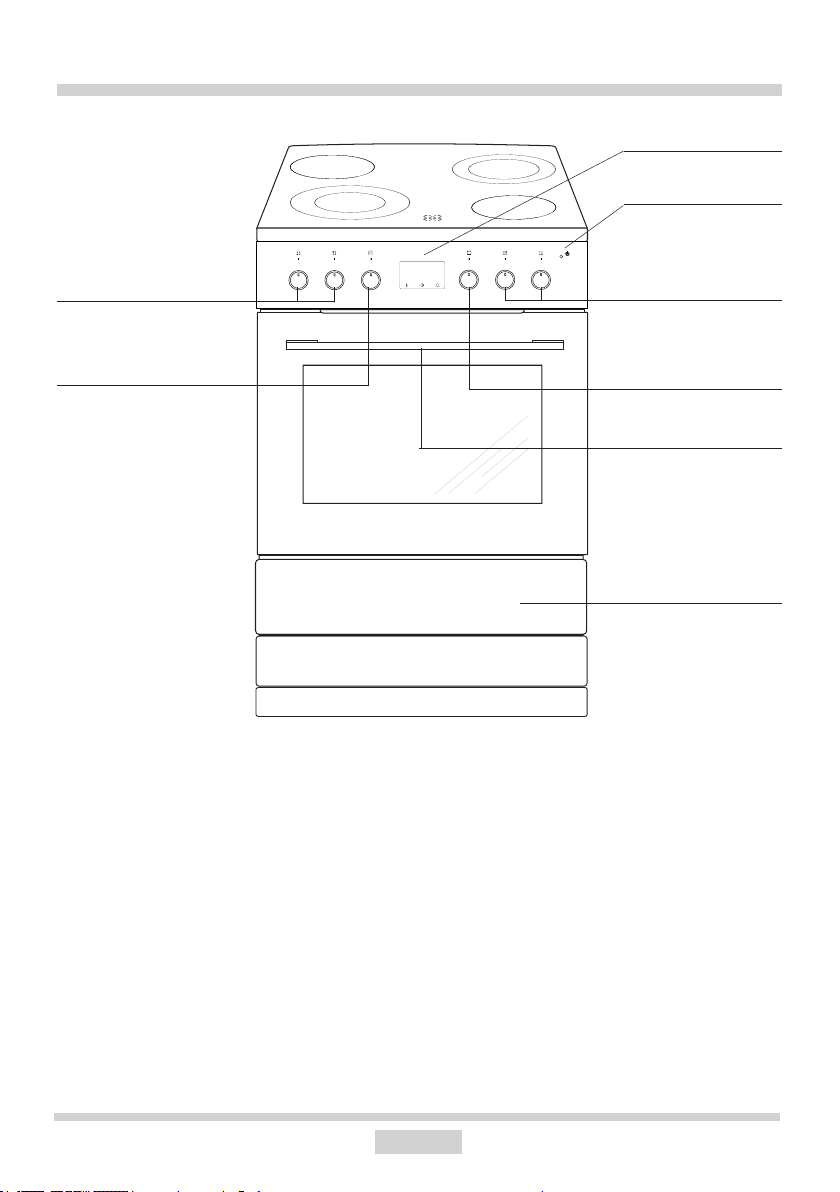

DESCRIPTION OF THE APPLIANCE
1Oven function knob
2 Adjust settings knob +/-
3, 4, 5, 6 Heating zone control knobs
7 Oven door handle
8 Electronic programmer
9Drawer
10 Door lock indicator light
1
2
8
5, 6
3, 4
7
9
10

10
SPECIFICATIONS OF THE APPLIANCE
Cooker ttings:
Sideracks
Grill grate
(drying rack)
Roasting tray
Baking tray
Meat probe

11
INSTALLATION
Installing the cooker
The kitchen should be dry and airy and
have e󰀨ective ventilation according to the
existing technical provisions.
The room should be equipped with a ven-
tilation system that pipes away exhaust
fumes created during combustion. This
system should consist of a ventilation
grid or hood. Hoods should be installed
according to the manufacturer’s instruc-
tions. The cooker should be placed so
as to ensure free access to all control
elements.
 Coating or veneer used on tted furniture
must be applied with a heat resistant
adhesive (100°C). This prevents surface
deformation or detachment of the coat-
ing. If you are unsure of your furniture’s
heat resistance, you should leave ap-
proximately 2 cm of free space around
the cooker. The wall behind the cooker
should be resistant to high temperatures.
During operation, its back side can warm
up to around 50°C above the ambient
temperature.
The cooker should stand on a hard, even
oor (do not put it on a base).
Before you start using the cooker it should
be leveled, which is particularly important
for fat distribution in a frying pan. To this
purpose, adjustable feet are accessible
after removal of the drawer. The adjust-
ment range is +/- 5 mm.

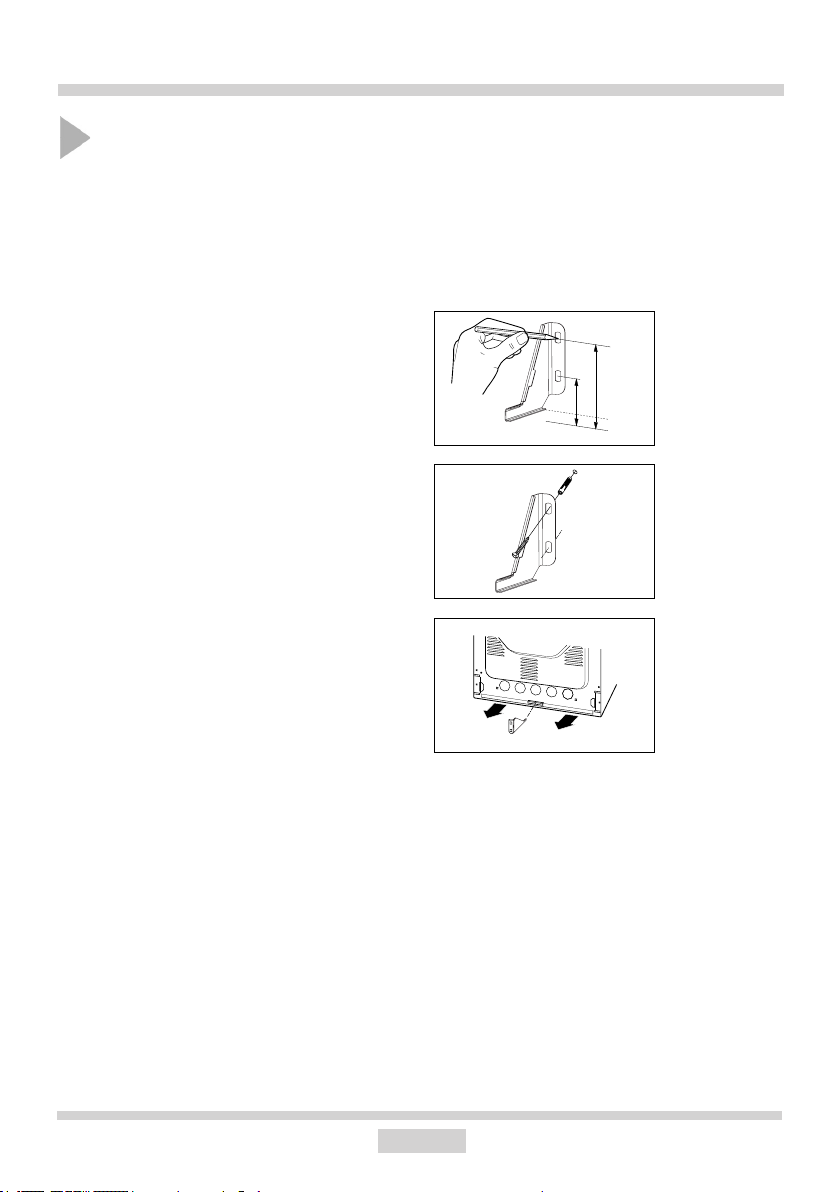

Mounting the overturning prevention
bracket.
The bracket is mounted to prevent overtur-
ning of the cooker. When the overturning
prevention bracket is installed, a child who
climbs on the oven door will not overturn the
appliance.
A
B
Cooker, height 900 mm
A=104 mm
B=147 mm

12
INSTALLATION
2
1
Installation must only be carried out by an authorised electrician. This will ensure that the
applicable regulations in the “Heavy Current Regulation” are complied with.
The installation must comply with any special requirements issued by the local electricity
supply company.
The cooker must be connected to a separate power supply circuit.
The connection must only be established in accordance with the circuit diagrams which
can be found on the cover to the screw terminals on the rear plate.
NB: This product uses 16A.
When connecting or replacing the power cable, at least one HO5 VVF-5G2.5 conduit or
equivalent must be used.
NB: To ensure compliance with the applicable safety requirements, a switch must be tted
which isolates all terminals and has a contact distance of at least 3 mm. (Can be a master
switch).
1
2
3
5
4
L1 L2
PE N
1
2
3
5
4
PE
L1
N
1
2
3
5
4
L1 L2
PE N
L3
400V 3N~ 50Hz400V 2N~ 50Hz230V 1N~ 50Hz
Connecting the cooker to the mains
1
2
3
3
4
5

13
Remove packaging, empty the drawer,
clean the interior of the oven and the hob.
Take out and wash the oven ttings with
warm water and a little washing–up liquid.
Switch on the ventillation in the room or
open a window.
Heat the oven (to a temperature of 250°C,
for approx. 30 min.), remove any stains and
wash carefully; the heating zones of the hob
should be heated for around 4 min. without
a pan.
Before rst use
OPERATION
The oven is equipped with a retractable
knobs. In order to select a function do the
following:
1. Gently press and release a knob which
will pop out,
2. Turn the oven functions selection knob to
the desired function.
Symbols printed around the knob indicate
available oven functions.
Important!
The inside of the oven should only be
washed with warm water and a small
amount of washing–up liquid.
1
2
Child safety lock
Oven door features a child safety lock de-
vice that prevents children from opening of
the door. The appliance is supplied by the
manufacturer with the door safety lock de-
vice engaged.
Release the
child safety lock.
The lock is
released and
you can open
the door.
The child safety lock is re-engaged
once you close the door.

14
I
I
I
I
Oven function knob
The oven can be heated using the lower
heater, upper heater, fan heater or grill. Se-
lect the function using the function knob.
The gure below shows the functions locat-
ed on the knob in their dened order:
Adjust settings knob +/-
The adjust settings knob is a swivel type
which does not rotate fully and can only be
turned slightly to the left or right. Use this
knob to adjust temperature and time. Turn
slightly right toward the "+" to increase value.
Turn slightly left toward the "–" to decrease
value. Use this knob to adjust temperature
and current time. If you keep the knob turned
left or right from its default position the rate
of value changes will increase.
OPERATION
The control panel features an LED display
and 3 buttons (touch sensors).
Button (touch sen-
sor) Description
Set temperature
Clock setting
Minute Minder
Note: You will hear a beep each time you
touch a sensor. It is not possible to turn o󰀨
the acoustic beeps.
The meaning of symbols on the display.
Indicator Description
Temperature control dial
Minute Minder
Duration
End Time
Pyrolytic cleaning
Child Lock
Control panel
O󰀨 position

15
OPERATION
Turn on the power.
When you connect the power supply (or
power is restored after a power outage) the
appliance will prompt to set the current time,
0.00 will ash on the display. Press the but-
ton (touch sensor). . Turn the +/– knob to
adjust the time. You must set the current time
to use the appliance.
The function dial must be in position 0 to con-
rm the time setting. If the function selector
dial is in a di󰀨erent position, the indicator
ashes and the appliance waits until you turn
the function selector dial to 0.
Press the button (touch sensor) to save
the time and the appliance enters standby.
Note: In the event of a power outage, all
settings such as Duration, Temperature and
Heating Function will be lost. You will need
to re-enter the settings to continue cooking.
If the pyrolytic cleaning is interrupted (or the
door is locked for any other reason – the
is on), the oven will start the cooling and door
opening procedure before you can set the
time. If temperature above 80°C is detected
in the oven, cooling fan is activated and this
does not a󰀨ect the time adjustment process.
Cooling fan turns o󰀨 when the temperature
drops below 75°C.
Standby mode
Switch the appliance to standby mode to re-
set all time, temperature and timer settings.
Heaters are disconnected. The display
shows the current time and has reduced
brightness. Press the button (touch sen-
sor) to adjust the time, tone and brightness,
and press the button (touch sensor) to
adjust the minute minder time setting.
If the temperature in the oven cavity exceeds
80°C, the current oven cavity temperature is
displayed (to indicate the residual heat) and
the cooling fan operates. When the temper-
ature drops below 75°C, the cooling fan is
turned o󰀨 and the current time is displayed
instead of oven cavity temperature.
The appliance enters standby:
- turn the function selector knob to position 0
at any time, you will hear a beep;
- after a power outage when set the current
time;
- after a timed programme completes (timed
delayed operation, timed operation, minute
minder;
- after activation of the Auto Shut-o󰀨 Safety
Device
- after 5 seconds of inactivity during temper-
ature setting (when selecting a new heating
function, when adjusting an active heating
function the appliance continues to operate
normally);
- when you turn the knob to position 0 dur-
ing a pyrolytic cleaning cycle, the appliance
activates cooling fan to unlock the door, and
enters standby only after the appliance has
cooled down and the door is unlocked.
Activate the appliance from the standby
mode:
Turn the knob from 0 to any available func-
tion to activate the appliance from standby.
Note - if the appliance entered the standby
mode automatically, you need to rst turn
the knob to 0 and only then to another func-
tion.
When the appliance is in standby mode and
the function knob is in a position other than
0 - the indicator ashes.
Set current time
You can set the current time in standby only.
Press the button (touch sensor) in this
mode to display the current time with normal

16
OPERATION
brightness. Use the +/– knob to adjust the
current time, wait 10 seconds to save the
current setting and the appliance will enter
standby. Press the button (touch sen-
sor) to set the beep tone. The clock oper-
ates in 24h mode only.
Night Mode
During 22:00 – 06:00 in standby the display
backlight is reduced as set for night-time
mode - 2 levels below the current setting.
Change the beep tone
This function is available at any time in
standby mode. When setting current time,
press the button (touch sensor) to dis-
play ton1, where 1is the current beep tone
– tones 1 through 3 are available. Turn the
+/– knob to change the current tone, then
wait 5 seconds to conrm the new setting
and the appliance will enter the standby
mode.
Adjust display brightness
This function is available at any time in
standby mode. When selecting tone, press
the button (touch sensor) again to
change display brightness and bri4 (bright-
ness 4) will be shown where 4is the bright-
ness level from 1 to 9. Turn the +/– knob to
change the brightness, then wait 5 seconds
to conrm the new setting and the appliance
will enter the standby mode.
Operation.
You can use any baking or cleaning function
available on the Function Selector knob.
Auto-o󰀨: When minute minder or any timed
delayed, timed or cleaning programme is
completed, the appliance enters the standby
mode even if the function selector knob is
set to 0.
Lighting
The appliance automatically controls oven
light. By default the oven light is on.
The oven light is o󰀨:
- when 0, Pyrolytic cleaning or ECO is se-
lected
- when the oven cavity temperature exceeds
300°C;
- during pyrolytic cleaning and cooling;
- before and after the timed and timed de-
layed operation;
- in standby mode, if the Function Selector
knob is set to a position other than 0.
Cooling fan.
Cooling fan operates independently of the
set functions and the appliance mode of op-
eration. Cooling fan turns on when the oven
cavity temperature exceeds 80°C and turns
o󰀨 when it fall below is below 75°C.
Thermostat
The thermostat symbol indicates that the
heating elements operate. If any of the heat-
ing elements operates, the indicator lights
up. The indicator goes out, if none of the
heating elements operates (e.g. when the
oven reaches the desired temperature and
the heating elements are disconnected until
the temperature drops).
Minute Minder
Touch the button (touch sensor) in any
mode to use minute minder. Press to
display countdown progress or 0.00 if min-
ute minder is not active, the indicator will
ash.

17
OPERATION
Turn the +/– knob to adjust the Duration and
press to conrm or simply wait 5 sec-
onds.
When the minute minder is counting down,
the indicator lights up on the display.
When the countdown is complete you will
hear a beep, which you can mute by press-
ing any button (touch sensor).
The appliance will not enter standby until
minute minder countdown is completed and
beeping alarm is acknowledged.
Oven door
Oven door must be closed during operation.
Heating elements are disconnected when
you open the door. If the door is open for
more than 60 seconds, you will hear an
acoustic signal alerting you to an open door.
Touch any button (touch sensor) or close the
door to silence the alarm. Opening the door
does not a󰀨ect any temperature or time set-
tings, however if the door remains open for
more than 10 minutes, the appliance can-
cels all programmes.
Limit the operating time
For safety reasons, the oven operation is time
limited. If the set temperature is up to 100°C,
the oven will enter the Standby mode after 10
hours, and if the set temperature is 200°C or
more, the oven operation is limited to 3 hours.
In the temperature range of 101°C to 199°C,
the operation time is limited proportionally
between 3 and 10 hours.
Activate a heating function
Turn the function selector knob from 0 to the
desired position to activate a heating func-
tion. When you set the Function Selector
knob to a heating function, the display will
show the default temperature for a function,
such as 170°C.
The displayed temperature ashes (with re-
duced brightness) and the C indicator lights
up steadily. The value changes when you
turn the function selector knob.
Press the button (touch sensor) to set up
timed delayed operation.
Set temperature
When you have selected a heating function,
use the +/– knob to adjust the temperature.
You can adjust the temperature in 5°C steps
within the range specied for each pro-
gramme. Turn and hold the +/– knob for at
least 1s to adjust the temperature in 10°C
steps.
Press the button (touch sensor) to conrm
the new temperature setting or simply wait
5 seconds until the appliance displays cur-
rent time.
Turn the +/– setting knob display the follow-
ing for 2 seconds:
- left [–]: set temperature;
- right [+]: current oven cavity temperature;
No setting is changed when the temperature
is displayed.
Adjust the temperature
Press the button (touch sensor) during
oven operation to adjust the temperature
setting. The temperature ashes (with re-
duced brightness) and the C indicator lights
up steadily. Turn the +/– knob to adjust the
temperature. Press the button (touch sen-
sor) to conrm the new temperature setting
or simply wait 5 seconds.

18
OPERATION

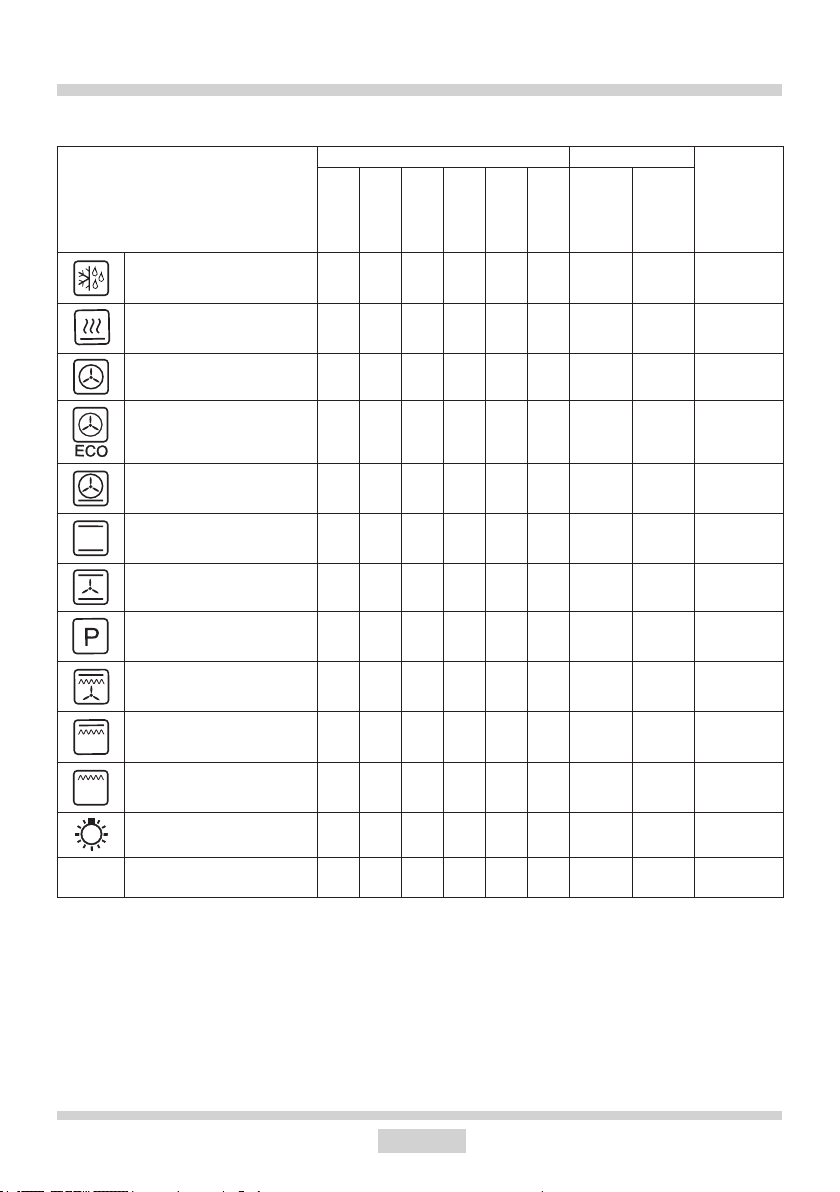

Table of heating functions
Function Description
Oven elements Temperature [°C]
Default
tempera-
ture [°C]
Lighting
Top heater
Roaster
heater
Fan heater
Bottom heater
Fan
min. max
Defrosting √ √ --- --- ---
Quick oven pre-heat √ √ √ √ 30 280 170
Fan cooking √ √ √ 30 280 170
ECO √ √ 30 280 170
Pizza √ √ √ √ 30 280 220
Conventional √ √ √ 30 280 180
Pastry √ √ √ √ 30 280 170
Pyrolytic cleaning √ √ √ --- --- 480
Turbo grill √ √ √ √ 30 280 190
Super grill √ √ √ 30 280 250
Grill √ √ 30 280 250
Lighting √--- --- ---
0O󰀨 - - -

19
OPERATION
Timed operation
Timed operation involves setting the dura-
tion after which the appliance automatically
turns o󰀨. You can set the duration from 1
minute to 23 hours 59 minutes.
When the appliance is on or when you have
turned the function selector to a desired
function press the (touch sensor) to set
the Duration. The indicator ashes and
dur (duration) is displayed briey for 1s
and then 0.00 (or current countdown if the
function is already active). Turn the +/– to
adjust the Duration and then press the
button (touch sensor) to conrm the setting
or simply wait 5 seconds. The current time is
displayed 5 seconds after you press the
button (touch sensor).
The indicator is on during timed opera-
tion.
The heating and temperature functions can
be freely modied during the time delayed
operation.
To cancel timed operation set Duration to
0.00 and press the button (touch sen-
sor) or wait 5 s — the appliance will operate
normally.
Once duration has elapsed, you will hear an
[end] beep. All heating elements are discon-
nected. You can silence the alarm as fol-
lows:
a) Do one of the following:
- press any button (touch sensor) except ;
- turn the function selector knob;
- turn the +/– knob;
- open the door.
This will clear all function and temperature
settings. Even though the Function Selector
knob is set to a heating function, the appli-
ance will enter standby.
b) Turn the Function Selector knob to 0 - the
appliance will enter standby.
c) Press the button (touch sensor) to set
the new Duration and continue cooking with
currently set temperature and settings. Note
- in this case (when attempting to extend the
Duration when the beeping starts after the
Duration has elapsed), setting the time to
0.00 turns o󰀨 the oven rather than allowing
it to operate indenitely.
Delayed timed operation
You can set the appliance, so that its timed
operation is delayed and cooking ends at a
specic time.
You must rst set the Duration (same as in
timed operation). Press the button (touch
sensor) to conrm Duration and end mes-
sage will be displayed briey for 1s and then
End Time will be display calculated as Cur-
rent Time + Duration + 1 minute. Turn the
+/– knob to adjust the End Time. Press the
button (touch sensor) to conrm End
Time or wait 5 s to cancel. Once End Time
is conrmed the and indicators light
up steadily and the Current Time is shown
again.
The and indicators are on during the
countdown to Start Time. The symbol indi-
cates when heating elements are on.
Press to view and modify the set dura-
tion.. Pressing the button once to set Dura-
tion, press again to set End Time and press
again to display the current time. Set Dura-
tion to 0.00 to cancel both Duration and End
Time and allow the appliance to operate in-
denitely.
You can adjust End Time from (Current Time
+ Duration + 1 minute) to (Current Time +
Duration + 10 hours). You can modify Du-
ration (when End Time is set) from 0:00 to
(Duration – Current Time – 1 minute).
When you have nished cooking, set the
function selector knob to 0.

20
OPERATION
Meat probe
You can connect the meat probe at any time.
This has no e󰀨ect when the appliance is o󰀨.
Important!
The temperature probe socket is protected
with a cap.
Remove the protective cap from the socket
to be able to plug in the temperature probe.
When you plug in the meat probe when the
appliance operates (the function and tem-
perature are set), the temperature display
is dimmed and ashes — the current meat
probe temperature, digits 1-2, and the set
meat probe temperature, digits 3-4 (default
80°C) are displayed.
Immediately after you insert the meat probe,
use the +/– knob to directly adjust the set
meat probe temperature. Press the button
(touch sensor) or wait 5 seconds to conrm
the current setting. The set temperature is
displayed steadily, it does not ash.
The operation of the oven is modied as fol-
lows.
When the meat probe temperature is lower
than the set target temperature - the ther-
mostat maintains the set oven cavity tem-
perature.
When the meat probe temperature reaches
the set target temperature:
- the heaters are disconnected;
- you hear meat probe temperature alarm;
You can mute the meat probe temperature
alarm as follows:
- turn the +/– to “+” to mute the alarm and
you can then set the new meat probe target
temperature;
- use any other control to mute the alarm
and the appliance will enter standby.
When you use a meat probe you cannon
use a timed operation or delayed timed op-
eration. When you plug in the meat probe
any previously set Duration is cancelled.
The meat probe does not a󰀨ect the set func-
tion and oven cavity temperature.
When you plug in the meat probe in standby
or when the appliance is on, the oven opera-
tion is unchanged until the function and oven
cavity temperature are conrmed. Once the
temperature is conrmed, the oven starts
heating, but instead of displaying the current
time, it displays the set meat probe target
temperature.
When you unplug the meat probe before the
set target temperature is reached, the oven
continues to operate normally.
When the meat probe is plugged in you can
view and adjust the temperature as follows:
- turn the +/– knob to display oven cavity
temperature briey and then meat probe
temperature is displayed.
- press the button (touch sensor) to adjust
oven cavity temperature;
- press the button again to conrm the ad-
justed oven cavity temperature and then cur-
rent meat probe temperature is displayed.
