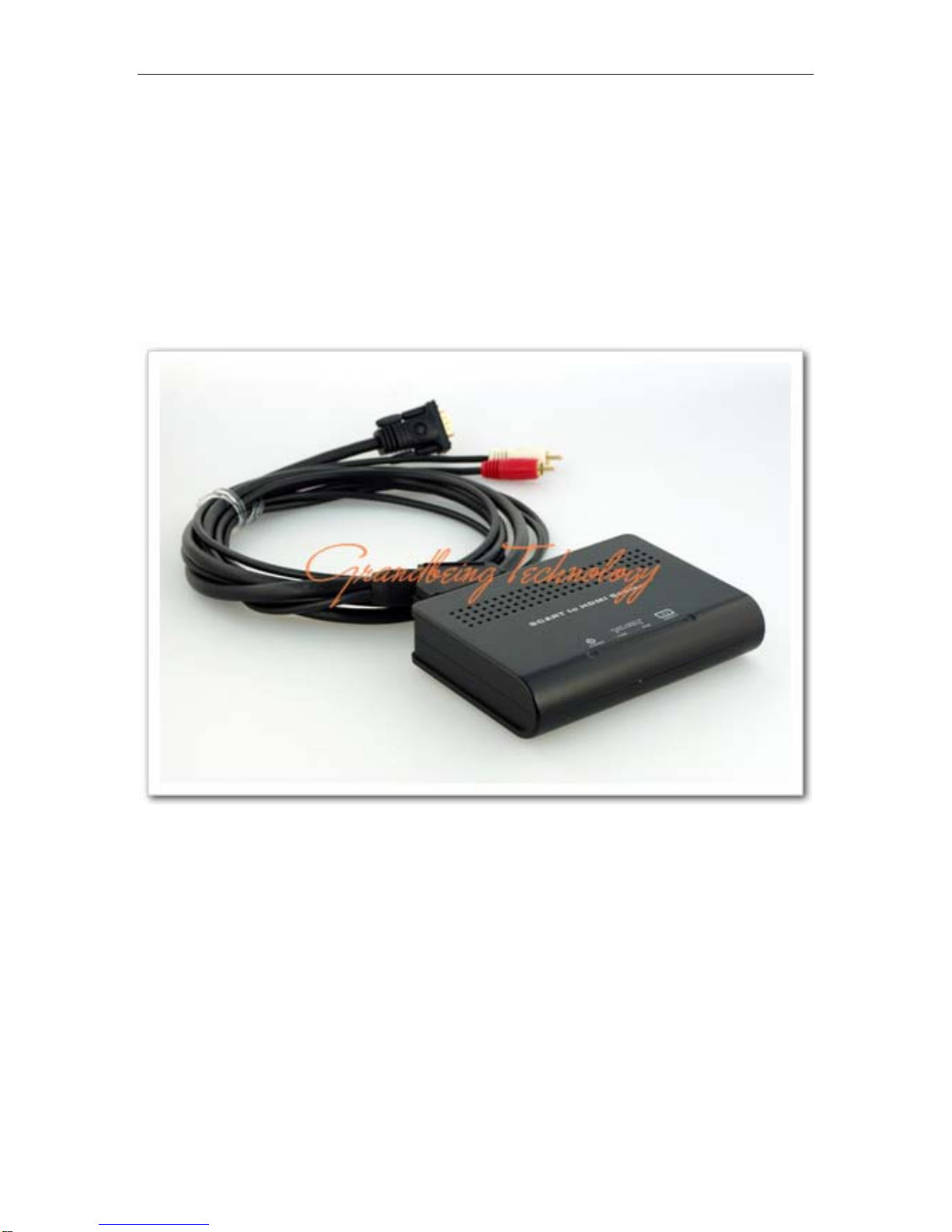

Grandbeing SH0101-002 User manual

SH0101-002 Operating Instructions
Grandbeing®
HDMI Converter
Model No.SH0101-00V
Operating Instructions（P/N of this Instructions is INSSH0101-00V）
FEATURES
zEasy to Use: Install in seconds, no need for setting.
zConversion: It could convert VGA input into complete HDMI with the
VGA-SCART cable.
zVideo screen aspect ratio can be set by 16:9 or 4:3 when use the
standard SCART cable. It will be no function when use VGA-SCART
cable
zHDCP compliant.
GRANDBEING® １

SH0101-002 Operating Instructions
Dear customer:
Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully before connecting,
operating or adjusting this product. Please keep this manual for future
reference.
NOTICE
Grandbeing Inc. reserves the right to make changes in the hardware,
packaging and any accompanying documentation without prior written
notice.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT
DAMAGE:
1) DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING
OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH
AS VASES, SHALL BE PLACED ON THE APPARATUS.
2) DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN
CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS
WELL VENTILATED.
3) TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, DO NOT OBSTRUCT THE UNIT’S VENTILATION
OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND
SIMILAR ITEMS.
4) DO NOT INSTALL NEAR ANY HEAT SOURCES SUCH AS RADIATORS,
HEAT REGISTERS, STOVES, OR OTHER APPARATUS (INCLUDING
AMPLIFIERS) THAT PRODUCE HEAT.
5) DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED
CANDLES, ON THE UNIT.
6) CLEAN THIS APPARATUS ONLY WITH DRY CLOTH.
7) UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN
UNUSED FOR LONG PERIODS OF TIME.
8) PROTECT THE POWER CORD FROM BEING WALKED ON OR PINCHED
PARTICULARLY AT PLUGS.
9) ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED BY THE
MANUFACTURER.
10) REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL.
GRANDBEING® ２

SH0101-002 Operating Instructions
TABLE OF CONTENTS
Introduction····························································································3
Package Contents·················································································3
Panel Descriptions·················································································4
Connect and Operation ·········································································5
Specification··························································································6
Typical Application·················································································7
Maintenance··························································································7
Product Service·····················································································7
Warranty································································································8
Contact Information···············································································9
INTRODUCTION
Grandbeing’s SH0101-00V is a VGA to HDMI converter. It converts input analog
VGA into HDMI output. User could use it to connect the analog VGA equipment to
the newest digital HDMI TV set. The output video of this converter would be
scaled up to HD 720P, so that the viewer will get more pleasant watching
experience than ever before. The video screen aspect ratio can be set by 16:9 or
4:3 when the input is CEA 4:3 format but not VESA mode.
SH0101-00V has the ability of buffering and amplifying. It achieves long-distance
transmission of HDMI signal of more than 15 meters.
SH0101-00V offers solutions for digital entertainment center, HDTV retail and
show site, HDTV, STB, DVD and Projector factory, noise, space and security
concerns, data center control, information distribution, conference room
presentation, school and corporate training environments.
PACKAGE CONTENTS
1. Main unit. P/N_SH0101-00V main box.
2. VGA to SCART cable.
3. Power Supply, 5VDC
4. Operating Instructions. P/N_INSSH0101-00V.
GRANDBEING® ３

SH0101-002 Operating Instructions
*PART NUMBER (Abbreviation as P/N).
*HDMI cables are optional.
PANEL DESCRIPTIONS

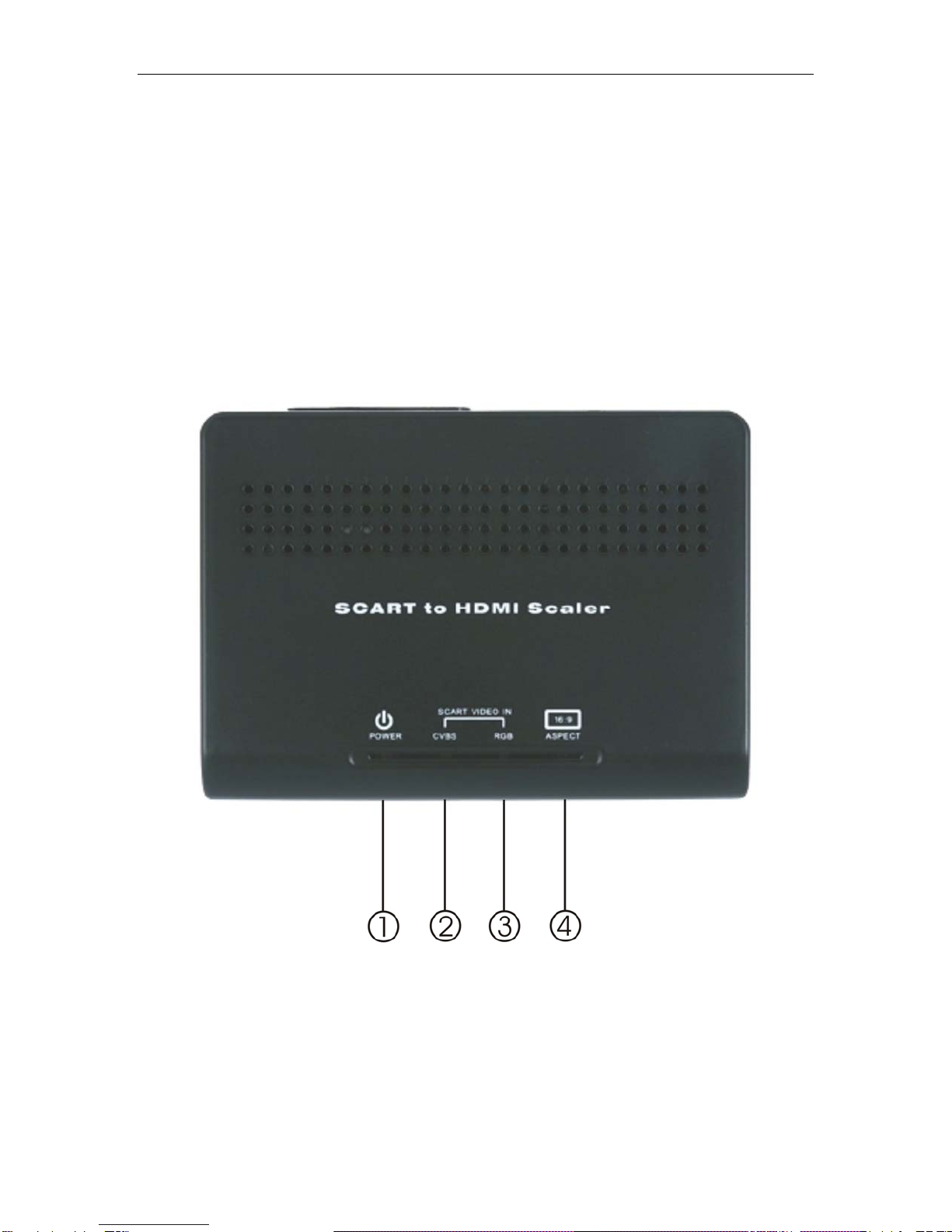

Top Panel
1. Indicator of power.
2. Indicator of SCART CVBS input.
3. Indicator of SCART RGB input.
GRANDBEING® ４

SH0101-002 Operating Instructions
4. Indicator of aspect 16:9 (It will be no function when input is VESA signal from PC).

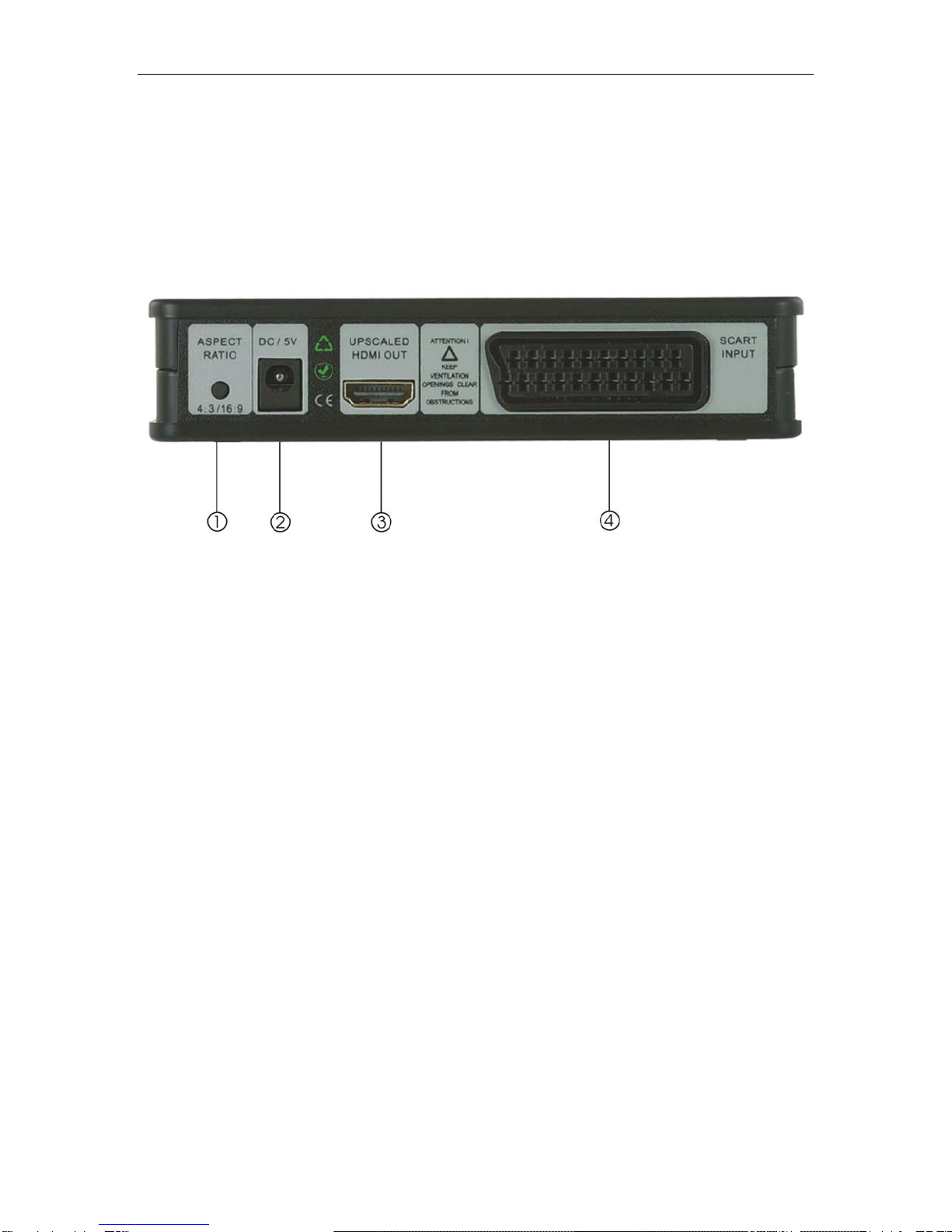

Rear Panel
1. Button for choosing aspect ratio.
2. Power input.
3. HDMI output.
4. SCART input.
CONNECT AND OPERATION
1) Connect the VGA-SCART cable to SH0101-00V.
2) Connect the D-SUB VGA connector and analog audio L(white)/R(red) to the
sources device such as PC.
3) Connect the SH0101-00V to LCD TV with the HDMI cable. (Output cables are
optional)
4) Power on the input source you want to show.
5) Connect the power supply into SH0101-00V and turn on the display you want
to watch.
Attention: Insert / Extract cables gently.
GRANDBEING® ５

SH0101-002 Operating Instructions
SPECIFICATIONS
Operating Temperature Range -5 to +35°C (-41 to +95 °F)
Operating Humidity Range 5 to 90 % RH (no condensation)
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Video Format Supported 640x480、800x600、1024x768、1152x864、1280x960、
1280x1024、1440x900、1920x1200
Output Video HDMI+HDCP1.0/1.1
Maximum Transmission Distance <15m (If needed, HDMI extender is optional)
Power Consumption 1wtts (Max)
Power Supply 5VDC
Dimensions 140mmW×100mmH×30mmD/5.5''W×3.9''H×1.1''D
Mass (Main unit) 0.1kgs/0.2lb
*Note: Specifications are subject to change without notice. Mass and dimensions are
approximate.

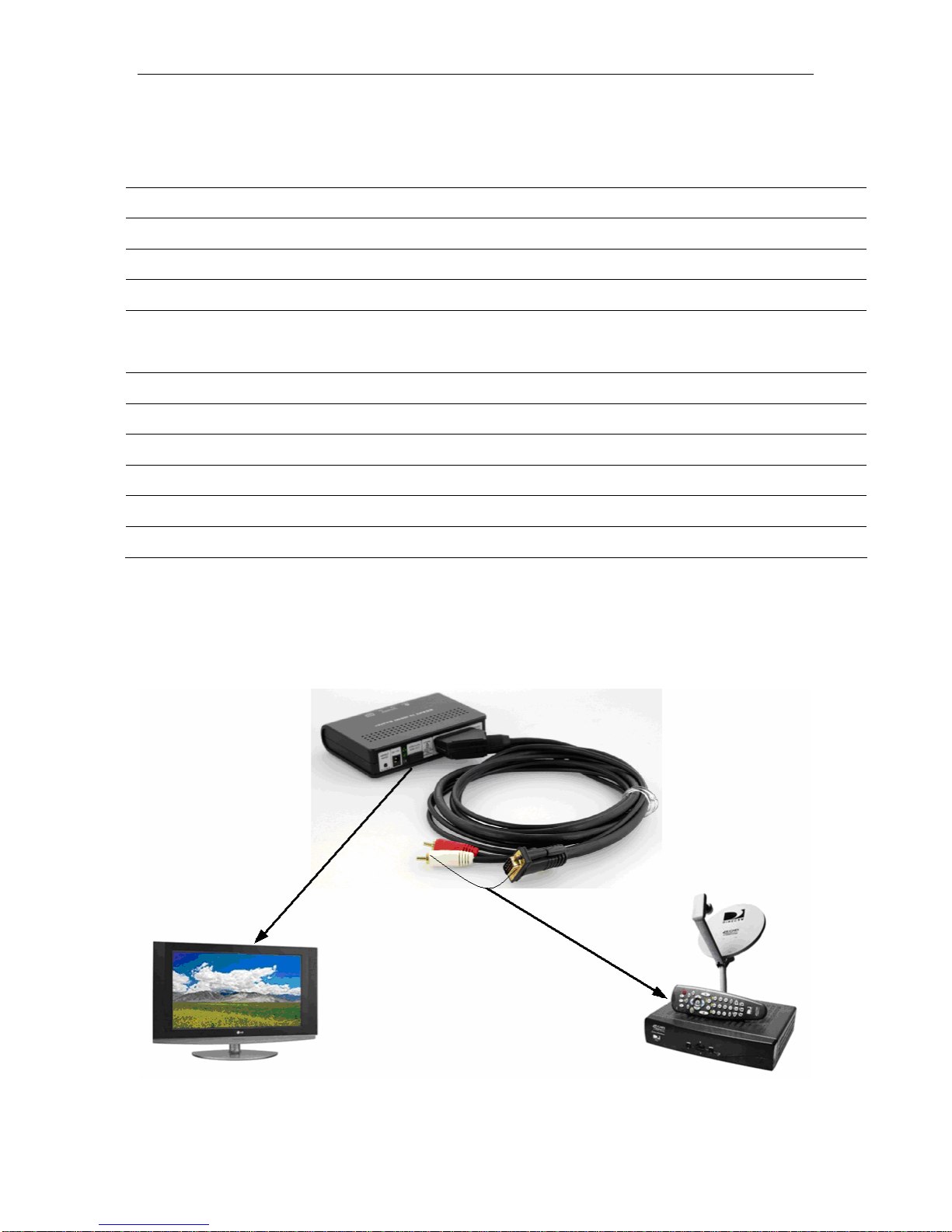

TYPICAL APPLICATION
GRANDBEING® ６

SH0101-002 Operating Instructions
MAINTENANCE
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to
clean this unit.
PRODUCT SERVICE
1) Damage requiring service: The unit should be serviced by qualified service
personnel if:
(a) The DC power supply cord or AC adaptor has been damaged;
(b) Objects or liquids have gotten into the unit;
(c) The unit has been exposed to rain;
(d) The unit does not operate normally or exhibits a marked change in
performance;
(e) The unit has been dropped or the cabinet has been damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing to
authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the servicer uses
parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may result in
fire, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the servicer to perform safety
checks to confirm that the unit is in proper working condition.
WARRANTY
If your product does not work properly because of a defect in materials or
workmanship, Grandbeing Company (referred to as “the warrantor”) will, for the
length of the period indicated as below, （Parts (1) Year，Labor(90) Days）which
starts with the date of original purchase (“Limited Warranty period”), at its option
either (a) repair your product with new or refurbished parts, or (b) replace it with a
new or a refurbished product. The decision to repair or replace will be made by
the warrantor.
During the “Labor” Limited Warranty period there will be no charge for labor.
During the “Parts” warranty period, there will be no charge for parts. You must
mail-in your product during the warranty period. This Limited Warranty is
extended only to the original purchaser and only covers product purchased as
new. A purchase receipt or other proof of original purchase date is required for
Limited Warranty service.
Mail-In Service
When shipping the unit, carefully pack and send it prepaid, adequately insured
and preferably in the original carton. Include a letter detailing the complaint and
provide a day time phone and/or email address where you can be reached.
GRANDBEING® ７

SH0101-002 Operating Instructions
IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF
OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND
PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR
OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.
LIMITED WARRANTY LIMITS AND EXCLUSIONS
1) This Limited Warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The Limited Warranty ALSO DOES NOT COVER damages which
occurred in shipment, or failures which are caused by products not supplied
by the warrantor, or failures which result from accidents, misuse, abuse,
neglect, mishandling, misapplication, alteration, faulty installation, set-up
adjustments, misadjustment of consumer controls, improper maintenance,
power line surge, lightning damage, modification, or service by anyone other
than a Factory Service center or other Authorized Servicer, or damage that is
attributable to acts of God.
2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF
THIS WARRANTY. (As examples, this excludes damages for lost time, cost
of having someone remove or re-install an installed unit if applicable, travel to
and from the servicer, loss of or damage to media or images, data or other
recorded content. The items listed are not exclusive, but are for illustration
only.)
3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY, ARE YOUR RESPONSIBILITY.
GRANDBEING® ８

SH0101-002 Operating Instructions
Thank you for your purchase.
We appreciate your business. Please contact us with your question and
comments.
Grandbeing Technology Co., Ltd
6C, Jialitai Building, No. 6 Yanshan Road,
Nanshan District Shenzhen , P.R. China
Post Code:518067
Tel:[phone]
Fax:[phone]
Email:[email protected],
[email protected]
Website:http://www.grandbeing.com
GRANDBEING® ９
