Grandbeing EX0102-N003-051 User manual
Model No.: EX0102-N003-051
Operating Instructions
Thanks for purchasing our product.
Please be sure to read this instruction manual
carefully before using our product.
Introduction
EX0102-N003-051 is a HDBT repeater with a Pass-Through HDMI Output.
Benefits from using EX0102-N003-051:
1) The length of HDMI cable is fixed and unchangeable after it is produced.
Because the HDMI connector can only be soldered or terminated by
professional worker in factory, the users can not reduce or increase by
themselves. However CAT-5E/6E cables are available everywhere and be
processed easily by the user or installer.
2) By using EX0102-N003-051 with our HDBT Transmitter( such as
EX0101-H01) and HDBT Receiver( such as EX0101-H02), the
transmission distance for 1080P reaches 100 meters . For general HDMI
cables, cables must be customized when the length over 10 meters.
3) EX0102-N003-051 has the ability of buffering and amplifying.
When work with EX0101-H01 and EX0101-H02, EX0102-N003-051 offers
solutions for digital entertainment center, HDTV retail and show site, HDTV, STB,
DVD and Projector factory, noise, space and security concerns, data center
control, information distribution, conference room presentation, school and
corporate training environments.
Contents
HDBT Repeater ...............................................................................................1
■ Product Overview......................................................................................1
■ Features....................................................................................................1
■ Package Contents.....................................................................................3
■ Panel Descriptions....................................................................................3
■ Connections and Operations.....................................................................4
■ Specifications ............................................................................................6
■ Typical Application.....................................................................................7
■ Maintenance .............................................................................................7
■ Product Service.........................................................................................7
● Provided Service ...................................................................................7
● Mail-In Service.......................................................................................8
● Warranty ................................................................................................8
● Warranty Limits And Exclusions.............................................................9
Page 1
HDMI Repeater
(By single CAT-5E/6E cable)

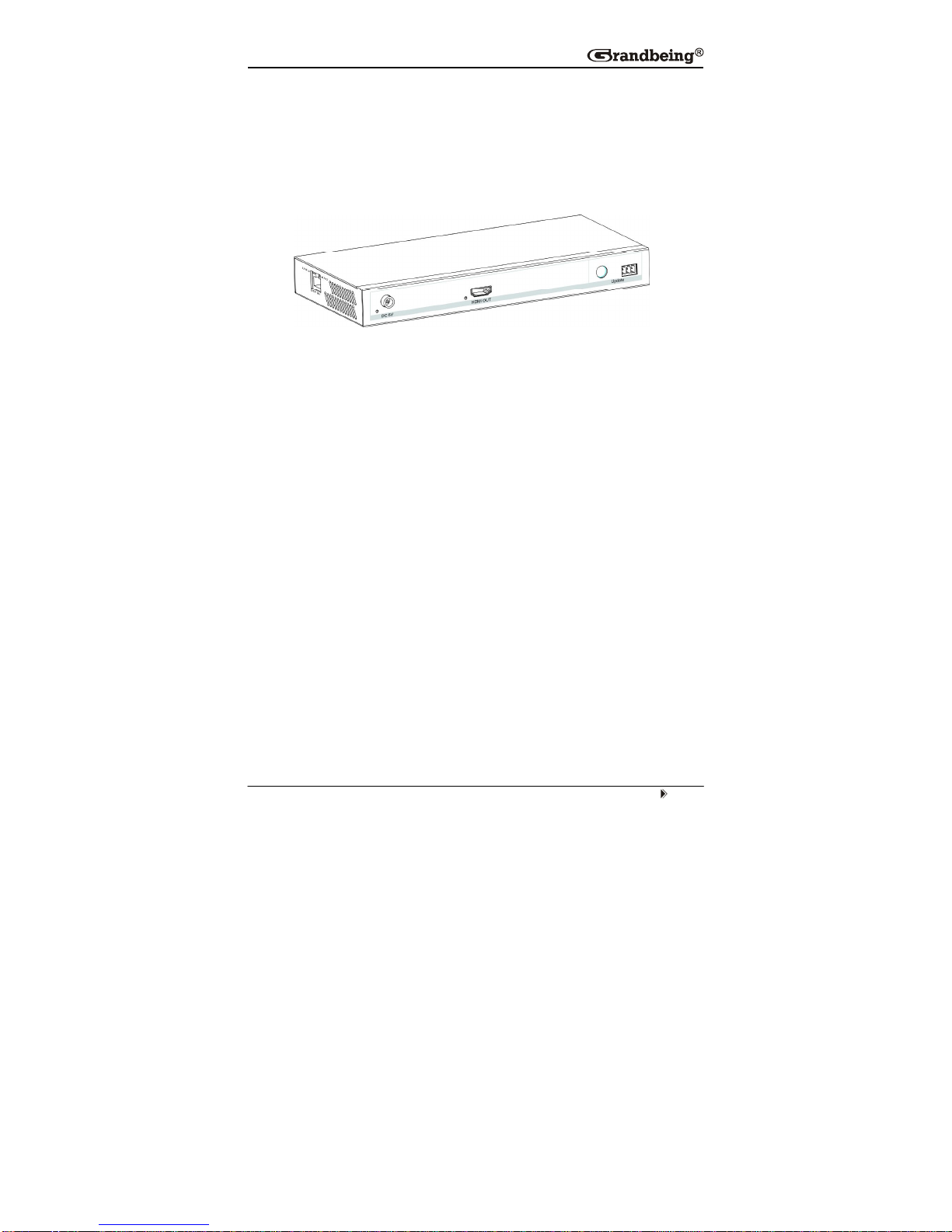

■Product Overview ( Model Number: EX0102-N003-051 )
■Features
lUse single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve
long distance transmission.
lUTP cable termination follows the standard of IEEE-568B.
lTransmission distance reaches up to 100 meters under the video format of
1080P.
lAuto-adjustment of feedback, equalization and amplify, the user does not
need to care about the length of the cable.
lHDMI V1.4 supported.
lHDCP compliant.
lFull HD support: 1080p@60Hz@48 b/pixels, 3D and 4Kx2K
lWith LED indicators to show the power status.
lWith ESD protection inside.
lMounting ears supplied.
lRS232 Port for LongCable mode and firmware update.
lThis model could be cascaded.
Page 2
?Notice
Grandbeing Inc. reserves the right to make changes in the hardware,
packaging and any accompanying documentation without prior written notice.
Warning
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this apparatus
to rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
plugs.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.
Page 3
■Package Contents
① Main unit NO.1. P/N_EX0102-N003-051.
② Operating instructions. P/N_INS_EX0102-N003-051.
&1x 5VDC power supply P/N_VDC0503.
&NOTE: PART NUMBER (Abbreviation as P/N)
■Panel Descriptions

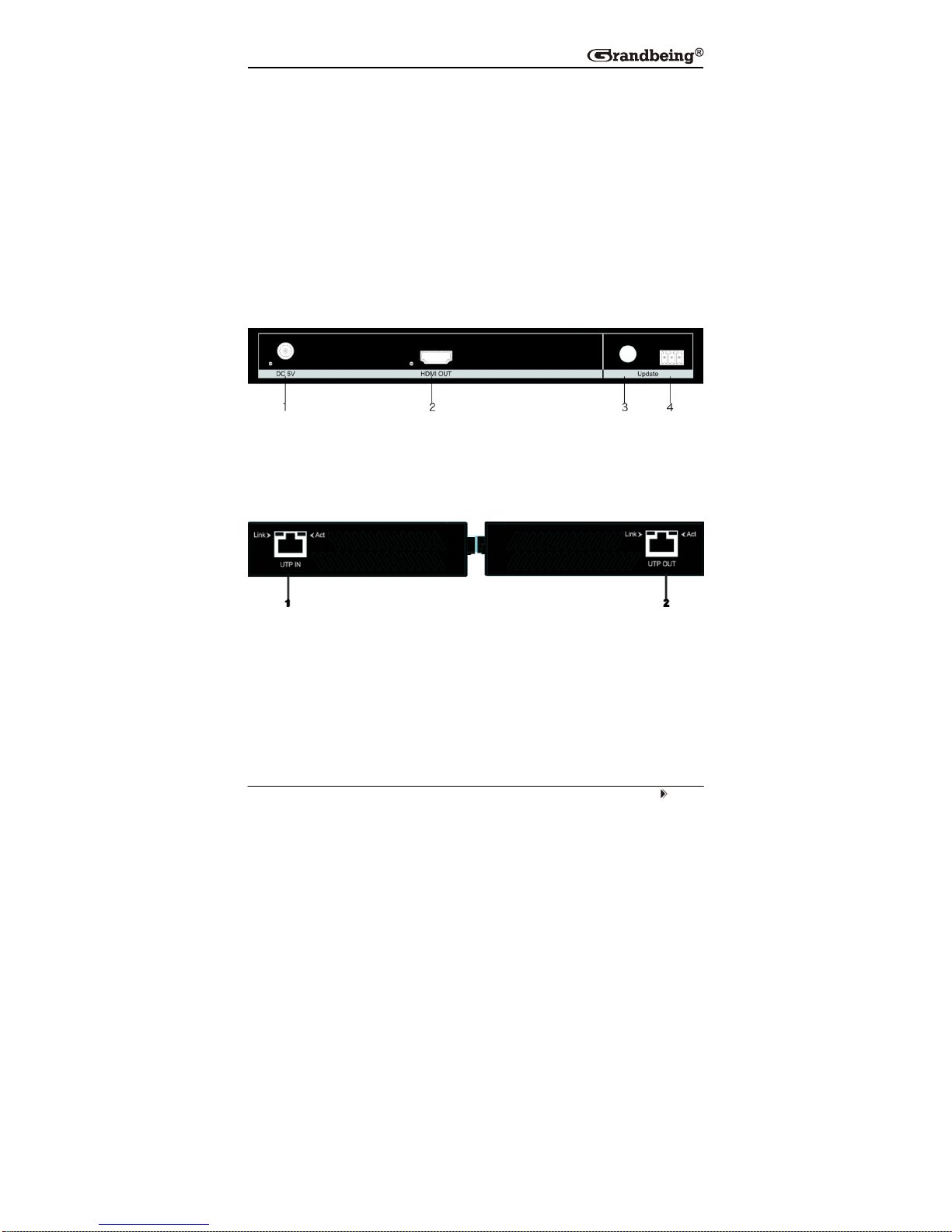

Front Panel
1、5VDC Power and Indicator
2、HDMI Output and Indicator
3、EDID and Update Switcher
4、RS232 Port for update
Side Panel
1、UTP Input
2、UTP Output
Page 4
■Connections and Operations
1) Work with EX0101-H01 and EX0101-H02.
2) Connect the HDMI source ( such as HD-DVD、PS3、STB etc. ) to HDMI
input of EX0101-H01.
3) Connect the HDMI sinks( such as HD-LCD、HD-DLP）to Pass-Through
HDMI output of EX0102-N003-051 and HDMI output of EX0101-H02.
4) Connect a CAT-5E/6E cable from UTP output of EX0101-H01 to UTP input
of EX0102-N003-051.
5) Connect a CAT-5E/6E cable from UTP output of EX0102-N003-051 to UTP
input of EX0101-H02.
&Attention: Please insert and extract cables gently.
Page 5
■Operation Instruction:

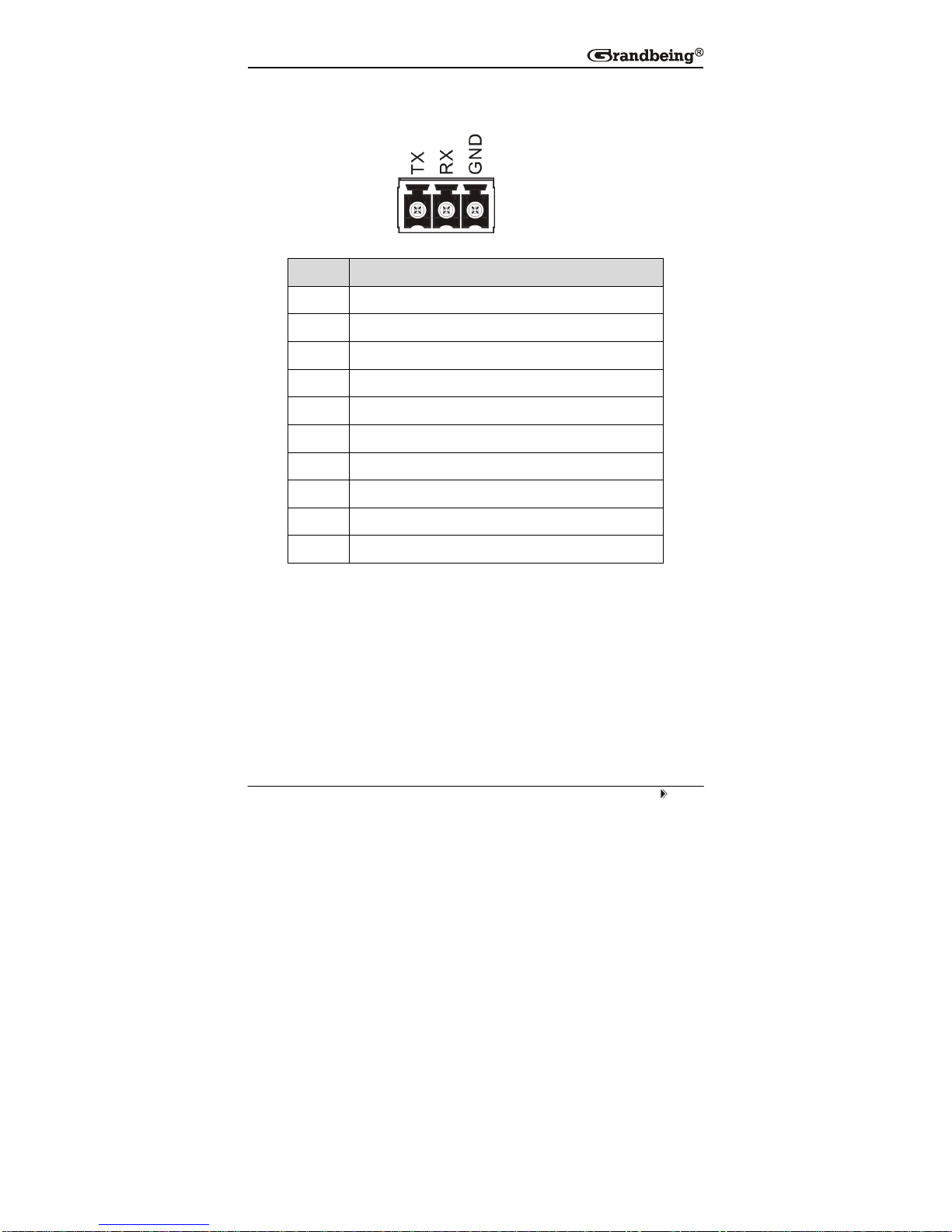

1. Pin definition of RS232 Port
2. EDID and Update Switcher Instruction
1 Function
0 EDID Bypass(default)
1 1080P stereo (Using Embedded EDID)
2 1080P 5.1ch (Using Embedded EDID)
3 1080P 7.1ch(Using Embedded EDID)
4 1080P 3D stereo (Using Embedded EDID)
5 1080P 3D 5.1ch (Using Embedded EDID)
6 1080P 3D 7.1ch (Using Embedded EDID)
7 Upgrade for HDBT RX chip (note1)
8 Upgrade for HDBT TX chip (note2)
9 Upgrade for MCU (note3)
Note 1: Connect RS232 port to PC, use HDBT RX Update Kit to upgrade.
Note 2: Connect RS232 port to PC, use HDBT TX Update Kit to upgrade.
Note 3: Connect RS232 port to PC, use MCU Update Kit to upgrade.
Page 6
■Specifications
Operating Temperature Range 0 to +35°C (32 to +95 °F)
Operating Humidity Range 5 to 90 % RH (no condensation)
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Video Format Supported HDMI:1080P/1080i/720P/576P/480P/5
76i/480i
Output Video HDMI 1.4+HDCP
Output Audio DTS-HD, Dolby-HD
Maximum Transmission Distance
100 meters
Power Supply 5VDC
Power Consumption 12Watts MAX
Dimensions 223mmH×109mmW×27mmD
/8.78’’W×4.29’’H×1.06’’D
Mass (Main unit) 0.7Kg / 1.5lb (Pairs)
&NOTE1: Specifications are subject to change without notice. Mass and dimensions are
approximate.
Page 7

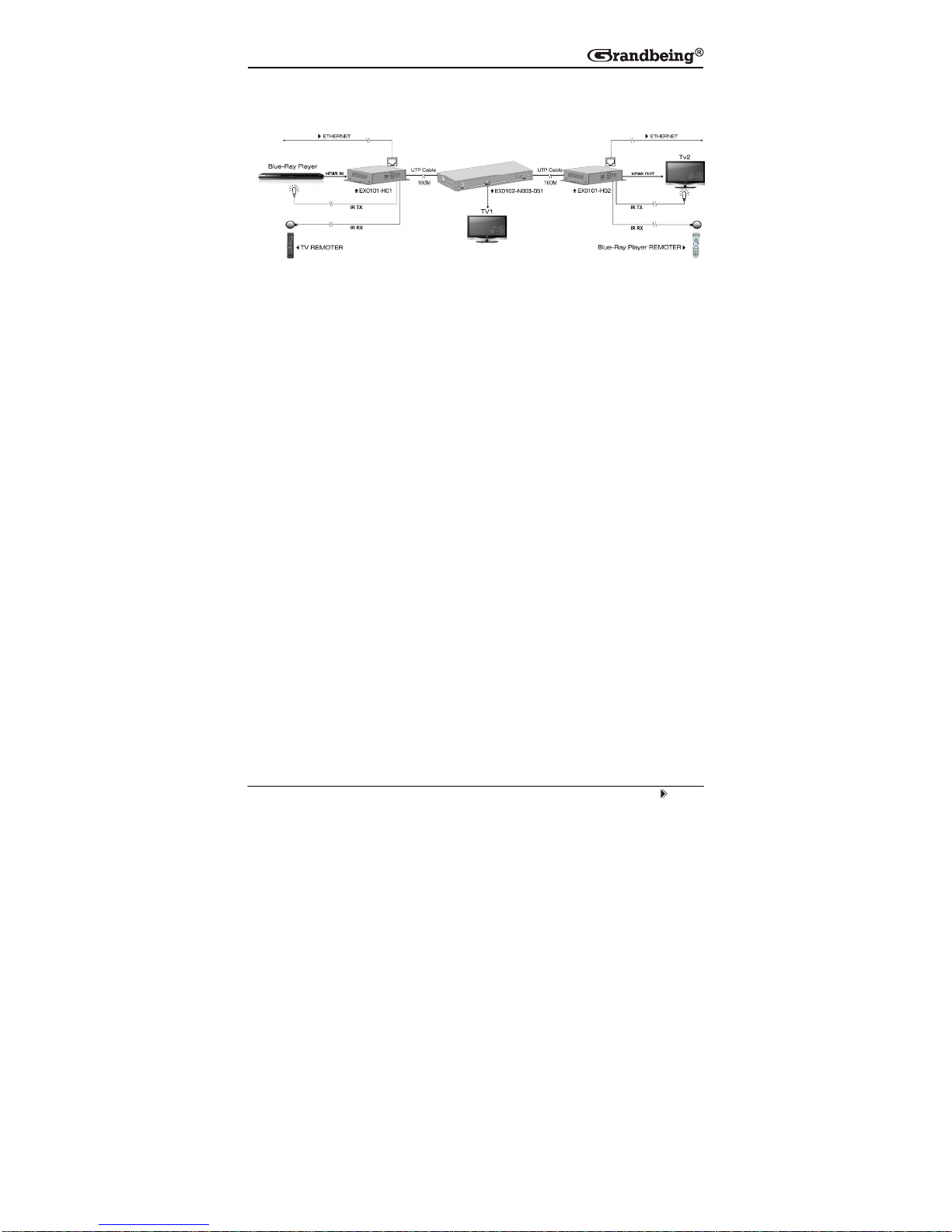

■Typical Application
■Maintenance
Clean this unit with a soft, drycloth. Never use alcohol, paint thinner or benzine
to clean this unit.
■Product Service
●Provided Service
1) Damage Requiring service: The unit should be serviced by qualified
service personnel if:
lThe DC power supply cord or AC adaptor has been damaged;
lObjects or liquids have gotten into the unit;
lThe unit has been exposed to rain;
lThe unit does not operate normally or exhibits a marked change in
performance;
lThe unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing to
authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the service uses
Page 8
parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may result
in fire, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the service to perform safety
checks to confirm that the unit is in proper working condition.
●Mail-In Service
When shipping the unit, carefully pack and send it prepaid, adequately insured
and preferably in the original carton. Include a letter detailing the complaint and
provide a daytime phone and/or email address where you can be reached.
If repair is needed during the limited warranty period the purchaser will be
required to furnish a sales receipt/proof of purchase indicating date of
purchase, amount paid and place of purchase. Customer will be charged for
the repair of any unit received without such proof of purchase.
●Warranty
If your product does not work properly because of a defect in materials or
workmanship, Grandbeing Company (referred to as “the warrantor”) will, for
the length of the period indicated as below, （Parts (1) Year，Labor(90)
Days）which starts with the date of original purchase (“Limited Warranty
period”), at its option either (a) repair your product with new or refurbished
parts, or (b) replace it with a new or a refurbished product. The decision to
repair or replace will be made by the warrantor.
During the “Labor” Limited Warranty period there will be no charge for labor.
During the “Parts” warranty period, there will be no charge for parts. You must
mail-in your product during the warranty period. This Limited Warranty is
extended only to the original purchaser and only covers product purchased as
new. A purchase receipt or other proof of original purchase date is required for
Limited Warranty service.
Page 9
●Warranty Limits And Exclusions
1) This Limited Warranty ONLY COVERS failures due to defects in
materials or workmanship, and DOES NOT COVER normal wear and
tear or cosmetic damage. The Limited Warranty ALSO DOES NOT
COVER damages which occurred in shipment, or failures which are
caused by products not supplied by the warrantor, or failures which result
from accidents, misuse, abuse, neglect, mishandling, misapplication,
alteration, faulty installation, set-up adjustments, misadjustment of
consumer controls, improper maintenance, power line surge, lightning
damage, modification, or service by anyone other than a Factory Service
Center or other Authorized Service, or damage that is attributable to acts
of God.
2) There are no express warranties except as listed under “limited
warranty coverage”. The warrantor is not liable for incidental or
consequential damages resulting from the use of this product, or
arising out of any breach of this warranty. (As examples, this excludes
damages for lost time, cost of having someone remove or re-install an
installed unit if applicable, travel to and from the service location, loss of
or damage to media or images, data or other recorded content. The items
listed are not exclusive, but are for illustration only.)
3) Parts and service, which are not covered by this limited warranty,
are your responsibility.
