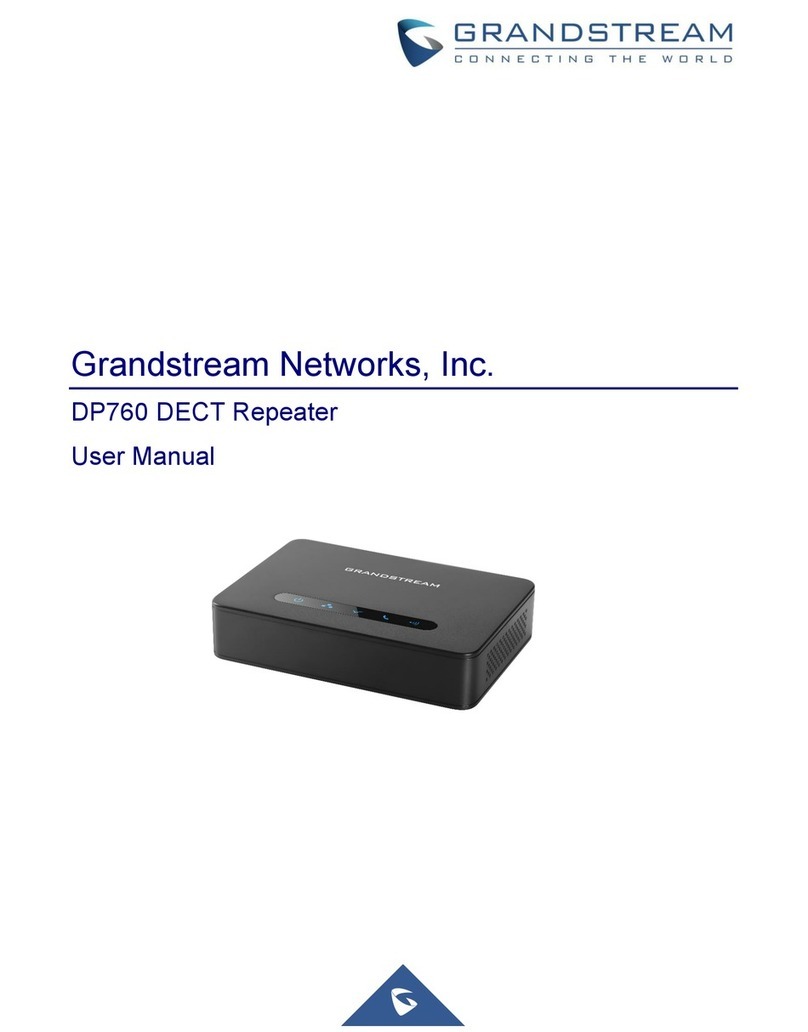

Grandstream Networks DP760 User manual

Grandstream Networks, Inc.
DP760
User Manual

DP760 - User Manual
WELCOME
The DP760 is a powerful DECT Repeater that auto associates to Grandstream DP750 Base Station to offer extended mo bility to
business and residential users. It extends an additional range of 300 meters outdoors and 50 meters indoors to give users the
freedom to move around their work or home space, delivering efficient flexibility. This DECT Repeater relays up to two
concurrent HD calls. The Ether net connection provides PoE for convenient installation and variety of remote features including
provisioning, status moni toring and firmware upgrade. When paired with Grand stream DP750 DECT VoIP base station and
DP720 handsets, the DP760 is a powerful DECT Repeater that allows any busi ness or residential user to create a cordless VoIP
solution of extended coverage.
PRODUCT OVERVIEW
Feature Highlights
The following table contains the major features of the DP760:
DP760
5 Stations in star.
2 Concurrent HD calls.
PoE power support.
300m range outdoor / 50m range indoor.
Automatic or manual association to base station.
Table 1: DP760 Features at a Glance
DP760 Technical Specifications
The following table resumes all technical specifications including the protocols / standards supported, voice codecs, telephony
features, languages and upgrade/provisioning settings for DP760 DECT Repeater.

Air Interface
Telephony standards:
DECT EN 301 406:2001
DECT GAP TBR22 EN 300 444:2001
DECT DECT EN 300 700
CAT-iq TS 102 527
Frequency bands:
1880 – 1900 MHz (Europe)
1920 – 1930 MHz (US)
1910 – 1920 MHz (Brazil)
Number of channels: 10 (Europe), 5 (US, Brazil).
Range: up to 300 meters outdoor and 50 meters indoor.
Peripherals
5 LED indicators: Power, Network, Association, Activity, DECT
Reset button, Pairing/Paging button
One 10/100 Mbps auto-sensing Ethernet port with integrated PoE
Protocols/Standa
rds
TCP/IP/UDP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP,
NTP, SIMPLE, LLDP-MED.
Voice Codecs G.722 codec for HD audio and G.726 codec for narrow band audio.
Telephony
Features Plug-n-Play, auto association,auto region detection and seamless call handover.
Security User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES
encrypted configuration file,HTTPS, 802.1x media access control, DECT authentication.
Multi-language English, Czech, German, Spanish, French, Arabic, Hebrew, Italian, Russian, Netherlands, Japanese,
Polish, Chinese Simple, Chinese Tradition, Korean, Portuguese, Slovakian, Serbian, Swedish and Turkish.
Upgrade/
Provisioning Firmware upgrade via FTP/FTPS/HTTP/HTTPS.
Association
Up to 5 stations in star.
Automatic or manual association to base station.
Power & Green
Energy Efficiency
Universal Power Supply: Input AC 100-240V 50/60Hz, Output 5VDC 1A, Micro-USB connection.
PoE: IEEE802.3af Class 1, 0.44W–3.84W.
Package Content DECT Repeater Unit, Universal Power Supply, Ethernet cable, Quick Installation Guide, GPL statement
Dimensions 28.5 mm (H) x 130 mm (W) x 90 mm (D).
Weight DECT Repeater unit: 143g; Universal Power Supply: 50g; Package: 360g.

Temperature
and Humidity
Operation: -10º to 50ºC (14º to 122ºF);
Storage: -20º to 60ºC (-4º to 140ºF).
Humidity: 10% to 90% non-condensing.
Compliance
FCC: Part 15D, Part 15B, MPE
CE: EN60950, EN301489-1-6, EN301406, EN50385
RCM: AS/NZS60950
ANATEL: #2288-16-9452
Table 2: DP760 Technical Specifications
GETTING STARTED
This chapter provides basic installation instructions including the list of the packaging contents and description of the LED
patterns.
Equipment Packaging
DP760
1 DECT Unit.
1 Universal power supply 5V.
1 Ethernet cable.
1 Quick Installation Guide.
1 GPL Statement.
Table 3: Equipment Packaging
Figure 1: DP760 Package Content
Connecting DP760
To set up the DP760 DECT Repeater, please follow the steps below:
Note
Check the package before installation. If you find anything missing, contact your system administrator.

Figure 2: DP760 Back View
There are two options to connect DP760 DECT Repeater, either with the AC power or Power over Ethernet (PoE)
Connecting via AC power
1. Connect the micro-USB connector into the related port on the repeater station and connect the other end of the power
adapter into an electrical power outlet.
2. Connect the supplied Ethernet cable between the Internet port on the DP760 DECT Repeater and the Internet port in your
network or the switch/hub device port.
Figure 3: Connecting the Repeater Station
Connecting via PoE
To connect the DP760 DECT Repeater using PoE, you need to connect the Ethernet cable provided (or 3rd party network
cable) between the Network Socket on the repeater station to Ethernet port of your PoE switch/hub.
DP760 Implementation Architecture
The DP750 Base Station can support up to 5 DP760 DECT Repeater stations to extend the coverage area of the base in all
directions, including through floors and ceilings using star architecture as displayed on the following diagrams.
When a repeater powers on, it searches for signals from the base and any other repeaters registered to the same base. The
repeater will automatically connect to the first available signal.
The base can hand-off calls to the repeaters as the user moves from one coverage area to another. When connected to the
repeater, the DP720 handsets operate as it is connected to the base, and the hand-off from the base to the repeater can be
completely invisible to the end user, even during an active call.
Note
DP760 can relay up to 2 concurrent calls.

Figure 4: Star Mode Configuration
In star mode configuration, the coverage area of the repeaters should overlap the coverage area of the base station.
DP760 LED Patterns
The DP760 has 5 LED lights. Please refer to following table describing the status of each LED.
Figure 5: DP760 LED Patterns
LED Status
Indicates Power ON/OFF.
Indicates access to the network.
Solid ON: When there is access to the network.
Blinking: If there is no access to the network.
Indicates status of the association between DP760 and DP750
Blinking: When the DECT station is scanning for available RFPs.
Solid ON: When the association between DECT repeater and Base station is operational.

Indicates status of the association between DP760 and DP750 during calls.
Solid ON: When there are no active calls and the association between DECT repeater and Base station is
operational.
Blinking: During active calls.
Indicates status of the association link between the DP760 and DP750.
Solid ON: When the association between DECT and Base station is operational, and link is excellent.
Blinking:
Long ON, 1x short OFF if the association link is good.
Long ON, 2x short OFF if the association link is weak.
Long ON, 3x short OFF if the association link is poor
Table 3: Equipment Packaging
CONFIGURATION GUIDE
The DP760 can be configured via the Web GUI embedded using a Web browser. By default, DP760 is configured to obtain IP
address from DHCP server where the unit is located and can be discovered using UPnP feature (by default enabled).
Configuration via Web Browser
The DP760 embedded Web server responds to HTTP/HTTPS GET/POST requests. Embedded HTML pages allow a user to
configure the DP760 through a Web browser such as Google Chrome, Mozilla Firefox and Microsoft Internet Explorer.
Note: If DP760 has a known IP, users can access to its Web GUI by entering the IP address in their Web browser on a device
connected to same network.
Accessing the Web GUI using UPnP Feature
DP760 supports UPnP feature (by default enabled) for auto discovery by computers in same network. Please refer to following
steps to access DP760 Web GUI:
1. Power on DP760 and connect it to the network.
2. Connect a computer to same network as DP760. (The computer must be connected to the same sub-network as the
DP760. This can be easily done by connecting the computer to the same hub or switch as the DP760).
3. Access Network directory on the computer.
4. Locate DP760 – <MAC Address> device and double click on it to access Web GUI.
Figure 6: DP760 UPnP Discovery
5. Enter admin’s username and password and press Login button to access the configuration menu. (Starting HW version
1.3A the default admin username is ‘admin’ while the admin password is the random password that can be found on the
sticker at the back of the unit. For lower hardware versions; the default username and password are: admin/admin)

Accessing the Web GUI using DP750 Repeater Management Mode
The repeater management mode on the DP750 allows managing discovered / paired re peater stations and accessing the
DP760 Web GUI from DP750 Web GUI. Please refer to following steps to access DP760 Web GUI using DP750 repeater
management mode:
1. Access the Web GUI of your DP750 using the admin’s username and password. (Starting HW version 1.7A the default
admin username is ‘admin’ while the admin password is the random password that can be found on the sticker at the
back of the unit. For lower hardware versions; the default username and password are: admin/admin).
2. Navigate to DECT 🡪 General Settings and set Enable Re peater Management to Yes.
3. Press Save and Apply button, then reboot the unit to apply the new settings.
4. After finishing the reboot, access again the DP750 Web GUI.
5. Navigate to Status 🡪 DECT Repeater Status.
6. Access the discovered or paired repeater Web GUI by clicking on its IP address.
7. You will be redirected to login page of the repeater, enter admin’s username and password and press Login button to
access the configuration menu.
Saving the Configuration Changes
After users make changes to the configuration, pressing the Save button will save but not apply the changes until the Apply
button on the top of Web GUI page is pressed. Users can instead directly press the Save and Apply button. We recommend
rebooting or powering cycle the device after applying all changes.
Web GUI Access Level Management
There are two default passwords for the login page:
User Level Usern
ame Password Web Pages Allowed
End User
Level user 123 Status, Network Settings and Maintenance pages
Administra
tor Level admin
The random password that can be
found on the sticker at the back of the unit starting from HW version
1.3A. For lower hardware versions, the admin password is ‘admin’.
All pages
Table 3: Equipment Packaging
The password is case sensitive with a maximum length of 25 characters.
When changing any settings, always SUBMIT them by pressing the Save or Save and Apply button on the bottom of the
page. If using the Save button, after making all the changes, click on the Apply button on top of the page to submit. After
submitting the changes in all the Web GUI pages, reboot DP760 to have the changes take effect if necessary; most of the
options under the Maintenance page require a reboot.
Note
When accessing the Web GUI with normal user level, Advanced Settings page will be hidden.

Changing User Level Password
1. Access the Web GUI of your DP760 using the admin’s username and password. (Starting HW version 1.3A the default
admin username is ‘admin’ while the admin password is the random password that can be found on the sticker at the
back of the unit. For lower hardware versions; the default username and password are: admin/admin).
2. Press Login to access your settings.
3. Go to Maintenance 🡪 Web/SSH Access.
4. In Web/SSH Access page, locate User Password section:
1. Type in your new user password in New Password field.
2. Type in again same entered password in Confirm Password field.
5. Press Save and Apply to save your new setting.
Figure 7: User Level Password
Changing Admin Level Password
1. Access your DP760 DECT Repeater Web GUI by entering its IP address in your favorite browser.
2. Enter your admin’s username and password. (Starting HW version 1.3A the default admin username is ‘admin’ while the
admin password is the random password that can be found on the sticker at the back of the unit. For lower hardware
versions; the default username and password are: admin/admin)
3. Press Login to access your settings.
4. Go to Maintenance 🡪 Web/SSH Access.
5. In Web/SSH Access page, locate Admin Password section:
1. Type in your new Admin Password in New Password field.
2. Type in again same entered password in Confirm Password field.
6. Press Save and Apply to save your new setting.
Note
DO NOT USE same password for both user and admin accounts.

Figure 8: Admin Level Password
Changing HTTP/HTTPS Web Access Port
1. Access your DP760 DECT Repeater Web GUI by entering its IP address in your favorite browser.
2. Enter your admin’s username and password. (Starting HW version 1.3A the default admin username is ‘admin’ while the
admin password is the random password that can be found on the sticker at the back of the unit. For lower hardware
versions; the default username and password are: admin/admin).
3. Press Login to access your settings.
4. Go to Maintenance 🡪 Web/SSH Settings.
5. In Web/SSH Settings page, locate HTTP / HTTPS Web Port field and change it to your new HTTP/HTTPS port.
6. Select the Web Access Mode depending on desired protocol (HTTP or HTTPS).
7. Press Save and Apply to save your new setting.
Note
DO NOT USE same password for both user and admin accounts.
Note
By default, the HTTP port is 80 and HTTPS port is 443.
Note
A reboot is required for this change to take effect.
