Grape Solar GS-300-KIT User manual

Grape Solar 300 Watt Off Grid Kit
(GS-300-KIT)
Installation Guide
IMPORTANT: Please read the Panel User Guide, charge controller and inverter
manuals before connecting the kit components
www.grapesolar.com
Tel. [phone] (toll free), 1-541-349-9000, Fax: [phone]
©Copyright 2018, Grape Solar, Inc. All Rights Reserved
For additional information about this kit visit grapesolar.com/manuals.html, or email
[e-mail]
GS-300-KIT EXPANDABLE PHOTOVOLTAIC
POWER GENERATION SYSTEM
CONFIGURATION MANUAL Rev. 180601
Valid from June 2018

www.grapesolar.com
Tel. [phone] (toll free), 1-541-349-9000, Fax: [phone]
QuickStart Setup

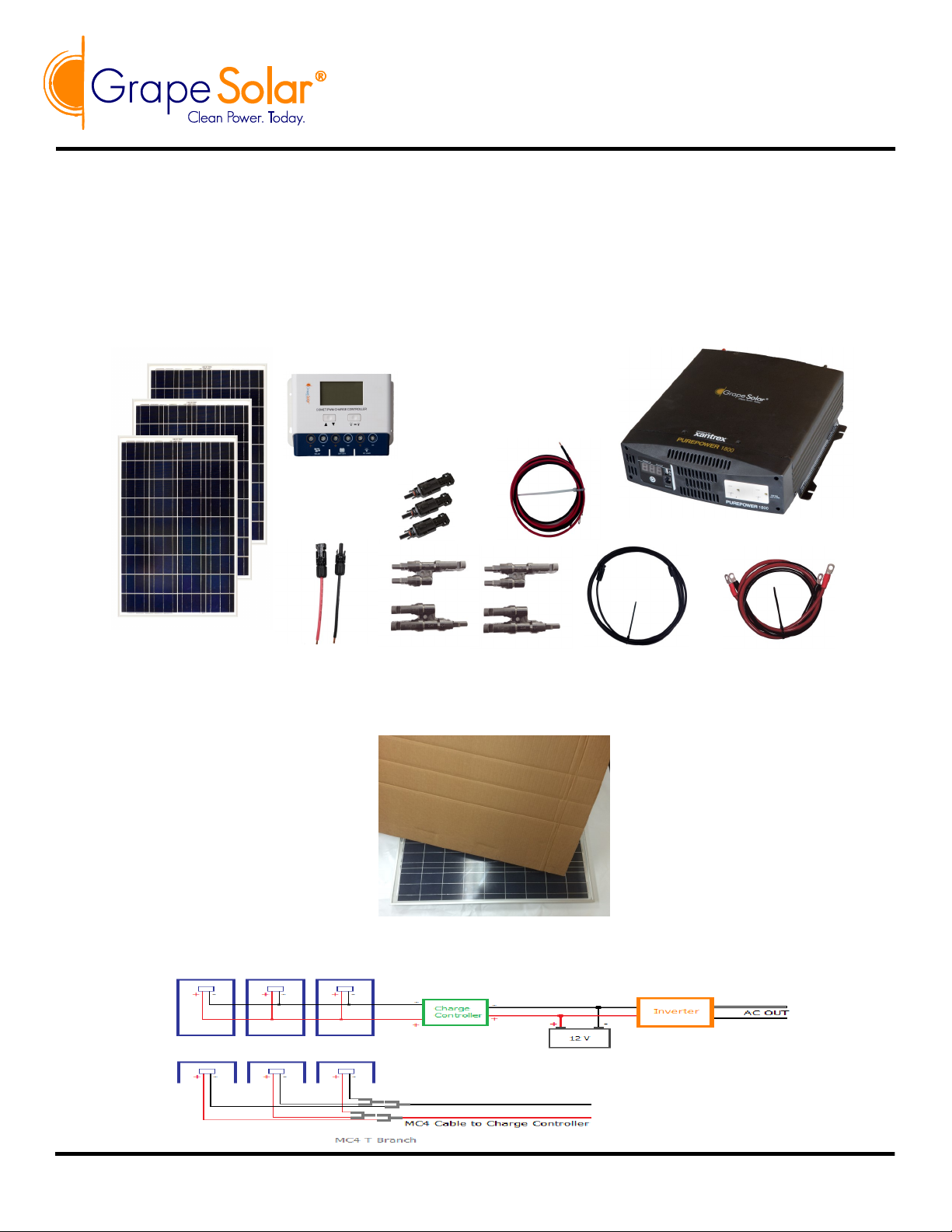

Step 1: Check your order to make sure that all parts are included. For the 300 watt kit, this is three 100 watt so-
lar panels, three 10-amp inline fuses, two pairs of MC4 T-branch connectors, a pair of 15-foot MC4-to-MC4
cables, a red/black 6” MC4-to-bare cable pair, a 5-foot (10 AWG) red/black bare-wire-to-ring-lug cable
pair (charge-controller-to-battery), a 5-foot (4 AWG) red/black cable pair (battery-to-inverter), a Grape So-
lar PurePower 1800 inverter, and a GS-PWM-COMET-40 charge controller.
Step 2: For optimum output, place the panels so they are facing due south at approximately the same angle as
your latitude, in full sun. If you are connecting the system during daylight, cover the panel with cardboard,
cloth, or a similar option so that it does not output power. Place the panel so it is facing due south at approx-
imately the same angle as your latitude, in full sun.
GS-300-KIT EXPANDABLE PHOTOVOLTAIC
POWER GENERATION SYSTEM
CONFIGURATION MANUAL Rev. 180601
Valid from June 2018
Basic Wiring Diagram

www.grapesolar.com
Tel. [phone] (toll free), 1-541-349-9000, Fax: [phone]
QuickStart Setup

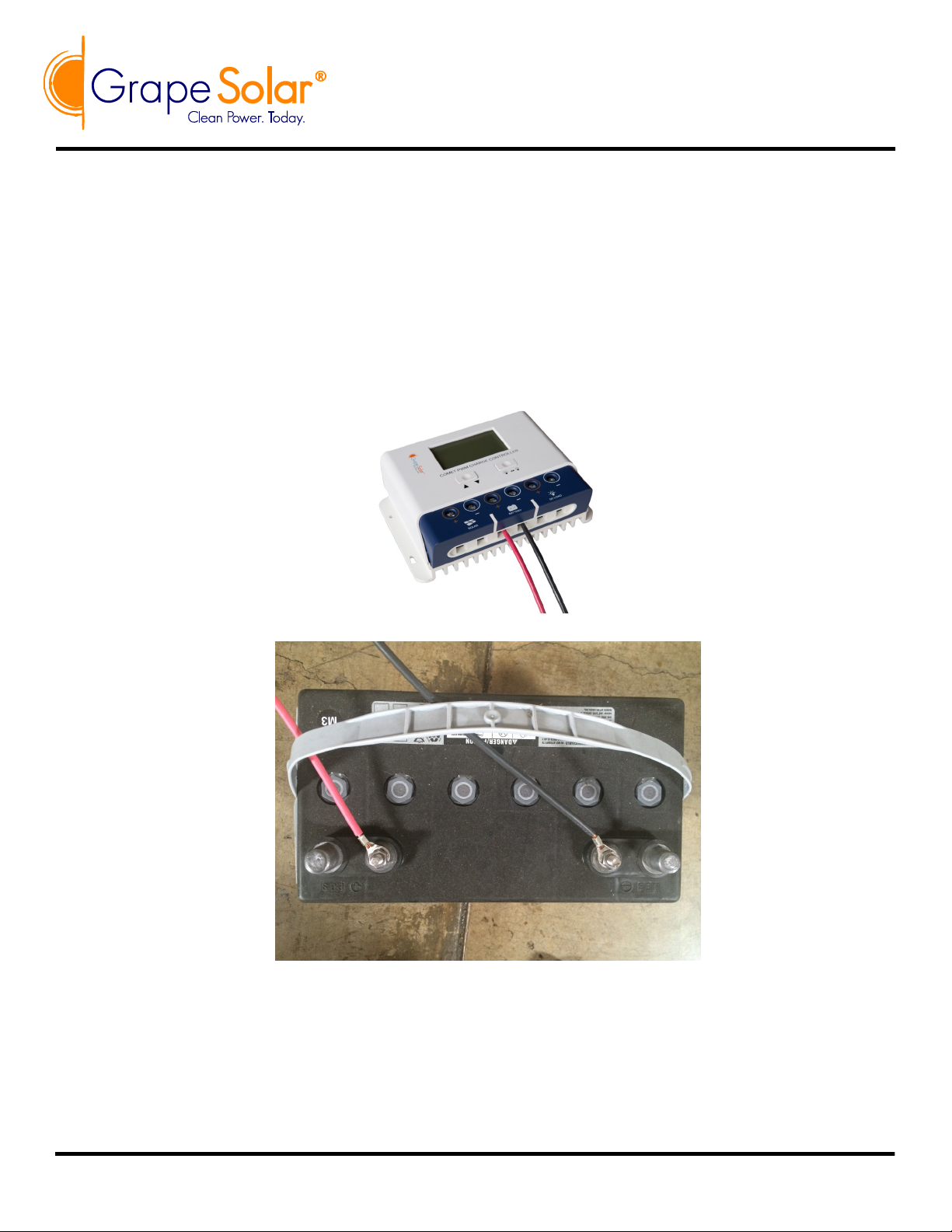

Step 4: Use the 10 awg 5-foot red & black cable pair to connect your positive and negative battery terminals to
the “Battery Positive” (use red cable from the positive battery terminal) and “Battery Negative” (use black
cable from the negative battery terminal) inputs of the charge controller (the center set of terminals).
Step 3: Mount controller if desired (note that it must be in a NEMA-4 rated enclosure if it is outdoors).
GS-300-KIT EXPANDABLE PHOTOVOLTAIC
POWER GENERATION SYSTEM
CONFIGURATION MANUAL Rev. 180601
Valid from June 2018
If your battery has sufficient charge (11.5 volts or more), you should now see the controller’s LCD display
activate. This means the controller has power (controllers are powered by the battery, not the panels).

www.grapesolar.com
Tel. [phone] (toll free), 1-541-349-9000, Fax: [phone]
QuickStart Setup
GS-300-KIT EXPANDABLE PHOTOVOLTAIC
POWER GENERATION SYSTEM
CONFIGURATION MANUAL Rev. 180601
Valid from June 2018
Step 6: Connect the MC4 outputs of the T-branch connectors to the 15-foot MC4 extension cables.
Step 5: Connect the positive panel leads to the inline fuses. Then connect the positive and negative outputs of
the panel to the appropriate T-branch connectors, as seen at the top of the next page. Panels 2 and 3 connect
to the 1st pair, and the outputs of that 1st pair along with Panel 1’s outputs connect to the second pair.

www.grapesolar.com
Tel. [phone] (toll free), 1-541-349-9000, Fax: [phone]
QuickStart Setup
Then connect the MC4 outputs of the 15-foot cables to the 6” MC4-to-bare wire pair as shown below:
Step 7: Connect the bare wire end of the red cable to the “PV Positive” input of the controller, and the black
cable end to the “PV Negative” input (the left hand set of terminals).
GS-300-KIT EXPANDABLE PHOTOVOLTAIC
POWER GENERATION SYSTEM
CONFIGURATION MANUAL Rev. 180601
Valid from June 2018

www.grapesolar.com
Tel. [phone] (toll free), 1-541-349-9000, Fax: [phone]
QuickStart Setup
Step 8: Connect the 4 awg red (positive) and black (negative) 5-foot cables from battery to inverter
Step 9: Uncover the panel. As the day progresses, you should see the battery voltage slowly increase,
eventually the controller display will read “Float”. At this point the battery can be used to pro-
vide power (turn the inverter on and plug your AC devices into it for power).
GS-300-KIT EXPANDABLE PHOTOVOLTAIC
POWER GENERATION SYSTEM
CONFIGURATION MANUAL Rev. 180601
Valid from June 2018
Exclusion for Documentaon
UNLESS SPECIFICALLY AGREED TO IN WRITING, SELLER
MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY, OR SUITABILITY OF ANY TECHNICAL OR OTHER
INFORMATION PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION;
ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES, DAMAGES, COSTS OR EXPENSES, WHETHER SPECIAL,
INDIRECT, CONSEQUENTIAL OR INDIDENTAL, WHICH MIGHT ARISE OUT OF THE USE OF SUCH INFOR-
MATION. THE USE OF ANY SUCH INFORMATION WILL BE ENTIRELY AT THE USER’S RISK; AND
REMINDS YOU THAT IF THIS MANUAL IS IN ANY LANGUAGE OTHER THAN ENGLISH, ALTHOUGH STEPS HAVE
BEEN TAKEN TO MAINTAIN THE ACCURACY OF THE TRANSLATION, THE ACCURACY CANNOT BE GUARAN-
TEED. APPROVED CONTENT IS CONTAINED WITH THE ENGLISH LANGUAGE VERSION WHICH IS POSTED AT
WWW.GRAPESOLAR.COM/MANUALS.HTML
Important: Installaons of this kind must be cered/approved as “code-compliant” to the naonal and local
building and electrical codes. Installers should have adequate knowledge of naonal and local code to ensure the
installaon passes inspecon by the local electric authority.
Important: Proper fuses or breakers should be used to comply with all local and naonal codes. Contact Grape Solar
for specic recommendaons.
Important: All baeries used for this system should be idencal. Do not mix baery types or sizes. Do not mix old
baeries with new baeries. Performance and charging anomalies can occur if types, sizes, or age of baeries are
not idencal.
