GRASS VALLEY LDK 5305/01 User manual

User’s Guide
November 2005
LDK 5305/01
5-inch HDTV Viewfinder

Declaration of Conformity
We, Grass Valley Nederland B.V., Kapittelweg 10, 4827 HG Breda, The Netherlands, declare under our sole responsibility that this product is in
compliance with the following standards:
EN60065 : Safety
EN55103-1 : EMC (Emission)
EN55103-2 : EMC (Immunity)
following the provisions of:
a. the Safety Directives 73/23//EEC and 93/68/EEC
b. the EMC Directives 89/336/EEC and 93/68/EEC
FCC Class A Statement
This product generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions,
may cause interference to radio communications.
It has been tested and found to comply with the limits for a class A digital device pursuant to part 15 of the FCC rules, which are
designed to provide reasonable protection against such interference when operated in a commercial environment.
Operation of this product in a residential area is likely to cause interference in which case the user at his own expense will be required to
take whatever measures may be required to correct the interference.
Copyright
Für diese Unterlage behalten wir uns alle
Rechte vor (Gemäß DIN 34). Technische
Änderungen im Zuge der
Weiterentwicklung vorbehalten.
Copying of this document and giving it to
others, and the use or communication of
the contents thereof, are forbidden
without express authority. Offenders are
liable to the payment of damages. All
rights are reserved in the event of the grant
of a patent or the registration of a utility
model or design. Liable to technical
alterations in the course of further
development.
Toute communication ou reproduction de
ce document, toute exploitation ou
communication de son contenu sont
interdites, sauf autorisation expresse. Tout
man-quement à cette règle est illicite et
expose son auteur au versement de
dommages et intérêts. Tous nos droits sont
réservés pour le cas de la délivrance d'un
modèle d'utilité. Sous réserve de
modification au cours de l'évolution
technique.
© Copyright Grass Valley Nederland B.V. 2005 3922 496 30511

User's Guide LDK 5305/01 1
Contents
User’s Guide
5-inch HDTV Viewfinder
LDK 5305/01
Safety Summary ................................................................ iv
Cautions and Warnings ...................................................... iv
Cathode ray tubes ............................................................. iv
About This Manual .......................................................... 1
Purpose of this manual....................................................... 1
Intended audience ............................................................. 1
Service policy ..................................................................... 1
Packing/Unpacking ............................................................ 1
Storage ............................................................................. 1
Installation ....................................................................... 2
Operation ......................................................................... 3
Viewfinder Connector ...................................................... 4
Specifications ................................................................... 4

2 User's Guide LDK 5305/01
Safety Summary
This informaton is intended as a guide for trained and
qualified personnel who are aware of the dangers involved
in handling potentially hazardous electrical/electronic
equipment. It is not intended to contain a complete list of all
safety precautions which should be observed by personnel in
using this or other electronic equipment.
The installation, maintenance and service of this equipment
involves risks both to personnel and equipment and must be
performed only by qualified personnel exercising due care.
Personnelengaged in the installation,operation, maintenance
or servicing of this equipment are urged to become familiar
with First Aid theory and practises.
During installation and operation of this equipment, local
buildingsafetyand fire protection standards must be observed.
Before connecting the equipment to the power supply of the
installation, the proper functioning of the protective earth
lead of the installation needs to be verified.
Whenever it is likely that safe operation is impaired, the
apparatus must be made inoperative and secured against any
unintended operation. The appropriate servicing authority
must then be informed. For example, safety is likely to be
impaired if the apparatus fails to perform the intended
function or shows visible damage.
This product has been designed and tested according to
EN60065.
Cautions and Warnings
When performing service, be sure to read and comply with the
warning and caution notices appearing in the manuals.
Warnings indicate danger that requires correct procedures or
practices to prevent death or injury to personnel. Cautions
indicate procedures or practices that should be followed to
prevent damage or destruction to equipment or property.
WARNING
THE CURRENT AND VOLTAGES PRESENT IN THIS EQUIPMENT ARE DANGEROUS.ALL
PERSONNEL MUST AT ALL TIMES FOLLOW THE SAFETY REGULATIONS.
ALWAYS DISCONNECT POWER BEFORE REMOVING COVERS OR PANELS.
ALWAYS DISCHARGE HIGH VOLTAGE POINTS BEFORE SERVICING.
NEVER MAKE INTERNAL ADJUSTMENTS,PERFORM MAINTENANCE OR SERVICE WHEN
ALONE OR WHEN FATIGUED.
INCASE OF AN EMERGENCY ENSURE THAT THE POWER IS DISCONNECTED.
ANY INTERRUPTION OF THE PROTECTION CONDUCTOR INSIDE OR OUTSIDE THE
APPARATUS,OR DISCONNECTION OF THE PROTECTIVE EARTH TERMINAL,IS LIKELY
TO MAKE THE APPARATUS DANGEROUS.INTENTIONAL INTERRUPTION IS PROHIBITED.
USE ONLY FUSES OF THE TYPE AND RATING SPECIFIED.
CAUTION
READ THIS INFORMATION CAREFULLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT
To prevent risk of overheating, ventilate the product
correctly.
Connect the product only to a power source with the
specified voltage rating.
Cathode ray tubes
Components marked on the circuit diagram are critical for
safety and include those specified to comply with X-ray
emission standards for units using cathode ray tubes and
those specified for compliance with various regulations
regarding spurious radiation emission.
When servicing units that use cathode ray tubes (CRTs), the
cathode ray tubes themselves, the high voltage circuits and
related circuits are specifically chosen so that they comply
with recognized codes pertaining to X-ray emission.
Consequently, when servicing, replace the cathode ray tubes
and other parts with specified parts only. Do not attempt to
modify these circuits as any unauthorized modification can
increase the high voltage value and cause X-ray emission from
the cathode ray tube.
Handle the cathode ray tube only when wearing shatterproof
goggles and after discharging the high voltage completely.
Symbol Colour Explanation
Red High voltage terminal at which a
voltage, with respect to an other
terminal, exists or may be adjusted
to 1000V or more.
Yellow/Black Live part.
Yellow/Black This marking indicates that the
operator must refer to an
explanation in the Instruction
Manual, or that a specific
component must be replaced by
the component specified in the
documentationfor safety reasons.
White/Black Protectiveearth (ground) terminal.

User's Guide LDK 5305/01 3
About This Manual
Purpose of this manual
The purpose of this manual is to present a global description
of how to operate the viewfinder. Consult the user's guide of
your camera as required during and after the installation
process.
This manual is an integral part of the service policy. It ensures
that you will be able to install your viewfinder to meet the
requirements of your environment. The manual provides first
line service information so that suitably qualified service
personnel can detect and repair faults, normally by module
replacement.
Because of the complexity of some of the components,
second line service can only be carried out at the specially
equipped service centres and information concerning second
line maintenance is not supplied in this manual.
Intended audience
The manual is intended as a guide to those with a working
knowledge of camera systems and installation techniques.
The first line detection and repair of faults requires a general
knowledge of test and measurement techniques. The guide
is so designed that it can be used as wel to the viewfinder, as
wel a simple procedural guide to those who wish to setup and
start shooting immediately, and as a reference work to be
consulted as required during the long life of the viewfinder.
Service policy
The LDK 5305/01 is a sophisticated viewfinder containing
state of the art electronic components which are designed to
providelong-life operation without theneed for maintenance.
Withthisinmind,theservicepolicyofGrassValley'sendeavours
to ensure that help will be quickly on hand in the unlikely
event of anything going wrong. The guiding principles of the
Grass Valley's first line maintenance philosophy are speed
and cost effectiveness. First line maintenance is dedicated to
keeping your viewfinder operational, despite a fault, by
replacementboards and the replacement of minor mechanical
parts by the user.
CAUTION
Without additional protection the LDK5305/01 is
protected according to safety specification EN60529
up to level IPX3 (spraying water). Exposure to
splashing or jetting water can result in harmful
effects.
Packing/Unpacking
Inspect the shipping container for evidence of damage
immediately after receipt. If the shipping container or
cushioning material is damaged, it should be kept until the
contentsof the shipment havebeen checked for completeness
and the unit has been checked mechanically and electrically.
The shipping container should be placed upright and opened
from the top. Remove the cushioning material and lift out the
contents.
The contents of the shipment should be checked against the
packing list. If the contents are incomplete, if there is
mechanical damage or defect, or if the unit does not perform
correctly when unpacked, notify your Grass Valley sales or
service centre within eight days. If the shipping container
shows signs of damage or stress, notify the carrier as well.
If the unit is being returned to Grass Valley for servicing, try
to use the containers and materials of the original packaging.
Attach a tag indicating the type of service required, return
address, model number, full serial number and the return
number which will be supplied by your Grass Valley service
centre.
If the original packing can no longer be used, the following
general instructions should be used for repacking with
commercially available materials:
a. Wrap unit in heavy paper or plastic.
b. Use strong shipping container.
c. Use a layer of shock-absorbing material around all sides
of the unit to provide firm cushioning and prevent
movement inside container.
d. Seal shipping container securely.
e. Mark shipping container FRAGILE to ensure careful
handling.
Storage
The unit may be stored (non-operating condition) in
environments within the following limits:
Temperature: -20 to +50 degrees C
Humidity: Up to 90%
Altitude: 50,000 feet
When stored, the unit should be protected from temperature
extremes which may cause condensation, and should also be
protected from high levels of dust.
!

4 User's Guide LDK 5305/01
Installation
The5-inchHDTVviewfinderLDK5305/01isespeciallydesigned
for use with LDK HDTV cameras.
CAUTION
Before connecting, make sure that the power is
switched off.
To mount the viewfinder on top of the camera adapter
proceed as follows:
a. Slide the mounting plate of the viewfinder into the slot
on the camera adapter until you hear it click into place.
b. Connectthe viewfinder cable to the viewfinder connector
on the camera.
To release the viewfinder push the release lever in and slide
the viewfinder out of the slot.
Adjust the 5-inch viewfinder position as follows:
To tilt the viewfinder:
a. Loosenthetiltlockingknobbyturningitcounterclockwise.
b. Tilt the viewfinder to the desired position.
c. Secure the tilt locking knob by turning it clockwise.
You can rotate the viewfinder freely.
!
Brightness Contrast Peaking Tex t
Iso
Ona
On
Mom
Mounting
plate
Tilt locking
knob
Mounting
release level

User's Guide LDK 5305/01 5
Operation
Front on-air indicator switch
Switches the front on-air indicator on or off, or dims it.
Front on-air indicator
Lights to indicate that the camera is on air.
On-airindicators
Light to indicate that the camera is on air.
Power switch
Switches the viewfinder on and off.
ISO indicator
Lights to indicate that the camera is selected and ready to be
switched on-air.
Optional switch
This switch is mounted on the viewfinder to allow future
features to be incorporated.
Peaking control
Adjusts the peaking level of the viewfinder videosignal.
Contrast control
Adjusts the contrast of the viewfinder display.
Brightness control
Adjusts the brightness of the viewfinder display.
Camera number attachment slots
Attach a camera number to these slots.
Picture zoom
The viewfinder picture can be zoomed in about 1.3 times for
detail viewing. This function is switched by the camera and
can be controlled in the camera 'Install menu'. Please refer to
the 'Monitoring Functions' of the camera user's guide.
Please note that when the picture is zoomed in the video
signal cannot be switched externally.
1
2
3
4
7
8
9
10
6
ON
DIM
OFF
Brightness Contrast Peaking Optional Power
Iso
Onair
Mom
On
On
Off
1 2
10
456789
5
3

6 User's Guide LDK 5305/01
Viewfinder connector
Hirose 20-pin female, shielded cable
1. -80V
2. n.c.
3. GND
4. INTN-D
5. n.c.
6. n.c.
7. VF video return
8. SDA-D
9. SCL-D
10. n.c.
11. GND
12. VF video
13. n.c.
14. n.c.
15. GND
16. n.c.
17. n.c.
18. n.c.
19. n.c.
20. shield
1
6
5
10
11 15
20
16

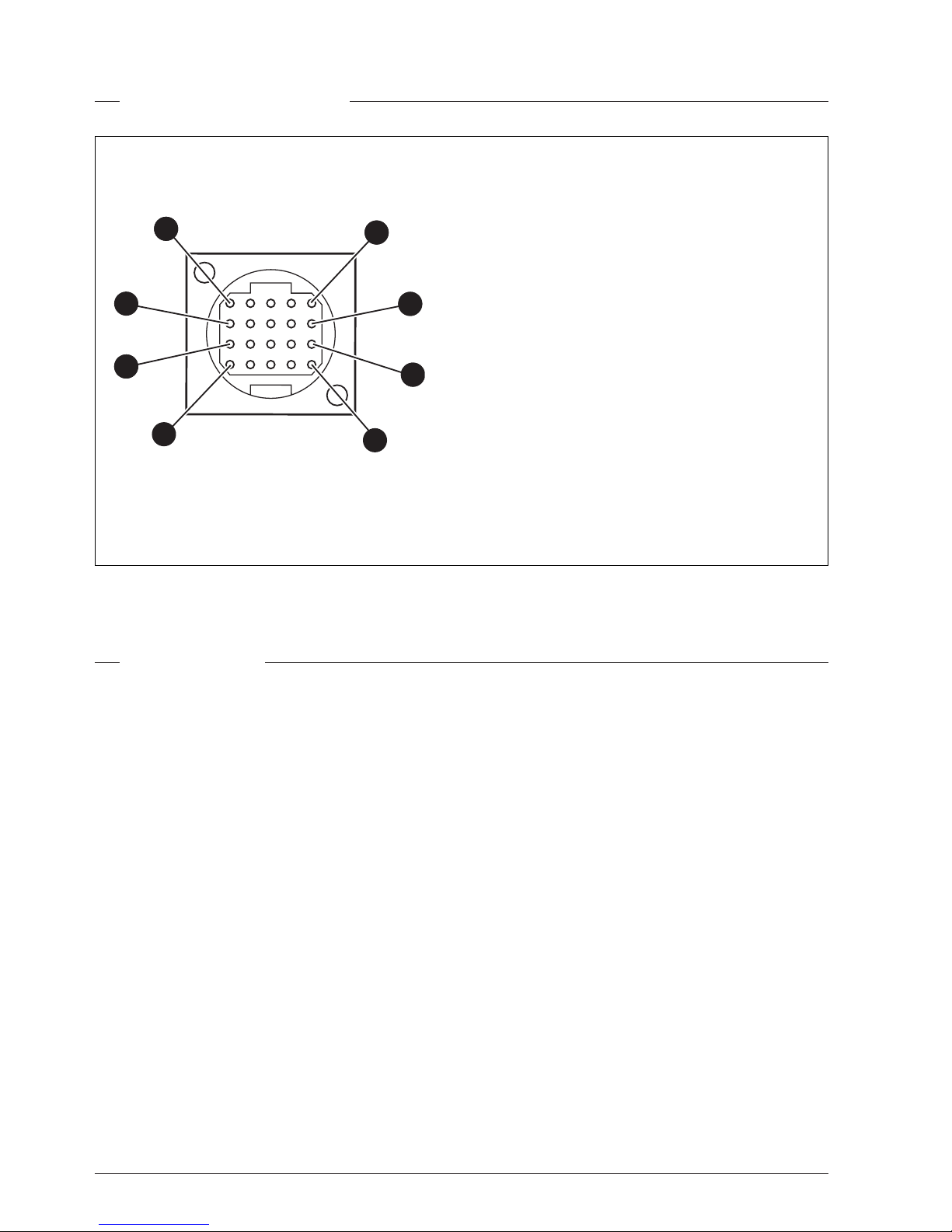

Viewfinder Connector, frontview
Note: shield cable to pin marked shield
Dimensions
255 x 126 x 135 mm (LxWxH) without sunhood
Weight
approx. 3.1 kg including tilt mechanism
Video input signal
Nom. 1Vpp (+3dB/-6dB) VBS
Input impedance 75 Ohm ±5%
Systems
SMPTE 274, 1080i/60
SMPTE 274, 1080i/50
SMPTE 274, 1080p/24 camera processed to psf 1080i/48
SMPTE 296M, 720p/60
SMPTE 296M, 720p/50
Linedoubled 625 lines, 50 Hz, CCIR/PAL
Linedoubled 525 lines, 60 Hz, EIA/NTSC
Aspect ratios 16:9, and 4:3
automatic switching
Power Supply
-80 Vdc nom. (-50 Vdc to -100 Vdc)
PowerConsumption
max. 24 W at -80 Vdc
CRT
5" CRT High Resolution type
Linearity and geometry
Distortion: 1.5% within a circle with a diameter of picture
height, rest 2%
Resolution (horizontal)
Min. 650 lines in centre of screen at 400 cd/m2
Frequency response
20 MHz within -1dB to +2dB with respect to 0.1 MHz
30 MHz within -3dB
Brightness
Max. 600 cd/m2
Peaking
0 to 12dB at approx. 12 MHz
Environmental conditions:
Operating temp.: -20 to +45 °C
Non-operating temp.: -25 to +70 °C
Operating humidity: 93%
Specifications

User's Guide LDK 5305/01 7

8 User's Guide LDK 5305/01
