Gravely 947030 Owner's manual

Owner/Operator Manual
Manuel de l’opérateur
Manual del propietario/operador
04707900 10/06
Printed in USA
Models
947030 - 5hp Honda Blower
947031 - 8hp Briggs & Stratton Blower
947032 - 9hp Honda Blower
947033 - 13hp Honda Blower
Blower
Modèles
947030 - Soufflante à moteur Honda 5 ch
947031 - Soufflante à moteur Briggs & Stratton 8 ch
947032 - Soufflante à moteur Honda 9 ch
947033 - Soufflante à moteur Honda 13 ch
Modelos
947030 - Soplador con motor
Honda de 5 H.P.
947031 - Soplador con motor
Briggs & Stratton
de 8 H.P.
947032 - Soplador con motor
Honda de 9 H.P.
947033 - Soplador con motor
Honda de 13 H.P.
ENGLIS
H
FRANÇAI
S
ESPAÑO
L

GB - 2
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SAFETY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SAFETY DECALS AND LOCATIONS. . . . . . . . . . 3
SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ACCESSSORIES. . . . . . . . . . . . . . . . . . . . . . . . . . 7
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . 7
WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
PARTS LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i
INTAKE AND FAN . . . . . . . . . . . . . . . . . . . . . . . . . . i
ENGINE AND FRAME. . . . . . . . . . . . . . . . . . . . . . . ii
BLOWER HOUSING . . . . . . . . . . . . . . . . . . . . . . . .iii
MANY USES
The extreme versatility offered by Gravely’s line of
blowers makes them ideally suited for a wide variety of
jobs - blowing leaves, grass clippings, thatch, blowing
tennis courts dry, cleaning large driveways, stadiums,
parking lots and other hard surfaces, precleaning roofs
before repair and countless other jobs.
IMPORTANT INFORMATION
A. Introduction
On behalf of everyone at Gravely, we would like to
thank you for your purchase of a Gravely Gasoline
Powered Blower. This professional blower was
designed to the highest standards to ensure you many
hours of uninterrupted service.
This manual provides the information necessary for
safe and efficient operation and service. For your
safety, it is critically important that you read and
understand this entire manual before operating your
blower.
Specifications, descriptions, and illustrative material in
this literature are as accurate as known at the time of
publication, but are subject to change without notice.
B. Service Information
Engine
- Refer to the enclosed Engine Manual provided
by the engine manufacturer.
- Or an authorized repair service of the
manufacturer.
Other Components
- Contact your local Gravely dealer.
C. Special Safety Information
DELIVERY
Customer Note: If you have purchased this product
without complete assembly and instruction by your
retailer, it is your responsibility to:
1. Read and understand all assembly instructions in
this manual. If you do not understand or have
difficulty following the instructions, contact your
nearest Gravely Dealer for assistance. Make sure
all assembly has been properly completed.
NOTE: To locate your nearest Gravely Dealer, go to
www.gravely.com on the internet.
2. Understand all Safety Precautions provided in the
manuals.
3. Review control functions and operation of the
unit. Do not operate the unit unless all controls
function as described in this manual.
4. Review recommended lubrication, maintenance
and adjustments.
5. Review Limited Warranty Policy.
6. Fill out a Product Registration Card and return the
card to the Ariens Company or go to
www.gravely.com.
TABLE OF CONTENTS
INTRODUCTION
WARNING: THE ENGINE EXHAUST FROM
THIS PRODUCT CONTAINS CHEMICALS
KNOWN TO THE STATE OF CALIFORNIA
TO CAUSE CANCER, BIRTH DEFECTS OR
OTHER REPRODUCTIVE HARM.
WARNING: This symbol points out our
important safety instructions. When you see
this symbol heed its warning! Stay alert!
WARNING: To reduce the potential for
accidents, comply with the safety instructions
in this manual. Failure to comply may result in
serious personal injury and or equipment and
property damage.
WARNING: Improper assembly or
adjustments can cause serious injury.
© Copyright 2006 Ariens Company

GB - 3
SAFETY ALERTS
Look for these symbols to point out
important safety precautions. They mean:
Attention!
Personal Safety Is Involved!
Become Alert!
Obey The Message!
The safety alert symbols above and signal words below
are used on decals and in this manual. Read and
understand all safety messages.
NOTATIONS
NOTE: General reference information for proper
operation and maintenance practices.
IMPORTANT: Specific procedures or information
required to prevent damage to unit or attachment.
PRACTICES AND LAWS
Practice usual and customary safe working
precautions, for the benefit of yourself and others.
Understand and follow all safety messages. Be alert to
unsafe conditions and the possibility of minor,
moderate, or serious injury or death. Learn applicable
rules and laws in your area. Always follow the practices
set forth in this manual.
REQUIRED OPERATOR TRAINING
Original purchaser of this unit was instructed by the
seller on safe and proper operation. If unit is to be used
by someone other than original purchaser; loaned,
rented or sold, ALWAYS provide this manual and any
needed safety training before operation.
SAFETY DECALS AND LOCATIONS
An important part of the safety system incorporated in
this blower are the warnings and informational decals
found on various parts of the blower. These decals
must be replaced if they become illegible due to
abrasion, etc. It is your responsibility to replace the
decals when they become hard to read. The location of
these decals and their part numbers for ordering are
shown below.
1. Caution!
2. Caution!
SAFETY
WARNING: Improper use or care of this
blower, or failure to wear proper protection
can result in serious injury.
Read and understand the rules for safe
operation and all instructions in this manual.
Wear hearing and eye protection.
DANGER: IMMINENTLY HAZARDOUS
SITUATION! If not avoided, WILL RESULT in
death or serious injury.
WARNING: POTENTIALLY HAZARDOUS
SITUATION! If not avoided, COULD RESULT
in death or serious injury.
CAUTION: POTENTIALLY HAZARDOUS
SITUATION! If not avoided, MAY RESULT in
minor or moderate injury. It may also be used
to alert against unsafe practices.
Thrown objects.
Before performing any service or
maintenance, disconnect spark plug
wire. Make sure throttle is in STOP
position.
Figure 1
1
2
3
4
5
6
P/N 910609
Warning Label

GB - 4
3. Caution!
4. Danger!
5. Caution!
6. Caution!
SAFETY RULES
Read and understand the owner’s manual. Pay
particular attention to all sections regarding safety.
Store your owners manual in a safe place.
Don’t overreach or stand on unstable support -
Keep good footing and balance at all times.
Multiple operators - Keep a safe distance between
two or more operators when working together
simultaneously.
A. Warnings - "Don’ts"
Do Not point the blower outlet in the direction of
people, cars, glass, or other similar items which could
be injured or damaged by blown debris.
Do Not attempt to repair blower - Have repairs made
by qualified Gravely dealer or repairman. See that only
Gravely and recommended engine manufacturer’s
replacement parts are used.
B. Warnings - "Do’s"
Dress properly — Do not wear loose clothing or
jewelry. They can be caught in moving parts. Use of
sturdy gloves, non-skid footwear and safety glasses
are recommended. Always wear ear protectors where
possible. Use face filter to avoid breathing dust.
Stay alert — Watch what you are doing and use
common sense. Do not operate blower when fatigued.
Keep hands away from air intake and air outlet
chute — Keep both hands on handles when power is
on.
Maintain and examine blower with care — Follow
maintenance instructions given in manual. Do not use
the blower if the muffler is defective or missing.
Store blower indoors — When not in use, store
blower indoors in a sheltered, dry area where it’s not
accessible to children. The blower, as well as fuel,
should not be stored in a house. Keep throttle in the
stop position.
Be sure blower is fully assembled — Never operate
blower without all guards and deflectors in place.
Ensure that all nuts, bolts, screws are installed and
properly tightened.
Keep the throttle in the “stop” position when not in
use.
Always keep a safe distance between two or more
operators when working together simultaneously.

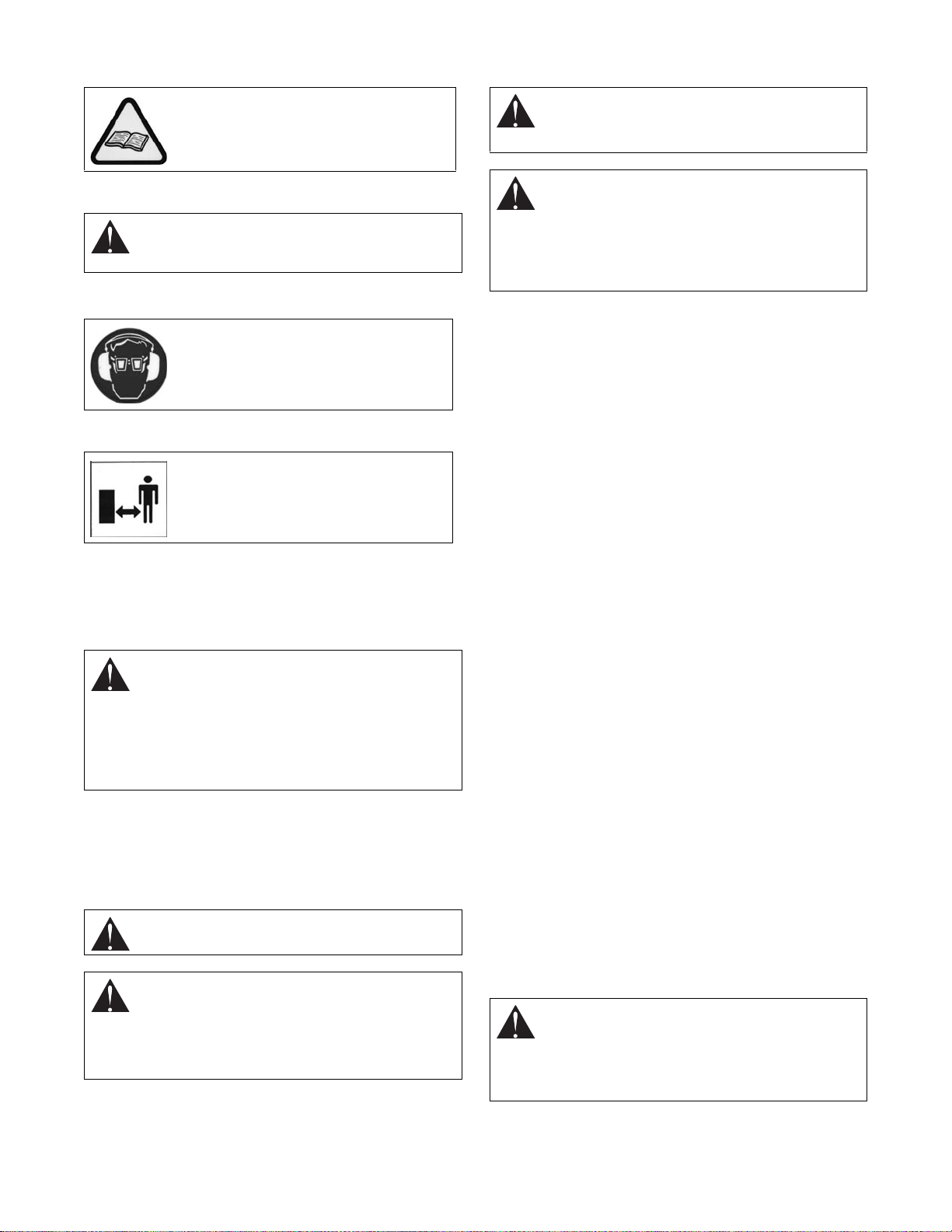

Read and understand the Owners
Manual. Pay particular attention to all
sections regarding safety. Store your
Owners Manual in a safe place.
DANGER: Keep hands and feet away from air
discharge areas. Rotating fan will cause
serious injury.
Always wear eye and ear protection.
Keep bystanders away.
WARNING: Keep children, pets, and
bystanders away - Do not permit children to
contact blower. Keep children a safe distance
from work area. Never allow a person
mentally ill, under influence of alcoholic drinks
or drugs or too young in age, to operate the
blower.
WARNING: Fan coasts after turn off.
WARNING: If blower is used improperly or
safety precautions are not followed, the user
risks serious injury to themselves and others.
Read and understand the following before
attempting to operate this blower.
DANGER: Rotating fan - keep hands away.
DON’T attempt to remove materials from
intake or discharge when blower is running.
DANGER: Do not install or remove
attachments while blower is running. Turn
off engine to make changeover. Be sure
throttle is in the stop position, and the blower
has come to a complete stop. Remove the
spark plug wire before removing material.
WARNING: In order to avoid engine damage
due to over-heating or over-revving, keep
engine recoil starter assembly, the blower
intake and outlet areas clear and free of
leaves or other debris.

GB - 5
C. Engine / Fuel Warnings - "Don’ts"
Do not smoke while handling fuel.
Do not refuel a hot or running engine.
Do not fill tank indoors.
Do not operate in unventilated area.
Do not use the blower when electric system causes
spark outside the cylinder. Check spark plug from time
to time. When checking, keep plug a safe distance
from cylinder to avoid burning of evaporated fuel from
cylinder.
D. Engine/ Fuel Warnings - "Do’s"
Handle gasoline with care. It is highly flammable.
Refuel before starting work.
Always use fresh gasoline. Stale gasoline can cause
leakage.
Always pull starter cord slowly until resistance is felt.
Then pull cord rapidly to avoid kick-back and prevent
arm or hand injury.
Replace gasoline cap securely. If fuel is spilled move
blower and fuel container from area and do not create
a source of ignition.
Avoid spilling fuel or oil. Always wipe unit dry before
using. Move at least 10 feet away from the fueling point
before starting engine.
Always store gasoline in an approved container. Fill
tank outdoors with extreme care.
BLOWER ASSEMBLY INSTRUCTIONS

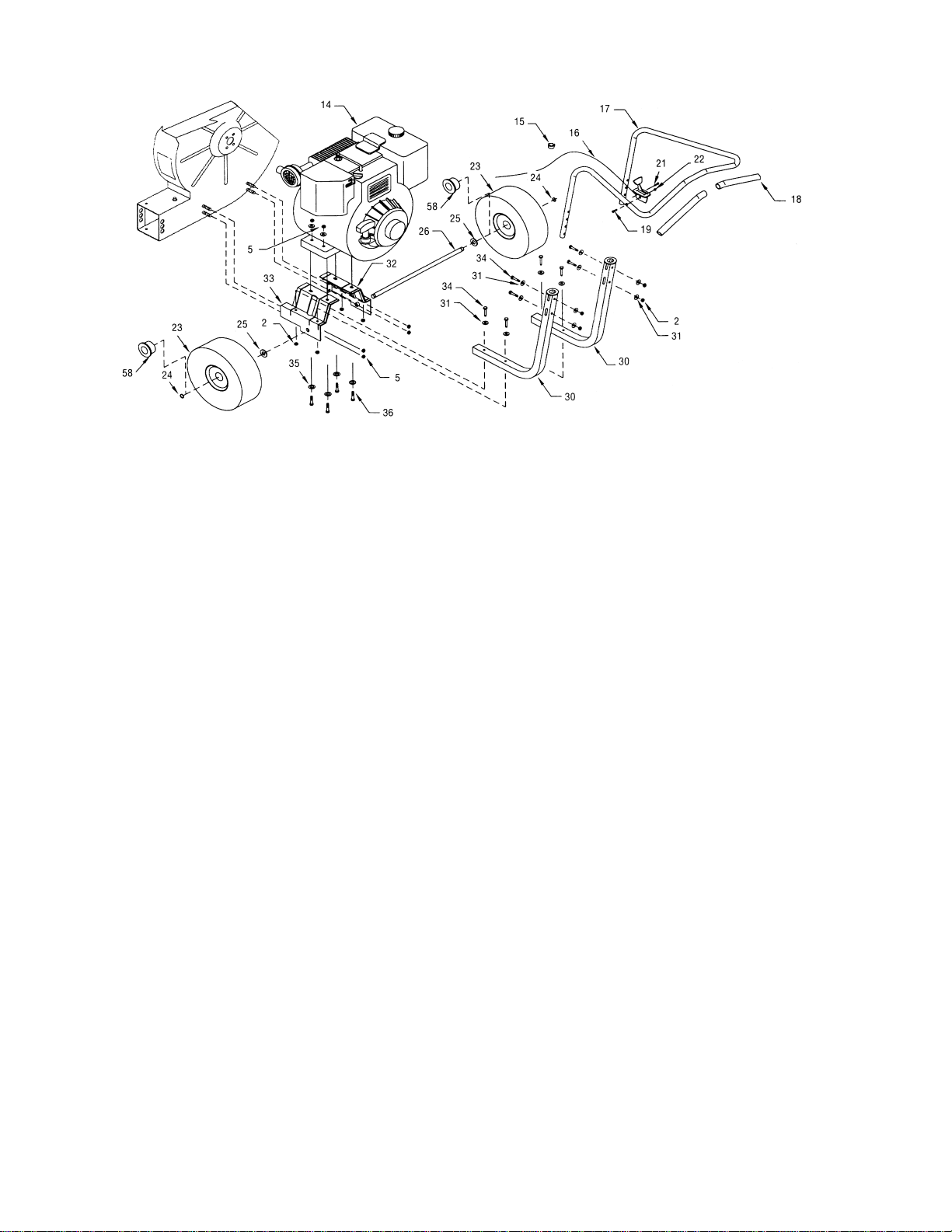

NOTE: Numbers in brackets (#) represent Key
Numbers shown on Parts List, and parts explosion.
1. Install lower handles (30) on top of deck (32, 33).
Secure with four cap screws 5/16-18 x 1 3/4 (34),
four 5/16 flat silver washers (31), and four
5/16-18 nylon nuts (2), finger tight.
2. Install upper handle (17) with four cap screws
5/16-18 x 1 3/4 (34), eight 5/16 washers (31), and
four 5/16-18 nylon nuts (2), finger tight. Tighten
lower handle nuts and bolts. Tighten upper
handle nuts and bolts until the lower handle
tubing pinches the upper handle. It will be normal
for the lower handle tubing to crush slightly.
3. Attach throttle cable to upper handle with 1/4-20 x
1 3/4 cap screw (19) and 1/4-20 lock nut (22)
through hole on upper handle (17). For Briggs
and Stratton INTEK series engines, the throttle
control will mount on the right hand side. For
Honda engines, it will mount on the left. Insert the
10-32 x 3/4 self-tapping screw through the hole of
the throttle control and into the pilot hole in the
handle and tighten. (NOTE: Over tightening the
screw on the left hand mounted controls could
cause damage to the control.) Once the 10-32
screw is tightened, go back to the 1/4-20 screw
and tighten it enough to get a smooth action in
the control. If the throttle does not maintain its
setting once you start the engine, tighten this
screw some more. Connect throttle clip (15) to
upper handle.
4. Tilt blower back on handle and install front wheel
bracket (51) over the three studs on lower front of
blower housing. Secure with three 5/16-18 flange
nuts (5).
5. Insert pneumatic wheel sleeve (53) in front
pneumatic wheel (52). Install pneumatic wheel
spacers (54) over the axle sleeve on both sides of
wheel and install in front wheel bracket (51).
Insert 3/8-16 x 5 1/4 axle bolt (50) through wheel
bracket and axle sleeve. Secure with 3/8-16 axle
nut (49).
WARNING: Handle fuel with care, it is highly
flammable. Fueling a hot engine or near an
ignition source can cause fire and result in
serious personal injury and/or property
damage.
CAUTION: Do not start or run engine indoors
as poisonous carbon monoxide is emitted.
ASSEMBLY
WARNING: AVOID INJURY. Read and
understand the entire Safety section before
proceeding.
WARNING: Dropping or tipping over boxed
unit could result in personal injury or damage
to unit.
WARNING: All Gravely blowers are shipped
without oil. When filling oil - use SAE 30 oil.
Refer to engine manufacturer’s instruction
manual for proper engine operation
instructions.

GB - 6
Refer to Engine Manual for Engine Operation.
Gravely recommends using SAE 30 Oil. The use of
multi-viscosity oil will result in high oil consumption and
possible engine damage.
Leaves, thatch or other debris can be directed into
windrows or piles by simply maneuvering the unit and
directing the flow of air accordingly.
Air flow can be directed to the side or front by the
two-position deflector. The front discharge position is
used to remove debris from along walls, fences, etc.
the side discharge position is used to form windrows or
piles. The horizontal deflector directs air downward to
“chisel” under wet, heavy leaves and litter. The velocity
is regulated by the throttle control.
Moving the deflector to the upper hole allows for a
greater volume of air to be directed downward. Moving
the deflector to the lower hole allows for a greater
volume of air to be directed upward. To reduce
windrowing or to blow over obstacle, point deflector
upward.
Slight changes in deflector will have a big effect on air
flow. Experiment until you find the best position for your
needs.
For best performance, be sure engine recoil starter
assembly, the blower intake and outlet areas are clear
and free of leaves or other debris.
Gravely Dealers will provide any service or
adjustments which may be required to keep your unit
operating at peak efficiency. Should engine service be
required, contact a Gravely dealer or an authorized
engine manufacturer's service center.
1. Keep all nuts, bolts, and screws tight.
2. Never store the Blower with fuel in its fuel tank
inside a building or in a confined space where
fumes may reach an open flame or sparks.
3. Always refer to the instruction manual for
important details if the product is to be stored for
an extended period.
4. Engine - 4 cycle. (Refer to engine manufacturer's
operating instructions for fuel recommendations
and additional information.)
5. Tires - Tubeless. Inflate to air pressure of 30
P.S.I.
6. Labels should be inspected before each use.
Replace damaged labels immediately.
Check oil level regularly. Be sure correct oil level is
maintained. Check oil level after every 5 hours of
operation, or daily, before starting engine. Use SAE 30
Oil.
IMPORTANT: Change oil after first 5 hours of
operation. This is extremely important to ensure the
long life of your engine. Your engine will break in and
deliver full power quickly. The by-products of break in
must be removed by changing the oil after the first five
hours or operation, per Engine Manufacturer’s
recommendations. Remove drain plug and drain oil
while engine is warm. Replace drain plug. Remove oil
fill plug and refill with new oil. Start and run engine at
idle for 30 seconds. Stop engine. Wait 30 seconds and
re-check oil level. If required, add oil to overflowing at
oil fill plug. Honda owners’ manual shows drawing of oil
being drained from muffler side of engine. Gravely
provides an oil drain slot in deck for draining oil from
opposite side (gas tank side) of engine. Draining oil
from gas tank side oil drain plug may be easier.
DIRECTIONS FOR FAN REMOVAL
NOTE: This procedure must be done by qualified
Gravely dealer.
1. Remove intake guard and front panel.
2. Remove bolt and washer securing fan to engine
crankshaft.
3. The fan has a 3/4-16 nut welded on the fan hub.
Insert a 3/4-16 grade 5 bolt (or better) and jack or
push the fan off the engine. In some instances, it
may be necessary to apply heat in area of fan
hub as Loctite 242 has been used to secure the
fan to the engine crank shaft. Be careful not to
overheat.
4. Use a new bolt, washer and loctite.
OPERATION
WARNING: AVOID INJURY. Read and
understand the entire Safety section before
proceeding.
MAINTENANCE
WARNING: AVOID INJURY. Read and
understand the entire Safety section before
proceeding.

GB - 7
Use a new bolt (P/N 04705600, P/N 04705700 or
P/N 04705800) add Loctite 242 to new bolt to
ensure a secure fit upon re-assembling, and
washer (P/N 04700900, P/N 04701000 or P/N
04701100).
IMPORTANT: To prevent
accidental starting,
remove spark plug wire
when servicing engine or
equipment.

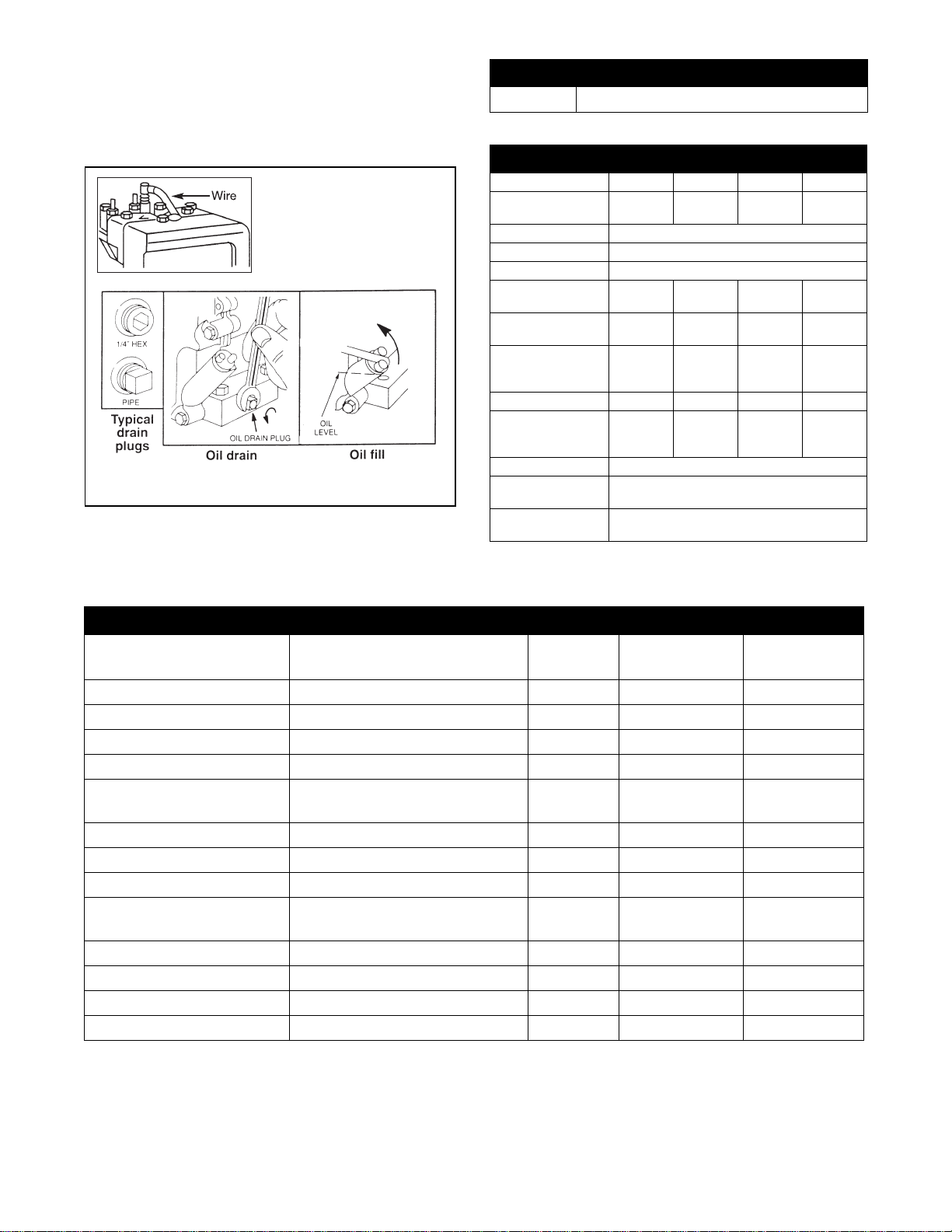

Figure 2
ACCESSSORIES
74700000 Swivel Wheel Kit
SPECIFICATIONS
Model Number 947030 947031 947032 947033
Description 5hp
Blower 8hp Blower 9hp Blower 13hp Blower
Length - in. (cm) 48 (121.9)
Height - in. (cm) 39 (99.0)
Width - in. (cm) 31 (78.7)
Weight - lbs (kg) 110
(50.0) 149 (68.0) 149 (68.0) 179 (81.0)
Engine, 4 cycle Honda Briggs &
Stratton Honda Honda
Engine Power -
HP (kW) @ Max.
RPM
5.0 (3.7) 8.0 (5.9) 9.0 (6.7) 13.0 (9.7)
Starter Recoil Recoil Recoil Recoil
Fuel Tank
Capacity - Qt
(Liter)
1.5 (1.4) 4.0 (3.8) 6.4 (6.0) 6.9 (6.5)
Blower Housing 12 Gauge
Front Wheel Dia -
in. (cm)
10 (24.4)
Rear Wheel Dia -
in. (cm)
12 (30.4)
BLOWER BOLT / TORQUE SPECIFICATIONS
Location Bolt / nut size P/N Min. torque
Ft-Lbs (in-lbs) Max. Torque Ft-Lbs (in-lbs)
Housing to engine face 5/16-24 x 3/4 flange head 04705900 22 (264) 28 (336)
Deck to housing 5/16-18 flange nut 06543100 16 (192) 22 (276)
Engine to deck 5/16-18 x 1-3/4 gr 5 05952400 19 (228) 25 (300)
Lower handle to deck 5/16-18 x 1-3/4 gr 5 05952400 19 (228) 25 (300)
Upper handle to lower
handle 5/16-18 x 1-3/4 gr 5 05952400 19 (228) 25 (300)
Throttle to handle 1/4-20 X 1 3/4 gr 5 05964700 4 (48) 6 (72)
Interior deflector to hook 10-32 x 5/8 flange head gr 5 04707200 4.3 (52) 5.9 (71)
Fan to crankshaft (947030) 5/16-24 x 1-3/4 hex head bolt gr 8 04705600 16 (190) 18 (220)
Fan to crankshaft (947031,
947033) 3/8 - 24 x 1-3/4 flange head gr 8 04705700 39 (468) 51 (612)
Fan to crankshaft (947032) 7/16 - 20 x 1-3/4 flange head gr 8 04705800 61 (732) 81 (972)
Intake guard to housing 5/16-18 flange nut 06543100 16 (192) 22 (276)
Wheel bracket to housing 5/16-18 flange nut 06543100 16 (192) 22 (276)
Front wheel axle bolt 3/8-16 x 5 1/4 gr 5 04704800 34 (408) 45 (540)

Ariens Company • 655 W. Ryan St, P.O. Box 157 • Brillion, WI 54110-0157• [phone] • www.ariens.com ALW2 - 102606
AriensLimited
Warranties
2-Year Limited Lawn and Garden
Consumer Warranty
Ariens Company (Ariens) warrants to the original
purchaser that Ariens and Gravely brand consumer
products manufactured by Ariens Company will be free from
defects in material and workmanship for a period of two (2)
years after the date of purchase, and that Ariens will repair
any defect in material or workmanship, and repair or replace
any defective part, subject to the conditions, limitations and
exclusions set forth herein. Such repair or replacement will
be free of charge to the original purchaser (labor and
parts), except as noted below.
The two-year duration of this warranty applies only if the
product is put to ordinary, reasonable, and usual personal,
family, or household uses. If the product is put to any
business, commercial, or industrial use such as, but not
limited to, commercial landscaping, mowing or snow
removal services, or golf course or park maintenance, or
agricultural or farmstead use, then the duration of this
warranty is ninety (90) days after the date of purchase, or
one (1) year after the date of purchase if the product is
labeled as a Professional/Commercial Product. The duration
of this warranty shall be ninety (90) days after the date of
purchase if any product is rented or leased.
2-Year Limited Lawn and Garden
Commercial Warranty
The Ariens Company (Ariens) warrants to the original
purchaser that all Gravely Pro and ProMaster products
manufactured by Ariens will be free from defects in material
and workmanship for a period of two (2) years after the date
of purchase or 1000 hours of use, whichever comes first. An
authorized Gravely dealer will repair any defect in material or
workmanship, and repair or replace any defective part,
subject to the conditions, limitations and exclusions set forth
herein. Such repair or replacement will be free of charge to
the original purchaser (labor and parts), except as noted
below.
The duration of this warranty shall be ninety (90) days after
the date of purchase or 1000 hours of use, whichever comes
first, if any product is rented or leased.
3-Year Limited Sno-Thro Warranty
Ariens Company (Ariens) warrants to the original
purchaser that Sno-Thro products manufactured by Ariens
Company will be free from defects in material and
workmanship for a period of three (3) years after the date of
purchase, and will repair any defect in material or
workmanship, and repair or replace any defective part,
subject to the conditions, limitations and exclusions set forth
herein. Such repair or replacement will be free of charge to
the original purchaser (labor and parts), except as noted
below.
The three-year duration of this warranty applies only if the
product is put to ordinary, reasonable, and usual personal,
family, or household uses. If the product is put to any
business, commercial, or industrial use, then the duration of
this warranty is ninety (90) days after the date of purchase,
or one (1) year after the date of purchase if the product is
labeled as a Professional/Commercial Product. The duration
of this warranty shall be ninety (90) days after the date of
purchase if any product is rented or leased.
DURA-CLEAN™ Auger Limited Lifetime
Warranty
Ariens Company (Ariens) warrants to the original
purchaser that the rubber components of the
DURA-CLEAN™ Auger manufactured by Ariens Company
will be free from defects in material and workmanship and
will not wear out for the life of the Sno-Thro, except as noted
below.
Ariens Company will provide for the replacement of any of
the rubber components of the DURA-CLEAN™ Auger found
upon examination by the Ariens Company to be defective or
worn out. Replacements will be supplied free of charge.
Labor is not included after two (2) years from the date of
purchase of the Sno-Thro.
The lifetime limited warranty shall apply if the product is put
to ordinary, reasonable, and usual personal household use.
If the product is put to any business, commercial, industrial,
rental, or leased use, the warranty shall be against defects in
material and workmanship for ninety (90) days following the
date of purchase.

Ariens Company • 655 W. Ryan St, P.O. Box 157 • Brillion, WI 54110-0157• [phone] • www.ariens.com ALW2 - 102606
Exceptions, Limitations, Exclusions
These warranties are subject to the following conditions, limitations, and exclusions:
To obtain warranty service, the following conditions must be
met:
• The purchaser must perform the maintenance and
minor adjustments explained in the owner’s manual.
• The purchaser must promptly notify Ariens Company or
an authorized Ariens service representative of the need
for warranty service.
• The purchaser must transport the product to and from
the place of warranty service.
• Warranty service must be performed by a respective
Ariens or Gravely authorized service representative.
• To find an Ariens or Gravely authorized service
representative, contact Ariens at:
655 W. Ryan St, P.O. Box 157
Brillion, WI 54110-0157
(920) 756 - 2141
www.ariens.com
www.gravely.com
This warranty is subject to the following limitations:
• Genuine Ariens or Gravely brand service parts and
accessories not purchased with the product covered by
this warranty, but which are later purchased and used
with that product, are warranted to be free from defects
in material and workmanship for a period of ninety (90)
days after date of purchase, and Ariens Company will
repair or replace any such part or accessory free of
charge, except for labor, during that period.
• Batteries are warranted only for a period of twelve (12)
months after date of purchase, on a prorated basis. For
the first ninety (90) days of the warranty period, a
defective battery will be replaced free of charge. If the
applicable warranty period is more than 90 days, Ariens
Company will cover the prorated cost of any defective
battery, for up to twelve (12) months after the date of
purchase.
The following items are excluded from this warranty:
• Engines and engine accessories are covered only by
the engine manufacturer’s warranty and are not covered
by this warranty.
• Peerless gearboxes and/or transmissions are covered
only by Peerless’ warranty and are not covered by this
warranty.
• Hydro-Gear transmissions and/or Hydro-Gear drive
components are covered only by the Hydro-Gear
warranty and are not covered by this warranty.
• Parts that are not genuine Ariens or Gravely brand
service parts are not covered by this warranty.
• Except as specifically warranted, normal maintenance,
services, and normal replacement items, such as spark
plugs, oil, oil filters, air filters, mufflers, belts, tires,
shoes, runners, scraper blades, shear bolts, mower
blades, mower vanes, headlights, light bulbs, knives,
etc. are not covered by this warranty except as noted
below.
• Mufflers, belts, and tires on consumer lawn and garden
products are warranted to the original purchaser for
two years.
• Friction discs, idlers, cables, and electrical components
on Sno-Thros put to usual personal household use are
warranted to the original purchaser for two years.
• Any defect which is the result of misuse, alteration,
improper assembly, improper adjustment, neglect, or
accident is not covered by this warranty.
• This warranty applies only to products purchased in the
United States (including Puerto Rico) and Canada. In all
other countries, contact place of purchase for warranty
information.
Ariens may from time to time change the design of its products. Nothing contained in this warranty shall be construed as
obligating Ariens to incorporate such design changes into previously manufactured products, nor shall such changes be
construed as an admission that previous designs were defective.
LIMITATION OF REMEDY AND DAMAGES
Ariens Company’s liability under this warranty, and under
any implied warranty that may exist, is limited to repair of
any defect in workmanship, and repair or replacement of
any defective part. Ariens Company shall not be liable for
incidental, special, or consequential damages (including lost
profits). Some states do not allow the exclusion of incidental
or consequential damages, so the above limitation or
exclusion may not apply to you.
DISCLAIMER OF FURTHER WARRANTY
Ariens Company makes no warranty, express or
implied, other than what is expressly made in this
warranty. If the law of your state provides that an
implied warranty of merchantability, or an implied
warranty of fitness for particular purpose, or any other
implied warranty, applies to Ariens Company, then any
such implied warranty is limited to the duration of this
warranty. Some states do not allow limitations on how
long an implied warranty lasts, so the above limitation
may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Parts/Pièces/Piezas - i
INTAKE AND FAN / ADMISSION ET VENTILATEUR / ABASTO DE AIRE Y TURBINA
PARTS LIST / LISTE DES PIÈCES / LISTA DE COMPONENTES
Item
N
o
de ref.
Ref.
Part No.
N
o
de pièce
Comp. Description / Description / Descripción
947030
Qty. /
Qté. /
Cant.
947031
Qty. /
Qté. /
Cant.
947032
Qty./Qté.
/ Cant.
947033
Qty./Qté.
/ Cant.
1 06543100
5/16 - 18 Serrated Flanged Lock Nut /
Contre-écrou à bride en dents de scie 5/16-18 /
Tuerca inmovilizadora con brida estriada de 5/16 pulg - 18
14 14 14 14
2 04700800 Intake Guard /
Protecteur d’admission /
Guarda del abasto
1111
3 04705600 5/16 - 24 x 1 3/4 Hex Head Bolt gr 8 /
Boulon hex. 5/16-24 x 1,75 qual. 8 /
5/16 pulg- 24 x 1.75 tornillo hexagonal clas. 8
1---
3 04705800 7/16 - 20 x 1 3/4 Bolt gr 8 /
Boulon 7/16-20 x 1,75 qual. 8 /
7/16 pulg - 20 x 1.75 tornillo clas. 8
--1-
3 04705700 3/8 - 24 x 1 3/4 Bolt gr 8 /
Boulon 3/8-24 x 1,75 qual. 8 /
3/8 pulg - 24 x 1.75 tornillo clas. 8
-1-1
4 04700900 Washer, 5/16 Flat, Thick /
Rondelle plate épaisse 5/16 /
Arandela de 5/16 pulg plana y gruesa
1---
4 04701000 Washer, Hub, 8 /
Rondelle de moyeu, 8 /
Arandela, Maza, 8
-1-1
4 04701100 Washer, Hub, 9 /
Rondelle de moyeu, 9 /
Arandela, Maza, 9
--1-
5 04701200 5 HP Fan Assy /
Ensemble ventilateur 5 ch /
Ensamble de la turbina de 5 H.P.
1---
5 04701300 8 HP Fan Assy /
Ensemble ventilateur 8 ch /
Ensamble de la turbina de 8 H.P.
-1--
5 04701400 9 HP Fan Assy /
Ensemble ventilateur 9 ch /
Ensamble de la turbina de 9 H.P.
--1-
5 04708000 13 HP Fan Assy /
Ensemble ventilateur 13 ch /
Ensamble de la turbina de 13 H.P.
---1
6 04701500 Key 3/16 x 3/16 x 1 /
Clavette 3/16 x 3/16 x 1 po /
Cuña 3/16 x 3/16 x 1 pulg
1---
6 04701600 Key 1/4 x 1/4 x 2 /
Clavette 1/4 x 1/4 x 2 po /
Cuña 1/4 x 1/4 x 2 pulg
-111

Parts/Pièces/Piezas - ii
ENGINE AND FRAME / MOTEUR ET CHÂSSIS / MOTOR Y ARMAZÓN

Parts/Pièces/Piezas - iii
Item
N
o
de
ref.
Ref.
Part No.
N
o
de pièce
Comp. Description / Description / Descripción 947030
Qty. /
Qté. /
Cant.
947031
Qty. /
Qté. /
Cant.
947032
Qty. /
Qté. /
Cant.
947033
Qty. /
Qté. /
Cant.
2 06530200 5/16-18 Nylon Insert Nut /
Écrou à insertion en nylon 5/16-18 /
Tuerca con núcleo de nylon de 5/16 pulg - 18
11 11 11 11
5 06543100 5/16-18 Serrated Flanged Lock Nut /
Contre-écrou à bride en dents de scie 5/16-18) /
Tuerca inmovilizadora con brida estriada de 5/16
pulg -18
14 14 14 14
14 04701700 5 HP Honda Engine Honda / Moteur Honda 5 ch /
Motor Honda de 5 H.P. 1---
14 04701800 8 HP IC Intek Engine / Moteur CI Intek 8 ch / Motor
Intek IC de 8 H.P. -1--
14 04701900 9 HP Honda Engine / Moteur Honda 9 ch / Motor
Honda de 9 H.P. --1-
14 04708100 13 HP Honda Engine / Moteur Honda 13 ch / Motor
Honda de 13 H.P. ---1
15 04702000
Throttle Clip / Pince d'accélérateur / Sujetador del
acelerador
1111
16 04702100 Throttle Cable / Câble d’accélérateur / Cable del
acelerador
1111
17 04702200 Upper Handle / Guidon / Manubrio superior 1 1 1 1
18 04702300
Grip (set of 2) / Poignée (jeu de 2) / Empuñadura (jgo.
de 2)
1111
19 05964700 1/4-20 x 1 3/4 HHCS gr5 /
1/4-20 x 1 3/4 HHCS qual. 5 /
HHCS 1/4 pulg - 20 x 1 3/4 pulg clas. 5
1111
22 06529700 1/4-20 2-Way Lock Nut /
Contre-écrou à deux voies 1/4-20 /
Tuerca inmovilizadora de dos vías 1/4 pulg - 20
1111
23 04702400 Pneumatic Wheel Offset, 10 in. DIA /
Ensemble de roue à pneumatique déporté, diam. 10
po /
Compensador de la rueda neumática de 10 pulg DIA.
2222
24 04702500 Retaining Ring / Bague de retenue / Anillo sujetador 2 2 2 2
25 06442800 5/8 SAE Flat Washer /
Rondelle plate 5/8 SAE /
Arandela plana 5/8 pulg SAE
2222
26 04702600 Axle / Essieu / Eje 1 1 1 1
30 04702700 Lower Handle / Montant de guidon / Manubrio inferior 2 2 2 2
31 06437200 5/16 Flat Washer / Rondelle plate 5/16 / Arandela
plana de 5/16 pulg 12 12 14 12
32 04702800 Deck, Right 5, 8 / Plate-forme, côté droit - 5 et 8 ch /
Plataforma, Derecha 5, 8 11- -
32 04702900 Deck, Right 9 / Plate-forme, côté droit - 9 ch /
Plataforma, Derecha 9 --1-
32 04708200 Deck, Right 13 / Plate-forme, côté droit - 13 ch /
Plataforma, Derecha 13 ---1
33 04703000
Deck, Left 5, 8 / Plate-forme, côté gauche - 5 et 8 ch /
Plataforma, Izquierda 5, 8
11- -
33 04703100 Deck, Left 9 / Plate-forme, côté gauche - 9 ch /
Plataforma, Izquierda 9 --1-
33 04708300 Deck, Left 13 / Plate-forme, côté gauche - 13 ch /
Plataforma, Izquierda 13 ---1
34 05957400 5/16-18 x 1 3/4 HHCS gr5 /
5/16-18 x 1,75 HHCS qual. 5 /
HHCS 5/16 pulg - 18 x 1.75 clas. 5
8 121212
35 06308600 5/16 Regular Split Lock Washer /
Rondelle fendue d'arrêt régulière 5/16 /
Arandela de presión estándar de 5/16 pulg
4444
36 05952400 5/16-18 x 1 1/2 HHCS gr5 /
5/16-18 x 1,5 HHCS qual. 5 /
HHCS 5/16 pulg - 18 x 1.5 clas. 5
4---
58 04703200 Pneumatic Wheel Bearing /
Roulement de roue à pneumatique /
Cojinete de la rueda neumática
6666

Parts/Pièces/Piezas - iv
BLOWER HOUSING / CARTER DE LA SOUFFLANTE / BASTIDOR DEL SOPLADOR

Parts/Pièces/Piezas - v
Item
N
o
de ref.
Ref.
Part No.
N
o
de pièce
Comp. Description / Description / Descripción 947030
Qty. /
Qté. /
Cant.
947031
Qty. /
Qté. /
Cant.
947032
Qty. /
Qté. /
Cant.
947033
Qty. /
Qté. /
Cant.
10 04703300 5, HP Housing / Carter 5 ch / Bastidor 5 H.P. 1 - - -
10 04703400 8, 9 HP Housing / Carter 8 ch et 9 ch / Bastidor 8, 9 H.P. - 1 1 -
10 04708400 13 HP Housing / Carter 13 ch / Bastidor 13 H.P. - - - 1
11 04703500 Gravely Housing Label - 5 HP /
Étiquette de carter Gravely - 5 ch /
Etiqueta Gravely en el bastidor - 5 H.P.
1---
11 04703600 Gravely Housing Label - 8 HP /
Étiquette de carter Gravely - 8 ch /
Etiqueta Gravely en el bastidor - 8 H.P.
-1--
11 04703700 Gravely Housing Label - 9 HP /
Étiquette de carter Gravely - 9 ch /
Etiqueta Gravely en el bastidor - 9 H.P.
--1-
11 04708500 Gravely Housing Label - 13 HP /
Étiquette de carter Gravely - 13 ch /
Etiqueta Gravely en el bastidor - 13 H.P.
---1
12 04703800 Warning Label / Décalcomanie d'avertissement / Etiqueta de
advertencia 1111
13 04705900 5/16-24 x 3/4 Whiz Head Flange Bolt /
Boulon à bride à tête Whiz 5/16-24 x 3/4 /
Tornillo de cabeza con brida tipo Whiz de 5/16 pulg - 24 x 3/4 pulg
4444
13 04708600 5/16 - 24 x 1 3/8 Hex Head Bolt /
Boulon hex. 5/16-24 x 1,375 /
5/16 pulg- 24 x 1.375 tornillo hexagonal
---4
20 04706100 10-32 2-Way Lock Nut /
Contre-écrou à deux voies 10-32 /
Tuerca inmovilizadora de dos vías 10-32
6666
37 04703900 Deflector Spring / Ressort de déflecteur / Resorte del deflector 1 1 1 1
38 04704000 Retaining Ring / Bague de retenue / Anillo sujetador 3 3 3 3
39 04704100 Knob / Bouton de serrage / Perilla 1 1 1 1
40 06307200 5/16 External Tooth Lock Washer /
Rondelle d'arrêt à dents externes 5/16 /
Arandela dentada exterior de presión de 5/16 pulg
1111
41 04703900 5, HP Side Deflector / Déflecteur latéral - 5 ch / Deflector lateral 5
H.P. 1---
41 04704300
8, 9 HP Side Deflector / Déflecteur latéral - 8 et 9 ch / Deflector lateral
8, 9 H.P.
-11-
41 04708700
13 HP Side Deflector / Déflecteur latéral - 13ch / Deflector lateral 13
H.P.
---1
42 04706200 10-32 x 5/8 Serrated Flange Screw /
Vis à bride en dents de scie 10-32 x 5/8 /
Tornillo de brida estriado 10-32 x 5/8 pulg
2222
43 04704400 5, HP Internal Deflector / Déflecteur interne - 5 ch / Deflector
interno 5 H.P. 1---
43 04704500
8, 9 HP Internal Deflector / Déflecteur interne - 8 et 9 ch / Deflector interno
8, 9 H.P.
-11-
43 04708800
13 HP Internal Deflector / Déflecteur interne - 13 ch / Deflector interno
13H.P.
---1
44 04704700 Deflector Handle / Poignée de déflecteur / Manubrio del deflector 1 1 1 1
49 06529600 3/8-16 2-Way Lock Nut /
Contre-écrou à deux voies 3/8-16 /
Tuerca inmovilizadora de dos vías 3/8 pulg - 16
1111
50 04704800
3/8-16 x 5 1/4 Bolt / Boulon 3/8-16 x 5 1/4 / Tornillo de 3/8 pulg - 16 x 5 1/4
pulg
1111
51 04704900 Wheel Bracket / Support de roue / Soporte de la rueda 1 1 1 1
52 04705100
Pneumatic Wheel Symmetrical / Roue à pneumatique symétrique / Rueda
neumática simétrica
1111
53 04705200
Pneumatic Wheel Sleeve / Manchon de roue à pneumatique / Mango de la
rueda neumática
1111
54 04705300 Front Wheel Bracket Spacer /
Entretoise de support de roue avant /
Espaciador del soporte de la rueda delantera
2222
58 04705400
Pneumatic Wheel Bearing / Roulement de roue à pneumatique / Cojinete de la
rueda neumática
6666
59 04705500
10-32 x 5 1/2 Hex M/S / 10-32 x 5 1/2 Hex M/S / Tuerca hexagonal 10-32
x 5 1/2 pulg M/S
4444
60 04708900
Spacer, Engine Housing ---1

GRAVELY
655 West Ryan Street
P.O. Box 157
Brillion, WI 54110-0157
920-756-2141
Fax [phone]
www.gravely.com
