Great Outdoors GM475SSP User manual

Great Outdoors
the ®
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An unconnected liquid propane
cylinder should not be stored in the
vicinity of this or any other appliance.
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
Open lid.
If odor continues, immediately call
your gas supplier or fire department.
Read all of these instructions and keep them in a safe place for future reference.
Leave these instructions with the consumer.
Assembly
and Owner’s
Manual
L.P. Gas Cylinder
Not Included
FOR YOUR SAFETY: Never leave a grill unattended when in use.
FOR YOUR SAFETY
1
2
1
2
3
4
CONSUMER / USER:
ASSEMBLER / INSTALLER:
FOR YOUR SAFETY
GM475SSP
Portable
Gas Grill

CFM Keanall
2695 Meadowvale Blvd
Mississauga, Ontario L5N 8A3
Great Outdoors
the ®
Congratulations and thank you for your purchase of your
new Great Outdoors grill. We are pleased that you have
recognized the value of the design, function, and quality
of components used in this product. We believe it is
among the finest on the market.
We are committed to producing quality products that your
family will enjoy for years to come. If for any reason we
have failed to meet or exceed your expectations, please
allow us the opportunity to make it right by calling us toll-
free during the following
want you to be completely satisfied with your
purchase so you will agree with our motto,
United States: 1-800-944-8982
Canada: 1-800-668-5323
“there’s nothing like...
the great outdoors.”TM
hours:
Monday-Friday 8:00 a.m. - 6:00 p.m., EST.
Saturday 9:00 a.m. - 4:00 p.m., EST.
We
(It is recommended to avoid calling on Mondays, when wait times may be
prolonged.)
Statement of Commitment

3
4
4
4
5-7
8
10
11
12
13
14
15
16
17
18
19
20
21-22
24
25-26
27
28
29
30
31
9
23
Table of Contents
Chapter 1 - INSTALLATION
Necessary Information ...........................
Choosing a Safe Location .........................
Portable L.P. Gas Grills ...........................
L.P. Gas Dealer Instructions .......................
Step 1 ( Identifying Parts ) .........................
Replacement Parts ..............................
Step 2 ( Cabinet Assembly ) .......................
Step 3 ( Cabinet Assembly ) .......................
Step 4 ( Grill Head ) .............................
Step 5 ( Side Burner Valve ) ........................
Step 6 ( Side Tables ) ............................
Step 7 ( Side Tables ) ............................
Step 8 ( Cooking Grids ) ..........................
Step 9 ( Cabinet Doors ) ..........................
Step 10 ( Drip Pan ) ...............................
Installing an L.P. Gas Cylinder .....................
Leak Testing ...................................
Lighting Instructions .............................
Side Burner Operation ............................
Using Your Grill .................................
Caring for Your Gas Grill ..........................
Cleaning and Maintenance ........................
Warranty ......................................
Chapter 2 - ASSEMBLY INSTRUCTIONS
Chapter 3 - USE and CARE
Page Number

4
·
·
·
·
·
Operating this or any gas-fired appliance
in an enclosed area can produce a build-up
of carbon-monoxide, which could result in
injury or death.
or, in the absence of local codes, with
either the National Fuel Gas Code, ANSI
Z223.1, NFPA 54 (USA), or CAN/CGA-B
149.2, Propane Installation Code (Canada)
and CAN/CGA-B 149.1 Natural Gas
Installation Code.
To check local codes, contact your local gas
dealer or gas company listed in the Yellow
Pages for recommended installation
procedures and regulations.
Do not use a grill under a ceiling or cover
where the heat or flame could cause
damage.
Choose a level surface where the grill is
not facing directly into the wind.
Avoid moving the grill during use.
Do not use lighter fluid or charcoal
briquettes in a gas grill. The flow of
combustion and ventilation air is not to be
obstructed. The ventilation openings of the
cylinder enclosure must be kept free and
clear from other debris. Do not store grill
covers or other items in the cylinder area.
·Do not operate this barbecue in garages,
breeze ways, sheds or any enclosed area.
Choosing a Safe Location
for a Gas Barbecue Grill
Necessary Information to
Safely Use a Gas Grill
Installation 1Chapter
Monterra Series Gas Grill
The gas fuel used by this product is
highly flammable and must be used in
a responsible and cautious manner.
It is your responsibility to assemble,
operate, and maintain your gas
barbecue grill properly.
If these instructions are ignored, there
is a possibility of a hazardous fire or
explosion which could result in proper-
ty damage, physical injury or death.
2. Installation must conform with local
codes
3. This appliance is not intended to be
installed in or on a recreational vehicle
and/or boat.
4. Keep the barbecue grill at least 24
inches (61 cm) away from any combustible
construction.
5. The grill area must be clear and free from
combustible materials, gasoline, and any
other flammable liquids or vapors.
1. The gas barbecue grill may only be used
for cooking out-of-doors.

5
The L.P. Fuel Supply System
The L.P. Fuel Supply System
Hot drippings from cooking food could
damage the fuel supply system.
Liquid Propane (abbreviated L.P.) gas is
stored under high pressure inside a cylinder
and will vaporize when released. It is important
that there are no leaky connections on the grill
fuel supply system. Refer to the Leak Testing
section of this manual.
An L.P. gas grill requires a fuel delivery
system made up of a L.P. gas supply cylinder,
a fuel regulator with hose and a gas-control
valve.
·
L.P. Gas
The L.P. Fuel Supply System
Do not store an L.P. cylinder in a building,
garage or any other enclosed area. Instead,
store the cylinder outdoors in a well ventilated
area, away from people and out of the reach of
children.
Place your barbecue grill in a location away
from children and pets.
Do not leave grill unattended when in use.
To avoid burns, do not touch any hot grill
surface. If necessary, use a protective glove
when operating control knobs, tank shut-off
valve, or lid handle.
Do not place combustible material, such as
cloth or plastic, on grill surface during use.
Do not lean on side tables or place more
than 15 pounds of weight on a side table.
·
·
·
·
·
Do not place any flammable material in
warming drawer.
·
Portable L.P. Gas
Barbecue Grills
10. Make sure that the drip pan is in place
under the grill bottom.
Do not use natural gas in an
appliance designed for L.P. gas. Use only
liquid propane (L.P.) gas in an appliance
designed for L.P. gas.
NEVER leave a grill
unattended when in use.
IMPORTANT:
WARNING:
6. Do Not store a spare L.P. gas cylinder
under or near this appliance.
7. NOT FOR USE BY CHILDREN.
8. The outside of the barbecue grill will
become hot during use.
9. The warming drawer is only to be used for
keeping food warm.

6
4. The pressure regulator and hose
assembly provided is factory set at an outlet
pressure of 11 inches water column (.4 lb.
per sq. Inch).
L.P. Cylinders can be obtained at the store
where you purchased your grill or from an
authorized L.P. gas dealer.
Any L.P. gas-supply cylinder used with this
grill must be approximately 12 inches
diameter and 18 inches high.
L.P. GAS SUPPLY CYLINDER
L.P. GAS CYLINDER SPECIFICATIONS
The maximum
fuel capacity must be 20 pounds of propane.
Full-cylinder weight should be approximately
38 pounds (43.7 lbs. Nominal water
capacity).
FUEL REGULATOR AND HOSE
The fuel regulator supplied is equipped with
a Type 1 coupling nut. Do not attempt to
connect to any other L.P. cylinder not
equipped with a mating Type 1 cylinder
valve. This grill is not to be used with any
other cylinder connection device.
The fuel regulator and hose assembly with
the Type 1 fitting supplied must be used with
the appliance. Do not use a hose and
regulator assembly other than the one
supplied with the grill or a manufacturer’s
replacement fuel pressure regulator
assembly.
The Type 1 connection system has the
following features:
1. The system will not allow gas to flow until
a positive connection has been made.
2. The system has a thermal element that
will shut off the flow of gas between 240°F
and 300°F.
3. The system has a flow-limiting device
which, when activated, will limit the flow of
gas to 10 cubic feet per hour.
The L.P. Fuel Supply System
(the fuel regulator and hose)
Fuel Supply
Hose
Side Burner
Control Valve
Type 1 Fuel
Regulator
Multi-Burner
Fuel-Control
Valve Assembly
The L.P. Fuel Supply System
(L.P. gas cylinder)
L.P. Gas
Cylinder
Cylinder Control
Valve
Any attempt to adjust the
regulator is dangerous and could create a
situation causing personal injury or property
damage. Consult your L.P. gas dealer if you
think the regulator is not working properly.
WARNING:
NOTE:
L.P. Gas
Cylinder
NOT
INCLUDED

7
Have the gas dealer weigh the cylinder
after filling to ensure that the cylinder is not
overfilled.
TRANSPORTING A FULL CYLINDER
You should transport only one cylinder at a
time. Transport the cylinder in an upright and
secure manner with the control valve turned
off and the POL dust cap in place.
Do not transport a cylinder in the passenger
compartment of a vehicle.
Do not leave cylinder in direct sunlight or in
a high-heat area such as a closed car trunk.
High-heat areas could cause the relief valve
to vent gas.
Use a cylinder cap on the cylinder-valve
outlet during transport and when the cylinder
is not connected to the grill. Keep cylinder
valve closed when not in use.
The L.P. gas cylinder must have a shut-off
valve
A Type 1 compatible
cylinder with a Type 1 cylinder valve has a
positive seating connection that does not
permit gas flow until a positive seal has been
obtained.
The cylinder must be arranged for vapor
withdrawal. It must also include a collar to
protect the cylinder valve. A safety-relief
device having direct communication with the
vapor space of cylinder must be provided.
This will expel high-pressure gas if the
cylinder is overfilled or overheated.
All L.P. gas cylinders used with this
appliance shall be constructed and marked
in accordance with the specifications for L.P.
gas cylinders of the U.S. Department of
Transportation (DOT) or the National
Standard of Canada, CAN/CSA-B339,
Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods; and
Commission, as applicable; and shall be
provided with a listed overfilling-prevention
device. Read labels on the L.P. gas-supply
cylinder.
Inform the gas dealer if it is a new or used
cylinder to be filled. Caution the gas dealer
not to overfill the fuel cylinder.
After filling, have the gas dealer check for
leaks and that the relief valve remains free to
function.
Allow only a qualified L.P. gas dealer to
fill or repair an L.P. gas-supply cylinder.
terminating in a Type 1 L.P. gas-
cylinder-valve outlet.
a.) Do not store a spare L.P. gas cylinder
under or near this appliance.
b.) Never fill the gas cylinder beyond 80
percent full.
c.) If the information in (a.) and (b.) Is not
followed exactly, a fire causing serious
injury or death may occur.
Handle a full cylinder with care.
Gas is under high pressure.
DANGER:
WARNING:
Do not insert any foreign objects
into the valve outlet. You may damage the
back check, A damaged back check can
cause a leak, which could result in explosion,
fire, severe personal injury or death.
DANGER:

8
The L.P. gas cylinder has a Type 1 cylinder
valve with a back-check module in its outlet
that will not permit gas to flow until an
evacuation device is installed. To purge the
L.P. gas cylinder, the back-check module must
be opened with an evacuation device.
A. Hose-end valve with a bleed port: Purging
can be accomplished using a hose-end valve
containing a bleed port, which also allows for
evacuation without the use of an adapter.
B. Hose-end valve without a bleed port:
When a hose-end valve does not have a bleed
port, a separate device must be used for
evacuation.
C. Purging using a Type 1 connection: L.P.
gas cylinder evacuation can be accomplished
during each purging by using a Type 1
connection. The Type 1 valve outlet has 1-
5/16” external ACME right-hand thread that will
accept this connection.
After purging or filling an L.P. gas
cylinder, do not insert a POL plug into the
valve outlet. Insertion of this plug will prevent
the back-check from closing. Use ONLY the
provided cap and strap attached to the outlet.
Close the cylinder valve knob before returning
the cylinder to the customer.
For proper purging procedures in the USA,
refer to: Safety Bulletin NPGA # 133, “Purging
L.P. Gas Cylinders,” and Safety Bulletin NPGA
#130, “Recommended Procedures for Filling
Cylinders.”
PURGING AND EVACUATION DEVICES
FOR L.P. GAS CYLINDER WITH TYPE 1
CYLINDER VALVES
CAUTION:
When using a cylinder exchange, be sure the
exchanged cylinder is a Type 1 cylinder; a 510
POL cylinder will not fit a Type 1 regulator.
Purge new cylinders before
filling. This tank is easily filled with a standard
CGA 510 POL filling connection.
FILLING AND PURGING
TYPE 1 L.P. GAS CYLINDERS
IMPORTANT:
Example B
Type 1
(cut away to see fitting)
Filling a Type 1 Cylinder Valve
Example A: shows a CGA-510 POL fitting.
Example B: shows using a Type 1 POL fitting.
Example A
CGA-510 POL
Take These Instructions to the L.P. Gas Dealer
Do not fill an L.P. gas cylinder
beyond 80% full. If this information is not
followed exactly, a fire causing serious injury
or death may occur.
DANGER:
Purging and filling of L.P. gas
cylinders must be performed by personnel who
have been thoroughly trained in accepted L.P.
gas industry procedures. Failure to follow this
instruction may result in explosion, fire, severe
personal injury or death.
DANGER:

9
Getting Started
Unpacking the Grill Parts
Tools needed to assemble grill:
1. Please follow the steps in the order that
they are presented.
2. Assemble the grill where you plan to use
it.
3. You may want to place an old towel or
cloth at the assembly site to prevent nuts
and bolts from becoming lost.
4. Have a friend help. An assistant can
make the assembly easier by holding the
parts in place while you fasten the nuts and
bolts.
5. To be ready to barbecue immediately,
have the L.P. gas cylinder filled by an
authorized L.P. dealer or cylinder exchange
center.
1. Remove and set aside all inner boxes
and parts from the master carton.
2. Remove and set aside all wrapping
paper and additional packaging from the
parts.
3. Do not destroy carton or packing until
your grill is completely assembled and
operating to your satisfaction.
(tools included)
·Phillips-head screwdriver
Assembly Instructions 2Chapter
Monterra Series Gas Grill

300
100 002
003
401
402
404
408 409
005
206
207
004
208
201
203
202
204
209
205
10
Not Pictured:
001 Master Hardware Pack
Locate these parts:
Assembly Step 1 - Identifying the Grill Parts
Note: Refer to the parts listing on page 11
for descriptions and replacement part information.

11
Parts and Assemblies (See page 10)
Master Hardware Pack
Warming Rack
Cooking Grids
Heat Shield
Drip Pan
Grill Head Assembly
Grill Lid
Heat Indicator
Hinge Pin
Nameplate
Grill Tub
Stainless Steel Burner
Burner Knob
Knob Bezel
Electronic Ignitor
Valve Assembly
Hose / Regulator
Grill Cabinet
Front Cabinet Frame
Rear Cabinet Frame
Left Cabinet Panel
Right Cabinet Panel
Bottom Cabinet Panel
Warming Drawer
Warming Drawer Front
Cabinet Door
Locking Caster
Left Side Table
Side Table
Front Table Bracket
Rear Table Bracket
Front Basket
Table Drawer
Right Side Burner
Burner Table
Front Table Bracket
Rear Table Bracket
Front Basket
Burner and Ignitor
Cooking Grate
Table Lid
Burner Knob
Knob Bezel
description
ref
001
002
003
004
005
100
101
102
103
104
105
106
107
108
109
110
111
200
201
202
203
204
205
206
207
208
209
300
301
302
303
304
305
400
401
402
403
404
405
406
407
408
409
part no.
AZ999001
AZ999002
AZ999003
AZ999004
AZ999005
AZ999101
AZ999102
AZ999103
AZ999104
AZ999105
AZ999106
AZ999107
AZ999108
AZ999109
AZ999110
AZ999111
AZ999201
AZ999202
AZ999203
AZ999204
AZ999205
AZ999206
AZ999207
AZ999208
AZ999209
AZ999300
AZ999301
AZ999302
AZ999303
AZ999304
AZ999305
AZ999401
AZ999402
AZ999403
AZ999404
AZ999405
AZ999406
AZ999407
AZ999107
AZ999108
date of purchase is required. Please call to receive a
return authorization number before returning any grill
components. To order parts call toll free
in the USA:
in Canada:
1-800-944-8982
1-800-668-5323
Replacement parts are available direct from our
warehouse. Some components are not available
preassembled and may be ordered separately. For
convenience, the following parts list is provided along
with a representation of the items listed. Charges for
replacement parts and shipping may apply.
For warranty replacements, proof of ownership and

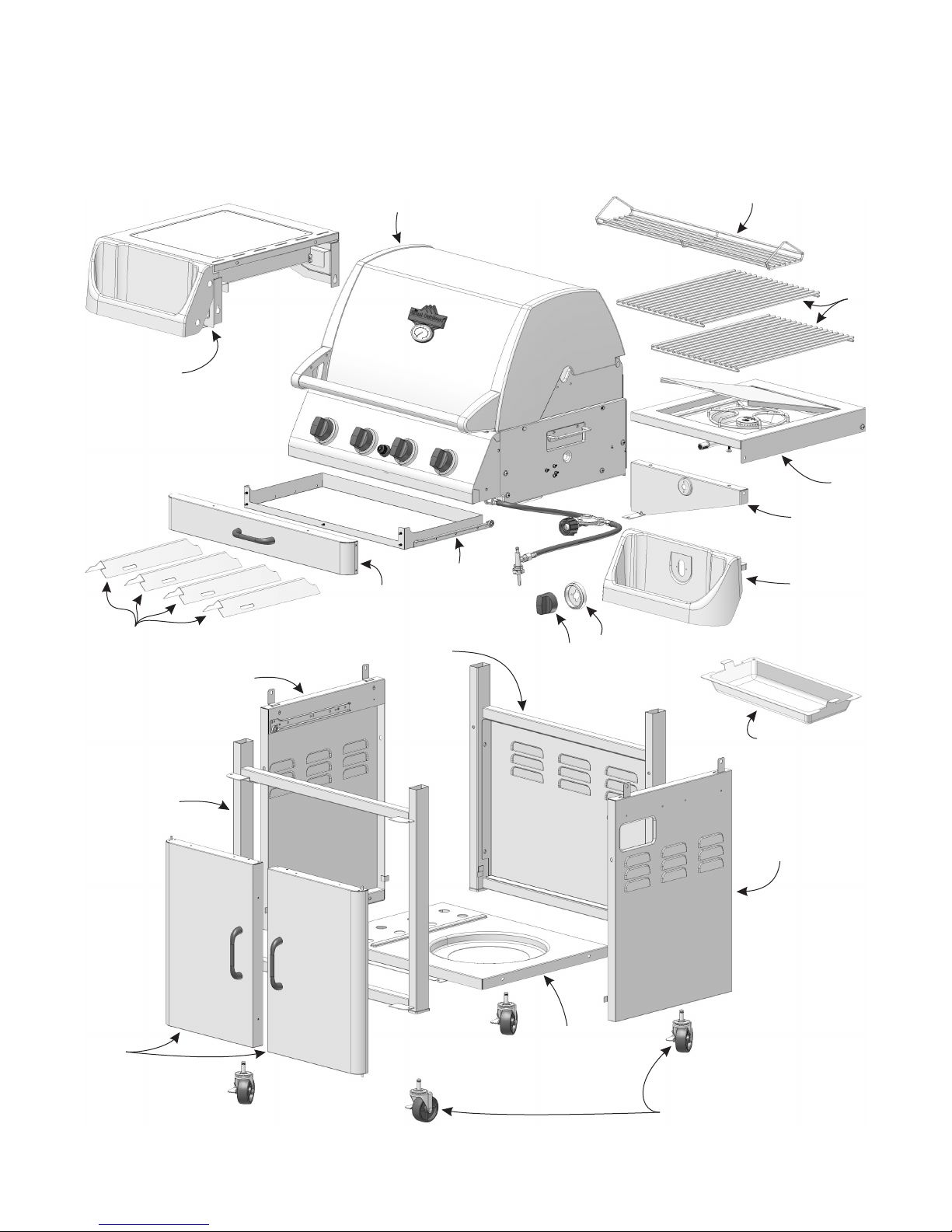

Model GM475SSP Replacement Parts
104
102
003
004
101
106
105
108
107
109
111
110
301
302
303
304
305
401
402
403
404
405
406
407
408
409

Rear
Cabinet
Frame
Rear
Cabinet
Frame
Front
Cabinet
Frame
Front
Cabinet
Frame
4
Locking
Casters
Bottom
Cabinet
Panel
LOCATE THESE PARTS:
12
1.
2.
3.
4.

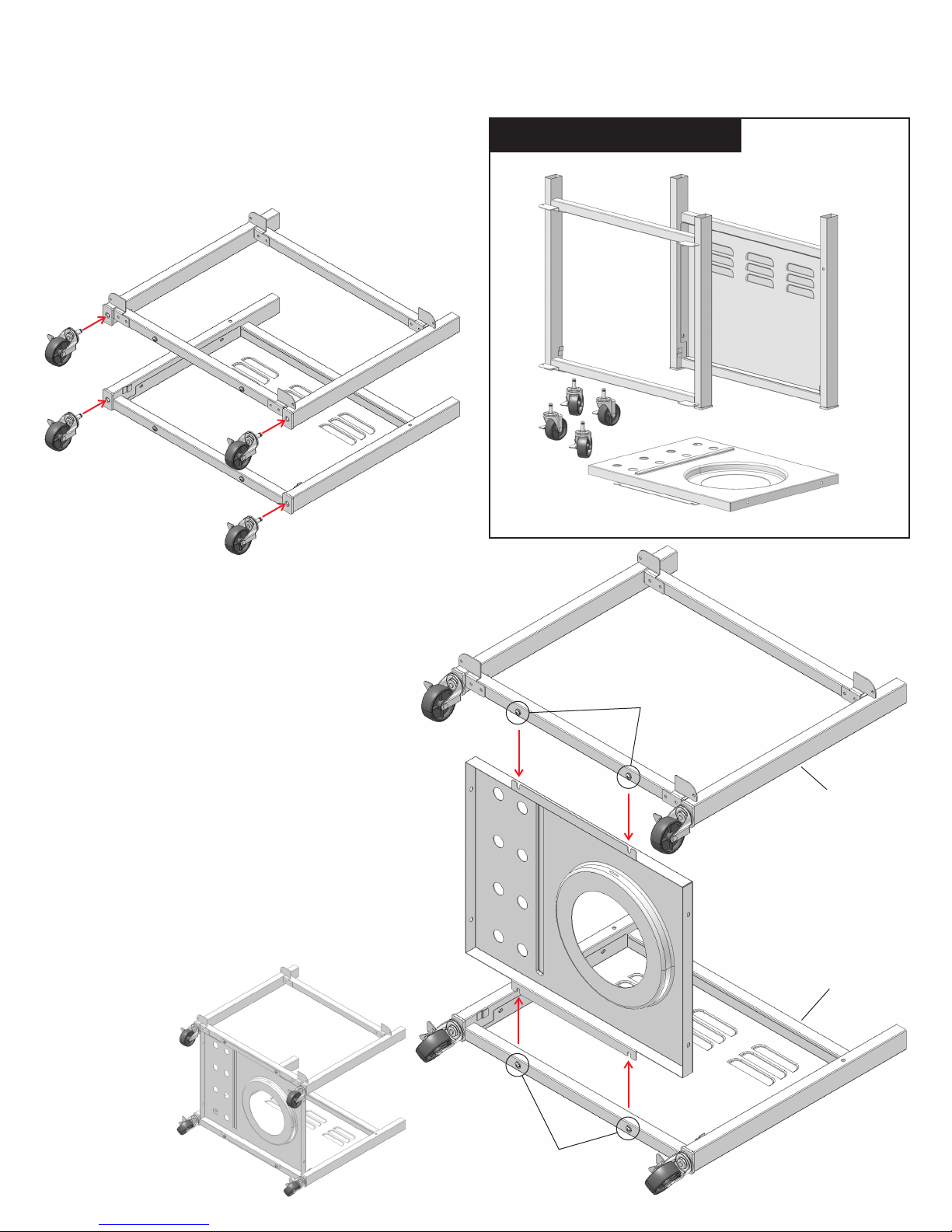

Insert a caster into the bottom of each of
the four cabinet posts as shown above.
Firmly push them into place.
Locate the screws on the bottom of
the front and rear cabinet frames in the
locations shown. Loosen the screws, but
it is not necessary to remove them.
Position the bottom cabinet panel between
the front and rear cabinet frames as shown.
Make sure the mounting tabs capture the
screws.
Securely re-tighten all 4 screws.
Your assembly
should
look like
this:
Assembly Step 2 - Cabinet Assembly
Loosen
Loosen

13
LOCATE THESE PARTS:
M6 x 15mm
Bolt (8)
A
A
A
M6 Washers
(8)
B
B
Assembly Step 3 - Cabinet Assembly
Right
Cabinet
Side
Panel
Left
Cabinet
Side
Panel
4. After all 8 of the bolts and washers are
mounted, securely tighten all of the bolts
and set the assembly upright onto the
casters.
1.
2.
3. From the underneath side of the cabinet assembly,
insert the 4 remaining M6 bolts and washers into
the mounting holes of the side panels as shown
below.

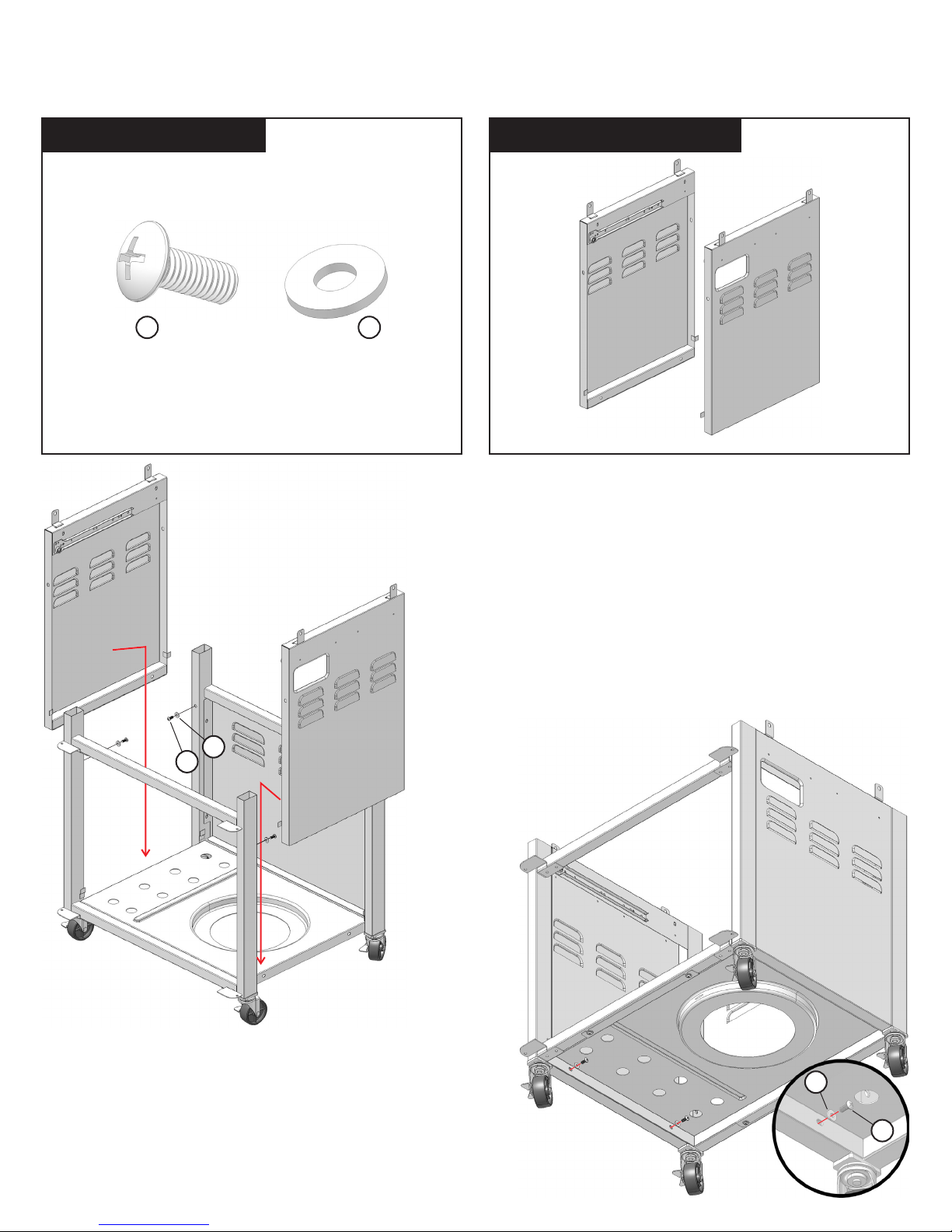

Position the cabinet side panels as shown. The panels must be inserted
from the inside of the cabinet assembly and slid straight down into place.
Line up the inside mounting holes and insert an M6 bolt and washer for each
of the 4 mounting holes. Thread in the bolts, but do not tighten them yet.
B
USE HARDWARE ”A”

14
Assembly Step 4 - Install the Grill Head
LOCATE THESE PARTS:
M6 x 15mm
Bolt (4)
A
A
M6 Washers
(4)
USE HARDWARE ”B”
Grill
Head
Assembly
2. For each
mounting tab,
insert an M6 bolt
and washer.
Tighten all 4
bolts securely.

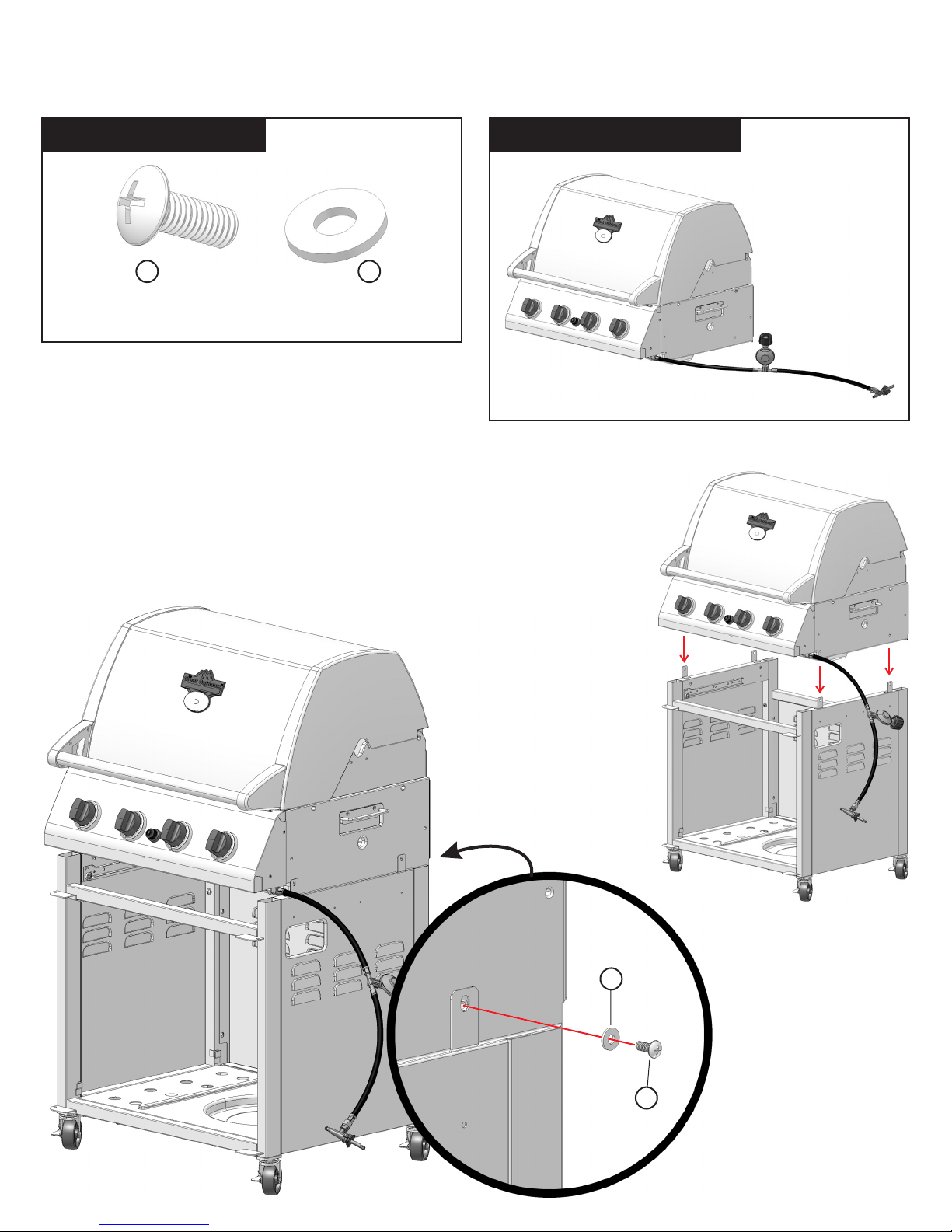

1. Set the grill head assembly onto the top of the
cabinet assembly as shown. Be sure the grill
head lines up inside the mounting tabs on the
top of the cabinet.
B
B

USE HARDWARE ”C”
1.
2.
3.

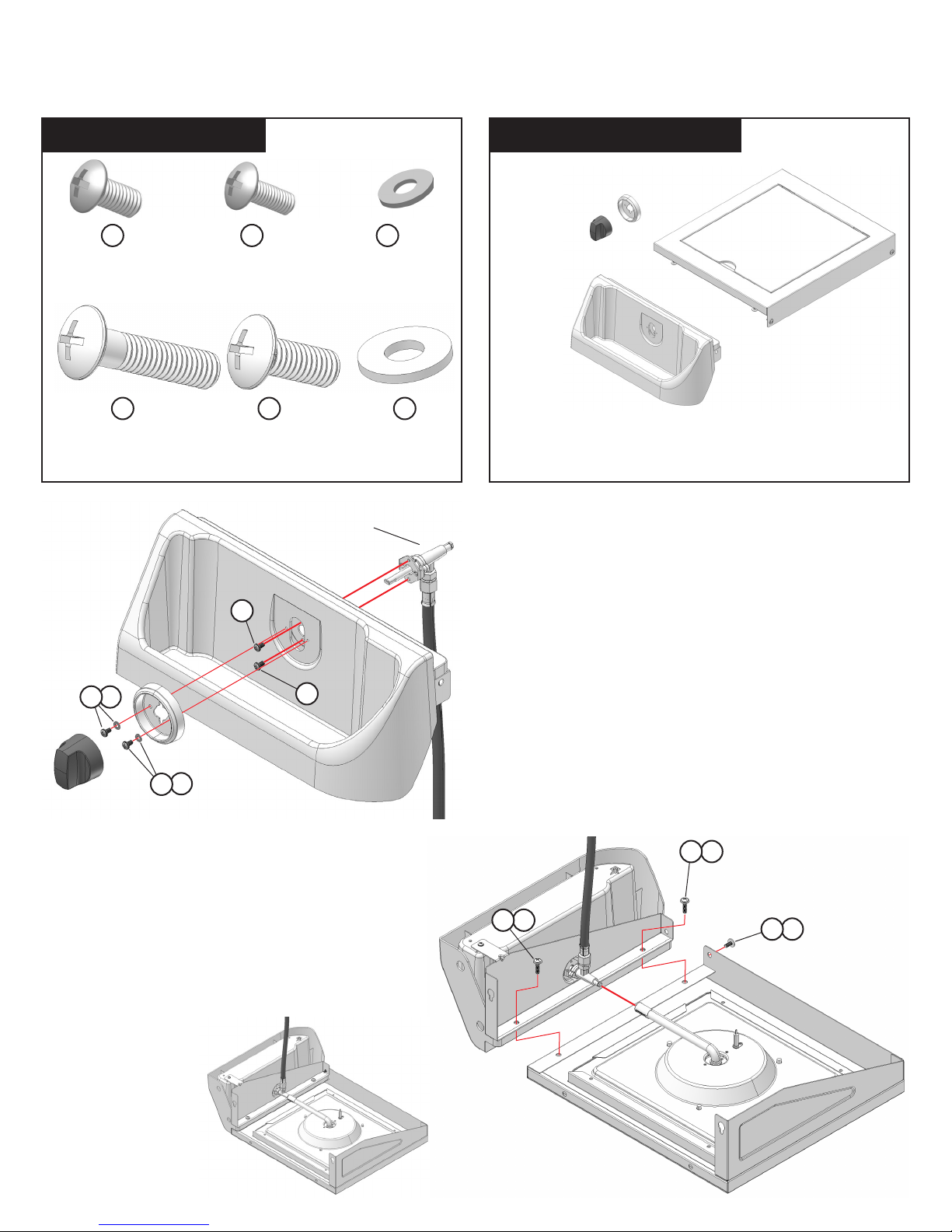

Install the side burner valve to the back of
the side table basket as shown. Secure the
valve to the bracket using the M5 and M4
bolts - the bolts are different sizes to
prevent the valve from being installed
upside down.
Mount the knob bezel to the front of the
basket as shown. Secure the bezel using
the 2 remaining M4 bolts and M4 washers.
Securely tighten all of the valve bolts.
Mount the knob onto the valve stem. Push
the knob securely onto the stem.
4.
5.
6.
Attach the front bracket with the valve
to the side burner table. Insert the valve
into the burner tube as shown.
Secure the bracket with the 3 M6 bolts
and washers as shown.
Securely
tighten all
bolts.
15
LOCATE THESE PARTS:
Right Side
Burner Table
Right Side
Table Basket
Assembly Step 5 - Assemble the Side Burner
M5 x 10mm
Bolt (1)
A
M4 x 10mm
Bolt (3)
B
B
M4 Washers
(2)
C
C
B
CB A
M6 Washers
(3)
Side burner valve
(attached to the grill)
F
F
FF
M6 x 15mm
Bolts (1)
E
E
M6 x 30mm
Bolts (2)
D
D
D
Sideburner
Knob and
Bezel

16
Use the remaining hardware from hardware
“D” for the left side table attachment described
in the next assembly step.
4. From the inside of the
grill head, insert the M6 bolts
and washers that fasten the
side table.
5. Securely
tighten all
the bolts.
A
B
3.
Capture
the two
loosened bolts
with the two
bottom mounting
holes on the side
table.
6. Locate the loose ignitor wire near
the control panel and connect
the loose end to the
side burner ignitor
electrode.

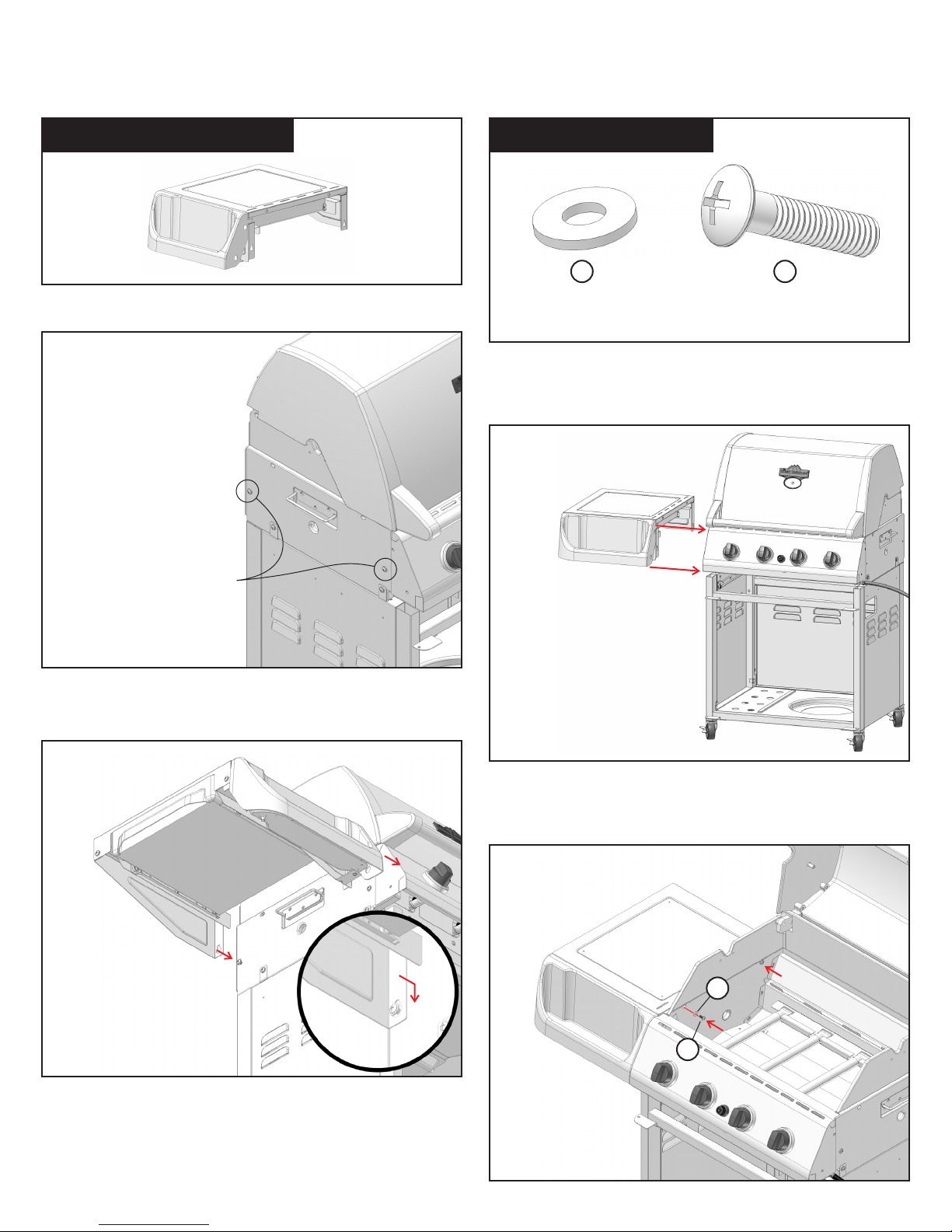

2. Line up the
side table to the
side of the grill
head.
Loosen
1. Locate the 2
pre-installed bolts
on each side of
the grill head.
Loosen all 4 bolts,
but do not remove
them
M6 x 30mm
Bolt (4)
B
M6 Washers
(4)
A
USE HARDWARE ”D”
Assembly Step 6 - Attach the Right Side Table

17
Assembly Step 7 - Attach the Left Side Table
M6 x 30mm
Bolt (2)
B
M6 Washers
(2)
USE HARDWARE ”D”
A
Loosen
2. Line up the side
table to the side
of the grill head.
3.
Capture
the two
loosened bolts
with the two
bottom mounting
holes on the side
table.
4.
5.
From the inside of the grill
head, insert the M6 bolts
and washers that fasten the
side table.
Securely
tighten all
the bolts.
1. Locate the 2 pre-
installed bolts on
each side of the
grill head. Loosen
all 4 bolts, but do
not remove them
Note: Use remainder of
Hardware “D” from the
previous step
A
B
LOCATE THESE PARTS:
Left Side
Table
Assembly

18

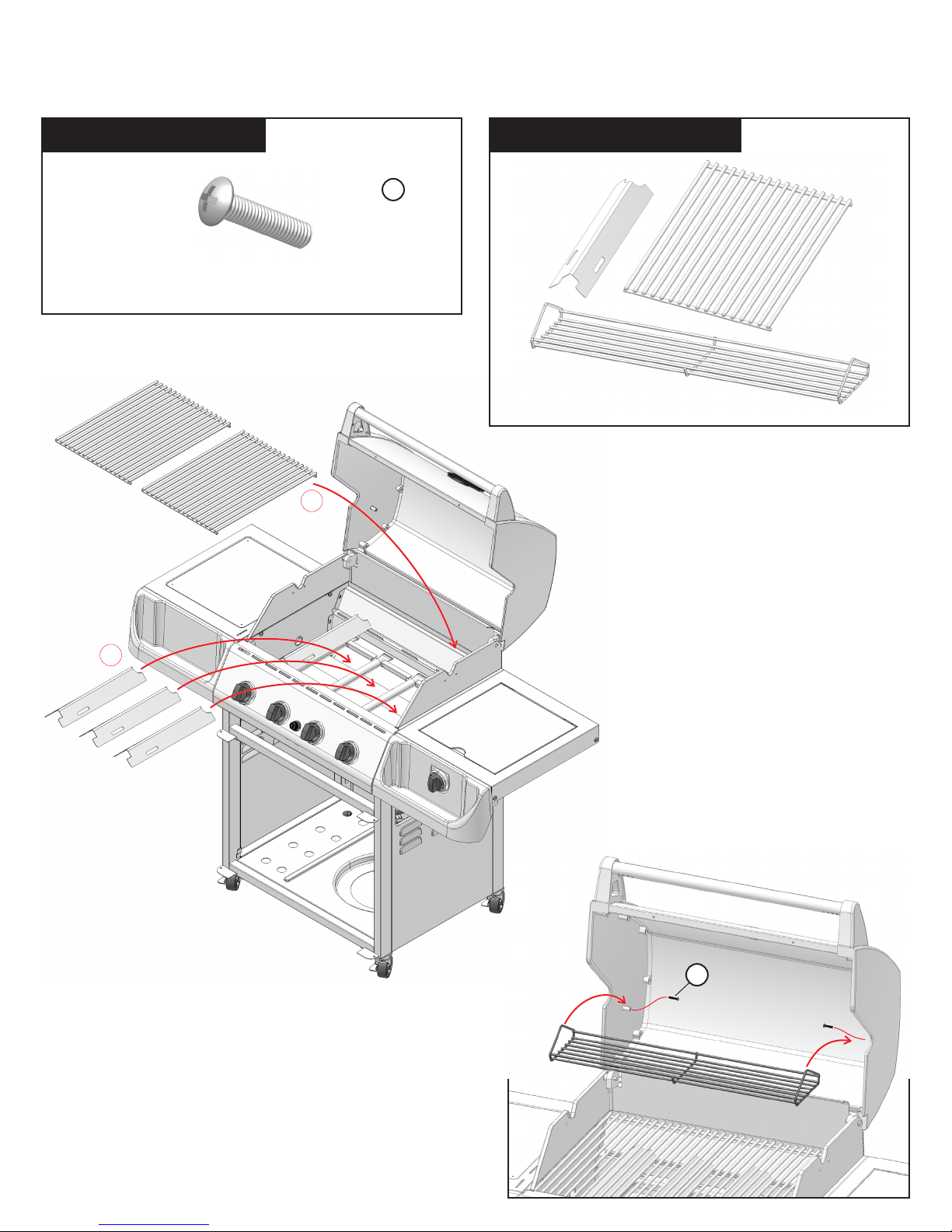

Assembly Step 8 - Install the Cooking Grids
LOCATE THESE PARTS:
USE HARDWARE ”E”
Warming Rack
Cooking
Grids
(2)
Heat
Shields
(4)
M5 x 20mm
Bolt (2)
A
A
1.
2.
3.
4.
Insert the heat shields into the grill
tub. Each heat shield must be
placed above a burner, resting on
the brackets in the front and rear of
the grill tub.
Place the cooking grids onto the top
of the grill tub. They will rest just
inside the top ledge of the tub.
Place the warming rack in the grill
lid. The warming rack will hang
from the two brackets in the side of
the grill lid.
Insert the M5 bolts into the grill lid
to hold the warming rack.
1
2

19
Assembly Step 9 - Install the Cabinet Doors
LOCATE THESE PARTS:
Cabinet Doors
(2)
Warming
Drawer
Warming
Drawer Front
1.
2.
3.
Place the warming drawer front onto the warming
drawer and fasten it with the five M5 bolts and
washers. Tighten securely.
Place the assembled warming drawer into the grill
cabinet, just below the grill head using the pre-
mounted drawer glides.
Mount the doors to the
cabinet as shown. The door
pins are spring-loaded - push
in the pins to mount them to
the cabinet hinges.
USE HARDWARE ”F”
M5 x 10mm
Bolt (5)
A B
M4 Washers
(5)
BA

20
Assembly Step 10 - Install the Drip Pan
LOCATE THESE PARTS:
Drip Pan
1. From the back side of
the grill, insert the drip
pan into the mounting
tabs underneath the
grill tub.
