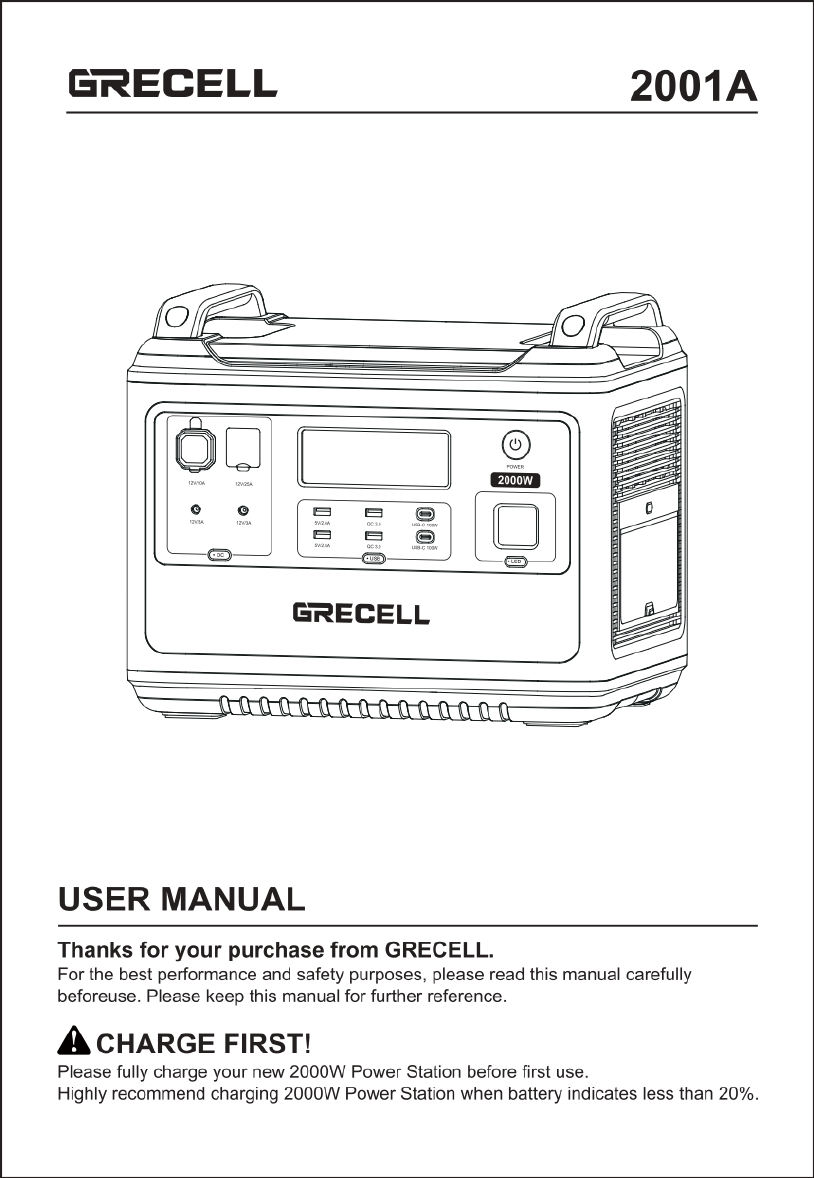

GRECELL 2001A User manual

GRECELL
2001A
USER MANUAL
Thanks for your purchase from GRECELL.
For the best performance and safety purposes, please read this manual carefully
beforeuse. Please keep this manual for further reference.
А CHARGE FIRST!
Please fully charge your new 2000W Power Station before first use.
Highly recommend charging 2000W Power Station when battery indicates less than 20%.

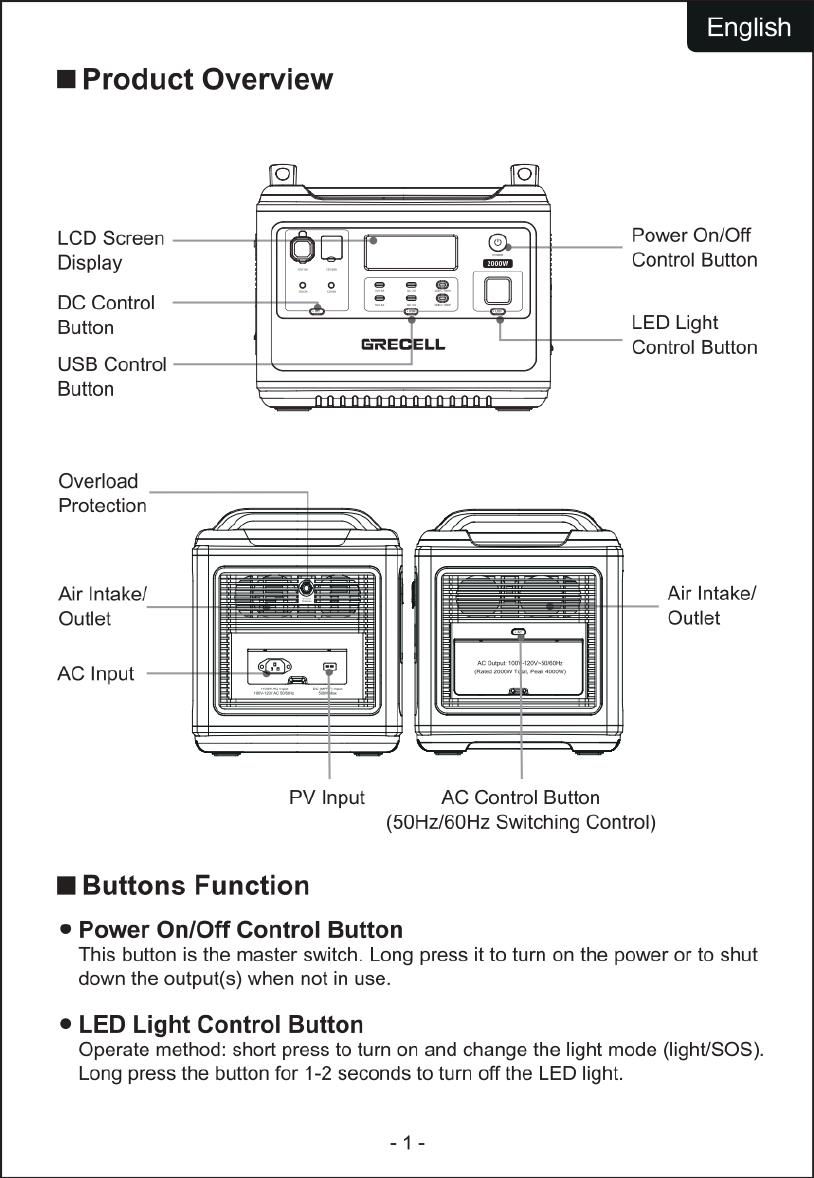

ш Product Overview
Э! ol
LCD Screen Power On/Off
Display Control Button
DC Control
Button
LED
Light
Control Button
USB Control
Button
Overload
Protection
Air Intake/ і Air Intake/
Outlet Outlet
AC Input
S 7
PV Input АС Control Button
(50Hz/60Hz Switching Control)
@ Buttons Function
® Power On/Off Control Button
This button is the master switch. Long press it to turn on the power or to shut
down the output(s) when not in use.
® LED Light Control Button
Operate method: short press to turn оп апа change the light mode (light/SOS).
Long press the button for 1-2 seconds to turn off the LED light.
-я -

® USB Control Button
Make sure the button “Power On/Off ” 15 activated before pressing this button
10 turn on.
Operate method: short press to turn on/off.
USB-Ax2 5V/24A |USB-Ax2 QC3.0-18W | TYPE-Cx2 PD-100W
® DC Control Button
Make sure the button “ Power On/Off ” is activated before pressing this button 10
turn on.
Operate method: short press to turn on/off.
=
Output x 2 12V/3A Cigar Lighter x 1 12V/10A XT60 х 1 12V/25A
® | CD Screen Display
Present the remaining power and use data.
And the LCD Screen will enter Sleep Mode after the 30s of inactivity апа will
Wake up when inputting a charging cord or when any button is pressed.
® Air Intake/Outlet (built-in cooling fan)
2001A utilizes an internal cooling fan to ensure the product operates within the
appropriate temperature range. 2001A, when it experiences a higher output
load, will automatically turn on the fan during discharge or recharging; the fan
may operate intermittently to keep the internal temperature within operating
range. The fan will likely start when the АС circuit 15 activated to ensure proper
operation.
® АС Control Button (50Hz/60Hz Switching Control)
Make sure the button “ Power On/Off ” is activated before pressing this button
10 turn on.
Operate method: short press to turn on/off.
Notice:
1. Please confirm the output voltage or frequency before using.
2. Long press the button for 2s to enter the frequency changing mode, 50Hz, and
60Hz will flash in the display, press again the button to choose the right frequency,
wait till the frequency is not flashing, then you will get the frequency you want.
3. Quick short press 10 times to switch the voltage to 100V or 110V.
-2-

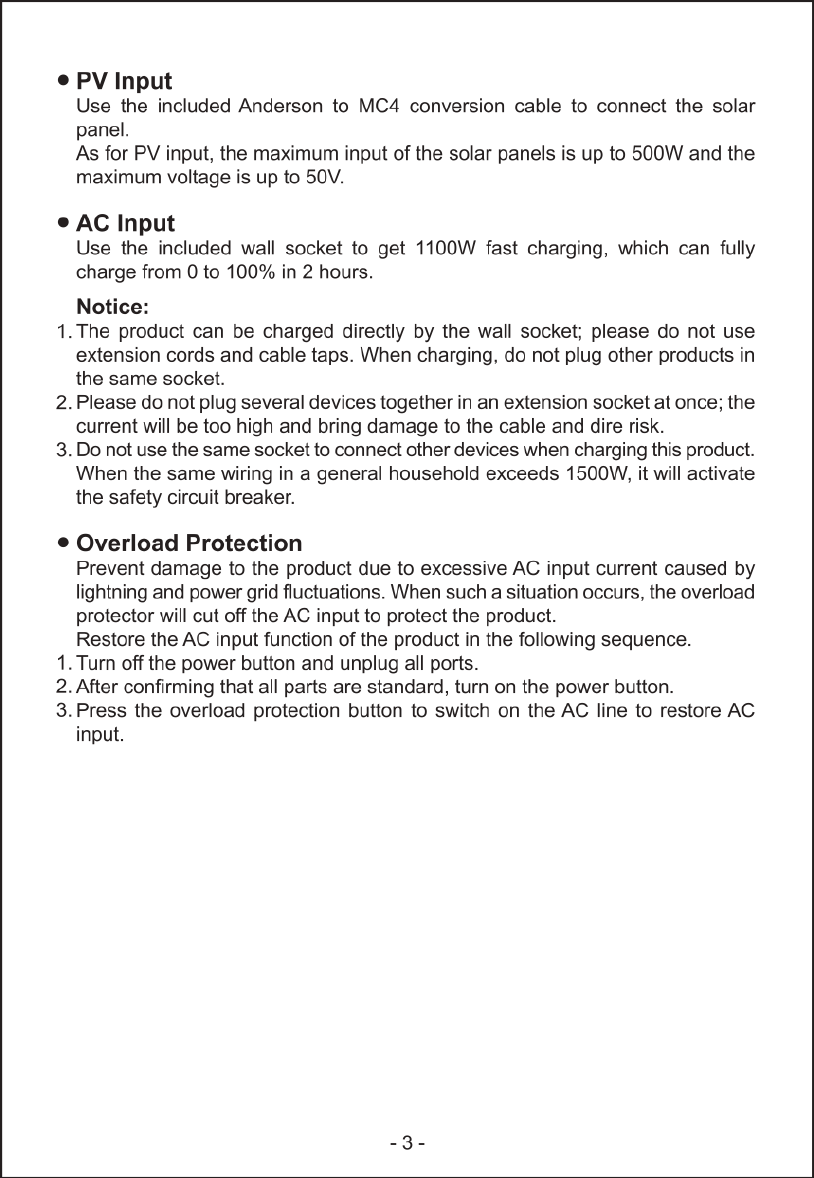

® PV Input
Use the included Anderson to MC4 conversion cable to connect the solar
panel.
As for PV input, the maximum input of the solar panels is up to 500W and the
maximum voltage is up to 50V.
® АС Input
Use the included wall socket to get 1100W fast charging, which can fully
charge from 0 to 100% in 2 hours.
Notice:
. The product can be charged directly by the wall socket; please do not use
extension cords and cable taps. When charging, do not plug other products in
the same socket.
2. Please do not plug several devices together in ап extension socket а! опсе; the
current will be too high and bring damage to the cable and dire risk.
. Do not use the same socket to connect other devices when charging this product.
When the same wiring т а general household exceeds 1500V, it will activate
the safety circuit breaker.
©
® Overload Protection
Prevent damage to the product due to excessive AC input current caused by
lightning and power grid fluctuations. When such a situation occurs, the overload
protector will cut ой е АС input to protect the product.
Restore the AC input function of the product in the following sequence.
‚ Turn оЁ the power button апа unplug а! ports.
. After confirming that all parts are standard, turn on the power button.
. Press е overload protection button 10 switch оп the АС line to restore АС
input.
©
ю
—

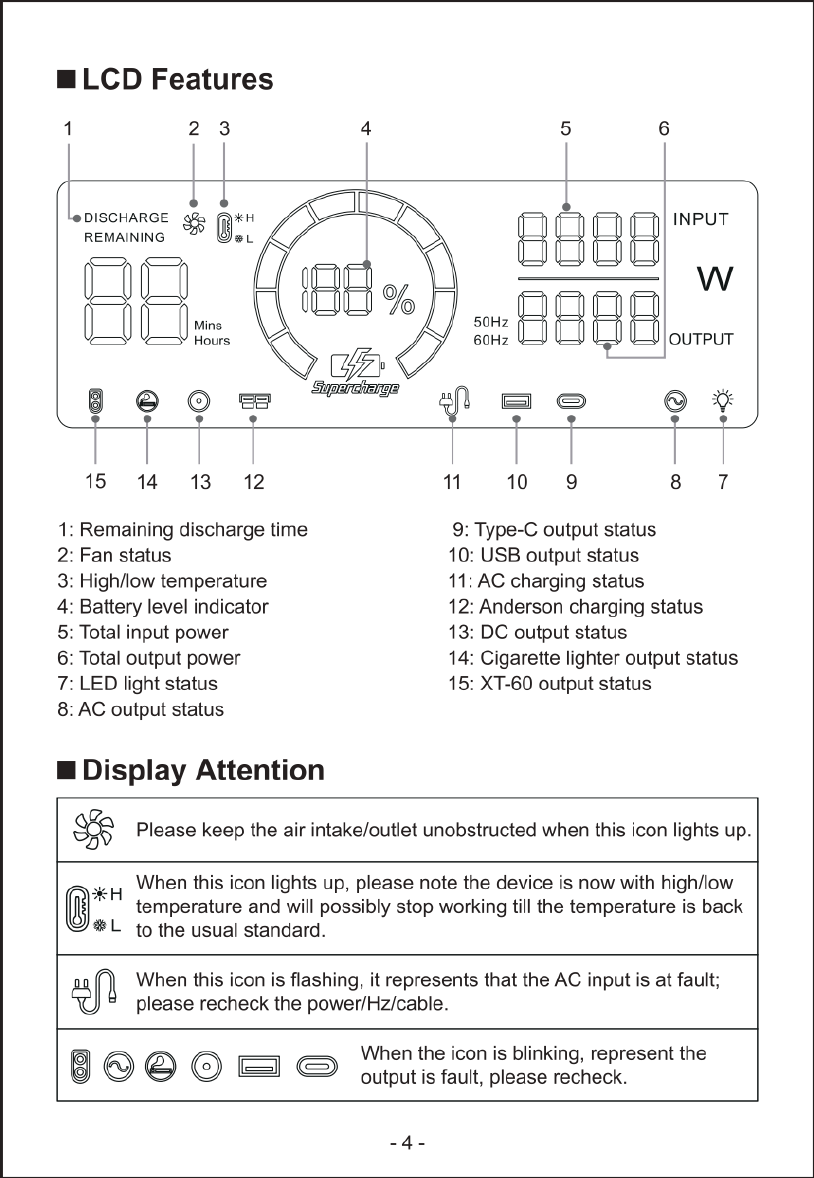

@ -[СО Features
1 2 3 4
LDISCHARGE () INPUT
REMAINING % 0
/У OUTPUT
Е;Ё" /
@
© ¥
fifi T
8 7
1: Remaining discharge time 9: Type-C output status
2: Fan status 10: USB output status
3: High/low temperature 11: AC charging status
4: Battery level indicator 12: Anderson charging status
otal input power 13: DC output status
6: Total output power 14: Cigarette lighter output status
7: LED light status 15: XT-60 output status
8: AC output status
@ Display Attention
Please keep the air intake/outlet unobstructed when this icon lights up.
When this icon lights up, please note the device is now with high/low
temperature and will possibly stop working till the temperature is back
to the usual standard.
When this icon is flashing, it represents that the АС input is at fault;
please recheck the power/Hz/cable.
. When е icon is blinking, represent the
© ›
output is fault, please recheck.
©
-4 -

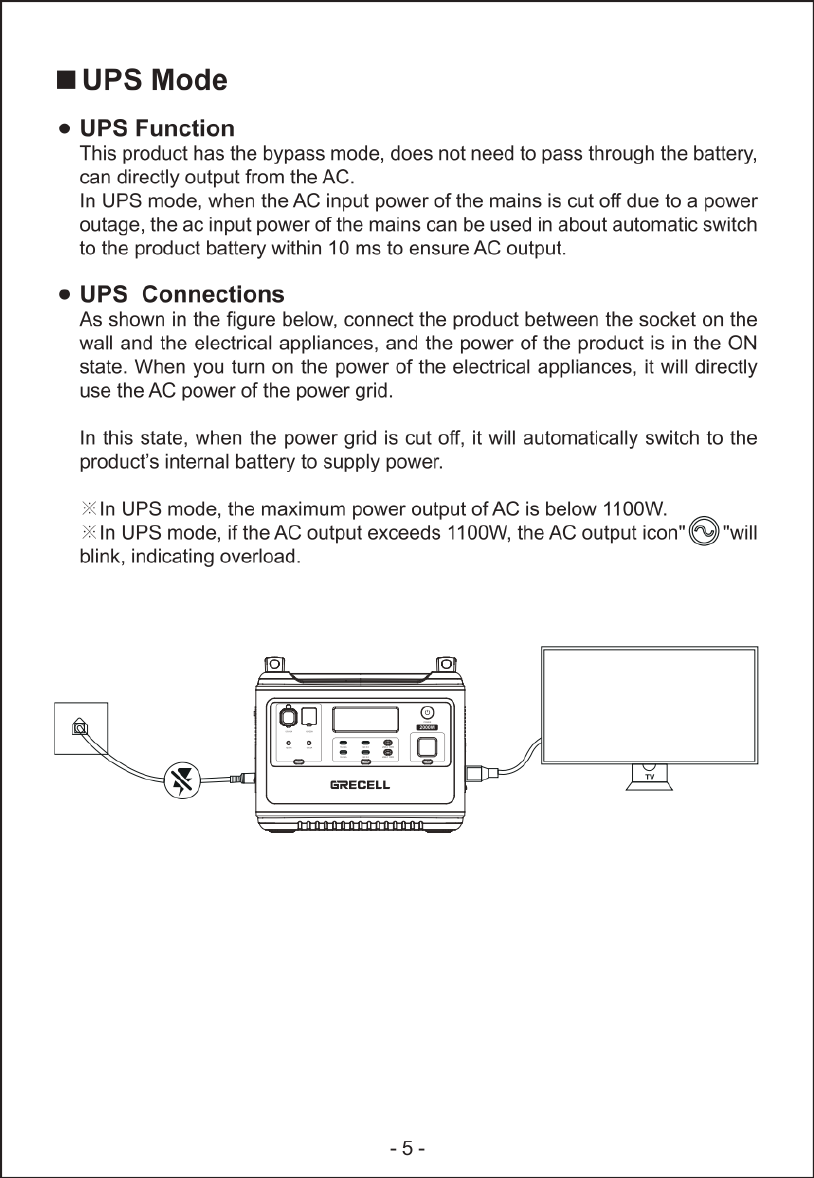

B UPS Mode
® UPS Function
This product has the bypass mode, does not need to pass through the battery,
can directly output from the AC.
In UPS mode, when the AC input power of the mains is cut off due to a power
outage, the ac input power of the mains can be used in about automatic switch
to the product battery within 10 ms to ensure AC output.
® UPS Connections
As shown in the figure below, connect the product between the socket on the
wall апа the electrical appliances, апа the power of е product is т the ОМ
state. When you turn оп the power of the electrical appliances, it will directly
use the AC power of the power grid.
In this state, when the power grid is cut off, it will automatically switch to the
product’s internal battery to supply power.
ЖИп UPS mode, the maximum power output of AC is below 1100W.
*In UPS mode, # the АС output exceeds 1100W, the АС output icon"@"will
blink, indicating overload.
p— EL

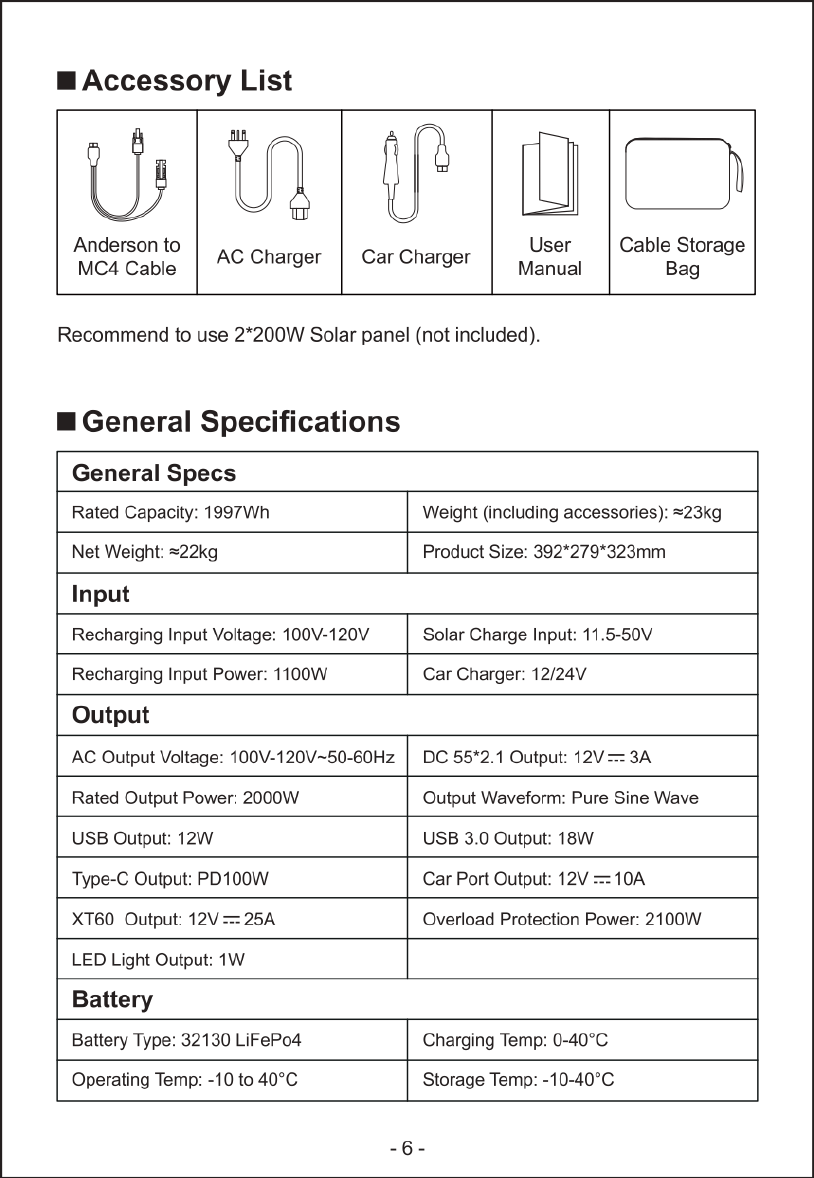

ш Accessory List
Anderson to
MC4 Cable AC Charger Car Charger
й
User
Manual
Cable Storage
Bag
Recommend to use 2*200W Solar panel (not included).
@ General Specifications
General Specs
Rated Capacity: 1997Wh Weight (including accessories): =23kg
Net Weight: =22kg Product Size: 392*279*323mm
Input
Recharging Input Voltage: 100V-120V Solar Charge Input: 11.5-50V
Recharging Input Power: 1100W Car Charger: 12/24V
Output
АС Output Voltage: 100V-120V~50-60Hz DC 55*2.1 Output: 12V = ЗА
Rated Output Power: 2000W Output Waveform: Pure Sine Wave
USB Output: 12W USB 3.0 Output: 18W
Type-C Output: PD100W Саг Port Output: 12V == 10A
XT60 Output: 12V == 25А Overload Protection Power: 2100W
LED Light Output: 1W
Battery
Battery Type: 32130 LiFePo4 Charging Temp: 0-40°C
Operating Temp: -10 to 40°C Storage Temp: -10-40°C
-6 -

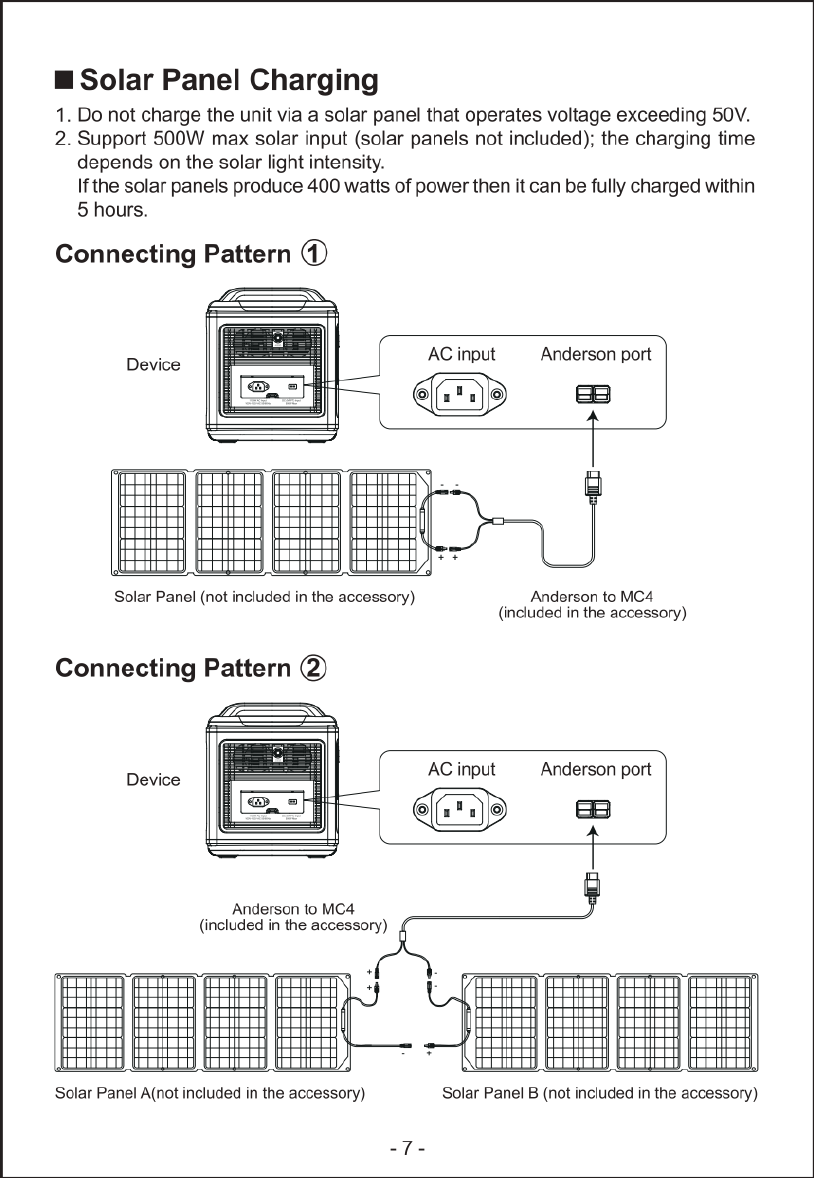

№ Solar Panel Charging
1. Do not charge the unit via a solar panel that operates voltage exceeding 50V.
2. Support 500W max solar input (solar panels not included); the charging time
depends оп the solar light intensity.
If the solar panels produce 400 watts of power then it can be fully charged within
5 hours.
Connecting Pattern @)
АС input Anderson port
Device
) 1 1 ] | | ]
1
)
Solar Panel (not included in the accessory) Anderson to MC4
(included in the accessory)
Connecting Pattern 2
Device АС input Anderson port
\L ==]
Anderson to MC4
(included in the accessory)
Solar Panel А(по! included in the accessory) Solar Panel B (not included in the accessory)

ШАС Charger Charging
Please use the AC charger that we provided to charge this unit, it will only need 2
hours to fully charge the device.
АС при! Anderson port
M 39 =
К
Device %
Ш Саг Charger Charging
Please use the саг charger that we provided to charge this unit, апа саг charging
is usually low power of 90-120W, so the charging time will be long. If you need a
quick charge, it is recommended to use the AC adapter.
?
]
АС charging cable (included in the accessory)
АС input Anderson port
Device ‘
( в—
Саг charging cable
(included in the accessory)

ю Fault Resolution
Status Explanation Recover method
e
Above icons flash
Output exceeds
the standard
1. Remove the output device.
2. Check whether the overload
protector is activated. If it is
activated, press the overload
protection button, press the
АС output button.
and buzzes.
(short circuit). 3. If the overload protector does
апа buzz. not spring up, directly press
AC output to restore the
output function.
H
The temperature Remove the equipment, turn off
#L of this product the power of this product, and
has exceeded the wait for the equipment to reach
The temperature N В
Р appropriate the appropriate temperature.
warning icon flashes temperature.
Bad wire connection.
Confirm the connection status
of the line and the power supply
status.
@
Charging unavailable.
Overload protection
function activated.
1. Turn off the power button and
remove cables from all ports.
2. After verifying that all components
are normal, turn on the power
button.
3. Press the overload protection
button Ю connect the АС cable
to recover AC input.

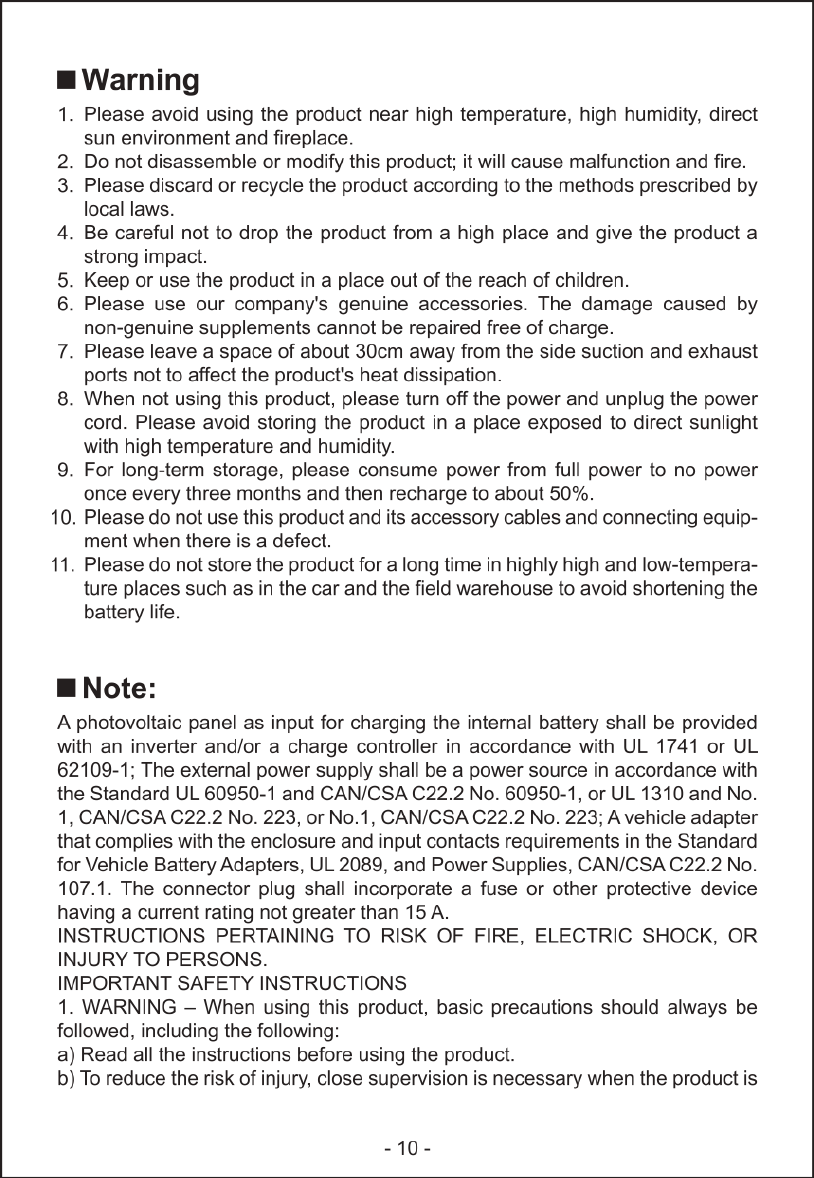

HmWarning
1.
2.
3.
10.
1.
Please avoid using the product near high temperature, high humidity, direct
sun environment and fireplace.
Do not disassemble or modify this product; it will cause malfunction and fire.
Please discard or recycle the product according to the methods prescribed by
local laws.
. Be careful not ю drop the product from а high place апа give the product а
strong impact.
. Keep ог use the product п а place out of the reach of children.
. Please use our company's genuine accessories. The damage caused by
non-genuine supplements cannot be repaired free of charge.
. Please leave a space of about 30cm away from the side suction and exhaust
ports not to affect the product's heat dissipation.
. When not using this product, please turn оЁ the power апа unplug the power
cord. Please avoid storing the product in a place exposed to direct sunlight
with high temperature and humidity.
. For long-term storage, please consume power from full power to no power
once every three months and then recharge to about 50%.
Please do not use this product and its accessory cables and connecting equip-
ment when there 15 а defect.
Please do not store е product for а long time in highly high апа low-tempera-
ture places such а5 in the саг апа the field warehouse 10 avoid shortening the
battery life.
H Note:
A photovoltaic panel as input for charging the internal battery shall be provided
with ап inverter and/or а charge controller in accordance with UL 1741 ог UL
62109-1; The external power supply shall be a power source in accordance with
the Standard UL 60950-1 and CAN/CSA C22.2 No. 60950-1, or UL 1310 and No.
1, CAN/CSA C22.2 No. 223, or No.1, CAN/CSA C22.2 No. 223; A vehicle adapter
that complies with the enclosure and input contacts requirements in the Standard
for Vehicle Battery Adapters, UL 2089, and Power Supplies, CAN/CSA C22.2 No.
107.1. The connector plug shall incorporate a fuse or other protective device
having a current rating not greater than 15 A.
INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS.
IMPORTANT SAFETY INSTRUCTIONS
1. WARNING — When using this product, basic precautions should always be
followed, including the following:
a) Read all the instructions before using the product.
b) To reduce the risk of injury, close supervision is necessary when the product is
-10-

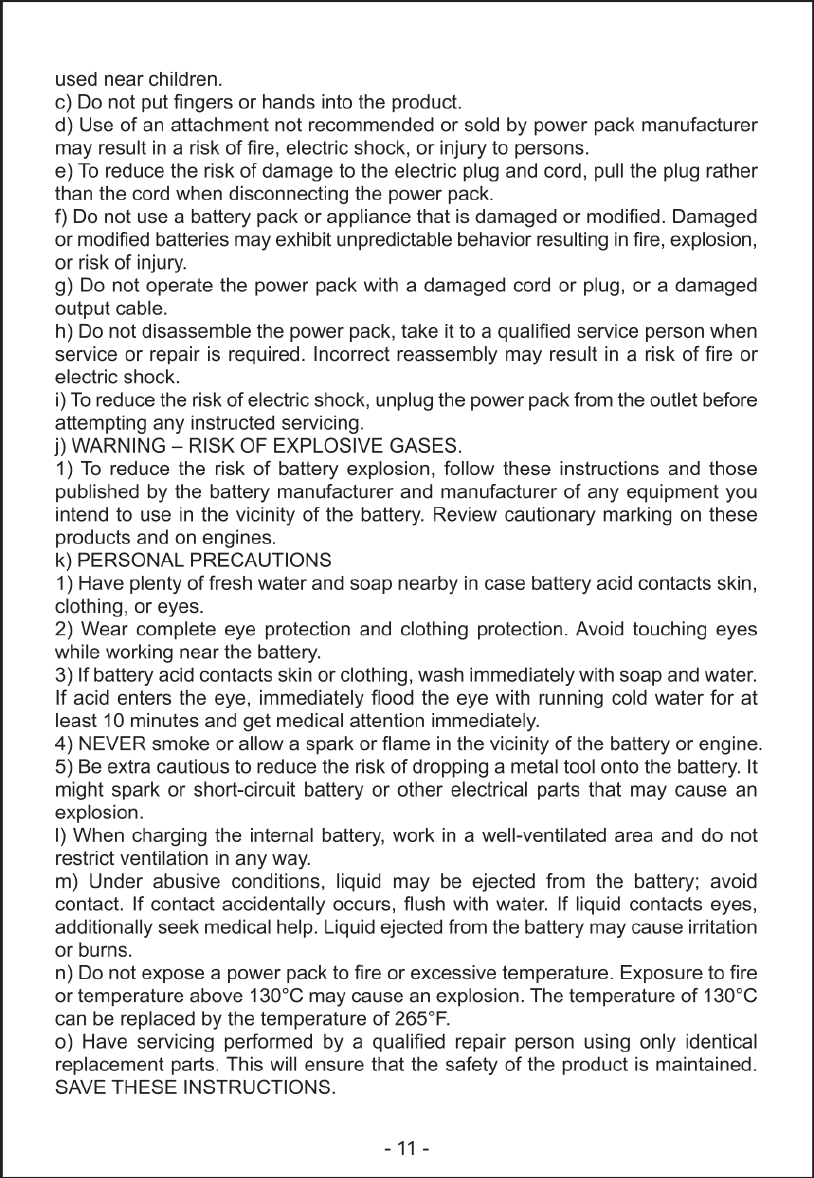

used near children.
с) Do not put fingers ог hands into the product.
d) Use of an attachment not recommended or sold by power pack manufacturer
may result т а risk of fire, electric shock, ог injury 10 persons.
е) То reduce the risk of damage to the electric plug and cord, pull the plug rather
than the cord when disconnecting the power pack.
®) Do not use а battery pack ог appliance that is damaged ог modified. Damaged
or modified batteries may exhibit unpredictable behavior resulting in fire, explosion,
ог risk of injury.
9) Do not operate the power pack with а damaged cord ог plug, ог а damaged
output cable.
h) Do not disassemble the power pack, take it to a qualified service person when
service ог repair is required. Incorrect reassembly may result т а risk of fire ог
electric shock.
i) To reduce the risk of electric shock, unplug the power pack from the outlet before
attempting any instructed servicing.
j) WARNING — RISK ОЕ EXPLOSIVE GASES.
1) To reduce the risk of battery explosion, follow these instructions and those
published by the battery manufacturer and manufacturer of any equipment you
intend to use in the vicinity of the battery. Review cautionary marking on these
products and on engines.
k) PERSONAL PRECAUTIONS
1) Have plenty of fresh water and soap nearby in case battery acid contacts skin,
clothing, or eyes.
2) Wear complete eye protection and clothing protection. Avoid touching eyes
while working near the battery.
3) If battery acid contacts skin ог clothing, wash immediately with soap and water.
If acid enters the eye, immediately flood the eye with running cold water for at
least 10 minutes and get medical attention immediately.
4) NEVER smoke ог allow а spark ог flame in the vicinity of the battery ог engine.
5) Be extra cautious Ю reduce the risk of dropping а metal tool onto the battery. It
might spark ог short-circuit battery ог other electrical parts that may cause ап
explosion.
1) When charging the internal battery, work in a well-ventilated area and do not
restrict ventilation in any way.
m) Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from the battery may cause irritation
or burns.
n) Do not expose a power pack to fire or excessive temperature. Exposure to fire
or temperature above 130°C may cause an explosion. The temperature of 130°C
can be replaced by the temperature of 265°F.
о) Have servicing performed by а qualified repair person using only identical
replacement parts. This will ensure that the safety of the product is maintained.
SAVE THESE INSTRUCTIONS.
- -

@ Disposal/Recycle
Do not place equipment апа its accessories in the trash. Items must be properly
disposed of following local regulations. See www.epa.gov for additional information.
@ \Маггап‘у
All GRECELL products соте with а full 2-year limited warranty from the date of
purchase (accessories excluded). It will be out of guarantee К damaged due to
incorrect use or force majeure.
-12-
