Gree GWH09KF-A3DNB1A User manual

DUCTLESS INVERTER
HEAT PU P
INSTALLATION ANUAL
Models:
GWH09KF-A3DNB1A
GWH12KF-A3DNB1A
GWH09KF-D3DNB1C
GWH12KF-D3DNB1C
GWH18KG-D3DNB1C
GWH24KG-D3DNB1A

1
Thank you for choosing a
Gree Rio Ductless Heat Pump
for your customer.
Please read this installation manual carefully before installing and
starting up the Rio System. Take a moment to fill out the product
and installation form on the back cover. Retain both the manual
and installation record for future reference.
Contents
• Safety Precautions 2
• System Requirements 4
• Suggested Tools 5
• Site Instructions 6
• Dimensions 7
• Indoor Unit 9
• Outdoor Unit 12
• Refrigerant Piping 13
• Power and Wiring 16
• Vacuum Testing 19
• Start-up 21
• Troubleshooting 22

2
SAFETY PRECAUTIONS
Please read the following before installation.
Recognize safety information. This is the safety-alert symbol. When you see this
symbol on the unit and in instructions or manuals, be alert to the potential for personal
injury. Understand these signal words: DANGER, WARNING, and CAUTION. These
words are used with the safety-alert symbol.
DANGER identifies the most serious hazards which will result in severe personal injury
or death.
WARNING signifies hazards which could result in personal injury or death.
CAUTION is used to identify unsafe practices which may result in minor personal
injury or product and property damage.
NOTE is used to highlight suggestions which will result in enhanced installation,
reliability, or operation.
NOTE: Your actual heat pump system and related devices may differ from the images
shown in this manual.
This appliance is not intended for use by children without responsible adult supervision.
Proper care should be taken to ensure safety.
Heat pumps, air conditioners & heating equipment should be installed, started up, and
serviced only by qualified installers and service technicians. Air conditioning, heat pumps
and refrigeration systems are hazardous due to high voltage electrical components, high
refrigerant pressures, and moving parts.
WARNING

SAFETY PRECAUTIONS
• The unit should be installed and serviced only by trained, qualified installers and service
mechanics. Untrained personnel can perform basic maintenance functions such as
cleaning coils. All other operations should be performed by trained service personnel.
• Owner should be cautioned that children should not play with the appliance.
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury or death.
• Before installing, servicing or modifying the system, the main electrical disconnect switch
must be in the OFF position. There may be more than one disconnect switch. Lock out
and tag all switches with a warning label.
General Safety Precautions
• A dedicated power supply circuit should be used in accordance with local electrical
safety regulations and National Electrical Codes (NEC).
• Ensure that the entire system is reliably grounded.
• Use proper size circuit breaker to protect equipment against short circuit and
overload conditions.
• The system must be positioned at least 5 feet from combustive surfaces.
• Observe all local codes and regulations.
INSTALLATION SITE INSTRUCTIONS
Proper installation site is vital for correct and reliable operation of the system.
Avoid the following installation locations :
• Strong heat sources, vapors, flammable gas or volatile liquids.
• High-frequency electro-magnetic waves, generated by radio equipment, welders
or medical equipment.s
3
WARNING
CAUTION

4
SYSTE REQUIRE ENTS
Piping Requirements
REFRIGERANT CHARGE
ELECTRICAL REQUIRE ENTS
PIPE SIZE in (mm)
Notes: Insulate both refrigerant lines, separately.
Notes: 1) System must be on a single dedicated circuit.
2) Main power is supplied to the outdoor unit.
3) Use table above to size over current protection.
4) Follow all local building codes and NEC (National Electrical Code) regulations.

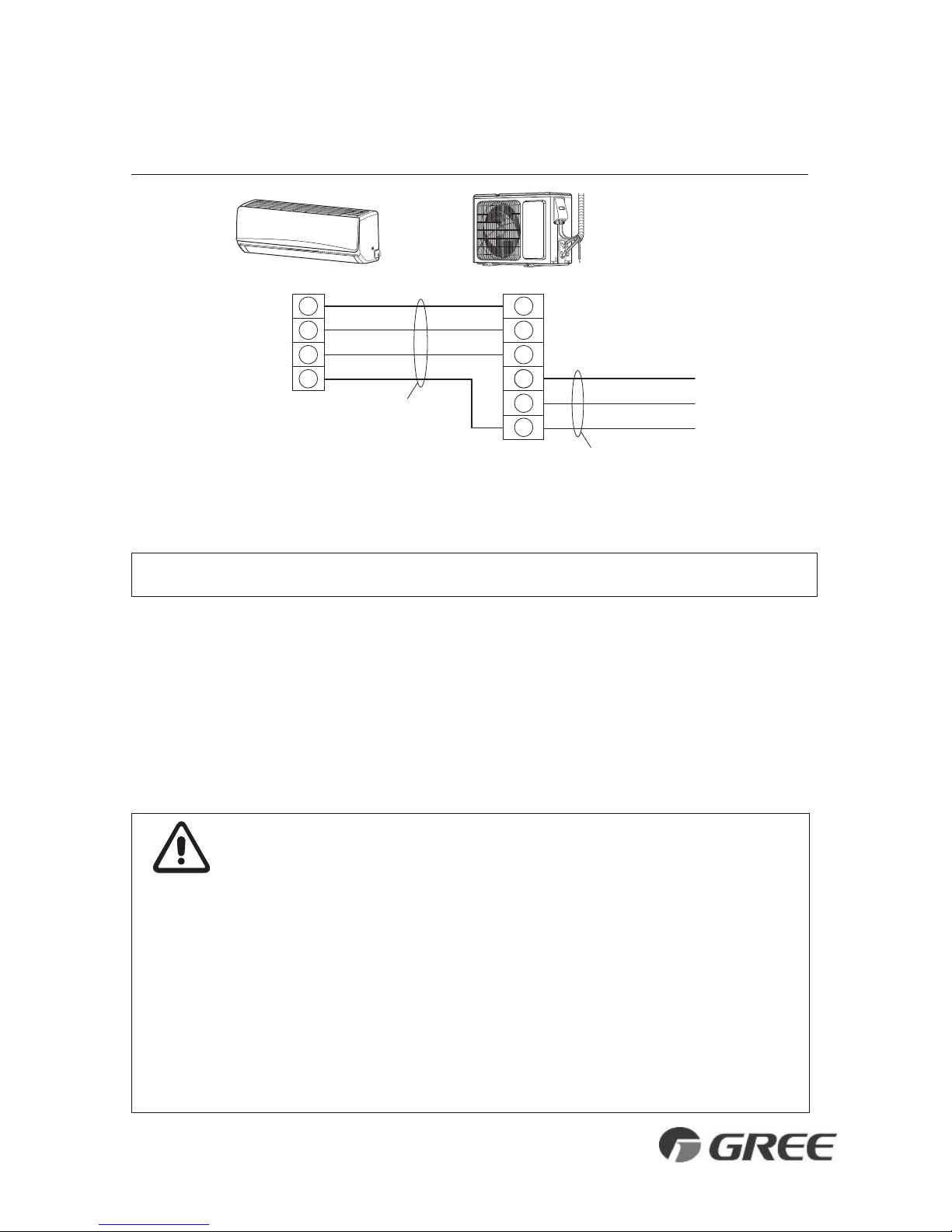

Interconnecting Cable: Recommended cable - 14/4 AWG stranded bare copper conductors THHN 600V unshielded wire
Note: Use shield cable if installation is in close proximity of RF and EMI transmitting devices.
Condensate Drain Size: 5/8-in OD 7/16-in ID
Note: Insulate condensate drain hose to prevent sweating and possible water damage.
Unit Size Voltage Liquid Line Suction/Gas Line
(BtuH)
9,000 115v - 1ph 60hz 1/4 (6) 3/8 (9.5)
12,000 115v - 1ph 60hz 1/4 (6) 3/8 (9.5)
9,000 208/230v - 1ph 60hz 1/4 (6) 3/8 (9.5)
12,000 208/230v - 1ph 60hz 1/4 (6) 3/8 (9.5)
18,000 208/230v - 1ph 60hz 1/4 (6) 1/2 (12)
24,000 208/230v - 1ph 60hz 1/4 (6) 1/2 (12)
Unit Size Voltage in Line ax Line ax Elevation
(BtuH) Length Length (ID over OD)
9,000 115v - 1ph 60hz 10 (3) 66 (20) 33 (10)
12,000 115v - 1ph 60hz 10 (3) 66 (20) 33 (10)
9,000 208/230v - 1ph 60hz 10 (3) 50 (15) 33 (10)
12,000 208/230v - 1ph 60hz 10 (3) 50 (15) 33 (10)
18,000 208/230v - 1ph 60hz 10 (3) 82 (25) 33 (10)
24,000 208/230v - 1ph 60hz 10 (3) 82 (25) 33 (10)
**Main power wire from electrical panel to outdoor unit.
*Precharge amount for up to 25-ft of refrigerant pipe.
REFRIGERANT LINE LENGTHS ft (m)
Unit Size Voltage Refrigerant Factory System Additional
(BtuH) Type Charge oz (kg)* Charge oz/ft (g/m)
9,000 115v - 1ph 60hz R410A 35.3 (1.0) 0.2 (20)
12,000 115v - 1ph 60hz R410A 35.3 (1.0) 0.2 (20)
9,000 208/230v - 1ph 60hz R410A 26.1 (0.74) 0.2 (20)
12,000 208/230v - 1ph 60hz R410A 35.3 (1.0) 0.2 (20)
18,000 208/230v - 1ph 60hz R410A 45.9 (1.3) 0.2 (20)
24,000 208/230v - 1ph 60hz R410A 54.7 (1.6) 0.2 (20)
Unit Size Voltage in Circuit ax Overcurrent ain Power
(BtuH) Amps ( CA) Protection ( OP) Wire Size (AWG)**
9,000 115v - 1ph 60hz 13 20 12
12,000 115v - 1ph 60hz 15 25 10
9,000 208/230v - 1ph 60hz 10 15 14
12,000 208/230v - 1ph 60hz 10 15 14
18,000 208/230v - 1ph 60hz 15 25 10
24,000 208/230v - 1ph 60hz 16 25 10

5

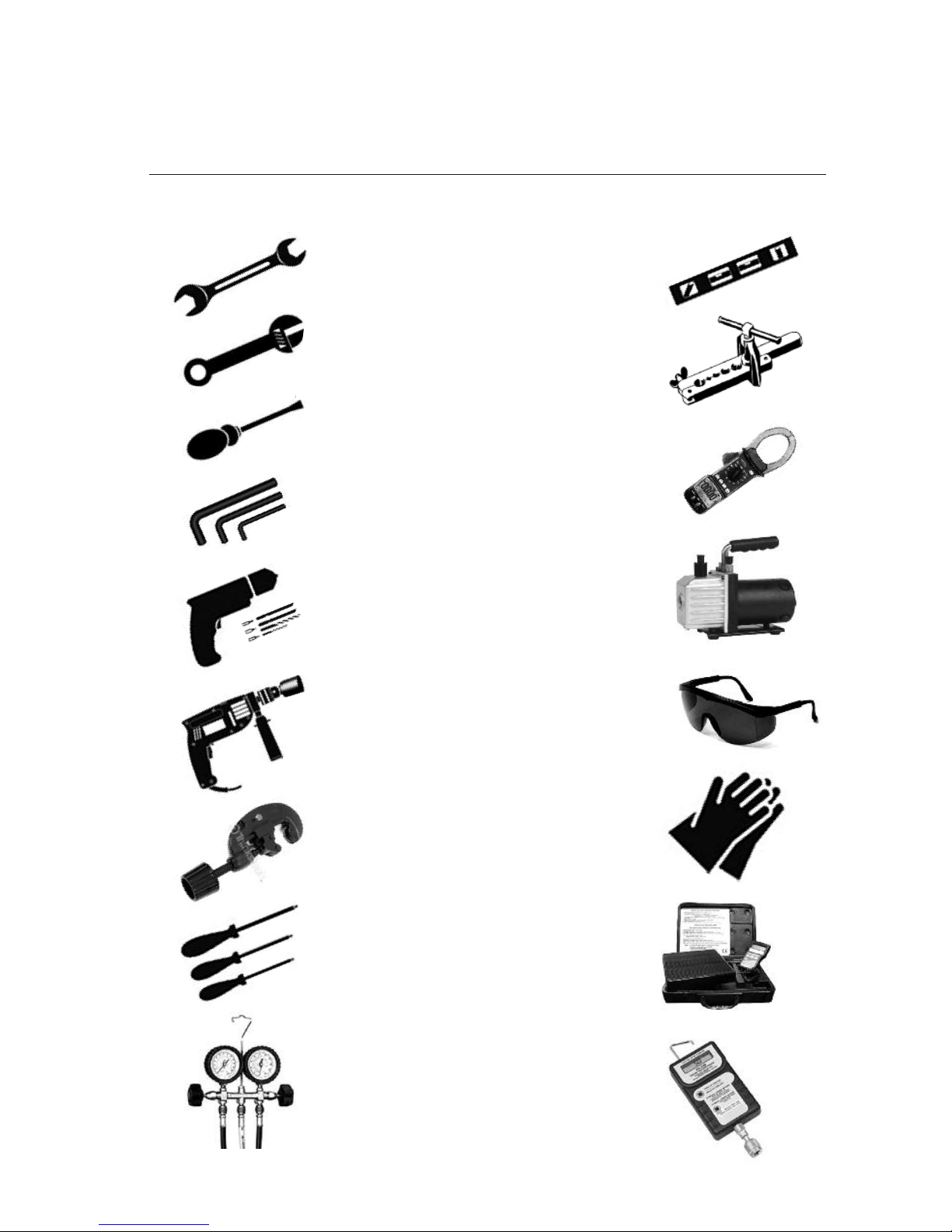

• Standard Wrench
• Adjustable/Crescent Wrench
• Torque Wrench
• Hex Keys or Allen Wrenches
• Drill & Drill Bits
• Hole Saw
• Pipe Cutter
• Screw drivers (Phillips & Flat blade)
• Manifold and Gauges
• Level
• R410A Flaring Tool
• Clamp on Amp Meter
• Vacuum Pump
• Safety Glasses
• Work Gloves
• Refrigerant Scale
• Micron Gauge
SUGGESTED TOOLS

6
INSTALLATION SITE INSTRUCTIONS
Step 1
Installation Site of Indoor Unit
Select a site that allows for the following:
• Ensure the installation complies with the installation minimum dimensions and meets the
minimum and maximum connecting piping length and maximum change in elevation.
• Air inlet and outlet will be clear of obstructions, ensuring proper airflow throughout the room.
• Condensate can be easily and safely drained.
• All connections can be easily made to outdoor unit.
• Indoor unit is out of reach of children.
• A wall strong enough to withstand the full weight and vibration of the unit.
• Filter can be easily accessed for cleaning.
• Leave enough free space to allow access for routine maintenance.
• Install at least 10 ft. (3 m) away from the antenna of TV set or radio. Operation of the air
conditioner may interfere with radio or TV reception in areas where reception is weak.
An amplifier may be required for the affected device.
• Do not install in a laundry room or by a swimming pool.
Installation Site of Outdoor Unit
Select a site that allows for the following:
• Outdoor location meets all minimum installation distances defined in the Installation
Dimensions section.
• Sound from outdoor unit will not annoy neighbors.
• All connections can be easily made to indoor unit.
• Air inlet and outlet will be clear of obstructions to ensure proper airflow.
• Wall or roof is strong enough to withstand the full weight and vibration of the outdoor
unit (for wall or roof installation only).
• Outdoor unit is out of reach of children and does not obstruct walkways.
• Outdoor unit is not exposed to direct sunlight or strong wind.
• Maintenance and repairs can be easily performed on the outdoor unit.
• Ensure the installation complies with the minimum and maximum connecting piping
length and maximum change in elevation criteria.

Indoor unit
Part Name
1. Remote Controller
2. Front Panel
3. Air Filter
4. Horizontal Louver
5. Wall Hole Sleeve
6. Insulation
7. Refrigerant Pipes
8. Drain Hose
Outdoor unit
2
3
6
5
8
7
4
1
7
INSTALLATION DI ENSIONS

8
INSTALLATION DI ENSIONS

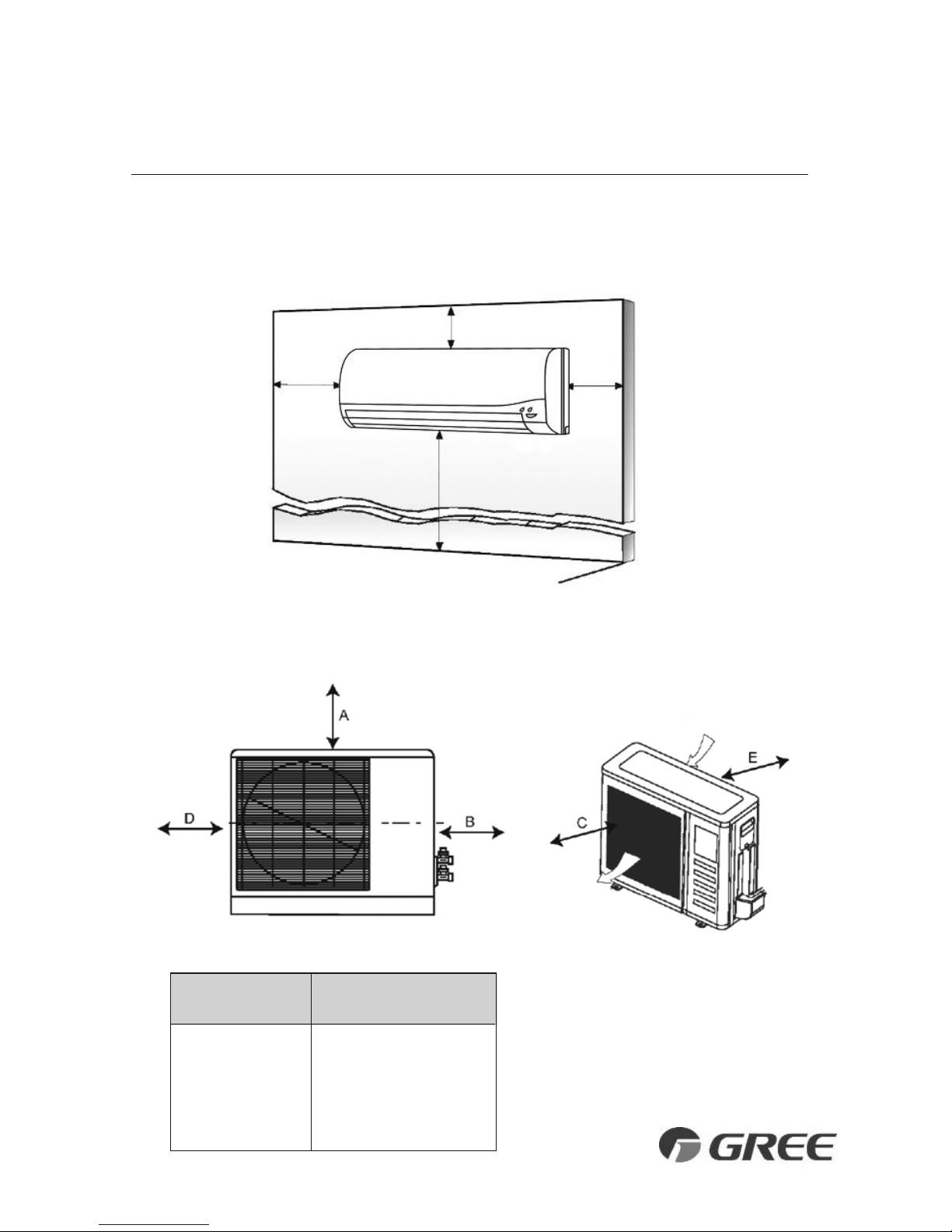

inimum indoor clearances
inimum outdoor clearances
Outdoor Unit inimum Distances
in (mm)
A 20 (500)
B 20 (500)
C 24 (610)
D 12 (305)
E 12 (305)
5 in
(0.13m)
5 in
(0.13m)
6 ft (1.8m)
6 in (0.15m)
Air inlet
Air outlet
Ceiling
Floor

9
INSTALLATION OF INDOOR UNIT
Step 2
Installation of ounting Bracket
1. Attach the mounting bracket to the indoor unit.
2. Find the horizontal center of the indoor unit.
3. Mark the center of the indoor unit on mounting bracket for future reference.
NOTE: The center of the mounting bracket is not the center of the indoor unit.
4. Remove the mounting brackets from the indoor unit and position the mounting
bracket on the wall in desired location. Use centering mark on mounting bracket
for centering the indoor unit on the wall.
5. Mounting bracket must be installed horizontally and level right to left.
NOTE: Condensate drain pan has built-in pitch for proper drainage.
6. Secure mounting bracket to wall with a minimum of five screws, evenly spaced to
properly support indoor unit weight.
NOTE: It is recommended to install screw anchors for sheet rock, concrete block,
brick and such type of walls.

10
INSTALLATION OF INDOOR UNIT
39 5/8
27
22 5/8
5 1/8 7 1/2
171
5 3/4
3 1/2
2 3/4 2 3/4
1 1/2
2 3/4
1 3/4
12 1/2
34
21 3/8 5 3/4
17 3/4
8 1/8
3/4
1/2 4 1/2 5 1/2
1 1/2
2
3/4
2
3/4
Φ2 1/4Φ2 1/4
ounting Bracket Diagrams and Dimensions
09K and 12K Unit
18K Size Unit
24K Size Unit
Right
(Rear piping hole)
Left
(Rear piping hole)

11
INSTALLATION OF INDOOR UNIT
Step 3
Drill Hole in Wall for Interconnecting Piping, Drain & Wiring
Seal Hole
Hole Size
Indoor Outdoor
If indoor unit refrigerant piping is going to exit from the rear:
1. It is recommended that the refrigerant pipe flare connectors extend through the wall
to the outside. In some situations field-fabricated piping extensions will be required to
extend the indoor unit refrigerant flare connections to the outside of the wall.
2. Use mounting bracket diagrams and dimensions to find and mark the proper location
for the wall hole.
If refrigerant piping is going through the right or left side of front panel:
1. Use a small saw blade to carefully cut a U-shaped hole in the side of the front panel.
The hole must be large enough for refrigerant pipes, condensate hose and wires.
2. Determine and mark proper location for wall hole.
3. Use table below to determine recommended wall hole size for your unit size.
4. Cut the wall hole with a 5° to 10°
downward slant to the outdoors.
5. Insert a wall hole sleeve into hole to
prevent damage to refrigerant pipes,
insulation, condensate drain hose
and wiring.
6. Seal around wall hole sleeve with
caulk or foam to weatherproof.
Wall
Hole Sleeve
Wall Hole Diagram

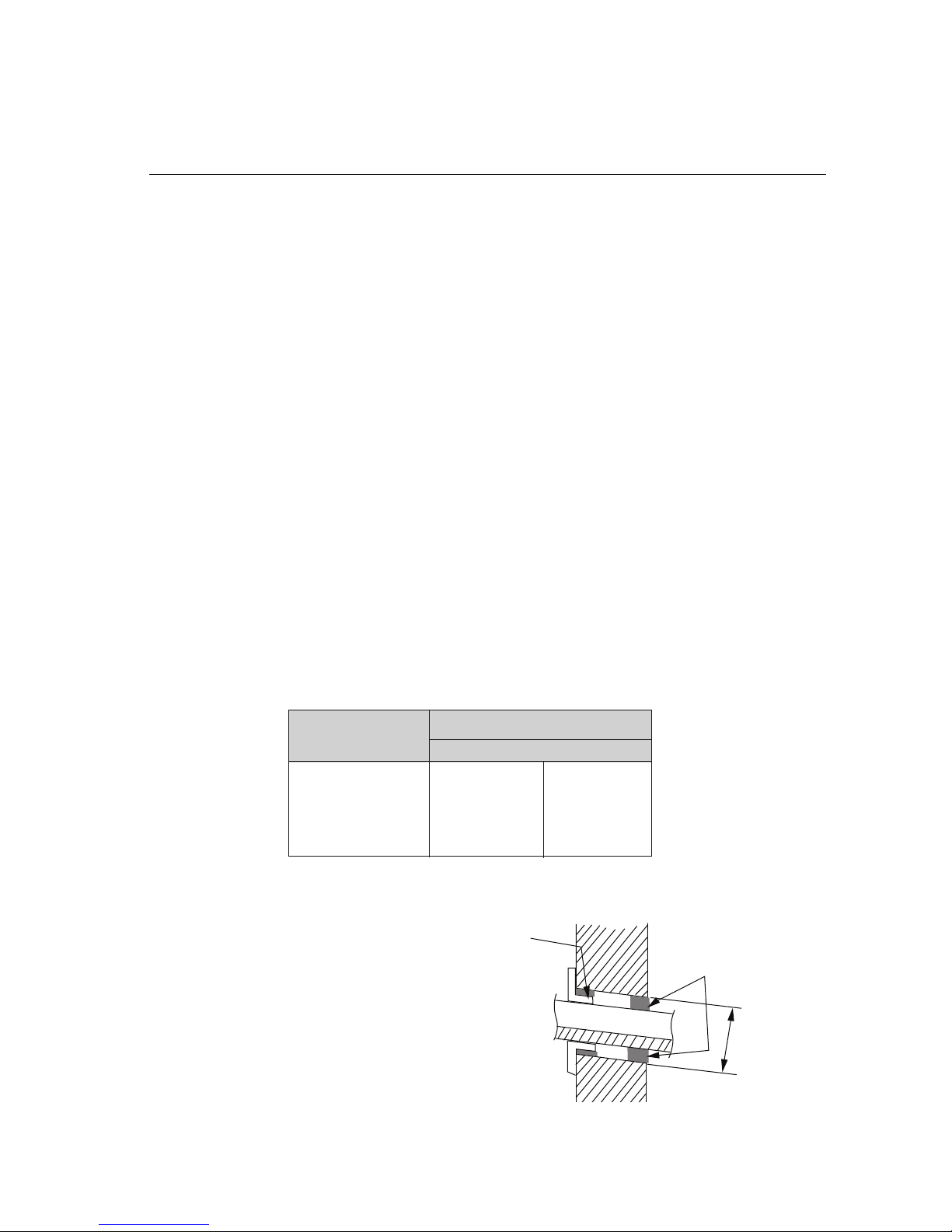

Table of Wall Hole Size per Unit Size
Unit Size Wall Hole Size (Diameter)
(BtuH) in mm
9,000 2 1/4 55
12,000 2 1/4 55
18,000 2 3/4 66
24,000 2 3/4 66

Install Ground Pad or Wall Hangers
1. Determine proper location for outdoor unit.
2. Follow all instructions provided by manufacturer for installing wall hangers or ground pad.
3. Verify the wall hangers or ground pad can safely support the weight of the outdoor unit.
4. Verify the wall hangers or ground pad is level and meets all outdoor dimensional clearances.
Install Outdoor Unit Risers
If the outdoor unit requires added elevation above the ground, installing riser legs will provide
a sturdy and stable solution. Follow all instructions provided by manufacturer for installing
riser legs to outdoor unit.
NOTE: Riser legs will also help absorb vibrations and noise while facilitating proper drainage.
Florida Wind Load Requirements state that outdoor unit must be anchored to
concrete pad using four 3/8-in diameter Power Wedge Bolt Plus (or equivalent)
with 1-in diameter fender washers. Anchor bolts must be embedded into
3,000 PSI minimum concrete at a distance of 4 1/2-in from any concrete edge.
The concrete thickness must exceed 1.5 times the anchor depth.

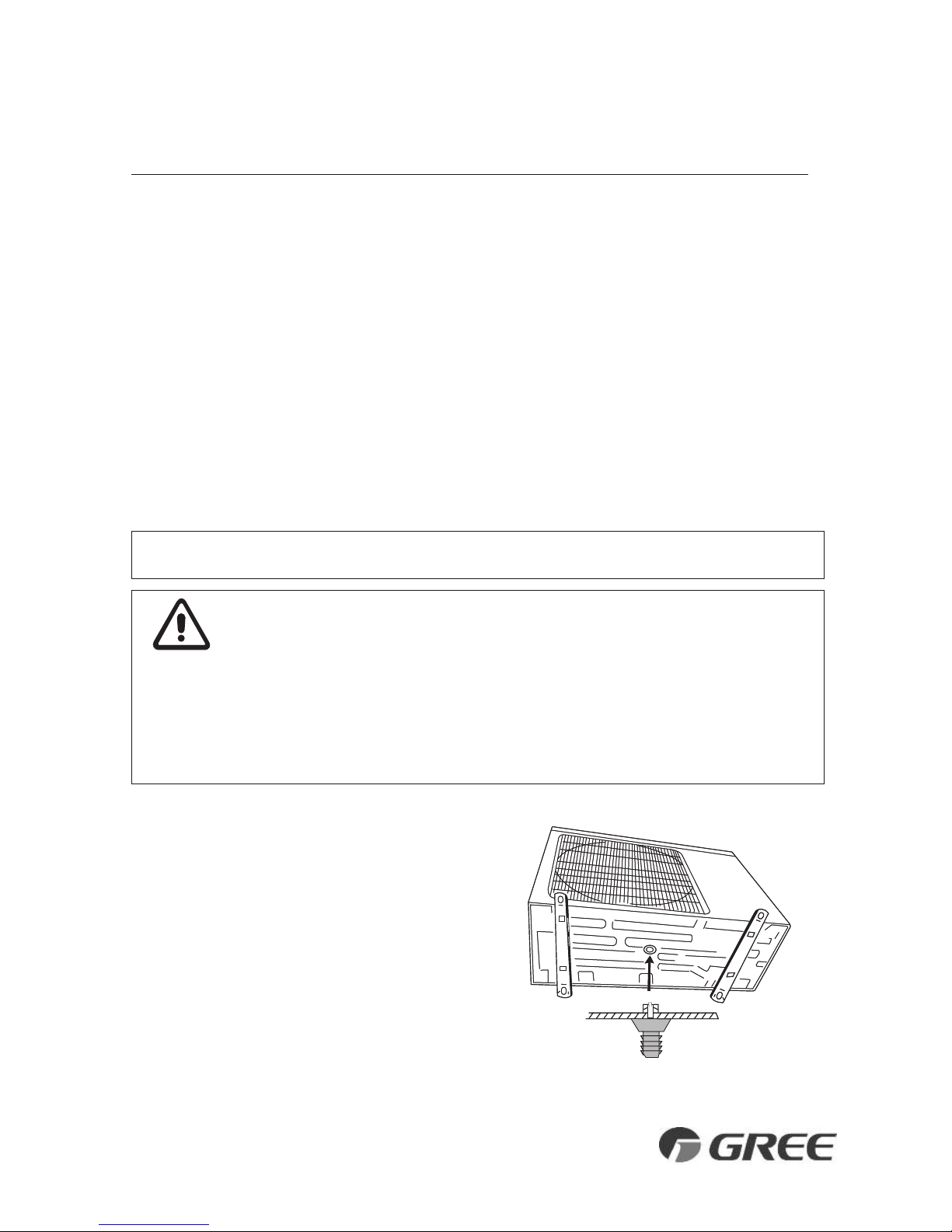

Install Condensate Drain for Outdoor Unit
During normal heating and defrost operation,
the outdoor unit will generate condensate water.
The condensate water should be routed to a safe
location through the drain hose.
1. Locate drain hole on bottom of outdoor unit.
2. Install the outdoor drain fitting into hole on
the bottom of outdoor unit as shown.
3. Connect the drain hose to drain fitting.
4. Route drain hose to safe location for proper
drainage of excess condensate water.
WARNING
12
OUTDOOR UNIT PREPARATION
Step 4
Drain Fitting Installation

13
INSTALLATION OF REFRIGERANT PIPING
Step 5
Piping Connections to Outdoor Unit
Use refrigeration grade tubing ONLY. No other type of tubing may be used.
Use of other types of tubing will void manufacturer’s warranty. ake sure
there is enough piping to cover the required length between the outdoor
and indoor unit.
Piping Preparation
• Do not open service valves or remove protective caps from tubing ends until all
connections are made.
• Keep tubing free of dirt, sand, moisture and contaminants.
• Insulate each refrigerant pipe and condensate hose with minimum 3/8” (10 mm) wall
thermal pipe insulation.
NOTE: Insulate condensate hose to prevent sweating which may cause water stains
or wall damage.
• Bind refrigerant pipes, condensate hose and interconnecting wire together with cable
ties at 12 inch intervals.
Piping and Drain Hose Connections to Indoor Unit
NOTE: For maximum serviceability, it is recommended to have refrigerant pipe flare
connections and the drain connection on the outside.
1. Feed refrigerant pipes, drain hose and interconnecting wires
assembly through wall hole from outdoor to the indoor space.
2. Set the indoor unit on mounting bracket. Allow the indoor
unit to hinge on the top of the mounting bracket. Do not
lock down bottom of unit to mounting bracket.
3. Adjust the length of the interconnecting wires so that it can
easily reach the indoor unit electrical control box. Route and
fit the interconnecting wires into back side of indoor unit.
CAUTION

14
INSTALLATION OF REFRIGERANT PIPING
4. Open front cover of indoor unit and remove field wiring terminal block cover.
Route the interconnecting wires to terminal block in control box.
5. Allow interconnecting wires to hang free. Wire connections
will be handled later in these instructions.
6. Adjust the length of condensate drain hose to easily
meet the drain pipe of the indoor unit. Seal and insulate
hose connection to prevent leaks and sweating.
NOTE: Prevent condensate drain hose from sagging or kinking for proper drainage.
7. Adjust the length and carefully bend refrigerant pipes to meet indoor unit refrigerant pipe
connections with proper tools to avoid kinks.
8. Apply a small amount of refrigerant oil to the
flare connection on the refrigerant pipes.
9. Properly align piping and tighten
flare nut using a standard wrench
and a torque wrench as shown
in figure to the right:
10. Carefully tighten flare nuts to correct torque level referring to the following Torque Table:
NOTE: Over tightening may damage flare connections and cause leaks.
11. Apply insulation to refrigerant pipe joints to prevent sweating.
12. Gently and securely lock down bottom of indoor unit
to wall mounting bracket.
Pipe Diameter Nut Size Tightening Torque
inch (mm) inch (mm) ft-lbs N-m
1/4 (6.35) 1/4 (17) 10 to 13 14 to 18
3/8 (9.5) 3/8 (22) 25 to 30 34 to 42
1/2 (12.7) 1/2 (25) 36 to 45 49 to 61
5/8 (15.9) 5/8 (29) 50 to 60 68 to 82
Torque Table
Field Wiring
Cover
Interconnecting
Wiring
Indoor Unit Piping Taper Nut
Wrench Torque Wrench
Piping

15
INSTALLATION OF REFRIGERANT PIPING
Step 6
Piping Connections to Outdoor Unit
1. Remove service valve cover (if provided) to
access the service valves and refrigerant ports.
2. Carefully bend and adjust length of refrigerant
pipes to meet outdoor unit service valves
connections with proper tools to avoid kinks.
NOTE:Use proper techniques to cut and re-flare refrigerant pipes, if required.
An R410A Flaring Tool is required for re-flaring refrigerant pipes.
3. Apply a small amount of refrigerant oil to the flare connection on the refrigerant pipe.
4. Properly align piping and tighten flare nut using a standard wrench and a torque
wrench as shown in the indoor piping section.
5. Carefully tighten flare nuts to correct torque level referring to the following Torque Table:
NOTE: Over tightening may damage flare connections and cause leaks.
Pipe Diameter Nut Size Tightening Torque
inch (mm) inch (mm) ft-lbs N-m
1/4 (6.35) 1/4 (17) 10 to 13 14 to 18
3/8 (9.5) 3/8 (22) 25 to 30 34 to 42
1/2 (12.7) 1/2 (25) 36 to 45 49 to 61
5/8 (15.9) 5/8 (29) 50 to 60 68 to 82
Torque Table
Service
Valve Cover

16
INSTALLATION OF POWER AND WIRING
Step 7
Indoor Unit Interconnecting Wire Connections
Disconnect all electrical power to unit including disconnects,
fuses and circuit breakers.
1. Open front cover of indoor unit and remove field wiring terminal block cover.
2. Pull interconnecting wires up from back of indoor unit and position in close to the
terminal block on indoor unit.
NOTE: The indoor unit is powered from the outdoor unit, depending on local code,
a disconnect switch may need to be installed to a power supply circuit.
3. Connect wiring to indoor unit per connection diagram.
NOTE: Record wire colors and terminal references for uses with Outdoor Unit
wire connections.
4. Replace field wiring cover and close front cover of indoor unit.
WARNING

17
INSTALLATION OF POWER AND WIRING
Step 8

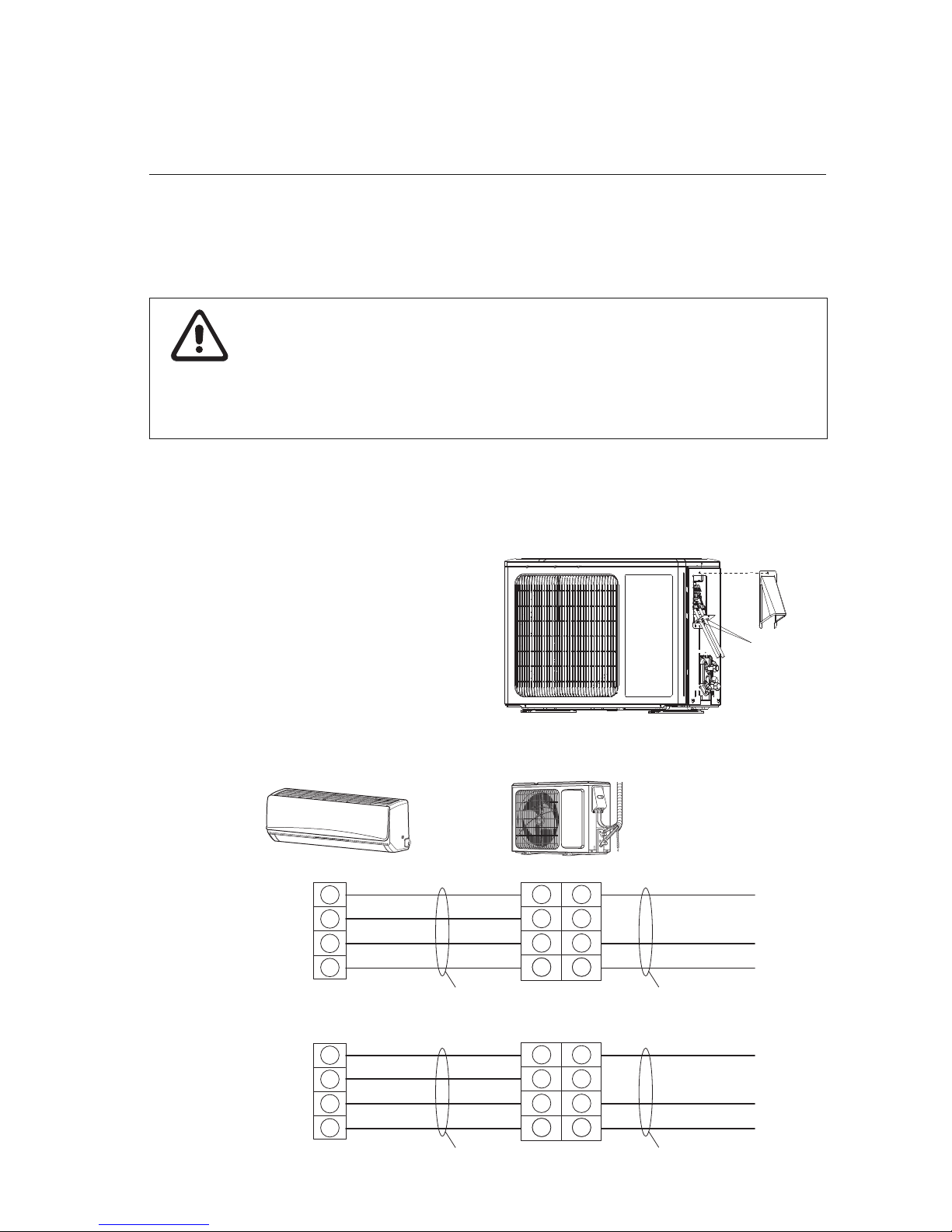

Outdoor Unit Wire Connections
Disconnect all electrical power to unit including disconnects,
fuses and circuit breakers.
1. Remove the service panel on right side of the outdoor unit.
2. Insert interconnecting wires and main power wires through the wire holes on conduit
mounting bracket.
3. Secure main power conduit
(and interconnecting wire conduit,
if required) with locking nuts to
conduit mounting bracket
4. Open wire clamp/strain relief and
adjust wire lengths for proper
connections to the outdoor unit terminal block.
WARNING
Outdoor Unit
Indoor Unit
Cable Cross Board
Wire Hole
Blue
N(1)
2
3
GND
N(1)
2
3
GND
N
2
L
GND GND
L
N
Black
Brown
Grn/Yel
Interconnecting
Wires Main Power
Wires
White
Black or Red
Grn/Yel
Blue
N(1)
2
3
GND
N(1)
2
3
GND
L1
2
L2
GND GND
L2
L1
Black
Brown
Grn/Yel
Interconnecting
Wires Main Power
Wires
Black
White
Grn/Yel
Wiring Diagram
9K and 12K BtuH
(115V Models)
Wiring Diagram
9K and 12K BtuH
(208/230V Models)

18
INSTALLATION OF POWER AND WIRING
5. Following the same wire colors and terminal references from the indoor unit, tightly
connect interconnecting wires to the outdoor unit terminal block per wiring diagram above.
NOTE: Crossing interconnecting wires will cause system malfunction and possible damage.
6. Tightly connect main power wires to outdoor unit terminal block per wiring diagram above.
7. Secure all wires inside wire clamp/strain relief. Verify wires are secure, not loose and no
external force on wires affects the connections at the terminals.
8. Replace service panel on right side of the outdoor unit.
9. Connect main power wires and conduit to unit disconnect switch box per manufacturer’s
instructions, National Electrical Code (NEC) and local electrical codes.
• Electrical Disconnecting means must be provided and shall be located within sight and
readily accessible from the unit.
• Failure to follow this caution may result in equipment damage or improper operation.
• All wires running from the indoor to outdoor unit must comply with National Electrical
Code (NEC) and local codes.
• No wire should be allowed to touch refrigerant tubing, compressor or any moving parts.
• All wires must be connected firmly to terminal block to avoid unit malfunction,
overheating and possible fire hazard.
CAUTION
Wiring Diagram
18K and 24K BtuH
Blue
Black
Brown
Grn/Yel
Outdoor Unit
Indoor Unit
N(1)
2
3
GND
N(1)
2
3
L1
L2
GND
Interconnecting
Wires
Black
White
Grn/Yel
Main Power
Wires
GND
L2
L1

VACUU TESTING
Step 9
Leaking Test
1. Connect the charging hose of the manifold valve to charge the end of the low-pressure valve.
2. Add dry nitrogen to a pressure of 200 lbs. Tightly close both high- and low-pressure valves.
3. Leak-test flare fittings with soap bubbles. If no leak is detected, release nitrogen.
Step 10
System Vacuum and Charge
UNIT DA AGE HAZARD
Never use the system compressor as a vacuum pump. It may result in equipment damage
or improper system operation.
Refrigerant pipes and indoor coil should be evacuated using the recommended deep vacuum
method of 500 microns. The alternate triple evacuation method may be used if the procedure
outlined below is followed.
NOTE: Alway break a vacuum with dry nitrogen.
Using Vacuum Pump
1. Completely tighten flare nuts A, B, C, D,
connect manifold gage charge hose to a
charge port of the low side service valve.
2. Connect charge hose to vacuum pump.
3. Fully open the low side of manifold gage.
See figure at right.
4. Start vacuum pump.
CAUTION
Manifold Gauge
19
Outdoor Unit
Service Valve
500 microns
Low Side Valve High Side Valve
Charge Hose
Vacuum Pump
Low Side Valve
Charge Hose
Refrigerant Indoor Unit
Low Side
High Side
