Gree GUD24W2/D-D(U) User manual

1
DC INVERTER HEAT PUMP CONDENSING
UNIT SERVICE MANUAL
(GC202301-I)
Capacity: 24kBtu/h~60kBtu/h
Rate Frequency: 60Hz
Operation Range:
Cooling: 5°F(-15°C)~118.4°F (48°C)
Heating: 5°F(-15°C)~75.2°F (24°C)

Foreword
Thank you for choosing Gree U-Match air conditioners. In order to correctly install and use our units, and for
the satisfactory operation effect, please read this manual carefully.
This manual specifies safe operation requirements from perspectives of product introduction, control,
troubleshooting and maintenance, as well as basic principles and implementation methods. Professional
operators must abide by relevant national (local) safety requirements and technical specifications set forth in
this manual during operations; otherwise, the air conditioning system may fail or be damaged, and personnel
safety accident may also occur.
Safety Notice
Before using the air conditioner, please first read the instruction manual.
Before installing the air conditioner, please first read the instruction manual.
Before repairing the air conditioner, please first read the technical service manual.

CONTENTS
1 Product Introduction ......................................................................................................3
1.1 Lists of Units ..........................................................................................................................3
1.2 Electrical Parameters .............................................................................................................5
2 Control.............................................................................................................................6
2.1 Operation Mode .....................................................................................................................6
2.2 Control Mode .........................................................................................................................7
2.3 Functions .............................................................................................................................10
3 Troubleshooting............................................................................................................14
3.1 Wiring Diagrams ..................................................................................................................14
3.2 PCB Layout..........................................................................................................................18
3.3 Error Code ...........................................................................................................................25
3.4 Troubleshooting ...................................................................................................................26
3.5 Failures Not Caused by Errors .............................................................................................60
4 Maintenance..................................................................................................................62
4.1 System Diagram ..................................................................................................................62
4.2 Connection Pipe Vacuum Pumping ......................................................................................62
4.3 Refrigerant Charging............................................................................................................65
4.4 Maintenance of Major Components......................................................................................67
4.5 Removal of Major Components............................................................................................79
4.6 Explosive View and Lists of Parts....................................................................................... 112
Appendices ....................................................................................................................130
1 Resistance/Temperature Lists of Temperature Sensors .........................................130
1.1 Voltage List of 15 KΩ Temperature Sensors.......................................................................130
1.2 Voltage List of 20 KΩ Pipeline Temperature Sensors .........................................................132
1.3 Voltage List of 50 KΩ Discharge Temperature Sensors ......................................................134
2 Temperature/Pressure List of Refrigerant ................................................................137
3 Operation Tools ..........................................................................................................137

GREE DC INVERTER HEAT PUMP CONDENSING UNIT SERVICE MANUAL
1
Safety Notice on Maintenance
PROHIBITED：
(1) Do not pierce or burn.
(2) Please note that refrigerant may be odorless.
(3) The appliance shall be stored in a room without continuously operating ignition sources (For example:
open flames, an operating gas appliance or an operating electric heater).
(4) Indoor unit adopts special joints that can’t be detached. The installation method is the same with the
common joints. However, because the joint can’t be detached, if it is badly connected and causes leakage,
it needs to be cut and replaced by a new one through welding.
(5) Using unsuitable parts or tools may lead to electric shock or fire hazard.
(6) If refrigerant leaks during maintenance, please ventilate the room immediately. Heavy leakage may lead to
breathing difficulty, severe injury or death.
(7) Disconnect power before disassembling the appliance for maintenance.
(8) The appliance should be maintained and cared by authorized technical personnel with necessary
qualifications.
WARNING:
(1) If the working place is more than 2m's high, please wear a safety helmet, gloves and a safety belt.
(2) Never mix any other substances except the specified refrigerant into the refrigerant circuit.
(3) When re-locating the appliance, check whether the new location is strong enough to withstand the weight
of the appliance.
(4) If there is refrigerant leak, please fix the leak before charging in the refrigerant. After refrigerant is charged,
check for refrigerant leaks. If you cannot spot the leak, stop the maintenance work. Please evacuate the
system and close the service valve to prevent refrigerant leaking into the room.
(5) Prepare suitable tools and protectors.
(6) If you need to carry out maintenance or check the electric circuit without cutting off the power, please be
careful not to touch the electrical parts.
NOTICE:
(1) If the appliance is maintained at a humid place, it should be grounded to avoid electric shock.
(2) Never repair the unit with wet hands. Operating the unit with wet hands may lead to electric shock.
(3) If the unit is not correctly grounded, please check and fix it.
(4) Before cleaning the unit, please disconnect power to prevent the inner fan from starting up and running at

GREE DC INVERTER HEAT PUMP CONDENSING UNIT SERVICE MANUAL
2
high speed; Otherwise personal injury may occur.
(5) Measure the insulation resistance after maintenance. The resistance must be 1M or higher. Bad insulation
may lead to electric shock.
(6) Welding and cutting work must be done in a well-ventilated place.
(7) Gas appliances, heaters and other fire sources should be kept away from the installation and maintenance
site.
(8) Maintenance should be done according to suggestions of the manufacturer.
(9) Maintenance should be done only after the refrigerant is completely reclaimed from the unit.
OBSERVED：
(1) After the maintenance work is done, check the drainage of indoor unit.
(2) Do not tilt the unit, otherwise, water may spill out from the unit and make the floor and furniture wet.
(3) Disassembly of the unit, handling of the refrigerant, oil and accessories should all be done according to
applicable local rules and regulations.
Safety Notice on Operation
PROHIBITED:
(1) Never try to modify the unit, otherwise, it may cause electric shock, overheat or fire hazard.
(2) If the power cord or conducting wires are scratched, please replace them.
(3) Never use connected or extended power cord or share the power socket with other appliances.
(4) Prepare a specialized power circuit for the appliance.
WARNING:
(1) If the power plug is dirty, please clean it before inserting it to the power socket. If the power plug is loose,
please tighten it up.
(2) Do not damage the power cord. A damaged or refitted power cord may lead to electric shock or fire hazard.
(3) Check frequently whether the appliance is in good condition.
NOTICE:
(1) After changing the batteries of remote control, please discard them to avoid being swallowed by children.
(2) When the unit is working, do not remove the fan cover.
(3) Do not use organic solvents to wipe the controller operating panel.
(4) Before cleaning the unit, cut off the power supply.

GREE DC INVERTER HEAT PUMP CONDENSING UNIT SERVICE MANUAL
3
1 Product Introduction
1.1 Lists of Units
1.1.1 List of Outdoor Units
Model Power Supply Finished Product Code Appearance
V/Ph/Hz
GUD24W2/D-D(U)
208/230V-1Ph-60Hz
CF090W2280
GUD30W2/D-D(U) CF090W2300
GUD36W2/D-D(U) CF090W2290
GUD42W2/D-D(U) CF090W2310
GUD48W2/D-D(U) CF090W2270
GUD60W2/D-D(U) CF090W2410

GREE DC INVERTER HEAT PUMP CONDENSING UNIT SERVICE MANUAL
4
1.1.2 List of Indoor Units
Model Cooling/Heating
Capacity (Btu/h)
Power Supply Finished
Product Code Appearance
V/Ph/Hz
Airhandler GUD24AH2/D-D(U) 24000/24000 208/230V-1Ph-60Hz EH010N0130
Airhandler GUD30AH2/D-D(U) 30000/30000 208/230V-1Ph-60Hz EH010N0160
Airhandler GUD36AH2/D-D(U) 36000/36000 208/230V-1Ph-60Hz EH010N0140
Airhandler GUD42AH2/D-D(U) 42000/42000 208/230V-1Ph-60Hz EH010N0150
Airhandler GUD48AH2/D-D(U) 48000/48000 208/230V-1Ph-60Hz EH010N0120
Airhandler GUD60AH2/D-D(U) 60000/60000 208/230V-1Ph-60Hz EH010N0170
NOTE: 1 Ton =12000Btu/h = 3.517kW

GREE DC INVERTER HEAT PUMP CONDENSING UNIT SERVICE MANUAL
5
1.2 Electrical Parameters
Model Power Supply Circuit Breaker Capacity
V/Ph/Hz A
GUD24W2/D-D(U)
208/230V-1Ph-60Hz
30
GUD30W2/D-D(U) 35
GUD36W2/D-D(U) 40
GUD42W2/D-D(U) 40
GUD48W2/D-D(U) 60
GUD60W2/D-D(U) 60
Model Power Supply Fuse Capacity Circuit Breaker Capacity
V/Ph/Hz A A
GUD24AH2/D-D(U)
208/230V-1Ph-60Hz 3.15 15
GUD30AH2/D-D(U)
GUD36AH2/D-D(U)
GUD42AH2/D-D(U)
GUD48AH2/D-D(U)
GUD60AH2/D-D(U)

GREE DC INVERTER HEAT PUMP CONDENSING UNIT SERVICE MANUAL
6
2 Control
2.1 Operation Mode
2.1.1 Cooling Mode

GREE DC INVERTER HEAT PUMP CONDENSING UNIT SERVICE MANUAL
7
2.1.2 Heating Mode
2.2 Control Mode
2.2.1 Based Control
2.2.1.1 Compressor Control
When cooling or heating mode is turned on, indoor fan will run for a while before the compressor starts.
Under different modes, the compressor can only be stopped after running for some time (special cases excluded).
This is to protect the compressor from frequent start or stop. Once the compressor is stopped, it must not be
restarted right away. Please wait for a few minutes.

GREE DC INVERTER HEAT PUMP CONDENSING UNIT SERVICE MANUAL
8
2.2.1.2 EXV Control
When the unit is first started, the electronic expansion valve will reset control. During the process, the
expansion valve will produce rattling sound. When cooling or heating mode is turned on, the valve will be open at
a certain step before the compressor starts.
2.2.1.3 Outdoor Fan Control
This series air conditioner has two types of outdoor units: one with a single fan and the other with double
fans. The outdoor fan can run at the highest level 10 and the lowest level 1. By controlling the speed of outdoor
fan, the unit can achieve cooling at low temperature and heating at high temperature. In fan mode, outdoor fan
will not work.
2.2.1.4 4-way Valve Control
After heating mode is turned on for a while, 4-way valve will be energized to change the direction of
refrigerant flow so that the system can run in heating and the indoor unit will not blow cold air. Under other modes,
the valve will not be energized.
To avoid the 4-way valve from incorrectly changing directions, when the unit stops in heating, due to a
temperature point or other protection reasons, the 4-way valve will continue to function temporarily and lose
power after a while.
There must be adequate differential pressure for the 4-way valve to change directions.
2.2.2 Special Control
2.2.2.1 Defrosting Control
ODU defrosting control in heating: Defrosting will start when the temperature sensed by outdoor tube
temperature sensor reaches a preset value. During defrosting, the 4-way valve will switch to the cooling condition,
and outdoor fan will stop. When the temperature sensed by outdoor tube temperature sensor reaches the preset
value of defrosting stop, system will quit defrosting. The 4-way valve will switch back to the heating condition,
compressor and outdoor unit fan restart.
2.2.2.2 Oil Return Control
If the unit is running at low frequency for a long time, system will enable oil return control. This is to lead oil in
the pipeline back to the compressor so that the compressor will not be lack of oil. Generally, the oil return takes
about 5min. The compressor running frequency will be raised to the preset oil return frequency.

GREE DC INVERTER HEAT PUMP CONDENSING UNIT SERVICE MANUAL
9
2.2.3 Protection Control
2.2.3.1 High Pressure Protection Control
System will enable high pressure protection control if the high pressure switch is detected open for
continuously a little time. Under high pressure protection, system will be shut down and display error code E1.
When high pressure protection occurs for the first time, system will restore operation if the high pressure
switch is detected to be reclosed for continuously a little time. When high pressure protection occurs for the
second time in a certain time period, system will not restore operation. You need to manually turn off the unit and
clear the error before restarting up the unit. (If high pressure protection occurs frequently, please send for
professional personnel to repair.)
2.2.3.2 Low Pressure Protection Control
System will enable low pressure protection control if the low pressure switch is detected open for
continuously a little time. Under low pressure protection, system will be shut down and display error code E3.
When low pressure protection occurs, system will restore operation if the low pressure switch is detected to be
reclosed within a few minutes after shutdown. If low pressure protection occurs for several times in a period of
time, system will not restore operation automatically. You need to manually turn off the unit before restarting up
the unit.
2.2.3.3 High Temperature Prevention Control
Under heating mode, system will enable high temperature prevention control if the temperature sensed by
indoor tube temperature sensor reaches a certain value. When high temperature prevention control is enabled,
outdoor fan will slow down.
2.2.3.4 Discharge High Temperature Protection Control
System will enable discharge temperature protection control if the discharge high temperature sensor is
detected open for continuously a little time. Under discharge high temperature protection, system will be shut
down and display error code E4. When discharge high temperature protection occurs, system will restore
operation if the discharge high temperature sensor is detected to be reclosed within a few minutes after shutdown.
If discharge high temperature protection occurs for several times in a period of time, system will not restore
operation automatically. You need to manually turn off the unit before restarting up the unit.

GREE DC INVERTER HEAT PUMP CONDENSING UNIT SERVICE MANUAL
10
2.3 Functions
2.3.1 Set Defrost Mode
The first dip switch is selecting the defrost mode.
The first dip switch is used to change the defrost setting, factory default setting is standard defrost. Under
extremely low environment temperature, if the standard defrost cannot have the condenser defrosted completely,
please set the second dip switch to be strong defrost. Under strong defrost, the defrosting time will be longer,
which enable the condenser to be defrosted completely.
Defrost Mode Outdoor Unit Dip Switches
Standard Defrost
(Default)
Strong Defrost
2.3.2 Set Operating Mode
The second dip switch and the fourth dip switch are selecting the operating mode. Standard mode is the
conventional mode.
By setting the strong mode dip switches of the condensing unit, the air conditioner can quickly increase the
capacity output and ensure reliable operation in a short time, so as to meet the user's demand for the indoor
temperature to quickly reach the set temperature.
Energy saving mode is achieved by setting the condensing unit operating mode to operate the air
conditioner within a small load range.

GREE DC INVERTER HEAT PUMP CONDENSING UNIT SERVICE MANUAL
11
Operating Mode Outdoor Unit Dip Switches
Standard mode (Default)
Strong mode
Energy saving mode
Self-adaption mode
2.3.3 Set Indoor Fan Speed

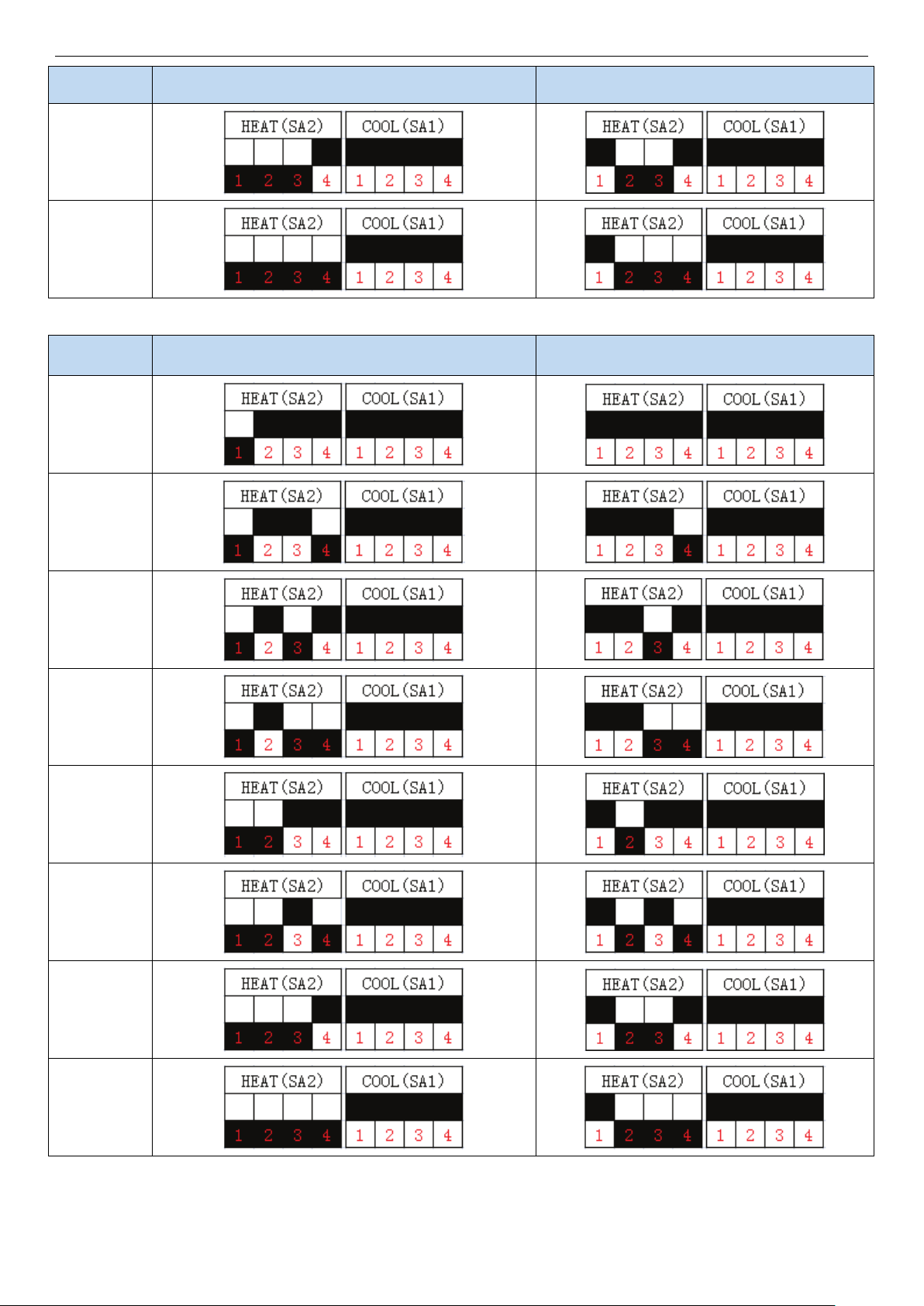

Set the indoor fan speed through the eight dip switches of the indoor main control board. The higher level,
the higher speed of the indoor unit fan.
Capacity GUD24AH2/D-D(U) Indoor Unit Dip Switches GUD30AH2/D-D(U) Indoor Unit Dip Switches
Level 1
Level 2
Level 3
Level 4
(Default)
Level 5
Level 6

GREE DC INVERTER HEAT PUMP CONDENSING UNIT SERVICE MANUAL
12
Capacity GUD24AH2/D-D(U) Indoor Unit Dip Switches GUD30AH2/D-D(U) Indoor Unit Dip Switches
Level 7
Level 8
Capacity GUD36AH2/D-D(U) Indoor Unit Dip Switches GUD42AH2/D-D(U) Indoor Unit Dip Switches
Level 1
Level 2
Level 3
Level 4
(Default)
Level 5
Level 6
Level 7
Level 8

GREE DC INVERTER HEAT PUMP CONDENSING UNIT SERVICE MANUAL
13
Capacity GUD48AH2/D-D(U) Indoor Unit Dip Switches GUD60AH2/D-D(U) Indoor Unit Dip Switches
Level 1
Level 2
Level 3
Level 4
Level 5
Level 6
(Default)
Level 7
Level 8
NOTE:
①After the unit is shut down or stopped at the temperature point, the indoor unit will delay for a few minutes
and then shut down. The refrigeration can realize the drying function, relieve the mold of the air duct, and the
heating can blow the waste heat and relieve the heat accumulation in the air duct.
②Installation and debugging when attention to verify the switch sequence of electrical heating and fan, ensure
the fan must be turned on when electric heating operation, to ensure the electric heating is turned off before
the fan.
③During installation and debugging, pay attention to check whether the temperature controller has set the fan
delay and shutdown time. If the temperature controller has been set, the actual delay and shutdown time of
the fan is equal to the temperature controller setting time plus the fan delay time of the indoor unit.

GREE DC INVERTER HEAT PUMP CONDENSING UNIT SERVICE MANUAL
14
2.3.4 Set Indoor unit

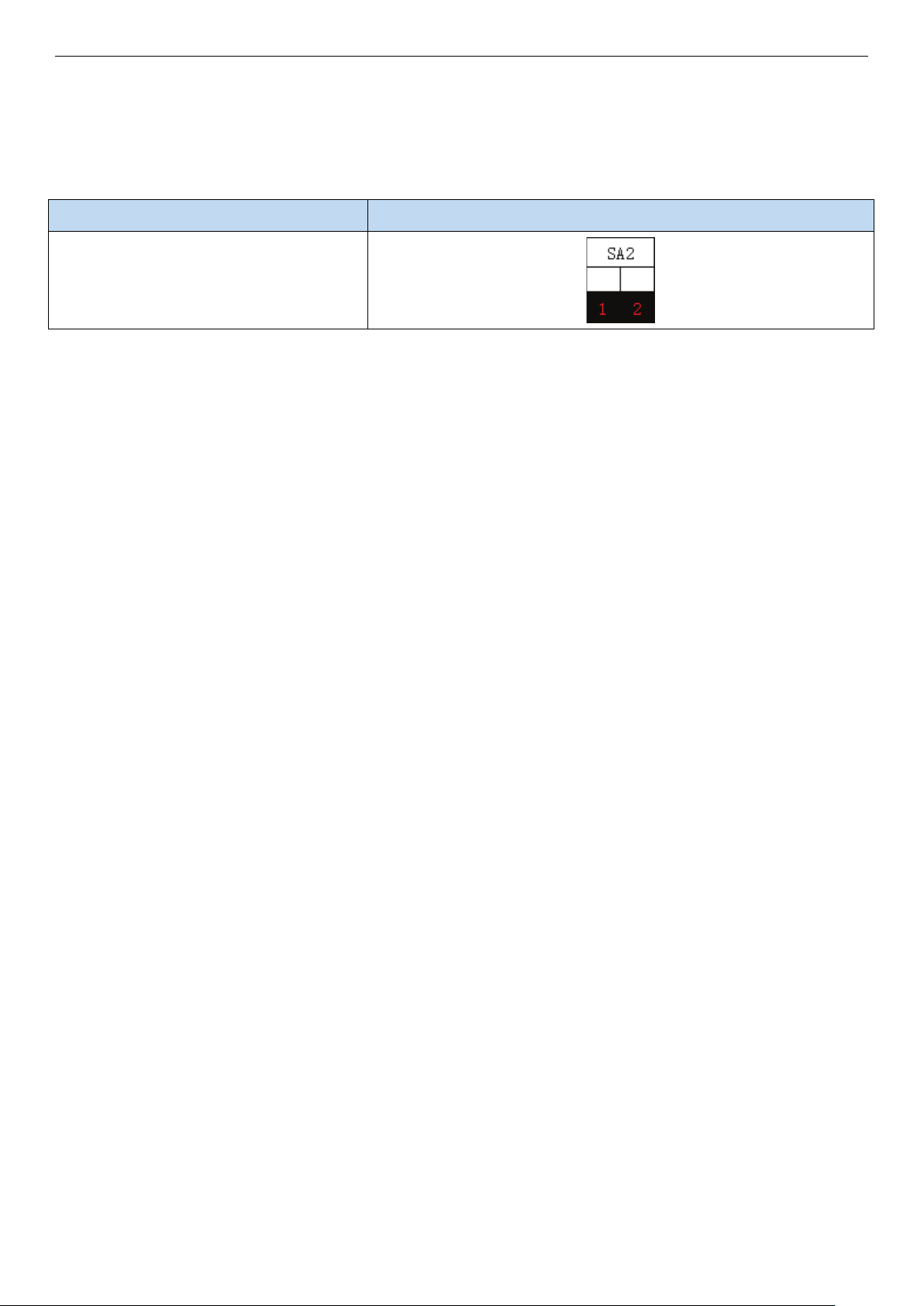

The third dip switch is selecting the indoor unit.
The third dip switch is used to change the indoor unit setting, factory default setting is Air handler.
Defrost Mode Outdoor Unit Dip Switches
Air handler(Default)
2.3.5 Thermostat Functions
Thermostat model: XE70-00/E1,WK-010WA1,WK-010WB1. Please refer to the thermostat instruction
manual for all functions.
3 Troubleshooting
3.1 Wiring Diagrams
The following electric diagram is for reference only. Please refer to diagram sticked on the unit as the latest
version.

GREE DC INVERTER HEAT PUMP CONDENSING UNIT SERVICE MANUAL
15
3.1.1 Wiring Diagrams of ODUS
Model: GUD24W2/D-D(U)

GREE DC INVERTER HEAT PUMP CONDENSING UNIT SERVICE MANUAL
16
Model: GUD30W2/D-D(U),GUD36W2/D-D(U)

GREE DC INVERTER HEAT PUMP CONDENSING UNIT SERVICE MANUAL
17
Model: GUD42W2/D-D(U),GUD48W2/D-D(U),GUD60W2/D-D(U)
