Green Point igh User manual

Smart Switch User Manual
Green Point

Introduction:
Thank you for purchasing an igh control device.
The igh system is designed to automate home
control and provide easy remote operation of all
your electrical appliances/lights connected to
system. igh products include a variety of
devices to control your home. The products can
be installed in one room, expand to additional
rooms or to the entire house according to your
needs and budgets.
Green Point products are constructed with
careful attention to detail, using only high
quality materials, assuring peak performance
over time.
Warning!!!
Controlling Appliances:
igh systems can control electrical
appliances either remotely or
automatically, allowing electrical
appliances or light to be activated
without the operator presence's in the
room. Extreme caution must be taken
to avoid hazard conditions.

Important
Read before installing
1. Install in accordance with all national and
local electrical codes and local regulations
of your country.
2. At the end of a successful installation, the
igh switch will function as a standard wall
switch enabling the use of only the ON/OFF
buttons (without Dim). Only after the
activation of the igh switch, it will acquire
additional functionalities.
3. The products of the igh system range are
designed to be used and installed in
domestic and similar environments where
there is no need for special protections
against the ingress of water.
4. The igh switch requires a neutral wire for
operation.
5. It is recommended to use a non-metallic
wall plate with the igh switch.
6. The installer must hand the user manual
over to the user and should stress that the
user become fully familiar with it.
7. The installer must perform the wiring
operation with extreme care so as to avoid
the risk of damaging the products in case of
inversion and/or wire exchange.

8. In case of a breakdown or malfunction,
please contact an authorized technician or
the Green Point help desk.
9. There are no serviceable parts in this unit.
10. Do not paint on the igh switch.
11. Operate between temperatures of -10 °C
and 50 °C.
12. The igh switch may feel warm to the touch
during normal operation.
13. Shut OFF power through the main circuit
breaker when connecting or disconnecting
lights or appliances.
14. Clean the igh switches only with a soft dry
cloth. Do not use any chemical cleaners.

Gateway
Keypad
Sensor
IR
Autonomous Room
Autonomous Room
Dimmer
Switch
Sense
Switch
Shutter
Switch
Power
Switch
Thin
Client
Igh RF protocol Ring
Internet network
General Product Description
System overview
igh is a home automation and power
management system, enabling unified and
automated control over electrical appliances
connected to the system.
The system is composed of 5 main
components:
igh Smart Switch
igh Sensor
igh Keypad
igh IR Bridge
igh Internet Gateway
System Connectivity

Functions
Key features:
Automated functionalities
Integrated scheduler (up to 16 schedulers)
Remote control via other igh products
Manual control with the front touch panel
LED indicators
Operating Modes
There are 3 operating modes, Automatic, Eco
and Manual, that can be toggled manually,
remotely or in accordance with 16
preconfigured schedulers, allowing maximum
adaptation to the user’s lifestyle.
Automatic Mode
The lights/appliances are controlled
automatically using sensor information such
as motion detection, light intensity, temperature
and synchronize clock.
Eco Mode
The lights/appliances turn OFF automatically in
accordance with your preferences and sensor
information.
Manual Mode
Switching ON/OFF of the lights/appliance is
managed manually, without automation.

Internal Capabilities
RF transceiver capabilities:
The internal transceiver works on ISM Band
(433.050 - 434.790 MHz). The transceiver
communication range is up to 10 m depending
on the number of walls in the way.
Real time power consumption
metering:
The measurement of the power consumption is
done via DSP - Digital Signal Processing.
Decision making capabilities
The igh switch is equipped with igh smart
home automation software, you can configure
the switch and adjust it to your lifestyle. In
addition, It has self-learning capabilities that will
adjust itself automatically to your lifestyle.

Switch Power Specification
Dimmer Switch –IGHH:
230V –50Hz
400W/360VA
Maximum power per gauge 600W
The Dimmer Smart Switch is designed only for
use with permanently installed lighting fixtures.
Do not use it to control motorized appliances or
receptacles. It can be used as dimmer for any
approved dimmable lights or as a regular switch
for non- dimmable light.
Shutter Switch –IGTH:
230V –50Hz
400VA
The Shutter Smart Switch is designed for use
only with AC powered shutters and blinds.
Power Switch –IGPH:
230V –50Hz
15A
The Power Smart Switch is designed for any
AC powered light/appliance.
Sense Switch –IGSH:
230V –50Hz
15A
The Sense Smart Switch is designed for any
AC powered light/appliance.

Installation Instructions
SHOCK HAZARD!
Turn OFF the power to the branch
circuit at the circuit breaker in your
electrical service panel. Ensure
power is OFF before you install this
device. All wiring connections must
be made with the POWER OFF to
avoid personal injury and/or
damage to the switch.
Assembly instructions
1. Cut OFF the power to the circuit at the fuse
box or circuit breaker.
2. Remove wall plate**.
Warning: Verify that the power is OFF in
the switch box before continuing.
3. Carefully remove the switch from the switch
box. DO NOT disconnect the wires.
4. Disconnect the wires from the existing
switch and insert them to the igh switch
according to Diagram 1 (add a neutral wire
if needed).

5. Insert the igh Switch into the switch box,
being careful not to pinch or crush wires.
6. Mount the wall plate.
7. Turn ON the power to the circuit in the fuse
box or circuit breaker and test the system.
**This switch may be used in new installations
or to replace an existing wall switch. A wall
plate is not included. If this is a new installation
or you are replacing a switch which is not
compatible with the igh switch, we recommend
that you purchase a common standard wall
plate. These are available at most home
centers or hardware stores.
Important Wiring Information
The wire connectors included with this switch
are intended to only be used with1.5 mm stiff
copper solid wire.
Instructions:
1. Strip 8 mm of the insulation.
2. Hold stripped ends together in parallel and
align any frayed strands. Do not twist wires.
3. Push wires firmly into connector 180°.
Gently pull on the wires to check for
tightness.

Assembly Diagram
Wall Mount
Switch installation
You can insert/extract the switches from the
front, facilitating the assembly and wiring
operations even when the frame is fixed on the
box. The switch can be removed from the frame
by means of a screwdriver.

Dimmer Switch –IGHH
Description of terminals
Electric Wires Connection
Diagram 1
Typical Dimmer Wiring Schematic
Diagram 2
Neutral Load Line
Neutral Load Line

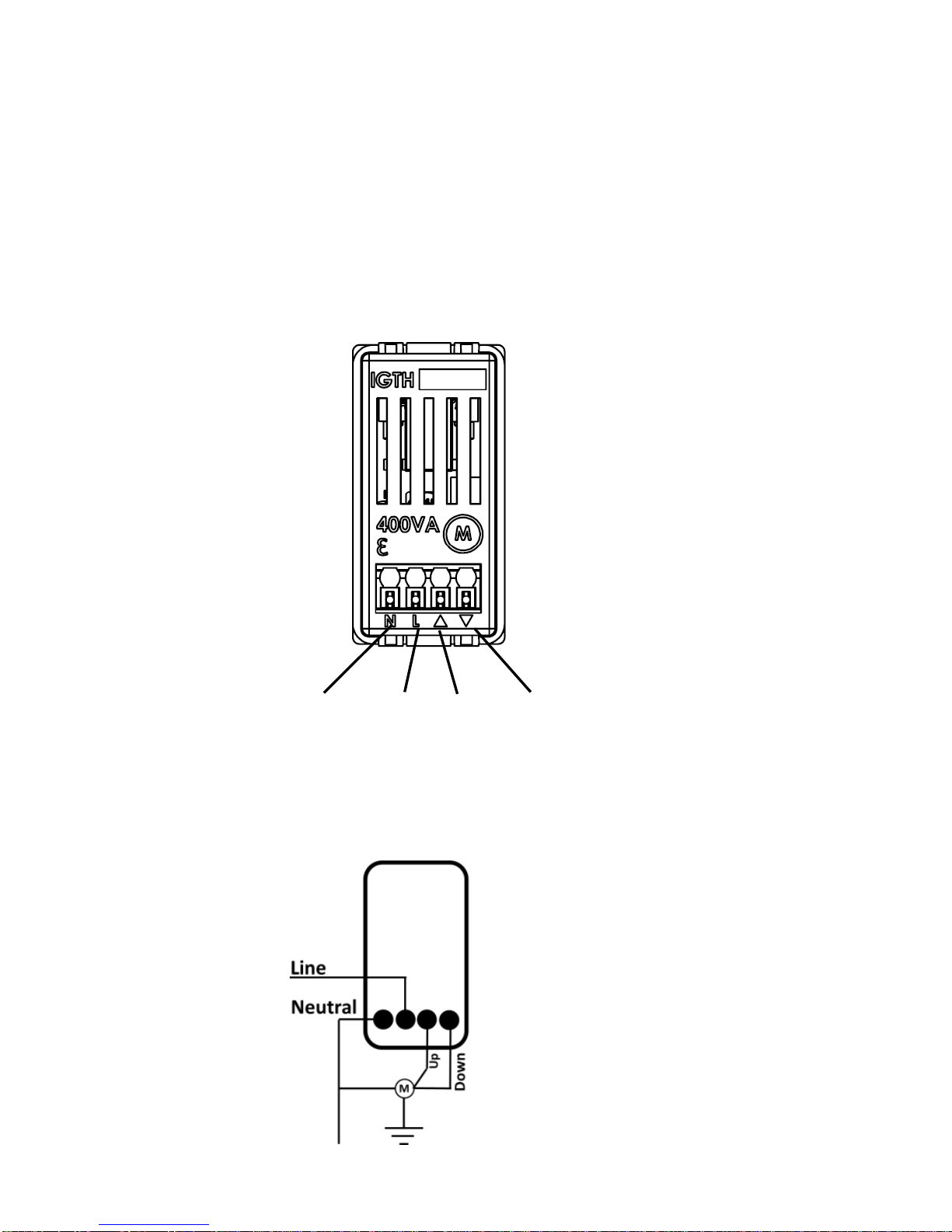

Shutter Switch –IGTH
Description of terminals
Electric Wires Connection
Diagram 1
Typical Shutter Wiring Schematic
Diagram 2
Neutral Load Up Down

Power Switch –IGPH
Description of terminals
Electric Wires Connection
Diagram 1
Typical Power Wiring Schematic
Diagram 2
Line Load Neutral

Sense Switch –IGSH
Description of terminals
Electric Wires Connection
Diagram 1
Typical Sense Wiring Schematic
Diagram 2
Line Load Neutral

Alternative Switch –IGXX
Description of terminals
Electric Wires Connection
Diagram 1
Typical Alternative Switch Wiring
Schematic
Diagram 2
Neutral Load Line
Neutral Load Line

Operating Instruction
The switch is operated with touch technology.
Touching the front area of the switch activates
the commands.
.
LED Indicators
Advanced Operations
Schedulers ON/OFF Toggle - Touch the
MODE Button 6 times.
Group activation: Select and hold the center
area until the lower red LED will illuminate,
the following command will be executed to
all the switches in the group.
ON
Blue –Power
Red –TX/Error
Green –Auto
Orange –Eco
Red- RCV
White- Schedulers ON

Dimmer Switch- IGHH
ON/OFF
A short touch on the
top/bottom area of the switch
turns ON/OFF the lights.
Dimming
A long touch on the
top/bottom area of the switch
adjusts the light intensity.
Modes
Touching the middle area of the
switch toggles between the
modes.
Unique Functionalities
Light Dimming
Fade -Soft start operation.
Night light- The light will turn OFF
automatically at sunrise.
Off level- The light will dim to a low light
intensity instead of turning OFF.
Learning- The switch learns the amount of
movement in the room and automatically
adjusts the timers.
Mode
OFF

Shutter Switch- IGTH
UP/DOWN
A short touch on the
top/bottom area of the switch
opens/closes the
shutters/blinds.
Precise Activation
A long touch on the
top/bottom area of the switch
adjusts the shutters to an
exact position.
Modes
Touching the middle area
toggles between the modes.
Unique Functionalities
Auto-Learning- Automatically learns the
shutter opening/closure times and
measures power consumption.
Specific Level- Move the shutter to a
specific level using a smartphone or
Keypad.
Light management- Automatically controls
the amount of room light by moving the
shutters/blinds.
Pass-through Shutter- Blocks remote and
automatic controls downwards.
Mode
OFF

Power Switch- IGPH
ON/OFF
A touch on the top/bottom
area of the switch turns
ON/OFF the appliance.
Modes
Touching the middle bottom
area of the switch toggles
between the modes.
Sense Switch- IGSH
ON/OFF
A touch on the top/bottom
area of the switch turns
ON/OFF the appliance.
Modes
Touching the middle area of
the switch toggles between
the modes.
Mode
OFF
Mode
OFF
