Contents:
ESCALADE™– (1) Escalade™tube, (3) Interloc™Ladder
(1) Escalade™ Storage Cover, (1) Owner’s Manual, (1) Repair Kit
Watersports Safety Code
Watersports are fun and challenging but involve inherent risks of
injury or death. To increase your enjoyment of the sport and to
reduce your risks, use common sense and follow these rules:
Before you start:
• This product is designed for use only when securely connected to a yacht of
satisfactory size and strength to stabilize the item at a minimum of 2,5m above
the water.
• Familiarize yourself with all applicable federal, state, and local laws, the risks
inherent in the sport, and the proper use of the equipment.
• Know the waterways.
• Use caution and common sense.
• Do not use within 4,5m (15ft.) of boats, docks, or other hard obstructions.
• Do not attempt or allow somersaults. Landing on the head or neck can cause
serious injury, paralysis or death.
• Never use at night, or in low-light conditions.
• Never use in poor weather conditions, excessive wind, waves or lightning.
• Do not use on dry land.
• Do no use without proper anchoring.
• Do not dive head rst or swim under the product.
• Take extreme care when swimming between the shore and the product. Be
cautious of any boat trafc or other obstructions. Ensure all users are capable
swimmers and are not excessively fatigued. Do not allow anyone to attempt to
swim to or from the product that are not physically able to do so.
• Always ensure that the swimming area around the product is free of submerged
logs, rocks and sandbars. Ask about the local water conditiions before use.
• Only allow use of the product with proper supervision. Secure the product when
not in use to prevent access by any other users.
• Do not jump or dive from this item.
• Do not jump onto this item from any other item.
• Do not use in water where there are sharks or other animals that could pose a
threat to humans.
• If product is used indoors, always ensure adequate ceiling height overhead.
• Always remove personal items such as rings, watches or other sharp objects
before use.
Your equipment :
• Check all equipment prior to use. Inspect this item for missing, defective or worn
parts. Never use the product if excessive wear or damage are detected.
• Check for proper ination before each use. Temperature and environmental
changes can cause changes in air pressure. Using the product over or under in-
ated is dangerous and can cause damage to the product, voiding the warranty.
• Always check security of the anchor(s) and all attachments before each use.
• Always wear a life vest (PFD) as required by the authorities in area of use.
THE WARNINGS AND PRACTICES SET FORTH ABOVE IN THE WATER-
SPORTS SAFETY CODE REPRESENT SOME COMMON RISKS ENCOUN-
TERED BY USERS. THE CODE DOES NOT PURPORT TO COVER ALL
INSTANCES OF RISK OR DANGER. PLEASE USE COMMON SENSE AND
GOOD JUDGMENT.
Please contact us if you have any questions on the proper selection,
function, or safe use of this product.
It is the owner’s responsibility to read the owner’s manual and instruct
all users in the safe operation of these products. By inating these products you here-
by agree to the Release of Liability, Claim Waiver, and Assumption of Risk Agreement
in this manual. Please read this manual prior to inating and using these products
and keep for future reference. As with any action sport, recklessness, inexperience,
misuse, or neglect of the equipment may result in serious injury or death.
Stop! Read this manual carefully
before using this product!
Aquaglide, Inc. #1 North Shore Dr, SE White Salmon, WA 98672 TEL: [phone] FAX: [phone]
www.Aquaglide.com
Watersports can be safe and fun for all levels of enthusiasts. The Operator’s Manual is presented to enhance
your enjoyment of the sport. It is intended to alert you to some of the potentially dangerous conditions that
can arise in all watersports. It is the owner’s responsibility to read the owner’s manual and instruct all users
in the safe operation of these products. By inating these products you hereby agree to the Release of
Liability, Claim Waiver, and Assumption of Risk Agreement in the Owner’s Manual.
To reduce the risk of injury or death, follow these guidelines:
• Carefully read the product Owner’s Manual and follow the instructions.
• Take all reasonable precautions in the use and operation of your trampoline and/or aquapark.
• Teach anyone using your trampoline and/or aquapark about safe guidelines prior to use.
• Know your own limits. Stop when you are tired. Act responsibly. Be in good physical
condition and be cautious in your use of this or any other water sports product.
• Periodically check mooring bridles and/or lines to ensure safety. Replace any portion of
mooring and/or connection system that shows signs of wear.
• Do not add any hardware or attachments not otherwise supplied by the manufacturer.
THE WARNINGS AND PRACTICES SET FORTH ABOVE REPRESENT SOME COMMON RISKS
ENCOUNTERED BY USERS AND DOES NOT PURPORT TO COVER ALL INSTANCES OF RISK OR DANGER.
PLEASE USE COMMON SENSE AND GOOD JUDGMENT.
Please contact the dealer or manufacturer of this product if you have any questions about proper selection,
function, or safe use of this product. Made in China

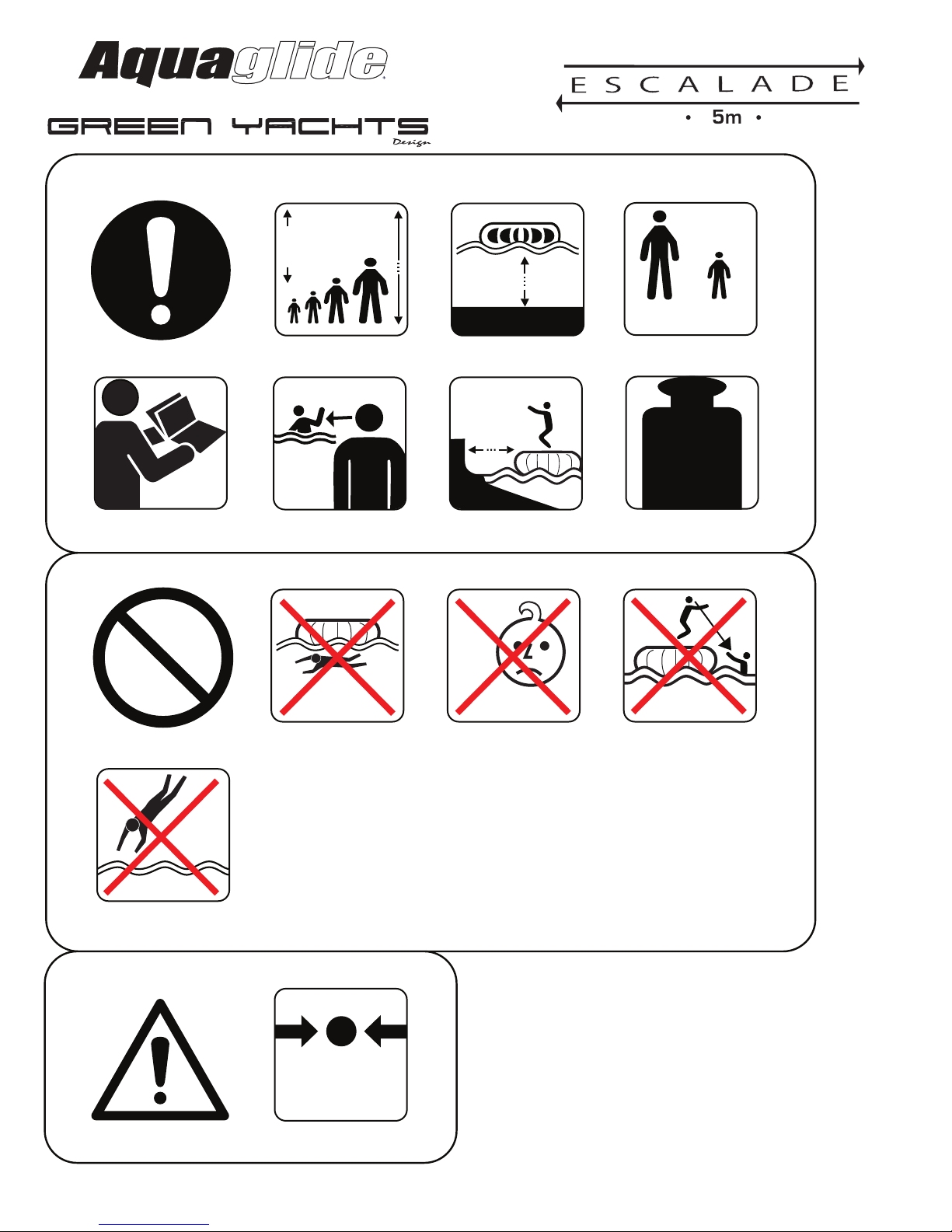

CAUTION
Owner’s Manual
Manual covers
these products
Escalade™ 5m
Min.
Depth
12ft. (3,66m)
Max.
Users
One (1)
Max.
Capacity
250lb. (113kg)
Designed in USA by:

AQUAGLIDE, INC.
WHITE SALMON, WA - U.S.A.
STANDARDS: EN 15649: 2012,
EN 913: 2008, W.A.S.
PRODUCT: ESCALADE 5M
MADE IN P.R.C.
DESIGNED IN U.S.A.
122cm
213cm
3,66m (12ft)
4,5m
(15ft)
0 - 4
0,083bar
(1.2psi)
max.
113kg
(250lbs)
1 1
Designed in USA by:

No protection against drowning!
Keine Schutz gegen Ertrinken!
Pas de protection contre la noayada!
No protege contra el ahogamiento!
Nessuna protezione contro l’aogamento!
Beschermt niet tegen verdrinken!
Only for swimmers!
Nur für schwimmer!
Seulement pour les nageurs!
Sólo para nadadores!
Solo per i nuotatori!
Alleen voor zwemmers!
Aquaglide, Inc.
#1 North Shore Dr SE
White Salmon, WA 98672
USA
Compliant with
DIN EN-15649: 2012
L: 58cm (23”)
W: 300cm (118”)
H: 500cm (197”)
Escalade 5m
Prolonged exposure to salt water candamage and/orshorten the expected lifetime of
thisproduct. The marine environment includesmany damaging elements including
corrosion, abrasion and damage from marine life such as barnacles. Regular cleaning
and rinsing with fresh water can reduce these risks. APVC-safe antifouling paint should
be used to help protect this product against marine growth. DAMAGE CAUSED BY
EXPOSURETO SALTWATER IS NOT COVERED BY WARRANTY.

Assembly
1) Locate a at, dry area with access to electrical outlet or extension cord.
IMPORTANT: Because of the size and weight of the Escalade™, careful thought
must be given to the setup area. Ideally, the tube should be carried into position
prior to setup. The best setup position will also make launching easy. Therefore,
locate the Escalade™ near the water’s edge. NOTE: Dragging or sliding the Esca-
lade™ over ground either before or after ination can cause damage. It is possible
to inate the Escalade on the water once it contains enough air to allow it to oat.
This may allow the item to be setup on a swim platform if sufcient space exists.
2) Once in the setup/ launch position, unfold the Escalade™ tube and locate the
Main Valve. The Main Valve is located near the bottom of the item, on the side
to the right of the main climbing wall. NOTE: to facilitate rapid take down, the
Escalade™ 5m has 2 valves in this location. Make sure the second valve is closed
before ination.
3) Using a high output pump, place the ination hose with proper adaptor into the
Main Valve to inate the Escalade™ tube. Inate to 1.2 psi (0,083 bar). Check for
proper air pressure using a manometer. After ination, replace Main Valve cover.
Ination times can vary by inator, but the Escalade™ should be rm and tight
when completely inated. DO NOT OVER-FILL. Excessively high pressure
can cause damage to the product and may void the warranty. Carefully monitor air
pressure in the product especially during hot weather.
WARNING: Do not use an air compressor to inate tube. Air compressors are
designed for high pressure ination and can cause tube to burst if over-inated.
4) Connect the 3 Interloc™ ladders to the Escalade™, one at the bottom of each
climbing route.
5) Launch the Escalade™ so the item can be oated into position. When moving
the Escalade™, make sure to have at least 2 people evenly spaced around the
product to help carry it. NEVER DRAG THE ESCALADE™! YOU MUST LIFT AND
SET TO AVOID ANY ACCIDENTAL TEARING AND/OR ABRASION.
NOTE: This product is designed for use only on water of 3,66m (12 ft.) MINIMUM
depth, and only when securely connected to a yacht of satisfactory size and
strength to stabilize the item at a point 2,5m or more above the water.
6) Once launched, oat the item into position next to the yacht in the desired
spot. Position the Escalade™ with the top close to the yacht, climbing wall facing
upward. To protect your yacht, it may be a preferred to insert fenders between the
yacht and the Escalade™. If necessary, do so at this time.
7) The next step is to hoist the Escalade™ into a vertical orientation using ropes,
cranes or halyards, as needed.
8) There are several attachment rings on the back of the Escalade™. Choose the
attachment rings that best t your yacht. Use strong straps or ropes or dock lines
on each side of the Escalade™ to connect the the item securely to the yacht or
other support. Deck cleats make excellent attachment points.
NOTE: The Escalade™ MUST be connected to the yacht by AT LEAST four (4)
straps positioned 2 on each side. Two straps must attach in low position (between
0 and 1,5m height maximum) and two straps in a high position (between 2,5m and
5m height minimum). IMPORTANT: Failure to connect the item securely may
result in injury or death.
Aquaglide, Inc. #1 North Shore Dr, SE White Salmon, WA 98672 TEL: [phone] FAX: [phone]
Attachment
Rings
Attachment
Rings
Attachment
Rings
Attachment
Rings
www.Aquaglide.com
Owner’s Manual
Push
Turn
Main Valve
Interloc Ladder Attachment
Hoisting Escalade into Position
Escalade in Use
Designed in USA by:

Operation
1) Escalade™ is designed to be connected to a yacht for use as a climbing wall
while anchored in deep water.
2) We strongly recommend maintaining supervision at all times during use by a
professionally certied lifeguard. NEVER use unattended.
3) Do not exceed the product’s recommended number of users. DO NOT
ALLOW more than 1 climber at a time, and NEVER EXCEED the Maximum
weight capacity.
4) USE COMMON SENSE. Never jump or dive from the product. Be aware
that motion of the product could cause a loss of balance and injury.
5) Do not swim in the area while the product is in use. Ensure that all swimmers
have cleared the area before entering the water and before continuing use of the
product. Never swim underneath the product.
6) If the product appears to have lost air pressure or stability, immediately discon-
tinue use. Check and monitor for proper air pressure and air-holding ability. Check
and secure all straps and replace any worn parts. Do not continue use until these
are conrmed.
7) If strong winds or storms are expected, it is best to remove the product and
secure or store it.
Care and Maintenance
1) While your product has been initially treated with UV protectant, long-term
exposure to sunlight will damage the product. Regularly apply a UV protectant to
the exposed surface of the tube to ensure the life of your product. We recommend
using ONLY INDIKON UV Protectant intended for use on vinyl for this purpose.
Monthly application while the product is in use is required. NOT DOING THIS
WILL VOID THE WARRANTY. INDIKON UV Protectant is available at most
watersports dealers, or through Aquaglide, Inc.
2) WARNING: Certain products, especially petroleum-based solvents, clean-
ers and protectants such as ArmorAll can damage the product and use of these
products will void the warranty.
3) WARNING: Use of a high-pressure washer will damage the product and void
the warranty. To clean, use a soft bristle brush with mild soap and fresh water.
INDIKON UV Protectant contains a ‘safe for vinyl’ cleaner, and can be used to
clean and protect the product at the same time.
4) Check the ination of your tube often. Check for proper air pressure using a
manometer. It may appear to have lost air early in the morning, but will expand
once the sun warms it. Maximum expansion will occur in the heat of the day.
Proper ination is critical to the safe operation of your product and will prolong
damage from wear.
Storage
1) Before storing, place the product on a clean, level area to dry. If necessary,
clean with mild soap and water and allow to dry completely. Apply INDIKON
Protectant to all surfaces of the product before long term storage.
2) Remove ALL of the air from the tube using the deation end of the high output
inator/deator. If some air is left in the tube, it may freeze causing cracking.
3) Fold the deated tube in thirds (width), then roll loosely toward the valve.
4) Store the product out of direct sunlight and protected from the environment in
a clean, dry location. It is best to store inside it’s storage cover. Consider placing
the item in a container with moth balls to prevent damage from rodents. NEVER
store uncovered, in a damp location, or on a concrete surface! NEVER store at
temperatures below 4° C (40° F).
Aquaglide, Inc. #1 North Shore Dr, SE White Salmon, WA 98672 TEL: [phone] FAX: [phone]
Main Valve
Attachment
Rings
Attachment
Rings
Attachment
Rings
Attachment
Rings
Escalade™Diagram
www.Aquaglide.com
Escalade in Use

www.Aquaglide.net
WORK SPACE AND TOOLS
1. Take care to position yourself in a clean, dry area with good ventila-
tion. For proper curing of adhesives temperature should remain
above 10°C (50 F). In most cases you will need enough room to
inate the product.
2. Repair Kit Contents: PVC Patch material, PVC Glue, Instructions.
3. Additional items that MAY be needed: Air pump, Sharp scissors
and/ or razor knife, Dish washing liquid, water, small bowl or spray
bottle, 120 Grit sandpaper, solvent such as MEK (Methyl Ethyl
Ketone) or Rubbing alcohol, china marker, small ‘chip’ brush or
disposable paint brush.
LOCATE LEAK(S)
1. If there is a problem with air leaks, you will need to locate the leak(s)
rst.
2. Inate your Aquaglide Platinum™ product fully. Some small leaks can
close themselves at lower air pressures, so it is best to maintain full
pressure by re-inating periodically while checking for leaks.
3. Use a soapy water solution (50%/ 50% dish soap & water) and a
cloth to check for leaks. Work slowly around the product spraying or
swabbing-on soapy water solution. Look for growing bubbles, which
indicate a leak.
4. Once a leak is conrmed, dry the area well, mark it and prepare to
patch.
PATCHING
Reinforced PVC Patch with high-grade adhesive.
** IMPORTANT: leaks must be patched with the item completely
deated, and patches must be allowed to cure for 24 hours.
1. DEFLATE your Aquaglide Platinum™ product completely.
2. Carefully cut PVC patch material to size using sharp scissors or razor
knife.
a. Patch should be least 3 - 5cm (1-2”) larger than hole IN ALL
DIRECTIONS around any air leak. This means a minimum patch size
of 5cm x 5cm (2” x 2”) for a pinhole leak. The larger, the better.
b. Square patches with rounded corners are usually best, as this
reduces the risk of peeling.
3. Dry-t the patch over the area to be repaired to ensure good t and
coverage.
4. Use a clean 120 grit sand paper to rough up the surface to be
patched AND ALSO the back of the patch material.
5. Use solvent (MEK or Rubbing Alcohol) and a fresh cloth to clean the
sanded areas, removing all debris.
6. Dry-t the patch again and use china marker (provided) to carefully
outline where the patch will be located.
7. Next, use the glue (provided). Use a disposable ‘chip’ brush to spread
glue if needed. Try to work neatly and quickly.
a. Using disposable brush, apply a thin, even layer of glue to the
repair area making sure to cover the area completely. Stay INSIDE
the china marker outline.
b. Using disposable brush, apply a thin, even layer of glue to the to
the back of the patch making sure to cover the area completely.
c. Allow glue to cure for approximately 60 seconds.
d. Starting at one corner, carefully align the patch over the repair
area using the china marker outline as a guide. Once the 2 surfaces
touch, the bond will be immediate, so take care.
e. Starting at one corner and working outward, carefully apply the
patch to the repair area using very rm pressure.
f. Rub the entire patch area and the edges of the patch using very
rm pres
sure.
g. Allow to cure for at least 24 hours before inating.
Aquaglide, Inc. #1 North Shore Dr, SE White Salmon, WA 98672 TEL: [phone] FAX: [phone]
Repair Instructions

By opening and assembling this product, you are agreeing (1) to be bound to the terms set forth below and (2) to require anyone using this
product to be bound by such terms. If you are unwilling to be bound by these terms, return this product (before use) for a full refund.
ASSUMPTION OF RISK : Use of this product and any of its components involves certain inherent risks, dangers, and hazards which can result in serious personal injury and
death. In using the product, you freely agree to assume and accept any and all known and unknown risks of injury while using this equipment. The risks inherent in the sport
can be greatly reduced by abiding by the Warning Guidelines listed in this Owner’s Manual and by using common sense.
RELEASE AND WAIVER OF CLAIMS AGREEMENT: In consideration of the sale of the product to you, you hereby agree to the fullest extent permitted by law as follows:
TO WAIVE ANY AND ALL CLAIMS that you have or may in the future have against North Sports Inc., and Aquaglide Inc.,its distributors and dealers, resulting from use of
this product and any of its components.
TO RELEASE North Sports, Inc. and Aquaglide, Inc. from any and all liability for any loss, damage, injury, or expense that you or any users of this product may suffer, or that
your next of kin may suffer, as a result of the use of this product, due to any cause whatsoever, including negligence or breach of contract on the part of North Sports Inc. and
Aquaglide Inc. in the design or manufacture of this product and any of its components.
ARBITRATION: In further consideration of the sale to you of this product and any of its components, you hereby agree to submit to binding arbitration any and all claims which
you believe you may have against North Sports Inc. and Aquaglide Inc. arising from the use of any North Sports Inc. and Aquaglide Inc. equipment or products. The arbitration
shall be pursuant to the rules of the American Arbitration Association. Arbitration shall be commenced within (1) year from the date on which any alleged claim rst arose.
Further, the arbitration shall be held in White Salmon, Washington unless otherwise mutually agreed to by all parties. The submission to the American Arbitration Association
shall be unlimited and the arbitration award may be enforced by any Court of competent jurisdiction.
BINDING EFFECT OF AGREEMENT : In the event of your death or incapacity, this Agreement shall be effective and binding upon your heirs, next of kin, executors, adminis-
trators, assigns, and representatives.
ENTIRE AGREEMENT : In entering into this Agreement, you are not relying upon any oral or written representations other than what is set forth in this agreement and the
North Sports Inc. and Aquaglide Inc. Owner’s Manual.
NOTICE! - Release of Liability, Claim Waiver, and Assumption of Risk Agreement
rization number (RA) is given by Aquaglide in
advance. The RA number must be on the outside
of the package or it will not be accepted at our
warehouse. Freight on the returned product must
be prepaid or it will not be accepted. Upon receipt,
Aquaglide will make a determination within (30)
days. If the product is covered under warranty it
will be returned to the customer at the expense of
Aquaglide, Inc. after repairs can be made. If not,
the customer will receive a quote for repair and/
or replacement as well as any necessary cleaning
and shipping charges. The customer will have
30 days to accept the quotation. At the end of 30
days, or upon refusal of the quote, Aquaglide will
return the product in the condition in which it was
received at the customer’s expense. The customer
agrees to authorize Aquaglide, Inc. to charge the
customer’s credit card for any costs not covered
under the terms and conditions of the Aquaglide
Warranty.
Serial Number
All Aquaglide Platinum products are marked with
a serial number near the main ination valve (#1).
The serial number may be stamped into the PVC
directly around the valve, or it may be visible on
a welded plate near the valve. Please include
this number when you contact Aquaglide, or your
dealer, with any warranty claim.
Aquaglide, Inc. #1 North Shore Dr, SE White Salmon, WA 98672 TEL: [phone] FAX: [phone]
www.Aquaglide.com
Aquaglide, Inc. warrants this Supertramp to
be free of defects in material or workman-
ship to the original purchaser for three (3)
years. This warranty is subject to the follow-
ing limitations:
1. Warranty is valid only with dated proof of pur-
chase in the form of the original invoice.
2. Warranty is valid only when the product is used
for normal recreational activities, and does not
cover use in camps, schools or commercial opera-
tions. Warranty term for commercial use is 1 year.
3. Aquaglide will make the nal warranty determi-
nation which may require inspection and/or photos
of the product which clearly show defect(s). We
require the above be sent to another location of our
choice, freight prepaid, or by email to support@
aquaglide.com.
4. If a product is deemed to be defective by Aqua-
glide, the warranty covers the repair or replacement
of the defective product only. Aquaglide will not
be responsible for any costs, losses, or damages
incurred as a result of loss of use of product.
5. This warranty does not cover damage caused
by misuse, abuse, neglect, or normal wear and
tear, including, but not limited to, punctures,
dragging the product over the ground, damage
due to excessive sun exposure or seam failure
due to overination in the sun, damage caused by
improper handling and storage, damage caused by
use in waves or shore break, and damage caused
by anything other than defects in materials and
workmanship.
6. This warranty is voided if any unauthorized
repair, change, or modication has been made to
any part of the equipment. Authorization for such
must come in writing from Aquaglide.
7. The warranty for any repaired or replacement
equipment is good from the date of the original
purchase only.
8. Any warranty claims must be accompanied
by the original purchase receipt. The name of the
retailer and date of purchase must be clear and
legible.
9. There are no warranties which extend beyond
the warranty specied here.
Returns and Service Policy
Product can be returned only if a return autho-
Warranty
