Greenheck FGI User manual

®
Fabra Hood • Form F 1
®
Document 471322
Model FGI/FGR Fabra Hood
Form F - Single Section with Filters
Throat length less than or equal to 72 inches
Assembly Instructions
Please read and save these instructions for future reference. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety information. Failure
to comply with these instructions will result in voiding of the product warranty and may result in personal injury
and/or property damage.
Standard Assembly
Step 1 Fabra hood Form F 471322
HOOD END ASSEMBLY
(FEMALE RIB)
HOOD RAIL ASSEMBLY
SIDE FILTER
HOOD SUPPORT ANGLE
BASE ASSEMBLY
END FILTER
SIDE FILTER
HOOD END ASSEMBLY
(MALE RIB)
HOOD PANEL
Step 1 – Open crates and separate parts
Open the shipping crates and separate the parts according to the size of the unit, refer to Figure 1.

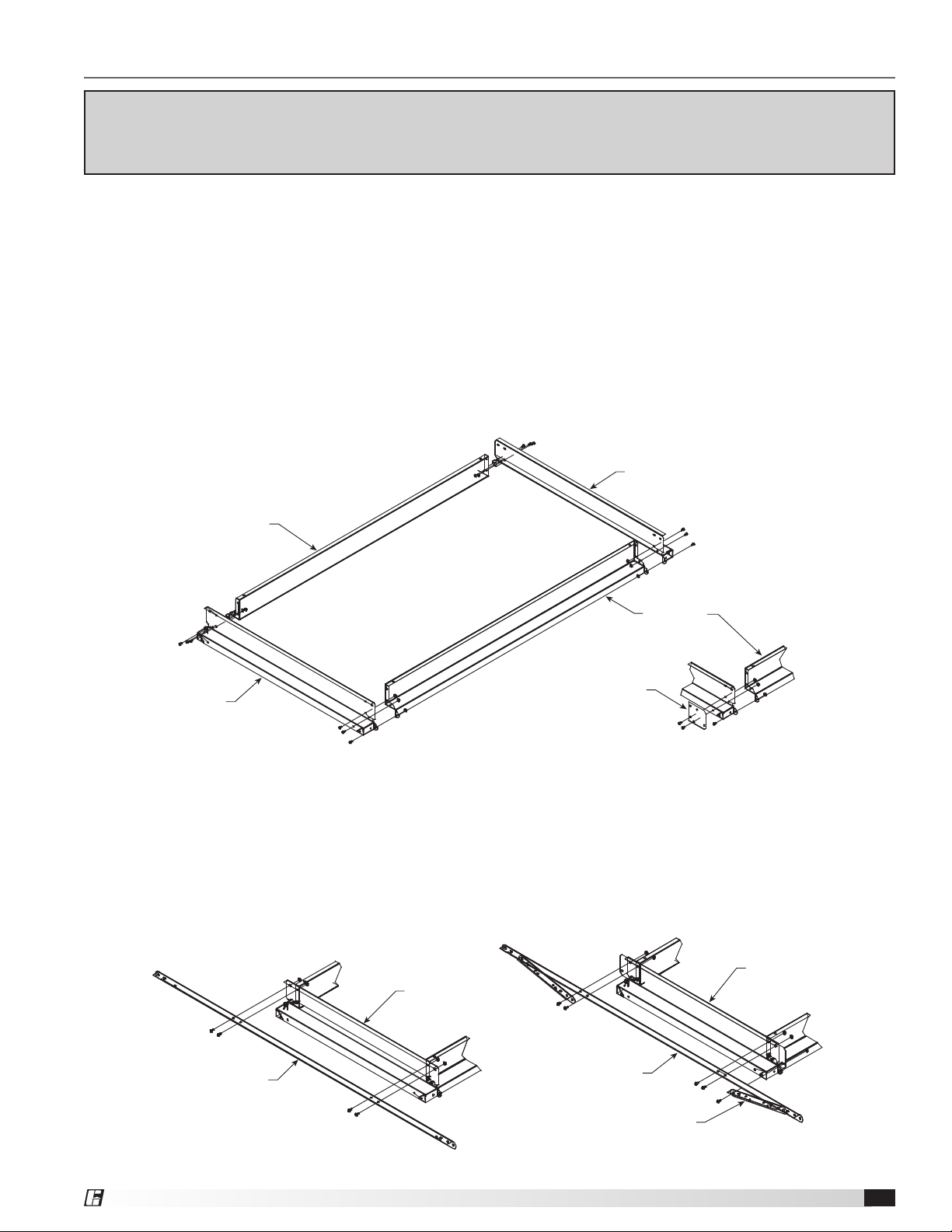

Step 2 – Place BASE ENDS and BASE SIDES
Place the two base ends and the two base sides in their approximate relationship to each other, see Figure 2. Fasten
together using three 1/4-20 fasteners per corner for 5 inch high base and four 1/4-20 fasteners per corner for 12 inch
high base.
NOTE: Fasteners should be hand tightened only until Step 4.
On some units where the difference between the hood width and throat width is greater than 32 inches, a reinforcing
plate is required in the corners of the base, refer to Figure 2, Detail A.
Figure 2 Fabra hood B #471321
BASE END
BASE SIDE
REINFORCING PLATE
DETAIL A
BASE END
BASE SIDE
IMPORTANT: For high wind rated hoods,
follow assembly instructions starting on page 5.
Figure 2
Figure 1

Fabra Hood • Form F2
®
Step 3 – Attach HOOD BASE ENDS to HOOD BASE SIDES
Attach the hood support angle to the base assembly (hand tight), using four 1/4-20 fasteners per angle, see Figure 3,
Detail B.
On some units, two diagonal braces come pre-attached to the hood support angle. Fasten the loose end of the
diagonal braces to the base assembly, using one 3/8-16 fastener per diagonal brace. See Figure 3, Detail C.
Figure 3 Fabra hood B #471321
BASE
ASSEMBLY
HOOD SUPPORT
ANGLE
DETAIL B
BASE
ASSEMBLY
HOOD SUPPORT
ANGLE
DETAIL C
DIAGONAL
BRACE
Step 4 – Tighten fasteners and caulk all inside corners
Tighten all base, side and base end fasteners. Caulk all inside corners where the base sections come together. At
this point, the base may be lifted onto the roof curb before proceeding with further assembly.
Step 5 – Attach FILTER CHANNELS to HOOD SUPPORT ANGLE
Attach the filter side channel (hand tight) to the hood support angle and the filter side channel assembly (hand tight)
to the base side, using two 5/16 x 1 inch weldstud fasteners per channel, see Figure 4. Sandwich the end closure
angle between the base end and the side filter channel assembly, see Figure 4.
Figure 4 Fabra hood Form F 471322
FILTER SIDE CHANNEL
ASSEMBLY
BASE ASSEMBLY
HOOD SUPPORT
ANGLE
FILTER SIDE CHANNEL END CLOSURE ANGLE
Figure 4
Figure 3

Fabra Hood • Form F 3
®
Step 6 –Attach END ANGLE to the ends of SIDE CHANNELS
Attach the end angle (hand tight) to the ends of the side filter channel assemblies and side channels using four
5/16 x 1 weldstud fasteners per end angle, see Figure 5. In addition, units with throat widths greater than 36 inches
will require filter end channel assemblies, see Figure 5, Detail D. Fasten filter end channel assembly (hand tight) to
the end closure angle and end angle, using two 5/16 x 1 weldstud fasteners per assembly.
Figure 5 Fabra hood Form F 471322
END ANGLE
FILTER SIDE CHANNEL
ASSEMBLY
FILTER END CHANNEL
ASSEMBLY
END CLOSURE ANGLE
DETAIL D
FILTER SIDE CHANNEL
FILTER SIDE CHANNEL
ASSEMBLY END ANGLE
END ANGLE
FILTER SIDE CHANNEL
Step – 7 Install FILTERS and tighten fasteners
Slide filters in from both ends of unit. Tighten all filter channel and end angle fasteners only after filters are in place.
Step 8 – Attach HOOD RAIL ASSEMBLY to HOOD SUPPORT ANGLES
Attach the hood rail assembly to the hood support angles using 3/8 x 3/4 inch bolt with 3/8 inch Nyloc nut at each
attachment point, see Figure 6.
NOTE: Fasteners should be hand tightened only until Step 10.
Figure 6 Fabra hood Form F 471322
HOOD RAIL ASSEMBLY
NYLOC NUT
HOOD SUPPORT ASSEMBLY
HOOD RAIL ASSEMBLY
Figure 6
Figure 5

Fabra Hood • Form F4
®
Step 9 – Assemble HOOD PANELS to HOOD RAIL ASSEMBLY
Assemble hood panels to hood rail assembly. The hood end assembly with the “male rib” is to be installed first, see
Figure 7, Detail E. Place the remaining hood panels in place, interlocking panels as you go, see Detail E. Secure each
hood panel to the hood rail assembly as it is put in place using four 12 x 3/8 inch sheet metal screws with sealing
washers per hood panel. The hood end assembly with the “female rib” is to be installed last.
NOTE: Hoods over 9 feet wide are supplied with special hood clips. See Detail F, hood panels have predrilled holes
for hood clip installation. Install clips as hood panels are being put in place, using one 12 x 5/8 inch sheet metal
screw with sealing washer per hood clip. To install clips in the last panel, remove the end filters to provide access to
the underside of the hood. The filters can be easily replaced after the hood is completely assembled.
Figure 7 Fabra hood Form F 471322
DETAIL E
HOOD RAIL
ASSEMBLY
HOOD PANEL
HOOD END ASSEMBLY
(MALE RIB)
HOOD RAIL
ASSEMBLY
MALE RIB
FEMALE RIB
DETAIL F
HOOD PANEL
(MALE RIB)
NO. 12 x 5/8 SHEET METAL SCREW
WITH SEALING WASHER HOOD PANEL
(FEMALE RIB) MALE RIB FEMALE RIB
HOOD CLIP
Step 10 – Tighten fasteners
Tighten all pivot bracket fasteners.
NOTE: There may be extra fasteners.
Figure 7

Fabra Hood • Form F 5
®
High Wind Assembly
Step 1 – Open crates and separate parts
Open the shipping crates and separate the parts according to the size of the unit, refer back to Figure 1, page 1.
Step 2 – Place BASE ENDS and BASE SIDES
Place the two base ends and the two base sides in their approximate relationship to each other, see Figure 2. Fasten
together using three 1/4-20 fasteners per corner for 5 inch high base and four 1/4-20 fasteners per corner for 12 inch
high base.
NOTE: Fasteners should be hand tightened only until Step 4.
On some units where the difference between the hood width and throat width is greater than 32 inches, a reinforcing
plate is required in the corners of the base, refer to Figure 2, Detail A.
Figure 2 Fabra hood B #471321
BASE END
BASE SIDE
REINFORCING PLATE
DETAIL A
BASE END
BASE SIDE
Step 3 – Attach HOOD BASE ENDS to HOOD BASE SIDES
Attach the hood support angle to the base assembly (hand tight), using four 1/4-20 fasteners per angle, see Figure 3,
Detail B.
On some units, two diagonal braces come pre-attached to the hood support angle. Fasten the loose end of the
diagonal braces to the base assembly, using one 3/8-16 fastener per diagonal brace. See Figure 3, Detail C.
Figure 3 Fabra hood B #471321
BASE
ASSEMBLY
HOOD SUPPORT
ANGLE
DETAIL B
BASE
ASSEMBLY
HOOD SUPPORT
ANGLE
DETAIL C
DIAGONAL
BRACE
NOTE: Depending on the size of the hood it may be easier to assemble unit on the ground and lift to the roof
assembled. This is due to the self tapping screws that need to be fastened down the center of the hood.
IMPORTANT: Do not climb on top of hood to fasten screws in the center of the hood.
Figure 2
Figure 3

Fabra Hood • Form F6
®
Step 4 – Tighten fasteners and caulk all inside corners
Tighten all base, side and base end fasteners. Caulk all inside corners where the base sections come together. At
this point, the base may be lifted onto the roof curb before proceeding with further assembly.
Step 5 – Attach FILTER CHANNELS to HOOD SUPPORT ANGLE
Attach the filter side channel (hand tight) to the hood support angle and the filter side channel assembly (hand tight)
to the base side, using two 5/16 x 1 inch weldstud fasteners per channel, see Figure 4. Sandwich the end closure
angle between the base end and the side filter channel assembly, see Figure 4.
Figure 4 Fabra hood Form F 471322
FILTER SIDE CHANNEL
ASSEMBLY
BASE ASSEMBLY
HOOD SUPPORT
ANGLE
FILTER SIDE CHANNEL END CLOSURE ANGLE
Step 6 –Attach END ANGLE to the ends of SIDE CHANNELS
Attach the end angle (hand tight) to the ends of the side filter channel assemblies and side channels using four
5/16 x 1 weldstud fasteners per end angle, see Figure 5. In addition, units with throat widths greater than 36 inches
will require filter end channel assemblies, see Figure 5, Detail D. Fasten filter end channel assembly (hand tight) to
the end closure angle and end angle, using two 5/16 x 1 weldstud fasteners per assembly.
Figure 5 Fabra hood Form F 471322
END ANGLE
FILTER SIDE CHANNEL
ASSEMBLY
FILTER END CHANNEL
ASSEMBLY
END CLOSURE ANGLE
DETAIL D
FILTER SIDE CHANNEL
FILTER SIDE CHANNEL
ASSEMBLY END ANGLE
END ANGLE
FILTER SIDE CHANNEL
Step – 7 Install FILTERS and tighten fasteners
Slide filters in from both ends of unit. Tighten all filter channel and end angle fasteners only after filters are in place.
Figure 4
Figure 5

Fabra Hood • Form F 7
®

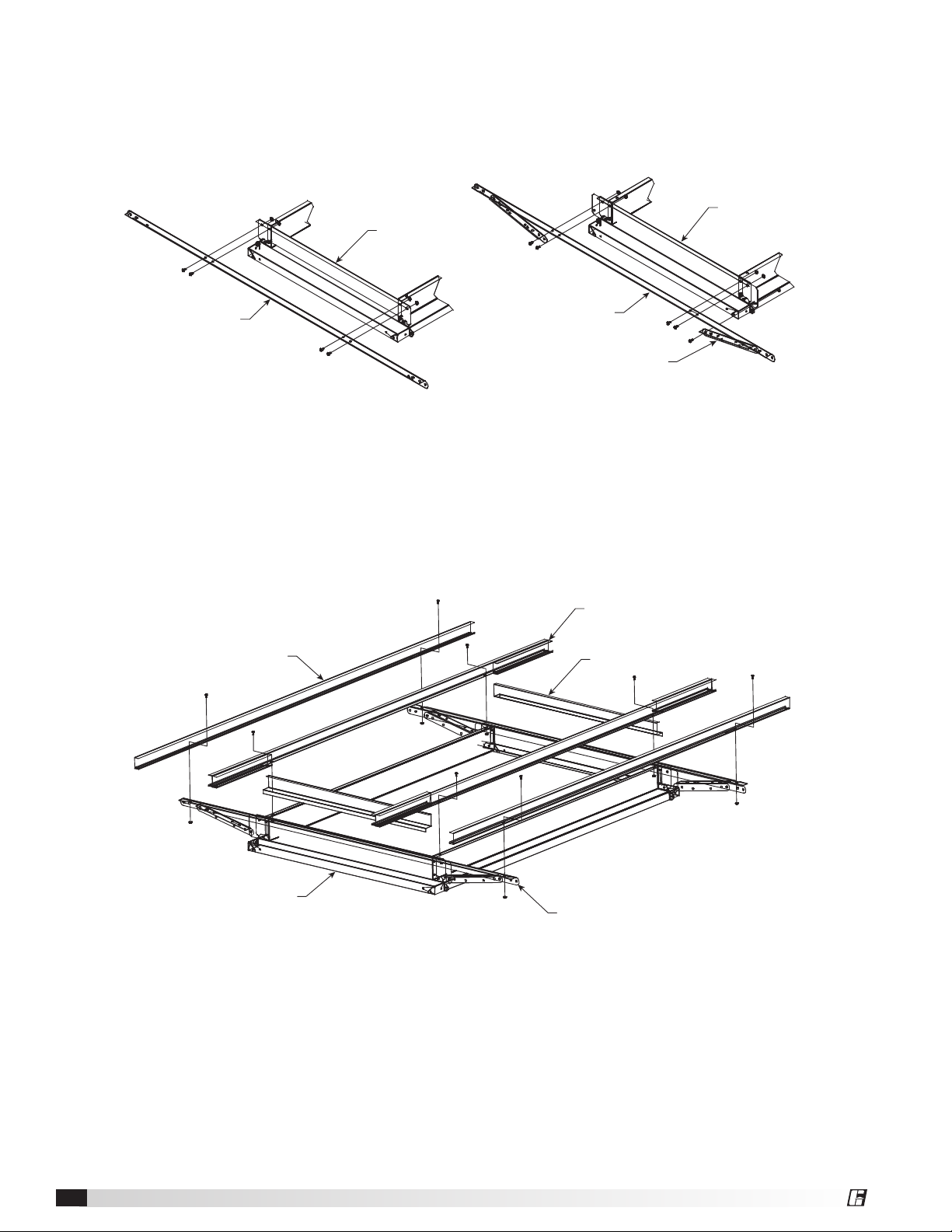

Step – 8 HOOD RAIL ASSEMBLY
NOTE: For easier assembly and lifting elevate hood rail assembly on blocks.
Lay out hood rail assembly and hood end angles, see Figure 6. Install thread cutters (hardware kit # 415041 - 5/16-
18 x 1 inch) from underneath, first through hood end angles and second hood rail assembly.
NOTE: Use a builders square to ensure the corners of the frame are as close to 90º as possible.
5/16 -18 x 1 in.
THREAD CUTTER
5/16 -18 x 1 in.
THREAD CUTTER
5/16 -18 x 1 in.
THREAD CUTTER
5/16 -18 x 1 in.
THREAD CUTTER
High Wind - 1 Fabra hood B #471321
USE PROVIDED
HARDWARE KIT # 415041 HOOD END ANGLE
HOOD RAIL ASSEMBLY
Step 9 – Install HAT CHANNEL
Place diagonal end panel supports with the formed angle running the length of the part facing out and slots next
to hat channel. Fasten diagonals with whiz nut (hardware kit # 415456). Leave wiz nuts snug and DO NOT tighten.
Lift hat channel into place. The diagonals will support the hat channel as it is being installed. Use thread cutters
(hardware kit # 415456) to attach the hat channel to the diagonal end panel supports. Tighten wiz nuts.
5/16 -18 in. WHIZ NUT
HAT CHANNEL
5/16 -18 x 1 in.
THREAD CUTTER (BOTH SIDES)
USE PROVIDED HARDWARE KIT
# 415041 AND 415456
High Wind - 2 Fabra hood B #471321
5/16 -18 in. WHIZ NUT
5/16 -18 x 1 in.
THREAD CUTTER (BOTH SIDES)
5/16 -18 in. WHIZ NUT
5/16 -18 in. WHIZ NUT
DIAGONAL END PANEL SUPPORT
NOTE: Adjustment of the hat channel may be needed. Ensure there is no more than an 1/8 inch gap between the hat
channel and hood panel.
Figure 7
Figure 6

Fabra Hood • Form F8
®
Step 10 – Install HOOD END PANEL (MALE RIB)
Lift the hood end panel (male rib) into place. Use the 1/4-20 x 1 thread rolling screws with washer (hardware kit #
417119) to attach hood end panel to the diagonal end panel supports at the holes in the hood end panel that line will
line up holes in the diagonal end panel supports.
Use four #12-14 x 1 inch self-tapping screws (hardware kit # 415450) to attach the hood panel to the hat channel.
Use four #12-11 x 5/8 sheet metal screws (hardware kit # 417467) to attach the hood panel to the hood rail
assembly.
HOOD PANEL/END PANEL
ASSEMBLY
NO. 12-14 x 1 in.
SELF TAPPING SCREW
NO. 12-11 5/8 in.
SHEET METAL SCREW
NO. 12-11 5/8 in.
SHEET METAL SCREW
1/4 -20 x 1 in.
THREAD ROLLING SCREW WITH WASHER
High Wind - 3 Fabra hood B #471321
USE PROVIDED HARDWARE KIT
# 417467 AND 415450
Figure 8

Fabra Hood • Form F 9
®

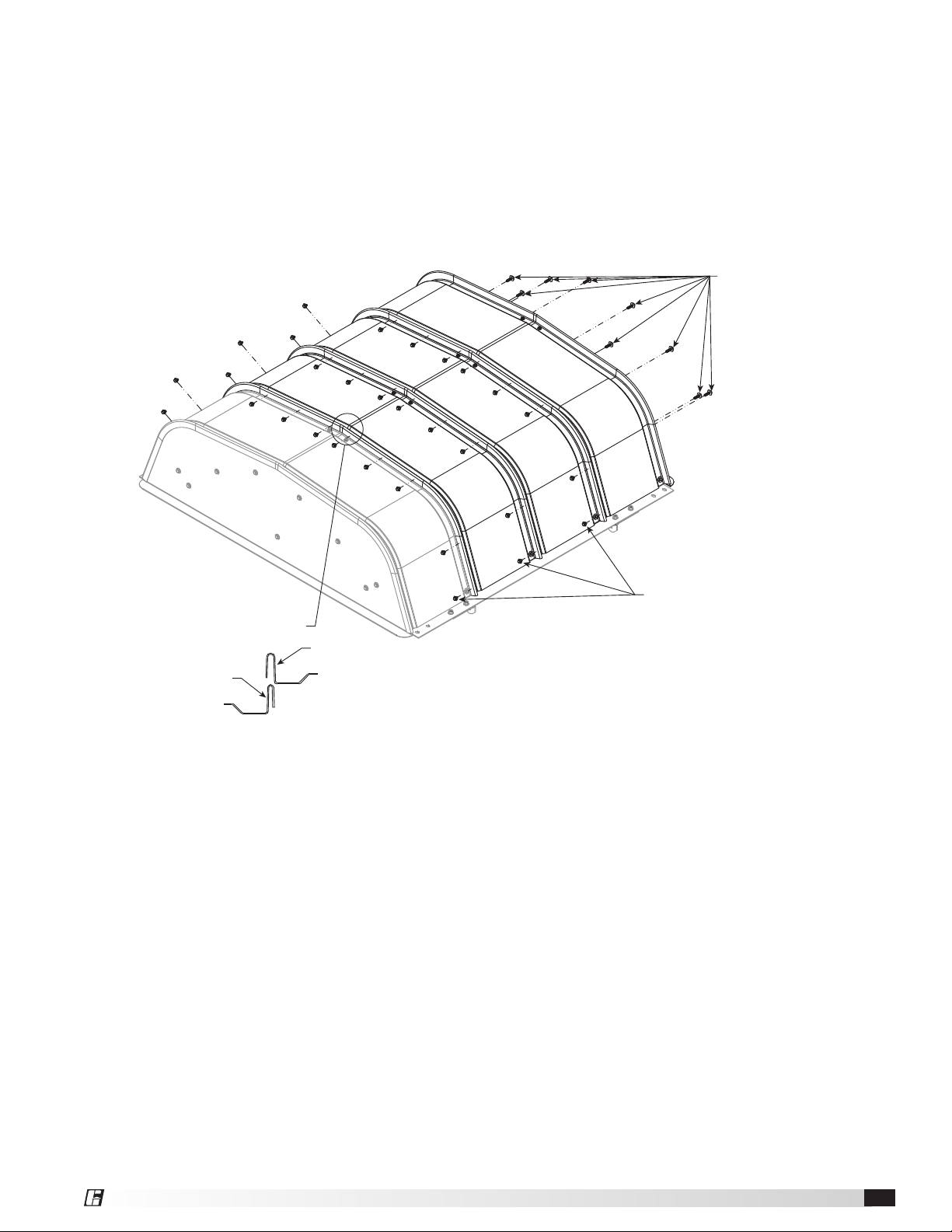

Step 11 – Install HOOD PANELS to HOOD RAIL ASSEMBLY
Place the next hood panel by interlocking each panel as shown in Figure 9, Detail E. Secure each hood panel to
the hood rail assembly as it is put in place, using four #12-14 x 1 inch self-tapping screws (hardware kit # 415450)
to attach the hood panel to the hat channel. Use four #12-11 x 5/8 sheet metal screws (hardware kit # 417467) to
attach the hood panel to the hood rail assembly. Using quantity 10 sheet metal screws (hardware kit # 416900) with
sealing washers per hood panel. Place the remaining hood panels in place with the hood end assembly with the
female rib is to be installed last as shown in step 10, page 8.
IMPORTANT: Do not drive sheet metal screws all the way through both sides of the ribs as this could allow water to
leak through the hood. Screws are to fasten only the first 2 layers of the rib joint.
1/4 -20 x 1 in.
THREAD ROLLING SCREW
WITH WASHER
NO. 12 -14 x 1 in.
SELF TAPPING SCREW (QTY OF 10 PER RIB)
USE PROVIDED HARDWARE KIT
# 415450 AND 417119
High Wind - 4 Fabra hood B #471321
DETAIL E
MALE RIB
FEMALE RIB

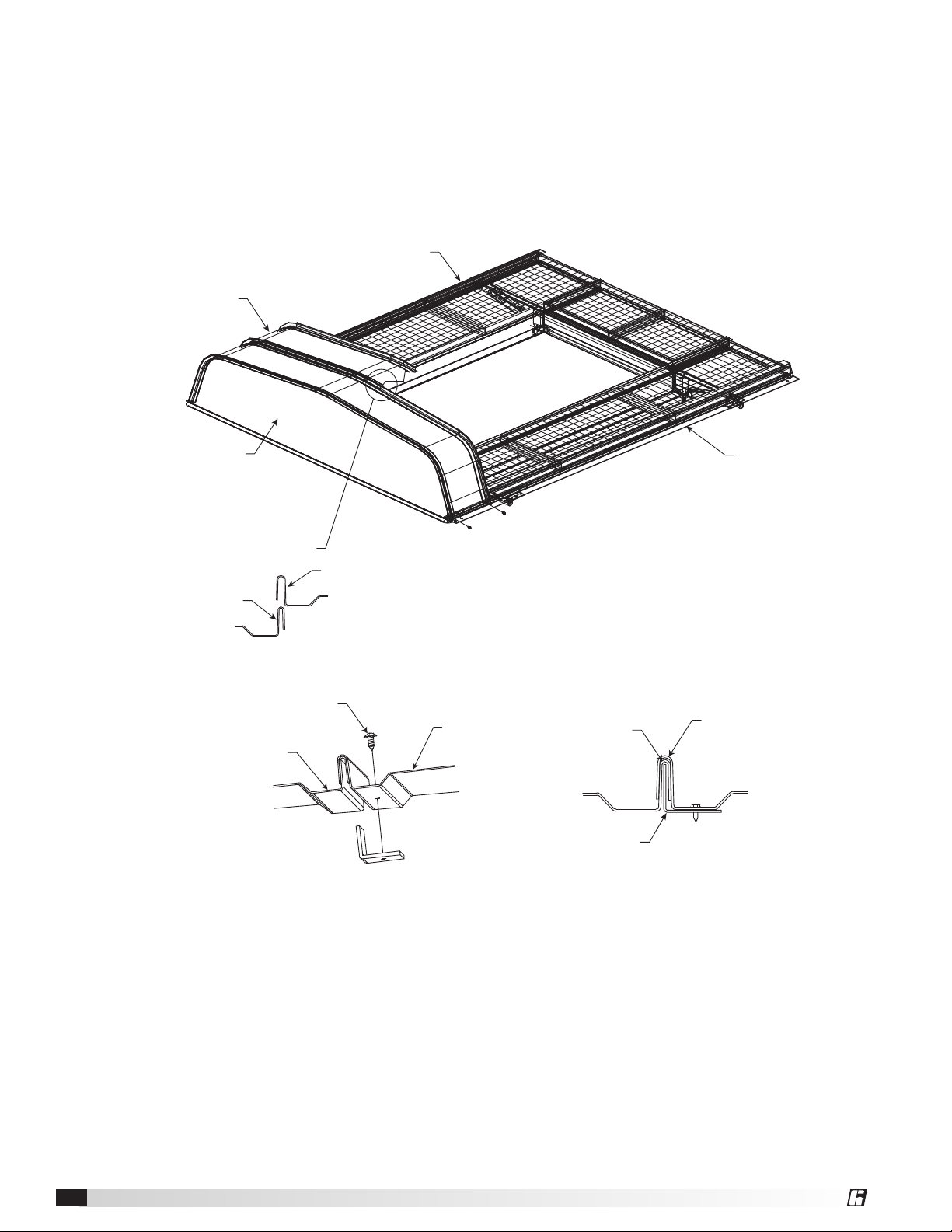

Step 12 – Lift HOOD ASSEMBLY onto HOOD BASE
Lift completed hood assembly onto the hood base and attach the hood assembly to the hood support angles, using
3/8 x 3/4 inch bolt with 3/8 inch Nyloc nut at each attachment point.
Step 13 – Tighten fasteners
Tighten all pivot bracket fasteners.
NOTE: There may be extra fasteners.
Figure 9
