Greenmaster Momentum RB5 User manual

MOMENTUM RB5 RECUMBENT BIKE
USER MANUAL

2 MOMENTUM RB5 RECUMBENT BIKE
PREASSEMBLY
Open the boxes:
You are now ready to open the boxes of your new equipment. Make sure to inventory all of the parts that are included in the boxes.
Check the Parts Listf or a full count of the number of parts included for this product to be assembled properly. If you are missing
any parts orhave any assembly questions call your local dealer.
Gather your tools:
Before starting the assembly of your unit, make sure thatyou have gathered all the necessary tools you may require to assemble
the unit properly. Having all of the necessary equipment at hand will save time and make the assembly quick and hassle-free.
Clear your work area:
Make sure thatyou have cleared away a large enough space to properly assemble the unit. Make sure the space is free from
anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a comfortable amount of free
area around the unitfor unobstructed operation.
Invitea friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another person when
assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If y ou weigh more than 160kg it is not recommended that you use this
product. Serious injury may occur if the user’s weight exceeds the limit shown here. This product is not intended to support users
whose weight exceeds this limit.

www.greenmasterfitness.com.tw 3

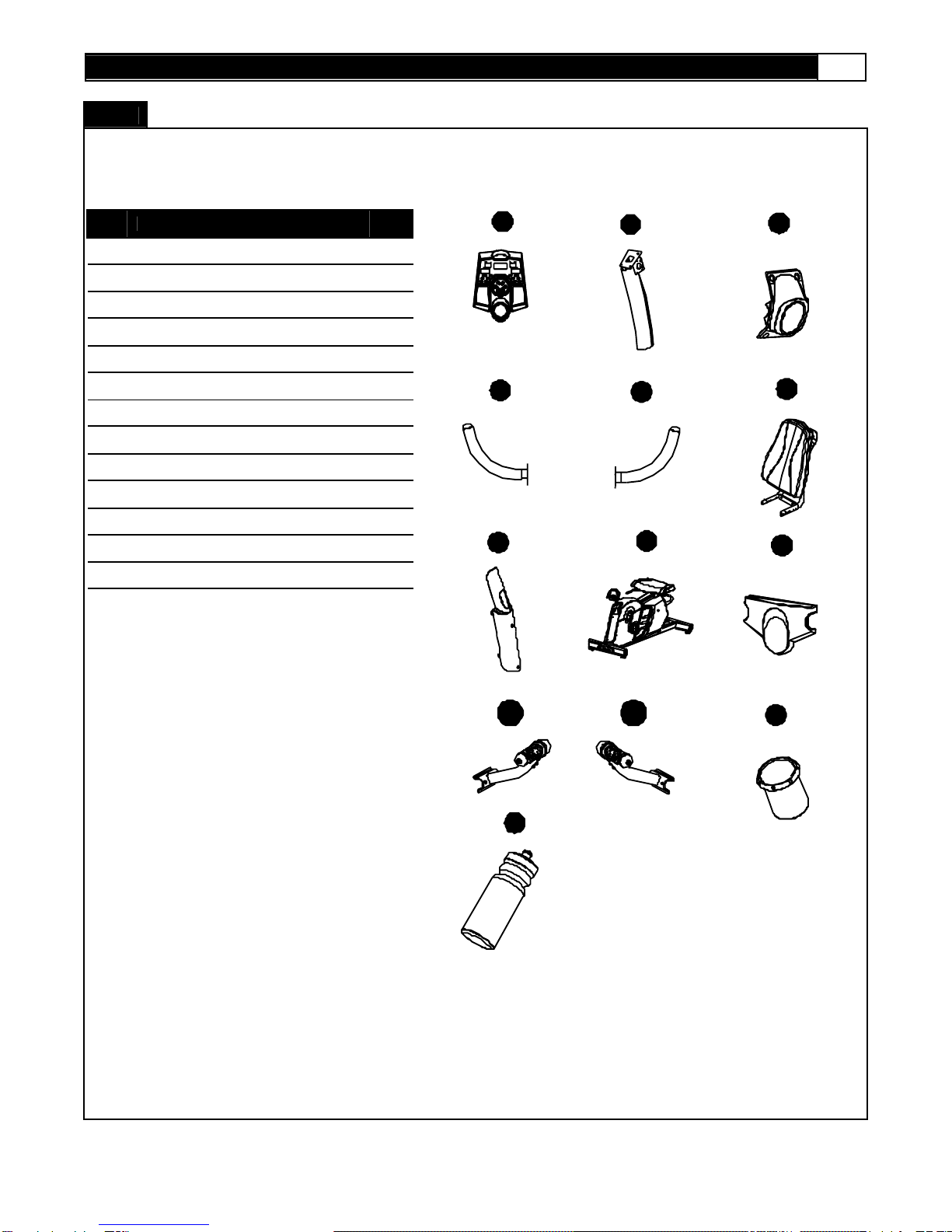

CONTENTS CHECKLIST
Carton chart:
For your convenience, we have identified the contents of the shipping carton. Please check to make sure you have all of the
components before assembly. This chart is provided to help you identify the components used in the assembly of this product.
No. Description Qty.
42 Computer 1
43 Console Upright Tube 1
45 Computer Protect Cover 1
48 Handlebar -Left 1
50 Handlebar -Right 1
52 Back pad 1
62 Front Upright Cover 1
81 Main Frame 1
84 Bottle Holder 1
85 Water Bottle 1
97 Seat Post Cover 1
108 Hand Pulse Connect Bracket-Left 1
109 Hand Pulse Connect Bracket-Right 1
85
84
109
108
97
81
62
52
5048
4543
42

4 MOMENTUM RB5 RECUMBENT BIKE

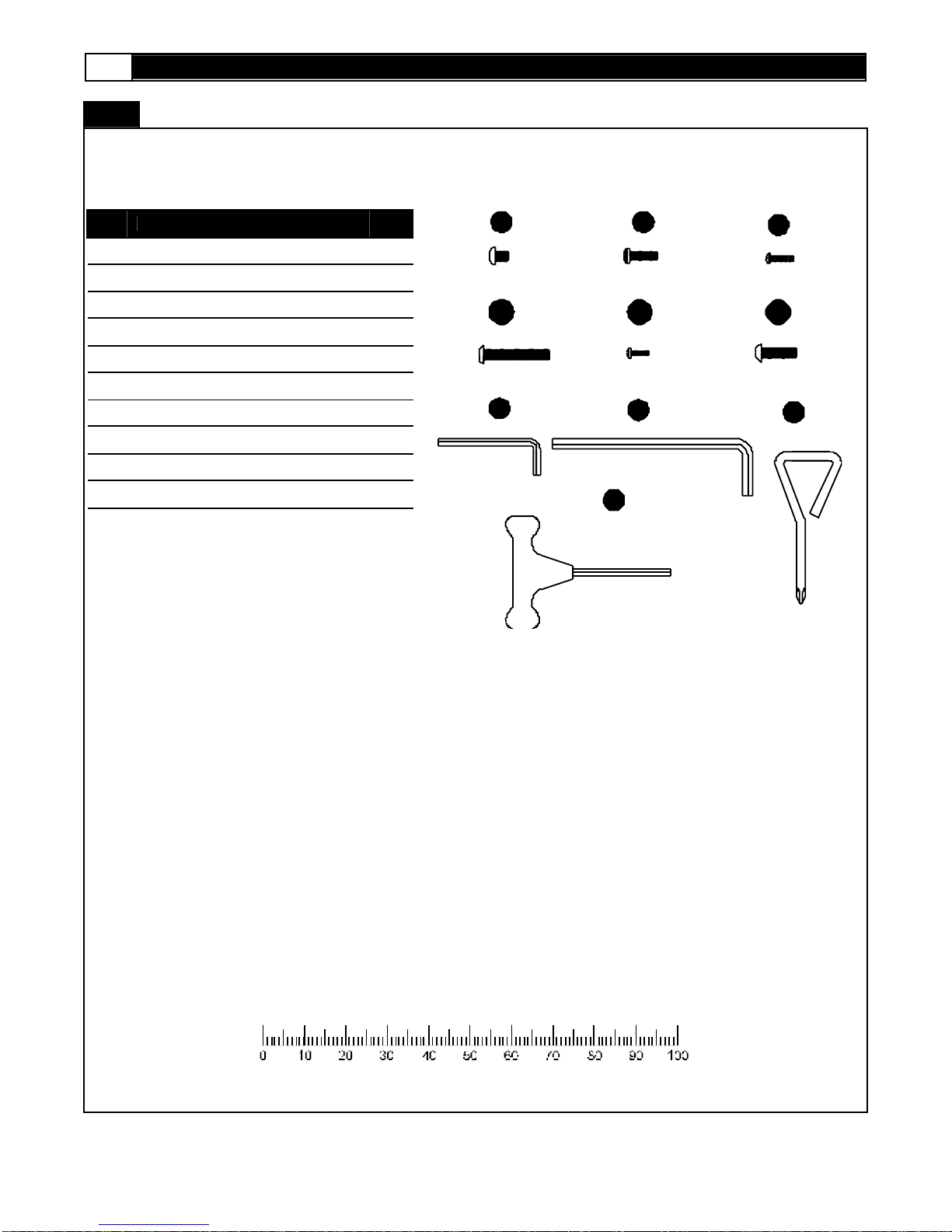

HARDWARE COMPARISON CHART
Hardware chart:
For your convenience, we have identified the hardware used in the assembly of this product. This chart is provided to help you
identify those items that may be unfamiliar to you.
No. Description Qty.
27 M8 x 10mm Bolt 6
44 M6 x 15mm Screw 2
46 4 x 19mm Bolt 4
100 M8 x 45mm Bolt 8
101 4 x 9mm Screw 4
136 M8 x 25mm Bolt 2
A 5mm Allen Wrench 1
B 5mm Wrench 1
C 8mm Wrench 1
D 5mm Wrench 1
101 136
BA
44
C
D
46
27
100
MILLIMETERS

www.greenmasterfitness.com.tw 5
PARTS LIST
No. Description Qty. Order No. No. Description Qty. Order No.
1 M6 x 10mm Bolt 14 RB5-001 35 Crank Disk 1 RB5-035
2 Flywheel Shock Absorber 2 RB5-002 36 20 x 30 x T2 Washer 1 RB5-036
3 12 x 22 x T0.5 Plastic Washer 3 RB5-003 37 3/4" Nut 2 RB5-037
4 6901ZZ Bearing 1 RB5-004 38 Crank - Right 1 RB5-038
5 Flywheel Pulley 1 RB5-005 39 Seat Post 1 RB5-039
6 20 x 32 x T1Plastic Washer 1 RB5-006 40 Rear Vent Cover - Left 1 RB5-040
7 6004ZZ Bearing 4 RB5-007 41 Rear Vent Cover - Right 1 RB5-041
8 One Way Bearing 1 RB5-008 42 Computer 1 RB5-042
9 Flywheel 1 RB5-009 43 Console Upright Tube 1 RB5-043
10 N/A 44 M6 x 15mm Bolt 2 RB5-044
11 6201ZZ Bearing 1 RB5-011 45 Computer protect Cover 1 RB5-045
12 Flywheel Fan 4 RB5-012 46 4 x 19mm Screws 4 RB5-046
13 Bushing 1 RB5-013 47 Hand Pulse Sensor 2 RB5-047
14 M6 x 25mm Bolt 4 RB5-014 48 Handlebar - Left 1 RB5-048
15 Generator System 1 RB5-015 49 Handlebar Casing 2 RB5-049
16 Flywheel Axle 1 RB5-016 50 Handlebar - Right 1 RB5-050
17 M6 Nylon Nut 4 RB5-017 51 Saddle 1 RB5-051
18 Flywheel Axle Fixing Plate 1 RB5-018 52 Back Pad 1 RB5-052
19 4 x 19mm Screws 20 RB5-019 53 Back Pad Cover 1 RB5-053
20 Control Board 1 RB5-020 54 M8 x 10mm Bolt 6 RB5-054
21 M6 x 100mm Bolt 2 RB5-021 55 Aluminum Tube 1 RB5-055
22 Battery Upper 1 RB5-022 56 Seat Slider Bushing - Upper 1 RB5-056
23 Battery Lower 1 RB5-023 57 Hub Holder 1 RB5-057
24 Sensor 1 RB5-024 58 Pedal - Left 1 RB5-058
25 Battery 1 RB5-025 59 Hub 1 RB5-059
26 Resistor 1 RB5-026 60 Chain Cover - Front Left 1 RB5-060
27 M8 x 10mm Bolt 6 RB5-027 61 Vent Cover - Left 1 RB5-061
28 Stabilizer Tube Cap 4 RB5-028 62 Front Upright Cover 1 RB5-062
29 Crank Cap 2 RB5-029 63 Iron Plate Nut 8 RB5-063
30 3/8" Nut 2 RB5-030 64 Chain Cover - Front Right 1 RB5-064
31 Crank - Left 1 RB5-031 65 Vent Cover - Right 1 RB5-065
32 M6 x 12mm Bolt 4 RB5-032 66 Chain Cover - Rear Left 1 RB5-066
33 Crank Shaft 1 RB5-033 67 Small Vent Cover - Rear 1 RB5-067
34 Drive Belt 1 RB5-034 68 Pedal - Right 1 RB5-068

6 MOMENTUM RB5 RECUMBENT BIKE
PARTS LIST
No. Description Qty. Order No. No. Description Qty. Order No.
69 Chain Cover - Rear Right 1 RB5-069 103 Hand Pulse Wires - Lower 1 RB5-103
70 Computer Wire Lower 1 RB5-070 104 4 x 19mm Screws 5 RB5-104
71 Hand Pulse Wires - Upper 1 RB5-071 105 Hand Pulse Holder - Left 1 RB5-105
72 Computer Wire Upper 1 RB5-072 106 Hand Pulse Cap 2 RB5-106
73 Hand Pulse Wire - Middle 1 RB5-073 107 Hand Pulse Holder - Right 1 RB5-107
74 Computer Wire Middle 1 RB5-074 108 Hand Pulse Connect Bracket - Left 1 RB5-108
75 Hand Pulse Sensor Wires 1 RB5-075 109 Hand Pulse Connect Bracket -
Right 1 RB5-109
76 Seat Slider Wheel - Rear 1 RB5-076 110 Seat Post Fixing Piece 1 RB5-110
77 M8 x 25mm Bolt 6 RB5-077 111 Fixing Ring 4 RB5-111
78 Spring Steel Piece 1 RB5-078 112 Seat Adjustment Pull Bar 1 RB5-112
79 Tension Pulley 1 RB5-079 113 Fixing Handlebar Foam Grip 2 RB5-113
80 Fixing Set for Console Upright 1 RB5-080 114 8mm C - Fixing 6 RB5-114
81 Main Frame 1 RB5-081 115 Fixing Tube 1 RB5-115
82 M5 x 8mm Bolt 2 RB5-082 116 M8 x 25mm Bolt 1 RB5-116
83 10 x 140mm Axle 1 RB5-083 117 M8 Nylon Nut 1 RB5-117
84 Bottle Holder 1 RB5-084 118 8 x 70mm Axle 1 RB5-118
85 Water Bottle 1 RB5-085 119 8mm Washer 1 RB5119
86 Level Adjusters 4 RB5-086 120 86 x 8mm Axle 2 RB5-120
87 Sensor Magnet 1 RB5-087 121 6 x 52mm Axle 2 RB5-121
88 M5 x 12mm Bolt 2 RB5-088 122 6mm C - Fixing 4 RB5-122
89 M10 x 100mm Bolt 1 RB5-089 123 Upper Brake 1 RB5-123
90 M10 Nylon Nut 3 RB5-090 124 Lower Brake 1 RB5-124
91 M8 x 50mm CAP Bolt 4 RB5-091 125 Brake support piece - Upper 1 RB5-125
92 Back Pad Handrail 1 RB5-092 126 Brake support piece - Lower 1 RB5-126
93 Cushion Cover - Upper 2 RB5-093 127 Spring 1 RB5-127
94 Cushion Cover - Lower 2 RB5-094 128 Seat Slider Wheel 1 RB5-128
95 Seat Slider Bushing - Lower 1 RB5-095 129 10 x 70mm Axle 1 RB5-129
96 Cushion 4 RB5-096 130 10mm Washer 4 RB5-130
97 Seat Post Cover 1 RB5-097 131 10mm C - Fixing 3 RB5-131
98 Back Pad Support Tube 1 RB5-098 132 Seat Post Support Bracket 1 RB5-132
99 M8 x 55mm Bolt 5 RB5-099 133 Seat Post Slider Wheel - Upper 1 RB5-133
100 M8 x 45mm Bolt 8 RB5-100 134 Seat Post Slider Wheel - Lower 1 RB5-134
101 4 x 9mm Screws 10 RB5-101 135 4 x 16mm Screws 2 RB5-135
102 M8 x 15mm Bolt 8 RB5-102 136 M8 x 25mm Bolt 2 RB5-136

www.greenmasterfitness.com.tw 7

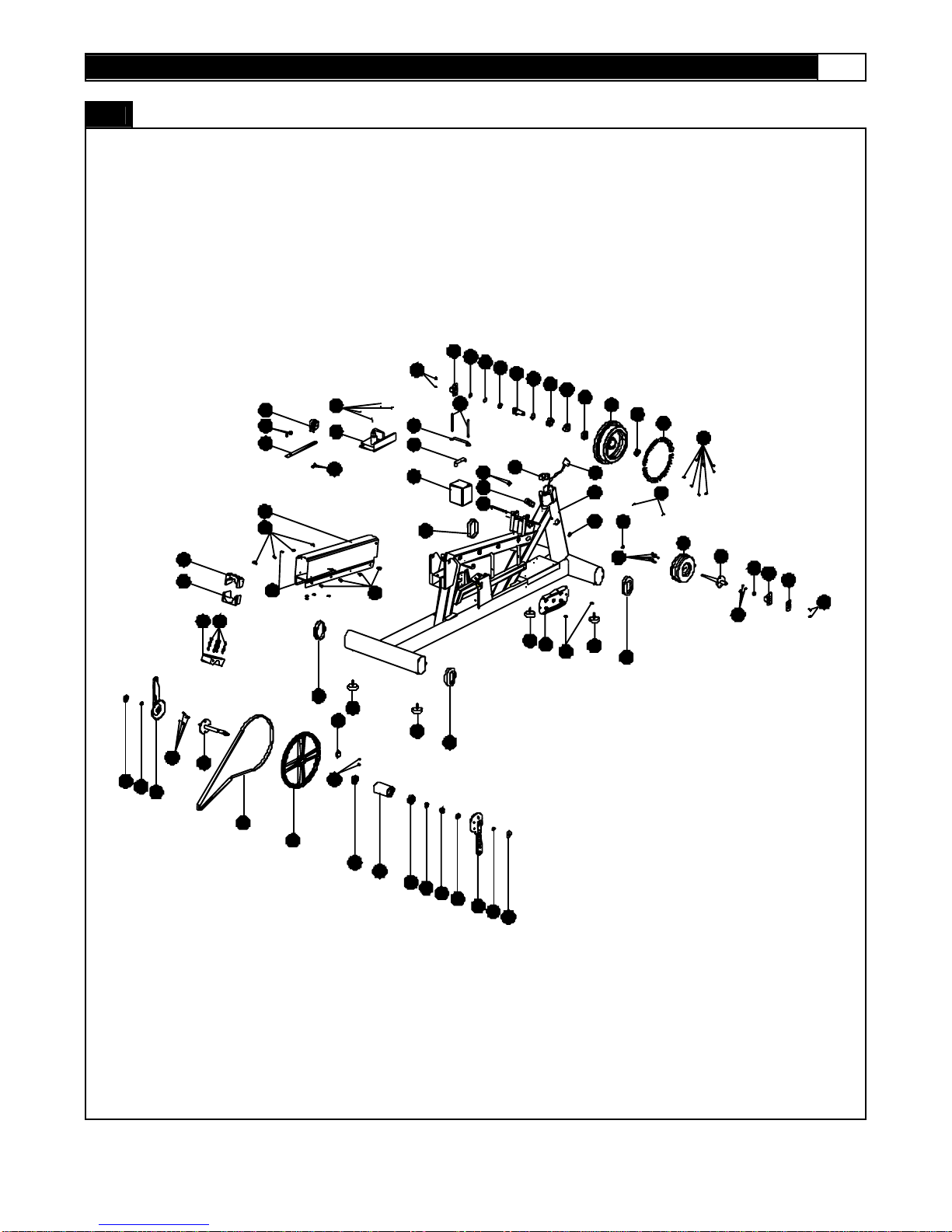

PARTS DIAGRAM
AMAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
81
86 28
28
28
86
28
86
86
80 70
20
19
77
78
79
17
218
1
13
15
14 16
1
11 12
9
7
78
34
3
6
5
1
2
1
24
19
89 82
90
102
55
57 91
56
19
95
26 54
3
102
22
25
23
21
59
135
87
35
34
32 33
31
37
36
7
7
29 30
29
38
37 30

8 MOMENTUM RB5 RECUMBENT BIKE
PARTS DIAGRAM
AMAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
27
50
48
42
43
44
45
46
27
74
71 72
49
49
73

www.greenmasterfitness.com.tw 9
PARTS DIAGRAM
AMAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
75
47106
88
100
54
107
109
114
120
124
126
122
121
114123120
125 127
121
129128
131
133
75
108
88
51
47
105
54
100
106
100
132
39
114 118
119 114
117
116
115
112
77
110
111 113
111 77 99 100
134
131130
103
130
131
114
122 122
122
114
113

10 MOMENTUM RB5 RECUMBENT BIKE
PARTS DIAGRAM
AMAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
99
92
53
52
96
93
101
94
96
98
97
136

www.greenmasterfitness.com.tw 11
PARTS DIAGRAM
AMAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
60
61
66
67
63
81
69
101
19
62
43
64
65
63
6858
40
41
39
104
90130 83 76 13090
63
104 19
104
101
19
19
63
104
101
101
104
84
85

12 MOMENTUM RB5 RECUMBENT BIKE
ASSEMBLY

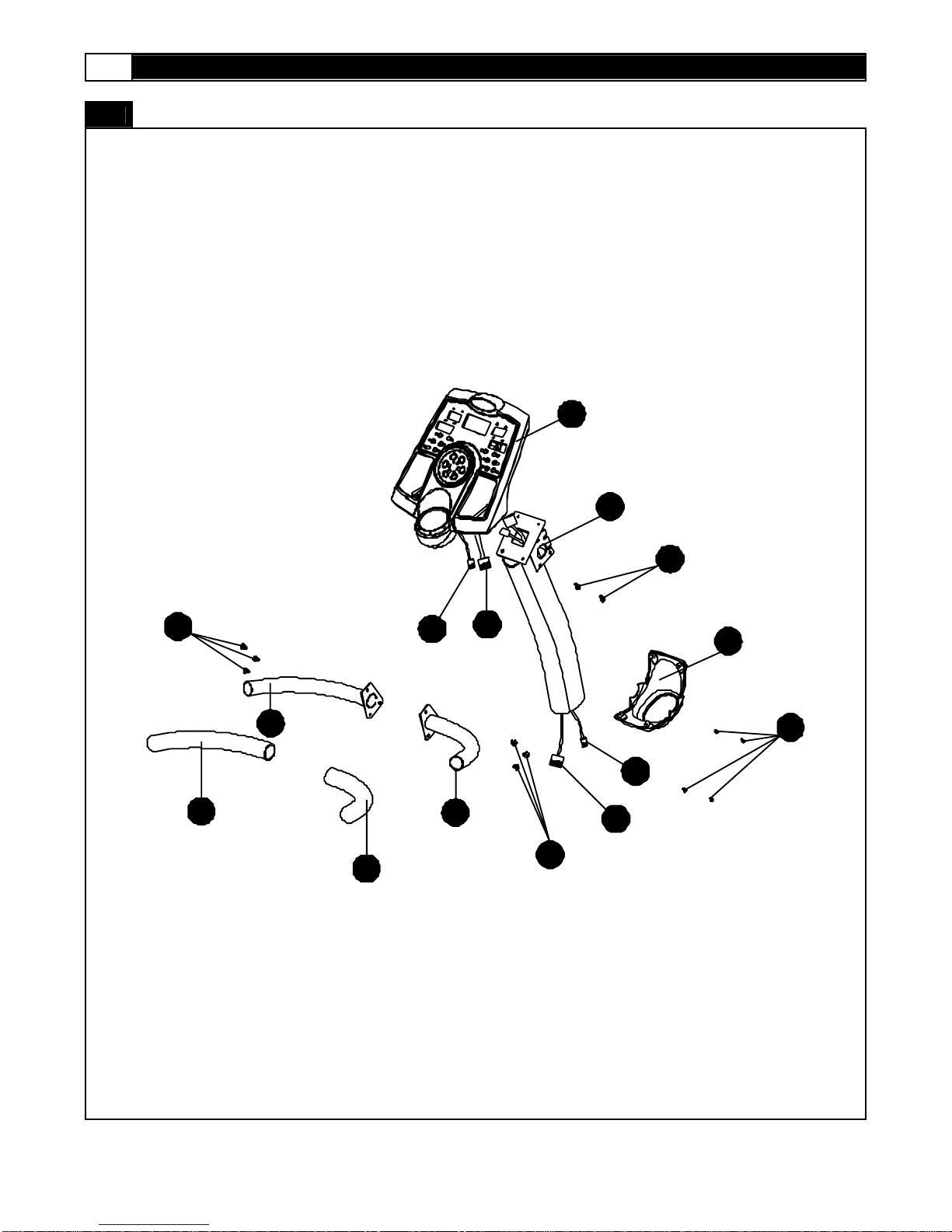

STEP 1:
First connect the Computer Wire - Upper (72) to the Computer Wire - Middle (74) and the
Hand Pulse Wire - Upper (71) to the Hand Pulse Wire - Middle (73). Then attach the
Computer (42) to the Console Upright Tube (43) and secure using two M6 x 15mm Bolts
(44).
Attach the Handlebar – Left (48) to the Console Upright Tube (43) and secure using three
M8 x 10mm Bolts (27). Attach the Handlebar – Right (50) to the Console Upright Tube (43)
and secure using three M8 x 10mm Bolts (27).
NOTE: Make sure all wires are recessed into the tube, do not trap or pinch any of the wires.
x2
x6
71
72
74
71
73
72
48
42
50
44
73
74
27
43
27

www.greenmasterfitness.com.tw 13
ASSEMBLY
STEP 2:
Slide the Computer Protect Cover (45) onto the Console Upright Tube (43)and attach to the
Computer – Bottom (42) with four 4 x 19mm Screws (46).
x4
42
43
46
45

14 MOMENTUM RB5 RECUMBENT BIKE
ASSEMBLY

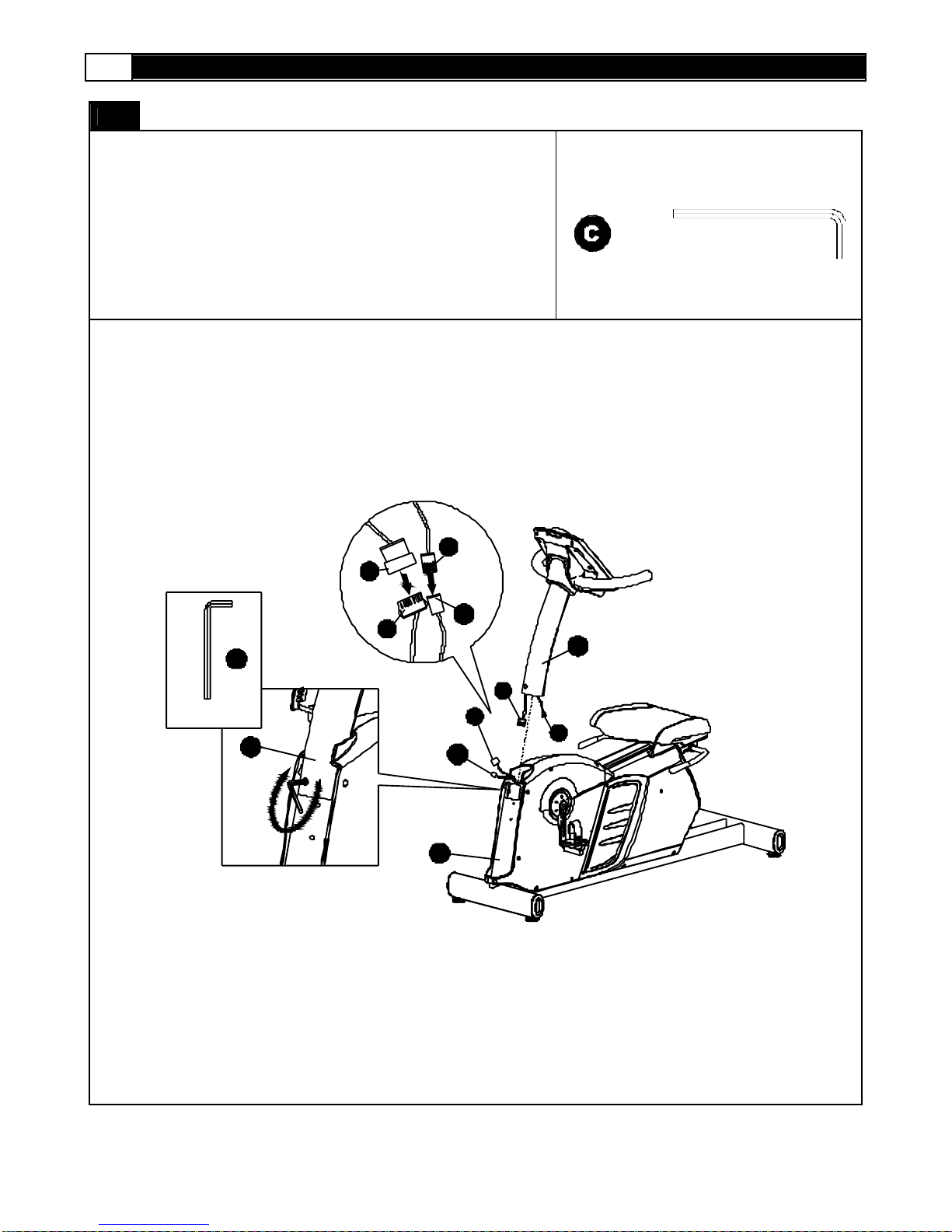

STEP 3:
Connect the Computer Wire – Middle (74) to the Computer Wire – Lower (70)
and the Hand Pulse Wire – Middle (73)to the Hand Pulse Wire – Lower
(103). Insert any extra cable length into the Console Upright Tube (43).
Insert the Console Upright Tube (43) into the MainFrame (81) and secure by
tightening the one Bolt as shown.
NOTE: Make sure all wires are recessed into the tube, do not trap or pinch
any of thewires.
x1
74
70 73
103
43
103
70
73
74
C
43
8mm Wr ench
81

www.greenmasterfitness.com.tw 15
ASSEMBLY

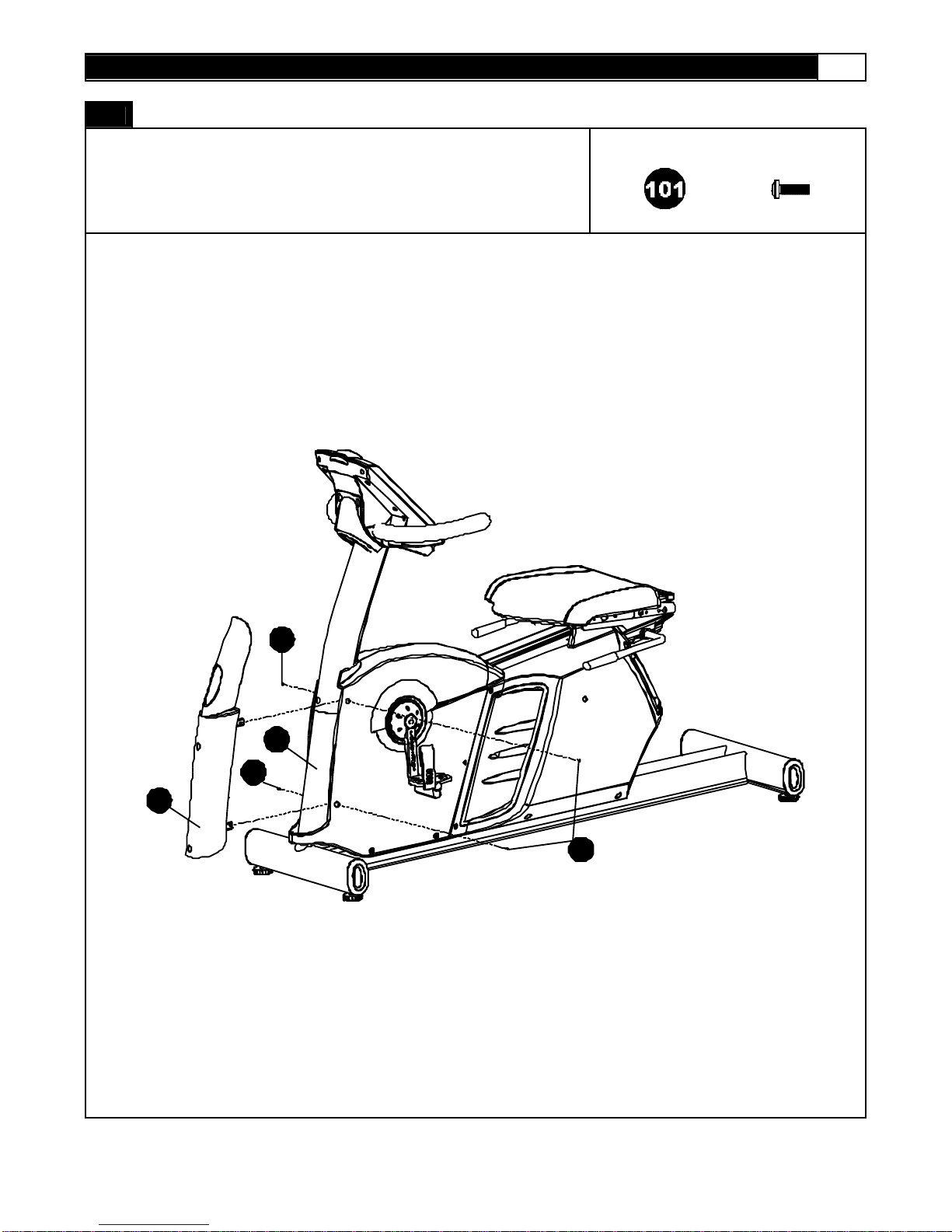

STEP 4:
Attach the Front Upright Cover (62) to the Main Frame (81) and secure usingfour
4 x 9mm Screws (101).
x4
81
62
101
101
101

16 MOMENTUM RB5 RECUMBENT BIKE
ASSEMBLY
STEP 5:
Connect the Hand Pulse Sensor Wires (75) and Hand Pulse Wires – Lower (103) as
shown.
Attach the Hand Pulse Connect Bracket – Right (109) to the Seat Post (39) and secure
using two M8 x 50mm Bolts (100). Then attach the Hand Pulse Connect Bracket – Left
(108) to the Seat Post (39) and secure using two M8 x 50mm Bolts (100).
NOTE: Make sure the wires are recessed into the tube, do not trap or pinch the wires.
x4
103
75 108
109
75
103
75
75
108 109
100
100 39
75

www.greenmasterfitness.com.tw 17
ASSEMBLY

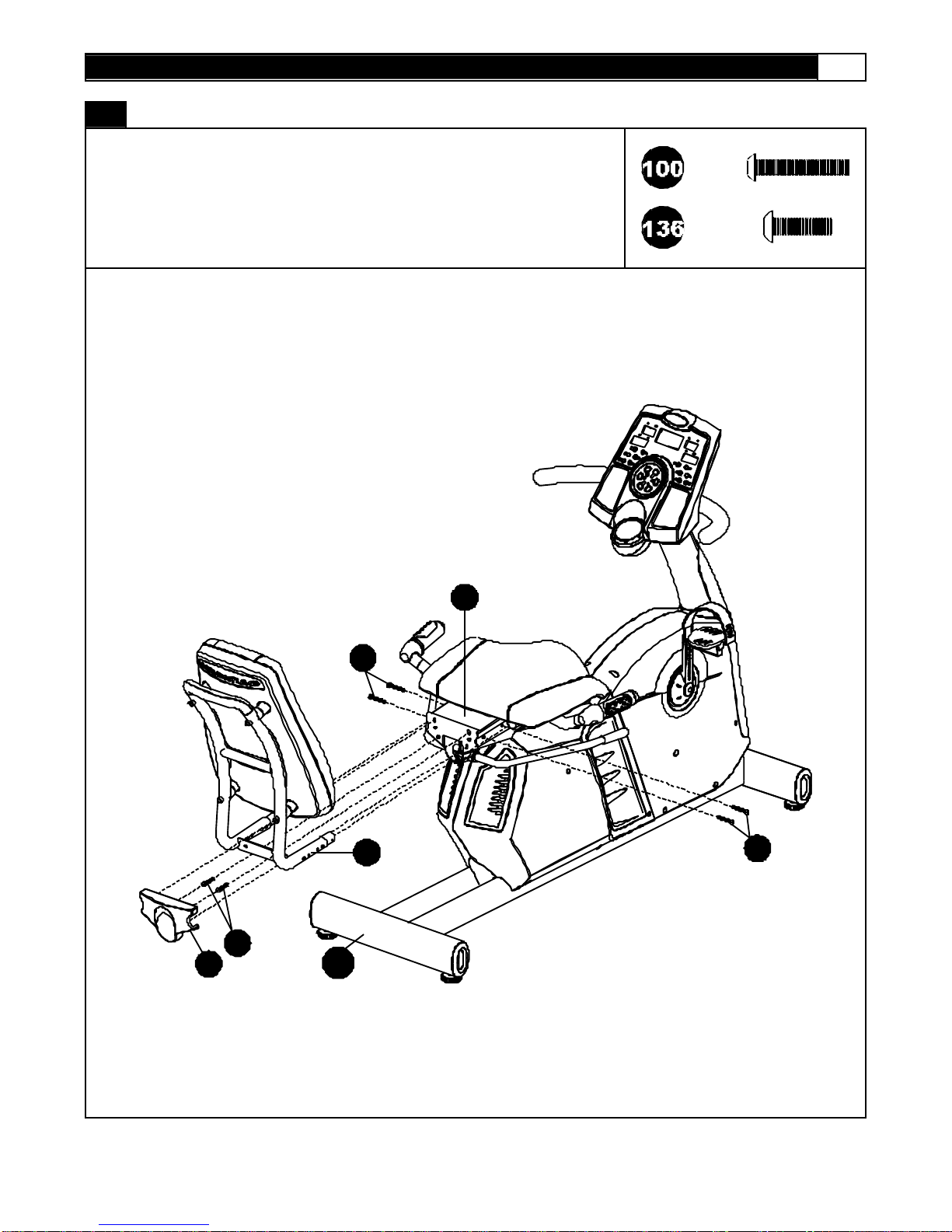

STEP 6:
Attach the Back Pad Support Tube (98) to the Seat Post (39) and secure using four M8 x
50mm Bolts (100) and two M8 x 25mm Bolts (136).
Attach the Seat Post Cover (97) to the Back Pad Support Tube (98).
x4
x2
136
100
97
98
39
81
100

18 MOMENTUM RB5 RECUMBENT BIKE
ASSEMBLY
STEP 7:
Insert the Bottle Holder (84) into the Computer (42).
Congratulations your RB5 Recumbent Bike has been fully assembled.

www.greenmasterfitness.com.tw 19

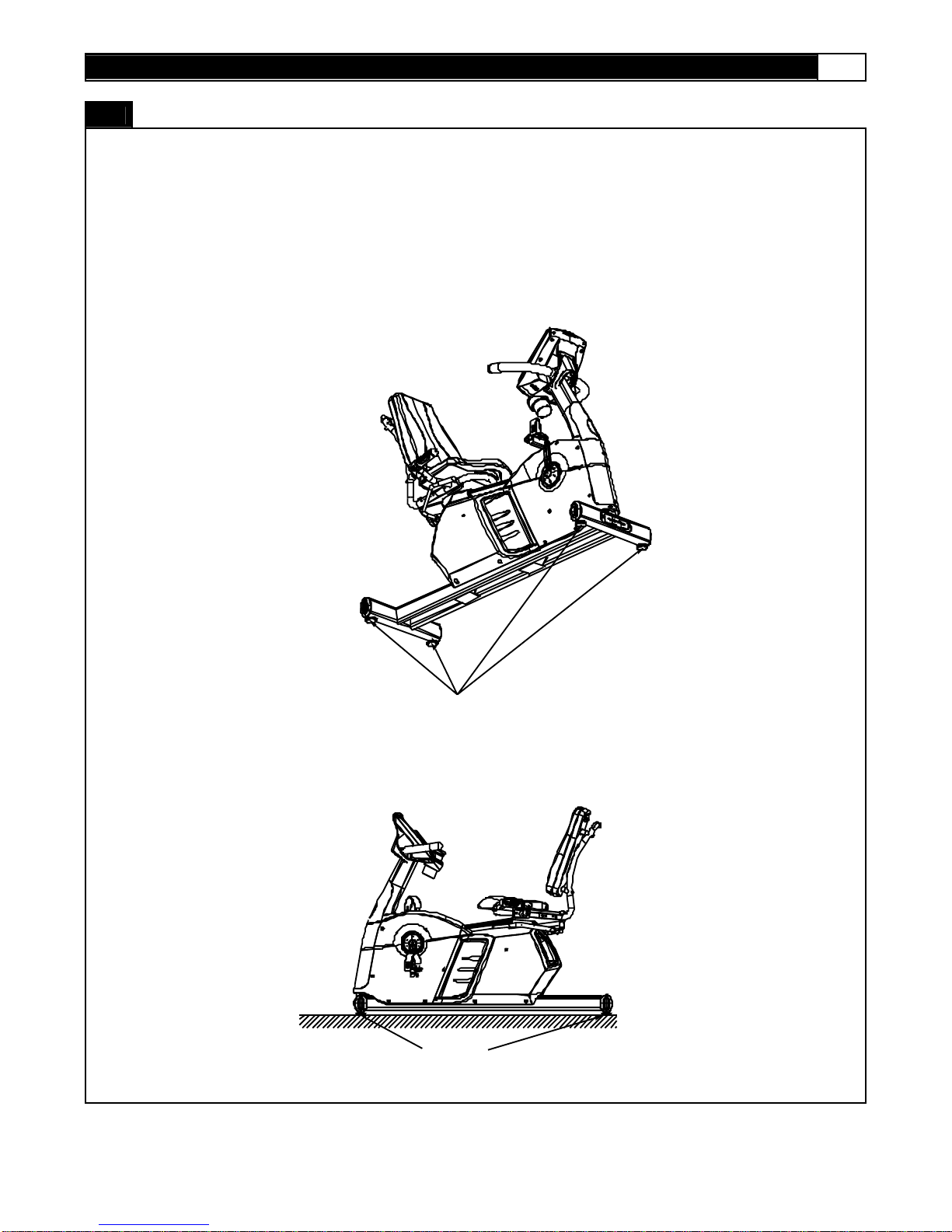

LEVEL ADJUSTMENT
LEVEL ADJUSTMENT:
To adjust the levelersfollowthese instructions:
You will need someone to helpyou with this procedure, as you will need to tip recumbent bikes on its side.
Tip the recumbent bike to the left/right. Youwill then see the LEVEL ADJUSTERS. These will need to be screwed either in or out
to level the recumbent bike. Repeat for the other side. It may help to use a spirit level when adjusting the level onyour recumbent
bike.
stabilizer
Floor
Please find 4 adjustable stabilizers and 4
installed casters underneath the base frame

20 MOMENTUM RB5 RECUMBENT BIKE
SEAT ADJUSTMENT
SE AT AD JU STMEN T:
Pull up on the Seat Adjustment Pull Bar located underneath the seat. Slide the seatforward orbackward toyourdesired position
as shown. Push the Seat Adjustment Pull Bar down to lock the seat position.
