MOMENTUM UB5 UPRIGHT BIKE
USER MANUAL

2 MOMENTUM UB5 UPRIGHT BIKE
PREASSEMBLY
Open the boxes:
You are now ready to open the boxes of your new equipment. Make sure to inventory all of the parts that are included in the boxes.
Check the Parts List for a full count of the number of parts included for this product to be assembled properly. If you are missing
any parts or have any assembly questions call your local dealer.
Gather your tools:
Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may require to assemble
the unit properly. Having all of the necessary equipment at hand will save time and make the assembly quick and hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is free from
anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a comfortable amount of free
area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another person when
assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 160 kg. it is not recommended that you use this
product. Serious injury may occur if the user’s weight exceeds the limit shown here. This product is not intended to support users
whose weight exceeds this limit.

www.greenmasterfitness.com.tw 3
CONTENTS CHECKLIST
Carton chart:
For your convenience, we have identified the contents of the shipping carton. Please check to make sure you have all of the
components before assembly. This chart is provided to help you identify the components used in the assembly of this product.
No. Description Qty.
42 Computer 1
43 Console Upright Tube 1
45 Computer Protect Cover 1
48 Handlebar Post 1
55 Seat Post 1
62 Front Upright Cover 1
81 Main Frame 1
83 Bottle Holder 1
84 Water Bottle 1
84
83
81
62
55
48
45
43
42

4 MOMENTUM UB5 UPRIGHT BIKE
HARDWARE COMPARISON CHART
Hardware chart:
For your convenience, we have identified the hardware used in the assembly of this product. This chart is provided to help you
identify those items that may be unfamiliar to you.
No. Description Qty.
27 M8 x 10mm Bolt 6
44 M6 x 15mm Screw 4
46 4 x 19mm Bolt 4
85 4 x 9mm Screw 4
A Screw Driver 1
B 5mm Wrench 1
C 8mm Wrench 1
27 44 46 85 A
BC
MILLIMETERS

www.greenmasterfitness.com.tw 5
PARTS LIST
No. Description Qty. Order No. No. Description Qty. Order No.
1 M6 x 10mm Bolt 14 UB5-001 35 Crank Disk 1 UB5-035
2 Flywheel Shock Absorber 2 UB5-002 36 20 x 30 x T2 Washer 1 UB5-036
3 12 x 22 x T0.5 Plastic Washer 2 UB5-003 37 3/4" Nut 2 UB5-037
4 6901ZZ Bearing 1 UB5-004 38 Crank - Right 1 UB5-038
5 Flywheel Pulley 1 UB5-005 39 V Type Hand Pulse Sensor - Upper 1 UB5-039
6 20 x 32 x T1Plastic Washer 1 UB5-006 40 V Type Hand Pulse Sensor - Lower 1 UB5-040
7 6004ZZ Bearing 4 UB5-007 41 3 x 12mm Screws 7 UB5-041
8 One Way Bearing 1 UB5-008 42 Computer 1 UB5-042
9 Flywheel 1 UB5-009 43 Console Upright Tube 1 UB5-043
10 Bearing Bracket 1 UB5-010 44 M6 x 15mm Bolt 4 UB5-044
11 6201ZZ Bearing 1 UB5-011 45 Computer protect Cover 1 UB5-045
12 Flywheel Fan 4 UB5-012 46 4 x 19mm Screws 15 UB5-046
13 Bushing 1 UB5-013 47 Hand Pulse Sensor 2 UB5-047
14 M6 x 25mm Bolt 4 UB5-014 48 Handlebar - Left 1 UB5-048
15 Generator System 1 UB5-015 49 Handlebar Casing 1 UB5-049
16 Flywheel Axle 1 UB5-016 50 Handlebar - Right 1 UB5-050
17 M6 Nylon Nut 4 UB5-017 51 Saddle 1 UB5-051
18 Flywheel Axle Fixing Plate 1 UB5-018 52 Saddle Prop Tube 1 UB5-052
19 4 x 19mm Screws 20 UB5-019 53 Saddle Plastic Sleeve 1 UB5-053
20 Control Board 1 UB5-020 54 M8 x 15mm Bolt 4 UB5-054
21 M6 x 100mm Bolt 2 UB5-021 55 Seat Post 1 UB5-055
22 Battery Upper 1 UB5-022 56 Aluminum Sleeve 1 UB5-056
23 Battery Lower 1 UB5-023 57 Loop for Seat Post 1 UB5-057
24 Sensor 1 UB5-024 58 Pedal - Left 1 UB5-058
25 Battery 1 UB5-025 59 Height Adjustment Knob 1 UB5-059
26 Resistor 1 UB5-026 60 Chain Cover - Front Left 1 UB5-060
27 M8 x 10mm Bolt 8 UB5-027 61 Vent Cover - Left 1 UB5-061
28 Stabilizer Tube Cap 4 UB5-028 62 Front Upright Cover 1 UB5-062
29 Crank Cap 2 UB5-029 63 Iron Plate Nut 8 UB5-063
30 3/8" Nut 2 UB5-030 64 Chain Cover - Front Right 1 UB5-064
31 Crank - Left 1 UB5-031 65 Vent Cover - Right 1 UB5-065
32 M6 x 12mm Bolt 4 UB5-032 66 Chain Cover - Rear Left 1 UB5-066
33 Crank Shaft 1 UB5-033 67 Vent Cover - Rear 1 UB5-067
34 Drive Belt 1 UB5-034 68 Pedal - Right 1 UB5-068

6 MOMENTUM UB5 UPRIGHT BIKE
PARTS LIST
No. Description Qty. Order No. No. Description Qty. Order No.
69 Chain Cover - Rear Right 1 UB5-069
70 Computer Wire Lower 1 UB5-070
71 Hand Pulse Wire - Upper Left 1 UB5-071
72 Computer Wire Upper 1 UB5-072
73 Hand Pulse Wire - Upper Right 1 UB5-073
74 Computer Wire Middle 1 UB5-074
75 Hand Pulse Wire - Lower Left 1 UB5-075
76 Hand Pulse Wire - Lower Right 1 UB5-076
77 M8 x 25mm Bolt 2 UB5-077
78 Spring Steel Piece 1 UB5-078
79 Tension Pulley 1 UB5-079
80 Fixing Set for Console Upright 1 UB5-080
81 Main Frame 1 UB5-081
82 M5 x 8mm Bolt 2 UB5-082
83 Bottle Holder 1 UB5-083
84 Water Bottle 1 UB5-084
85 4 x 9mm Screw 4 UB5-085
86 Level Adjusters 4 UB5-086
87 Sensor Magnet 1 UB5-087
88 M5 x 10mm Bolt 2 UB5-088

www.greenmasterfitness.com.tw 7

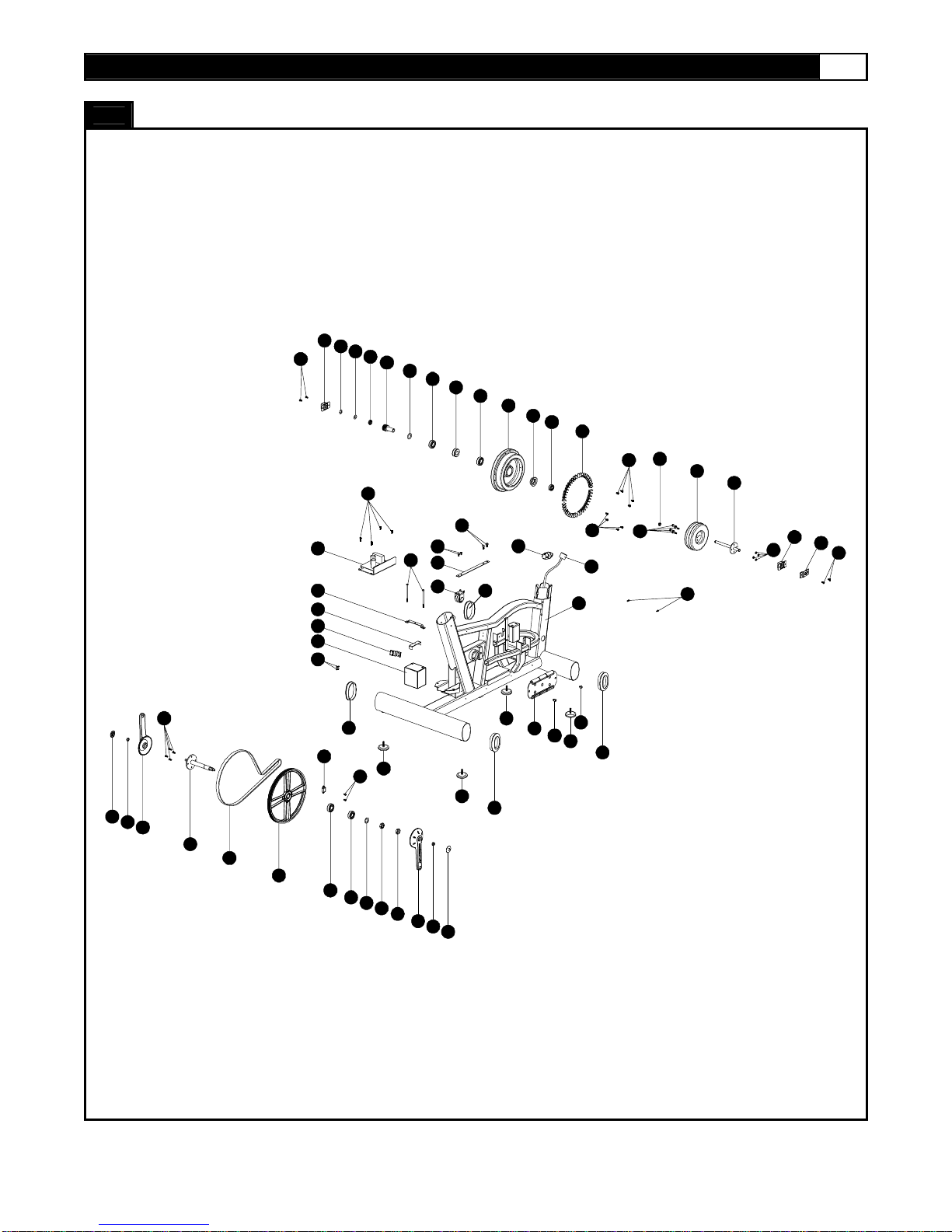

PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
10
9
7
8
7
6
5
4
3
3
2
1
1
1
12
11
1
18
2
17
16
15
14
13
82
27
86
28
28
28
86
27
26
86
19
25
24
23
22
21
20
19
79
78
1
77
80
81
70
29 30 31
32
33 34
35
7736 37 37 38 30 29
87
88 86
28

8 MOMENTUM UB5 UPRIGHT BIKE
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
41
47
27
50
49
48
41
47
42
43
44
45
46
39
40
41
27
74
75 76
71 72 73
44
83
84

www.greenmasterfitness.com.tw 9
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
60 61
46 19
66
67
63
81
68
69
46 19
51
52
53
54
55
56
57
85
58
59
62
43
64 65
63
54
85
85
46

10 MOMENTUM UB5 UPRIGHT BIKE
ASSEMBLY
STEP 1:
Loosen the Height Adjustment Knob (59). Insert the Seat Post (55) into the Main Frame (81).
Choose the desired position and retighten the Height Adjustment Knob (59). Ensure that the knob is always firmly
tightened before use.
55
81
81
59
59

www.greenmasterfitness.com.tw 11
ASSEMBLY
STEP 2:
Slide the Computer Protect Cover (45) onto the Console Upright Tube (43) and connect the Computer Wire –
Middle (74) to the Computer Wire – Lower (70). Slide the Console Upright Tube (43) onto the Main Frame (81).
43
70
74
81
45
70
74

12 MOMENTUM UB5 UPRIGHT BIKE
ASSEMBLY
STEP 3:
Secure the Console Upright Tube (43) to the Main Frame (81) by tightening the Bolt as shown.
81
43
8mm Wrench

www.greenmasterfitness.com.tw 13
ASSEMBLY
STEP 4:
First insert the Hand Pulse Wire – Lower Left (75) and Lower Right (76) into the
holes on the sides of the Console Upright Tube (43). Then feed both through and
out the top of the Console Upright Tube (43) as shown.
Attach the Handlebar Left (48) and Handlebar Right (50) to the Console Upright
Tube (43) then secure using six M8 x 10mm Bolts (27).
NOTE: Make sure all wires are recessed into the Console Upright Tube (43), do not
trap or pinch any of the wires.
x6
43
48 50
27
27 75 76

14 MOMENTUM UB5 UPRIGHT BIKE
ASSEMBLY

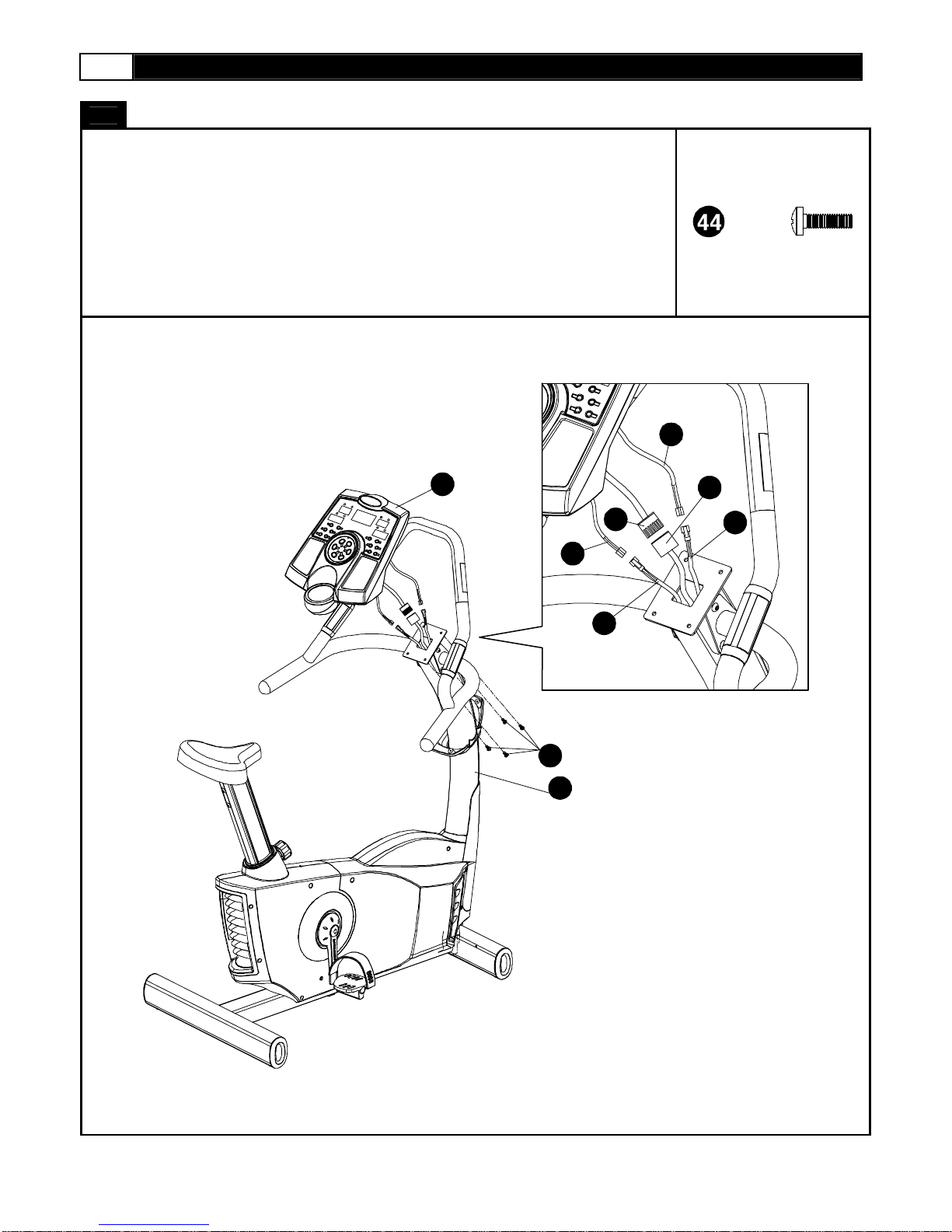

STEP 5:
Connect the Computer Wire – Upper (72) to the Computer Wire – Middle (74).
Connect the Hand Pulse Wire – Upper Left (71) to the Hand Pulse Wire – Lower Left (75) and the
Hand Pulse Wire – Upper Right (73) to the Hand Pulse Wire – Lower Right (76).
Attach the Computer (42) to the Console Upright Tube (43) and secure using four M6 x 15mm
Bolts (44).
NOTE: Make sure the wires are recessed into the Console Upright Tube, do not trap or pinch the
wires.
x4
44
43
72
71
73
74
75
76
42

www.greenmasterfitness.com.tw 15
ASSEMBLY

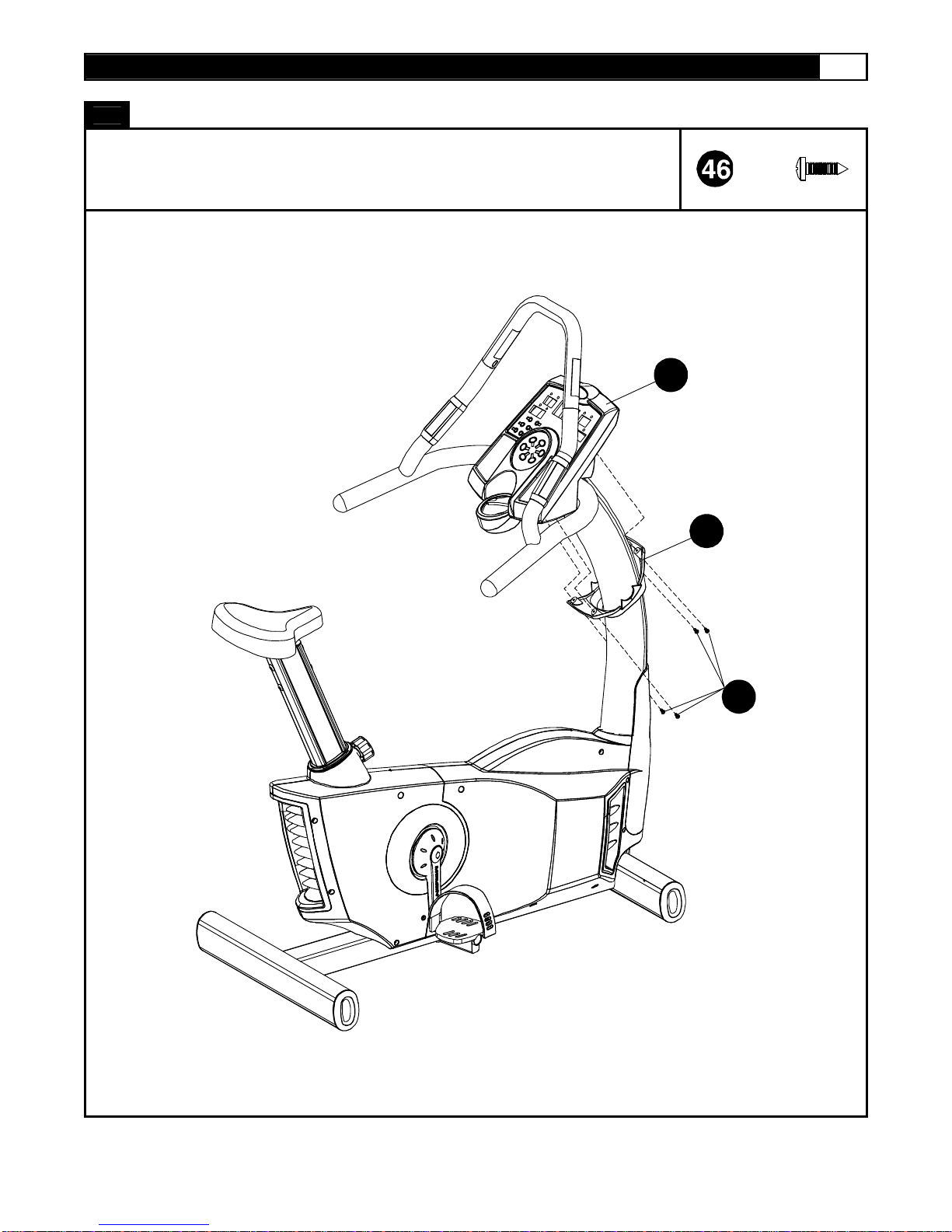

STEP 6:
Attach the Computer Protect Cover (45) to the Computer Bottom (42) and secure using four 4 x
19mm Screws (46). x4
46
45
42

16 MOMENTUM UB5 UPRIGHT BIKE
ASSEMBLY

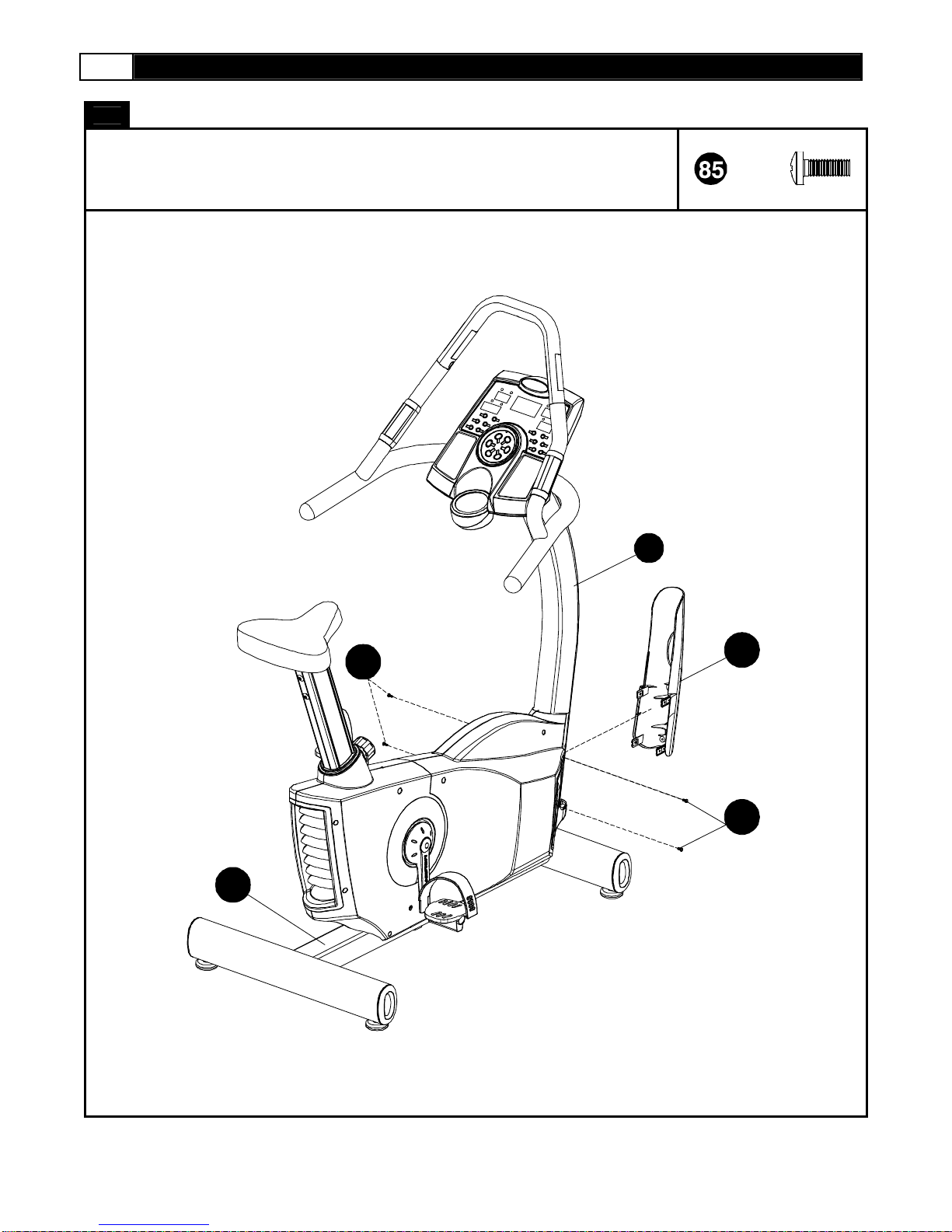

STEP 7:
Attach the Front Upright Cover (62) to the Main Frame (81) and secure using four 4 x 9mm Screws
(85). x4
62
85
43
85
81

www.greenmasterfitness.com.tw 17
ASSEMBLY
STEP 8:
Attach the Bottle Holder (83) to the Computer (42).
Congratulations your UB5 Upright Bike has been fully assembled.
83
42

18 MOMENTUM UB5 UPRIGHT BIKE
LEVEL ADJUSTMENT
LEVEL ADJUSTMENT:
To adjust the levelers followthese instructions:
You will need someone to help you with this procedure, as you will need to tip the bike on its side.
Tip the bike to the left/right. You will then see the LEVEL ADJUSTERS. These will need to be screwed either in or out to level the
bike. Repeat for the other side. It may help to use a spirit level when adjusting the level on your bike.
stabilizer
Floor
Please find 4 adjustable stabilizers and 4
installed casters underneath the base frame

www.greenmasterfitness.com.tw 19
SEAT HEIGHT ADJUSTMENT
SEAT HEIGHT ADJUSTMENT:
Unscrew the Height Adjustment Knob (59) and pull. Please note you don’t have to fully remove the knob in order to release the
Seat Post (55). Once you have done this you can alter the height of the Saddle. When you have selected the correct height, screw
the knob back in.
59
55

20 MOMENTUM UB5 UPRIGHT BIKE

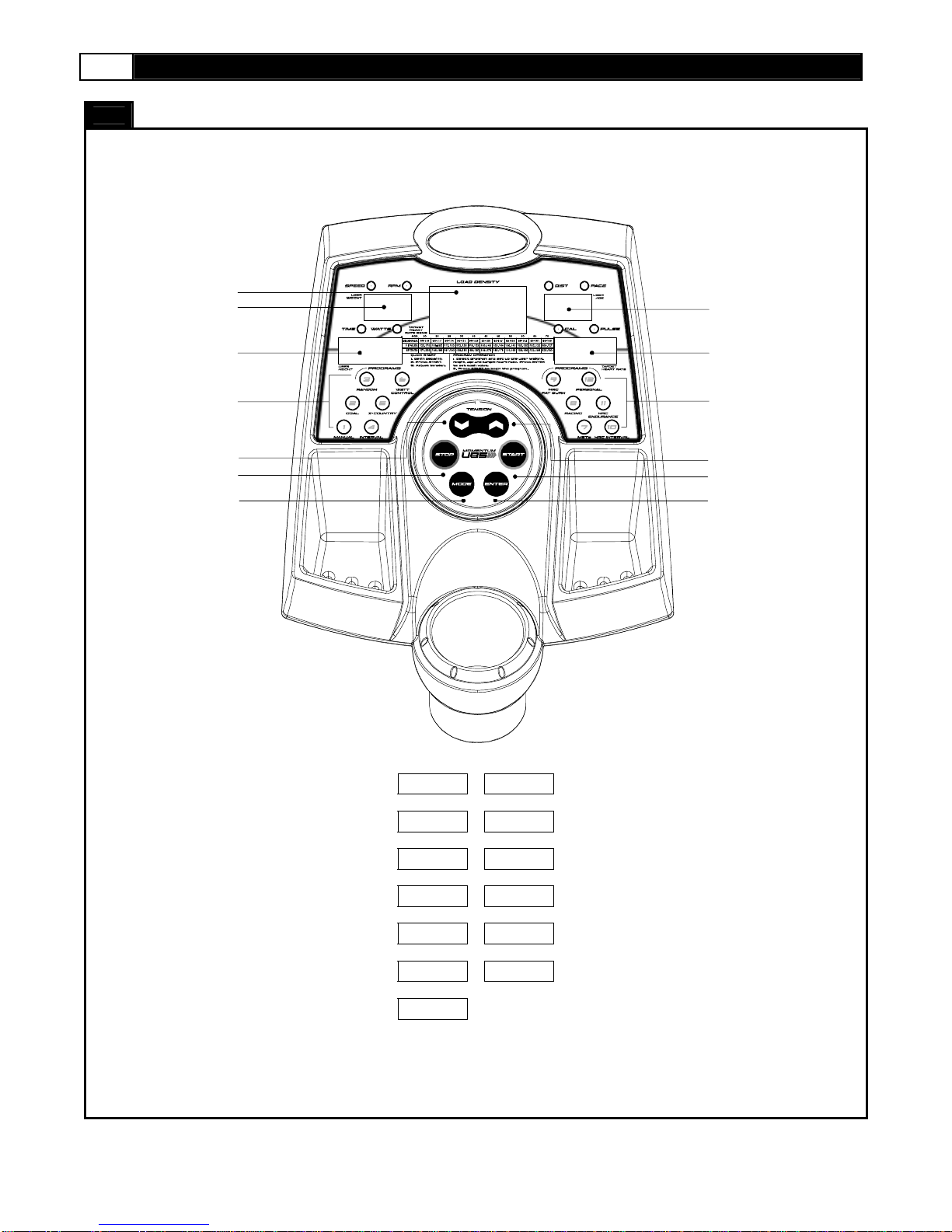

COMPUTER OPERATION
GM
L
K
J
I
H
F
E
D
C
B
A
LOAD DENSITY A B SPEED/RPM
TIME/WATTS C D PRESET PROGRAMS
UP E F STOP
MODE G H DISTANCE/PACE
CALORIES/PULSE I J PRESET PROGRAMS
DOWN K L START
ENTER M
