GreenTec Spearhead Multi-Cut 160 User manual

Spearhead Multi-Cut 160 & 200
1
11
1
Spearhead
SpearheadSpearhead
Spearhead
Multi
MultiMulti
Multi-
--
-Cut
CutCut
Cut 16
1616
160 & 200
0 & 2000 & 200
0 & 200
Handbook & Parts
Handbook & Parts Handbook & Parts
Handbook & Parts Book
BookBook
Book
3
rd
Edition – June 2004
Important Note
The information contained in this manual is correct at the time of publication.
However, in the course of constant development, changes in specification are
inevitable. Should you find the information given in this book different to the
machine it relates to please contact the “After Sales Department” for advice
© Spearhead Machinery Limited 2003
Please ensure that this manual is handed to the operator before using the
machine for the first time. The operator must fully understand the contents
of this manual before using this machine.
(If the machine is resold the Manual must be given to the new owner.)
Spearhead Machinery
Green View
Salford Priors
Evesham
Worcestershire
WR11 8SW
Tel: [phone]
Fax: [phone]
www.spearheadmachinery.com
[e-mail]

Spearhead Multi-Cut 160 & 200
2
22
2
EC Declaration of Conformit ,
EC Declaration of Conformit ,EC Declaration of Conformit ,
EC Declaration of Conformit ,
Conforming t
Conforming tConforming t
Conforming to EEC Directive
o EEC Directiveo EEC Directive
o EEC Directive
89/392/EEC, 98/37/EC & 98/38/EC
89/392/EEC, 98/37/EC & 98/38/EC89/392/EEC, 98/37/EC & 98/38/EC
89/392/EEC, 98/37/EC & 98/38/EC
We, Spearhead Machiner Ltd, Green View, Salford Priors, Evesham,
Worcestershire, WR11 8SW declare under our sole responsibilit that the :
Product ……………………………………………………………
Product Code ……………………………………………………………
Serial No ……………………………………………………………
Flail Head Serial No ……………………………………………………………
T pe ……………………………………………………………
Manufactured b the above compan complies with the required provisions of
the directive 89/392/EEC, 98/37/EC and 98/38/EC and AMD 91/368/EEC,
AMD 93/44/EEC, AMD 93/68/EEC and conforms with European norm.
BSEN 292; Part 1: 1991 Safet of Machiner – Technical, Methodolog ; Part 2:
1991 Safet of Machiner - Technical Specifications and other national
standards associated with its design and construction as listed in the
Technical File.
Signed
SignedSigned
Signed………………………………………………………………………………………..
(On behalf of Spearhead Machiner Ltd)
(On behalf of Spearhead Machiner Ltd) (On behalf of Spearhead Machiner Ltd)
(On behalf of Spearhead Machiner Ltd)
Status General Manager
Date.......
..............
.....................................
............................................................
..............................

Spearhead Multi-Cut 160 & 200
3
33
3
Contents
Important Safety 4
Safety Stickers 5
Installing our machine
Installing our machineInstalling our machine
Installing our machine
Introduction 6
Safety First 6
Tractor Requirements 6
Attaching To The Tractor 7
Setting Up & Adjustments 8
Machine Protection 8
Operation 9
Transportation 9
Servicing & Maintenance
Servicing & MaintenanceServicing & Maintenance
Servicing & Maintenance
Safety First 10
Torque Settings 10
Daily/Every 8 Hours 11
Every 20 Hours 11
Regularly 11
Blades 11
Optional Chain Kit 12
Skids 12
Storage 13
After Storage 13
Warranty 14
Parts List
Parts ListParts List
Parts List

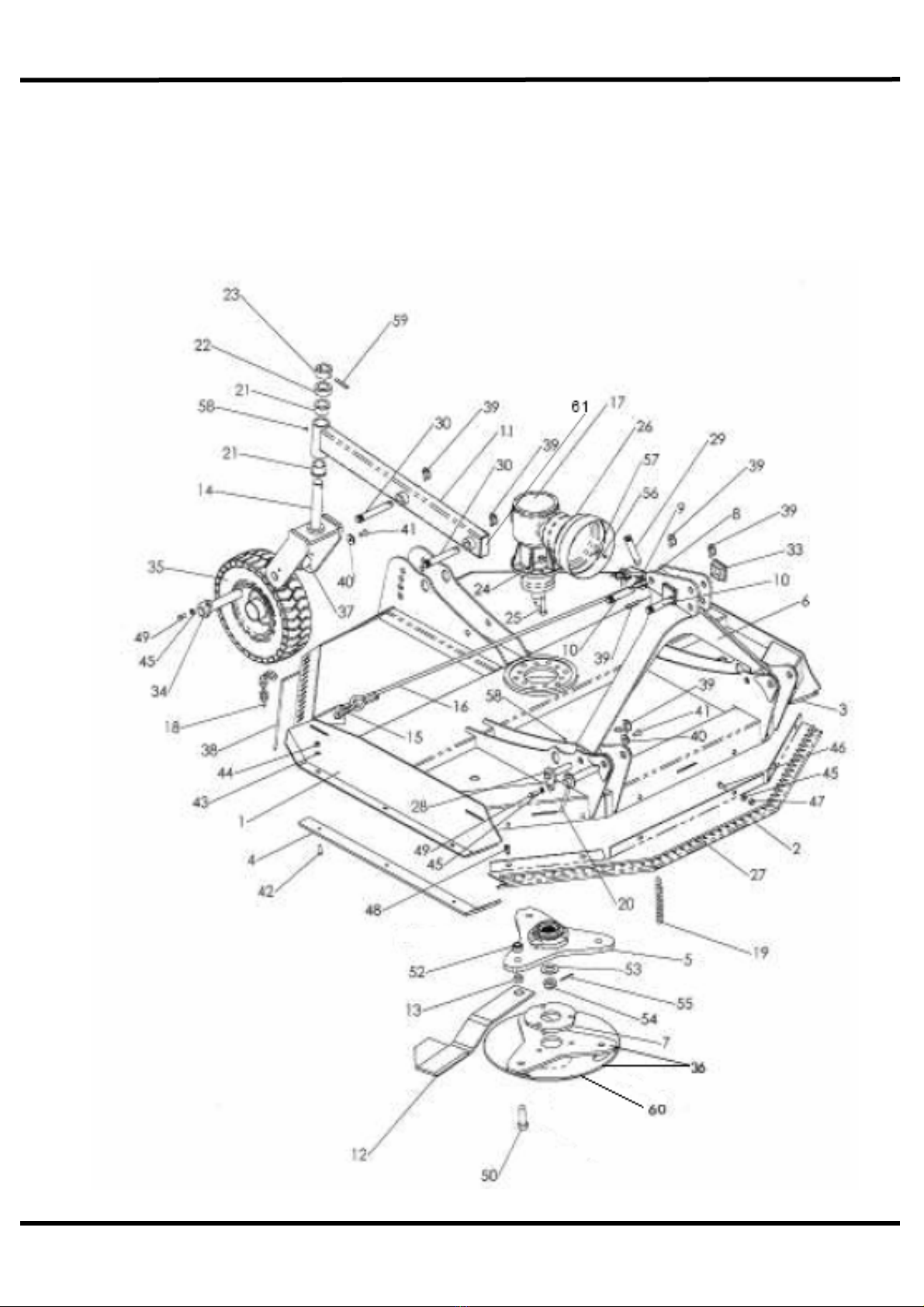

Main Frame Assembly 18
P.T.O. Shaft Assembly 22
Gearbox Assembly 24

Spearhead Multi-Cut 160 & 200
4
44
4
•Never operate the machine with other people present, as it is possible for
debris, including stones, to be discharged from the front and rear of the
main deck.
•Always ensure all safety guards are in place and all tractor windows are
closed.
•Never allow an inexperienced person to operate the machine without
supervision.
•Never allow children to play on or around the machine at any time.
•Never attempt any maintenance or adjustment without first disengaging
the PTO, lowering to the ground, stopping the tractor engine and
applying the tractor parking brake.
•Before leaving the tractor cab always ensure that the machine is firmly
on the ground, and the rotor has stopped spinning
•Never stop the engine with the PTO engaged.
•Always check that all guards are properly fitted, check there are no
damage or loose parts. Particular attention should be given to the flails to
ensure they are not damaged, cracked or missing.
•Never operate with damaged blades.
•Always operate PTO at recommended speed.
•Always inspect work area for wire, steel posts, large stones and other
dangerous materials and remove before starting work.
•Never operate with wire around rotor. Stop immediately.
•Never attempt to use the machine for any purpose other than that it was
designed for.
•Ensure that all warning labels are always visible and that they are not
damaged, defaced or missing.
•Never transport with the PTO engaged.
•When parking up always lower to the ground.
•Where applicable, check condition of tyres and that wheel nuts are tight.
•During transport, ensure linkage stabilisers are fully tightened and
observe public highway regulations.
Safety
Important Safet
Important SafetImportant Safet
Important Safet

Spearhead Multi-Cut 160 & 200
5
55
5
Safet Stickers
Safet StickersSafet Stickers
Safet Stickers
Warning
Stay clear of mower
blades.
Warning
Keep a safe distance
when the machine is
running.
Warning
Shut off engine and remove
key.
Warning
Carefully read operator’s
manual before handling this
machine. Observe
instructions and safety rules
when operating.
Warning
Do not remove/open
guard.
Warning
Beware of
escaping fluid.
Warning
Beware of overhead
electrical power line.
Warning
Check all nuts are
tight every 8 hours.

Spearhead Multi-Cut 160 & 200
6
66
6
Introduction
IntroductionIntroduction
Introduction
The Spearhead Multi-Cut 160 and 200 are very robust high capacity Rotary Cutters
which are easy to operate and maintain To ensure trouble-free operation this manual
should be carefully studied.
Safet First
Safet FirstSafet First
Safet First
Do not start the machine until you fully understand operation and safety precaution
requirements. Always ensure the operators are proficient with the operation of this type
of this machine.
Tractor Requirements
Tractor RequirementsTractor Requirements
Tractor Requirements
•
Spearhead strongly recommends 75hp-plus tractor with CATEGORY 2 rear
linkage.
• Ensure there is sufficient weight on front wheels of the tractor for safe transport
and stability.
• PTO must be independent live drive to enable continuous PTO drive even when
tractor clutch is pressed down.
• Before hitching, ensure position control is selected. Do not attempt to hitch in
draft control.
• Check chains and stabilizers must be in good working order to hold the
machine firmly. Do not operate without checking that chains and stabilizers are
tight.
• Spearhead particularly recommend ‘turn buckle’ type check chains
• Set linkage lift rods to an equal length.

Spearhead Multi-Cut 160 & 200
7
77
7
Attaching To The Tractor
Attaching To The TractorAttaching To The Tractor
Attaching To The Tractor
Fit the machine to the tractor in the standard way, ensuring the correct match of linkage
(category 2). Check that the top link is in good order and threads are well lubricated.
Use stabilisers to take any free movement out of lower link arms.
Before fitting the machine to the tractor linkage you should ensure there is sufficient
front weight to ensure the front wheels are always in contact with the ground. This is
most important for safe transport and stability when turning on slopes.
Before fitting the PTO for the first time, it may be necessary to adjust the length. There
should be maximum engagement of the sliding tubes without bottoming at the shortest
operation position. To check, first connect the mower to the tractor. Pull the PTO shaft
apart and connect to the tractor PTO output shaft and the gearbox input shaft. Hold
the half shafts next to each other in the shortest working position.
If necessary, shorten the inner and outer guard tubes equally (Fig. 1). Shorten the
inner and outer sliding profiles by the same length as the guard tubes. File all sharp
edges and remove burrs. Grease sliding profiles.
To fit the PTO to the machine, first remove bolt and tapered pin from the slip clutch
yoke and push onto splined shaft of gearbox ensuring it is fully engaged before refitting
retaining bolt/pin.
To fit the PTO, first clean and grease press pins on the yoke and simultaneously push
the PTO drive shaft onto PTO shaft of the tractor until pins engage.
The PTO shaft is fitted with a non-rotating safety guard. It should be secured to the
machine and tractor with the two retaining chains provided.
Fig 1

Spearhead Multi-Cut 160 & 200
8
88
8
Setting Up & Adjustment
Setting Up & AdjustmentSetting Up & Adjustment
Setting Up & Adjustment
Height
HeightHeight
Height
Cutting height adjustment is achieved by raising or lowering the wheel. Lowering the
wheel produces a longer cut, raising the wheel leaves a shorter cut. Always set
machine level front to rear and side to side.
The wheel acts a ‘middle skid’, therefore it should be set to take equal weight to the
skids. When set properly this should prevent scalping.
Machine Protection
Machine ProtectionMachine Protection
Machine Protection
To prevent gearbox damage the PTO is fitted with a slip clutch. When cutting in
conditions where solid objects are likely to be found it is recommended that the
operator reduces the engine revs to allow the blades to pivot more easily when striking
solid objects, and proceed with caution.
The clutch settings should not be altered without reference to the Spearhead Service
Department. Never over-tighten the pressure springs on the slip clutches, this could
result in severe damage to the gearbox and drive lines, as well as infringing the
warranty. (The correct length of the spring is 29mm).
Important
ImportantImportant
Important
If the machine has been laid up for any length of time, there is a risk of the clutch plates
resting and seizing together. Never operate the machine in this condition as there will
be no protection to the drive line and gearboxes against shock loading. Refer to after
storage (page 14).

Spearhead Multi-Cut 160 & 200
9
99
9
Operation
OperationOperation
Operation
Engage the PTO only when the tractor engine is at low revs to prevent shock damage
to the machine. Slowly increase the engine revs to achieve the standard 540rpm PTO
speed. If at any time serious vibration occurs, stop the engine immediately and check
that no blades are missing - following all safety precautions. The cause must be found
and rectified immediately or other components may be affected.
When in work, lower the machine to the ground carrying all its weight on the
skids/wheel, allowing the machine to follow the contours of the ground and ensuring
there is sufficient slack in the wire ropes. Select a sensible forward speed bearing in
mind the density of growth, the terrain, and the available horsepower, taking extra care
when turning, particularly on slopes.
When turning, it is not necessary to lift the machine off the ground but instead allow
sufficient room to turn in a large radius. The machine only needs to be raised when
turning in a tight corner or reversing over dense undergrowth or when operating on the
front linkage.
The machine is fitted with, as standard, 3 high lift blades complete with fin, to aid
spreading/mulching.
Transportation
TransportationTransportation
Transportation
Please observe Public Highway Regulations concerning the towing of implements, and
securely attach a registration and lighting board. Take care to slow when travelling over
rough ground and avoid bouncing machine on linkage causing unnecessary strain.

Spearhead Multi-Cut 160 & 200
10
1010
10
Important
On delivery of your machine check that the dealer has completed the P.D.I.
form ensure the warranty registration form is completed and returned.
Safet First
Safet FirstSafet First
Safet First
•
Never leave the tractor seat without first disengaging the PTO and stopping the
engine.
• Ensure all rotating parts have stopped turning.
• Never attempt any repairs, maintenance, service or any other checks with the
machine carried on the tractor hydraulics.
• Always fully lower to the ground, or securely prop the machine on substantial
servicing stands.
• Always replace all guards and retaining chains after servicing/maintenance is
completed.
It is imperative that the following checks are carried out in order not to invalidate your
warranty; these are carried out before the first operation, after the first hour, then
after 4 hours. These checks are:
•
Wheel nuts and tyre pressure (50psi)
• Gearbox bolts
• Blade bolts are fully tightened and in particular the castle headed nut on the
blade rotor
• Retaining bolts on the drive shaft
• Grease all points
• After the first 50 hours drain and replace the gearbox oil. Replace with EP90
Gear oil
• It is your responsibility to maintain, to ensure a long reliable working life
Torque Settings
Torque SettingsTorque Settings
Torque Settings
The Torque figures given below are recommended maximum settings only.
Size: Tensile strength: Description: Torque setting:
Nm
M16 8.8 Gearbox bolts 280
M16 8.8 Blade carriers 280
M24 8.8 Blade bolts 950

Spearhead Multi-Cut 160 & 200
11
1111
11
Dail
DailDail
Dail /
//
/Ever 8 hours
Ever 8 hoursEver 8 hours
Ever 8 hours
•
Grease all grease points, on PTO.
•
• Check condition of blades and blade bushes and ensure all retaining bolts are
fully tight.
•
• Check gearbox oil, replenish with ‘EP90’ gear oil as necessary to the correct
level line on the dipstick provided with each gearbox.
•
• Dismantle and clean PTO sliding surfaces and re-grease. Grease universal
joints (Fig. 3).
Ever 20 hours
Ever 20 hoursEver 20 hours
Ever 20 hours
•
Grease PTO inner tube and push pins (Fig. 3)
Regularl
RegularlRegularl
Regularl
•Check there is no wrapping of string, plastic, grass or other debris between
rotor boss and blades.
•Inspect gearbox seals for leaks.
•Regularly check the rotor boss retaining castle nut for tightness (part
no.5771409). First remove the split pin, select the correct size socket in 3/4”
drive and fully tighten the nut.
•When replacing the split pin, do not slacken the nut to align the hole, always
tighten.
•Failure to regularly check this nut will result in serious wear to hub, which is
expensive to repair.
• It is most important that all gearbox and blade bolts are regularly checked to be
very tight. When the machine is new there will be a ‘bedding in’ period
where very frequent checking is important.

Spearhead Multi-Cut 160 & 200
12
1212
12
Blades
BladesBlades
Blades
Caution! When carrying out maintenance work on or near the blades be careful of
free-swinging blades over-centring and falling. It is recommended that protective
headgear, gloves and goggles are worn.
The blades can be re-sharpened by grinding the cutting edges and care must be taken
that the blades are of the same weight and length after grinding. Do not over heat
when grinding, as this will affect the hardness of the blades.
All the blades are free swinging and swivel on hardened steel bushes, which are easily
replaced. When replacing blades, it is important that blades are replaced in sets, in
order to retain balance of the rotor. Bushes must be replaced when new blades are to
be fitted.
Bushes must be replaced when new blades are to be fitted.
If the blades are showing any signs of severe wear, damage or cracking, they must be
replaced immediately. Never attempt to weld the blades; this will make them very brittle
thus extremely dangerous. Do not take risks with the cutting blades - if in doubt,
replace.
Note – The slip clutch is there to protect the drive train. If the blades strike a large
obstacle they may get damaged or break, so avoid these conditions.
Optional Chain Kit
Optional Chain KitOptional Chain Kit
Optional Chain Kit
This is available for use in stony conditions for scrub clearance but is not suitable for
thick material.
Skids
SkidsSkids
Skids
When operating on abrasive soils, particularly in stubbles and similar conditions with
thin ground cover, excessive skid wear may be expected. To provide extra protection
and to prolong life of the skids, special hard facing rods are available.
If working in wet and muddy conditions, ensure that debris is not allowed to build up on
the deck.

Spearhead Multi-Cut 160 & 200
13
1313
13
Storage
Before storing away, thoroughly wash the machine removing all traces of grass and
dirt. Great care must be taken when washing with high-pressure hoses, do not hold
the water jet close to the paintwork. Use steam cleaners with caution, be sure to
remove all detergents to avoid any discolouring or damage to paint.
Grease all grease points until fresh grease shows. Store PTO shaft in a dry place.
After Storage
After StorageAfter Storage
After Storage
Disassemble the slip clutch and with an emery cloth remove all traces of rust on the
metal clutch plates. Check condition on the friction plates, if there is any sign of over
hearing, wear or cracking, replace with new. Do not attempt to use the machine with
damaged slip clutch plates.
Assemble the clutch and tighten the bolts to achieve a spring length of 29mm. Do not
over tighten or the clutch will not work.
Check condition of the tyre (where applicable) and then follow the maintenance
procedure covered in the servicing part of this manual. Pay particular attention to the
condition of the guards and blades.
Remember the 1000 and 2000 Swipe is designed to withstand the most rigorous
conditions and, with a little care and attention, will give many years of trouble free
service.
So as not to invalidate the warranty and to avoid problems, use only genuine parts and
make sure the machine is not driven at a speed in excess of 540rpm on the PTO.

Spearhead Multi-Cut 160 & 200
14
1414
14
The
TheThe
The Spearhead Warrant
Spearhead WarrantSpearhead Warrant
Spearhead Warrant
Spearhead warrants that the Spearhead machine referred to in the Warranty Registration Form
will be free from defects in materials and workmanship for a period of 12 months from the date
of sale. This warranty does not affect your statutory rights, but merely adds to them. Should
you have a problem within 12 months from the date of sale please contact your original
Spearhead dealer, or Spearhead’s Service Department. Any part found to be defective during
this period would be replaced or repaired, at Spearhead’s discretion, by the dealer or a
Spearhead Service Engineer.
Spearhead Warrant Conditions
Spearhead Warrant ConditionsSpearhead Warrant Conditions
Spearhead Warrant Conditions
1. The Warranty Registration Form must be completed and returned to Spearhead within
30 days of the date of sale.
2. This warranty does not cover defects arising from fair wear and tear, willful damage,
negligence, misuse, abnormal working conditions, use in competition, failure to follow
Spearhead’s instructions (oral or written, including all instructions and recommendation
made in the Operator’s Manual) or alteration or repair of the machinery without
Spearhead’s approval.
3.
The machinery must have been serviced in accordance with the Operator’s Manual .
4.
This warranty does not cover claims in respect of wearing parts such as blades, flails,
paintwork, tyres, belts, hydraulic hoses, bearings, bushes, linkage pins, top links, ball
ends unless there is a manufacturing or material defect or the cost of normal servicing
items such as oils and lubricants.
5.
This warranty does not cover any expenses or losses incurred whilst the machinery is
out of use for warranty repairs or parts replacement.
6.
This warranty does not extend to parts, materials or equipment not manufactured by
Spearhead, for which the Buyer shall only be entitled to the benefit of any such warranty
or guarantee given by the manufacturer to Spearhead. Only genuine Spearhead
replacement parts will be allowable for warranty claims.
7.
All parts replaced by Spearhead under warranty become the property of Spearhead and
must be returned to Spearhead if Spearhead so request. Such parts may only be
disposed of after a warranty claim has been accepted and processed by Spearhead.
8.
Spearhead is not liable under this warranty for any repairs carried out without
Spearhead’s written consent or without Spearhead being afforded a reasonable
opportunity to inspect the machinery the subject of the warranty claim. Spearhead’s
written consent must, therefore, be obtained before any repairs are carried out or parts
replaced. Use of non-Spearhead parts automatically invalidates the Spearhead
Warranty. Failed components must not be dismantled except as specifically authorised
by Spearhead and dismantling of any components without authorisation from
Spearhead will invalidate this warranty.
9.
All warranty claims must be submitted to Spearhead on Spearhead Warranty Claim
Forms within 30 days of completion of warranty work.
Using the machine implies the knowledge and acceptance of these instructions and
the limitations contained in this Manual

Spearhead Multi-Cut 160 & 200
15
1515
15
Extended Warrant
Extended WarrantExtended Warrant
Extended Warrant
As an extension to the 12-month warranty set out above, Spearhead will provide an additional
12 month warranty cover subject to the Spearhead Warranty Conditions above and the
Extended Warranty Conditions below.
Extended Warrant Conditions
Extended Warrant ConditionsExtended Warrant Conditions
Extended Warrant Conditions
1. The extended warranty applies to hydraulic pumps, motors, valves and gearboxes only.
It does not apply to other parts, to consumables such as lubricants, seals or filters
or to labor charges.
2. The machinery must have had an annual service carried out by an Authorised
Spearhead Dealer or a Spearhead Service Engineer within 1 month of the first
anniversary of the date of sale.
3. The extended warranty does not cover costs of transportation of the machinery to or
from the dealer or Spearhead or the call out costs or traveling expenses of on-site visits.
Transfer of Warrant
Transfer of WarrantTransfer of Warrant
Transfer of Warrant
The Spearhead warranty may be transferred to a subsequent owner of the machinery (for use
within the UK) for the balance of the warranty period subject to all of the warranty conditions
and provided that the Change of Owner form is completed and sent to Spearhead within 14
days of change of ownership.
Spearhead reserves the right to make alterations and improvements to any machinery
without notification and without obligation to do so.

Spearhead Multi-Cut 160 & 200
16
1616
16
Multi
MultiMulti
Multi-
--
-Cut
CutCut
Cut 160 & 200
160 & 200160 & 200
160 & 200
Parts List
Parts ListParts List
Parts List
© Spearhead Machinery Limited 2003
Spearhead Machinery
Green View
Salford Priors
Evesham
Worcestershire
WR11 8SW
Tel: [phone]
Fax: [phone]
www.spearheadmachinery.com
[e-mail]

Spearhead Multi-Cut 160 & 200
17
1717
17
When ordering parts please refer to your parts list to help your dealer with your order.
Part number and quantity
Description
Machine model number
Serial number of the machine
Delivery instructions (e.g. next day).
Delivery is normally via carrier direct to your dealer. Please check with your dealer for stock
availability and arrangeme
nt of dispatch. Ensure you or your dealer has sufficient cover for parts
requirement outside factory hours.
When ordering your seal kits please quote both codes stamped on the base of the cylinder.
Important Note
Important NoteImportant Note
Important Note
The information contained in this manua
l is correct at the time of publication. However, in the
course of constant development, changes in specification are inevitable. Should you find the
information given in this book different to the machine it relates to, please contact the “After Sales
Department” for advise.
Key:
(LH) = Left hand
(RH) = Right hand
Ordering Parts
Ordering PartsOrdering Parts
Ordering Parts

Spearhead Multi-Cut 160 & 200
18
1818
18
Main Frame Assembl
Main Frame AssemblMain Frame Assembl
Main Frame Assembl

Spearhead Multi-Cut 160 & 200
19
1919
19
REF. NO PART NO. DESCRIPTION
1600 SWIPE 2000 SWIPE
1 1560100B 1770202R BODY
2 1560106A 1770227 BRACKET
3 1770685A 1770204A LH SKID
4 1770685AR 1770204AR RH SKID
5 1770602-3 1770220 HOLDER
6 177613A HEADSTOCK
7 1770604-3 1770222 SPACER
8 1560120 BRACKET
9 1560121 PULLEY
10 6310203 PIN
11 1770401A ARM
12 7770700 7770718 BLADE
13 7770707 BUSH
14 1770399A YOKE
15 6777575 SHACKLE
16 6770922 6770928 WIRE ROPE
17 5770004 5770002 GEARBOX
18 &19 8770621 CHAIN
20 6310208 PIN
21 4600127-A BUSH
22 1777524 BUSH
23 1777700 BUSH
24 2770447 NUT
25 2770423 2770423 BOLT
26 5770105 5770105 GUARD/COVER
27 6770908 6770923 WIRE ROPE
28 1777761 PIN
29 6310203A PIN
30 6310235 PIN
33 8777518 GUARD/COVER
34 1560130 PIN
35 6770680 WHEEL
ASSEMBLY
36 1770630 1770221 BLADE CARRIER
37 1560131 BUSH
38 6770905 6770919 WIRE ROPE
39 6310206 PIN
40 1777209 WASHER
Main Frame Assembl
Main Frame AssemblMain Frame Assembl
Main Frame Assembl

Spearhead Multi-Cut 160 & 200
20
2020
20
Main Frame Assembl
Main Frame AssemblMain Frame Assembl
Main Frame Assembl
