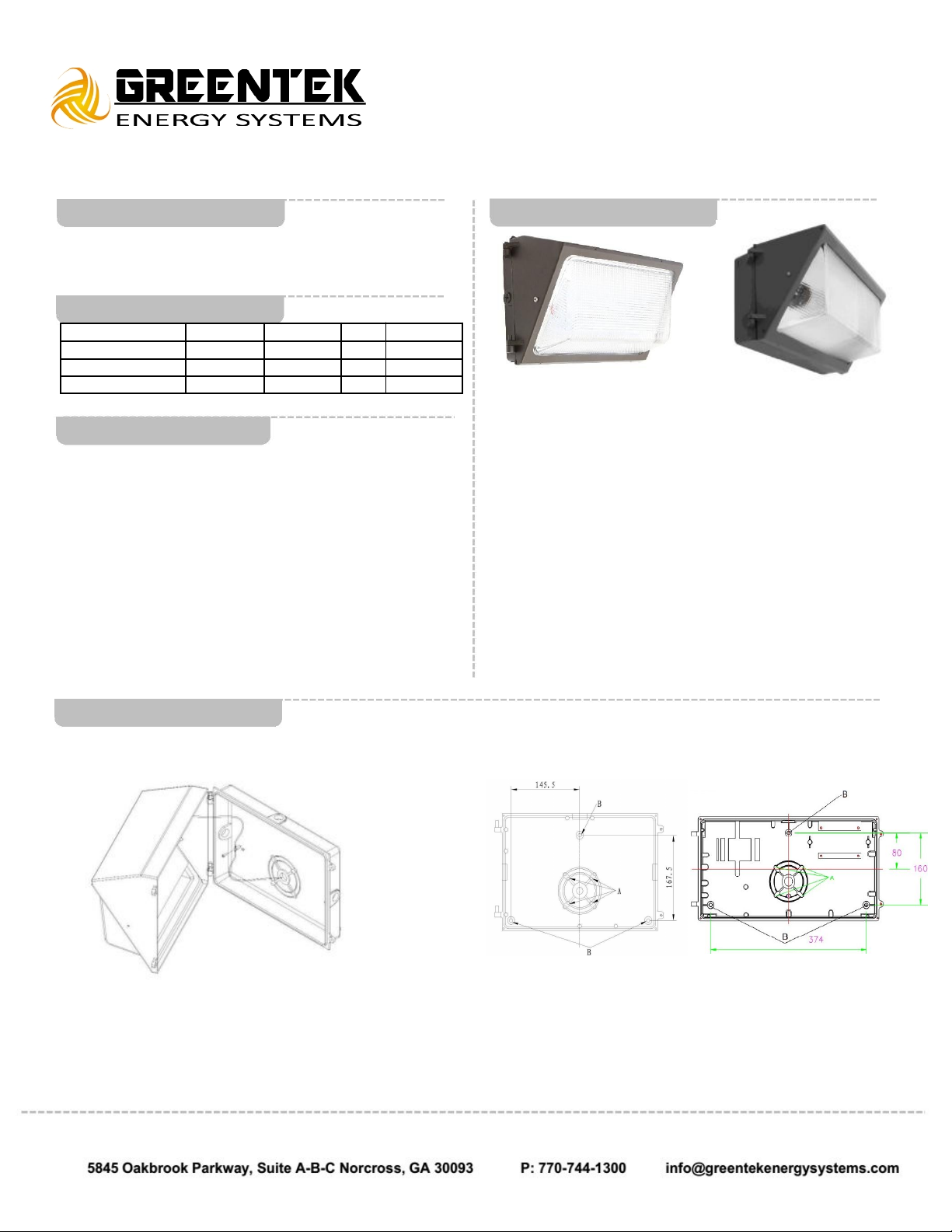

Greentek GT-WP-50XTGYYZZ Service manual

LED Wall Pack
Parts Model:
LED Wall Pack :GT-WP-50XTGYYZZ
GT-WP-80XTGYYZZ
GT-WP-120XTGYYZZ
Specifications
Model
Input Voltage
Power Factor
Watt
Input Current
GT-WP-50XTGYYZZ
100-277VA
0.92
50W
0.52A
GT-WP-80XTGYYZZ
100-277VA
0.92
80W
0.85A
GT-WP-120XTGYYZZ
100-277VA
0.92
120W
1.2A
Cautions
CAUTION: This product use an input 100-277VAC driver of wide range
voltage, but the actual working voltage is dependant on the input
voltage of the photocell that is installed on the product. Normally the
input voltage of photocell is 120V/208V/240V/277V single range.
Please pay attention when installing.
WARNING: To avoid the risk of fire, explosion, or electric shock, this
product should be installed, inspected, and maintained by a qualified
electrician only, in accordance with all applicable electrical codes.
WARNING: To avoid electric shock:
•Be certain electrical power is OFF before and during
installation and maintenance.
INSTALLATION INSTRUCTION MANUAL
LED WALLPACKS LIGHT, 100-277VAC
Important: Read all instructions prior to installation
Features
GT-WP-50XTGYYZZ GT-WP-120XTGYYZZ
GT-WP-80XTGYYZZ
• This LED wall pack light uses the latest in solid state lighting
technology for long life, low maintenance, and high efficiency.
• Can be used with a standard photocell on the enclosure, to make
it completely suitable for street lighting. (3000, 3002)
• An internal power-factor-corrected switch-mode supply allows it
to be used from any nominal 100V-277V, 60Hz AC supply
without any variation in light output.
• Suitable for use in the following locations:
• Ambient Temp: -20~+40°C
• Wet Locations
Installation
Figure 1: Remove two screws to access the inside
of the wall pack.
.
GT-WP-50XTGYYZZ GT-WP-120XTGYYZZ
GT-WP-80XTGYYZZ
Figure 2: Dimension diagram
Note: Holes “A” and “B” will need
drilling before mounting

INSTALLATION INSTRUCTION MANUAL
LED WALLPACKS LIGHT, 100-277VAC
Important: Read all instructions prior to installation
LED Wall Pack
Figure 3a: Use hole marked Figure 3b: Use holes marked
“A” for J-Box mounting from “B” for wall mounting from Fig.
Fig. 2. Attach using the correct 2. Attach using the correct
hardware hardware. Use conduit for
transferring power
Figure 5: Re-install two screws to Figure 6: Optional Glare Shield
close wall pack. installation. Engage glare shield to
clips on the sides of the wall pack.
Secure with screws.
Figure 4: Connect supply wires to
wall pack wires based on one of
the two diagrams below. Be sure
to connect both green/yellow wires
to the case position labled “GR”.
