GreenWorks Pro HT60L00 User manual

60V CORDLESS HEDGE TRIMMER
Read all safety rules and instructions carefully before operating this tool.
Owner’s Manual
TOLL-FREE HELPLINE: 1-855-345-3934
www.GreenWorksTools.com
HT60L00

2
CONTENTS
Contents .............................................................................................................................. 2
Specications ...................................................................................................................... 2
Important Safety Instructions .............................................................................................. 3
Symbols............................................................................................................................... 6
Know Your Hedge Trimmer .................................................................................................. 8
Assembly ............................................................................................................................. 9
Operation........................................................................................................................... 10
Battery & Charger Maintenance......................................................................................... 13
Maintenance ...................................................................................................................... 15
Environmentally Safe Battery Disposal.............................................................................. 16
Troubleshooting ................................................................................................................. 17
Limited Warranty................................................................................................................ 18
Exploded View................................................................................................................... 19
Parts List............................................................................................................................ 20
SPECIFICATIONS
60V LITHIUM-ION 26’’ CORDLESS HEDGE TRIMMER
Type ............................................................................................ Cordless, battery-operated
Motor .............................................................................................................. 60V Brushless
Blade Length........................................................................................................ 26" (66 cm)
Cutting Capacity ................................................................................................ 3/4" (19 mm)
Reciprocating Speed .................................................................................3400 (±10%) SPM
Weight (Without Battery)................................................................................ 7.5 lbs. (3.4 kg)

3
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, re, and/or serious injuries.
Save all warnings and instructions for future reference.
The term “power tool” in all of the warnings listed below refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
1. WORK AREA SAFETY
A. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
B. Do not operate power tools in explosive atmospheres, such as in the presence of
ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
C. Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
2. ELECTRICAL SAFETY
A. A battery-operated tool with integral batteries or a separate battery pack must be
recharged only with the specied charger for the battery. A charger that may be suitable
for one type of battery may create a risk of re when used with another battery.
B. Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is earthed
or grounded.
C. Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
D. Use a battery-operated tool only with specied battery pack. Use of any other batteries
may create a risk of re.
E. If operating a power tool in a damp location is unavoidable, use a residual current
device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. PERSONAL SAFETY
A. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol
or medication. A moment of inattention while operating power tools may result in serious
personal injury.
B. Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
C. Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have the
switch on invites accidents.
D. Remove any adjusting key or wrench before turning the power tool on. A wrench or a
key left attached to a rotating part of the power tool may result in personal injury.
E. Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.

4
IMPORTANT SAFETY INSTRUCTIONS
F. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving
parts.
G. If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of these devices can reduce dust-
related hazards.
4. POWER TOOL USE AND CARE
A. Do not force the power tool. Use the correct power tool for your application. The
correct power tool will do the job better and safer at the rate for which it was designed.
B. Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
C. Disconnect the battery pack from the power tool before making any adjustments,
changing accessories, or storing power tools. Such preventive safety measures reduce the
risk of starting the power tool accidentally.
D. Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
E. Maintain power tools. Check for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the power tools operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained
power tools.
F. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
G. Use the power tool, accessories and tool bits etc., in accordance with these
instructions, taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result in a hazardous
situation.
5. BATTERY TOOL USE AND CARE
A. Ensure the switch is in the off position before inserting battery pack. Inserting the
battery pack into power tools that have the switch on invites accidents.
B. Recharge only with the charger specified by the manufacturer. A charger that is
suitable for one type of battery pack may create a risk of re when used with another battery
pack.
C. Use power tools only with specifically designated battery packs. Use of any other
battery packs may create a risk of injury and re.
D. When battery pack is not in use, keep it away from other metal objects, like
paper clips, coins, keys, nails, screws, or other small metal objects that can make a
connection from one terminal to another. Shorting the battery terminals together may cause
burns or a re.
E. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If
contact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause irritation or burns.
F. Use only 60 V Greenworks batteries: LB60A00/LB60A03/LB60A01/LB60A02.

5
IMPORTANT SAFETY INSTRUCTIONS
6. SERVICE
A. Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
HEDGE TRIMMER SAFETY WARNINGS
• Use both hands when operating the hedge trimmer. Using one hand could cause loss
of control and result in serious personal injury.
• Keep all parts of the body away from the cutter blade. Do not remove cut material or
hold material to be cut when blades are moving. Make sure the switch is off when
clearing jammed material. Blades coast after turn off. A moment of inattention while
operating the hedge trimmer may result in serious personal injury.
• Carry the hedge trimmer by the handle with the cutter blade stopped. Proper handling
of the hedge trimmer will reduce possible personal injury from the cutter blades.
• Hold the power tool by insulated gripping surfaces only, because the cutter blade may
contact hidden wiring. Cutter blades contacting a “live” wire may make exposed metal parts
of the power tool “live” and could give the operator an electric shock.
• DANGER – Keep hands away from blade. Contact with blade will result in serious personal
injury.
• Keep cable away from cutting area. During operation the cable may be hidden in shrubs
and can be accidentally cut by the blade.
WARNING
Only use with handle and guard properly assembled to hedge trimmer. The use of the hedge
trimmer without the proper guard or handle provided may result in serious personal injury.
WARNING (PROPOSITION 65)
Using this product will expose you to a chemical known to the State of California to cause cancer.
Using this product will expose you to a chemical known to the State of California to cause birth
defects or other reproductive harm.
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
Your risk of exposure to these chemicals varies depending on how often you do this type of
work. To reduce your exposure to these chemicals, work in a well-ventilated area, and work with
approved safety equipment, such as dust masks that are specially designed to lter out microscopic
particles.
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically treated lumber.
SAVE THESE INSTRUCTIONS

6
SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
Wet Conditions Alert Do not expose to rain or use in damp
locations.
Read The Operator’s Manual
To reduce the risk of injury user must read and
understand operator’s manual before using
this product.
Safety Alert Precautions that involve your safety.
Keep Bystanders Away Keep all bystanders at least 50 ft. away.
Eye Protection
Always wear eye protection with side shields
marked to comply with ANSI Z87.1 when
operating this equipment.
Ricochet Thrown objects can ricochet and result in
personal injury or property damage.
Sharp Blade Keep hands away from sharp, moving blades.
Gloves Wear non-slip, heavy duty gloves.

7
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated
with this product.
DANGER Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION Indicates a potentially hazardous situation, which, if not avoided,
may result in minor or moderate injury.
CAUTION (Without Safety Alert Symbol) Indicates a situation that may
result in property damage.
SYMBOL SIGNAL MEANING
SAVE THESE INSTRUCTIONS

8
KNOW YOUR HEDGE TRIMMER
KNOW YOUR HEDGE TRIMMER (See Figure 1.)
The safe use of this product requires an understanding of the information on the product and in
this operator’s manual as well as a knowledge of the project you are attempting. Before use of
this product, familiarize yourself with all operating features and safety rules.
GUARD
The guard helps deect chips or other debris away from the operator’s hands and eyes and
prevents operator's hands from accidently coming in contact with the blade assembly.
SAFETY LOCK BUTTON
The safety lock button must be depressed before the trigger switch is depressed. Once the
trigger switch is engaged, the safety lock button can be released. When the trigger switch is
released, the safety lock button will automatically return to the locking position.
BLADE
Dual action steel blades for cutting hedges and shrubs.
AUXILIARY HANDLE
For easy control of the tool during cutting.
TRIGGER SWITCH
The trigger switch (located beneath the rear handle) and the safety lock button (located behind
the auxiliary handle) must be depressed simultaneously to allow blade rotation.
ROTATING HANDLE RELEASE
The handle of your hedge trimmer rotates 90 degrees to the left or right for controlled and
precision trimming.
BATTERY RELEASE BUTTON
Press to release the battery pack from the tool.
FIG.1
Guard
Auxiliary
handle
Rear
handle
Trigger switch
Rotating
handle release
Safety lock button
Blade
Battery release button
Blade cover

ASSEMBLY
9
UNPACKING
• This product requires no assembly.
• Carefully remove the product and any accessories from the box. Make sure that all items listed
in the packing list are included.
• Inspect the product carefully to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until you have carefully inspected and satisfactorily
operated the product.
• If any parts are damaged or missing, please call 1-855-345-3934 for assistance.

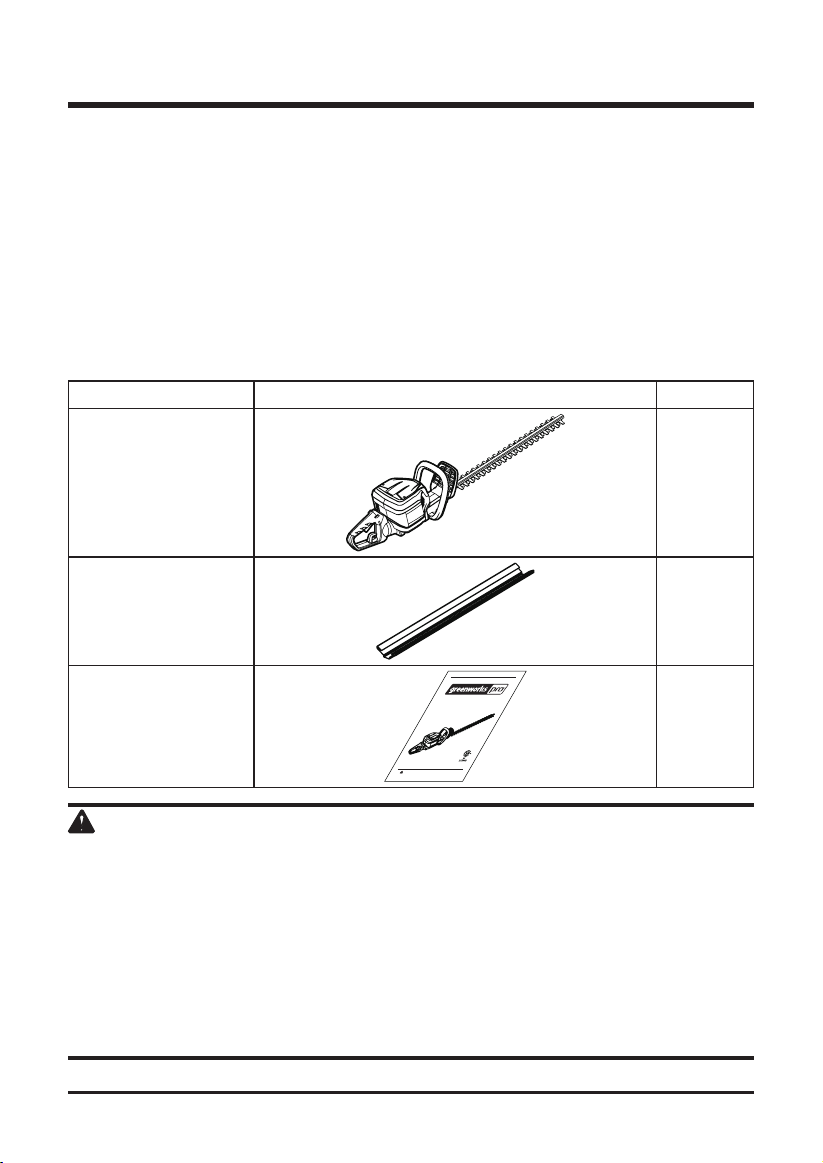

PACKING LIST
Part Name Figure Qty
Cordless hedge trimmer 1
Blade cover 1
Operator's manual
60V CORDLESS HEDGE TRIMMER
Read all safety rules and instructions carefully before operating this tool.
Owner’s Manual
TOLL-FREE HELPLINE: 1-855-345-3934
www.GreenWorksTools.com
HT60L00
1
WARNING
To avoid personal injury:
• Handle the blade with care.
• Do not place your ngers or hand between the notches in the blade or in any position
where they could get pinched or cut.
• Never service the blade or hedge trimmer unless the battery pack is removed.
• Do not use if the blade assembly is damaged or bent. Take to a qualied person to
straighten, replace, or sharpen.
• Always keep both hands on the hedge trimmer handles to prevent your hand from touching
the blade.

10

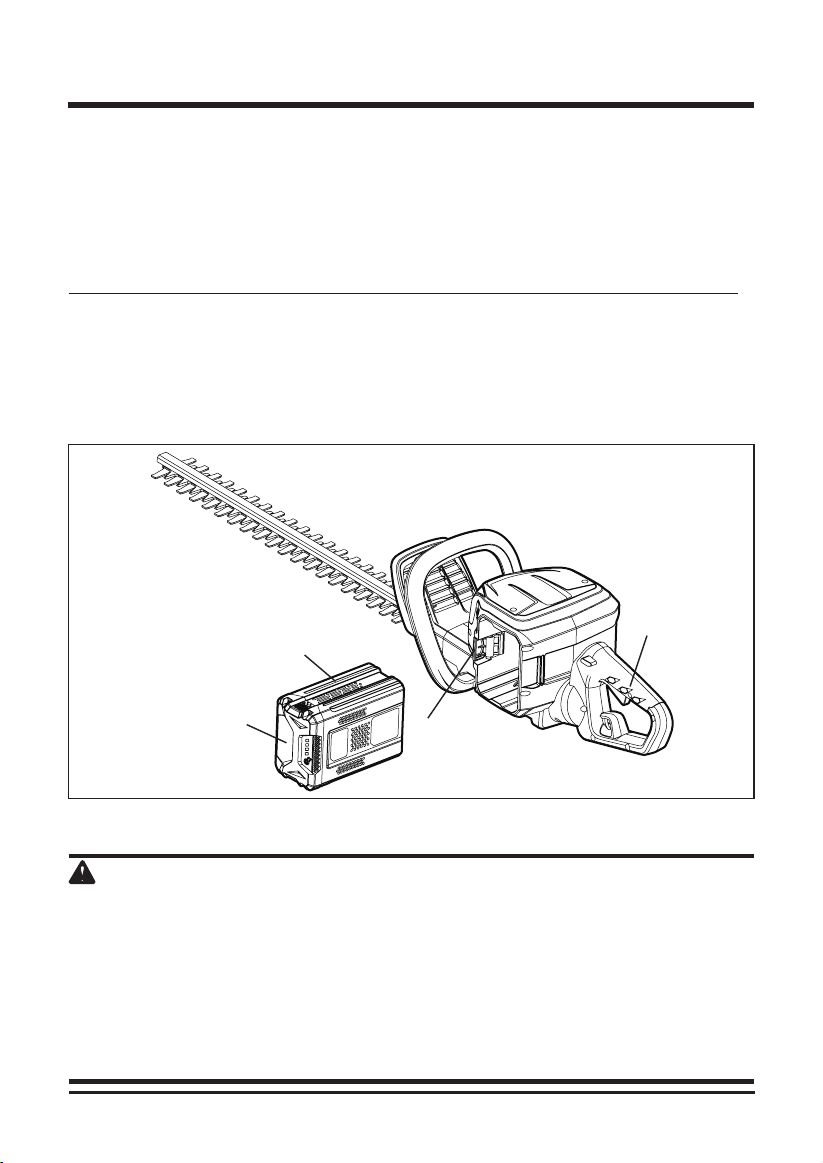

TO INSTALL THE BATTERY (See Figure 2.)
IMPORTANT! The battery pack is not charged when it is purchased. Before using the hedger
for the rst time, place the battery pack on the battery charger and charge. Make sure to read all
safety precautions, and follow the instructions in the Battery Charger section.
1. Align the grooves (3) of the battery pack (1) with the cavity in the handle housing.
2. Grasp the rear handle (2) rmly.
3. Push the battery pack (1) into the handle until the latch locks into place.
NOTE: The battery pack ts snugly into the handle to prevent accidental dislodging. It may require a strong
pull to remove.
TO REMOVE THE BATTERY (See Figure 2.)
1. Press the battery release button (4) on hedge trimmer. This will cause the battery to eject from
the tool.
2. Grasp the rear handle (2) rmly. Pull the battery pack out of the tool.
IMPORTANT! DO NOT remove the blade assembly unless it needs sharpening, straightening, or
replacing. Take it to a person for repair.
WARNING
Follow these instructions in order to avoid injury and to reduce the risk of electric shock or re:
• Replace the battery pack or the charger immediately if the battery case or charger cord is
damaged.
• Verify that the switch is in the OFF position before inserting or removing the battery pack.
• Verify that the battery pack is removed and the switch is in the OFF position before
inspecting, adjusting, or performing maintenance on any part of the hedge trimmer.
• Read, understand, and follow the instructions contained in the section entitled Charging
Procedure.
OPERATION
FIG.2
2
1
3
4

11
OPERATION
STARTING AND STOPPING HEDGE TRIMMER (See Figure 3.)
1. Ensure the battery is properly installed in the hedge trimmer.
2. Slide the safety lock button (1) into the handle and hold.
3. Squeeze the trigger switch (2). The hedge trimmer will turn ON.
4. Release the safety lock button. The hedge trimmer will stay on as long as the trigger switch
is held.
5. The hedge trimmer will stop if you release the trigger switch.
IMPORTANT: If the hedge trimmer is accidentally dropped, the hedge trimmer will turn OFF and
the blade will coast to a stop after several seconds. The hedge trimmer will then be locked OFF
again.
FIG.3
1
2

12
OPERATION
USING THE ROTATING REAR HANDLE (See Figure 4.)
1. Place the hedge trimmer on a at and even surface.
2. Make sure that you released the trigger.
3. Pull the rotation lever and begin turning the rear handle. Release the rotation lever and turn the
handle 90 degrees to either side until it clicks into place and the lever locks in.
4. To turn the handle back to center, pull the rotation lever again, turn the handle slightly, release
the rotation lever and continue turning the handle until it locks into place.
FIG.4

BATTERY & CHARGER MAINTENANCE
13
CHARGING PROCEDURE
NOTE: The battery is not shipped fully charged. It is recommended to fully charge before rst
use to ensure that maximum run time can be achieved. This lithium-ion battery will not develop a
memory and may be charged at any time.
Low voltage charging:
If the battery has been stored with little to no charge for a long period of time, the charger will go
into recovery mode, which will take 20 hrs to fully charge the battery. This will enhance the life of
the battery. Once it is fully charged, the next charge will return to standard charging.
1. Plug the charger into an AC power outlet.
2. Insert the battery pack into the charger.

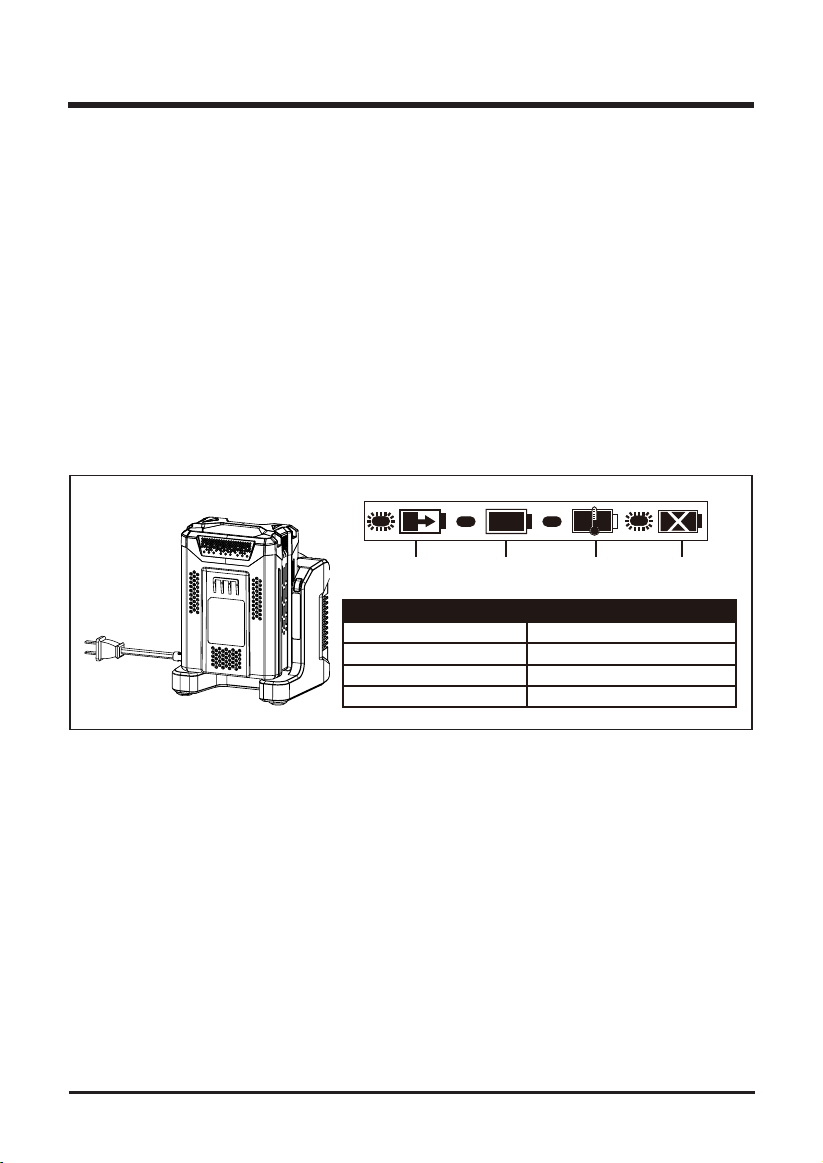

This is a diagnostic charger. The Charger LED Lights will illuminate in specic order to
communicate the current battery status. They are as follows:
False defect note:
When the battery is inserted into the charger and the status LED blinks RED, remove the battery
from the charger for 1 minute, then reinsert. If the status LED blinks GREEN, then the battery
is properly charging. If the status LED is still blinking RED, remove the battery and unplug the
charger for 1 minute. After 1 minute, plug in the charger and reinsert the battery. If the status LED
blinks GREEN, then the battery is properly charging. If the status LED is still blinking RED, the
battery is defective and needs to be replaced.
Charging Fully
Charged Over Temperature Charging
Fault
LED STATUS DESCRIPTION
Blinking Green Charging
Solid Green Fully Charged
Solid Red Over Temperature
Blinking Red Charging Fault

14
BATTERY & CHARGER MAINTENANCE

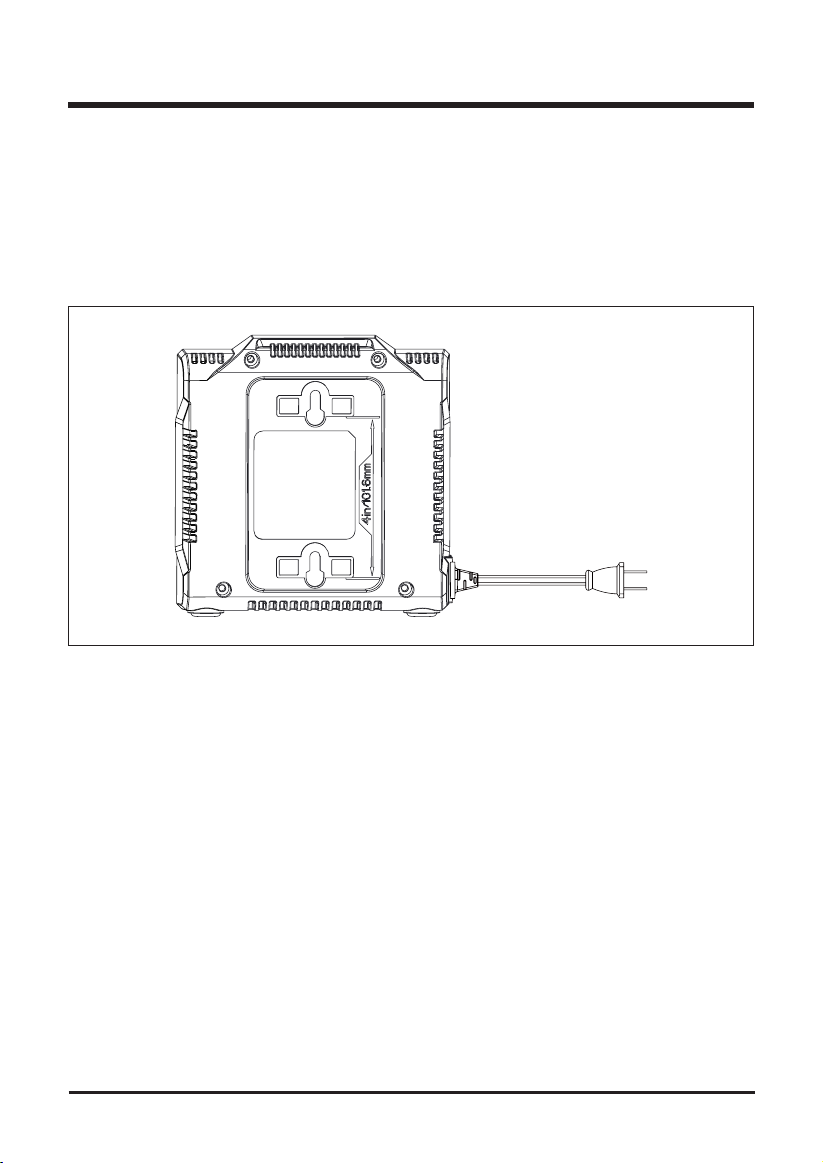

CHARGER MOUNTING
1. This charger can be installed hanging on a wall using two #8 screws (not included).
2. Locate the placement for the charger to be wall mounted.
3. If fastening to wood studs use 2 wood screws (not included).
4. Drill two holes on center 4.0 in. apart ensuring that they are vertically aligned.
5. If fastening to drywall use wall anchors (not included) and screws to secure the charger to the
wall.
6. This power unit is intended to be correctly orientated in a vertical or oor mount position.
NOTE: If the battery and the charger won’t be used for a long time, remove the battery from the
charger and pull out the AC power plug.

15
MAINTENANCE
WARNING
To avoid risk of re, electric shock, or electrocution:
• Do not use a damp cloth or detergent on the battery or battery charger.
• Always remove the battery pack before cleaning, inspecting, or performing any maintenance
on the hedge trimmer.
Cleaning
• Wipe the outside of the hedge trimmer with a dry, soft cloth. Do not hose down or wash with
water.
• Scrape the guard to remove dried clippings and mud.
• Brush or blow dust, debris, and grass clippings out of the air vents. Keep them free of obstruction.
Battery Pack
• Store the battery pack fully charged.
• Once the charging light turns green, remove the battery from the charger.
• Do not store the battery pack on the tool.
• After charging, the battery pack may be stored in the charger, as long as the charger is not
plugged in.
Charger Maintenance
• Keep the charger clean and clear of debris. Do not allow foreign material to get into the recessed
cavity or onto the contacts. Wipe the charger clean with a dry cloth. Do not use solvents or water,
and do not place the charger in wet conditions.
• Unplug the charger when there is no battery pack in it.
• Fully charge the batteries before placing them in storage.
• Store the charger at normal room temperature. Do not store it in excessive heat. Do not use the
charger in direct sunlight. Recharge at room temperature between 43˚F and 104˚F (6˚C and
40˚C). If the battery pack is hot, allow it to cool down before recharging.

16
ENVIRONMENTALLY SAFE BATTERY DISPOSAL
The following toxic and corrosive materials are in the batteries used in this hedge trimmer battery
pack: Lithium-Ion, a toxic material.
WARNING
All toxic materials must be disposed of in a specified manner to prevent contamination of the
environment. Before disposing of damaged or worn out Lithium-Ion battery packs, contact your
local waste disposal agency, or the local Environmental Protection Agency for information and
specific instructions. Take the batteries to a local recycling and/or disposal centre, certified for
lithium-ion disposal.
WARNING
If the battery pack cracks or breaks, with or without leaks, do not recharge it and do not use.
Dispose of it and replace with a new battery pack. DO NOT ATTEMPT TO REPAIR IT!
To avoid injury and risk of explosion, or electric shock, and to avoid damage to the environment:
• Cover the battery's terminals with heavy-duty adhesive tape.
• DO NOT attempt to remove or destroy any of the battery pack components.
• DO NOT attempt to open the battery pack.
• If a leak develops, the released electrolytes are corrosive and toxic. DO NOT get the
solution in the eyes or on skin, and do not swallow it.
• DO NOT place these batteries in your regular household trash.
• DO NOT incinerate.
• DO NOT place them where they will become part of any waste landll or municipal solid
waste stream.
• Take them to a certied recycling or disposal centre.

17
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Motor fails to start
when switch trigger is
depressed.
Battery is not secure. To secure the battery pack, make sure
the latches on the top of the battery
pack snap into place.
Battery is not charged. Charge the battery pack according
to the instructions included with your
model.
Motor runs,but cutting
blades do not move.
Hedger damaged. Do not use
hedge trimmer.
Call for technical service.
Hedge trimmer
smokes during
operation.
Hedger damaged. Do not use
hedge trimmer.
Call for technical service.
Motor hums, blades
do not move.
Debris or other may be
jamming the blades.
Remove battery, clear debris blockage
from blades.

LIMITED WARRANTY
18
GREENWORKS™ hereby warranties this product, to the original purchaser with proof of
purchase, for a period of four (4) years against defects in materials, parts or workmanship.
GREENWORKS™, at its own discretion will repair or replace any and all parts found to be
defective, through normal use, free of charge to the customer. This warranty is valid only for
units which have been used for personal use that have not been hired or rented for industrial/
commercial use, and that have been maintained in accordance with the instructions in the
owners’ manual supplied with the product from new.
ITEMS NOT COVERED BY WARRANTY:
1. Any part that has become inoperative due to misuse, commercial use, abuse, neglect,
accident, improper maintenance, or alteration; or
2. The unit, if it has not been operated and/or maintained in accordance with the owner's
manual; or
3. Normal wear, except as noted below;
4. Routine maintenance items such as lubricants, blade sharpening;
5. Normal deterioration of the exterior nish due to use or exposure.
GREENWORKS HELPLINE (1-855-345-3934):
Warranty service is available by calling our toll-free helpline, at 1-855-345-3934.
TRANSPORTATION CHARGES:
Transportation charges for the movement of any power equipment unit or attachment are the
responsibility of the purchaser. It is the purchaser’s responsibility to pay transportation charges
for any part submitted for replacement under this warranty unless such return is requested in
writing by GREENWORKS.

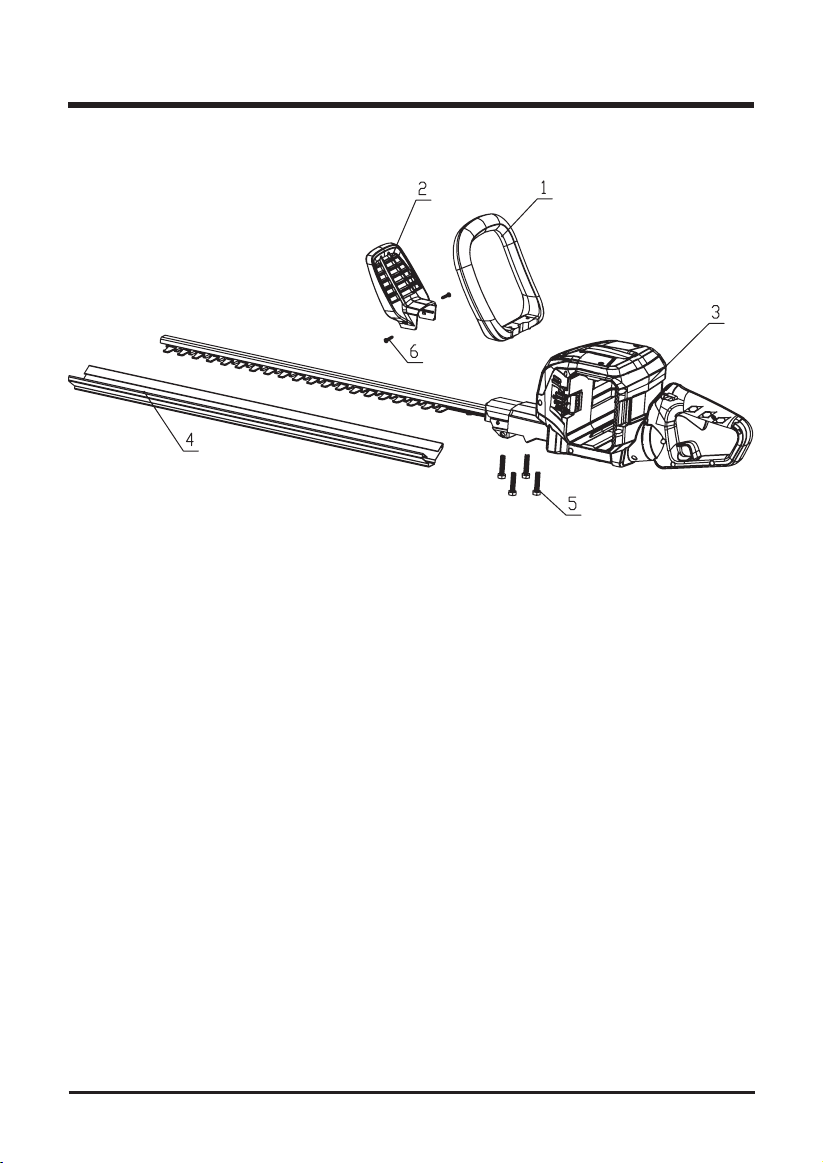

EXPLODED VIEW
19

PARTS LIST
20
ITEM NO. PART NO. DESCRIPTION QTY
1 341141915 Auxiliary handle assembly 1
2 341151915 Guard 1
3 310201915 Bare tool assembly 1
4 341061658 Blade cover 1
5 32201659 Screw 4
6 32202517 Screw 2
