MODEL G0826
"EASY FEEDER"
POWER FEEDER
OWNER'S MANUAL
(For models manufactured since 01/17)

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre-
hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip-
ment, such as those dust masks that are specially designed to filter
out microscopic particles.

INTRODUCTION............................................................................................................................... 2
Contact Info ................................................................................................................................ 2
Manual Accuracy ........................................................................................................................ 2
Identification ............................................................................................................................... 3
Controls & Components ............................................................................................................. 4
Machine Data Sheet ................................................................................................................... 6
SECTION 1: SAFETY....................................................................................................................... 8
Safety Instructions for Machinery ............................................................................................... 8
Additional Safety for Power Feeders ....................................................................................... 10
SECTION 2: POWER SUPPLY ...................................................................................................... 11
SECTION 3: SETUP ....................................................................................................................... 13
Unpacking ................................................................................................................................ 13
Needed for Setup ..................................................................................................................... 13
Inventory ................................................................................................................................... 13
Cleanup .................................................................................................................................... 14
Site Considerations .................................................................................................................. 14
Assembly .................................................................................................................................. 15
Base Mounting ......................................................................................................................... 17
Test Run ................................................................................................................................... 19
SECTION 4: OPERATIONS ........................................................................................................... 21
Operation Overview.................................................................................................................. 21
Basic Use & Care ..................................................................................................................... 22
Changing Speeds ..................................................................................................................... 23
Vertical/Incline Feeding ............................................................................................................ 23
SECTION 5: ACCESSORIES......................................................................................................... 25
SECTION 6: MAINTENANCE......................................................................................................... 27
Schedule .................................................................................................................................. 27
Cleaning & Protecting .............................................................................................................. 27
Lubrication ................................................................................................................................ 27
SECTION 7: SERVICE ................................................................................................................... 30
Troubleshooting ........................................................................................................................ 30
Roller Replacement .................................................................................................................. 31
SECTION 8: WIRING...................................................................................................................... 32
Wiring Safety Instructions ........................................................................................................ 32
Wiring Diagram......................................................................................................................... 33
SECTION 9: PARTS....................................................................................................................... 34
Column & Stand ....................................................................................................................... 36
Labels & Cosmetics ................................................................................................................. 38
WARRANTY & RETURNS ............................................................................................................. 41
Table of Contents

-2- Model G0826 (Mfd. Since 01/17)
We stand behind our machines! If you have ques-
tions or need help, contact us with the information
below. Before contacting, make sure you get the
serial number
and manufacture date from the
machine ID label. This will help us help you faster.
Grizzly Technical Support
1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]
Email: [email protected]
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: [email protected]
Contact Info
We are proud to provide a high-quality owner’s
manual with your new machine!
We
made every effort to be exact with the
instruc-
tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that
sometimes the machine
you receive is
slightly different than shown in the manual
.
If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something
,
check our
website for an updated version. W
e post
current
manuals and
manual updates for free
on our web-
site at
www.grizzly.com.
Alternatively, you can call our Technical Support
for help. Before calling, make sure you write down
the
Manufacture Date and Serial Number
from
the machine ID label (see below). This information
is required for us to provide proper tech support,
and it helps us determine if updated documenta-
tion is available for your machine.
Manufacture Date
Serial Number
Manual Accuracy
INTRODUCTION

Model G0826 (Mfd. Since 01/17) -3-
Identification
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
Become familiar with the names and locations of the controls and features shown below to better understand
the instructions in this manual.
Horizontal
Travel
Handwheel
Lower Elbow-Joint
Lock
Swivel Lock
Pin
Chain Cover
Motor
Horizontal
Travel Lock
Vertical
Column
Rollers
Vertical
Travel Lock
Variable-Speed Control
Panel (refer to Page 4 for
more details)
Overarm
Shaft
Lower
Elbow-Joint
Vertical Travel
Handle
Base
Rotation Lock
Upper
Elbow-Joint
Upper
Elbow-Joint
Lock
Rotation
Handle

-4- Model G0826 (Mfd. Since 01/17)
Controls &
Components
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
Refer to the following figures and descriptions to
become familiar with the basic controls and com-
ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.
A. Motor Start/Speed Dial: Starts and stops
motor and controls feed rate from 7–72 FPM.
To start motor, press dial until it beeps and
control panel glows red. To stop motor, press
dial again. To adjust feed rate, press SET
button, then rotate dial clockwise to increase
feed rate or counterclockwise to decrease
feed rate.
Variable-Speed Control Panel
Figure 1. Variable-speed control panel features.
B
C
D
A
F
B. Forward Feed Direction Button ( ):
Selects forward feed direction. When pressed,
green light above button illuminates, indicat-
ing button is selected. To change feed direc-
tion, press feed direction button opposite of
currently selected feed direction twice (2X).
New feed direction will be set at lowest speed
(7 FPM). Press motor start/speed dial twice
to restore original feed rate.
C. SET Button: Enables changes to feed rate.
When pressed, selected feed rate flashes on
control panel for 10 seconds, during which
time feed rate can be selected with motor
start/speed dial. When panel stops flash-
ing, feed rate is locked—until SET button is
pressed again.
D. Reverse Feed Direction Button ( ):
Selects reverse feed direction. Green light
below button illuminates, indicating button is
selected.
E. ON/OFF Switch: When pressed, enables or
disables power.
F. Variable-Speed Readout: Displays feed rate
in FPM.
E

Model G0826 (Mfd. Since 01/17) -5-
Power Feeder & Column Controls
Figure 2. Location of column controls.
I
G
F
H
F. Angle Adjustment Scale: Indicates angle
that power feeder assembly is rotated relative
to overarm shaft. Loosen hex bolts on upper
elbow-joint to allow rotation; tighten hex bolts
to secure power feeder angle.
G. Horizontal Travel Lock: Locks horizontal
position of power feeder.
H. Vertical Travel Handle: Adjusts vertical posi-
tion of overarm shaft and power feeder (when
vertical travel lock is loosened).
I. Vertical Travel Lock: Locks power feeder
height setting.
Figure 3. Location of power feeder and column
controls.
K
M
L
J. Horizontal Travel Handwheel: Moves over-
arm shaft horizontally and adjusts lateral
position of power feeder (when horizontal
travel lock (G) is loosened).
K. Upper Elbow-Joint Lock: Allows lower
elbow and power feeder to rotate around
upper elbow. Tighten to secure lower elbow.
L. Lower Elbow-Joint Lock: Allows power
feeder to rotate on its axis when swivel lock
pin is disengaged. Tighten to secure power
feeder swivel position.
M. Swivel Lock Pin: Allows power feeder to
rotate when disengaged. Locks power feeder
in horizontal position when engaged in either
of two detents.
N. Rotation Lock: Allows vertical column to
rotate when loosened. Prevents vertical col-
umn from rotating when tightened.
N
J

-6- Model G0826 (Mfd. Since 01/17)
Machine Data Sheet
The information contained herein is deemed accurate as of 4/20/2020 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. PAGE 1 OF 2
Model G0826
MACHINE DATA
SHEET
Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]
MODEL G0826 EASY FEEDER POWER FEEDER
Product Dimensions:
Weight.............................................................................................................................................................. 117 lbs.
Width (side-to-side) x Depth (front-to-back) x Height........................................................ 37-1/2 x 20-1/2 x 29-1/2 in.
Footprint (Length x Width)......................................................................................................................... 5-1/2 x 6 in.
Shipping Dimensions:
Carton #1
Type........................................................................................................................................... Cardboard Box
Content................................................................................................................................................. Machine
Weight...................................................................................................................................................... 54 lbs.
Length x Width x Height............................................................................................................. 23 x 13 x 12 in.
Must Ship Upright.......................................................................................................................................... No
Carton #2
Type........................................................................................................................................... Cardboard Box
Content...................................................................................................................................................... Stand
Weight...................................................................................................................................................... 71 lbs.
Length x Width x Height............................................................................................................. 31 x 13 x 13 in.
Must Ship Upright.......................................................................................................................................... No
Electrical:
Power Requirement........................................................................................................... 220V, Single-Phase, 60 Hz
Full-Load Current Rating....................................................................................................................................... 1.8A
Minimum Circuit Size.............................................................................................................................................. 15A
Connection Type....................................................................................................................................... Cord & Plug
Power Cord Included.............................................................................................................................................. Yes
Power Cord Length................................................................................................................................................. 9 ft.
Power Cord Gauge......................................................................................................................................... 18 AWG
Plug Included.......................................................................................................................................................... Yes
Included Plug Type................................................................................................................................................ 6-15
Switch Type................................................................................................................................ Push-Button ON/OFF
Motors:
Main
Horsepower........................................................................................................................... 400 Watt (1/2 HP)
Phase............................................................................................................................................ Single-Phase
Amps........................................................................................................................................................... 1.8A
Speed...................................................................................................................................... 350 – 4800 RPM
Type.......................................................................................................................................................... BLDC
Power Transfer ................................................................................................................................. Gear Drive
Bearings........................................................................................................ Sealed & Permanently Lubricated
Centrifugal Switch/Contacts Type................................................................................................................ N/A
Main Specifications:

Model G0826 (Mfd. Since 01/17) -7-
The information contained herein is deemed accurate as of 4/20/2020 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. PAGE 2 OF 2
Model G0826
Operation Info
Number of Feed Speeds....................................................................................................................... Variable
Feed Speeds.................................................................................................................................... 7 – 72 FPM
Swing.................................................................................................................................................... 360 deg.
Vertical Movement............................................................................................................................. 6-11/16 in.
Horizontal Movement................................................................................................................................. 17 in.
Rotation................................................................................................................................... Forward/Reverse
Roller Info
Number of Rollers............................................................................................................................................. 3
Roller Width......................................................................................................................................... 2-5/16 in.
Roller Diameter...................................................................................................................................... 4-3/4 in.
Roller Suspension..................................................................................................................................... 3/4 in.
Maximum Height Rollers Parallel Table Surface................................................................................... 7-1/2 in.
Construction Info
Roller...................................................................................................................................................... Rubber
Housing...................................................................................................................................... Cast Aluminum
Supports............................................................................................................................................... Cast Iron
Column................................................................................................................................................. Cast Iron
Paint Type/Finish.................................................................................................................................... Enamel
Other
Column Diameter................................................................................................................................... 2-1/4 in.
Other Specifications:
Country of Origin .............................................................................................................................................. Taiwan
Warranty ........................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time ........................................................................................................ 45 Minutes
Serial Number Location .................................................................................................................................. ID Label
ISO 9001 Factory .................................................................................................................................................. Yes
Features:
Variable-Speed Feed Adjustment Dial
Large Feed Speed Digital Readout
Push-Button ON/OFF Switch and Feed Direction
Crank Handle Vertical Adjustment
7" Max. Workpiece Clearance
Rack-and-Pinion Horizontal Movement

-8- Model G0826 (Mfd. Since 01/17)
ELECTRICAL EQUIPMENT INJURY RISKS. You
can be shocked, burned, or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.
DISCONNECT POWER FIRST.
Always discon-
nect machine from power supply BEFORE making
adjustments, changing tooling, or servicing machine.
This prevents an injury risk from unintended startup
or contact with live electrical components.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained oper-
ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis-
connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin-
ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.
For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor-
tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
This symbol is used to alert the user to useful information about
proper operation of the machine.
NOTICE
Safety Instructions for Machinery
SECTION 1: SAFETY

Model G0826 (Mfd. Since 01/17) -9-
WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.
HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate-
rial. Always wear a NIOSH-approved respirator to
reduce your risk.
HEARING PROTECTION. Always wear hear-
ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica-
tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.
FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.
NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement dur-
ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec-
ommended accessories. Using improper acces-
sories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.
DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!
MAINTAIN POWER CORDS. When disconnect-
ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend-
ed operation, stop using the machine! Contact our
Technical Support at [phone].

-10- Model G0826 (Mfd. Since 01/17)
Additional Safety for Power Feeders
Serious injury or death can occur from getting hands, clothing, or jewelry entangled in moving
parts of power feeder or being pulled into cutting tool on attached machinery. Workpieces
ejected by attached machine can strike operator or bystanders with significant force, causing
impact injuries. To minimize risk of injury, anyone operating this machine MUST completely
heed hazards and warnings below.
FEATHERBOARD. When cutting long or large
stock that is difficult to feed properly, use a feath-
erboard with power feeder (on the infeed side) to
maintain even pressure and control of workpiece
against fence, and to help reduce risk of kickback.
FEED WORKPIECE PROPERLY. To reduce risk
of kickback, verify blade or cutter of associated
machine is at full speed before feeding stock
with power feeder. Avoid feeding workpiece too
quickly. Always verify power feeder wheels are
slightly lower than workpiece to ensure it will not
slip during cutting operation. Stop power feeder
BEFORE stopping cutting tool.
WORKPIECE SUPPORT. Loss of workpiece con-
trol while feeding can increase risk of kickback.
Support workpiece continuously during opera-
tion as required. Use auxiliary stands or support
tables for long or wide stock.
ADJUSTMENTS/MAINTENANCE. Make sure
power feeder and associated machine are turned
OFF, disconnected from power, and all moving
parts are completely stopped before doing adjust-
ments or maintenance.
ATTACHED MACHINERY. Follow all warnings
and safety information for attached machine doing
cutting work.
HAND SAFETY. To reduce risk of accidental
entanglement/pinch injuries between power feed-
er rollers and workpiece, or contact with blade/cut-
ter of associated machine, keep hands away from
rotating parts of power feeder. Turn power feeder
and associated machine OFF before removing
chips, sawdust, or cutoffs—DO NOT use your
hands.
INSTALLING GUARDS. To reduce risk of kick-
back and accidental contact with blade/cutter
of associated machine, always install guards,
fences, and hold-downs before starting attached
machine and power feeder. Repair or replace
guards promptly if they become damaged.
KICKBACK. Occurs when workpiece is ejected
from machine at a high rate of speed. To reduce
risk of kickback-related injuries (blindness, broken
bones, bruises, amputation, severe lacerations,
and death), use quality workpieces and proper
setup or maintenance of power feeder or associ-
ated machine. Never stand in path of workpiece.
VERIFY EACH SETUP. An improperly adjusted
power feeder can increase risk of kickback,
because it will continue feeding even if stock is
not properly positioned for cut. Ensure that power
feeder is set up correctly and firmly secured
before feeding workpiece.

Model G0826 (Mfd. Since 01/17) -11-
SECTION 2: POWER SUPPLY
Availability
Before installing the machine, consider the avail-
ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.
Electrocution, fire, shock,
or equipment damage
may occur if machine is
not properly grounded
and connected to power
supply.
Full-Load Current Rating
The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.
Full-Load Current Rating at 220V .... 1.8 Amps
The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.
If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over-
loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.
For your own safety and protection of
property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.
Note: Circuit requirements in this manual apply to
a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con-
sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.
A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup-
ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)
Circuit Information
Circuit Requirements
This machine is prewired to operate on a power
supply circuit that has a verified ground and meets
the following requirements:
Nominal Voltage ......... 208V, 220V, 230V, 240V
Cycle ..........................................................60 Hz
Phase ........................................... Single-Phase
Power Supply Circuit ......................... 15 Amps
Plug/Receptacle ............................. NEMA 6-15

-12- Model G0826 (Mfd. Since 01/17)
Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec-
essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.
Check with a qualified electrician or service per-
sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon-
nect it from power, and immediately replace it with
a new one.
Extension Cords
We do not recommend using an extension cord
with this machine.
If you must use an extension
cord, only use it if absolutely necessary and only
on a temporary basis.
Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).
Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:
Minimum Gauge Size ...........................16 AWG
Maximum Length (Shorter is Better).......50 ft.

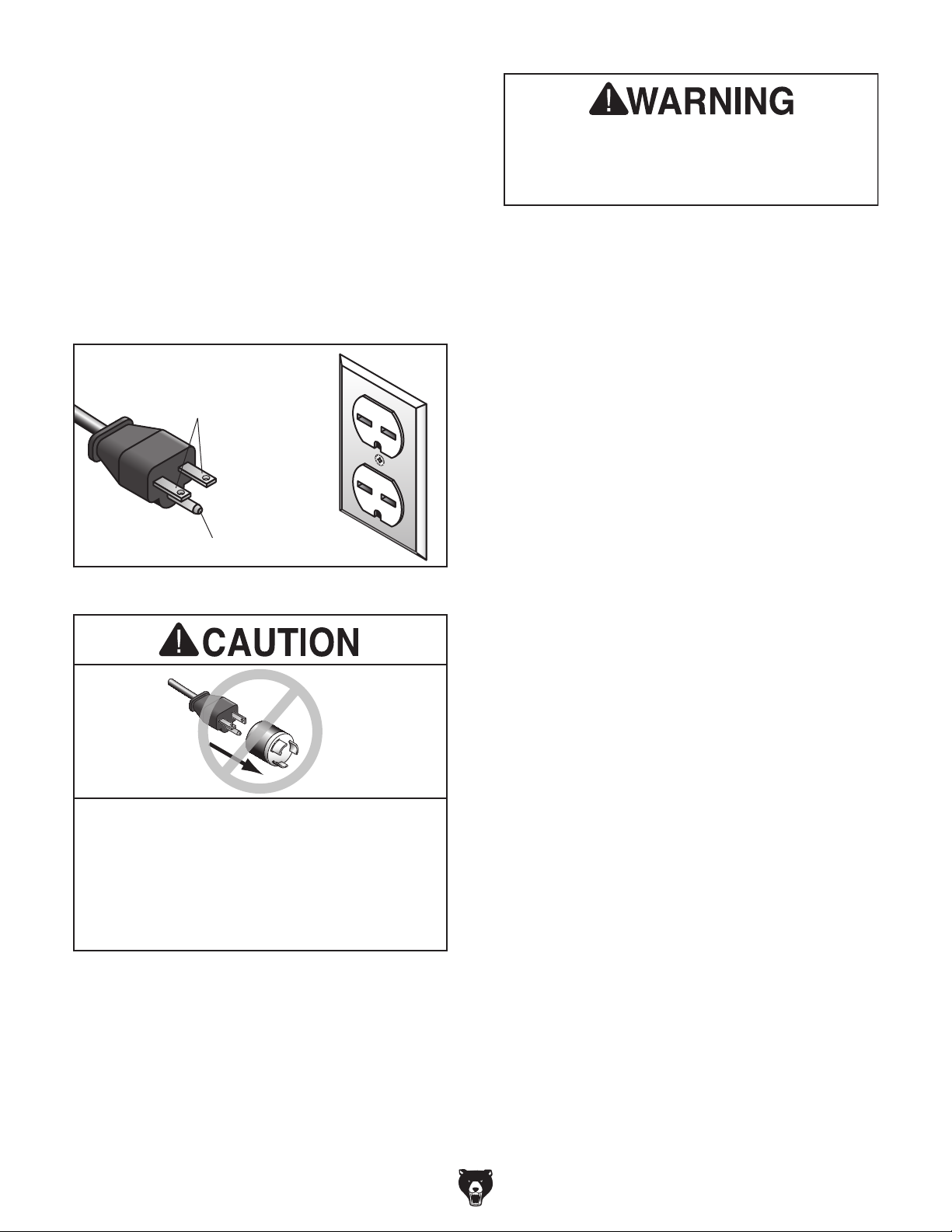

Figure 4. Typical 6-15 plug and receptacle.
Grounding Prong
Current Carrying Prongs
6-15 PLUG
GROUNDED
6-15 RECEPTACLE
Grounding Requirements
This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.
This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!
No adapter should be used with plug. If
plug does not fit available receptacle, or if
machine must be reconnected for use on a
different type of circuit, reconnection must
be performed by an electrician or qualified
service personnel, and it must comply with
all local codes and ordinances.
Serious injury could occur if you connect
machine to power before completing setup
process. DO NOT connect to power until
instructed later in this manual.

Model G0826 (Mfd. Since 01/17) -13-
Description Qty
• Precision Level ........................................... 1
• Safety Glasses (for each person) ............... 1
• Cleaner/Degreaser .................... As Needed
• Shop Rags .................................. As Needed
• Hex Wrench 4, 8mm.............................1 Ea.
• Phillips Head Screwdriver #2 ..................... 1
• C-Clamps ................................................... 2
• 12" 2x4 Wood Block ................................... 1
• Open-End Wrench/Socket 12, 14mm ...1 Ea.
• Power Drill .................................................. 1
• Drill Bit & Tap ............................................. 1
• Optional Mounting Hardware ...... As Needed
• Med.-Grade Thread Locking Liquid ............ 1
Needed for Setup
The following items are needed, but not included,
for the setup/assembly of this machine.
SECTION 3: SETUP
This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.
If items are damaged
,
please
call us immediately at [phone].
IMPORTANT:
Save all packaging materials until
you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-
aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.
Unpacking
SUFFOCATION HAZARD!
Keep children and pets away
from plastic bags or packing
materials shipped with this
machine. Discard immediately.
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
Box 1 (Figure 5) Qty
A. Base and Vertical Column Assembly ......... 1
B. Power Feeder Assembly ............................ 1
C. Base Bolt Pattern Template ........................ 1
D. Upper Elbow-Joint ...................................... 1
E. Lower Elbow-Joint ...................................... 1
F. Angle Adjustment Ring ............................... 1
G. Rotation Handle M10-1.5 ............................ 1
H. Overarm Shaft ............................................ 1
I. Hex Bolts M12-1.75 x 50 ............................. 4
J. Lock Washers 12mm .................................. 4
K. Vertical Travel Handle M10-1.5 x 25 ........... 1
Figure 5. Inventory.
A B C
DEFG
H
I
JK

-14- Model G0826 (Mfd. Since 01/17)
Figure 6. Minimum working clearances.
43"
20"
Cleanup Site Considerations
The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.
Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.
There are many ways to remove this rust preven-
tative, but the following steps work well in a wide
variety of situations. Always follow the manufac-
turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.
Before cleaning, gather the following:
• Disposable rags
• Cleaner/degreaser (WD•40 works well)
• Safety glasses & disposable gloves
• Plastic paint scraper (optional)
Basic steps for removing rust preventative:
1.
Put on safety glasses.
2.
Coat the rust preventative with a liberal
amount of cleaner/degreaser, then let it soak
for 5–10 minutes.
3.
Wipe off the surfaces. If your cleaner/degreas-
er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe
off the rest with the rag.
4.
Repeat Steps 2–3 as necessary until clean,
then coat all unpainted surfaces with a quality
metal protectant to prevent rust.
NOTICE
Avoid chlorine-based solvents, such as
acetone or brake parts cleaner, that may
damage painted surfaces.
Note: Power feeder can rotate 360°around the
vertical column, so be sure to situate machine so
it can freely rotate. The machine is shown here
with the overarm shaft fully extended.
Children and visitors may be
seriously injured if unsuper-
vised around this machine.
Lock entrances to the shop
or disable start switch or
power connection to prevent
unsupervised use.
Workbench Load
Refer to the Machine Data Sheet for the weight
and footprint specifications of your machine.
Some workbenches may require additional rein-
forcement to support the weight of the machine
and workpiece materials.
Consider anticipated workpiece sizes and addi-
tional space needed for auxiliary stands, work
tables, or other machinery when establishing a
location for this machine in the shop. Below is
the minimum amount of space needed for the
machine.
Placement Location

Model G0826 (Mfd. Since 01/17) -15-
Assembly
The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
Needed for Setup and gather
all
listed items. To ensure the assembly process
goes smoothly, first clean any
parts that are cov-
ered or coated in heavy-duty rust preventative (if
applicable).
To assemble power feeder:
1. Place vertical column assembly onto machine
table top, then attach vertical travel handle to
vertical crank shown in Figure 7.
2. Loosen hex nut and set screw under hori-
zontal handwheel shown in Figure 8, then
remove horizontal handwheel.
3. Feed overarm shaft into sleeve of vertical
column (see Figure 8). Re-install handwheel
and engage gears with overarm shaft teeth.
Re-tighten set screw and hex nut just enough
to secure handwheel.
Note: Do not overtighten set screw or hand
wheel will not rotate.
Figure 7. Vertical travel handle installed.
Tip: We recommend using a set of C-clamps to
temporarily secure the base while assembling the
power feeder to prevent it from tipping. You will
mount the power feeder to the machine table after
completing the assembly process. Refer to Base
Mounting on Page 17 for specific details.
Figure 8. Overarm shaft installed onto vertical
column.
Hex Nut
Set Screw
Sleeve
4. Slide angle adjustment ring onto overarm
shaft, slide upper elbow-joint onto overarm
shaft, then tighten for now with one of the hex
bolts shown in Figure 9.
Figure 9. Angle adjustment ring installed onto
upper elbow-joint.
Angle
Adjustment
Ring
Hex Bolt
(1 of 2)
Figure 10. Rotation handle installed.
Vertical
Travel
Handle
Vertical
Crank
Upper Elbow-
Joint
Horizontal
Handwheel
5. Attach rotation handle to power feeder (see
Figure 10) using cap screw, hex nut, and flat
washer.
Overarm
Shaft
Rotation
Handle

-16- Model G0826 (Mfd. Since 01/17)
6. Attach lower elbow-joint to power feeder
assembly by threading lower elbow-joint lever
all the way into threads of axial hub of power
feeder (see Figure 11).
Figure 11. Attaching lower elbow-joint.
Axial Hub
7. Loosen vertical and horizontal travel locks and
rotation lock, and use horizontal handwheel
and vertical travel handle to position upper
elbow-joint directly over hub of lower elbow-
joint (see Figure 12).
Tip: Place a short (approx. 12" long) 2 x 4
under power feeder to make it level with table
top and make it easier to connect upper and
lower elbow-joints during next step.
Figure 13. Upper elbow-joint lock fully tightened.
8. Position upper elbow-joint so internal
threads contact those inside lower elbow-
joint, then fully tighten upper elbow-joint lock
(see Figure 13).
9. Adjust rollers parallel to table top, then tight-
en hex bolts shown in Figure 14.
10. Position angle adjustment ring so it just con-
tacts upper elbow-joint, align "0" on ring with
indicator, then tighten screw (see Figure 14).
Figure 14. Location of "0" on adjustment ring.
Lever
Lower
Elbow-Joint
Figure 12. Upper and lower elbow-joints aligned.
2 x 4
Indicator
Line
"0"
Screw
Angle
Adjustment
Ring
Rotation
Lock
Hex
Bolts
Upper
Elbow-Joint
Upper
Elbow-Joint
Lock
Lower
Elbow-Joint

Model G0826 (Mfd. Since 01/17) -17-
Position the power feeder on the table top to
determine where to drill the base mounting holes
in order to maximize power feeder swing and
adjustment options.
Use the included base-bolt pattern template to
align the mounting holes. Consider the available
mounting choices for your needs: Through-Bolt
Mounting and Direct Mounting (discussed on
Page 18).
With either mounting choice, leave room to oper-
ate the hand cranks and lock levers to position the
rubber rollers parallel with the table surface and
approximately 1⁄8" lower than the thickness of the
workpiece.
Also, aim the front of the power feeder slightly
towards the machine fence (see Figure 15)
with approximately 1° to 1.5° toe-in toward the
machine fence, so the rubber rollers lightly push
the workpiece against the fence during cutting
operations.
If cutting long or large stock that is difficult to feed
properly, use a featherboard before the power
feeder (on the infeed side) to maintain even pres-
sure and control of the workpiece against the
fence.
Base Mounting
Figure 15. Typical power feed mounting on a shaper, jointer, and table saw.
Feed Feed
Table SawShaper
Cutter
Feed
Jointer
Cutterhead
Blade
Fence Fence Fence
4th-Roller
Models
Optional
Featherboard

-18- Model G0826 (Mfd. Since 01/17)
Direct Mounting
Use the included mounting template to drill and
tap the table so the power feeder base can be
directly mounted to the table surface (see Figure
17). Use medium-grade liquid thread-locking com-
pound on all threads. If the table is less than 3⁄8"
thick where the holes will be drilled and tapped,
or if support webbing interferes, the threads may
strip or loosen during power feeder use. Thread-
locking compound is not a permanent solution.
Revert to the Through-Bolt Mounting or clamp-
ing kit options.
Figure 16. Through-bolt mounting.
Machine Table
Flat Washer
Flat Washer
Lock Washer
Locking Hex Nut
Table
Support
Webbing
Bolt
Feeder
Base
Figure 17. Direct mounting.
Machine Table
Table
Support
Webbing
Bolt
Feeder
Base
Lock Washer
Flat Washer
Apply a Medium
Grade Thread-
Locking Compound
to the Threads
Through-Bolt Mounting
We recommend mounting the power feeder to
the machine table with through bolts, nuts, and
washers (see Figure 16). This option provides
the most rigidity and clamping strength to prevent
the feeder base from twisting out of alignment
during use. However, if under-table support webs
interfere with washer or nut locations, use the
optional Model G4175 clamping kit, or drill and
thread holes directly into the table as described in
Direct Mounting.
