-60- G0623X/G0623X3 10" Sliding Table Saw

























 







Cabinet
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P0623X0001 CABINET 18 PSS21M SET SCREW M8-1.25 X 25
2 P0623X0002 COVER PLATE 19 PN03M HEX NUT M8-1.25
3 P0623X0003 EMERGENCY STOP BUTTON 20 P0623X0020 POWER BOX
4 PHTEK19M TAP SCREW M5 X 16 21 P0623X0021 TERMINAL
5 P0623X0005 BLADE TILT SCALE 22 PS05M PHLP HD SCR M5-.8 X 8
6 PLW06M LOCK WASHER 10MM 23 PSBS06M BUTTON HD CAP SCR M5-.8 X 12
7 PN02M HEX NUT M10-1.5 24 PB01M HEX BOLT M10-1.5 X 30
8 P0623X0008 SWITCH BOX 25 P0623X0025 FENDER WASHER 10MM
9 P0623X0009 STRAIN RELIEF 26 PLW06M LOCK WASHER 10MM
10 PSBS05M BUTTON HD CAP SCR M6-1 X 20 27 P0623X0027 DECORATIVE PLATE
11 PN01M HEX NUT M6-1 28 P0623X0028 PLATE SUPPORT
12 P0623X0012 STRAIN RELIEF M20 29 PSS74M SET SCREW M8-1.25 X 35
13 PN02M HEX NUT M10-1.5 30 PN03M HEX NUT M8-1.25
14 PSS73M SET SCREW M10-1.5 X 30 31 PN01M HEX NUT M6-1
15 P0623X0015 DUST PORT 4" 32 PSB11M CAP SCREW M8-1.25 X 16
16 PLW03M LOCK WASHER 6MM 33 PW01M FLAT WASHER 8MM
17 PS11M PHLP HD SCR M6-1 X 16 34 P0623X0034 WIRE CONNECTOR
SECTION 8: PARTS

G0623X/G0623X3 10" Sliding Table Saw -61-























Main Trunnion
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 P0623X0101 CHANNEL BASE 112 PLW04M LOCK WASHER 8MM
102 P0623X0102 TRUNNION BRACKET 113 P0623X0113 BLADE GUARD PLATE
103 PSB04M CAP SCREW M6-1 X 10 114 P0623X0114 HINGE
104 PLW03M LOCK WASHER 6MM 115 PS09M PHLP HD SCR M5-.8 X 10
105 PSB11M CAP SCREW M8-1.25 X 16 117 P0623X0117 MAGNET ASSEMBLY
106 PSBS04M BUTTON HD CAP SCR M8-1.25 X 35 118 P0623X0118 BLADE SHROUD DUST PORT
107 PLW04M LOCK WASHER 8MM 119 PS22M PHLP HD SCR M5-.8 X 25
108 P0623X0108 STOP BRACKET 120 PLN02M LOCK NUT M5-.8
109 P0623X0109 LIMIT SWITCH AZZ7100 121 PLW01M LOCK WASHER 5MM
110 PS18M PHLP HD SCR M4-.7 X 25 122 P0623X0122 KEEPER PLATE
111 PSB50M CAP SCREW M5-.8 X 10 123 P0623X0123 CORD

-62- G0623X/G0623X3 10" Sliding Table Saw




































































 

 
















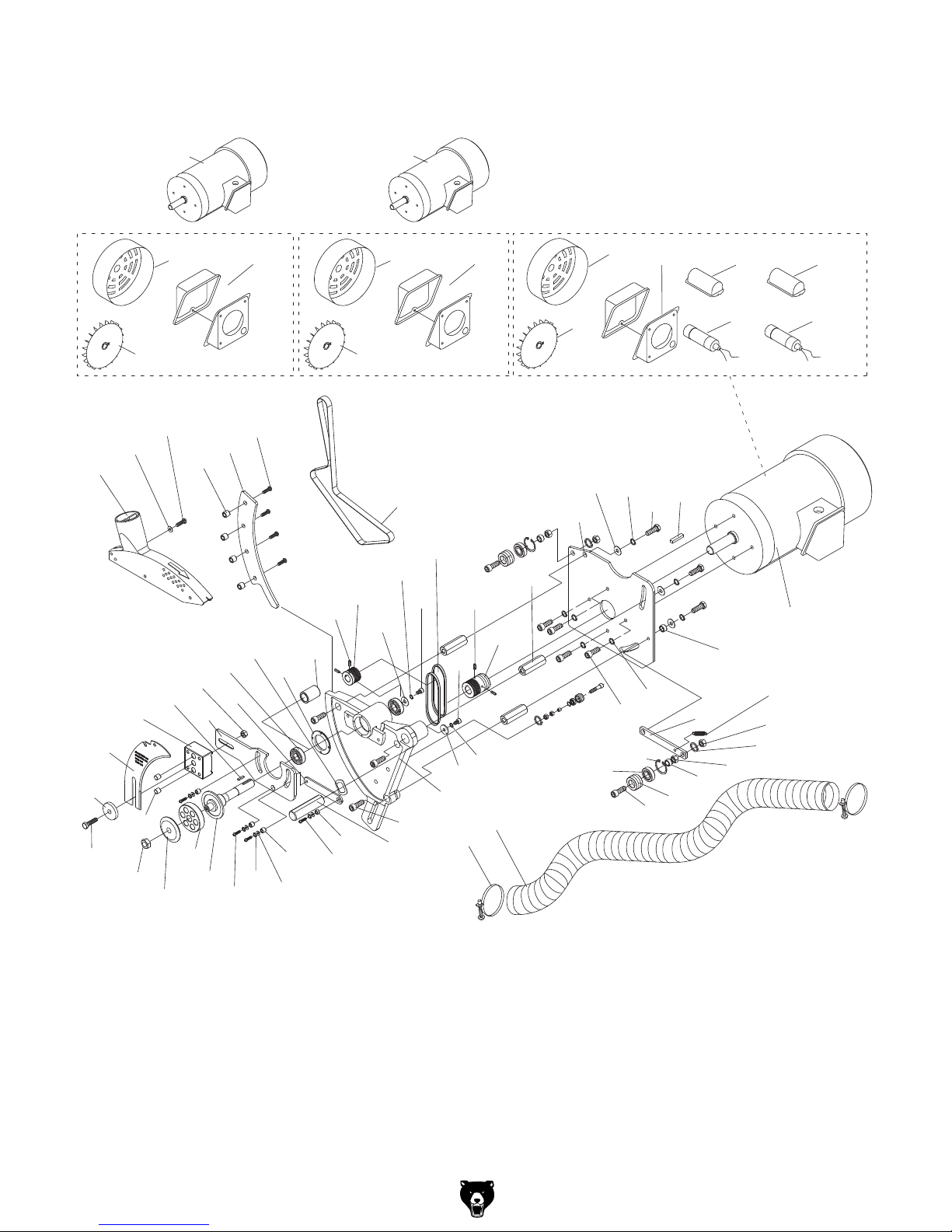

Main Motor

G0623X/G0623X3 10" Sliding Table Saw -63-
Main Motor Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 P0623X0201 BLADE GUARD COVER 235 PSB77M CAP SCREW M12-1.75 X 30
202 P0623X0202 FENDER WASHER 8MM 236 P0623X0236 SHAFT
203 PSBS07M BUTTON HD CAP SCR M8-1.25 X 40 237 P0623X0237 BUSHING
204 P0623X0204 RIVING KNIFE MOUNTING BLOCK 238 PSBS22M BUTTON HD CAP SCR M8-1.25 X 20
205 PK34M KEY 5 X 5 X 20 239 P0623X0239 BUSHING
206 P0623X0206 LOCATING BLOCK 240 P0623X0240 FENDER WASHER 8MM
207 PN09M HEX NUT M12-1.75 241 PLW04M LOCK WASHER 8MM
208 P0623X0208 LINK PLATE 242 PSBS03M BUTTON HD CAP SCR M8-1.25 X 16
209 P0623X0209 BALL BEARING 6004LLB 243 P0623X0243 MAIN ARBOR CSA
210 P0623X0210 WAVE WASHER 26 X 34MM 244 P0623X0244 ARBOR FLANGE CSA
211 P0623X0211 COLLAR 245 P0623X0245 LOCATING PIN
212 P0623X0212 GIB PLATE 246 PB73M HEX BOLT M10-1.5 X 50
213 PSBS08M BUTTON HD CAP SCR M10-1.5 X 35 247 P0623X0247 RIVING KNIFE WASHER 10MM
214 PSS03M SET SCREW M6-1 X 8 248 P0623X0248 RIVING KNIFE
215 P0623X0215 ARBOR PULLEY TYPE M 249 P0623X0249 SPECIAL ARBOR WASHER
216 PW06M FLAT WASHER 12MM 250 P0623X0250 HOSE 3" X 60CM
217 PLW04M LOCK WASHER 8MM 251 P0623X0251 HOSE CLAMP 3-1/4"
218 PVM20 V-BELT M-20 3L200 252 PSB119M CAP SCREW M12-1.75 X 55
219 PSB14M CAP SCREW M8-1.25 X 20 253 P0623X0253 IDLER
220 PSS02M SET SCREW M6-1 X 6 255 PN09M HEX NUT M12-1.75
221 P0623X0221 MOTOR PULLEY TYPE M 256 PN09M HEX NUT M12-1.75
222 P0623X0222 SHAFT 257 P0623X0257 ROTATE PLATE
223 P0623X0223 MAIN MOTOR MOUNTING PLATE 258 PR20M INT RETAINING RING 28MM
224 PW06M FLAT WASHER 12MM 259 P0623X0259 BUSHING
225 PLW05M LOCK WASHER 12MM 260 P0623X0260 BELT 15 X 1140
226 PB25M HEX BOLT M12-1.75 X 25 261 P0623X0261 PLATE
227 PK61M KEY 7 X 7 X 30 262 P0623X0262 BUSHING
229 PSB14M CAP SCREW M8-1.25 X 20 263 P0623X0263 LOCK NUT 5/8-11
230 PLW04M LOCK WASHER 8MM 264 P0623X0264 BUSHING
231 PSB14M CAP SCREW M8-1.25 X 20 265 PLW05M LOCK WASHER 12MM
232 PLW04M LOCK WASHER 8MM 266 P6001 BALL BEARING 6001ZZ
233 P0623X0233 FENDER WASHER 8MM 267 P0623X0267 EXTENSION SPRING
234 P0623X0234 ROTATE PLATE
REF PART # DESCRIPTION
228 P0623X0228 MOTOR 5HP 1-PH
228-1 P0623X0228-1 MOTOR FAN COVER
228-2 P0623X0228-2 MOTOR FAN
228-3 P0623X0228-3 JUNCTION BOX
228-4 P0623X0228-4 CAPACITOR COVER
228-5 P0623X0228-5 S CAPACITOR 400M 250V
228-6 P0623X0228-6 CAPACITOR COVER
228-7 P0623X0228-7 R CAPACITOR 30M 500V
REF PART # DESCRIPTION REF PART # DESCRIPTION
228 P0623X30228 MOTOR 5HP 220V/440V 3-PH 228A P0623X30228A MOTOR 7.5HP 220V/440V 3-PH
228-1 P0623X30228-1 MOTOR FAN COVER 228-1A P0623X30228-1A MOTOR FAN COVER
228-2 P0623X30228-2 MOTOR FAN 228-2A P0623X30228-2A MOTOR FAN
228-3 P0623X30228-3 JUNCTION BOX 228-3A P0623X30228-3A JUNCTION BOX
G0623X37.5HP,220V/440V,3-PHASEMOTOR
G0623X5HP,220V,SINGLE-PHASEMOTOR
G0623X35HP,220V/440V,3-PHASEMOTOR

-64- G0623X/G0623X3 10" Sliding Table Saw












 
















 
 











































Sliding Table

G0623X/G0623X3 10" Sliding Table Saw -65-
Sliding Table Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
301 P0623X0301 SLIDING TABLE SET 688x316 326 PN09M HEX NUT M12-1.75
302 P0623X0302 T-SCREW M12-1.75 X 35 327 P0623X0327 ADJUST FOOT
303 PW06M FLAT WASHER 12MM 328 P0623X0328 SWITCH MOUNTING BRACKET
304 PLW05M LOCK WASHER 12MM 330 PS56M PHLP HD SCR M4-.7 X 16
305 PN09M HEX NUT M12-1.75 331 PSB33M CAP SCREW M5-.8 X 12
306 PLW03M LOCK WASHER 6MM 332 P0623X0332 LOCATE PLATE
307 PN01M HEX NUT M6-1 333 PN06M HEX NUT M5-.8
308 PN13M HEX NUT M16-2 334 PW02M FLAT WASHER 5MM
309 PSBS11M BUTTON HD CAP SCR M6-1 X 10 335 PLN05M LOCK NUT M10-1.5
310 PSBS11M BUTTON HD CAP SCR M6-1 X 10 336 P0623X0336 FENDER WASHER 10MM
311 P0623X0311 LOCATE PLATE 337 PFN02M FLANGE NUT M6-1
312 P0623X0312 LOCATE PLATE 338 PSB33M CAP SCREW M5-.8 X 12
313 P0623X0313 HANDLE 339 PW02M FLAT WASHER 5MM
314 P0623X0314 LOCATE PLATE 340 PN06M HEX NUT M5-.8
315 PSB01M CAP SCREW M6-1 X 16 341 PW03M FLAT WASHER 6MM
316 P0623X0316 PIN LOCK 342 PLW03M LOCK WASHER 6MM
317 PSB115M BUTTON HD CAP SCR M6-1 X 16 343 PN01M HEX NUT M6-1
318 PSBS11M BUTTON HD CAP SCR M6-1 X 10 344 P0623X0344 FLEXIBLE CONDUIT
319 P0623X0319 SLIDING TABLE END PLATE 345 P0623X0345 LOCATE PLATE
320 P0623X0320 SLIDING TABLE END PLATE 347 P0623X0347 MOTOR CORD 3C 12AWG
321 P0623X0321 LOCATE BLOCK 347 P0623X30347 MOTOR CORD 4C 12AWG
322 P0623X0322 LOCATE PLATE 348 P0623X0348 PWR BOX CORD 3C 12AWG
323 PLW04M LOCK WASHER 8MM 348 P0623X30348 PWR BOX CORD 4C 12AWG
324 PSB14M CAP SCREW M8-1.25 X 20 349 P0623X0349 LIMIT SWITCH CORD 2C 18AWG
325 P0623X0325 SUPPORT LEG 350 P0623X0350 E-STOP CORD 2C 18AWG
REF PART # DESCRIPTION
329 P0623X0329 SWITCH MP-18 5HP 220V 1PH
329-1 P0623X0329-1 SWITCH BOX
329-2 P0623X0329-2 CONTACTOR SDE MA-18 220V
329-3 P0623X0329-3 RELAY SDE RA-30 22-34 25A
REF PART # DESCRIPTION REF PART # DESCRIPTION
329 P0623X30329 SWITCH MP-18 5HP 220V 3PH 346 P0623X30346 SWITCH MP-09 5HP 440V 3PH
329-1 P0623X30329-1 SWITCH BOX 346-1 P0623X30346-1 SWITCH BOX
329-2 P0623X30329-2 CONTACTOR SDE MA-18 220V 346-2 P0623X30346-2 CONTACTOR SDE MA-09
329-3 P0623X30329-3 RELAY SDE RA-20 12-18 16A 346-3 P0623X30346-3 RELAY SDE RA-20 8-12 8A
REF PART # DESCRIPTION REF PART # DESCRIPTION
329A P0623X30329A SWITCH MP-18 7.5HP 220V 3PH 346A P0623X30346A SWITCH MP-18 7.5HP 440V 3PH
329-1A P0623X30329-1A SWITCH BOX 346-1A P0623X30346-1A SWITCH BOX
329-2A P0623X30329-2A CONTACTOR SDE MA-18 220V 346-2A P0623X30346-2A CONTACTOR SDE MA-18 440V
329-3A P0623X30329-3A RELAY SDE RA-30 18-26 23A 346-3A P0623X30346-3A RELAY SDE RA-20 12-18 12A
G0623X5HP,220V,1-PHSWITCH
G0623X35HP,220V,3-PHSWITCH
G0623X37.5HP,220V,3-PHSWITCH
G0623X35HP,440V,3-PHSWITCH
G0623X37.5HP,440V,3-PHSWITCH

-66- G0623X/G0623X3 10" Sliding Table Saw






















 













Tables
REF PART # DESCRIPTION REF PART # DESCRIPTION
401 P0623X0401 LARGE EXTENSION TABLE 420 PHTEK15M TAP SCREW M4 X 10
402 P0623X0402 CAST IRON TABLE 421 P0623X0421 RAIL END PLATE
403 P0623X0403 TABLE INSERT 422 P0623X0422 SMALL EXTENSION TABLE
404 PSB15M CAP SCREW M5-.8 X 20 423 PW04M FLAT WASHER 10MM
405 P0623X0405 RIP FENCE SCALE 424 PLW06M LOCK WASHER 10MM
406 P0623X0406 STUD M12-1.75 X 90 425 PSB64M CAP SCREW M10-1.5 X 25
407 P0623X0407 T-NUT M12-1.75 426 PLW01M LOCK WASHER 5MM
408 P0623X0408 RIP FENCE RAIL 427 PSBS06M BUTTON HD CAP SCR M5-.8 X 12
409 PB10M HEX BOLT M6-1 X 25 428 P0623X0428 STOP TAB
410 PLW03M LOCK WASHER 6MM 429 PSB64M CAP SCREW M10-1.5 X 25
411 PN01M HEX NUT M6-1 430 P0623X0430 DUST HOSE SUPPORT
412 PW06M FLAT WASHER 12MM 431 PLW06M LOCK WASHER 10MM
413 PW06M FLAT WASHER 12MM 432 PLN05M LOCK NUT M10-1.5
414 PLW05M LOCK WASHER 12MM 433 PW04M FLAT WASHER 10MM
415 PN09M HEX NUT M12-1.75 434 PN03M HEX NUT M8-1.25
416 PLW06M LOCK WASHER 10MM 435 PSB31M CAP SCREW M8-1.25 X 25
417 PW04M FLAT WASHER 10MM 436 PB83M HEX BOLT M6-1 X 16
418 PSB64M CAP SCREW M10-1.5 X 25 437 PW03M FLAT WASHER 6MM
419 PLN02M LOCK NUT M5-.8

G0623X/G0623X3 10" Sliding Table Saw -67-








 






 




Rip Fence
REF PART # DESCRIPTION REF PART # DESCRIPTION
501 P0623X0501 RIP FENCE 512 P0623X0512 TAP SCREW
502 P0623X0502 CLAMP PLATE 513 P0623X0513 LOCK PLATE HANDLE M8-1.25
503 P0623X0503 STEEL PIN 6MM 514 PW01M FLAT WASHER 8MM
504 P0623X0504 ROD 515 P0623X0515 RIP FENCE FRONT HOUSING
505 P0623X0505 HDPE STRIP 516 P0623X0516 RIP FENCE REAR HOUSING
506 PFS07M FLANGE SCREW M5-.8 X 10 517 P0623X0517 PLASTIC SCREW
507 PN03M HEX NUT M8-1.25 518 PLW04M LOCK WASHER 8MM
508 P0623X0508 FENCE LOCK HANDLE 519 PSB14M CAP SCREW M8-1.25 X 20
509 P0623X0509 SLEEVE 520 P0623X0520 FLAT HD SCR M6-1 X 12
510 P0623X0510 SPRING PRESSURE PLATE 521 P0623X0521 WAVY WASHER 12MM
511 P0623X0511 COVER PLATE 522 P0623X0522 HDPE STRIP 50 X 5MM

-68- G0623X/G0623X3 10" Sliding Table Saw











 































  

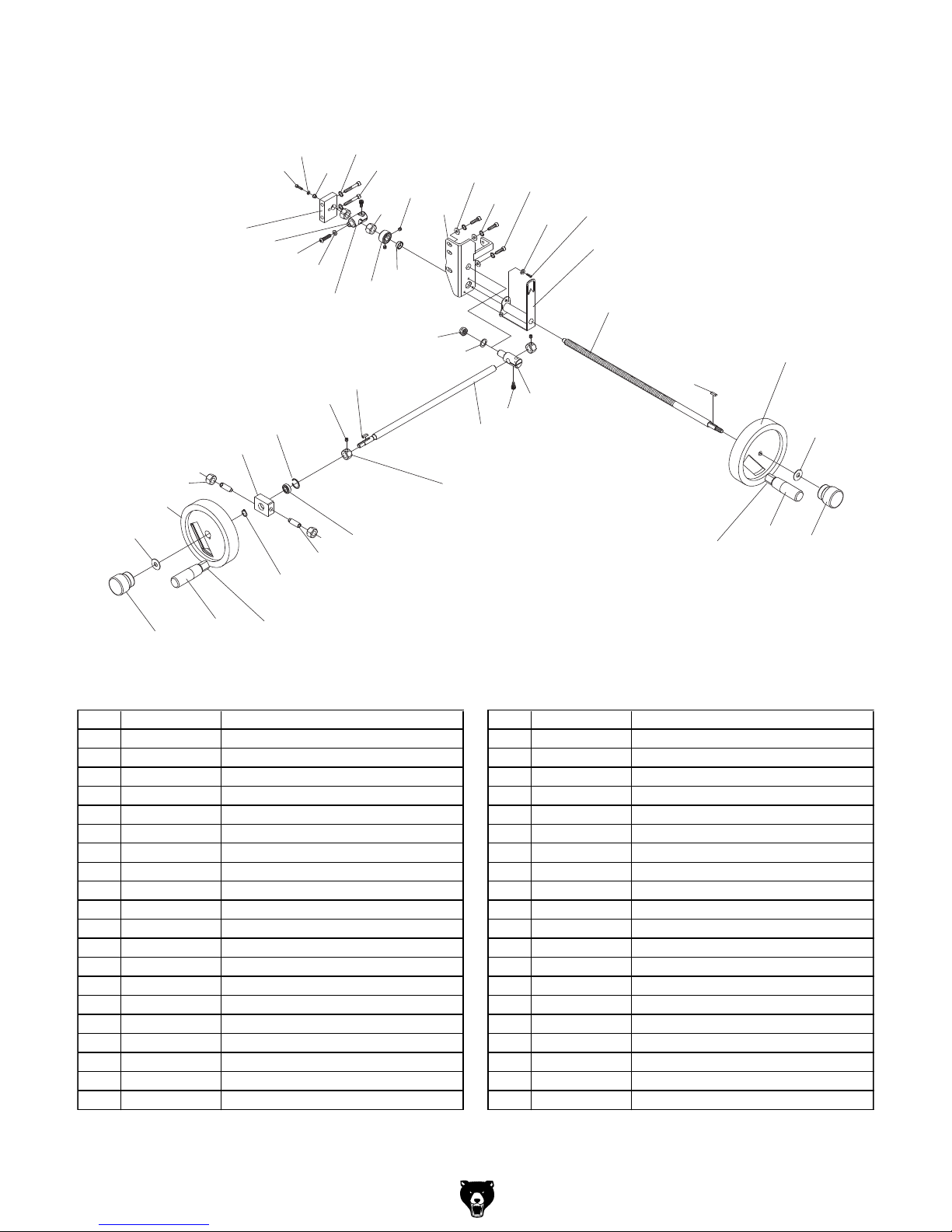

Handwheels
REF PART # DESCRIPTION REF PART # DESCRIPTION
601 P0623X0601 LOCK KNOB M10-1.5 622 P0623X0622 BEARING SELF LUBRICATING
602 P0623X0602 HANDWHEEL HANDLE 623 PW03M FLAT WASHER 6MM
603 P0623X0603 HAND WHEEL 624 PR03M EXT RETAINING RING 12MM
604 PK34M KEY 5 X 5 X 20 625 P0623X0625 LOCATE BLOCK
605 P0623X0605 ANGLE SEAT 626 P0623X0626 LOCATE BLOCK
606 PR20M INT RETAINING RING 28MM 627 PSB04M CAP SCREW M6-1 X 10
607 PSS02M SET SCREW M6-1 X 6 628 PW03M FLAT WASHER 6MM
608 PSB61M CAP SCREW M10-1.5 X 20 629 P0623X0629 SLEEVE
609 P0623X0609 SCREW M16 X 2P X 2T 630 PLN07M LOCK NUT M16-2
610 P0623X0610 NUT 631 P0623X0631 COPPER WASHER 16MM
611 P0623X0611 LOCATE RING 632 PSB26M CAP SCREW M6-1 X 12
612 P0623X0612 SCREW M16 X 2P X 2T 633 PN13M HEX NUT M16-2
613 P0623X0613 FINGER GUIDE 634 PN09M HEX NUT M12-1.75
614 PSB04M CAP SCREW M6-1 X 10 636 PK34M KEY 5 X 5 X 20
615 PLW03M LOCK WASHER 6MM 637 P0623X0637 BEARING
616 PSB14M CAP SCREW M8-1.25 X 20 638 P0623X0638 SET SCREW M12-1.75 X 35
617 PLW04M LOCK WASHER 8MM 639 PSS02M SET SCREW M6-1 X 6
618 PW01M FLAT WASHER 8MM 640 PN13M HEX NUT M16-2
619 P0623X0619 STRUT BOARD 641 P0623X0641 DISC WASHER 10 X 20
620 PSB05M CAP SCREW M8-1.25 X 50 642 P0623X0642 BUSHING
621 PLW04M LOCK WASHER 8MM 643 P0623X0643 HANDLE EXTENSION

G0623X/G0623X3 10" Sliding Table Saw -69-























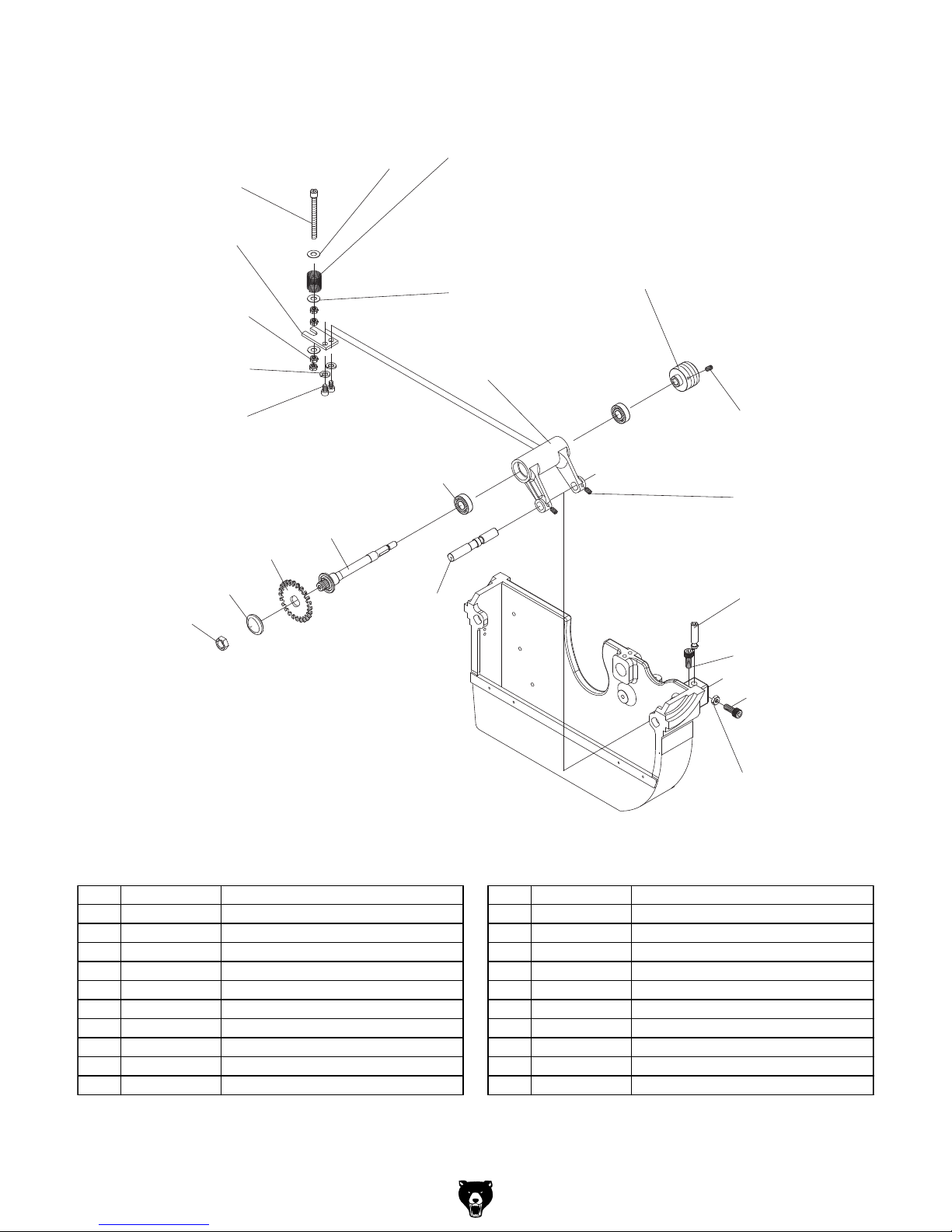

Scoring Trunnion
REF PART # DESCRIPTION REF PART # DESCRIPTION
701 P0623X0701 ARBOR FLANGE 712 P0623X0712 ADJUST SCREW M8-1.25 X 100
702 P0623X0702 SCORING SAW BLADE CSA 22MM 713 P0623X0713 PLATE
703 PSB14M CAP SCREW M8-1.25 X 20 714 PLW04M LOCK WASHER 8MM
704 P0623X0704 SHAFT CSA 22MM 715 PSB31M CAP SCREW M8-1.25 X 25
705 P0623X0705 SHAFT 716 P0623X0716 LOCK
706 P0623X0706 BEARING 717 PLN04M LOCK NUT M8-1.25
707 P0623X0707 REGULATOR 718 PW04M FLAT WASHER 10MM
708 P0623X0708 SCORING PULLY 60HZ 719 P0623X0719 HEX NUT
709 PSS02M SET SCREW M6-1 X 6 720 PW04M FLAT WASHER 10MM
710 PSS02M SET SCREW M6-1 X 6 721 PSB02M CAP SCREW M6-1 X 20
711 P0623X0711 ADJUST SHAFT 722 PN01M HEX NUT M6-1

-70- G0623X/G0623X3 10" Sliding Table Saw



























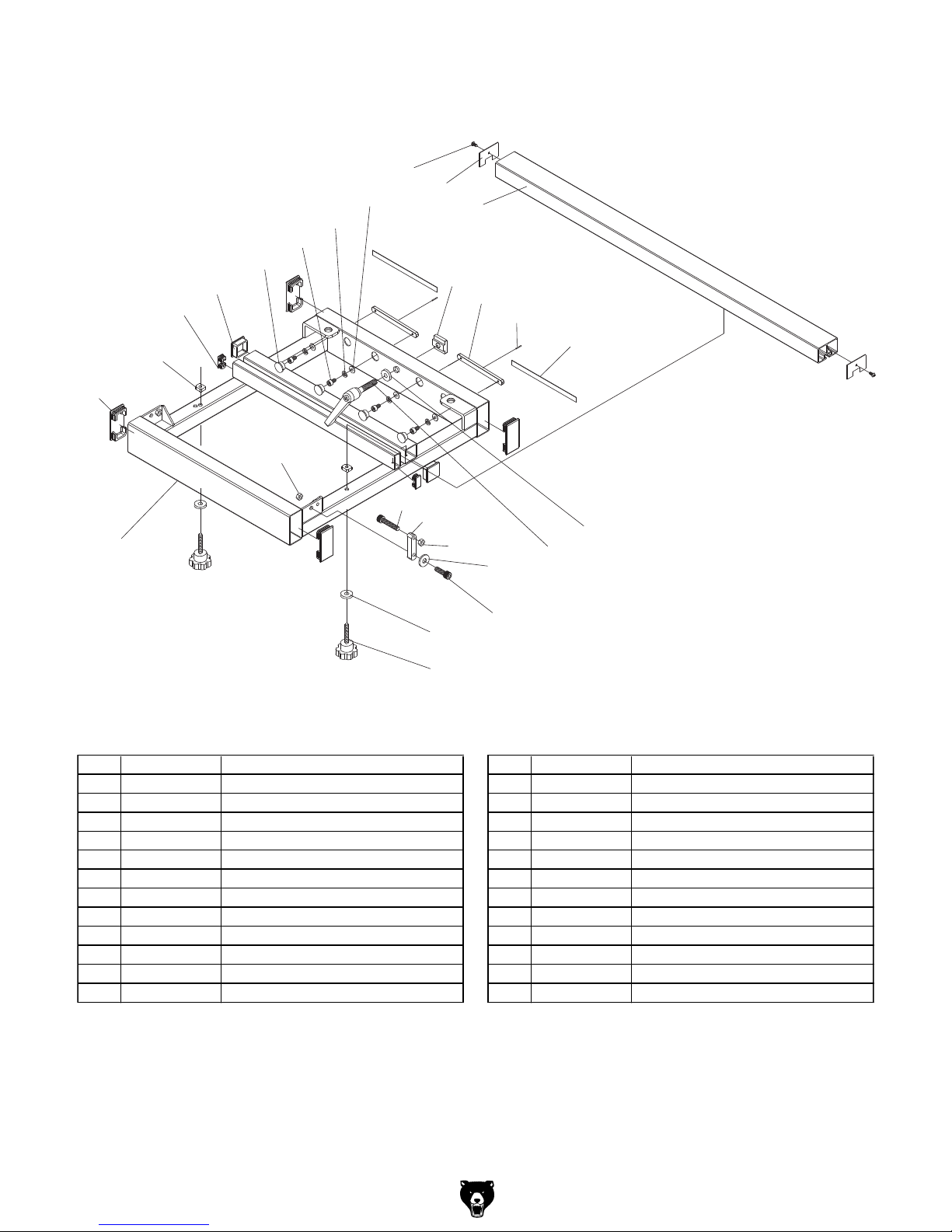

Crosscut Table
REF PART # DESCRIPTION REF PART # DESCRIPTION
801 P0623X0801 SUPPORT FRAME 814 PW03M FLAT WASHER 6MM
802 P0623X0802 PLUG 38 X 38 815 P0623X0815 PLUG 80 X 40
803 P0623X0803 PLUG 40 X 20 816 P0623X0816 PLUG
804 P0623X0804 T-NUT M12-1.75 817 P0623X0817 PIN 3 X 14
805 P0623X0805 T-SLOT BAR 818 P0623X0818 KNOB SCREW M8-1.25 X 50
806 P0623X0806 PAD 819 P0623X0819 FENDER WASHER 8MM
807 PSB115M BUTTON HD CAP SCR M6-1 X 16 820 P0623X0820 SQUARE BRACE
808 PLW03M LOCK WASHER 6MM 821 P0623X0821 COVER
809 P0623X0809 FENDER WASHER 12MM 822 P0623X0822 TAP SCREW #8 X 3/8"
810 P0623X0810 ADJUST HANDLE M12-1.75 X 55 823 P0623X0823 T-NUT M8-1.25
811 P0623X0811 T-NUT 824 PSB13M CAP SCREW M8-1.25 X 30
812 PN03M HEX NUT M8-1.25 825 P0623X0825 FENDER WASHER 8MM
813 PB126M HEX BOLT M8-1.25 X 40 826 PLN04M LOCK NUT M8-1.25

G0623X/G0623X3 10" Sliding Table Saw -71-




 
























 



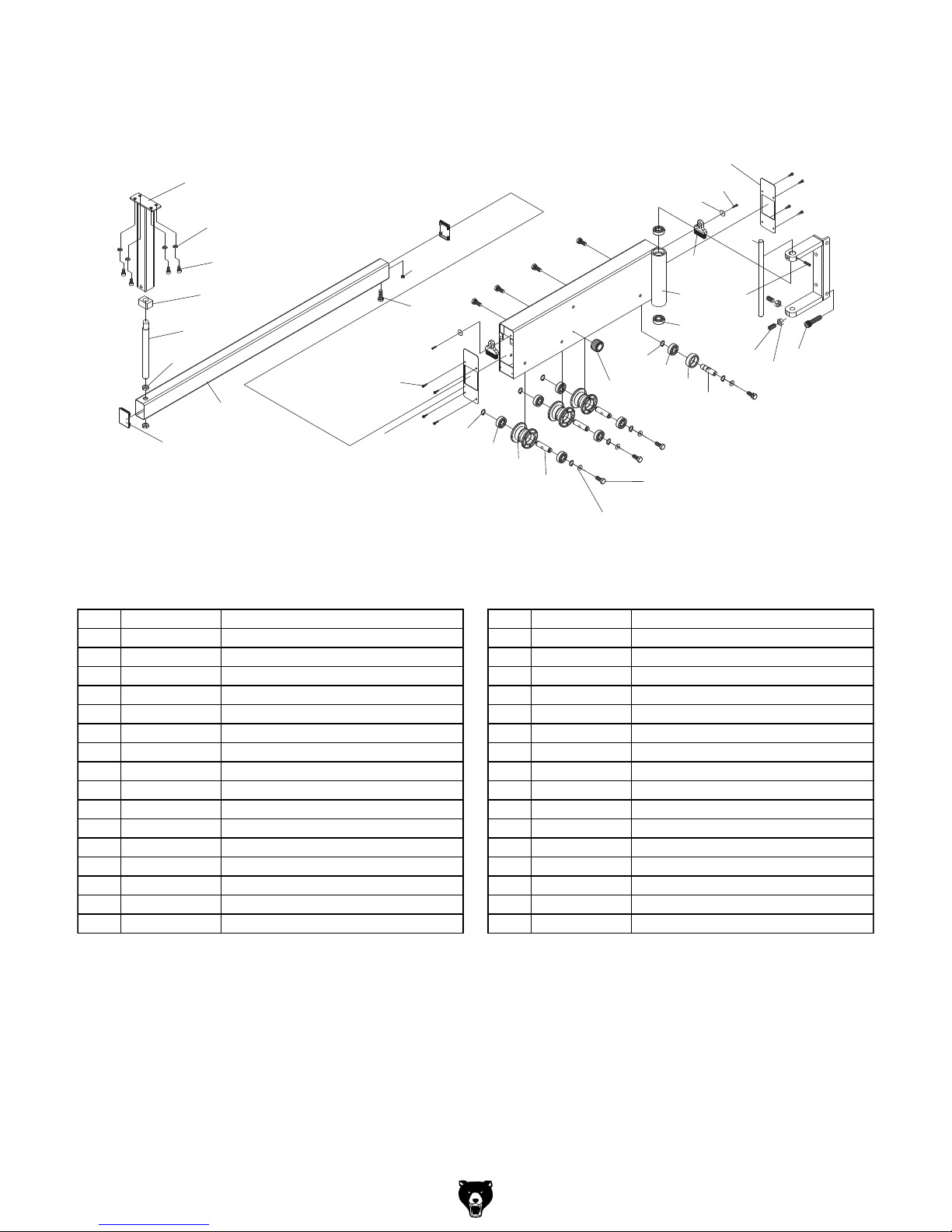

Swing Arm
REF PART # DESCRIPTION REF PART # DESCRIPTION
901 P0623X0901 FRAME 918 P0623X0918 RING
902 PLW03M LOCK WASHER 6MM 919 P0623X0919 ADJUST SHAFT
903 PSB01M CAP SCREW M6-1 X 16 920 P0623X0920 SET SCREW
904 P0623X0904 ROTARY SHAFT 921 P6202 BALL BEARING 6202ZZ
905 PN28M HEX NUT M20-2.5 922 P0623X0922 SWING ARM
906 P0623X0906 PLUG 40 X 80 923 P0623X0923 BRUSH
907 P0623X0907 SLIDING TUBE 924 PW03M FLAT WASHER 6MM
908 PB26M HEX BOLT M8-1.25 X 30 925 PSB02M CAP SCREW M6-1 X 20
909 PN03M HEX NUT M8-1.25 926 P0623X0926 SET SCREW
910 PHTEK15M TAP SCREW M4 X 10 927 P0623X0927 SET SCREW
911 P0623X0911 COVER 929 PB14M HEX BOLT M10-1.5 X 35
912 PR05M EXT RETAINING RING 15MM 930 P0623X0930 PLUG
913 P6202 BALL BEARING 6202ZZ 931 PN02M HEX NUT M10-1.5
914 P0623X0914 ROLLER 932 P0623X0932 COVER
915 P0623X0915 ADJUST SHAFT 933 PB09M HEX BOLT M8-1.25 X 20
916 PR05M EXT RETAINING RING 15MM 934 PW01M FLAT WASHER 8MM
917 P6202 BALL BEARING 6202ZZ 935 P0623X0935 MAGNET BASE ASSEMBLY

-72- G0623X/G0623X3 10" Sliding Table Saw


 








 















Miter Gauge
REF PART # DESCRIPTION REF PART # DESCRIPTION
1001 P0623X1001 SQUARE FENCE 1016 PW04M FLAT WASHER 10MM
1002 P0623X1002 MITER GAUGE BODY 1017 PLN05M LOCK NUT M10-1.5
1003 P0623X1003 LARGE WASHER 1018 PSB38M CAP SCREW M5-.8 X 25
1004 P0623X1004 BODY 1019 PS02M PHLP HD SCR M4-.7 X 12
1005 P0623X1005 CLAMP SHAFT 1020 P0623X1020 POINTER
1006 P0623X1006 KNOD SCREW 1021 P0623X1021 FIXED BLOCK
1007 P0623X1007 KNURLED KNOB 1022 P0623X1022 STOP BAR
1008 P0623X1008 MITER GAUGE SHAFT 1023 PS56M PHLP HD SCR M4-.7 X 16
1009 PW01M FLAT WASHER 8MM 1024 P0623X1024 FIXED BASE
1010 PB29M HEX BOLT M6-1 X 30 1025 PSS23M SET SCREW M4-.7 X 10
1011 PN06M HEX NUT M5-.8 1026 P0623X1026 ADJUST HANDLE
1012 P0623X1012 ADJUST HANDLE M6 X 30 1027 P0623X1027 SHAFT
1013 P0623X1013 LOCK SHAFT 1028 P0623X1028 SET SCREW M8-1.25 X 45
1014 P0623X1014 STOP PLATE 1029 PRP42M ROLL PIN 3 X 20
1015 PSN02M SQUARE NUT M6-1

G0623X/G0623X3 10" Sliding Table Saw -73-




 



















 


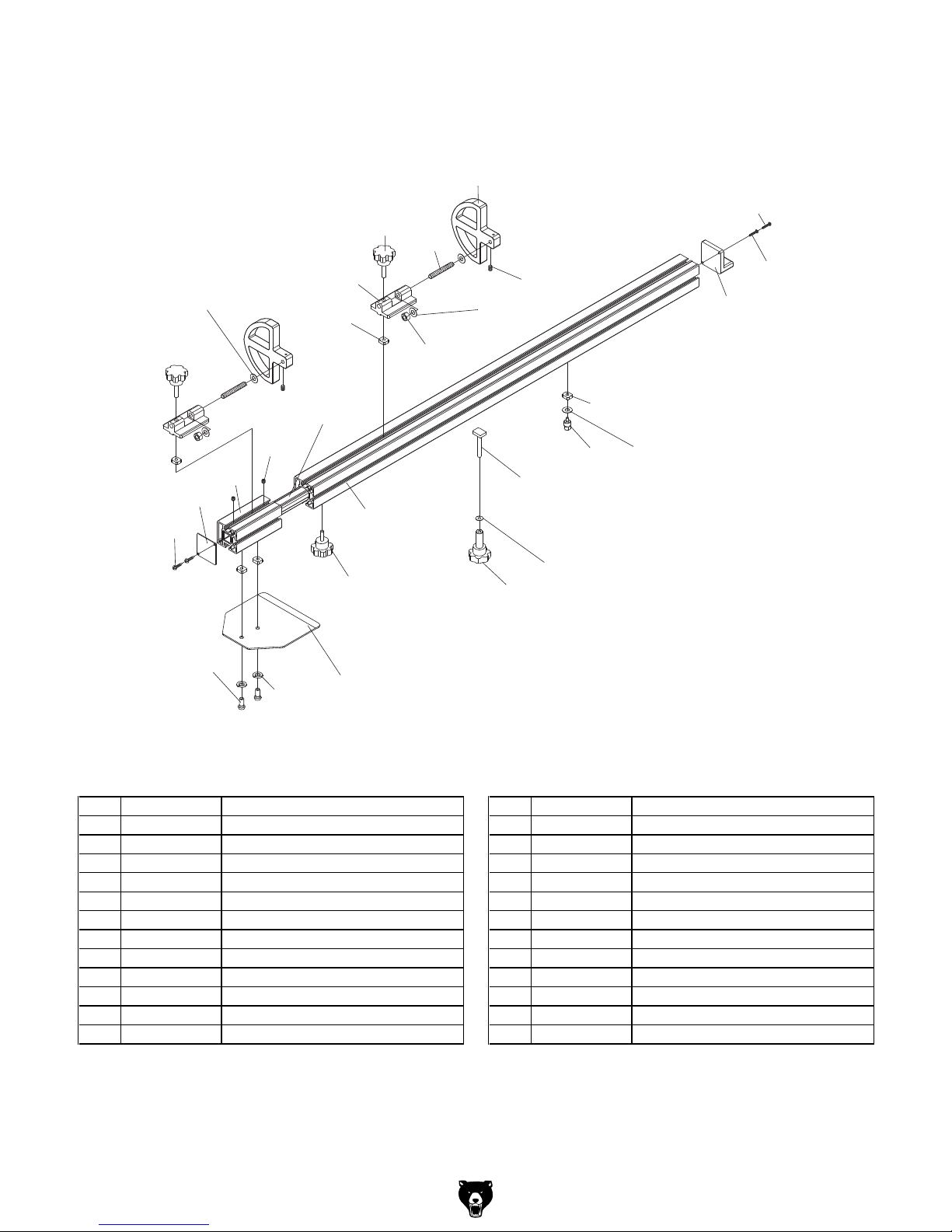

Crosscut Fence
REF PART # DESCRIPTION REF PART # DESCRIPTION
1101 P0623X1101 T-NUT M8-1.25 1114 P0623X1114 LOCATE PLATE
1102 P0623X1102 STOP BRACKET 1115 P0623X1115 KNOB SCREW M8-1.25 X 25
1103 P0623X1103 KNOB M8-1.25 X 40 1116 P0623X1116 SQUARE FENCE
1104 P0623X1104 SCREW 1117 P0623X1117 ROTATE SHAFT
1105 P0623X1105 FLIP STOP 1118 P0623X1118 FIBER WASHER 10MM
1106 PSS01M SET SCREW M6-1 X 10 1119 P0623X1119 ROTATE BLOCK
1107 PLN05M LOCK NUT M10-1.5 1120 PS38M PHLP HD SCR M4-.7 X 10
1108 P0623X1108 SQUARE TUBE 1121 PS25M PHLP HD SCR M4-.7 X 35
1109 P0623X1109 EXT FENCE 1122 P0623X1122 FIBER WASHER 10MM
1110 P0623X1110 COVER 1123 PSS02M SET SCREW M6-1 X 6
1111 PHTEK15M TAP SCREW M4 X 10 1124 P0623X1124 KNOB SCREW M8-1.25 X 55
1112 PSBS03M BUTTON HD CAP SCR M8-1.25 X 16 1125 P0623X1125 FENDER WASHER 8MM
1113 PLW04M LOCK WASHER 8MM 1126 P0623X1126 T-BOLT M8-1.25 X 60

-74- G0623X/G0623X3 10" Sliding Table Saw
  














Labels & Miscellaneous
Safety labels warn about machine hazards and ways to prevent injury. The owner of this machine
MUST maintain the original location and readability of the labels on the machine. If any label is
removed or becomes unreadable, REPLACE that label before using the machine again. Contact
Grizzly at [phone] or www.grizzly.com to order new labels.
REF PART # DESCRIPTION REF PART # DESCRIPTION
1201 PLABEL-12A READ MANUAL LABEL 1210 P0623X1210 MODEL # LABEL (G0623X)
1202 P0623X1202 TABLE SAW BLADE GUARD LABEL 1210 P0623X31210 MODEL # LABEL (G0623X3)
1203 P0623X1203 KICKBACK HAZARD LABEL 1211 P0623X1211 MACHINE ID LABEL (G0623X)
1204 PLABEL-33 DISCONNECT POWER LABEL 1211 P0623X31211 MACHINE ID LABEL (G0623X3)
1205 P0623X1205 BLADE GUARD DANGER LABEL 1212 P0623X1212 BLADE TILT LABEL
1206 P0623X1206 QUALIFIED PERSONNEL LABEL 1213 P0623X1213 BLADE TILT SCALE
1207 PLABEL-14 ELECTRICITY LABEL 1214 P0623X1214 BLADE ELEVATION LABEL
1208 PLABEL-37 GLASSES/RESPIRATOR LABEL 1215 PPAINT-1 GRIZZLY GREEN TOUCH-UP PAINT
1209 G8588 GRIZZLY NAMEPLATE-SMALL 1216 PPAINT-11 PUTTY TOUCH-UP PAINT
