MODEL G0555
ULTIMATE 14" BANDSAW
OWNER'S MANUAL
(For models manufactured since 05 /11)
***Keep for Future Reference***

This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre-
hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property damage
from negligence, improper training, machine modifications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State
of California to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip-
ment, such as those dust masks that are specially designed to filter
out microscopic particles.

Table of Contents
INTRODUCTION............................................... 2
Contact Info.................................................... 2
Manual Accuracy ........................................... 2
Identification................................................... 3
Machine Data Sheet ...................................... 4
SECTION 1: SAFETY....................................... 6
Safety Instructions for Machinery .................. 6
Additional Safety for Bandsaws..................... 8
SECTION 2: POWER SUPPLY ........................ 9
SECTION 3: SETUP ....................................... 12
Needed for Setup......................................... 12
Unpacking .................................................... 12
Inventory ...................................................... 13
Hardware Recognition Chart ....................... 14
Cleanup........................................................ 15
Site Considerations...................................... 16
Assembly ..................................................... 17
Blade Center Tracking ................................. 21
Dust Collection............................................. 22
Test Run ...................................................... 23
Tensioning Blade ......................................... 24
Adjusting Blade Support Bearings............... 24
Adjusting Blade Guide Bearings.................. 26
Table Tilt Calibration.................................... 27
Aligning Table .............................................. 28
Aligning Fence ............................................. 29
SECTION 4: OPERATIONS ........................... 30
Operation Overview ..................................... 30
Disabling & Locking Switch.......................... 31
Workpiece Inspection................................... 31
Guide Post ................................................... 32
Table Tilt ...................................................... 32
Blade Speed ................................................ 33
Blade Information......................................... 34
Blade Change .............................................. 36
Basic Cutting Tips........................................ 37
Cutting Options ............................................ 37
Ripping......................................................... 37
Crosscutting ................................................. 38
Resawing ..................................................... 38
Cutting Curves ............................................. 39
Stacked Cuts................................................ 39
SECTION 5: ACCESSORIES......................... 40
SECTION 6: MAINTENANCE......................... 41
Schedule ...................................................... 41
Cleaning & Protecting .................................. 41
Lubrication ................................................... 42
Redressing Rubber Tires............................. 42
SECTION 7: SERVICE ................................... 43
Troubleshooting ........................................... 43
V-Belt Tension ............................................. 45
Replacing V-Belt .......................................... 46
Shimming Table........................................... 46
Wheel Alignment.......................................... 47
Blade Lead................................................... 50
Blade Tensioner........................................... 51
Fence Scale Calibration............................... 52
SECTION 8: WIRING...................................... 53
Wiring Safety Instructions ............................ 53
Wiring Diagram ............................................ 54
SECTION 9: PARTS....................................... 55
Main ............................................................. 55
Stand............................................................ 58
Fence ........................................................... 59
Labels & Cosmetics ..................................... 60
WARRANTY & RETURNS ............................. 61

-2- Model G0555 (Mfd. Since 5/11)
INTRODUCTION
We stand behind our machines! If you have ques-
tions or need help, contact us with the information
below. Before contacting, make sure you get the
serial number
and manufacture date
from the
machine ID label. This will help us help you faster.
Grizzly Technical Support
1815 W. Battlefield
Springfield, MO 65807
Phone: [phone]
Email: [email protected]
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Grizzly Documentation Manager
P.O. Box 2069
Bellingham, WA 98227-2069
Email: [email protected]
Contact Info
We are proud to provide a high-quality owner’s
manual with your new machine!
We
made every effort to be exact with the
instruc-
tions, specifications, drawings, and photographs
in this manual. Sometimes we make mistakes, but
our policy of continuous improvement also means
that
sometimes the machine
you receive is
slightly different than shown in the manual
.
If you find this to be the case, and the difference
between the manual and machine leaves you
confused or unsure about something
,
check our
website for an updated version. W
e post
current
manuals and
manual updates for free
on our web-
site at
www.grizzly.com.
Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the
manufacture date and
serial number
from the machine ID label (see below). This
information is required for us to provide proper
tech support, and it helps us determine if updated
documentation is available for your machine.
Manufacture Date
Serial Number
Manual Accuracy
Like all machinery there is potential danger
when operating this machine. Accidents
are frequently caused by lack of familiarity
or failure to pay attention. Use this machine
with respect and caution to decrease the
risk of operator injury. If normal safety pre-
cautions are overlooked or ignored, seri-
ous personal injury may occur.
No list of safety guidelines can be com-
plete. Every shop environment is different.
Always consider safety first, as it applies
to your individual working conditions. Use
this and other machinery with caution and
respect. Failure to do so could result in
serious personal injury, damage to equip-
ment, or poor work results.

Model G0555 (Mfd. Since 5/11) -3-
Identification
A. Upper Wheel Cover
B. ON/OFF Switch w/Disabling Padlock
C. Fence
D. Blade Guard
E. Upper Blade Guide Assembly
F. Table Pin
G. Miter Gauge Assembly
H. Lower Wheel Cover
I. Fence Lock Lever
J. Front Table Lock Knob
K. Stand Assembly
L. Blade Tension Adjustment Knob
M. Blade Tension Quick Release Lever
N. Guide Post
O. Guide Post Lock Knob
P. Blade Tension Scale
Q. Blade Tracking Adjustment Knob
R. Table Insert
S. Rear Table Lock Knob
T. 4" Dust Port
U. Motor
For Your Own Safety,Read Instruction Manual Before Operating Saw.
a) Wear eye protection.
b) Do not remove jammed cutoff pieces until blade has stopped.
c) Maintain proper adjustment of blade tension, blade guides, and support bearings.
d) Adjust upper blade guide to just clear workpiece.
e) Hold workpiece firmly against table.
B
A
C
I
H
G
E
D
K
J
L
P
M
Q
S
T
U
N
O
FR
Front
View
Rear
View

-4- Model G0555 (Mfd. Since 5/11)
The information contained herein is deemed accurate as of 8/18/2023 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. PAGE 1 OF 3
Model G0555
MACHINE DATA
SHEET
Customer Service #: [phone] · To Order Call: [phone] · Fax #: [phone]
MODEL G0555 THE CLASSIC 14" BANDSAW
Product Dimensions:
Weight.............................................................................................................................................................. 190 lbs.
Width (side-to-side) x Depth (front-to-back) x Height........................................................ 26-1/2 x 30-1/2 x 66-1/2 in.
Footprint (Length x Width)............................................................................................................... 24-1/2 x 17-1/2 in.
Shipping Dimensions:
Type..................................................................................................................................................... Cardboard Box
Content........................................................................................................................................................... Machine
Weight.............................................................................................................................................................. 207 lbs.
Length x Width x Height....................................................................................................................... 44 x 21 x 20 in.
Must Ship Upright.................................................................................................................................................... No
Electrical:
Power Requirement............................................................................................. 110V or 220V, Single-Phase, 60 Hz
Prewired Voltage.................................................................................................................................................. 110V
Full-Load Current Rating.................................................................................................... 11A at 110V, 5.5A at 220V
Minimum Circuit Size.......................................................................................................... 15A at 110V, 15A at 220V
Connection Type....................................................................................................................................... Cord & Plug
Power Cord Included.............................................................................................................................................. Yes
Power Cord Length.............................................................................................................................................. 72 in.
Power Cord Gauge......................................................................................................................................... 16 AWG
Plug Included.......................................................................................................................................................... Yes
Included Plug Type................................................................................................................................. 5-15 for 110V
Recommended Plug Type...................................................................................................................... 6-15 for 220V
Switch Type.................................................................................................................... ON/OFF Push Button Switch
Motors:
Main
Horsepower................................................................................................................................................ 1 HP
Phase............................................................................................................................................ Single-Phase
Amps.................................................................................................................................................... 11A/5.5A
Speed................................................................................................................................................ 1720 RPM
Type................................................................................................................. TEFC Capacitor-Start Induction
Power Transfer ............................................................................................................................................ Belt
Bearings..................................................................................................... Shielded & Permanently Lubricated
Centrifugal Switch/Contacts Type......................................................................................................... External
Main Specifications:
Main Specifications
Bandsaw Size............................................................................................................................................ 14 in.
Max Cutting Width (Left of Blade)........................................................................................................ 13-1/2 in.
Max Cutting Width (Left of Blade) w/Fence......................................................................................... 11-7/8 in.
Max Cutting Height (Resaw Height)............................................................................................................ 6 in.
Blade Speeds........................................................................................................................... 10, 20 FPM
MODEL G0555 ULTIMATE 14" BANDSAW

Model G0555 (Mfd. Since 5/11) -5-
The information contained herein is deemed accurate as of 8/18/2023 and represents our most recent product specifications.
Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. PAGE 2 OF 3
Model G0555
Blade Information
Standard Blade Length........................................................................................................................ 93-1/2 in.
Blade Length Range.............................................................................................................. 92-1/2 – 93-1/2 in.
Blade Width Range.......................................................................................................................... 1/8 – 3/4 in.
Type of Blade Guides...................................................................................................................... Ball Bearing
Guide Post Adjustment Type.................................................................................................................. Manual
Has Quick-Release...................................................................................................................................... Yes
Table Information
Table Length.............................................................................................................................................. 14 in.
Table Width................................................................................................................................................ 14 in.
Table Thickness.................................................................................................................................... 1-1/2 in.
Table Tilt.......................................................................................................................... Left 15, Right 45 deg.
Table Tilt Adjustment Type..................................................................................................................... Manual
Floor-to-Table Height......................................................................................................................... 43-5/16 in.
Fence Locking Position.............................................................................................................................. Front
Fence is Adjustable for Blade Lead.............................................................................................................. Yes
Resaw Fence Attachment Included............................................................................................................... No
Miter Gauge Included................................................................................................................................... Yes
Miter Gauge Information
Miter Angle.................................................................................................................................. 0 - 60 deg. L/R
Miter Gauge Slot Type.................................................................................................................... Straight Slot
Miter Gauge Slot Width............................................................................................................................. 3/4 in.
Miter Gauge Slot Height........................................................................................................................... 3/8 in.
Construction Materials
Table....................................................................................................................... Precision Ground Cast Iron
Trunnion............................................................................................................................................. Aluminum
Fence...................................................................................................................... Deluxe Extruded Aluminum
Base/Stand............................................................................................................................. Pre-Formed Steel
Frame/Body......................................................................................................................................... Cast Iron
Wheels...................................................................................................... Computer-Balanced Cast Aluminum
Tire.......................................................................................................................................................... Rubber
Wheel Cover ......................................................................................................................... Pre-Formed Steel
Paint Type/Finish............................................................................................................ Powder Coating & Ure
Other Related Information
Wheel Diameter................................................................................................................................... 13-3/4 in.
Wheel Width........................................................................................................................................ 1-3/16 in.
Number of Dust Ports....................................................................................................................................... 1
Dust Port Size.............................................................................................................................................. 4 in.
Compatible Mobile Base........................................................................................................................ D2057A
Other Specifications:
Country of Origin .............................................................................................................................................. Taiwan
Warranty ........................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time .............................................................................................................. 1 Hour
Serial Number Location .................................................................................................................................. ID Label
ISO 9001 Factory .................................................................................................................................................. Yes
Certified by a Nationally Recognized Testing Laboratory (NRTL) ......................................................................... Yes

-6- Model G0555 (Mfd. Since 5/11)
ELECTRICAL EQUIPMENT INJURY RISKS.
You can be shocked, burned, or killed by touching
live electrical components or improperly grounded
machinery. To reduce this risk, only allow qualified
service personnel to do electrical installation or
repair work, and always disconnect power before
accessing or exposing electrical equipment.
DISCONNECT POWER FIRST.
Always discon-
nect machine from power supply BEFORE mak-
ing adjustments, changing tooling, or servicing
machine. This prevents an injury risk from unin-
tended startup or contact with live electrical com-
ponents.
EYE PROTECTION. Always wear ANSI-approved
safety glasses or a face shield when operating or
observing machinery to reduce the risk of eye
injury or blindness from flying particles. Everyday
eyeglasses are NOT approved safety glasses.
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained oper-
ators have a higher risk of being hurt or killed.
Only allow trained/supervised people to use this
machine. When machine is not being used, dis-
connect power, remove switch keys, or lock-out
machine to prevent unauthorized use—especially
around children. Make your workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use
machinery in areas that are wet, cluttered, or have
poor lighting. Operating machinery in these areas
greatly increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental
alertness is required for safe operation of machin-
ery. Never operate under the influence of drugs or
alcohol, when tired, or when distracted.
For Your Own Safety, Read Instruction
Manual Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions.
This manual uses a series of symbols and signal words intended to convey the level of impor-
tance of the safety messages. The progression of symbols is described below. Remember that
safety messages by themselves do not eliminate danger and are not a substitute for proper
accident prevention measures. Always use common sense and good judgment.
Indicates a potentially hazardous situation which, if not avoided,
MAY result in minor or moderate injury. It may also be used to alert
against unsafe practices.
Indicates a potentially hazardous situation which, if not avoided,
COULD result in death or serious injury.
Indicates an imminently hazardous situation which, if not avoided,
WILL result in death or serious injury.
Alerts the user to useful information about proper operation of the
machine to avoid machine damage.
NOTICE
Safety Instructions for Machinery
SECTION 1: SAFETY

Model G0555 (Mfd. Since 5/11) -7-
WEARING PROPER APPAREL. Do not wear
clothing, apparel or jewelry that can become
entangled in moving parts. Always tie back or
cover long hair. Wear non-slip footwear to reduce
risk of slipping and losing control or accidentally
contacting cutting tool or moving parts.
HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or
long-term respiratory damage. Be aware of dust
hazards associated with each workpiece mate-
rial. Always wear a NIOSH-approved respirator to
reduce your risk.
HEARING PROTECTION. Always wear hear-
ing protection when operating or observing loud
machinery. Extended exposure to this noise
without hearing protection can cause permanent
hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys, wrenches,
or any other tools on machine. Always verify
removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use
this tool for its intended purpose—do not force
it or an attachment to do a job for which it was
not designed. Never make unapproved modifica-
tions—modifying tool or using it differently than
intended may result in malfunction or mechanical
failure that can lead to personal injury or death!
AWKWARD POSITIONS. Keep proper footing
and balance at all times when operating machine.
Do not overreach! Avoid awkward hand positions
that make workpiece control difficult or increase
the risk of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce
accidental contact with moving parts or flying
debris. Make sure they are properly installed,
undamaged, and working correctly BEFORE
operating machine.
FORCING MACHINERY. Do not force machine.
It will do the job safer and better at the rate for
which it was designed.
NEVER STAND ON MACHINE. Serious injury
may occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE MACHINE. Unexpected movement dur-
ing operation greatly increases risk of injury or
loss of control. Before starting, verify machine is
stable and mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult
this owner’s manual or the manufacturer for rec-
ommended accessories. Using improper acces-
sories will increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the
risk of accidental injury, turn machine OFF and
ensure all moving parts completely stop before
walking away. Never leave machine running
while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine
that is improperly maintained could malfunction,
leading to serious personal injury or death.
DAMAGED PARTS. Regularly inspect machine
for damaged, loose, or mis-adjusted parts—or
any condition that could affect safe operation.
Immediately repair/replace BEFORE operating
machine. For your own safety, DO NOT operate
machine with damaged parts!
MAINTAIN POWER CORDS. When disconnect-
ing cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the cord
may damage the wires inside. Do not handle
cord/plug with wet hands. Avoid cord damage by
keeping it away from heated surfaces, high traffic
areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time
you experience difficulties performing the intend-
ed operation, stop using the machine! Contact our
Technical Support at [phone].

-8- Model G0555 (Mfd. Since 5/11)
Additional Safety for Bandsaws
Serious cuts, amputation, or death can occur from contact with the moving saw blade during
operation or if blade breakage occurs. Serious injury or death can also occur from getting
fingers, hair, or clothing entangled in moving parts if the machine is operated while the doors
are open. To reduce this risk, anyone operating this machine MUST completely heed the
hazards and warnings below.
GUARDS/COVERS.Blade guards and covers
protect operator from moving bandsaw blade. The
wheel covers protect operator from getting entan-
gled with rotating wheels or other moving parts.
ONLY operate bandsaw with blade guard in proper
position and wheel covers completely closed.
BLADE REPLACEMENT. To avoid mishaps that
could result in operator injury, make sure blade
teeth face down toward table and blade is prop-
erly tensioned and tracked before operating.
UPPER BLADE GUIDE SUPPORT. To reduce
exposure of operator to blade and provide maxi-
mum blade support while cutting, keep upper
blade guides adjusted to just clear workpiece.
CUTTING TECHNIQUES. To avoid blade getting
pulled off wheels or accidentally breaking and
striking operator, always turn bandsaw OFF and
wait for blade to come to a complete stop before
backing workpiece out of blade. DO NOT back
workpiece away from blade while bandsaw is run-
ning. DO NOT force or twist blade while cutting,
especially when sawing small curves. This could
result in blade damage or breakage.
WORKPIECE SUPPORT. To maintain maximum
control and reduce risk of blade contact/break-
age, always ensure adequate support of long/
large workpieces. Always keep workpiece flat and
firm against table/fence when cutting to avoid loss
of control. If necessary, use a jig or other work-
holding device.
WORKPIECE MATERIAL. This machine is
intended for cutting natural and man-made wood
products, and laminate covered wood products.
This machine is NOT designed to cut metal,
glass, stone, tile, etc.
HAND PLACEMENT. Placing hands or fingers
in line with blade during operation may result in
serious injury if hands slip or workpiece moves
unexpectedly. Do not position fingers or hands in
line with blade, and never reach under table while
blade is moving.
SMALL/NARROW WORKPIECES. If hands slip
during a cut while holding small workpieces with
fingers, serious personal injury could occur. Always
support/feed small or narrow workpieces with push
sticks, push blocks, jig, vise, clamping fixture.
BLADE SPEED. Cutting workpiece before blade
is at full speed could cause blade to grab work-
piece and pull hands into blade. Allow blade to
reach full speed before starting cut. DO NOT start
machine with workpiece contacting blade.
FEED RATE. To avoid risk of workpiece slipping
and causing operator injury, always feed stock
evenly and smoothly.
BLADE CONDITION. Dull blades require more
effort to perform cut, increasing risk of accidents.
Do not operate with dirty, dull, cracked or badly
worn blades. Inspect blades for cracks and miss-
ing teeth before each use. Always maintain proper
blade tension and tracking while operating.
CLEARING JAMS AND CUTOFFS. Always stop
bandsaw and disconnect power before clearing
scrap pieces that get stuck between blade and
table insert. Use brush or push stick, not hands,
to clean chips/cutoff scraps from table.
BLADE CONTROL. To avoid risk of injury due to
blade contact, always allow blade to stop on its
own. DO NOT try to stop or slow blade with your
hand or the workpiece.

Model G0555 (Mfd. Since 5/11) -9-
SECTION 2: POWER SUPPLY
Full-Load Current Rating
The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the
amperage drawn by the largest motor or sum of all
motors and electrical devices that might operate
at one time during normal operations.
Full-Load Current Rating at 110V...... 11 Amps
Full-Load Current Rating at 220V .... 5.5 Amps
The full-load current is not the maximum amount
of amps that the machine will draw. If the machine
is overloaded, it will draw additional amps beyond
the full-load rating.
If the machine is overloaded for a sufficient length
of time, damage, overheating, or fire may result—
especially if connected to an undersized circuit.
To reduce the risk of these hazards, avoid over-
loading the machine during operation and make
sure it is connected to a power supply circuit that
meets the specified circuit requirements.
For your own safety and protection of
property, consult an electrician if you are
unsure about wiring practices or electrical
codes in your area.
A power supply circuit includes all electrical
equipment between the breaker box or fuse panel
in the building and the machine. The power sup-
ply circuit used for this machine must be sized to
safely handle the full-load current drawn from the
machine for an extended period of time. (If this
machine is connected to a circuit protected by
fuses, use a time delay fuse marked D.)
Circuit Information
Note: Circuit requirements in this manual apply to
a dedicated circuit—where only one machine will
be running on the circuit at a time. If machine will
be connected to a shared circuit where multiple
machines may be running at the same time, con-
sult an electrician or qualified service personnel to
ensure circuit is properly sized for safe operation.
Circuit Requirements for 220V
Nominal Voltage .............................. 220V/240V
Cycle ..........................................................60 Hz
Phase ........................................... Single-Phase
Circuit Rating...................................... 15 Amps
Plug/Receptacle ............................. NEMA 6-15
This machine can be converted to operate on a
220V power supply (refer to Voltage Conversion
instructions). This power supply must have a veri-
fied ground and meet the following requirements:
This machine is prewired to operate on a 110V
power supply circuit that has a verified ground and
meets the following requirements:
Circuit Requirements for 110V
Nominal Voltage ...............................110V/120V
Cycle ..........................................................60 Hz
Phase ........................................... Single-Phase
Circuit Rating...................................... 15 Amps
Plug/Receptacle ............................. NEMA 5-15
Availability
Before installing the machine, consider the avail-
ability and proximity of the required power supply
circuit. If an existing circuit does not meet the
requirements for this machine, a new circuit must
be installed. To minimize the risk of electrocution,
fire, or equipment damage, installation work and
electrical wiring must be done by an electrician or
qualified service personnel in accordance with all
applicable codes and standards.
Electrocution, fire, shock,
or equipment damage
may occur if machine is
not properly grounded
and connected to power
supply.

-10- Model G0555 (Mfd. Since 5/11)

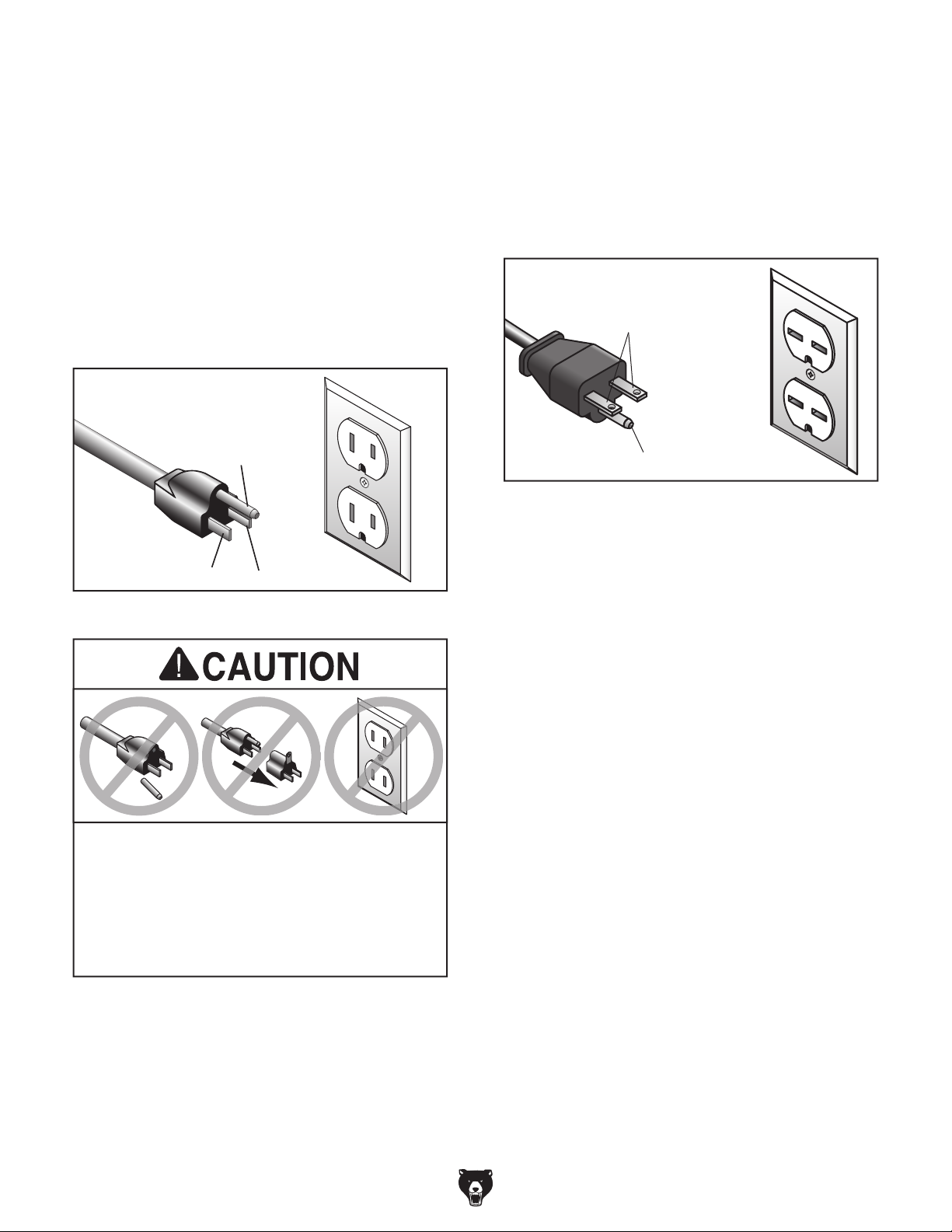

Figure 1. Typical 5-15 plug and receptacle.
Improper connection of the equipment-grounding
wire can result in a risk of electric shock. The
wire with green insulation (with or without yellow
stripes) is the equipment-grounding wire. If repair
or replacement of the power cord or plug is nec-
essary, do not connect the equipment-grounding
wire to a live (current carrying) terminal.
Check with a qualified electrician or service per-
sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice
that a cord or plug is damaged or worn, discon-
nect it from power, and immediately replace it with
a new one.
Grounding Requirements
This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.
Grounding Pin
Neutral Hot
5-15 PLUG
GROUNDED
5-15 RECEPTACLE
Figure 2. Typical 6-15 plug and receptacle.
Grounding Pin
Current Carrying Prongs
6-15 PLUG
GROUNDED
6-15 RECEPTACLE
For 110V operation: This machine is equipped
with a power cord that has an equipment-ground-
ing wire and a grounding plug (see following fig-
ure). The plug must only be inserted into a match-
ing receptacle (outlet) that is properly installed
and grounded in accordance with all local codes
and ordinances.
For 220V operation: The plug specified under
“
Circuit Requirements for 220V” on the previous
page has a grounding prong that must be attached
to the equipment-grounding wire on the included
power cord. The plug must only be inserted into
a matching receptacle (see following figure) that
is properly installed and grounded in accordance
with all local codes and ordinances.
SHOCK HAZARD!
Two-prong outlets do not meet the grounding
requirements for this machine. Do not modify
or use an adapter on the plug provided—if
it will not fit the outlet, have a qualified
electrician install the proper outlet with a
verified ground.

Model G0555 (Mfd. Since 5/11) -11-
Voltage Conversion
The voltage conversion MUST be performed by
a electrician or qualified service personnel. To
perform the voltage conversion, install the cor-
rect plug and rewire the motor to the new volt-
age, according to the provided wiring diagram on
Page 54.
Note: If the diagram included on the motor con-
flicts with the one in this manual, the motor may
have changed since the manual was printed. Use
the diagram provided inside the motor wiring junc-
tion box.
To convert the machine to 220V:
1. DISCONNECT MACHINE FROM POWER!
2. Replace the 5-15 plug on the power cord with
a 6-15 plug.
3. Re-wire the motor as illustrated in the wiring
diagram.
Extension Cords
We do not recommend using an extension cord
with this machine.
If you must use an extension
cord, only use it if absolutely necessary and only
on a temporary basis.
Extension cords cause voltage drop, which can
damage electrical components and shorten motor
life. Voltage drop increases as the extension cord
size gets longer and the gauge size gets smaller
(higher gauge numbers indicate smaller sizes).
Any extension cord used with this machine must
be in good condition and contain a ground wire
and matching plug/receptacle. Additionally, it must
meet the following size requirements:
Minimum Gauge Size ...........................14 AWG
Maximum Length (Shorter is Better).......50 ft.

-12- Model G0555 (Mfd. Since 5/11)
SECTION 3: SETUP
The following are needed to complete the setup
process, but are not included with your machine.
Description Qty
• Safety Glasses ........................................... 1
•Cleaner/Degreaser ..................... As Needed
•Disposable Shop Rags............... As Needed
• Additional People for Lifting .........At Least 1
•Level ........................................................... 1
• Hex Wrench 5mm....................................... 1
• Wrench or Socket 10mm............................ 2
• Wrench or Socket 13mm............................ 2
• Dust Collection System .............................. 1
•Dust Hose 4" .............................................. 1
• Hose Clamps 4" ......................................... 2
This machine presents
serious injury hazards
to untrained users. Read
through this entire manu-
al to become familiar with
the controls and opera-
tions before starting the
machine!
Wear safety glasses during
the entire setup process!
HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.
Needed for Setup
The following items are needed, but not included,
for the setup/assembly of this machine.
This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.
If items are damaged
,
please
call us immediately at [phone].
IMPORTANT:
Save all packaging materials until
you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-
aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.
Unpacking

Model G0555 (Mfd. Since 5/11) -13-
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
Shipping Inventory: (Figures 3–5) Qty
A. Bandsaw Assembly .................................... 1
B. Upper Stand Braces................................... 2
C. Stand Top ................................................... 1
D. Miter Gauge Assembly............................... 1
E. Stand Sides................................................ 2
F. Table w/Insert & Table Pin ......................... 1
G. Table Trunnion............................................ 1
H. Table Lock Knobs 3⁄8"-16 ............................ 2
I. Lower Stand Braces................................... 2
J. Front Fence Rail......................................... 1
K. Rear Fence Rail ......................................... 1
L. Fence Assembly......................................... 1
M. Hardware (Not Shown):
—Hex Bolts M6-1 x 16 (Stand)................. 16
—Flat Washers 6mm (Stand)................... 16
—Flange Nuts M6-1 (Stand) .................... 16
—Stand Feet 3⁄8"-16 x 2" (Stand)................ 4
—Hex Nuts 3⁄8"-16 (Stand Feet).................. 8
—Flat Washers 3⁄8" (Stand Feet) ................ 8
—Carriage Bolts M8-1.25 x 16 (Stand) ...... 8
—Flange Nuts M8-1.25 (Stand).................. 8
—Hex Bolts M8-1.25 x 35 (Bandsaw) ........ 4
—Flat Washers 8mm (Bandsaw) ............... 8
—Lock Washers 8mm (Bandsaw).............. 4
—Hex Nuts M8-1.25 (Bandsaw) ................. 4
—Hex Bolts M8-1.25 x 30 (Trunnion) ......... 2
—Lock Washers 8mm (Trunnion)............... 2
—Hex Bolt M8-1.25 x 80 (Positive Stop) .... 1
—Hex Nut M8-1.25 (Positive Stop)............. 1
—Fence Stand-Off M6-1 x 20 (Fence)....... 1
—Lock Handle M8-1.25 x 20 (Fence)......... 1
—Cap Screws M6-1 x 16 Black (Fence) .... 2
—Hex Bolts M6-1 x 20 Black (Fence) ........ 2
—Lock Washers 6mm Black (Fence)......... 2
—Flat Washers 6mm Black (Fence) .......... 2
—Hex Nut M8-1.25 Black (Fence).............. 1
—Hex Nut M6-1 Black (Fence)................... 1
Figure 3. Bandsaw assembly.
A
Figure 4. Other components.
B
E
I
H
C
D
G
F
Figure 5. Fence components.
J K L

-14- Model G0555 (Mfd. Since 5/11)
5mm
Hardware Recognition Chart

Model G0555 (Mfd. Since 5/11) -15-
T23692—Orange Power Degreaser
A great product for removing the waxy ship-
ping grease from the non-painted parts of the
machine during clean up.
Order online at
www.grizzly.com
OR
Call 1-800-523-4777
The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.
Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.
There are many ways to remove this rust preven-
tative, but the following steps work well in a wide
variety of situations. Always follow the manufac-
turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.
Before cleaning, gather the following:
• Disposable rags
• Cleaner/degreaser (WD•40 works well)
• Safety glasses & disposable gloves
• Plastic paint scraper (optional)
Basic steps for removing rust preventative:
1.
Put on safety glasses.
2.
Coat the rust preventative with a liberal
amount of cleaner/degreaser, then let it soak
for 5–10 minutes.
3.
Wipe off the surfaces. If your cleaner/degreas-
er is effective, the rust preventative will wipe
off easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe
off the rest with the rag.
4.
Repeat Steps 2–3 as necessary until clean,
then coat all unpainted surfaces with a quality
metal protectant to prevent rust.
Gasoline and petroleum
products have low flash
points and can explode
or cause fire if used to
clean machinery. Avoid
using these products
to clean machinery.
Many cleaning solvents
are toxic if inhaled. Only
work in a well-ventilated
area.
NOTICE
Avoid harsh solvents like acetone or brake
parts cleaner that may damage painted sur-
faces. Always test on a small, inconspicu-
ous location first.
Cleanup
Cleanup
Figure 6. T23692 Orange Power Degreaser.

-16 - Model G0555 (Mfd. Since 5/11)
Site Considerations
Figure 7. Minimum working clearances.

3014
28
Weight Load
Refer to the
Machine Data Sheet for the weight
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest work-
piece that will be used. Additionally, consider the
weight of the operator and any dynamic loading
that may occur when operating the machine.
Space Allocation
Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main-
tenance and service described in this manual.
See below for required space allocation.
Physical Environment
The physical environment where the machine is
operated is important for safe operation and lon-
gevity of machine components. For best results,
operate this machine in a dry environment that is
free from excessive moisture, hazardous chemi-
cals, airborne abrasives, or extreme conditions.
Extreme conditions for this type of machinery are
generally those where the ambient temperature
range exceeds 41°–104°F; the relative humidity
range exceeds 20%–95% (non-condensing); or
the environment is subject to vibration, shocks,
or bumps.
Electrical Installation
Place this machine near an existing power source.
Make sure all power cords are protected from
traffic, material handling, moisture, chemicals, or
other hazards. Make sure to leave enough space
around machine to disconnect power supply or
apply a lockout/tagout device, if required.
Lighting
Lighting around the machine must be adequate
enough that operations can be performed safely.
Shadows, glare, or strobe effects that may distract
or impede the operator must be eliminated.
Children or untrained people
may be seriously injured by
this machine. Only install in an
access restricted location.

Model G0555 (Mfd. Since 5/11) -17-
Assembly
To assemble machine:
1. Lay one stand side flat on a protective sur-
face, then attach the upper and lower stand
braces, as shown in Figure 8, with (8) M6-1
x 16 hex bolts, (8) 6mm flat washers, and (8)
M6-1 flange nuts.
Note: Only hand-tighten the stand fasteners
for now during these initial steps. Once the
stand is fully assembled you will be instructed
to fully tighten all fasteners.
Figure 8. Upper and lower stand braces
attached to the stand side.
Upper
Stand Brace
Stand Side
Lower
Stand Brace
x 8
2. Attach the remaining stand side to the assem-
bly, as shown in Figure 9, with (8) M6-1 x 16
hex bolts, (8) 6mm flat washers, and (8) M6-1
flange nuts.
Figure 9. Second stand side attached.
3. Install the foot assemblies into the holes in
the bottom of the stand assembly, using (2)
3⁄8"-16 hex nuts and (2) 10mm flat washers,
as shown in Figure 10.
Note: Adjust the feet so that they are approxi-
mately the same height—this will make level-
ing the stand easier in a later step.
Figure 10. Stand foot installed (1 of 4).
x 4
The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
Needed for Setup
and gather
all
listed items.
To ensure the assembly process
goes smoothly, first clean any
parts that are
cov-
ered or coated in heavy-duty rust preventative (if
applicable).

-18- Model G0555 (Mfd. Since 5/11)
4. Turn the stand assembly upright and attach
the top, as shown in Figure 11, with (8)
M8-1.25 x 16 carriage bolts and (8) M8-1.25
flange nuts.
Figure 11. Stand top attached.
x 8
5. Square up the stand components and fully
tighten all the fasteners.
6. Place the level on top of the stand assembly,
as shown in Figure 12, then adjust the feet
up or down to make the stand top level from
side to side and front to back. Make sure that
both hex nuts on the feet are tight against the
stand assembly.
Figure 12. Leveling the stand.
7. With the help of other people, lift the bandsaw
assembly onto the stand and align the mount-
ing holes.
8. Secure the bandsaw assembly to the stand
with (4) M8-1.25 x 35 hex bolts, (8) 8mm
flat washers, (4) 8mm lock washers, and (4)
M8-1.25 hex nuts, as shown in Figure 13.
Figure 13. Bandsaw assembly attached to the
stand.
x 4
9. Position the table trunnion on the bandsaw,
as shown in Figure 14, then secure it with the
(2) M8-1.25 x 30 hex bolts and (2) 8mm lock
washers.
Figure 14. Trunnion installed.
x 2 Trunnion
