INFINITY 1500
User Manual V2.0

1
2
3
3
5
6
10
12
16
17
18
19
CATALOGUE
Important Safety Instructions
Package Contents

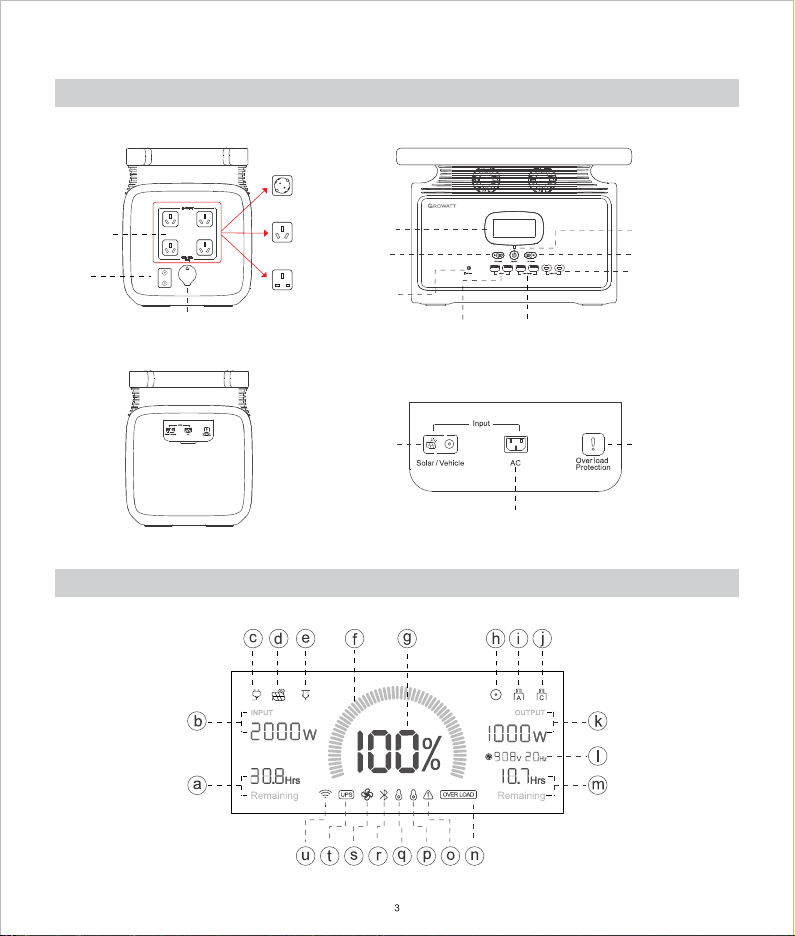

Getting to Know the INFINITY 1500
LED Display
How to Use
How to Recharge
Instructions for Advanced Features

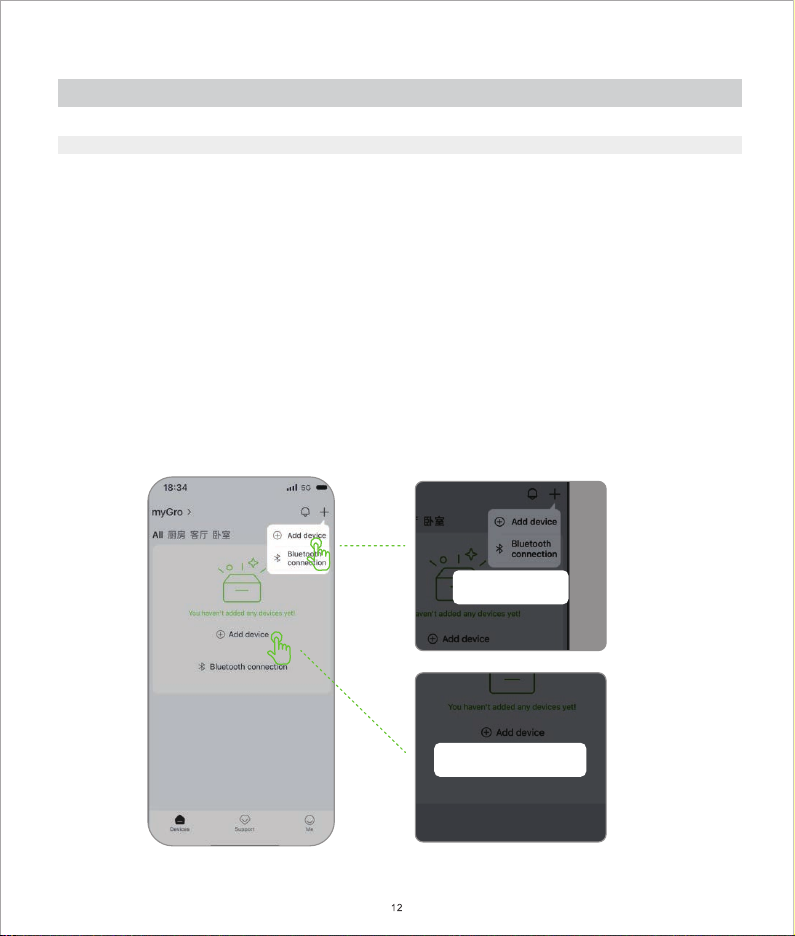

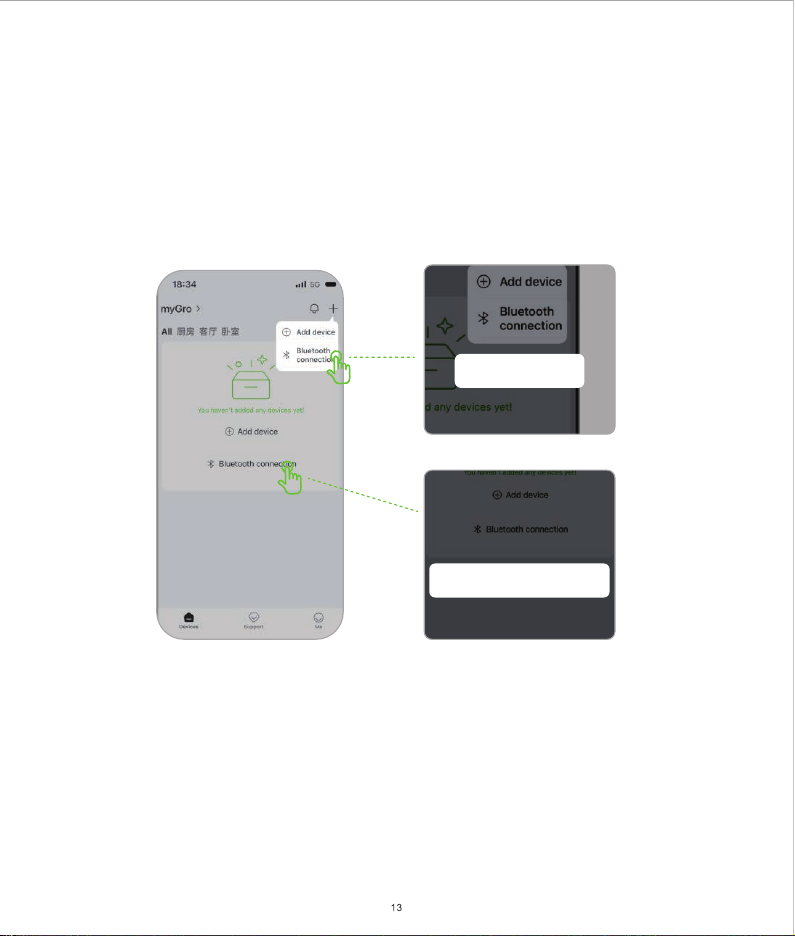

How to Connect to APP
Technical Specification
FAQ

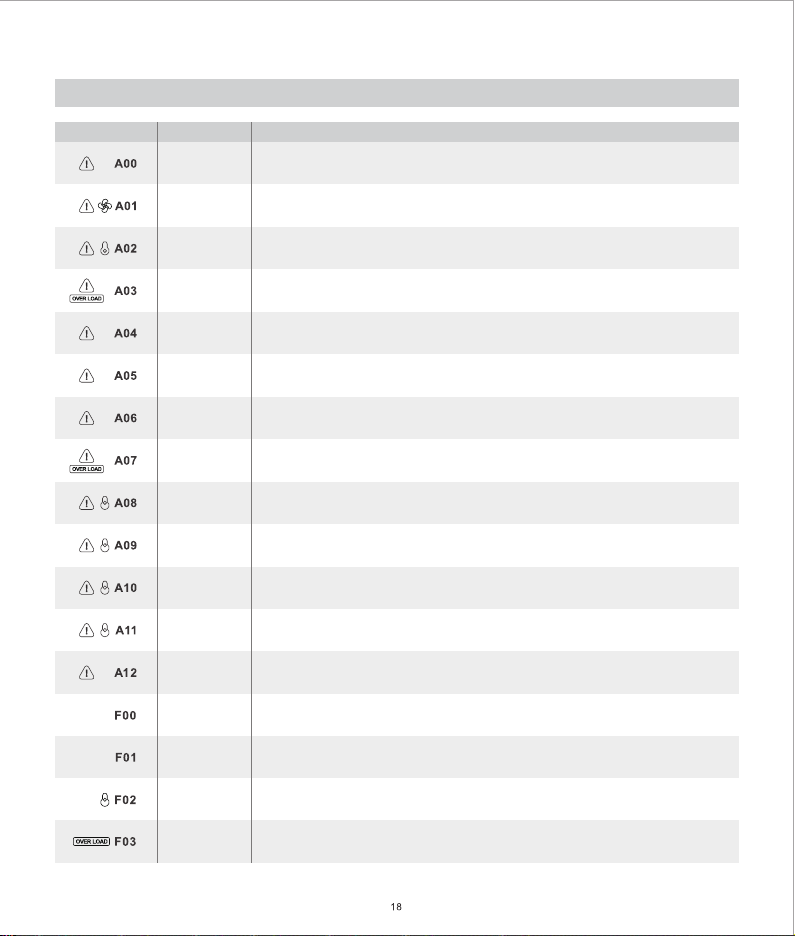

Error Codes
Troubleshooting

Important Safety Instructions
Warning - Please read the instructions carefully before you use the product.
You must follow the precautions below when using this product.
Usage
Read all the instructions before using the product.
Do not put fingers or hands into the product.
Do not stack any heavy objects on the product.
To reduce risk of damage to electric plug and cord, pull the plug rather than the cord when disconnecting the
power pack.
Please avoid impact, falls or severe vibrations when using the product. Do not use the product after it has
been hit by a strong force or dropped from a height.
Do not use wires or other metal objects to cause product short circuit.
The use of unofficial component is strictly prohibited, which may result in a risk of fire, electric shock, or i
njury to persons.For replacement, please check the relevant purchase information on the Growatt official
website (https : //www. growattportable. com).Growatt is not responsible for product accidents and
malfunctions caused by the use of products not officially provided by Growatt.
Do not disassemble the product in anyway or pierce the product with sharp objects.
Make sure the machine is turned off before installing or unplugging any modules of the machine, otherwise
the power interface may be damaged.
Avoid exposing the product to water. Do not immerse the product in water or get it wet. Do not use the
product in rain or humid environment, otherwise the battery may catch fire or explode.
If you accidentally drop the product into water while using it, please stay away from the product and keep it
in a safe open area until the product is completely dry. The dried product should not be reused again and
should be disposed of properly according to the disposal guide in this manual.
Do not use the product in an environment of strong static electricity or magnetic field. Otherwise, it may
cause the product to malfunction or serious damage.
Do not place this product in a microwave or pressure cooker.
The operating environment temperature of this product is from -20° 60°C to C. Using this product in a high
temperature environment may result in a fire or explosion. Conversely, using the product at ultra-low
temperature will seriously degrade the product performance and may cause the product to stop working.
Do not use any batteries or appliances which have been damaged or modified. Damaged or modified batteries
may exhibit unpredictable dangers resulting in fire, explosion or risk of injury.
If the product catches fire, it is recommended to use fire extinguishing equipment according to the following
priorities: sand, fire blanket, dry powder, carbon dioxide fire extinguisher.
You may use a dry cloth to clean off the dirt on the product.

INFINITY 1500 Protable Power Station User Manual and Warranty Card
MC4 to XT60 Solar Panel Charging Cable 1.5m Car Charging Cable
1×1.5m AC Charging Cable
(according to country/region)
Storage and Transportation
Keep the product out of the reach of children and pets. If your child accidentally swallows product parts, seek
for medical help right away.
For long-term storage, keep the battery level between 30%-80% and store it in a temperature indoors. If the
battery of the product is in a low-power state for a long time, the battery will enter a deep sleep mode, and the
battery may even be damaged in a serious low-power state. To wake the battery from deep sleep, please
recharge the portable power station.
Do not place the product near a heat source, such as in a fire or a heating furnace. The product should be
stored in a dry environment. Do not place the machine in water or where it may leak.
Do not leave the product in a car exposed directly to the sun or at a high temperature.
During transportation, please make sure that the power of the product is less than 30%.
Do not store or transport this product with eyeglasses, watches, metal necklaces, hairpins, or other
metal objects.
Be sure to completely discharge the machine battery before placing the machine battery in the proper
disposal location per local rules and regulations. Batteries are hazardous chemicals and should not be
disposed of in ordinary trash cans.
Follow local laws and regulations for battery recycling and disposal.
Please dispose of over-discharged batteries that cannot be recharged.
Package Contents
Disposal Guide
5521 Output Cable

AC Output
Port
Car Output Port
LCD Display
DC Power/
Indicator
WIFI Reset
USB-A Port USB-A Fast Charge Port
Product Power
AC Power/Indicator
USB-C Port
Solar Charging Port
AC Charging Port
Overload Protection
(EU Outlet)
(AUS Outlet)
(UK Outlet)
Getting to Know the INFINITY 1500
LED Display
5521
Output
Port

Indicators Description
Remaining Charge Time
Input Power
AC Input Indicator
PV Input Indicator
Car Input Indicator
Remaining Battery Percentage
Car Output Indicator
USB-A Output Indicator
USB-C Output Indicator
Output Power
Output Voltage and Frequency
Remaining Discharge Time
System Alert
High Temperature Warning
Low Temperature Warning
Bluetooth Indicator
Fan Status Indicator
UPS Indicator
Wi-Fi Indicator
Overload Warning
The remaining charge time calculated by the system based on the current
power consumption, accurate to 0.1 hour.
The total input power of wall charge, solar charge, and car charge.
INFINITY 1500 is being charged using the wall charger.
INFINITY 1500 is being charged using the solar panels.
INFINITY 1500is being charged using the car charger.
INFINITY 1500 is supplying power to external devices via the car output port.
INFINITY 1500 is supplying power to external devices via USB-A port(s).
INFINITY 1500 is supplying power to external devices via USB-C port(s).
The total output power of DC, AC, and wireless charging.
The remaining discharge time calculated by the system based on the current power
consumption, accurate to 0.1 hour.
The product is not working properly. Check the error codes in the appendix to
understand the cause of the error and find the solution.
The temperature of INFINITY 1 00 is too high. Please place the product in an 5
open area for cooling.
The current battery temperature is low, and the charging efficiency will be reduced.
Keep using the product, and the charging efficiency will return to normal as the
temperature rises.
The product is connected to Bluetooth and can be controlled remotely through
the MyGro APP.
The fan is running to cool the product.
The product has turn on UPS mode to provide uninterrupted power to your devices.
The product is connected to Wi-Fi and can be controlled remotely through the MyGro APP.
The current total output power is higher than 2000W, the AC output will be
stopped for battery protection.
Display the current remaining battery percentage in real time.
Display the current AC output voltage and frequency.

How to Use
Before use, please put INFINITY 1500 on a clean and flat ground to ensure that the machine will not be in
contact with liquid or tilted, and check whether there are foreign objects on the body.
Product ON/OFF
A) To turn on the INFINITY 1500, long press the power button until the screen lights up.
B) To turn off the INFINITY 1500, press and hold the power button until you hear a beep and observe the
OFF prompts on the screen.
DC Power ON/OFF
C) Short press the DC power button to turn on the DC output supply (including all USB ports and car output port).
You should hear a beep sound and observe that the DC power indicator lights up.
D)To turn off the DC output power, short press the DC power button. You should observe that the DC power
indicator turns off. When the output power of a single DC port exceeds the rated power below, the system will
trigger an overload alarm and cut off the DC output.
The maximum output power of a USB-A port is 12W.
The maximum output power of a Fast Charge USB-A port is 18W.
The maximum output power of a USB-C port is 60W.
AC Power ON/OFF
E) To turn on the AC output supply, short press the AC power button, and you will observe the AC power indicator
lights up. and the AC output port can be used. Short press the AC output button again, you will observe the AC
power indicator lights off and the AC output will be turned off.
F) Long press the AC power button for 6 seconds to change AC frequency mode (50Hz/60Hz).
The total output power of the AC output ports is up to 2000W(across all ports). When the total output power
exceeds the rated power, the product will trigger overload protection, cut off the AC output and prompt an
overload alarm. Unplugging the AC load will clear the alarm and restore normal AC output.
Wireless Charging
G)Wireless charging is activated when the DC power is turned on. You can charge wirelessly by placing the device
within the wireless charging range on top of the product.
This feature is only available for devices that support wireless charging. You can check the wireless charging
status by looking at the LED indicators on the wireless charging panel.
Slow breathing blue: your device is being charged wirelessly.
Flashing sky blue: an error occurred during wireless charging.
Steady green: wireless charging is ready, but no devices are detected.

Use After Long-Term Storage
If your portable power station has not been used for more than 3 months, it is recommended to discharge the
battery to 0% and then charge it to 100% to avoid calibration errors after a long time of inactivity.
How to Recharge
Notice Before Charging
This product supports wall charging, solar panel charging, and car charging.
This product supports charging and discharging at the same time.
Do not use a charging cable not officially designated by Growatt for charging. Otherwise, Growatt will not be
responsible for any consequences.
When charging, please make sure to place the machine away from liquids, flammables, and combustibles.
If the product is charged immediately after full-load discharge, over-temperature protection may be triggered
2- s for the product to cool down before another charge.for battery safety reasons. It typically takes 3 hour
The products recharging temperature range is 32°F~113°F(0°C-45°C). Charging within the ideal charging
ambient temperature temperature 50°F~82°F(10°C-28°C) can greatly extend the battery life.
I) AC Charging and Car Charging
The AC charging ports for the INFINITY 1500 are located on the right side of the product. Please follow the
instructions below to connect and recharge the product.
a) AC Charging

b ar ) C Charging
II) PV Charging
The series and parallel connection methods of solar panel to ensure that you are connecting the solar panels
correctly for charging. If the product is damaged due to incorrect connection not in accordance with the
instructions, Growatt will not be responsible for the free maintenance of the machine within the warranty period.
The solar charging ports for the INFINITY 1500 are located on the left side of the product.
The INFINITY 1500 DC input range is 12V-100V.You must ensure that the input voltage is within the specified range.
When the input voltage exceeds 100V, the excessive voltage may cause damage to the product and the
INFINITY 1500 will trigger over voltage protection.
This product supports AC and solar panel charging at the same time. The solar charging method is
preferred, and the AC charging method is used to supplement when the PV input power is insufficient.

DC
a) Connect with Growatt Solar Panels
You can charge the INFINITY 1 00 by connecting up to two 24V solar panels in series or using one 12V solar 5
panels(two sets in parallel with each set of four panels in series). Connect the MC4 connector on the solar
panel to the MC4-XT60 adapter cable, and supply power to the INFINITY 1 00 through the XT60 port on the 5
side of the INFINITY 1 00. When you need to connect two solar panels, it is recommended to connect the two 5
solar panels in parallel, and then use the MC4-XT60 adapter cable to connect to the INFINITY 1 00 for charging.5

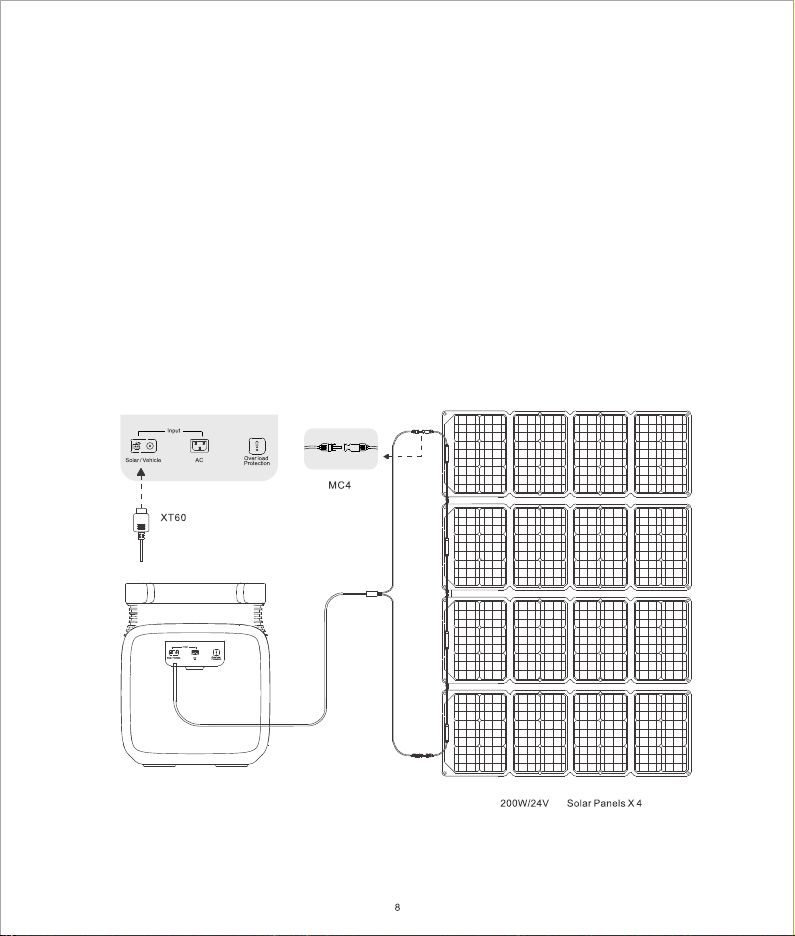

Connecting to Four 24V/200W Solar Panels in Series
