Grundig GD-CI-AT8747P User manual

1

2
Quick Guide
About this guide
The guide includes instructions for using and managing the product.
Pictures, charts, images and all other information hereinafter are for
description and explanation only. The information contained in the
guide is subject to change, without notice, due to firmware updates or
other reasons.
Please find the latest version at WWW.GRUNDIG-SECURITY.COM
Limitation of Liability / Legal Disclaimer
Abetechs GmbH (Grundig Security) undertakes all reasonable efforts
to verify the integrity and correctness of the contents in this document,
but no formal guarantee shall be provided. Use of this document and
the subsequent results shall be entirely on the user’s own
responsibility. Abetechs GmbH (Grundig Security) reserves the right to
change the contents of this document without prior notice. Design and
specifications are subject to change without prior notice.
The product described herein, with its hardware, software and
documentation is provided “as is”, without any warranty, expressed or
implies, including without limitation, merchantability, satisfactory
quality, fitness for a particular purpose, and non-infringement of a
third party.
In no event will our company and its employees or agents be liable to
you for any special, consequential, incidental, or indirect damages,
including among others, damages for loss of business profits, business
interruption, or loss of data or documentation, in connection with the
use of this product, even if our company has been advised of the
possibility of such damages.
QG-GD-CI-AT8747P-2021-12-15-V5-EN ©ABETECHS GMBH, DÜSSELDORF, GERMANY

3
Regarding to products with internet access, the use of the product
shall be wholly at your own risks. Our company shall not take any
responsibilities for abnormal operation, privacy leakage or other
damages resulting from cyber-attack, hacker attack, virus inspection,
or other internet security risks; however our company will provide
timely technical support if required. Surveillance laws vary by
jurisdiction before using this product in order to ensure that your use
conforms to the applicable law. Our company shall not be liable in the
event that this product is used with illegitimate purposes.
In the event of any conflicts between this manual and the applicable
law, the later prevails.
Trademark
Each of trademarks herein is registered. The name of this product and
other trademarks mentioned in this manual are the registered
trademark of their respective company.
Copyright of this document is reserved. This document shall not be
reproduced, distributed or changed, partially or wholly, without
formal authorization.
OPEN SOURCE SOFTWARE LICENSE INFORMATION
The software components provided with Grundig products may
contain copyrighted software that is licensed under various open
source software licenses. For detailed information about the
contained open source software packages, the used package versions,
license information and complete license terms, please refer to the
product detail pages on our website. The complete open source
software license information is also included in firmware files of

4
affected products. Please also check your product’s CD-ROM and
manuals for additional information.
You may obtain the complete corresponding open source part of a
specific product from us for a period of three years after our last
shipment of this product by sending an email to: info@grundig-
security.com
Safety and Installation Instruction
Introduction
Please read these instructions carefully and keep them for future
reference. You must heed all the warnings and cautions as well as
follow all the safety and installation instructions.
The appearance of the products, functions and firmware or software
upgrade may differ from this manual.
GRUNDIG reserves the right to perform needed changes without prior
notice.
Safety Instructions
Make sure that you only use the power adapter that is specified in the
specifications sheet of the product. If you use any other adapter or
connect the power supply incorrectly, this may cause explosion, fire,
electric shocks or damage the product. Do not connect several devices
to one power adapter as this may cause an adapter overload and can
lead to over-heating and fire. Make sure that the plug of the power
adapter is firmly connected to the power socket.

5
Do not place containers with liquids on the product. Do not place
conducting items like tools, screws, coins or other metal items on the
product. These may fall from the product or can cause fire or electric
shocks or other physical injuries.
Do not push or insert any sharp items or any objects into the device as
this may cause damage to the product, fire, electric shocks and/or
physical injuries.
Do not block any ventilation openings, if there are any. Ensure that the
product is well ventilated to prevent any over-heating. Do not subject
the device to physical shock or drop the product.
If the product uses batteries, please use a battery type that is
recommended by the manufacturer. Improper use or replacement of
the battery may result in the hazard of explosion.
Do not use any accessories that are not recommended by GRUNDIG.
Do not modify the product in any way.
If the product starts to smell or smoke comes out of the device,
immediately stop using the product and disconnect it from the power
supply to prevent fire or electric shocks. Then contact your dealer or
the nearest service center.
If the product does not work correctly, contact your dealer or nearest
service center. Never open, disassemble or alter the product yourself.
GRUNDIG cannot accept any liability or responsibility for problems
caused by attempted and unauthorized repair and maintenance.
Installation Instructions
It is necessary to fix the device firmly if the product is installed on a
wall or ceiling. Do not install the product on surfaces or in places that
are vibrating. Do not install the product near radiation sources.

6
Do not install the product near heat sources, like radiators or other
equipment that produces some heat. If the product is not classified by
any IP class, do not install the product in very cold or hot temperatures
(please refer to the working temperature specified in the specification
sheet of the product), dusty, dirty or damp environment.
If the product is classified by any IP class, never touch the product
cover directly with your fingers, because the acidic sweat of the fingers
may damage the surface coating of the product cover. To clean the
inside and outside of the product cover, use a soft and dry cloth. In any
case, do not use alkaline detergents. The correct configuration of all
passwords and other security settings is the sole responsibility of the
installer and/or end-user (this applies especially to IP Cameras and
Recorders).
Special Installation Instructions for Cameras
Do not touch the sensor module with your fingers. Do not aim the
camera or camera lens at a strong light such as the sun or a bright lamp.
Irreversible damage to the camera can be caused by a strong light.
Do not expose the sensor of the product to laser beams as this may
damage the sensor.
If the product supports IR, you need to take some precautions to
prevent IR reflection. Do not install the product close to reflective
surfaces of objects as this may cause reflection. If the product has a
dome cover, please remove the protection film only after installation
to prevent dust or grease on the camera which can cause reflection.
The foam ring around the lens must be seated flush against the inner
surface of the bubble to isolate the lens from the IR LEDS. Fasten the
dome cover to the camera body so that the foam ring and the dome
cover are attached seamlessly.

7
For cleaning, use a clean cloth with a bit of ethanol and wipe it carefully
and gently. In any case, do not use alkaline detergents.
If a glove is provided in the package, please use it to open the product
cover. Never touch the product cover directly with fingers, because the
acidic sweat of the fingers may damage the surface coating of the
product cover.
Special Installation Instructions for IP Cameras
Make sure that the latest firmware is installed on the IP Device. You
may get the latest firmware from www.grundig-security.com website
or from [e-mail].

8
Contents
1 Appearance Description .................................................................. 9
1.1 IR Speed Dome Overview ................................................ 9
1.1.1 Overview of the IR Speed Dome ........................... 9
1.2 Cable Interfaces ............................................................ 10
1.3 Alarm Output ................................................................ 11
2 Installation .................................................................................... 12
2.1 Installing Speed Dome................................................... 13
2.1.1 Wall Mounting .................................................... 13
2.1.2 Pole Mounting .................................................... 16
2.1.3 Pendant Mounting ............................................. 19
3 Setting the IP-Camera over the LAN .............................................. 22
3.1 Wiring ........................................................................... 22
3.2 Activating the Camera ................................................... 23
3.2.1 Activation via Web Browser ................................ 23
Activation via Grundig IP-Finder Tool .................. 24
3.3 Modifying the IP Address .............................................. 26
4 Accessing via Web Browser ........................................................... 28
4.1 Initializing the Memory Card ......................................... 30

9
1 Appearance Description
1.1 IR Speed Dome Overview
Note:
The figures below are for reference only, refer to the actual product
as the standard.
1.1.1 Overview of the IR Speed Dome

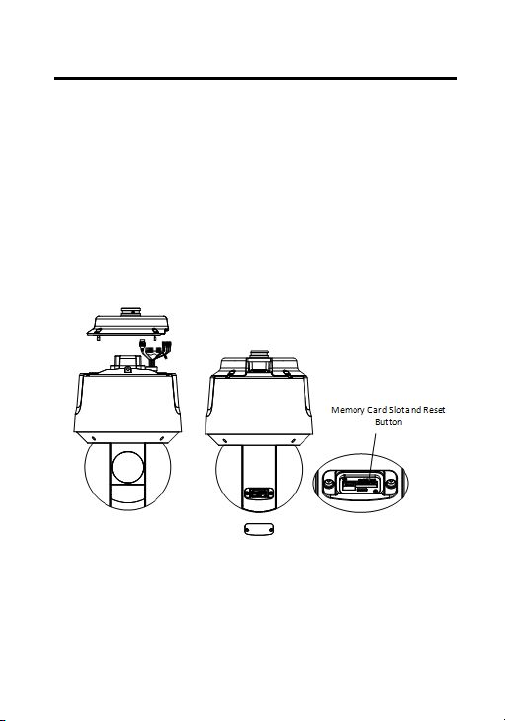

Figure 1-1 Overview of the IR Speed Dome

10
1.2 Cable Interfaces
The cable interfaces of the speed dome are shown in Figure 1-2. The
cables are distinguished by different colors. Refer to the labels
attached on the cables for identification.
Notes:
Make sure the speed dome is power-off before you connect the
cables.
Figure 1-2 Cable Interfaces

11
1.3 Alarm Output

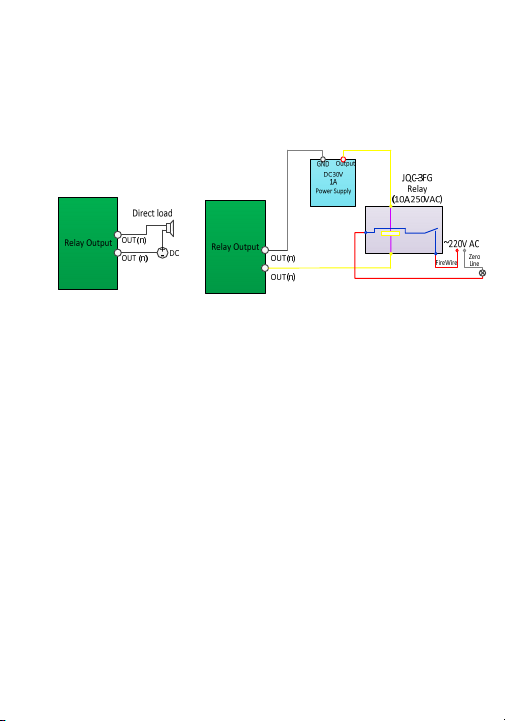

Alarm output is shown in Figure 1-3.
Figure 1-3 Alarm Output

12
2 Installation
Before you start:
Check the package contents and make sure that the device in the
package is in good condition and all the assembly parts are included.
Notes:
 Do not touch the bubble directly by hand. The image blurs
otherwise.
 Do not power the speed dome up until the installation is
finished. To ensure the safety of personnel and equipment, all
the installation steps should be done with power supply off.
 Do not drag the speed dome with its waterproof cables;
otherwise the waterproof performance is affected.

13

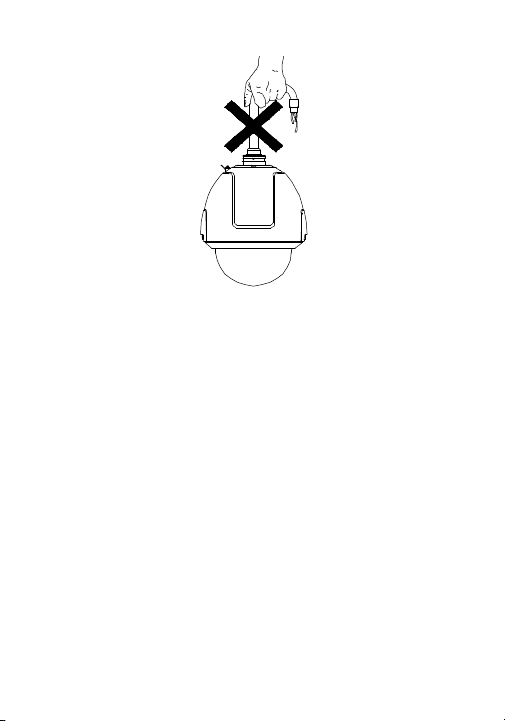

Figure 1-3 Do Not Drag the Cables
2.1 Installing Speed Dome
2.1.1 Wall Mounting
Notes:
 For cement wall, you need to use the expansion screw to fix the
bracket. The mounting hole of the expansion pipe on the wall
should align with the mounting hole on the bracket.
 For wooden wall, you can just use the self-tapping screw to fix
the bracket.

14
 Make sure that the wall is strong enough to withstand more
than eight times the weight of the speed dome and the
accessories.
 Water-proof treatment is required for cable connectors.
Steps:
1. Install the bracket.
1) Drill four screw holes in the wall according to the holes
on the bracket, and then insert four expansion screws
into the mounting holes.
2) Attach the bracket to the wall by aligning the four screw
holes on the bracket with four expansion screws on the
wall.
3) Secure the bracket with four sets of hex nuts and
washers.
Figure 2-1 Install the bracket

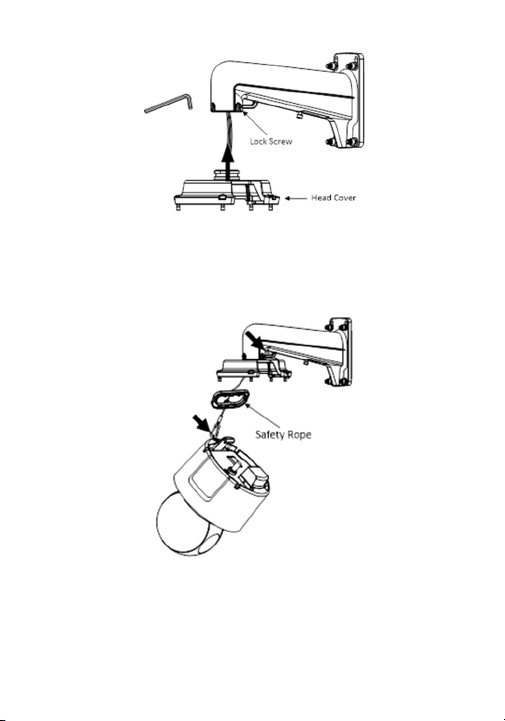

2. Use the wrench to fix head cover on the bracket.

15
Figure 2-2 Install head cover
3. Hook the speed dome to the bracket with supplied safety rope.
Figure 2-3 Use Safety Rope

16
4. Route and connect the cables through the head cover and
bracket.
Note:
Water-proof treatment is required for cable connectors.

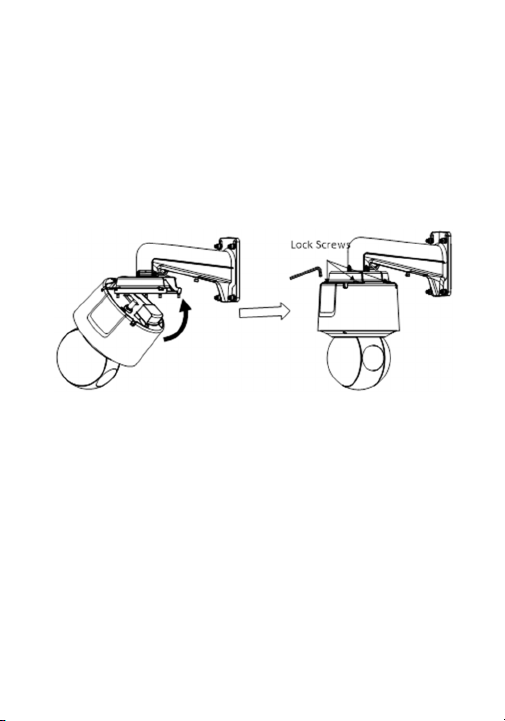

5. Align the speed dome with the head cover. Use the wrench to
tighten the lock screws.
Figure 2-4 Secure the speed dome
2.1.2 Pole Mounting
Before you start:
Prepare one bracket and three hoops, and fix the hoops on the
bracket.

17
Figure 2-5 Prepare accessory
Steps:
1. Lock the hoops and bracket on a pole, and route the cables
through the vertical mounting bracket. Then fix the mounting
bracket on the bracket attached on the pole before.
Figure 2-6 Route the cables
2. Use the wrench to fix the head cover on the bracket.

18
Figure 2-7 Fix the head cover
3. Hook the speed dome to the bracket with supplied safety rope.
Figure 2-8 Use safety rope

19
4. Connect the cables, and align the speed dome with the head
cover, using wrench to tighten the screws on the head cover.
Figure 2-9 Finish the installation
2.1.3 Pendant Mounting
Steps:
1. Drill four holes on the ceiling to match those on the pendant
mount bracket.
Figure 2-10 Pendant mount

20
2. Route the cables through the bracket, then align the base plate
to the holes and fix it to the ceiling with four screws.
Figure 2-11 Route the cables

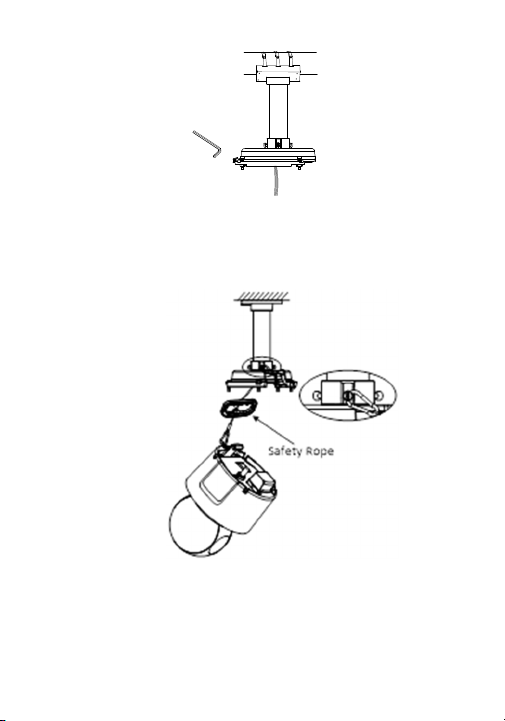

3. Use the wrench to fix the head cover on the bracket.
Figure 2-12 Fix the head cover
