Grundig VERTIGA UMS 5100 User manual

HIFI STEREO MICRO SYSTEM
ǵ
ENGLISH
VERTIGA
UMS 5100
72011-400.4900

2
CONTENTS________________________________________________________________________
3 Set-up and safety
4 Overview
Operating elements of the stereo system
The back of the stereo system
The remote control
9 Connection and preparation
12 Settings
Setting the clock
Tuning to radio stations
Storing radio stations
Deleting settings
15 General functions
17 Tuner mode
RDS station service
20 CD mode
Basic CD mode functions
Special CD mode features
Creating a track memory – playing back tracks in selected order
25 Timer mode
Setting the switch-on timer
Setting the sleep timer
27 Information
Cleaning the CD unit
Technical data, rectifying minor problems
GRUNDIG Service

ENGLISH
3
ENGLISH
SET-UP AND SAFETY ______________________________________________
Please note the following information when setting up the system:
This stereo system is designed for the playback of audio signals. Any other use
is expressly prohibited.
Please note when setting up the stereo system that furniture surfaces are coated
with various types of paint and plastic, which often contain chemical additives.
These additives may cause corrosion to the feet of the unit. This may leave stains
on the surface of the furniture which can be difficult or impossible to remove.
If the stereo system is exposed to sudden changes in temperature, for example
when taken from the cold into a warm room, wait at least two hours before
using it.
The stereo system is designed for use in dry rooms. If you do use it in the open,
please ensure that it is protected from moisture, such as rain or water splashes.
Do not place the stereo system close to heating units or in direct sunlight, as this
will impair cooling.
Do not place any vessels such as vases on the stereo system. Do not insert any
foreign bodies in the CD compartment.
Do not open the stereo system under any circumstances. The manufacturer
accepts no liability for damage resulting from improper handling.
Thunderstorms are a danger to all electrical devices. Even if the stereo system is
switched off, it can be damaged by a lightning strike to the mains or the
antenna cable. Always disconnect the mains and antenna plugs during a storm.
OPTICAL
DIGITALOUT
SPEAKERS
IMPEDANCEMIN 4Ω
LINEIN (AUX)
LINEOUT
R
R
L
L
ANTENNA
COA-
XIAL
75Ω
AM
LOOP
AM
EXT
FM
EXT
˜ACIN
RL
! SERVICE !! SERVICE !
! SERVICE !
OPTICAL
DIGITALOUT
SPEAKERS
IMPEDANCEMIN 4Ω
LINEIN (AUX)
LINEOUT
R
R
L
L
ANTENNA
COA-
XIAL
75Ω
AM
LOOP
AM
EXT
FM
EXT
˜AC IN
RL
°C
2h
°C

4
OVERVIEW _______________________________________________________________________
Operating elements of the stereo system
Operating controls on the front
ON/OFF Switches the stereo system to and from
stand-by mode.
OInfrared receiver for remote control sig-
nals.
•Stand-by indicator.
PHONES Headphone jack for connecting a stereo
headphone set with a jack plug
(ø 3.5 mm). The loudspeakers of the ste-
reo system are automatically switched
off.
– VOLUME + Adjusts the volume.
Operating controls on the top of the
system
TIMER/ SNOOZE For setting the switch-on timer
Delays the alarm for approximately
5 minutes.
CLOCK For setting the clock.
SLEEP For setting the sleep timer.
X-BASS For boosting the bass.
DSC Selects the sound settings.

ENGLISH
5
ENGLISH
OVERVIEW__________________________________________________________________________________
AUX operation
AUX Selects the input source »AUX« (external
device).
Radio mode
TUNER Selects the »TUNER« input source.
BAND Selects the frequency band »FM« or
»MW«.
ıı s6 Hold down to start the station search.
5a ľľ Press briefly to change the frequency in
small steps.
NEXT PRESET Selects preset stations.
CD mode
CD/ ıII Selects the »CD« input source.
Starts and interrupts CD playback.
■Ends CD playback.
Deletes the track memory for the CD.
ıı s6 Press briefly to select the next track.
Hold down to look for a particular pas-
sage.
5a ľľ Press briefly to select the previous track.
Hold down to look for a particular pas-
sage.
əOpens and closes the CD compartment.

6
OVERVIEW__________________________________________________________________________________
The back of the stereo system
ANTENNA FM Socket for the rooftop antenna
EXT or the wire antenna supplied.
ANTENNA AM Antenna terminals for the wire antenna
EXT supplied.
OPTICAL Digital output for copying a CD onto a
DIGITAL OUT digital recording device.
LINE IN (AUX) Audio signal input for an external devi-
ce.
LINE OUT Audio signal output for an external devi-
ce.
SPEAKERS Connections for the loudspeakers
RL + RL– supplied.
R = right channel, L = left channel.
~ AC IN Socket for power cord.
The only way to separate the stereo
system from the mains is to pull out the
mains plug.
General instructions for laser devices
The laser installed in the device conforms to LASER CLASS 1 and is designed to
ensure that the maximum permissible emission value cannot be exceeded under
any circumstances.
Caution:
If operating devices or methods other than those specified here are
employed, it may lead to dangerous exposure to emissions. Invisible laser
radiation is emitted if the CD compartment is opened or the safety locking
mechanism is shorted. Do not expose yourself to this radiation.
OPTICAL
DIGITAL OUT
SPEAKERS
IMPEDANCE MIN 4Ω
LINE IN (AUX)
LINE OUT
R
R
L
L
ANTENNA
COA-
XIAL
75Ω
AM
LOOP
AM
EXT
FM
EXT
˜AC IN
RL

ENGLISH
7
ENGLISH
OVERVIEW__________________________________________________________________________________

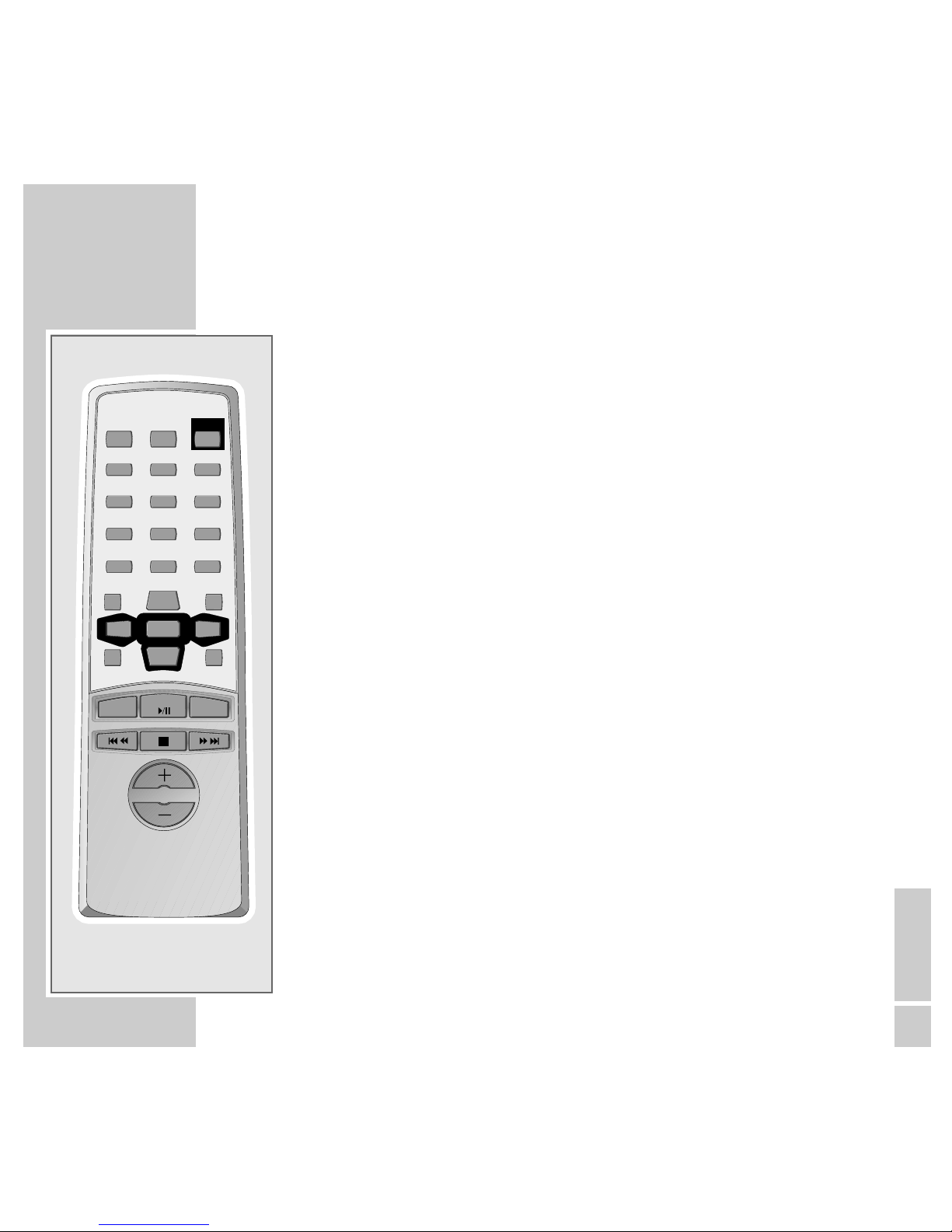

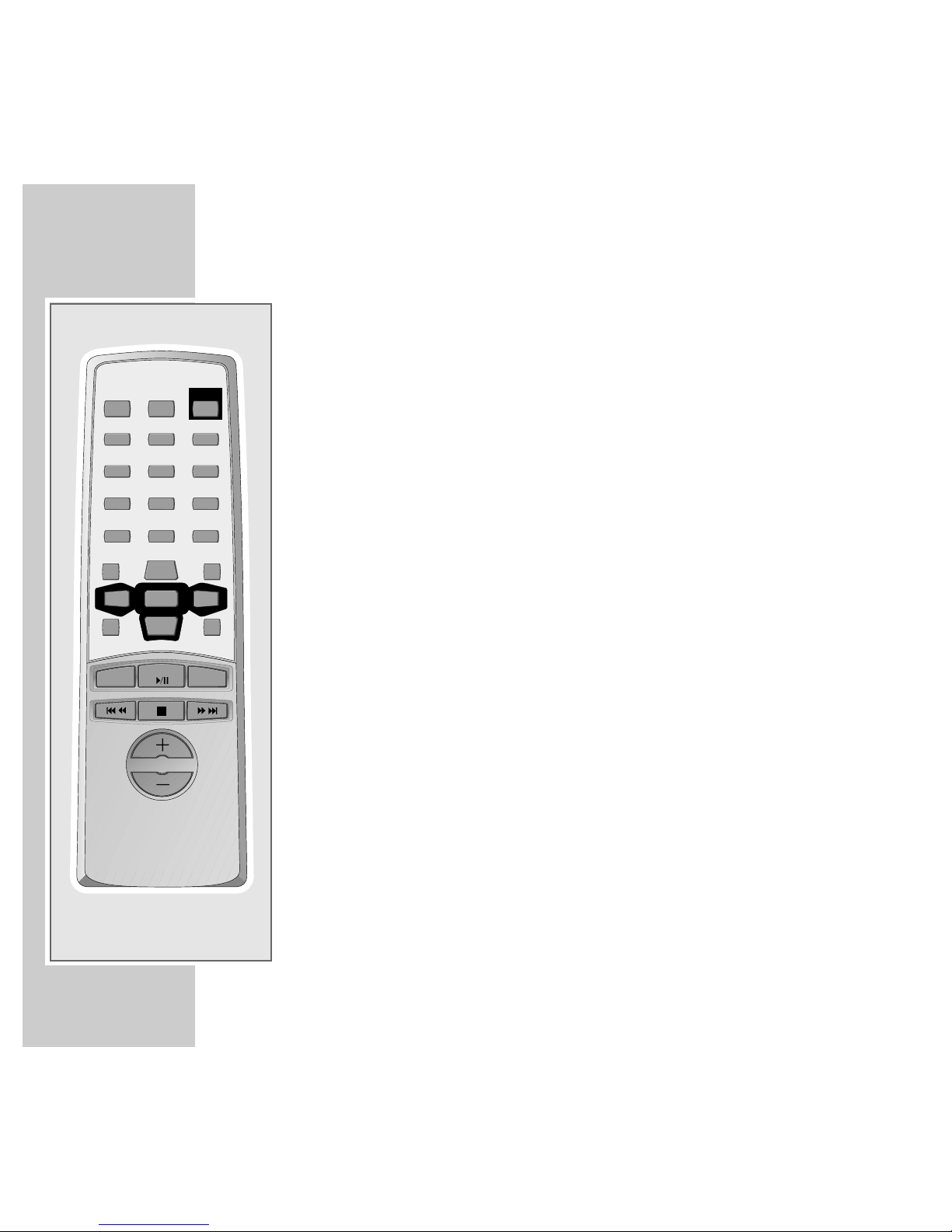

The remote control
9Switches the stereo system to and from stand-by mode.
TIMER
SNOOZE For setting the switch-on and sleep timers.
CLOCK For setting the clock.
1...0, +10 Numeric keys for various inputs.
To select preset stations 10 to 20, first press »+10«, then
enter the two digit station number using »0...9«.
SLEEP For setting the sleep timer.
PROGRAM In tuner mode – stores preset stations and starts the
AUTO PRESET automatic search programming.
In CD mode – stores a track memory.
REPEAT In tuner mode – switches stereo broadcasts from stereo
STEREO/MONO to mono reception.
In CD mode – repeats a track or the entire CD.
RANDOM In CD mode – activates the playback of tracks in random
order.
CT In tuner mode – selects the RDS time.
RDS In tuner mode – selects the RDS mode.
DISPLAY In tuner mode – calls up various information on the display.
TIMER
SNOOZE
CLOCK
123
456
789
10+SLEEP
0
REPEAT
STEREO/MONO RANDOM
PROGRAM
AUTO PRESET
DSC X-BASS
VOLUME
AUX BAND
TUNER
CD
6
DISPLAY
CT RDS
MUTE
ǵ

8
OVERVIEW__________________________________________________________________________________
DSC Selects the sound settings.
MUTE Switches the loudspeaker on and off again.
X-BASS For boosting the bass.
AUX Selects the input source »AUX«.
CD ıII In CD mode – starts CD playback, pauses playback.
BAND TUNER Selects the input source »TUNER« and selects the frequency
bands »FM« or »MW«.
5a ľľ In tuner mode – press briefly to change the frequency
ıı s6 in small steps. Hold down to start the station search.
In CD mode – press briefly to select a track.
Hold down to search for a particular passage.
■In CD mode – ends playback of the CD.
+ VOLUME – Adjusts the volume.
TIMER
SNOOZE
CLOCK
123
456
789
10+SLEEP
0
REPEAT
STEREO/MONO RANDOM
PROGRAM
AUTO PRESET
DSC X-BASS
VOLUME
AUX BAND
TUNER
CD
6
DISPLAY
CT RDS
MUTE
ǵ

ENGLISH
9
ENGLISH
CONNECTION AND PREPARATION_______
Connecting the antenna
1Insert the rooftop antenna in the »ANTENNA FM EXT« socket on the
stereo system.
Note:
If no rooftop antenna system is available, use the auxiliary antenna supplied.
This antenna provides reasonably good reception of local FM (VHF) stations.
Do not shorten the auxiliary antenna.
2Insert the wire antenna into the »ANTENNA AM EXT« terminals on the
stereo system. Adjust the position of the wire antenna until reception is at its
best.
Connecting the loudspeakers
1Connect the loudspeaker cables to the »SPEAKERS RL + RL –« terminals
on the stereo system and the »+ INPUT –« terminals on the loudspeakers.
Connect the cables labelled in red to »+«.
Connecting an external device
1Connect the audio output sockets of the external device (for example a
television or DVD player) to the »LINE IN (AUX)« sockets on the stereo
system using a cinch cable.
Note:
Switch the stereo system off before you connect external devices. Make sure
the stereo channels are properly connected:
R = right channel (red), L = left channel (white).
OPTICAL
DIGITAL OUT
SPEAKERS
IMPEDANCE MIN 4Ω
LINE IN (AUX)
LINE OUT
R
R
L
L
ANTENNA
COA-
XIAL
75Ω
AM
LOOP
AM
EXT
FM
EXT
˜AC IN
RL
LINE OUT
R
R
L
L
ANTENNA
COA-
XIAL
75Ω
AM
LOOP
AM
EXT
FM
EXT
N
TVR
SPEAKERS
IMPEDANCEMIN 4Ω
LINE OUT
RL
ANTENNA
COA-
XIAL
75Ω
AM
LOOP
AM
EXT
FM
EXT
˜AC IN
RL

10
CONNECTION AND PREPARATION_______________________________________
Connecting a digital recording device
1Use an OPTICAL cable to connect the »DIGITAL OPTICAL OUT« jack on
the stereo system to the appropriate jack on the external device (e.g. MD or
CDR).
Note:
This socket enables you to record CD playback with a digital recording
device.
Connecting headphones
1Insert the headphone plug (ø 3.5 mm) into the »PHONES« socket on the
front of the stereo system.
– The loudspeakers of the stereo system are switched off.
Connecting the power cord
Note:
Check that the mains voltage on the type plate (on the back of the device)
corresponds to your local mains supply.
The only way to disconnect the device from the mains supply is to pull out the
plug.
1Plug the mains cable supplied into the »~AC IN« socket on the device.
2Insert the mains cable plug into the mains socket.
PHONES
U
ME +
OPTICAL
DIGITAL OUT
SPEAKERS
IMPEDANCE MIN 4Ω
LINE IN (AUX)
LINE OUT
R
R
L
L
ANTENNA
COA-
XIAL
75Ω
AM
LOOP
AM
EXT
FM
EXT
˜AC IN
RL
OPTICAL
DIGITAL OUT
SPEAKERS
IMPEDANCE MIN 4Ω
LINE IN (AUX)
LINE OUT
R
R
L
L
ANTENNA
COA-
XIAL
75Ω
AM
LOOP
AM
EXT
FM
EXT
˜AC IN
RL
