CONTENTS__________________________________________________________________________
User Manual
4 TV Set Fine Arts Vision
Special features of your television
Scope of delivery
6 At a Glance
The remote control
The front of the TV set
12 Operation
Switching the TV set on and off
13 The On-Screen User Guide
The Easy Dialogue system
The Dialogue Centre
Operating the Easy Dialogue system
15 Copying
Recording with a GRUNDIG video recorder equipped with the Megalogic function
Information for the specialized dealer
The installation and channel programming are described from page 17.

CONTENTS__________________________________________________________________________________
ENGLISH
3
Installation Instructions
18 Installation and Safety
20 Preparation
Fitting the glass pane and the control unit cover
Putting batteries into the remote control
Changing the remote control code for additional devices
23 Connections
The back of the TV set
Connecting loudspeakers or an amplifier
Connecting a computer (VGA)
29 Settings
Programming TV channels
Setting the Dolby level
Connecting a Grundig video recorder equipped with the Megalogic function
32 Information
Technical data
Service information for the specialized dealer
Pin assignment of the EURO-AV socket
Correcting problems yourself

4
Special features of your television
Technology
Super flat 82 cm colour picture tube (visible picture: 76 cm).
Impressive 16:9 cinemascope format.
100 Hertz technology.
GRUNDIG Megalogic
Megalogic possibilities:
– Perfect compatibility with a Megalogic video recorder. No troublesome
programming of channel positions.
– By starting playback on the video recorder, the video programme position on
the TV set will be automatically selected.
Equipment
Dolby ProLogic *
VGA interface for connecting a PC.
Megatext, level 2.5, 512-page memory.
Easy Dialogue System.
TV Guide.
Retrofit options
DVD player
Analog satellite receiver (integrated in the TV set).
Video recorder GV 940.
Wireless transmission system for surround loudspeakers.
Your specialized dealer will be glad to advice you.
* Dolby noise reduction manufactured under license from Dolby Laboratories Licensing
Corporation.
DOLBY and the double-D symbol ijare trademarks of Dolby Laboratories Licensing
Corporation.
FINE ARTS VISION
_________________________________________________________________

ENGLISH
5
FINE ARTS VISION____________________________________________________________________

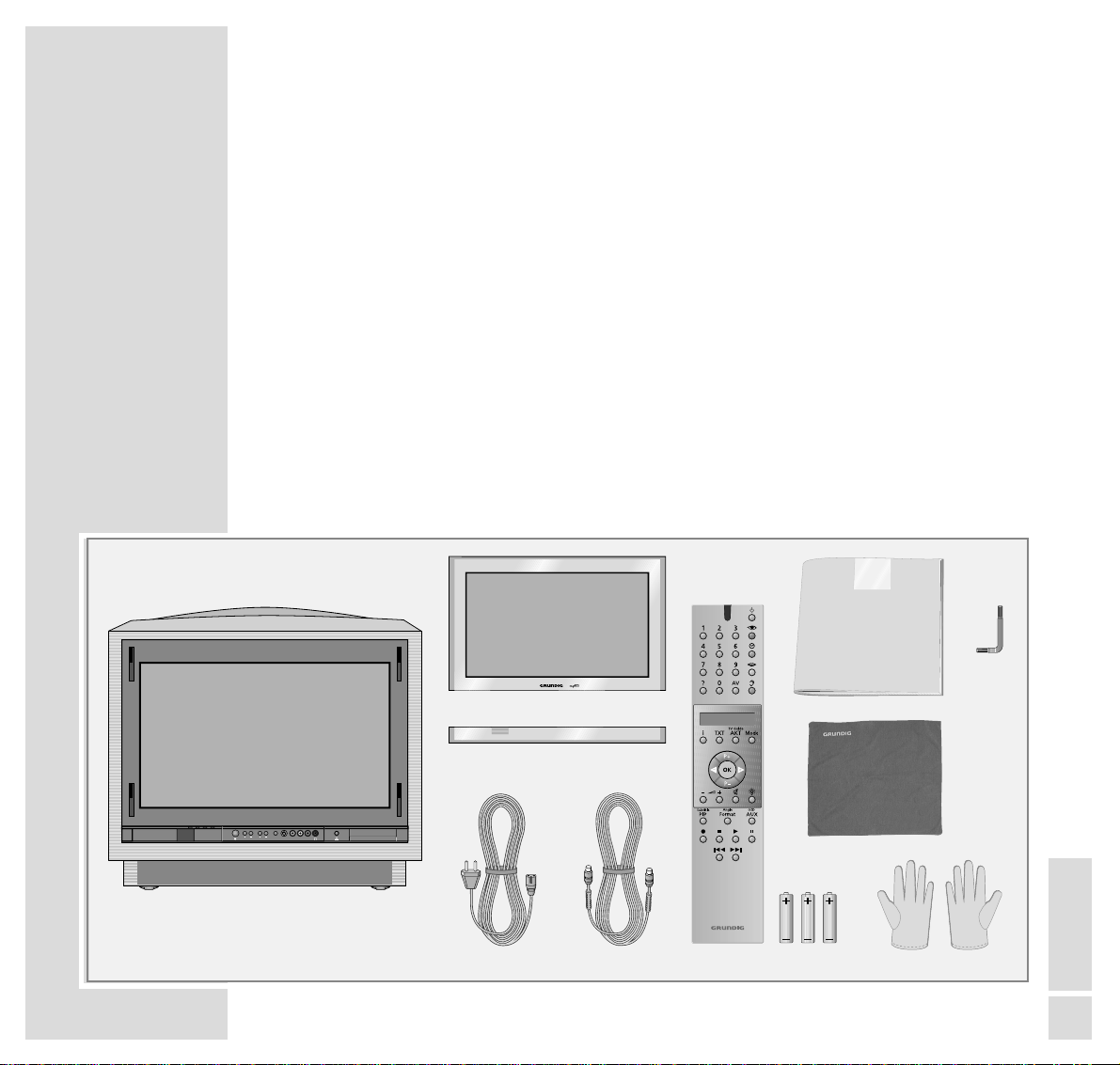

Scope of delivery
1TV set Fine Arts Vision
2Glass pane and control unit cover
3Mains cable
4Aerial cable
5Remote control Personal Remote 10
6User manual
7Cleaning cloth for glass pane
83 batteries, 1.5 V–, Micro type
91 pair of cloth gloves for mounting the glass pane
10 1 screwdriver
Personal Remote 10
C
Bedienungsanleitung
MFW 82-710/9 DPL/PIP
COLOR TELEVISION
ǵ
S-VHS Videoin
Slider
Volume Program
AudioinLR
1
2
38
459
10
7
6

6

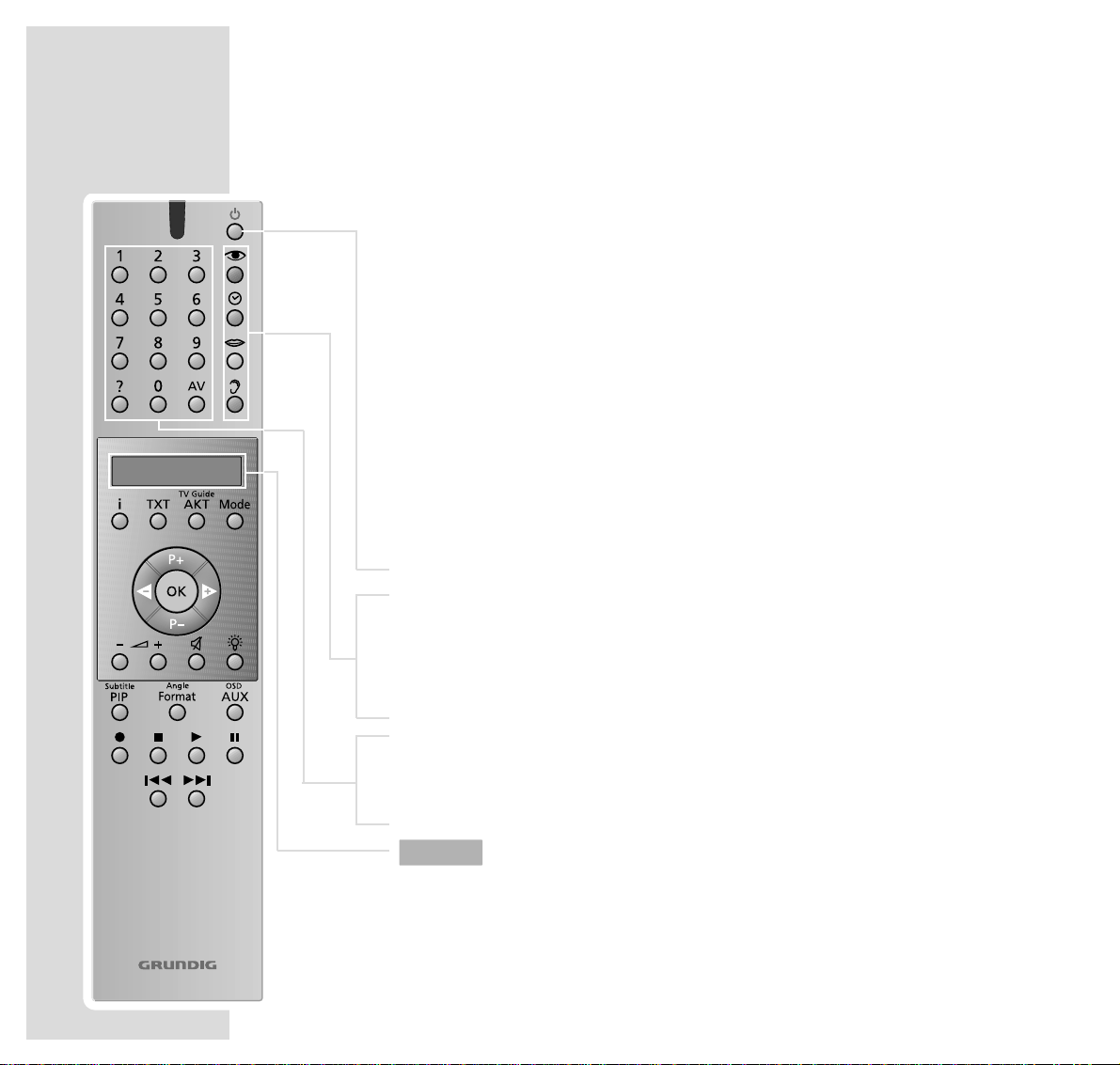

The remote control
You can use the remote control Personal Remote 10 not only with the TV set, but
also with a video recorder and a DVD player.
For operating a video recorder or DVD player, it is necessary that the remote
control is prepared for this by your specialized dealer (see page 22).
For the operation of a video recorder or DVD player, refer to the separate user
manuals supplied with these devices.
Operating the TV set
For the operation of the TV set, »TV« must be visible in the display of the
remote control. If this is not the case, press the »Mode« button repeatedly until
»TV« is visible in the display.

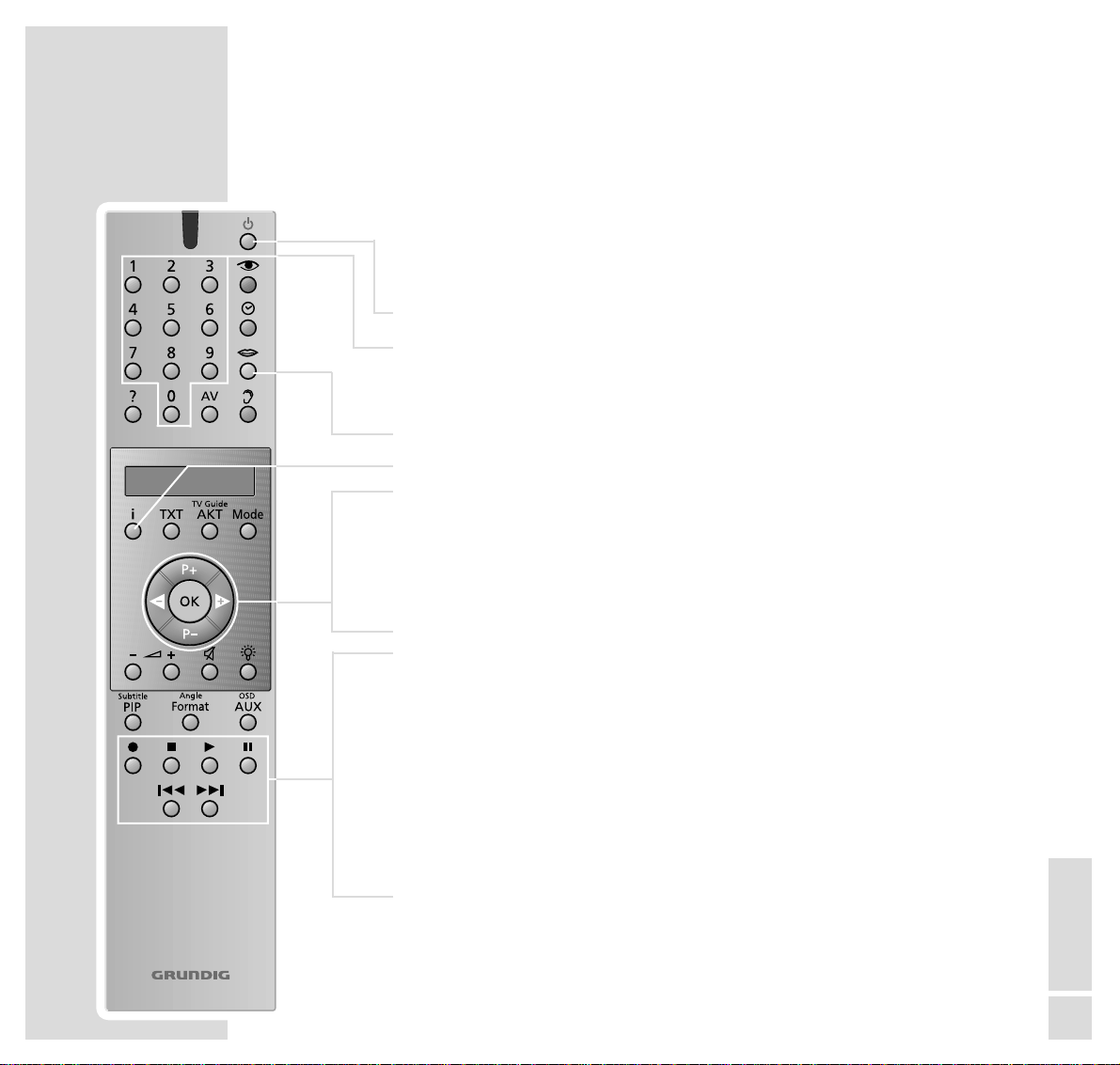

ǼǼSwitches the TV set to standby.
zzPicture settings; displays the »PICTURE SETTINGS« menu.
ȄȄClock time on/off.
MNo function in TV mode.
FFSound settings; displays the »SOUND SETTINGS« menu.
1…9 Select channels and switch the TV set on from standby.
AV Enters the teletext page number; selects the AV programme position.
DCalls up brief operating instructions.
Display
Personal Remote 10
AT A GLANCE___________________________________________________________________
TV
TV

ENGLISH
7

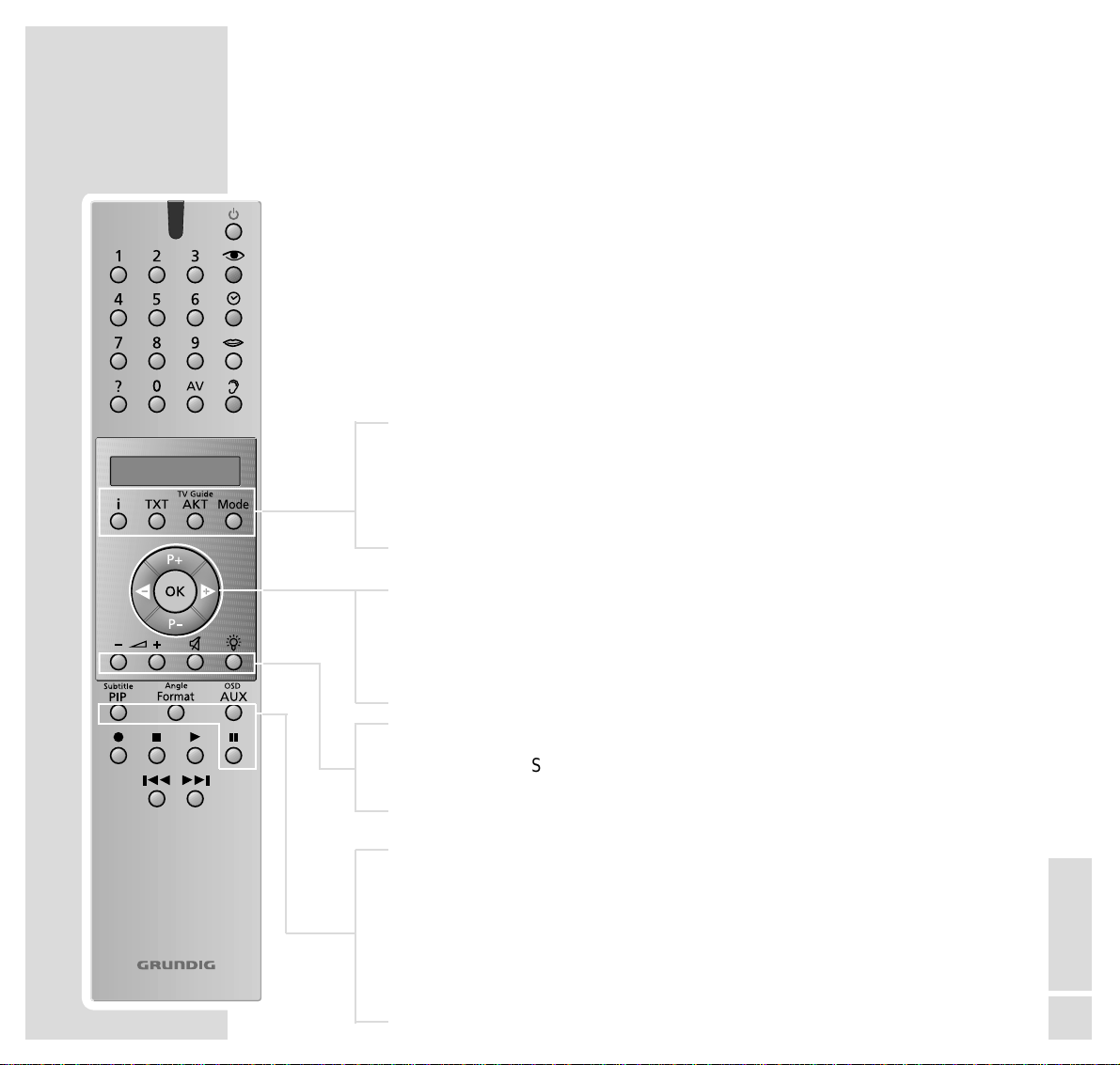

iAccess to the DIALOGUE CENTRE (with »i« and »OK«).
TXT Teletext mode, TV mode.
TV Guide AKT TV Guide, info about current programme.
Mode Switches the remote control code for the operation of a DVD
player or a video recorder.
P+ P– Switch the TV set on from standby (only »P+«),
select channels step by step, move cursor up/down.
ǸǷ Move cursor to the left/to the right.
OK Changes and activates various functions.
–}+Volume.
ĭĭ
Sound on/off (mute function).
RDisplay illumination on/off. After some time, the illumination
switches off automatically.
Subtitle PIP In teletext mode: double window function (TV picture and tele-
text in two screen windows; in TV mode: picture-in-picture
mode.
Angle Format Picture format switching.
OSD AUX Preselection button for various functions.
II Still picture.
AT A GLANCE_____________________________________________________________________________
Personal Remote 10
TV

8
AT A GLANCE_____________________________________________________________________________
Personal Remote 10
Operating the DVD player (option)
You can use the Personal Remote 10 remote control of your TV set also for the
opeartion of your DVD player.
To operate your DVD player, repeatedly press the »Mode« button until
»DVD« is visible in the display.
ǼǼSwitches the TV set to standby.
Switch on again with any button.
1…0 Numeric buttons for various entries.
MSelects the synchronized language.
iDisplays the title menu of the DVD/video CD.
Mode Swiches the code of the remote control for DVD operation.
P+ P– Select various functions in the menus.
ǸǷ Select various functions in the menus.
OK Confirms menu entries.
Subtitle PIP Displays subtitles of the DVD during playback.
Angle Format Selects different viewing angles (camera positions) for certain
passages or scenes on the DVD.
OSD AUX Displays and removes menu lines.
7Ends all functions, switches the DVD player to “STOP”.
8Starts DVD play;
two pressures activate the “Resume” function.
II Still picture with DVD´s and vieo CD’s, pause with audio CD’s.
5as6Switches to forward and reverse play at different speeds.
DVD

ENGLISH
9
AT A GLANCE_____________________________________________________________________________
Operation of a Grundig video recorder
Your TV set is especially suited for a GRUNDIG video recorder GV 940.
To operate your video recorderr, repeatedly press the »Mode« button until
»VCR« is visible in the display.
ǼǼSwitches the video recorder to standby.
1…0 Channel selection and switching the TV set on from
standby;
for entering a ShowView number.
MTrack selection.
iDisplays the menu from the video recorder.
P+ P– Select channel step by step, »P+« up, »P–« down,
select various functions in the menus.
ǸǷ For channel finetuning;
select various functions in the menus.
OK For calling up, confirming and saving data.
●Starts recording.
■Switches the video recorder on, ends all drive mechanism
functions and switches the video recorder in “Stop” mode.
ıStarts playback.
II Pause on recording, still picture on playback.
5a Reverse picture search during playback;
fast rewind in “Stop“ mode.
s6 Forward picture search during playback;
fast foward wind in “Stop” mode.
Personal Remote 10
VCR

10
AT A GLANCE_____________________________________________________________________________

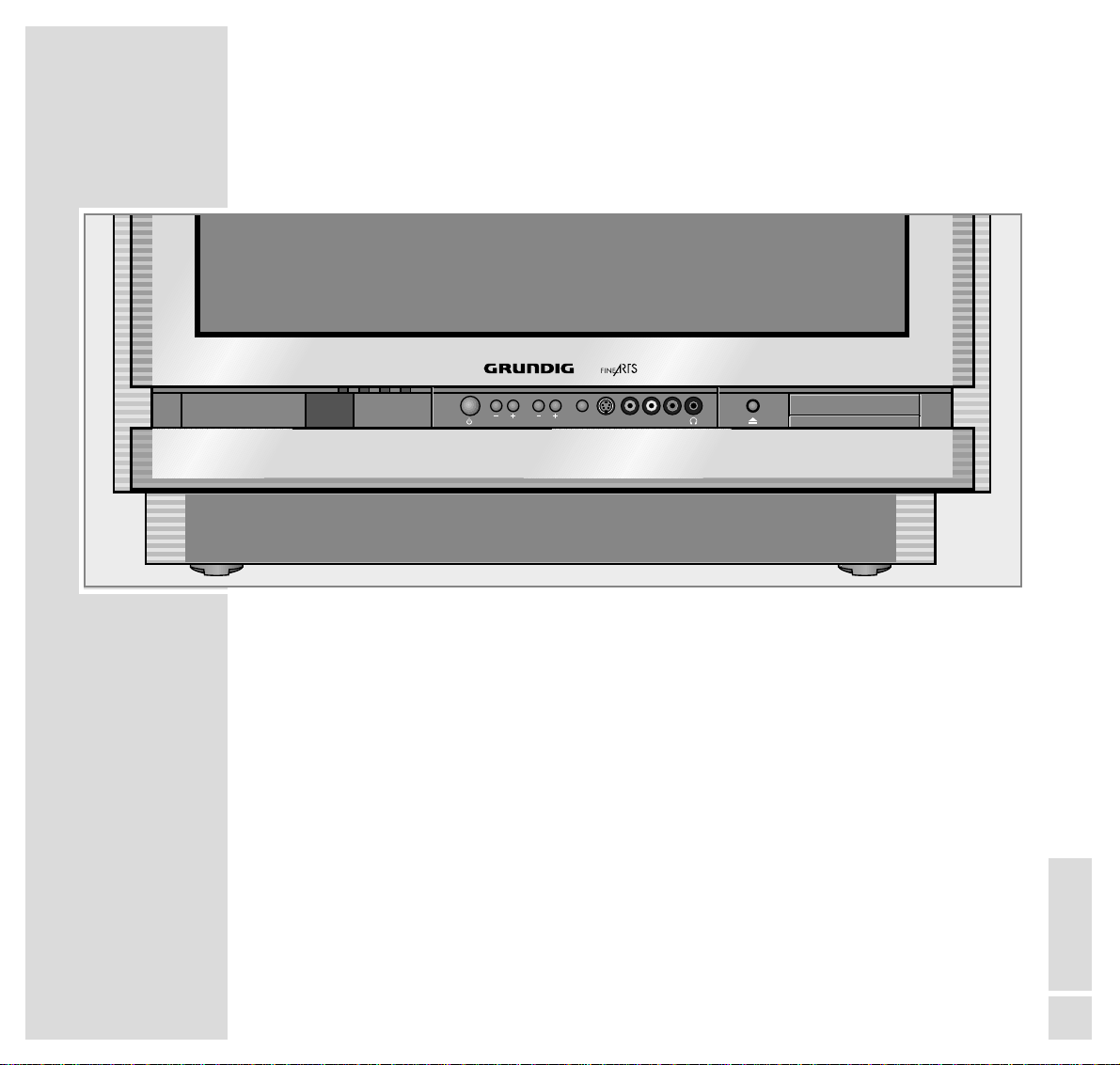

The front of the TV set

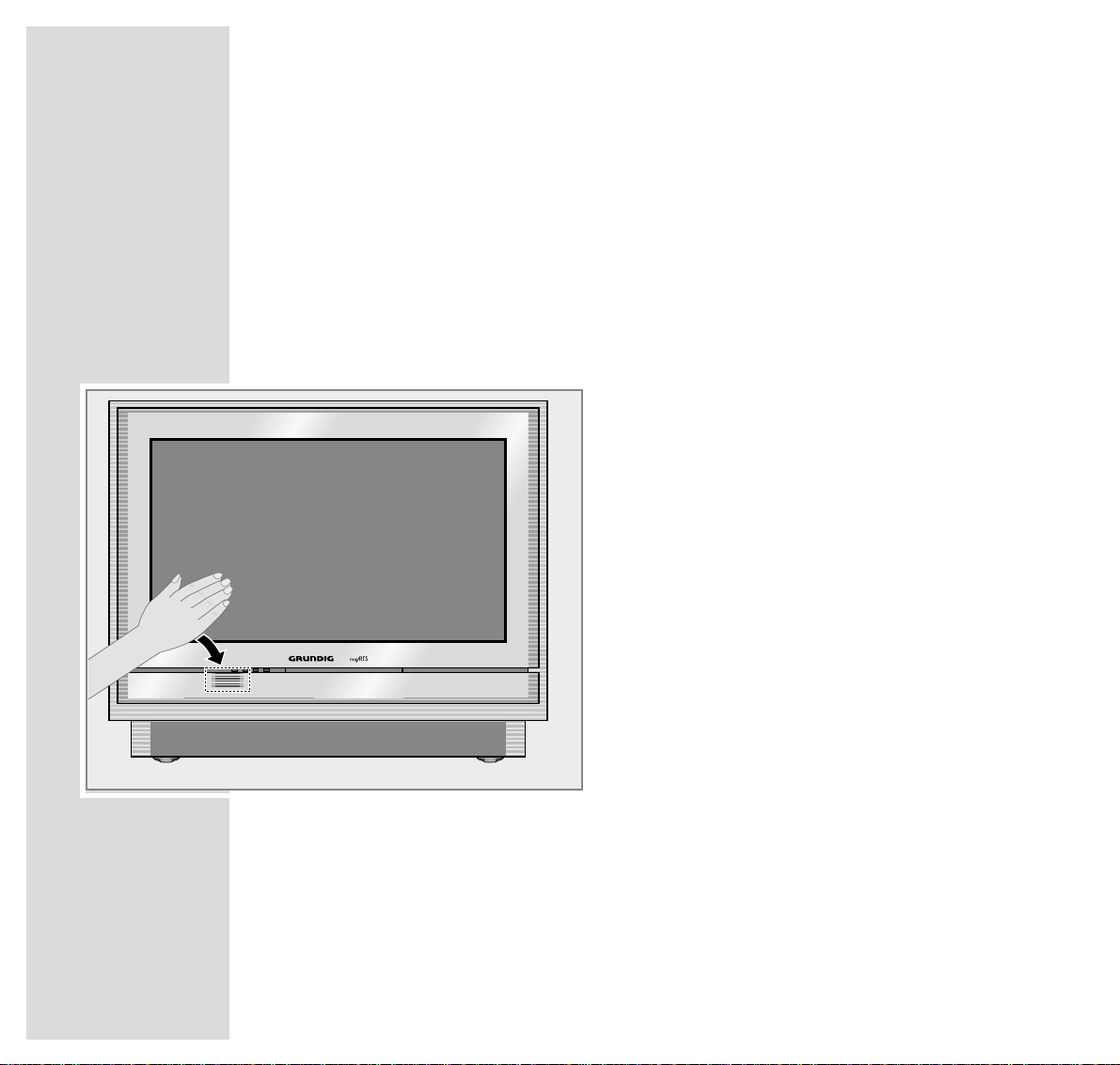

Automatic opening of the control unit cover
When moving your hand towards the cover of the control unit, this slides
automatically downwards and reveals the control elements.
After a few moments, the glass pane slides up again.
Note.
If a camcorder, video recorder or headphones
are connected to the sockets at the front of the TV
set, the cover of the control unit does not close
automatically.

ENGLISH
11
AT A GLANCE_____________________________________________________________________________

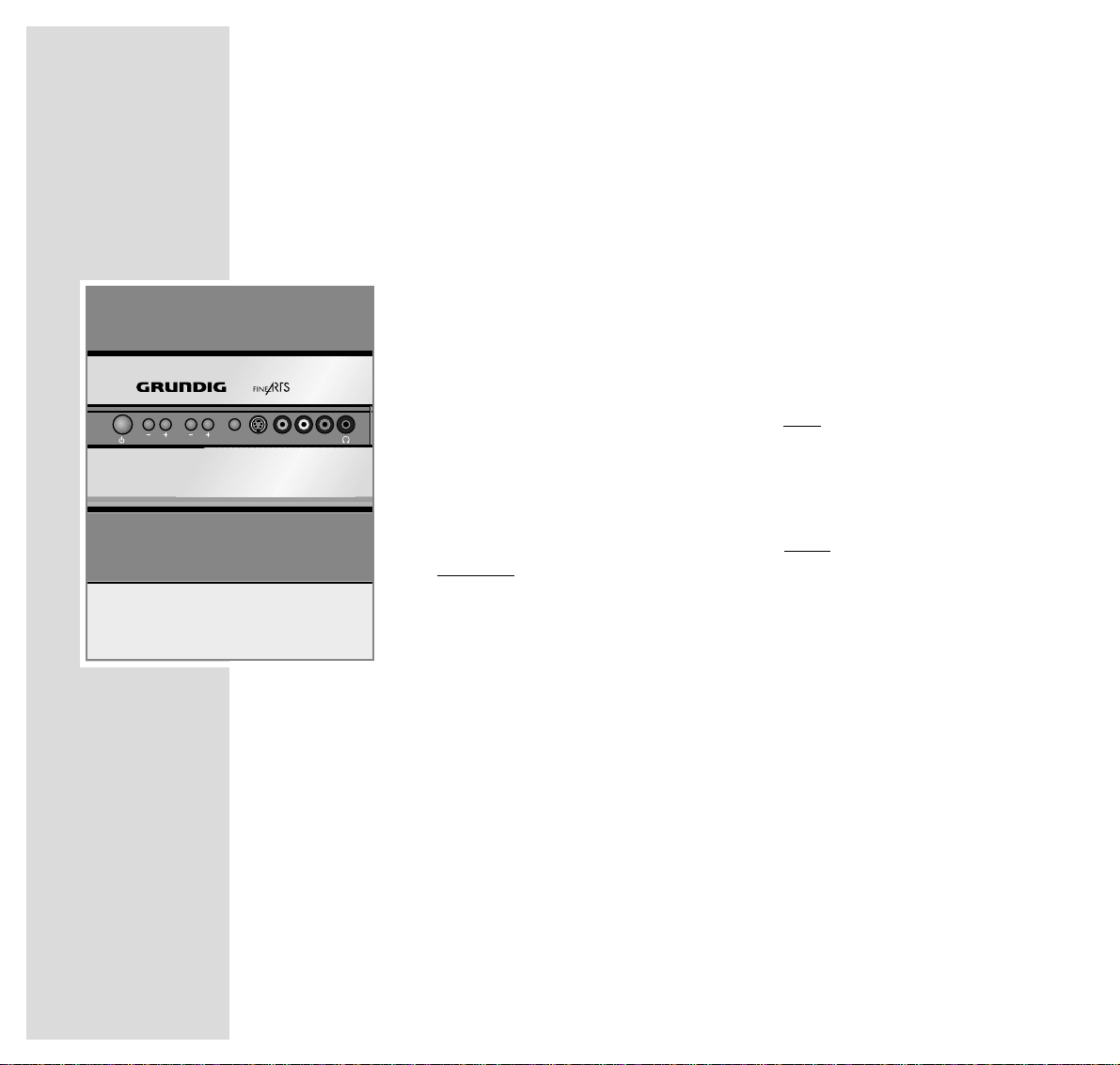

Control elements
ǼǼSwitches the TV set on and off.
–Volume + Volume
–Program +Channel positions down/up.
Slider Switches the automatic close function of the control unit
on and off.
S-VHS S-VHS video input for camcorder.
Video in Video input for camcorder.
L Audio in R Audio input for camcorder.
yyHeadphones socket.
əəOpens and closes the DVD player drawer (option).
S-VHS Videoin
Slider
Volume Program
AudioinLR

12
OPERATION________________________________________________________________________
Switching the TV set on and off
Switching the TV set on and off
1Press the »ǼǼ« button on the TV set.
– The TV picture appears on the picture screen.
Switching the TV set to standby
1Press the »ǼǼ« button on the remote control once.
Switching the TV set definitely off
1Press the »ǼǼ« button on the TV set, or
press the »ǼǼ« button on the remote control twice.
Condition:
The ecologic switch must not be activated (see Dialogue Centre, “Special
function” menu).
Note:
The ecologic switch is not actuated if a timer has been programmed or copy-
ing is in progress.
Switching on again is only possible with the »ǼǼ« button on the TV set.
An LED at the front of the TV set lights up in different colours to signal the
current operating mode:
Green = Set in operation
Yellow = Standby (TV Guide mode, copy mode).
Red = Standby (energy saving mode, timer programmed).
S-VHS Videoin
Slider
Volume Program
AudioinLR

ENGLISH
13
THE ON-SCREEN USER GUIDE____________________________
The Easy Dialogue system
Your TV set is equipped with an “Easy Dialogue System”.
That means that operating instructions are not, as is usual, in a printed manual,
but rather appear on the screen as dialogue fields.
The Dialogue Centre
The Dialogue Centre is the control centre for your TV set.
Here you can make a variety of settings, call up information, and get specific
help for operating your television (e.g. info about the remote control, a list of
key words, tips and tricks).
Just try it out. You can’t do anything wrong.
1Call up the Dialogue Centre with »i«and then »OK«.
– At every step of operation, the dialogue centre shows which buttons can be
used to carry out particular functions.
TXT
OK
P
+
P -
REMOTE CONTROL
NDEX
PARENTAL LOCK
TV-PROGRAMME-CHART
AUTOMATIC PROGRAMMING
AUDIO-/VIDEO RE-RECORDING
Call up Help TV
DIALOGCENTER

14
THE ON-SCREEN USER GUIDE________________________________________________
Operating the Easy Dialogue system
The cursor buttons of the remote control are displayed on the
picture screen as shown in the Figure below.
DCalls up brief operating instructios.
iCalls up the Dialogue Centre (with »i« and »OK«),
switches one page back.
TXT Switches back to the TV picture.
P+ P– Move the yellow bar up/down;
when in a double-page menu: switches to the second page.
ǸǷ Change settings.
OK Callls up or confirms functions.
Display of buttons on the picture screen Buttons on the remote control.
Łĵ OK
ļ
Ļ
P+
P-
Personal Remote 10

ENGLISH
15
COPYING_____________________________________________________________________________
Recording with a GRUNDIG video recorder equipped
with the Megalogic function
You may record TV programmes or DVD recordings (option).
Note:
In order to use all Megalogic functions, the video recorder must be entered
by your specialized dealer into the »Service for the specialized dealer«
menu.
Direct recording:
1Select the TV programme to be recorded,
or, for a DVD recording,
repeatedly press the »Mode« button on the remote control until »DVD«
appears in the remote control’s display, then start the DVD playback with »8«.
2Repeatedly press the »Mode« button on the remote control until »VCR«
appears in the remote control’s display.
3Start recording with »●«. The video recorder switches automatically to pro-
gramme position »A1« and records the selected TV programme or the film
from the DVD.
Note:
During the recording you may switch to another TV programme without
affecting the recording.
TIMER recording:
Using a Grundig video recorder equipped with the Megalogic function, you
may carry out TIMER recordings in a very convenient way by means of the timer
of the TV set without programming the video recorder.
For this, the video recorder must not be in low power standby.
For TIMER programming, refer to the »TIMER« menu in the Easy Dialogue
system .

16

ǵ
FINE ARTS VISION TABLE
MFW 82-710/9 DPL/PIP
INSTALLATION INSTRUCTIONS
C

18
INSTALLATION AND SAFETY_______________________________
In order to assure that this high-quality and easy-to-use TV set will be able to
provide you with good service and pleasure for a long time to come, it is impor-
tant that you observe the following points when installing the set.
This TV set has been designed for the reception and reproduction of picture and
sound signals.
Any other use is explicitly forbidden.
The ideal viewing distance from the screen is 5 times the diagonal width of the
screen (about 5.5 m).
External light shining on the screen adversely affects picture quality.
Assure that there is enough space when installing the set in a wall recess.
The TV set is designated for operation in dry rooms. Should you nevertheless
operate it outside, make absolutely sure that it is protected against dampness
(rain, water splashes). Never expose the TV set to any sort of moisture.
Do not place vessels filled with fluid (vases or similar things) on the TV set.
The vessel may tip over and the fluid may adversely affect electrical safety
Put the TV set on an even and hard surface. Do not place objects (for example,
newspapers) on the TV set or place the set on a cloth cover, etc.
Do not place the TV set close to the heating or in direct sunshine as it could
overheat.
Heat build-up can be dangerous and is detrimental to the service life of the
equipment. From time to time, have a technician come to clean the inside of the
set.
Loudspeaker boxes (e.g. LSP1, LSP2, LSP3) must be positioned at a distance of
at least 50 cm to the TV set.
Keep the TV set away from magnetic fields.
10
cm 10
cm
20
cm
20 cm
S-VHSVideoin
Slider
VolumeProgram
Audioin
LR
5 x

ENGLISH
19
INSTALLATION AND SAFETY___________________________________________________

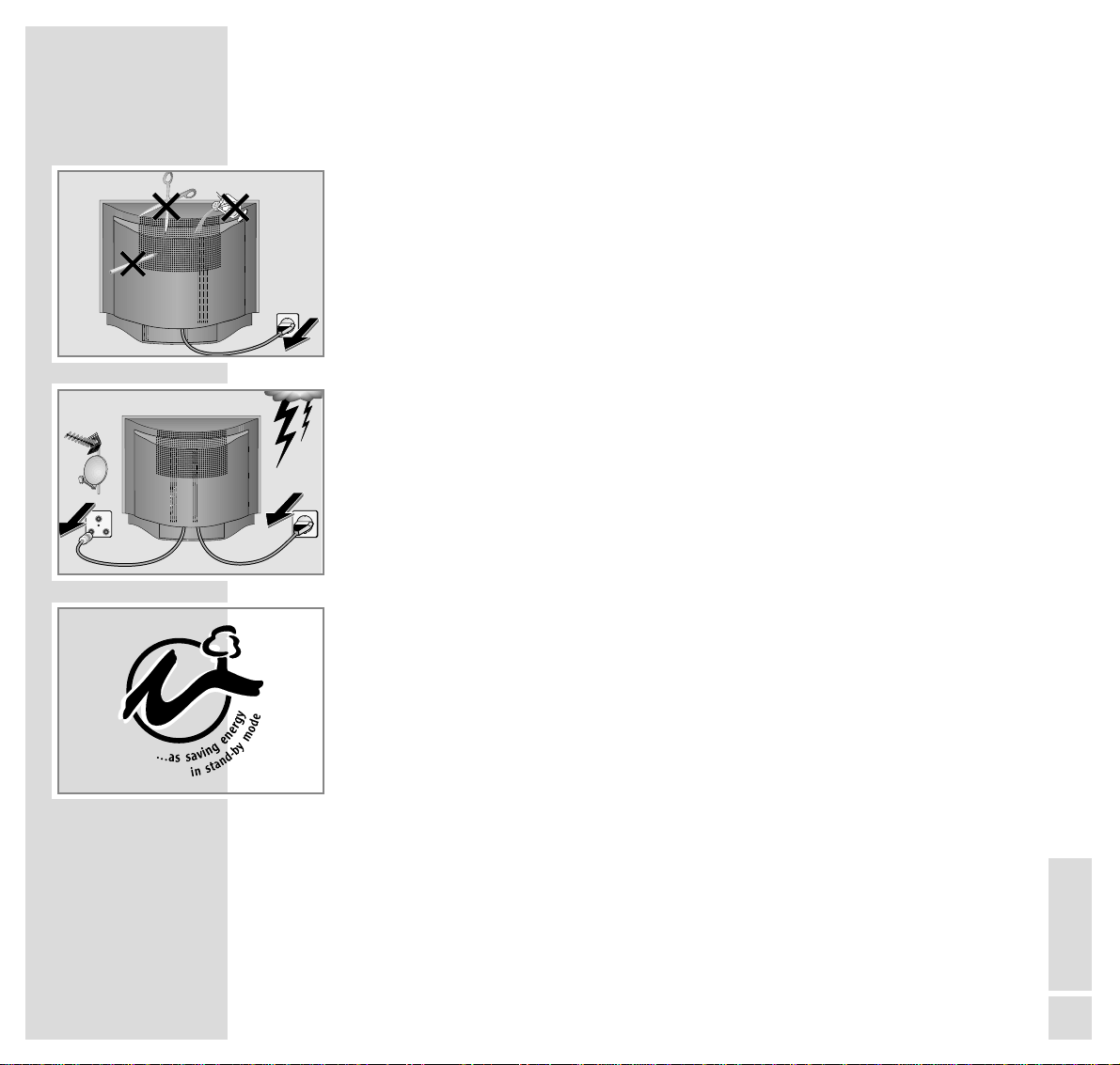

Do not open the TV set under any circumstance. The manufacturer will offer no
liability for damage resulting from unauthorized tampering.
Be sure that the mains cable is not damaged at any time.
Storms represent a danger for every type of electrical device. Even if the set is
switched off, it could be damaged by a lightning strike hitting the mains and/or
the aerial lead. Therefore, always disconnect the mains plug and aerial plug
when there is a storm.
Clean the picture screen and the glass pane only with the cloth supplied. Use
only clean water.Sie nur klares Wasser.
This TV set combines technology and ecology in a well thought-out overall con-
cept. Only ecologically high-quality materials are used. The packaging is made
almost entirely of 100% recycled paper, and the portion of plastic has been
reduced to a minimum. The batteries supplied have no mercury or cadmium.
The number of plastic types has been reduced in order to ensure high-quality
recycling when the set is put out of use – all larger plastic parts are marked.
To facilitate maintenance work and recycling, this TV set is easy to disassemble.
AV2 AV1
AUDIO
L
R
SURR
AUDIOOUT
AV3
INT
CENTRE
EXT
INT
SUBW
EXT
AUDIO
SURR
EXTERN
CENTRE
SUBW
L
R
L
R
AUDIOIN
VGA
OUT
IN
Aux
TV
S-Video
VideooutAudioout Digitalout
RL
optical coax
220-240V~
50-60Hz
D-Sub
RS232 12V 12V
! SERVICE !! SERVICE !
! SERVICE !
TV R
SAT AV2 AV1
AUDIO
L
R
SURR
AUDIOOUT
AV3
INT
CENTRE
EXT
INT
SUBW
EXT
AUDIO
SURR
EXTERN
CENTRE
SUBW
L
R
L
R
AUDIOIN
VGA
OUT
IN
Aux
TV
S-Video
VideooutAudioout Digitalout
RL
optical coax
220-240V~
50-60Hz
D-Sub
RS232 12V 12V

20
PREPARATION__________________________________________________________________

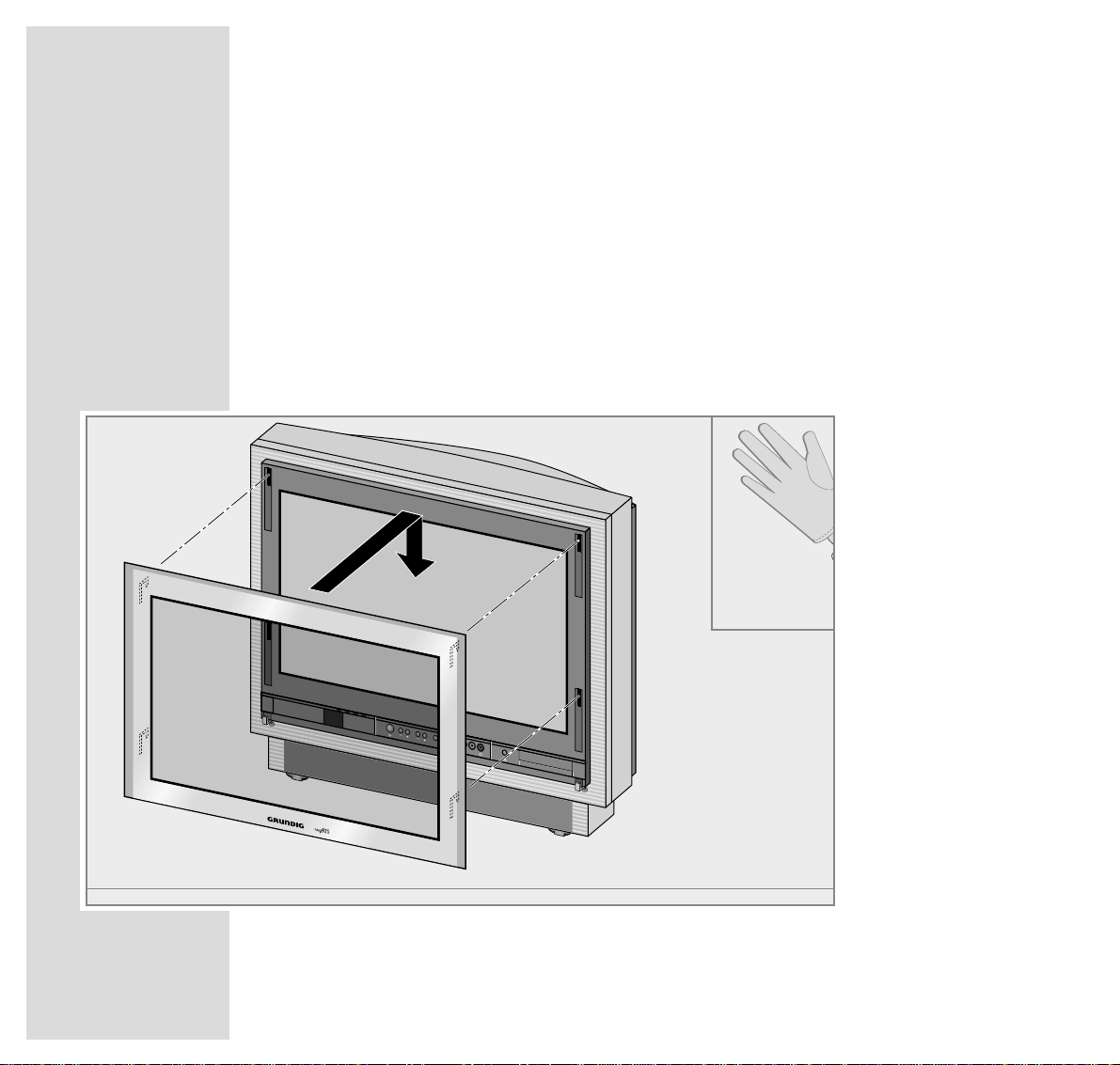

Fitting the glass pane and the control unit cover
Fitting the glass pane onto the picture tube
1Pull on the cloth gloves supplied (this avoids fingerprints on the glass pane).
2Insert the glass pane into the slots in the front frame then push it down until it
locks in place with an audible click.
S-VHSVideoin
Slider
VolumeProgram
AudioinLR
Slider
VolumeProgram
