GTD GTD-1400 N PROFILE User manual

GTD-1400 N PROFILE
1400W N Moving Head
User Manual

GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without
notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed
includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or
hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their respective
companies and are hereby acknowledged. All non-GTD brands and product names are trademarks or registered trademarks
of their respective companies.
GTD and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical
damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information
contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation,
rigging, and operation of this product.
Guangzhou GTD Culture & Technology Group Co.,Ltd. | 27 Fu Yuan Yi Road, Guangzhou 510805, P.R.China
[phone] | [phone] fax | www.gtd-lighting.com | [e-mail]
___________________________________________________________________________________________________

Table of contents
1. Safety instructions.......................................................................................................................................................1
2. Product introductions.................................................................................................................................................3
2.1 Dimensions..............................................................................................................................................................3
2.2 Fixture overview......................................................................................................................................................4
2.3 Accessories..............................................................................................................................................................4
3. Packing and shipping..................................................................................................................................................5
3.1 Protection lock.........................................................................................................................................................5
3.2 Unpacking...............................................................................................................................................................5
3.3 Packing after use .....................................................................................................................................................5
4. Installation...................................................................................................................................................................6
4.1 Clamps installation..................................................................................................................................................6
4.2 Device installation...................................................................................................................................................6
4.3 Lamp fitting and adjustment...................................................................................................................................7
5. Power / Control connection ......................................................................................................................................8
5.1 Power connection....................................................................................................................................................8
5.2 Control connection..................................................................................................................................................8
5.3 Testing.....................................................................................................................................................................8
6. Control panel...............................................................................................................................................................9
6.1 Panel instruction......................................................................................................................................................9
7. Technical specification..............................................................................................................................................10
8. Gobos and colors.......................................................................................................................................................13
8.1 Gobo specification................................................................................................................................................13
8.2 Gobos ....................................................................................................................................................................13
8.3 Colors....................................................................................................................................................................14
9. Menu structure..........................................................................................................................................................15
10. DMX protocol..........................................................................................................................................................18
11. System wiring diagram...........................................................................................................................................23
12. Maintenance and Troubleshooting........................................................................................................................24
12.1 Cleaning and maintenance...................................................................................................................................24
12.2 Troubleshooting...................................................................................................................................................24
13. Spare parts list.........................................................................................................................................................28

GTD-1400 N PROFILE
1
1.Safety instructions
Before using the fixture, read the latest version of the product user manual, paying particular attention to
the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual.
m
ta
tc
The manufacture of this fixture, are not responsible for damages, resulting from misuse of this
fixture, due to the disregard of the information printed in this user manual.
DANGER!
Hazardous voltage. Risk of lethal or severe electric shock
WARNING!
Wear protective eyewear. Never look directly into the light source.
WARNING!
Burn hazard. Hot surface. Do not touch.
Only to direct mounting on non-combustible surfaces.
Minimum distance to lighted objects.
Replace all cracked glass shields.
Indoors use only！
Maximum ambient temperature.
Maximum temp of the external surface.

GTD-1400 N PROFILE
2
General guidelines
Never open this fixture while in use.
The fixture should be kept clean. DO NOT operate the fixture in extreme heat or dusty environments.Avoid contact
with chemical liquid.
This fixture is a professional light effect designed for INDOOR / DRY LOCATIONS ONLY on stage, in nightclubs,
theatres, etc.
Minimum distance to lighted objects must be 49.21feet (15m).
Maximum temp of the external surface 248˚F (120˚C).
Maximum ambient temperature 113˚F (45˚C).
Minimum distance of inflammable materials from the surface 1.6 feet (0.5m).
Lamp should be changed if damaged or distorted in shape due to extreme heat.
Cover, prism or LCD Menu Function Display with visible damages such as cracks or scratches must be replaced to
ensure performance of the fixture.
Disconnect the fixture from power before changing any parts or accessories.
Basic insulation should be maintained between the controllable device and the product power supply.
Make sure that the installation area can hold a minimum point load of 10 times the weight of all installed
fixtures, clamps, cables, auxiliary equipment, etc. Check that the cover, clamps and locks are undamaged. Certified
safety cables must always be used when installing the fixture.
The fixture is only intended for installation, operation and maintenance by qualified professional. Instructions stated in
the manual must be complied.
The fixture must be kept in a well-ventilated place at least 50 cm away from any wall surface. Check if the fans or
ventilation openings are unblocked.
This fixture uses discharge lamp. To avoid reducing the lamp’s life, wait at least 15 minutes after powering off to allow
the unit to cool down before handling.
Broken or damaged cables and light source can only be fixed or changed by certified technicians, certified local
distributors or the manufacturer to ensure operational safety.
Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured
parts.
For questions regarding safety operation, please contact our technical personnel or call the service hotline
[phone].

GTD-1400 N PROFILE
3
2. Production instructions
2.1 Diamension
446mm
(17.6″)
634mm
(25″)
421mm
(16.6″)
570mm
(22.4″)
818mm
(32.2″)
546mm
(21.5″)
297mm
(11.7″)
358mm
(14.1″)

GTD-1400 N PROFILE
4
2.2 Fixture overview
2.3 Accessories
Item
Qty
Unit
Remark
User Manual
1
Pc
--
Clamps
2
Set
20-63mm
Safety cable
1
Pc
Φ5*60cm 7*19 pc with hook Material：Steel
3-pins signal line
1
Set
--
SN
1
2
3
4
5
6
7
8
9
10
Item
Frost module
Head module
Prism module
Tilt lock
Framing blade system
CMY
Lamp-holder assembly
Pan-tilt frame
Pan lock
Base module
11 LCD display
10
11

GTD-1400 N PROFILE
5
3. Packing and shipping
3.1 Protection lock
Pan and tilt locks are equipped to ensure safe transportation.
PAN: 4 lock positions are located evenly on the Pan.
TILT: 5 lock positions are located on left and right side of the Tilt with the third one in the center.
3.2 Unpacking
Notes
All products arequalitycontrolled and checked for anyfaults before theyare dispatched to customers. If the fixture is damaged
during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim. Photographic
evidence of the damage must be provided.
Flight-Case：Open the cover of the flight-case and remove the plastic packing bags. Hold the handles of the fixture firmly
and take it out carefully.
Cardboard box：Open the box and take out the whole set of packaging foam which contains both the fixture and its
accessories. Remove the foam from the top, put away the accessories, and then take out the fixture wrapped in the plastic
bag.
Notes
Check if the pan and tilt are unlocked before connecting the fixture to power.
3.3 Packing after use
1. Switch off the fixture and wait for at least 5 minutes before disconnecting it from AC power. Cool down the fixture for
at least 15 minutes before packing.
2. Lock pan and tilt.
3. Flight case: Wrap the fixture in plastic bags. Hold it by the handles, andthen carefully place it inside the flight case along
with all the accessories. Close the cover. Only 3 layers are allowed when piling up the flight cases. Do not upside down.
4. Cardboard box: Wrap the fixture in plastic bags. Put it in the packaging foam along with all the accessories. Place the
other set of packaging foam on top then carefully put it inside the cardboard box.
Pan Lock Tilt Lock

GTD-1400 N PROFILE
6
4. Installation
4.1 Clamps installation
The fixturecan be placed on the stage or mounted onthe truss facing anydirection. Attach the clamps to the mounting position
on the base of the fixture.
Warning：Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise to lock.
Always remember to use the safety cable which goes through the mounting hole on the base. Do not attach the safety cable
on the handle.
4.2 Device installation
1. Make sure there is no damage on the clamps or safety cables before installation.
2. The clamp is mounted on the chassis of the fixture. Horizontally insert the clamp into the mounting holes of the chassis.
Fasten the clamp tightly by a 1/4 turn clockwise. Fix another clamp in the same way.
3. Check if pan and tilt are unlocked before connecting the unit to AC power.

GTD-1400 N PROFILE
7
4.3 Lamp fitting and adjustment
1. Disconnect the fixture from AC power. Cool down the fixture. Set the Tilt lock in a horizontal position.
2. Use a flathead screwdriver to loosen the back cover. Remove the lamp by anticlockwise rotating and pull it out.
3. Push the light bulb to the hole on the reflector. Rotate 1/4 turn clockwise until it is securely fastened.
4. Observe the outlet of the reflector when pushing.
5. After fixing the lamp, install the back cover.
Note
The fixture is equipped with Metal Halide 1400W short arc discharge lamp, which is featured with high efficiency and
short-arc characteristic, such as a stable 6000K color-temperature and average lifespan of 750h.
The PGJ28/PGJX28 single ended lamp holder must be applied to ensure proper installation.
Note
1. Fitting another type of lamp will cause potential damage to the fixture. Change the lamp before it reaches its lifespan.
Read the guidelines in the package carefully when fixing the lamp.
2. To avoid any impact on the beam, do not touch the bulb with your bare hands. The lamp must be kept clean with the use
of the clean paper contained in its package
Back cover Back cover
Remove the back cover
Enlarged diagram
Push the light bulb to the hole
rotate 1/4 turn clockwise
until it is securely fastened.

GTD-1400 N PROFILE
8
5. Power/ Control connection
5.1 Power connection
Connection method:
L (Live) Brown wire
E (Earth) Yellow / Green bi-color wire
N (Neutral) Blue wire
The voltage and frequencyof the power source must be in compliance with the ones marked on the fixture. It is strongly
recommended that each fixture are to be connected to the power source separately so that they can be switched on / off
individually.
5.2 Control connection
The fixture has 3-pin & 5-pin XLR connectors for DMX data input and output as shown below. Connection between the
console and fixture, and between fixtures must be made with 2 core screened DMX signal cable. Maximum connecting
distance of signal cable is 150 meters. Additional DMX512 signal-amplifier is recommended for longer distance
Connect the Console’s DMX OUTPUT to the first fixture’s DMX INPUT, then the first fixture’s DMX OUTPUT to the
second fixture’s DMX INPUT and so on. It is recommended not to connect more than 32 units on a single DMX universe.
On the last fixture‘s output connect a DMX terminator. (The terminator is a 3-pin & 5-pin XLR connector with a 1/2W and
120Ω resistor between the pin 2 and pin 3) as shown below:
5.3 Testing
Connect the fixture to AC power. Check if the lamp is on and the fixture is independently controllable before
putting into operation.
Console Input Output Input Output Input Output DMX terminator
12 312 3
DMX 512
1 Ground
2—
3+
15
324 15
324
DMX 512
1 Ground
2—
4 Reserved
5 Reserved
3+

GTD-1400 N PROFILE
9
6. Control panel
6.1 Panel instruction
The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code
and functions menu.
Press UP or DOWN to view or select the function menu.
Press ENTER to choose a function and enter into corresponding sub menu. Each menu represents a specific function
of the fixture.
Press ENTER to select the specific function and save the changes or enter into the submenu, then press UP or DOWN
to change the value of the selected function (increase or decrease).
Press MENU to return to the previous menu or exit.
LED indicators:
Power on: RED power LED indicator on

GTD-1400 N PROFILE
10
7. Technical specification
Optical
Light source: OSRAM 1400/PS Brilliant
Expected average lifetime: 750 h
Color temperature correction: 6000K

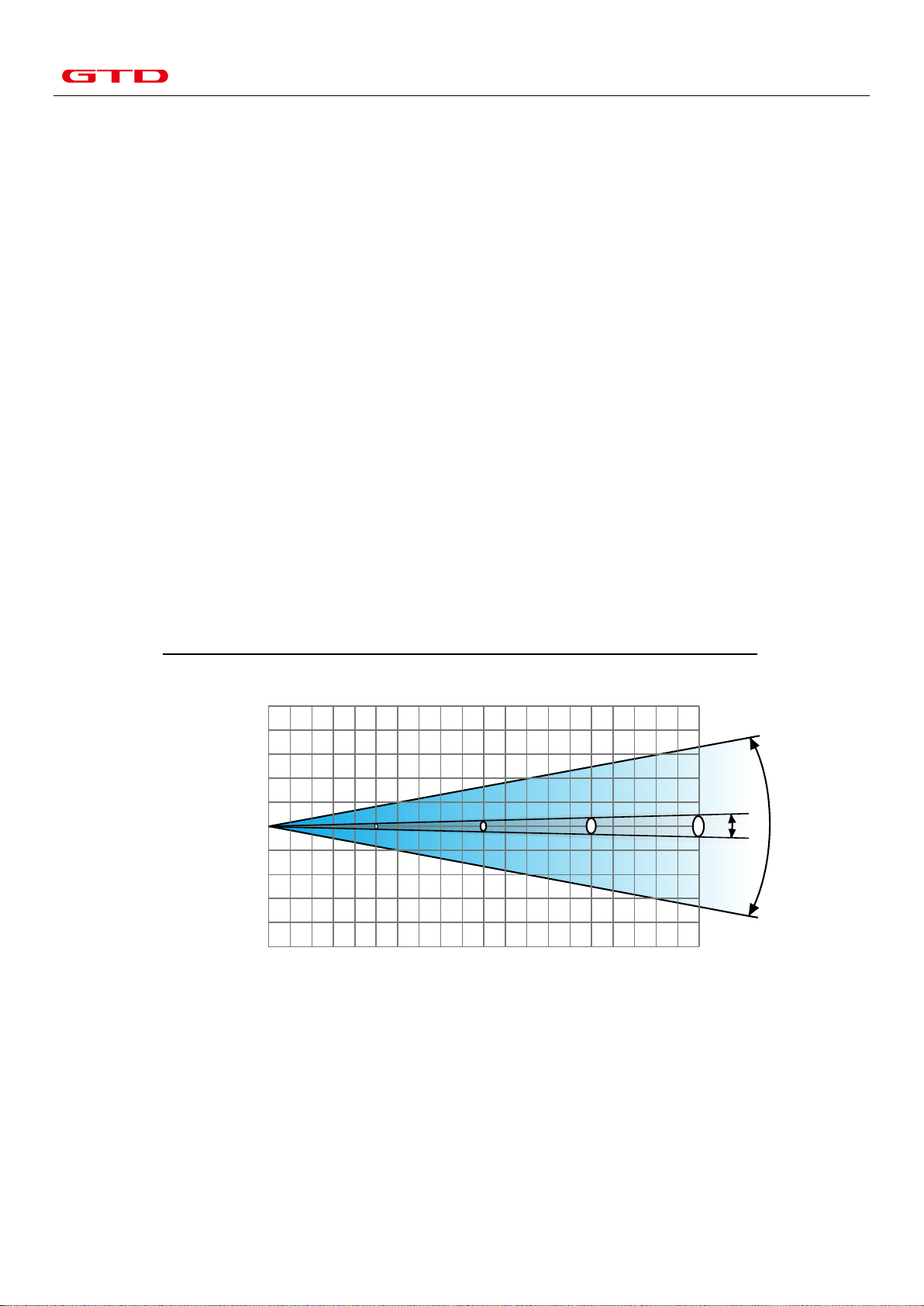

Zoom: 6°-50°
Spot uniformity：≥80%
Focus: High-precision glass lenses, electronic linear HD focus
Prism: 1-facet prism，CW/CCW rotation, variable speed
Frost: 1-independent frost effect
Gobo
Rotating gobo wheel: 5 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed
Fixed gobo wheel: 6 gobos + open，CW/CCW rotation, variable speed
Effect gobo wheel: 1 pc effect gobo wheel
Gobo outside diameter: 36mm
Max. Image diameter: 23mm
Max. Thickness: 2.6mm
Gobo material: Glass
Color
Color wheel: 7 colors + open, split color, CW/C CW rotation, “Rainbow effect” in both directions
Electrical
Power input, nominal:AC 200-240V 50/60Hz
Max. Power consumption: 1750W, max current: 7.9A, PF: 0.997
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/15A
Ballast: Electronic
Power input: Self-contained power cord
DMX data input/output: Chassis 3-pin & 5-pin (in/out)
Control and programming
Control channels (DMX): 37/34/53
Protocol: DMX-512 RDM
Display: Graphic LCD backlit
Physical / Installation
Weight: 43.8Kg (96.56lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic

GTD-1400 N PROFILE
11
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Dynamic effects
Pan/Tilt movement: 540˚/270˚
Iris: Motorized adjustable iris, wide range of variable pulse effects
Strobe: 1-25Hz, synchronized, pulse effects
Dimmer: 0-100%, mechanical dimming
Thermal
Operating range: 5˚F to 113˚F (-15˚C to +45˚C)
Startup range: -13˚F to 113˚F (-25˚C to +45˚C)
Storage range: -40˚F to 140˚F (-40˚C to +60˚C)
Cooling: Active fan
Humidity: ≤85%
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013,
GB/T 17743-2007, GB 17625.1-2012
Safety: EN 60598-2-17:1989/A2:1991, GB 7000.1-2015, GB 7000.217-200811
Photometric
0
5m
10m
15m
20m
25m
5m
10m
15m
20m
25m
Beam D iameter(m/ft.)( 6 ° )
Beam D iameter(m/ft.)( 50°)
Distance(m/ft.) 0 5/16.4
Ø0.56/1.84 Ø1.15/3.77 Ø1.76/5.77 Ø2.30/7.55
Ø4.15/13.62 Ø8.32/27.30 Ø12.43/40.78 Ø16.52/54.20
10/32.81 15/49.21 20/65.62
Illu m in an ce(LUX)
107500 28700 13100 74306°
3410 992 491 29850 °
6°50°

GTD-1400 N PROFILE
12
Other teatures
Enhanced stability of the fixture due to the wide input voltage AC/DC switching power supply which both reduces the
impact of power and voltage fluctuations, and removes the restriction of voltage and frequency variations in different
countries.
Automatic energy saving: when the shutter or CMY is closed, power consumption will be reduced automatically with
the photoelectric tracking induction technology.
Sleep mode: uses the most advanced technology to remotely activate sleep mode. When the fixture is disconnected from
signal, the sleep mode is enabled automatically to make it more stable and safer. Sleep time can be customized.
Power setting: built-in continuous rechargeable battery, allowing setting functionaldata via LCD interface withoutpower
connection

GTD-1400 N PROFILE
13
8. Gobos and colors
8.1 Gobo specification
All patterns are made in the Glass, and can be customized according to user’s requirement.
The customized size is as below:
Gobo material
Outer dimension
Effective dimension
Thickness
Glass gobo
Φ36mm
Φ26mm
2.6mm
Glass gobo
Φ36mm
Φ23mm
1.1mm
Note: Glass Gobo is made of high temperature resistant glass. Metal Gobo is made of high temperature
resistant aluminum alloy in laser cutting.
8.2 Gobos
One rotating gobo wheel: 5 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed
One fixed gobo wheel: 6 gobos + open, CW/CCW rotation, variable speed
Rotating gobo wheel Fixed gobo wheel

GTD-1400 N PROFILE
14
8.3 Colors
One color wheel: 7 colors + open, split color, CW/CCW rotation,“Rainbow effect”in both directions
1: Red
2: Organge
3: Yellow
4: Green
5: Pink
6: Blue
7: UV purple
1
2
3
4
5
6
7

GTD-1400 N PROFILE
15
9. Menu structure
Level
1
Level 2
Level 3
Level 4
Info
Run
setting
Address Setting
Value Display
Auto-Program
IP Setting
Mask Setting
SysID Setting
Address:001~XXX
Pan …，All，Off
Master /Slave
192.168.xxx.xxx
255.255.255.xx
xxx
Setting the DMX address
Display the channel value
Run auto program in master or slave
Setting the Artnet IP Address
Setting the Network Mask
Setting the system id
Device
Info
Time Info
This Time
Total Time
Last Run Hours
Lamp On Hours
Lamp Off Hours
Time Password
Clear Last Run
Lamp Time
Password
Clear Lamp Time
XXXXXX Hour
XXXXXX Hour
XXXXXX Hour
XXXXXX Hour
XXXXXX Minute
Password: XXX(88)
Yes/No
Password:
XXX(111)
Yes/No
Since power on time
Product total run time
Last product run time
Lamp on time
Lamp close time
Clear last time password
Clear last time
Clear lamp time password
Clear lamp time
Temperature
Temperature1
XXX ’C/’F
Body temperature
Fans Info.
Normal
xxx/Fault/NO...
Show fans’ status
Err Inf
No/...
Show this device’s status
Software Version
Software V1.0
RDM Co 0981-
xxxxxx
The software version
Lamp
Contro
l
Lamp On or Off
Automatic La-On
Lamp On Via DMX
Lamp Off Via DMX
Lamp On Temp.
Lamp Off Temp.
On/Off
Enable/Disable
Enable/Disable
Enable/Disable
20~79,45’C/68~174
113’F
80~139,130’C/176~
282,266’F
Open lamp
Power on open lamp
Console open lamp
Console close lamp
Open lamp below temperature
Close lamp above temperature

GTD-1400 N PROFILE
16
System
Setting
Status Setting
Console Set Addr
No Signal Status
Pan Reverse
Tilt Reverse
Pan Scan Degree
Scan Feedback
Standby Time
Enable/Disable
Off/Hold/Auto/Music
Enable/Disable
Enable/Disable
360/540
Enable/Disable
Disable/1~20~99 Min
Address can be changed by console
The status while no signal
Pan Reverse
Tilt Reverse
Pan Scan Degree
Scan Feedback
Standby time
Fan Speed
Smart Control
High Speed
Low Speed
Auto fans speed
Fans high speed
Fans low speed
Display Setting
Backlight Time
Keyboard Lock
Brightness Set
Language Select
Auto Screen Set
1~80/Disable,1min
Enable/Disable
15~100% 80%
Chinese/English
Off/On/Auto
Backlight off time
Press <menu> 3s to unlock
Back lightness of screen
Change the language
Screen change Setting
Temperature Unit
Celsius
Fahrenheit
Temperature unit
Value Default
Pan……
Pan =XXX
The default value after power on
Wireless Dev
Wireless Off
Wireless On
Wireless Trans.
Wireless Reset
Wireless off
Wireless on
Wireless transfer DMX data to
another
Wireless reset
Restore Default
Yes/No
Restore to default value
Reset
System Reset
Scan Reset
ColorReset
Gobo Reset
Strobe Reset
Framingblade Rest
Other Reset
System reset
Pan and tilt motor reset
Color motor reset
All gobo motor reset
Strober motor reset
Framing blade motor rest
All other motor reset
Chann
el
Adjust
Test Mode
Pan……
Every channel test
Manual Mode
Pan
:
Pan =XXX
:
Manual control

GTD-1400 N PROFILE
17
Adjust Mode
Input Password
Pan
:
Password=XXX(99)
Pan=XXX
:
The password of adjust mode
Fixed all begin position
Focus Mode
Input Password
Static Gobo
Rotate Gobo
Password=XXX(99)
Static Gobo=XXX
Rotate Gobo=XXX
The password of adjust mode
Fixed focus begin position when
gobo cut in
Chann
el
Setting
Channel Mode
Standard Mode
Basic Mode
Extended Mode
Custom Mode A
Custom Mode B
Custom Mode C
Standard channel mode
Basic channel mode
Extended channel mode
Custom channel mode A
Custom channel mode B
Custom channel mode C
Set Custom Mode1
Set Custom Mode2
Set Custom Mode3
Max Channel
Pan
:
Channel = XX
Pan = CH01
:
Change the channel order
Progra
m
Edit
Select Prog.
Program Unit 1
Auto-Program - ~+
Choose build-in program for slave 1
Program Unit 2
Auto-Program - ~+
Choose build-in program for slave 2
Program Unit 3
Auto-Program - ~+
Choose build-in program for slave 3
Program Edit
Auto-Program -
:
Auto-Program+
Run
Step 01=Scene xxx
Step 64=Scene xxx
Choose the scene for program 1
:
Choose the scene for program 10
Scene Edit
Scene Edit: 001-
250
Pan,……Pan=xxx
Scene Time=xxx
Input By Console
Edit the channel DMX
Edit the scene time
Get scene DMX form console
Record Scene
Start Scene: XX
Start Scene: XX
End Scene: XX
Record scene form console
Note：Settings hightlighted in light grey are default values
