BEAM 200
User Manual

Guangzhou Yingfeng Lighting Equipment Co.,Ltd www.yf-light.com
1
Catalogue
1、Open-package inspection ----------------------------------------------------------------------page2
2、Attentions-----------------------------------------------------------------------------------------page2
3、Technical Parameter-------------------------------------------------------------------------page2
3、Install----------------------------------------------------------------------------------------------page2
4、The install and exchange of lamp-------------------------------------------------------------page3
5、The connecting of the signal cable------------------------------------------------------------page3
6、Button Introduction------------------------------------------------------------------------------page4
7、Executive function and start editing, exit editor---------------------------------------------page4
8、Interface introduction---------------------------------------------------------------------------page5
9、Channels------------------------------------------------------------------------------------------page7
10、Problems and Solutions---------------------------------------------------------------------------page8
11、Maintenance------------------------------------------------------------------------------------page8
12、Statement----------------------------------------------------------------------------------------page8

Guangzhou Yingfeng Lighting Equipment Co.,Ltd www.yf-light.com
2
1、Open-package inspection
First of all thank you for buy our products.Please read this user manual completely and carefully, and
keep it well for reference when needed. This use manual includes important information about the
installation and using of the moving head. Please hew to the relevant specification strictly when install and
use this product.
This Moving head light is made of new high strength heat-resistant engineering plastic and cast
aluminum shell , with beautiful design and smooth outlook, Is the representative of the modern lights. This
product strictly according to CE standard design and production, fully comply with international standard
DMX 512 protocol.Can be single control , also can use integrated with each other. It is suitable for
large-scale theatrical performances, theaters , studio and disco and other places.
After receiving the product, please be careful to take and put., Check if the product have been damaged
during the transportation, and check the following parts:
The body-------------------------------------1pcs Safe rope--------------------------1pcs
Power cable ----------------------------------1pcs hook------------------------------2pcs
User manual -------------------------------- -1psc signal cable-----------------------1pcs
2、Attentions
1. To ensure the service life of the product, please keep it away from water and do not work in the
environment which the temperature is above sixty degrees.
2. Don’t put the product on the place easy to loose or easy vibration .
3. In order to avoid electric shock, this product must maintenance by professional person.
4. when using, the power supply voltage change should not be more than 10%, the voltage is too high, will
shorten the life of the light bulb, the voltage is too low, then affects the light color.
5. When power off, the product need 20 minutes to sufficient cooling before use again.
6. To ensure the normal use, please read this user manual carefully.
3、Technical Parameter
1. Voltage：AC100V-240V
2. Frequency：50/60Hz
3. Rated power：350W
4. Lamp：Philips
5. Bulb power：200W
6. Strobe：1-13times/second
7. Color temperature：7800K
8. Horizontal scanning 540 degrees, Horizontal 16 bit, electronic error correction, vertical scanning
270 degrees, vertical 16 bit, electronic error correction.
9. Gobo：17 gobo add white and stream effect,gobo electric focus function
10. Color：14 color add white and rainbow effect

Guangzhou Yingfeng Lighting Equipment Co.,Ltd www.yf-light.com
3
11. Effect：Can transfer from beam into atomization effect
12. Panel Control：Touch screen control and Manual control
13. Signal Control：DMX512 international standard signal
14. Safety protection: when the machine is overheating or the system malfunctioning it will
automatically cut off power supply.
4、Installation
1. Before install, please make sure the power supply is the same as the product identified.
2. The cable connecting to the main power supply must meet the requirements, should not overload.
3. The installation must be done by professional person, fixed the light safely and reliable, and transferred
to appropriate irradiation angle.
4. Please ensure that the draft fan and exhaust channel is not blocked
5. At the bottom of the moving head light with insurance line connection hole, based on safety reasons,
please use the insurance rope which can withstand ten times the weight of the Moving head through the
insurance line connection hole for auxiliary lifting.
6. When install this equipment , please ensure that at least 1.5 meters range no extreme inflammable and
explosive items(ornaments, etc.) ensure the moving head light and the wall interval twenty centimeters of
above.
7. This product can be fixed hanging installation and put on the floor to use.
8. Based on the safety, please make sure the earth wire grounded.
9.The Pan and Tilt of this product was locked when packing, please ensure it was unlocked before the
power on.
5、Installation and change of the Lamp
1. In order to prolong the life of the moving head light as far as possible, please choose the same type of
lamp for it.
2. First of all to unscrew the four screws on the back cover of the moving head light, then open the back
cover, pinch the ceramic holder of the bulb and anti-clockwise rotation 90°，take out the lamp.
3. Open the bulb packing carefully, take out the new lamp, pinch lamp ceramic holder , insert the lamp
holder and 90°clockwise rotation

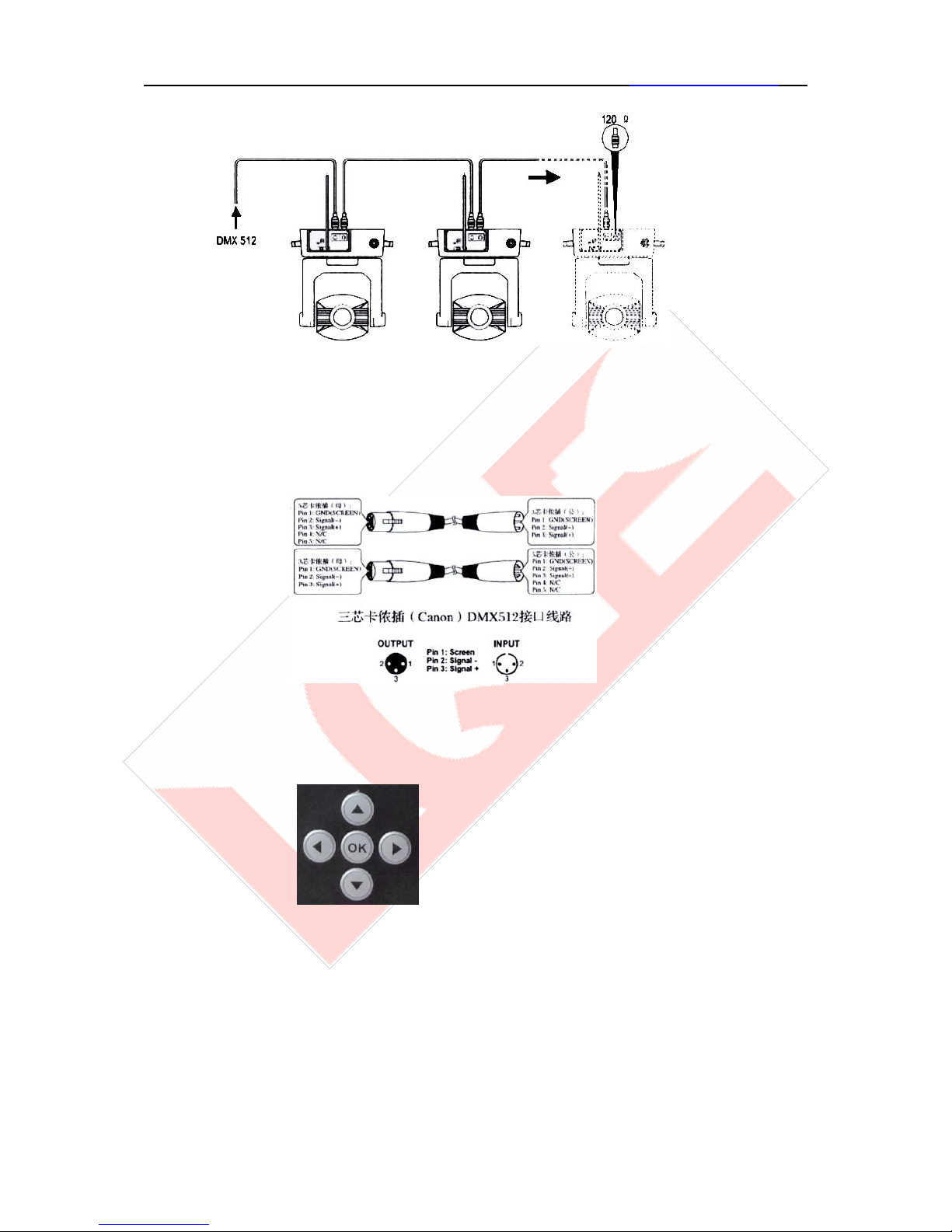

6、The connecting of the signal cable
Connected the XLR control cable from the DMX controller’s outlet to the first moving head light’s input
port , and connected from the first light’s DMX outlet to the second light’s DMX input port, repeating the
process, until all the lights are of connection. Then connected the accompanied circuit plug to the last
light’s signal output port, the connection finished, as shown in figure:

Guangzhou Yingfeng Lighting Equipment Co.,Ltd www.yf-light.com
4
Note: please remember to connect a circuit plug to the last moving head light’s signal output port.
Between the second and third pole of the CANON plug of this circuit plug have a 120Ω resistance, connect
this circuit plug can avoid signal reflection phenomenon during the DMX512 signal transmission process .
This Moving head use 3 pin XLR plug, If your controller use 5 pin XLR plug, you must use a 5 pin to 3
pin patch cord. See below:
7、Button Instruction
The “LEFT”, “RIGHT” button have the same function:
Return to the last interface
“UP”, “DOWN” button:
Select, Edit
“ENTER” button (the “OK”button):

Guangzhou Yingfeng Lighting Equipment Co.,Ltd www.yf-light.com
5
8、Executive function and start editing, exit editor
Below take “modify DMX address code”as an example, tell the use of the button:
1. If the current is not the main interface, press the “LEFT”button(one or multiple) can come back to the
main interface.
2. In the main interface, press“UP”button of “DOWN”button and select the “set”button
3. Press “ENTER”button , come to the “setting”interface
4. In the “set”interface, press “UP”or”DOWN” button and select “DMX ADD”
5. Press “ENTER” button come to the editing state
6. Press “UP”or “DOWN” button to modify the DMX address code.
7. Press “ENTER”button quit the editing stage.
If use touch scree, the process is more convenient:
1. In the main interface touch the “set” button, come to the “setting”interface
2. The same to the up 4~7 step(can use both physical button and touch button), no more words.
9、Interface introduction
9.1. Main interface
The 3 buttons at top right corner are for language switching and screen rotation.
The function of the 4 buttons on the bottom row please see the following info.
9.2.Interface Settings
Options Illustration
Running Mode
DMX
Slave State ：Receiving DMX signal from controller or
Master.
Auto
Master State：Auto run，and sending DMX signal to Slave.
Notice ：If the bulb off,the light will not be on
automatically;if you need to observe the lighting
effects,please turn on the bulb light firstly,then enter the

Guangzhou Yingfeng Lighting Equipment Co.,Ltd www.yf-light.com
6
9.3.Information interface
automatic state.
DMX Address 1-512
Press “OK”button to enter edit state.at the same
time,choose the hundreds place,change address code
according to the“UP”and”DOWN”Button.
Click”OK”again to select tens to edit,and then
click”OK”again to select Units to edit.Click again to exit.
Channel Model
16 The 17th to 20th channel is invalid
20 The 17th to 20th channel control function (see channel
table)
Pan reversal off
on
Tilt reversal off
on
Pan and Tilt exchange off
on Exchange XY channels(including fine turning)
Pan and Tilt encoder On Use encoder (light coupling) to judge the wrong step and
correct it automatically.
off Not use encoder(light coupling) to correct position
Without DMX Signal retain Keep the original state to continue running
clear Motor return, and stop running
Screen saver on 30 seconds later, it will close the backlight
off Backlight on forever
Boot light bubble
off reset directly after Power on ,if not,need to use the menu
or control table to turn it on manually.
on Light on automatic after power on,and can not reset until
the light bulb on successfully
Restore default settings Click “OK”button to see the confirmation dialog box,then
click “OK”button again to restore default settings.
options illustration
Software version The current software version
Total used time Accumulative total used time(accurate to minutes)
This time of use Since the boot the use of time(accurate to minutes)
DMX channel value Enter into the sub interface,the numerical and percentage displayed
channel value for reference.
System error record If the red light”ERR”shine,it indicates the operational error of lamps
and lanterns,the details please check in the sub interface.
After the check,you can click “OK”button to empty the error record.

Guangzhou Yingfeng Lighting Equipment Co.,Ltd www.yf-light.com
7
9.4.Manual control interface
10、Channels
options Illustration
reset Click”OK”button to see confirmation dialog
box,click”OK”again, then enter reset interface,then after all
motor reset.
Color wheel 0-255 Press “OK”button to enter edit state.at the same time,choose
the hundreds to change channel value according to the
“UP”and “DOWN”button.Click”OK”again to select tens to
edit,and then click”OK”again to select Units to edit.Click
again to exit.
。。。。。。 0-255
Gobo wheel speed 0-255
Lamp control on
off
channel Channel mode
16 20
1 Color wheel Color wheel
2 Blackout / Strobe Blackout / Strobe
3 Dimmer Dimmer
4 Gobo wheel Gobo wheel
5 Prism Prism
6 Prism rotation Prism rotation
7 Macro Macro
8 Frost Frost
9 Focus Focus
10 Pan Pan
11 Pan fine Pan fine
12 Tilt Tilt
13 Tilt fine Tilt fine
14 Pan and Tilt speed Pan and Tilt speed
15 Reset Reset
16 Lamp control Lamp control
17 Blank
18 Color wheel speed
19 Dimming, Prism and Atomization speed
20 Gobo wheel speed

Guangzhou Yingfeng Lighting Equipment Co.,Ltd www.yf-light.com
8
11、Problems and Solutions：
Note: the other maintenance work shall be conducted by qualified professional personage.
12、Maintenance
1. Keep dry, and avoid working in damp conditions.
2. Intermittent use can effectively prolong the service life of the lamps.
3. In order to obtain the good ventilation effect and lighting effects,you’d better to clean the
fan, fan nets and lens often.
4.Do not use organic solvent such as alcohol..to wipe the lamps shell,it may cause some damage.
13、Statement
This product was in good performance condition and completely packed before delivery. All users
should strictly abide by the above statement warnings and instructions. Any damage caused by misuse is
not within the company warranty, and the company will not be responsible for the cause of damage because
of the operator’s ignorance of this user manual.
problem solution
No power supply Check the power supply voltage
Power on,but the moving head light do
not accept the control command
Check the set of digital address code and the connectivity of
the control signal
The projected image has halo Check the electronic focusing channel value to see whether
it is right for the current distance of projection
The Beam light not bright enough May be the end-of-life of the bulb, change a new one, and
check whether the optical component is clean.
