GuardAir N552B Series User manual

OPERATING INSTRUCTIONS
FOR GUARDAIR STANDARD, NED AND PULSAIR™ COMPRESSED AIR-POWERED VACUUMS
Please save these instructions and the accompanying replacement
parts information for your future reference.
FOR YOUR SAFETY
Turn off all compressed air connections with the
compressed air source at the nearest valve. Disconnect
compressed air connections only after the compressed
air supply has been turned off and the air supply hose
vented by opening the valve on the vacuum head. NEVER
disconnect a pressurized compressed air hose.
AIR SUPPLY
An adequate supply of compressed air is essential
for the proper performance of your Guardair vacuum.
Compressed air requirements for vacuum units and
vacuum generating heads equipped with the following
Venturi types are listed below:
“Dual B” Venturi
N552B Series .....................................................................110 cfm
“B” Type Venturi
N551B Series, N301B Series ................................................68 cfm
“D” Type Venturi
N551D Series, N301D Series, N201DC, N101DC ..................47 cfm
“S” Type Venturi
N201SC, N101SC ................................................................20 cfm
“M” Type Venturi
N101MC, N051MC...............................................................20 cfm
Please note that these requirements are for compressed
air volume, not pressure. The recommended compressed
air inlet operating pressure is 100 psi for all vacuum units.
All units will function at lower operating pressures, but
with a corresponding reduction in performance.
Units featuring a “B” or “D” Type Venturi include a
Chicago-style connector. A 3/4” ID or larger compressed
air supply hose is recommended for these models.
Units featuring an “S” Type Venturi include a 1/2”
industrial interchange male connector. A 1/2” ID
or larger compressed air supply hose is recommended for
these models. Units featuring an “M” Type Venturi include
a 3/8” industrial interchange male connector. A 3/8” ID
or larger compressed air supply hose is recommended for
these models.
FOR ALL MODELS: To ensure maximum performance,
clean or replace the internal filter as necessary. In
addition, clean or replace the exhaust silencer (inside
the exhaust housing) as necessary. Inspect the cover
gasket for deterioration and replace if necessary. On
all vacuum units, use of a smaller diameter air hose or
smaller size air fittings will seriously restrict performance.
Use the recommended hoses and fittings.
Be certain that the drum has no dents along the seams
and is airtight. The cover gasket under the vacuum
generating head must form a complete seal with the
top edge of the drum.
CAUTION: Drums used with Guardair vacuum generating
heads must meet the steel gauge requirements in the
table below. Thinner gauges of steel run the risk of
drum collapse.
DRUM 55 gal 30 gal 20 gal 10 gal 5 gal
GAUGE 19 18 18 20 20
REPLACING GASKETS
On 55, 30 & 20 Gallon Models, remove the gasket to be
replaced. On the new gasket, remove the protective tape
covering the adhesive, then apply gasket to lid.
On 10 & 5 Gallon Models, the lid gasket is adhered to
the lid by hot glue. The hot glue can easily be removed
with rubbing alcohol. Let the rubbing alcohol sit for one
minute, then simply peel off with a flat head screwdriver.
We recommend using hot glue when installing new gasket.
1

SET-UP AND OPERATION, 55-GALLON, 30-GALLON
AND 20-GALLON MODELS:
Place the vacuum generating head on the drum. There
are no clamps required to form an airtight seal. When
the vacuum is in operation, the negative pressure within
the drum will create the airtight seal between the head
and drum.
Connect the vacuum hose to the vacuum generating head
by inserting the hose adapter into the inlet elbow. Slip the
hose end onto the adapter. Connect vacuum attachments
to the vacuum hose.
Turn off the compressed air supply valve at the compressor.
B & D Venturis
Connect the compressed air supply hose to the vacuum
generating head via the Chicago-style coupler. Twist to-
gether and be sure they lock. Install the safety clips.
Connect the compressed air supply hose to the compressor.
Turn on the compressed air supply. Open the shut-off
valve to operate.
S Venturis
Connect the compressed air supply hose to the vacuum
generating head via the ½” industrial interchange male
connector. Connect the compressed air supply hose to the
compressor. Turn on the compressed air supply. Open the
shut-off valve to operate.
Liquid Shut-off Accessory
Before picking up liquids, remove the internal filter, which
is held in place by three springs. For continuous liquid
pick-up, the liquid shut-off accessory (optional) should be
installed in place of the internal filter and held in place by
the same three springs.

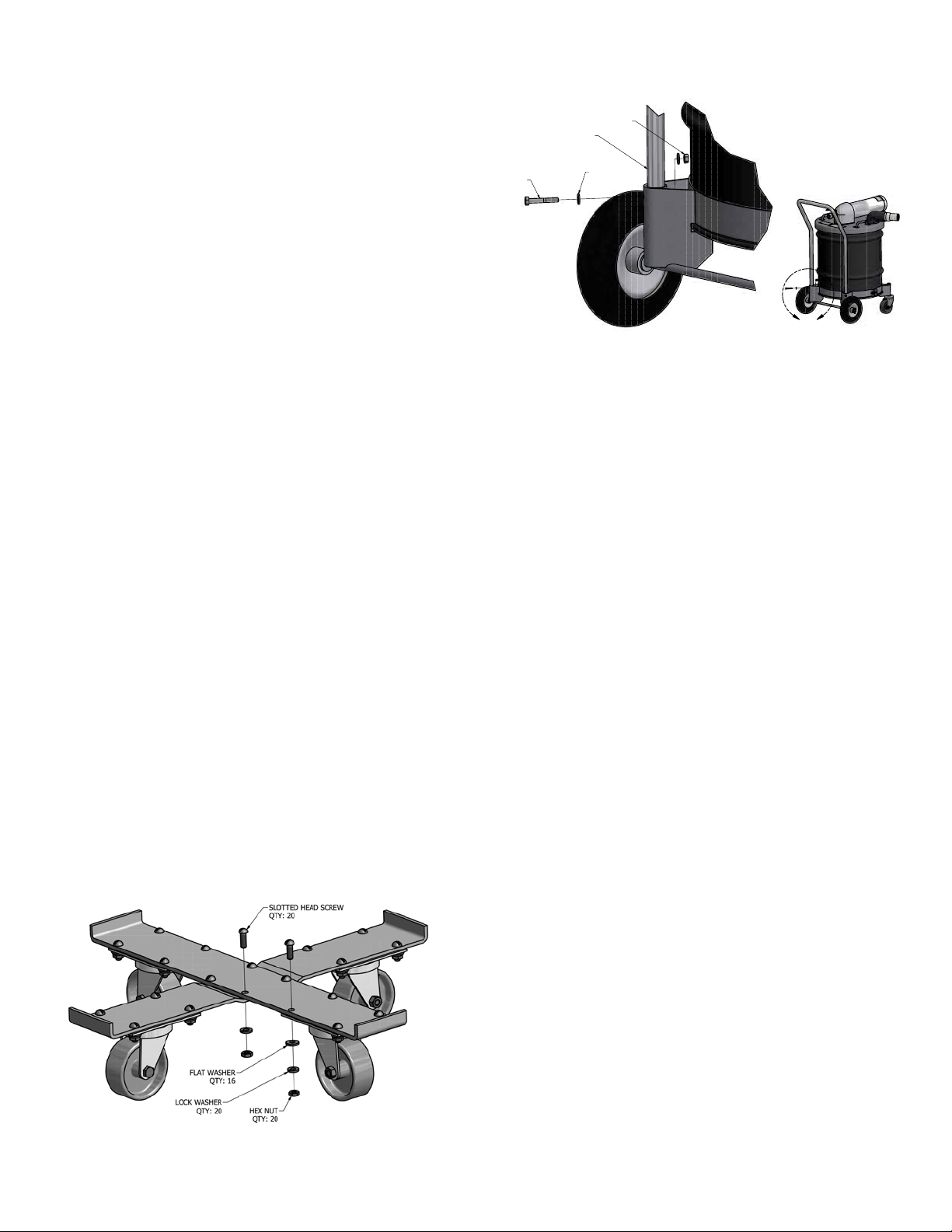

55 & 30 Gallon Drum Dolly Assemble the drum dolly for
55-gallon and 30-gallon models as shown below.
Caution: Dolly maximum load capacity is 1,000 pounds.
20 Gallon Drum Dolly: Assemble the drum dolly for
20-gallon model as shown below (Compatible with 30 gallon).
A
HEX BOLT
QTY: 2
FLAT WASHER
QTY: 4
HEX NUT
HANDLE
TUBE
QTY: 2
Caution: Dolly maximum load capacity is 1,000 pounds.
SET-UP & OPERATION, 10-GALLON MODELS:
The vacuum generating head, which mounts on top of the
drum, seals to the drum via the lid clamps.
Connect the vacuum hose to the vacuum hose inlet by
slipping the hose end onto the connector. This is an
intentionally tight fit. Connect vacuum attachments to
the vacuum hose.
The vacuum comes with a liquid shutoff assembly built
internally within the cartridge filter. The cartridge filter
can be removed for maintenance or replacement by
removing the wing nut and washer on the bottom of
the filter.
Turn off the compressed air supply valve at the compressor.
Model N101DC - Connect the compressed air supply
hose to the vacuum generating head via the Chicago-style
coupler. Twist together, making sure that they lock. Install
the safety clips. Connect the compressed air supply hose
to the compressor. Turn on the compressed air supply.
Open the shut-off valve to operate.
Model N101SC - Connect the compressed air supply
hose to the vacuum generating head via the ½” industrial
interchange male connector. Connect the compressed air
supply hose to the compressor. Turn on the compressed
air supply. Open the shut-off valve to operate.
Model N101MC - Connect the compressed air supply
hose to the vacuum generating head via the 3/8” industrial
interchange male connector. Connect the compressed air
supply hose to the compressor. Turn on the compressed
air supply. Open the shut-off valve to operate.
2

SET-UP & OPERATION, 5-GALLON MODELS:
The vacuum generating head, which mounts on top of the
drum, seals to the drum via the lid clamps.
Connect the vacuum hose to the vacuum hose inlet by
slipping the hose end onto the connector. This is an
intentionally tight fit. Connect vacuum attachments to
the vacuum hose.
The vacuum comes with a liquid shutoff assembly built
internally within the cartridge filter. The cartridge filter
can be removed for maintenance or replacement by
removing the wing nut and washer on the bottom of
the filter.
Turn off the compressed air supply valve at the compressor.
Connect the compressed air supply hose to the vacuum
generating head via the 3/8” industrial interchange male
connector. Connect the compressed air supply hose to the
compressor. Turn on the compressed air supply. Open the
shut-off valve to operate.
STATIC CONDUCTIVE MODELS:
Guardair manufactures NED (non-electrical discharge)
models, designed to eliminate static electricity by
incorporating static conductive components to suppress
static electricity charges. Should stray static charges
become generated, these charges are immediately
dissipated through the electrically interconnected,
static conductive components. For an added measure
of protection, users can ground the vacuum by connecting
the grounding lug to an external electrical ground using a
grounding clamp and cable (available as an accessory item).
To ensure proper electrical bonding (connectivity between
components), make sure that only static conductive,
factory-supplied parts and accessories are used with
Guardair NED vacuums. All components must fit together
firmly, including the static conductive vacuum hose, which
must mount securely on the vacuum hose inlet, and all
static conductive vacuum accessories.
Always inspect all static conductive vacuum components
before use, and replace worn or rusted parts as needed.
If you have questions about the necessity for grounding,
consult with a qualified safety engineer.
PULSEAIR™MODELS:
PulseAir Vacuums/Dust Extractors incorporate proprietary
PulseAir technology engineered to clean the vacuum filter
without routinely opening the unit. By activating the
PulseAir System, a burst of compressed air is injected
into the interior of the filter mounted beneath the vacuum
lid. Dust particles clogging the outer filter surface are
dislodged and settle within the closed container.
In addition to automatic filter cleaning, PulseAir Vacuums/Dust
Extractors are equipped with HEPA filtration to comply
with OSHA Silica Dust Regulation 29 CFR 1926.1153.
PulseAir Vacuums/Dust Extractors also come standard
with a cloth pre-filter bag to provide enhanced filter
protection and extend filter life, as well as static
conductive components to eliminate nuisance shocks.
Operation: Connect PulseAir Vacuum/Dust Extractor to
compressed air source using air supply hose provided.
Switch ball valve to OFF position by turning 90 degrees
clockwise. Locate button on PulseAir System beneath
venturi housing on top of vacuum lid. To activate, press
button and release. Depending upon filter age and surface
dust concentration, pressing button between two (2) and
ten (10) times should be sufficient to clean filter. Wait at
least two (2) seconds between each press for system
to reload.
IMPORTANT - Do not activate PulseAir System when
vacuum is in operation. Only activate when four (4)
latches clamping vacuum lid to vacuum drum are
secure. PulseAir Vacuums/Dust Extractors do not
include a liquid shutoff device. Vacuuming liquids is
therefore not recommended.
Replacing Cartridge Filter: Unsecure latches. Remove
pre-filter bag by disengaging the worm gear clamp. Detach
three (3) retaining springs from cartridge filter cage and
from vacuum lid. Gently remove pre-filter bag and
cartridge filter. Do not shake pre-filter bag or cartridge
filter to avoid releasing and spreading dust and
containments. Also check interior of the cloth pre-filter
bag and empty out dust and debris if necessary.
Fit fresh cartridge filter underneath vacuum lid. Attach
one end of each retaining spring to filter cage and oppo-
site end to ring under vacuum lid. After filter is secured in
place, slide pre-filter bag over cartridge filter and fasten
with worm gear clamp. Place vacuum lid on top of vacuum
drum and re-fasten latches.
PulseAir™Dust Extractors: Designed specifically for
point-of-source dust collection applications or source
capture power tools. Connect vacuum hose via hose
cuff to dust port outlet on the power tool. Additional
hose cuff sizes are available to provide proper
dust port connectivity.
3

4
WARRANTIES
HHHHHHHHHHHHHHHHHHHH
GUARDAIR PULSEAIR VACUUMS OFFER A ONE-YEAR LIMITED WARRANTY
GUARDAIR PULSEAIR DUST EXTRACTORS OFFER A ONE-YEAR LIMITED WARRANTY
GUARDAIR ATEX CERTIFIED VACUUMS OFFER A TWO-YEAR LIMITED WARRANTY
GUARDAIR STANDARD VACUUMS OFFER A FOREVER WARRANTY
GUARDAIR NED VACUUMS OFFER A FOREVER WARRANTY
HHHHHHHHHHHHHHHHHHHH
LIMITED WARRANTY:
Guardair Corporation (“Guardair”) warrants that, under normal use, our
products are free from defects in materials or workmanship for a period
of one year from date of shipment. During the warranty period, Guardair
will, at our discretion and at no extra cost, repair or replace defective
products or parts, or refund the purchase price. This Limited Warranty
extends only to products that are purchased either directly from Guardair
or from an authorized Guardair Distributor. Furthermore, the Limited
Warranty extends only to products which are used for their intended
purpose. This Limited Warranty does not extend to any product which
has been misused, or that has been damaged from accident or mistreatment,
from the use of parts not supplied by Guardair, or from modification or
servicing of the product by anyone other than Guardair or its
authorized Distributor.
The purchaser may have certain statutory rights, as a consumer, or
otherwise, to which the exclusions set forth in this Limited Warranty do
not apply.
FOREVER WARRANTY:
Guardair Corporation (“Guardair”) warrants its compressed air-powered
vacuums are free from defects in materials and workmanship for as
long as the original end-user purchaser owns the product, except as
provided below. Guardair will, at its option, repair or replace with a
comparable product, any product, part, or component that fails under
normal use as a result of such defect. This warranty does not apply
to damage caused by the carrier; normal wear and tear; deterioration
due to solvents, corrosives, environmental conditions, or harsh vacu-
umed material; soiling, saturation, or perforation of filters or exhaust
silencers; consumable components; modifications to the product;
attachments to the product not sold by Guardair; or any product not
installed, used, or maintained in accordance with the foregoing and
other published Guardair instructions and warnings.
Consumables purchased from Guardair including attachments, vacuum
hose, filters, exhaust silencers, and cover gaskets are warrantied for
a period of 90 days against defects in materials and workmanship,
subject to the same exclusions noted above.
This warranty covers the original purchase of a new product by an
end-user for normal industrial or commercial use only when installed
and used as specified and in accordance with published operating
instructions and within all applicable regulatory rules, limits,
and guidelines.
Guardair’s sole obligation and the end-user purchaser’s exclusive
remedy under this warranty shall be limited to the repair or replace-
ment, at the sole discretion of Guardair, of product or components. In
no event shall Guardair be responsible for special, consequential, or
incidental damages arising out of a claim for a defective product or
failure of warranty. All labor and material costs of repair or replace-
ment under this warranty shall be the responsibility of Guardair.
Shipping costs to and from the purchaser associated with repair or
replacement under this warranty shall be the responsibility of Guardair
for a period of one year from the date of sale, and shall be the
responsibility of the purchaser thereafter.
This warranty applies to purchasers within and products used within
the United States and Canada only.
To obtain service under this warranty, within 30 days of the discovery
of the defect, the end-user purchaser must contact the dealer or
distributor from whom the product was purchased, or contact
Guardair at the address shown below. The purchaser must provide a
reasonable opportunity for inspection and investigation of the claim,
prior to any repairs or alteration to the product. Until the claim is
resolved, the purchaser must discontinue use of the product if
continued use creates or exacerbates problems associated with, or
incidental to, the defect.
Proof of purchase will be verified by the selling party and applicability
of the warranty will be determined by Guardair. Guardair will deter-
mine whether to provide replacement parts, provide repair service, or
replace the product. Written approval from Guardair must be obtained
before any warranty work is performed. Any repairs performed by
persons other than Guardair or its authorized dealers or distributors
will void this warranty.
THE FOREGOING LIMITED WARRANTY OF GUARDAIR CORPORATION IS IN LIEU
OF ALL OTHER WARRANTIES OF GUARDAIR CORPORATION, EXPRESSED OR
IMPLIED, WITH RESPECT TO THE PRODUCT, INCLUDING WITHOUT LIMITATION
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR| PURPOSE.
GUARDAIR CORPORATION EXPRESSLY DISCLAIMS ALL WARRANTIES NOT
STATED IN THIS LIMITED WARRANTY. IN NO EVENT SHALL GUARDAIR
CORPORATION BE LIABLE FOR ANY INDIRECT, SPECIAL OR CONSEQUENTIAL
DAMAGES IN CONNECTION WITH THIS PRODUCT.
THIS WARRANTY IS THE ONLY WARRANTY MADE BY GUARDAIR FOR THIS
PRODUCT, AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE DISCLAIMED.

5
DO NOT RETURN THIS PRODUCT
TO PLACE OF PURCHASE!
For problems pertaining to the operation of this vacuum unit,
contact Guardair Corporation Customer Service at [phone].
Should this vacuum need to be returned to the factory, and if a return has been
pre-authorized by Guardair, the unit MUST in original condition. Returns will not
be accepted unless received in the original packaging and accompanied by the
original accessories. If the vacuum has been used, the unit MUST be emptied
and cleaned before shipping. In addition, a Material Safety Data Sheet (MSDS)
for all materials previously vacuumed by the unit MUST be supplied to
Guardair at the time of shipment.

6

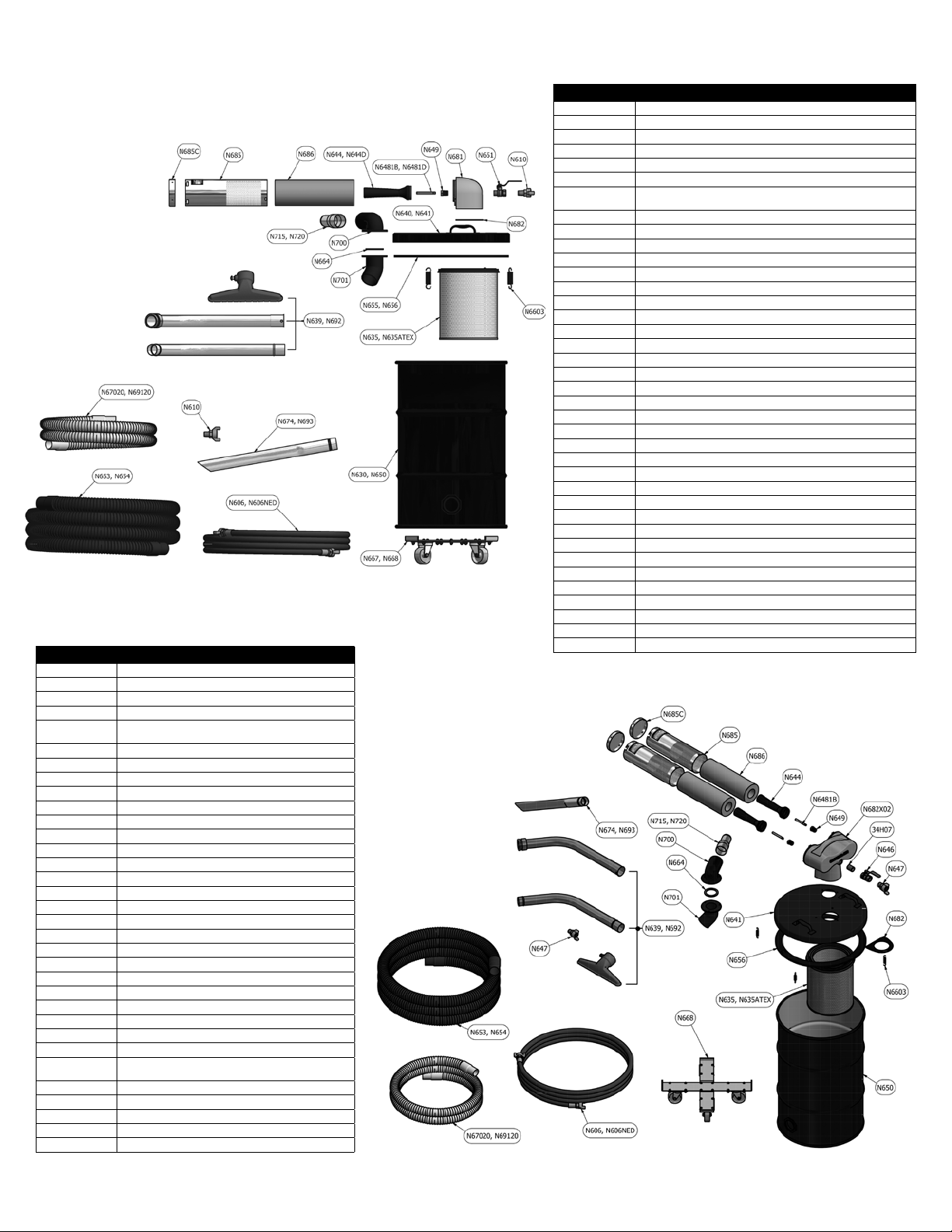

PARTS LISTS
55 AND 30 GALLON SINGLE VENTURI VACUUM KIT
55 AND 30 GALLON DUAL VENTURI VACUUM KIT
Part Number Description
N606 3/4" ID X 20' Air Supply Hose
N606NED 3/4" ID X 20' Static Conductive Air Supply Hose
N610 1/2" NPT Chicago Coupler
N630 30 Gallon Steel Drum
N635 Standard Cartridge Filter For 30/55 Gallon Vacuums
N635ATEX ATEX Bonded Cartridge Filter
N639 12" Wide Aluminum Floor Tool With 4' Steel Double Curved Wand
For 2" Vacuum Hose
N640 Lid For 30 Gallon Drum
N641 Lid For 55 Gallon Drum
N644 B Series Venturi
N644D D & S Series Venturi
N6481B B Series Orifice
N6481D D Series Orifice
N649 1/2" X 1/8" NPT Brass Hex Reducing Bushing For Air Jet
N650 55 Gallon Steel Drum
N651 Brass Shut-Off Valve for Single Venturi Models
N653 1 1/2" X 20' Static Conductive Vacuum Hose
N654 2" X 20' Static Conductive Vacuum Hose
N655 30 Gallon Vacuum Lid Gasket
N656 55 Gallon Vacuum Lid Gasket
N6603 Retaining Spring (Set of 3)
N664 Elbow Gasket
N667 30 Gallon Dolly Assembly
N668 55 Gallon Dolly Assembly
N67020 2" X 20' Standard Duty Vinyl Vacuum Hose
N674 24" Steel Crevice Tool For 2" Vacuum Hose
N681 Venturi Box
N682 Venturi Box Gasket
N685 Exhaust Housing-Long
N685C Exhaust Housing End Cap
N686 Exhaust Silencer Foam Insert
N69120 1 1/2" X 20' Standard Duty Vinyl Vacuum Hose
N692 12" Wide Aluminum Wet/Dry Floor Tool Kit For 1 1/2" Vacuum Hose
N693 24" Aluminum Crevice Tool For 1 1/2" Vacuum Hose
N700 Inlet Elbow For 30/55 Gallon Vacuums
N701 Discharge Elbow For 30/55 Gallon Vacuums
N715 1 1/2" Vacuum Hose Adapter
N720 2" Vacuum Hose Adapter
Part Number Description
N606 3/4" ID X 25’ Air Supply Hose
N606NED 3/4" ID X 25’ Static Conductive Air Supply Hose
N635 Standard Cartridge Filter For 30/55 Gallon Vacuums
N635ATEX ATEX Bonded Cartridge Filter
N639 12" Wide Aluminum Floor Tool With 4’ Steel Double
Curved Wand For 2” Vacuum Hose
N641 Lid For 55 Gallon Drum
N644 B Series Venturi
N646 Brass Shut-Off Valve For Dual Venturi Models
N647 3/4" NPT Chicago Coupler
N6481B B Series Orifice
N649 1/2" X 1/8" NPT Brass Hex Reducing Bushing For Air Jet
N650 55 Gallon Steel Drum
N653 1 1/2" X 20’ Static Conductive Vacuum Hose
N654 2" X 20’ Static Conductive Vacuum Hose
N656 55 Gallon Vacuum Lid Gasket
N6603 Retaining Spring (Set of 3)
N664 Elbow Gasket
N668 55 Gallon Dolly Assembly
N67020 2" X 20' Standard Duty Vinyl Vacuum Hose
N674 24” Steel Crevice Tool For 2” Vacuum Hose
34H07 Nipple, 3/4" NPT Fully Threaded, Schedule 40, Steel
N682X02 Dual Head Venturi Box
N682 Venturi Box Gasket
N685 Exhaust Housing-Long
N685C Exhaust Housing End Cap
N686 Exhaust Silencer Foam Insert
N69120 1 1/2" X 20’ Standard Duty Vinyl Vacuum Hose
N692 12" Wide Aluminum Wet/Dry Floor Tool Kit For 1 1/2"
Vacuum Hose
N693 24" Aluminum Crevice Tool For 1 1/2" Vacuum Hose
N700 Inlet Elbow For 30/55 Gallon Vacuums
N701 Discharge Elbow For 30/55 Gallon Vacuums
N715 1 1/2" Vacuum Hose Adapter
N720 2" Vacuum Hose Adapter
*Not included in PulseAir Dust Extractor Kits
*Not included in PulseAir Dust Extractor Kits
*
*
*
*
*

7

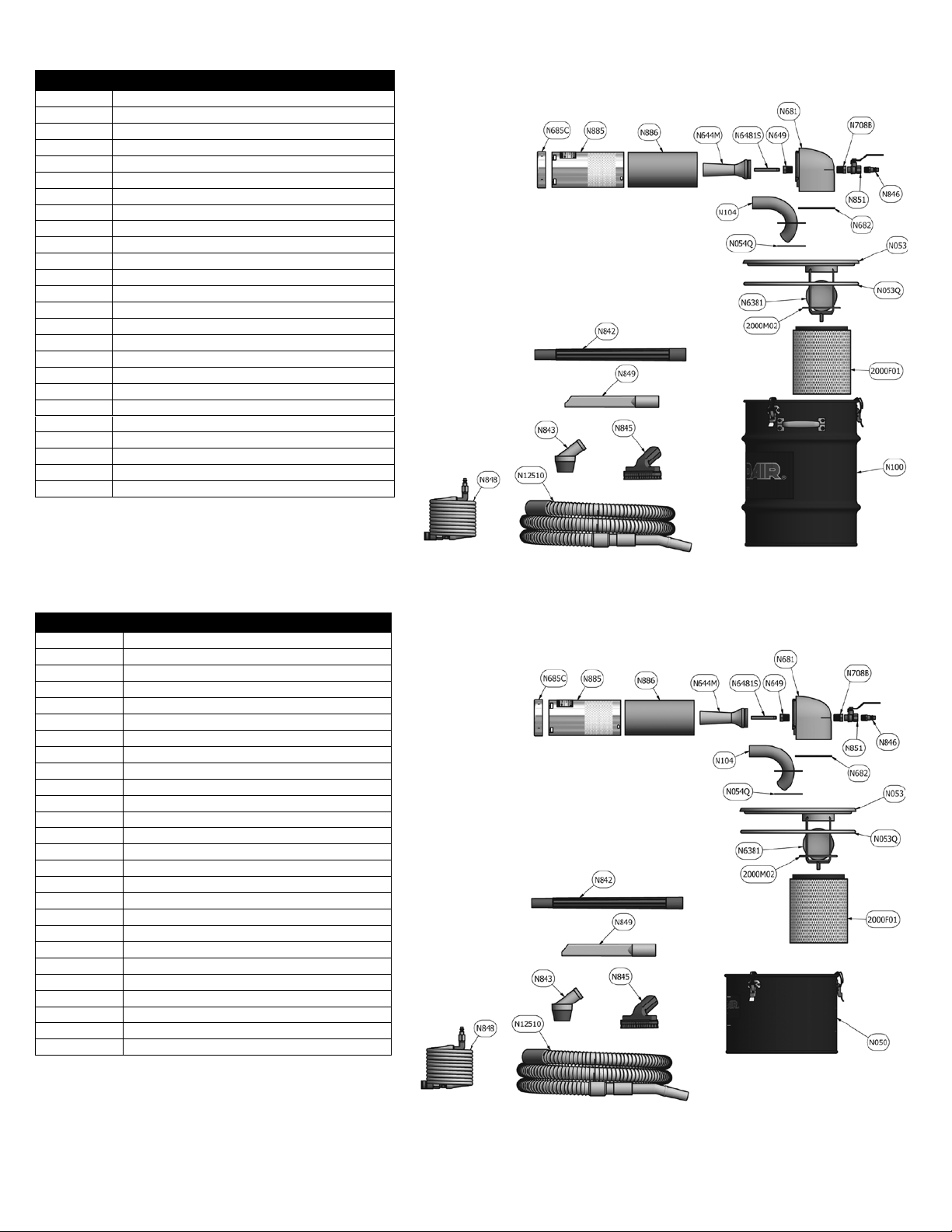

20 GALLON VACUUM KIT
10 GALLON VACUUM KIT (N101DC AND N101SC MODELS)
N607, N607NED
N693
N69120
N653
N692
N606, N606NED
N685C N685 N686 N644D N681 N651
N610
N6182
N682
N640
N655
N635, N635ATEX
N200
N715
N700
N701
N664
N6481D, N6481S
N649
N204
N6603
N606
N69120
N693S
N607
N692
N685C N685 N686 N644D
N6481D, N6481S
N649
N681
N651
N610
N6182
N682
N104
N054Q
N053
N053Q
N6381
2000M02
2000F01
N100
Part Number Description
N200 20 Gallon Drum
N204 20 Gallon Dolly
N606 3/4" ID X 20' Air Supply Hose
N606NED 3/4" ID X 20' Static Conductive Air Supply Hose
N607 1/2" ID X 20' Air Supply Hose
N607NED 1/2" ID X 20' Static Conductive Air Supply Hose
N610 1/2" NPT Chicago Coupler
N6182 1/2" NPT - 1/2" Male Us Industrial Interchange Coupler
N635 Standard Cartridge Filter
N635ATEX ATEX Bonded Cartridge Filter
N640 20 Gallon Lid
N644D D & S Series Venturi
N6481D D Series Orifice
N6481S S Series Orifice
N649 1/2" X 1/8" NPT Brass Hex Reducing Bushing for Air Jet
N651 Brass Shut-Off Valve for Single Venturi Models
N653 1 1/2" X 20' Static Conductive Vacuum Hose
N655 30 Gallon Lid Gasket
N6603 Retaining Spring (Set of 3)
N664 Elbow Gasket
N681 Venturi Box
N682 Venturi Box Gasket
N685 Exhaust Housing-Long
N685C Exhaust Housing End Cap
N686 Exhaust Silencer Foam Insert
N69120 1 1/2" X 20' Standard Duty Vinyl Vacuum Hose
N692 12" Wide Aluminum Wet/Dry Floor Tool Kit For 1 1/2" Vacuum Hose
N693 24" Aluminum Crevice Tool For 1 1/2" Vacuum Hose
N700 Inlet Elbow
N701 Discharge Elbow
N715 1 1/2" Vacuum Hose Adapter
Part Number Description
2000F01 Filter
2000M02 Liquid Shut Off Cage
N053 5 and 10 Gallon Lid
N053Q Vacuum Inlet Gasket
N054Q 5 and 10 Gallon Lid Gasket
N100 10 Gallon Canister With Lid Clamps and Handles
N104 1 1/2" Vacuum Inlet
N606 3/4" ID X 20’ Air Supply Hose
N607 1/2" ID X 20’ Air Supply Hose
N610 1/2" NPT Chicago Coupler
N6182 1/2" NPT X 1/2" Male US Industrial Interchange Coupler
N6381 Liquid Shut Off Ball
N644D D and S Series Venturi
N6481D D Series Orifice
N6481S S Series Orifice
N649 1/2" X 1/8" NPT Brass Hex Reducing Bushing For Air Jet
N651 Brass Shut-Off Valve for Single Venturi Models
N681 Venturi Box
N682 Venturi Box Gasket
N685 Exhaust Housing-Long
N685C Exhaust Housing End Cap
N686 Exhaust Silencer Foam Insert
N69120 1 1/2" X 20’ Standard Duty Vinyl Vacuum Hose
N692 12" Wide Aluminum Wet/Dry Floor Tool Kit For 1.5”
Vacuum Hose
N693S 11" Aluminum Crevice Tool For 1 1/2” Vacuum Hose

8
10 GALLON VACUUM KIT (N101MC MODEL)
5 GALLON VACUUM KIT
Part Number Description
2000F01 Filter
2000M02 Liquid Shut Off Cage
N053 5 and 10 Gallon Lid
N053Q Vacuum Inlet Gasket
N054Q 5 and 10 Gallon Lid Gasket
N100 10 Gallon Canister With Lid Clamps and Handles
N104 1 1/2" Vacuum Inlet
N12510 1 1/4" X 10’ Standard Duty Vacuum Hose
N6381 Liquid Shut Off Ball
N644M M Series Venturi
N6481S S Series Orifice
N649 1/2" X 1/8" NPT Brass HEX Reducing Bushing For Air Jet
N681 Venturi Box
N682 Venturi Box Gasket
N685C Exhaust Housing End Cap
N708B 1/2" Male NPT X 3/8" FNPT Threaded Bushing
N842 20" Plastic Extension For 1 1/4" Vacuum Hose
N843 3" Plastic Round Brush Tool For 1 1/4" Vac Hose
N845 5" Wide Plastic Utility Tool With Brush For 1 1/4" Vacuum Hose
N846 3/8" ID Air Line Coupling
N848 3/8" ID X 12’ Air Supply Hose
N849 9" Plastic Crevice Tool For 1 1/4” Vacuum Hose
N851 3/8" Male NPT Shut-Off Valve
N885 Exhaust Housing - Short
N886 Exhaust Silencer Foam Insert
Part Number Description
2000F01 Filter
2000M02 Liquid Shut Off Cage
N050 5 Gallon Canister With Lid Clamps
N053 5 and 10 Gallon Lid
N053Q Vacuum Inlet Gasket
N054Q 5 and 10 Gallon Lid Gasket
N104 1 1/2" Vacuum Inlet
N12510 1 1/4" X 10' Standard Duty Vacuum Hose
N6381 Liquid Shut Off Ball
N644M M Series Venturi
N6481S S Series Orifice
N649 1/2" X 1/8" NPT Brass HEX Reducing Bushing For Air Jet
N681 Venturi Box
N682 Venturi Box Gasket
N685C Exhaust Housing End Cap
N708B 1/2" Male NPT X 3/8" FNPT Threaded Bushing
N831 Handle With Grip For 4 Gallon Vacuum Units
N842 20" Plastic Extension For 1 1/4" Vacuum Hose
N843 3" Plastic Round Brush Tool For 1 1/4" Vac Hose
N845 5" Wide Plastic Utility Tool With Brush For 1 1/4" Vacuum Hose
N846 3/8" ID Air Line Coupling
N848 3/8" ID X 12' Air Supply Hose
N849 9" Plastic Crevice Tool For 1 1/4" Vacuum Hose
N851 3/8" Male NPT Shut-Off Valve
N885 Exhaust Housing - Short
N886 Exhaust Silencer Foam Insert

9
SINGLE VENTURI VACUUM GENERATING HEAD
DUAL VENTURI VACUUM GENERATING HEAD
Part Number Description
N610 1/2" NPT Chicago Coupler
N6182 1/2" NPT X 1/2” Male US Industrial Inter-
change Coupler
N6273 Venturi Box Mounting Hardware (Set)
N644 B Series Venturi
N644D D Series Venturi
N644M M Series Venturi
N6481B B Series Orifice
N6481D D Series Orifice
N6481S S Series Orifice
N649 1/2” X 1/8” NPT Brass HEX Reducing Bushing
For Air Jet
N651 1/2" NPT Ball Valve, Brass For Compressed
Air Shut-Off
N681 Venturi Box
N682 Venturi Box Gasket
N685 Exhaust Housing-Long
N685C Exhaust Housing End Cap
N686 Exhaust Silencer Foam Insert
N885 Exhaust Housing - Short
N886 Exhaust Silencer Foam Insert
Part Number Description
N644 B Series Venturi
N646 Brass Shut-Off Valve For Dual Venturi Models
N647 3/4" NPT Chicago Coupler
N6481B B Series Orifice
N649 1/2" X 1/8” NPT Brass HEX Reducing Bushing
For Air Jet
34H07 Nipple, 3/4" NPT Fully Threaded, Schedule
40, Steel
N682X02 Dual Head Venturi Box
N682 Venturi Box Gasket
N685 Exhaust Housing-Long
N685C Exhaust Housing End Cap
N686 Exhaust Silencer Foam Insert
N6271 Dual Venturi Box Mounting Lock Washers
N627 Dual Venturi Box Mounting Bolts

10

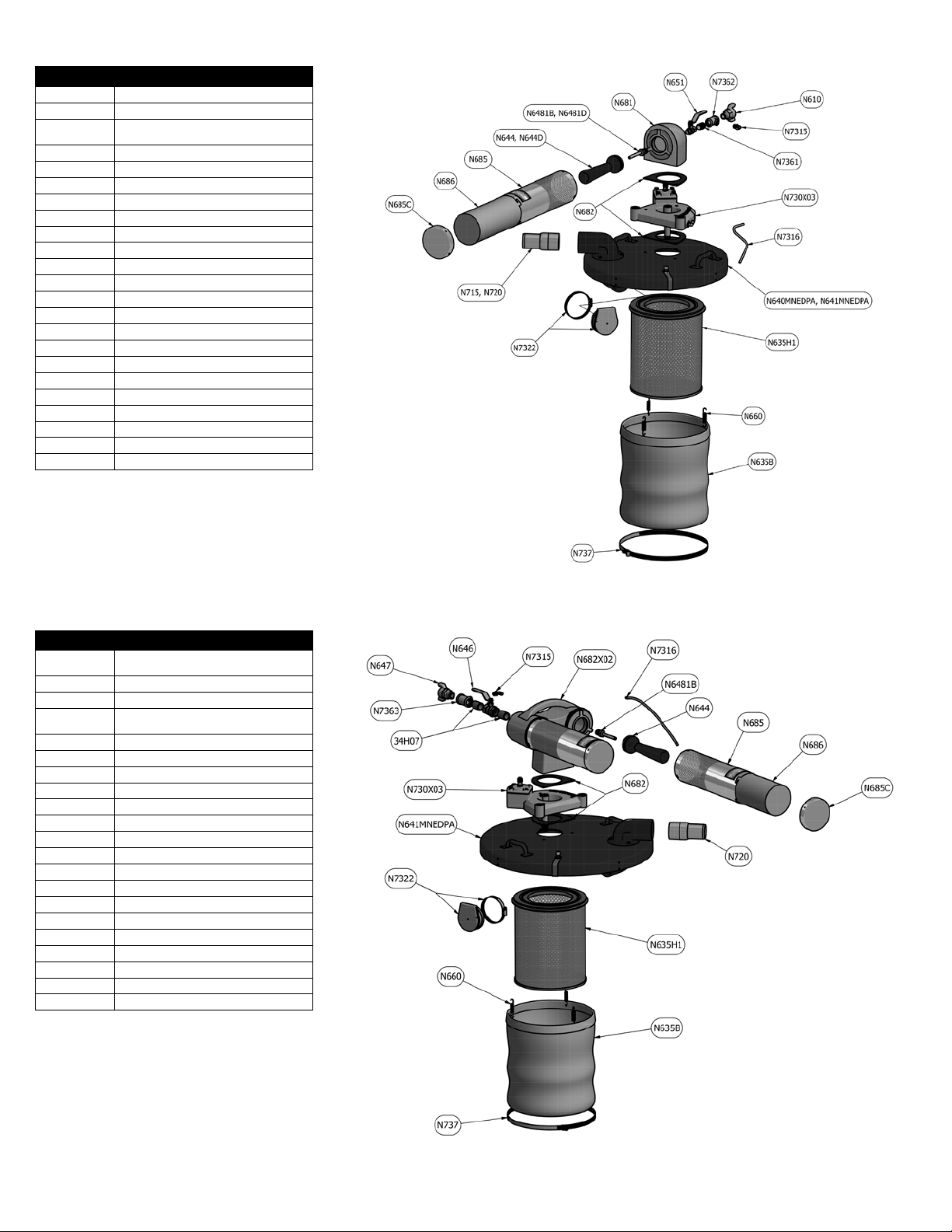

SINGLE VENTURI VACUUM GENERATING HEAD WITH PULSEAIR™ UNIT
DUAL VENTURI VACUUM GENERATING HEAD WITH PULSEAIR™ UNIT
Part Number Description
34H07 Nipple, 3/4” NPT Fully Threaded,
Schedule 40, Steel
N635B Pre-Filter Bag
N635H1 HEPA Cartridge Filter
N640MNEDPA,
N641MNEDPA
Lid for PulseAir 30/55 Gallon Drum
N644 B Series Venturi
N647 3/4” NPT Chicago Coupler
N646 Brass Shut-Off Valve For Dual Venturi Models
N648 B Orifice
N660 Retaining Springs
N682 Venturi Box Gasket
N682X02 Dual Head Venturi Box
N685 Exhaust Housing
N685C Exhaust Housing End Cap
N686 Exhaust Silencer Foam Insert
N720 2" Vacuum Hose Adapter
N730X03M PulseAir Manifold
N7315 Elbow
N7316 Tubing
N7322 Check Valve w/Exhaust Cover
N7363 3/4" x 1/4" NPT Reducer
N737 Filter Bag Clamp
Part Number Description
N635B Pre-Filter Bag
N635H1 HEPA Cartridge Filter
N640MNEDPA,
N641MNEDPA
Lid for PulseAir 30/55 Gallon Drum
N644 B Series Venturi
N644D D Series Venturi
N610 1/2 NPT Chicago Coupler
N6481B B Series Orifice
N6481D D Series Orifice
N651 Brass Shut-Off Valve for Single Venturi Models
N660 Retaining Springs
N681 Venturi Box
N682 Venturi Box Gasket
N685 Exhaust Housing - Long
N685C Exhaust Housing End Cap
N686 Exhaust Silencer Foam Insert
N715 1 1/2" Vacuum Hose Adapter - 20 Gallon
N720 2" Vacuum Hose Adapter - 30/55 Gallon
N730X03M PulseAir Manifold
N7315 Elbow
N7316 Tubing
N7322 Check Valve w/Exhaust Cover
N7363 3/4" x 1/4" NPT Reducer
N737 Filter Bag Clamp

11
NOTES:
WARNING
FIRE/EXPLOSION DANGER
Guardair vacuums, like all other electric and pneumatic vacuums, generate static electric charges. Factory installed kits to control
static electricity, the use of static conductive hoses and grounding straps, and Guardair Static Conductive Pneumatic Vacuums are intended
to control and eliminate static electric shocks only to the operators of the vacuums. Guardair vacuums are NOT APPROVED OR SAFE
to use in any hazardous (classified) location, such as locations determined under NFPA 70 (National Electrical Code) to be Class I
(flammable liquids, gases and vapors – includes all Class I Divisions and IEC Zones), Class II (combustible dust – includes all
Class II Divisions and IEC Zones) and Class III (ignitable fibers and flyings – includes all Class III Divisions and IEC Zones).

47 Veterans Drive • Chicopee, MA 01022-1062
Toll-Free: 800-482-7324 | Local: 413-594-4400 | Fax: [phone]
Email: [e-mail] • guardair.com
N600A01-4
09.22.22
